1
Q

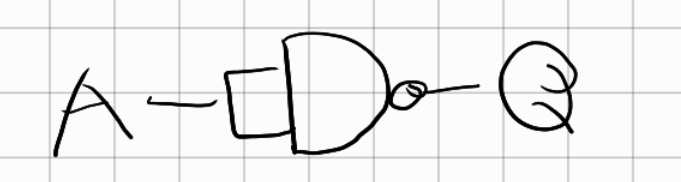

Build a NOT gate with NAND construction
A
2
Q

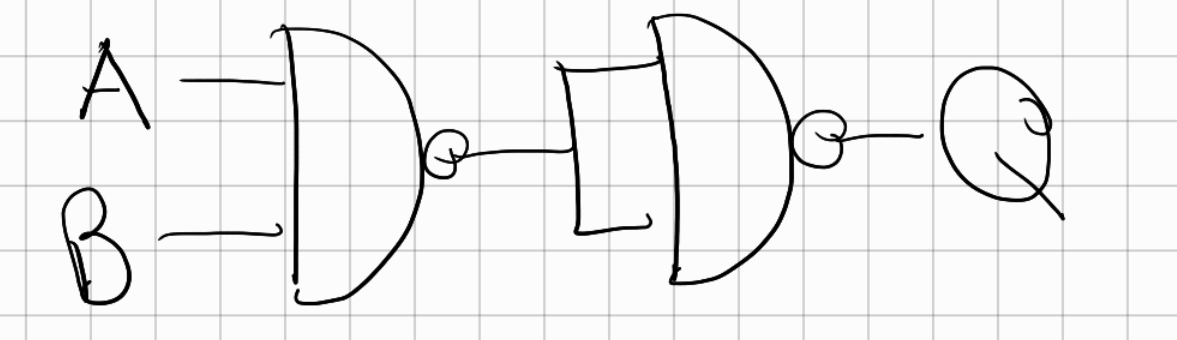

Construct an AND gate with NAND gates only
A
3
Q

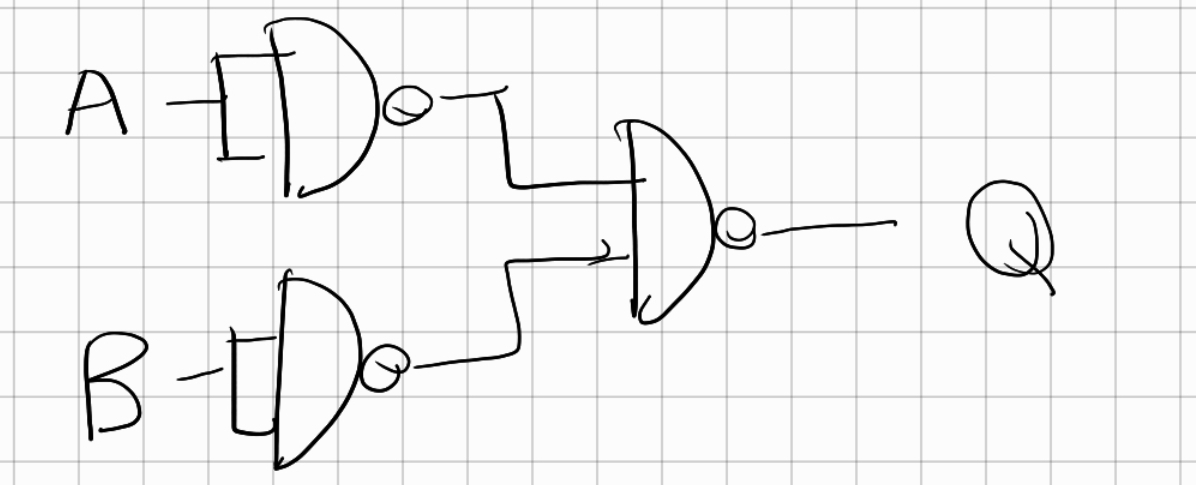

Construct an OR gate with NAND gates only
A
4
Q

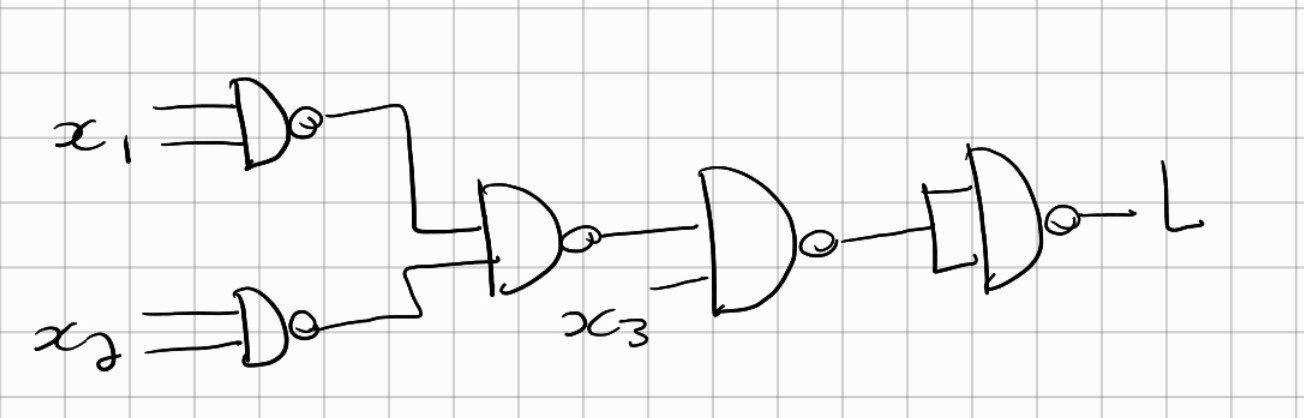

Construct a circuit using only NAND gates that implements the expression L(x1, x2, x3) = (x1 + x2) x3
A
5
Q

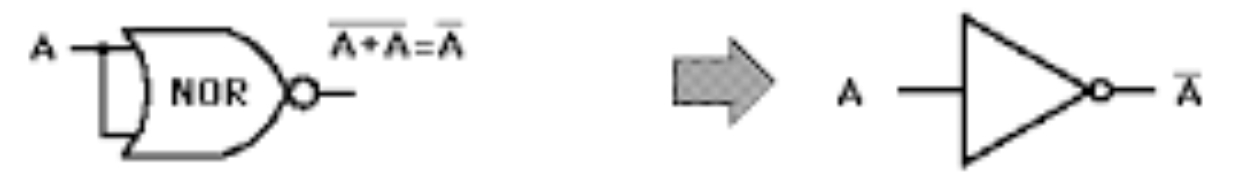

Construct a NOT gate using only NOR
A
6
Q

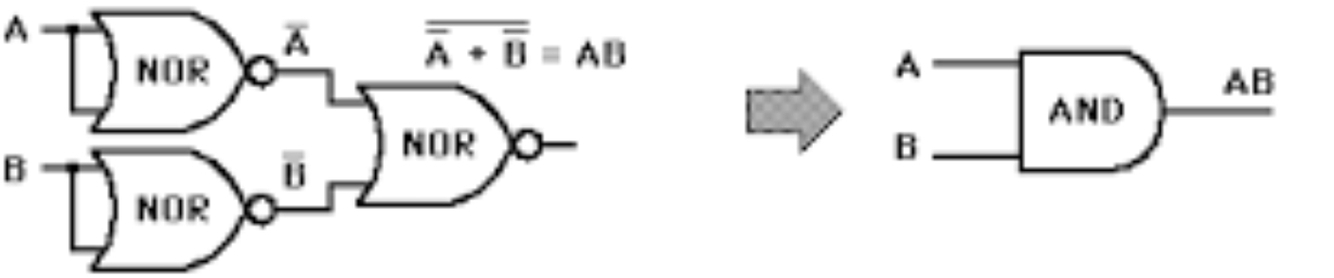

Construct an AND gate using only NOR
A
7
Q

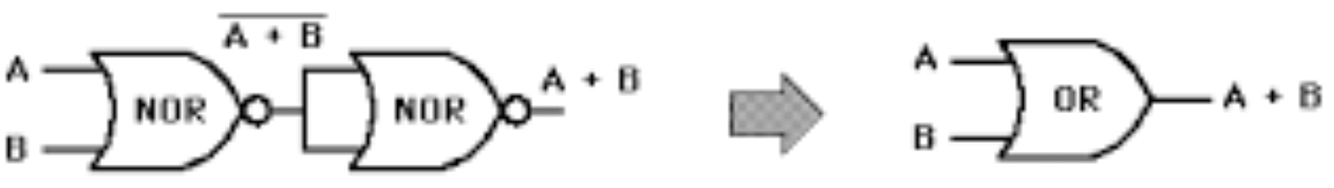

Construct an OR gate using only NOR
A
