Real Logic and Interfacing Flashcards by Unknown Unknown

Q

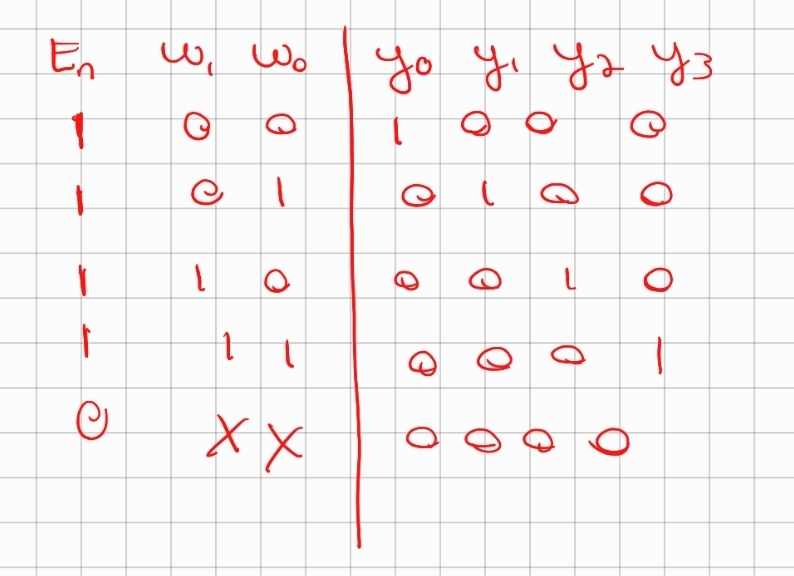

Write the truth table for a 2:4 decoder

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

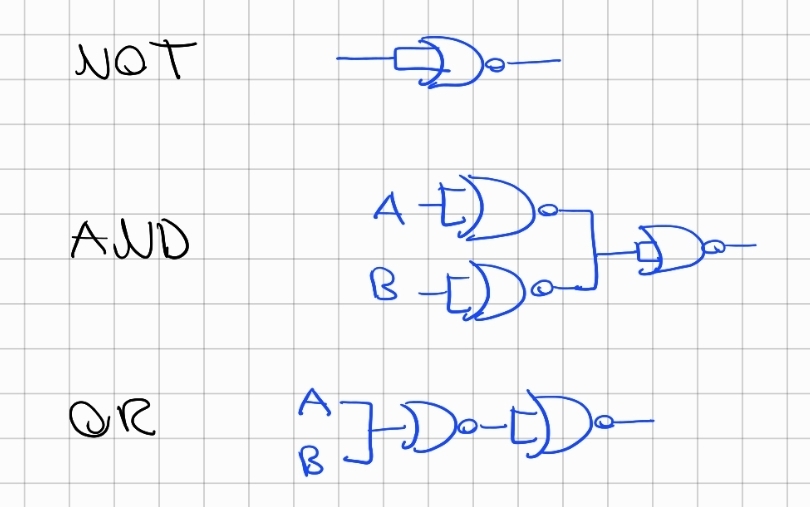

Construct with only NOR gates:
NOT
AND
OR

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

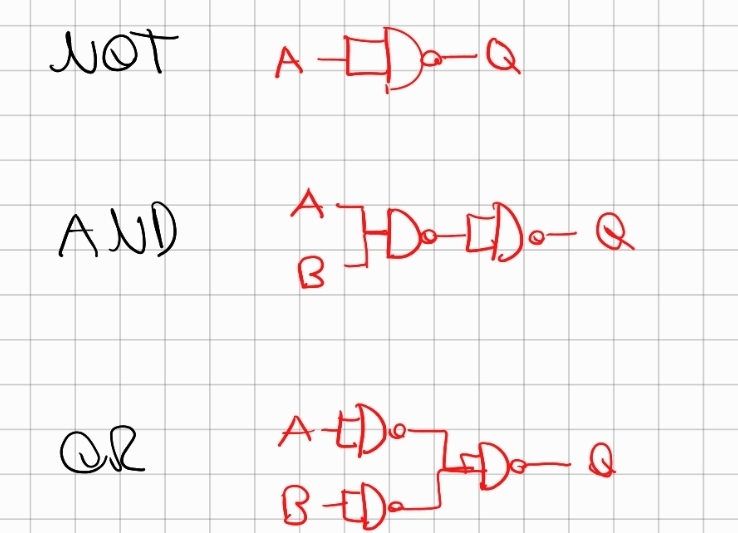

Construct with only NAND gates:
NOT
AND
OR

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

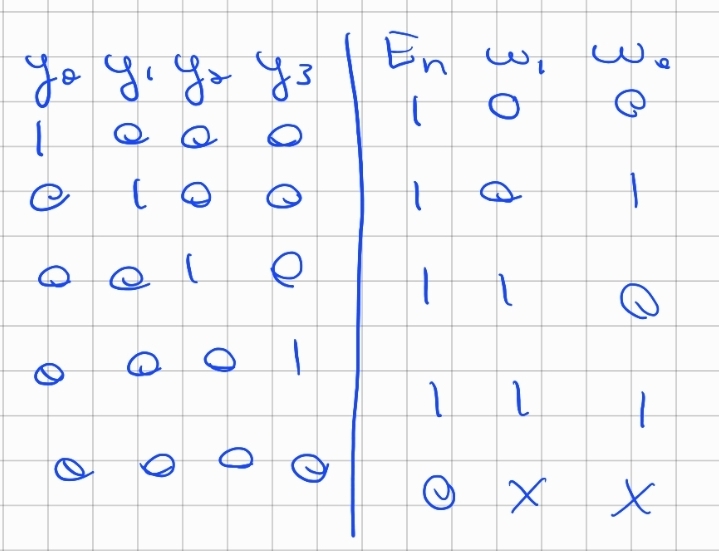

Write the truth table for a 4:2 Encoder

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

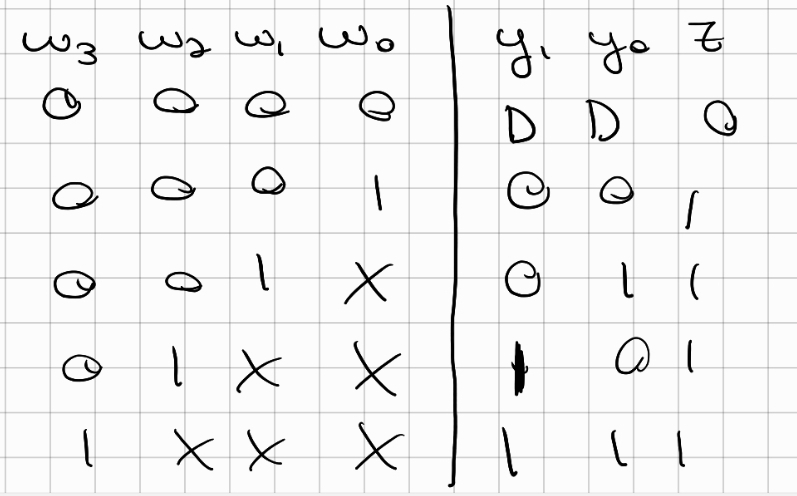

Write a truth table for a Priority Encoder

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

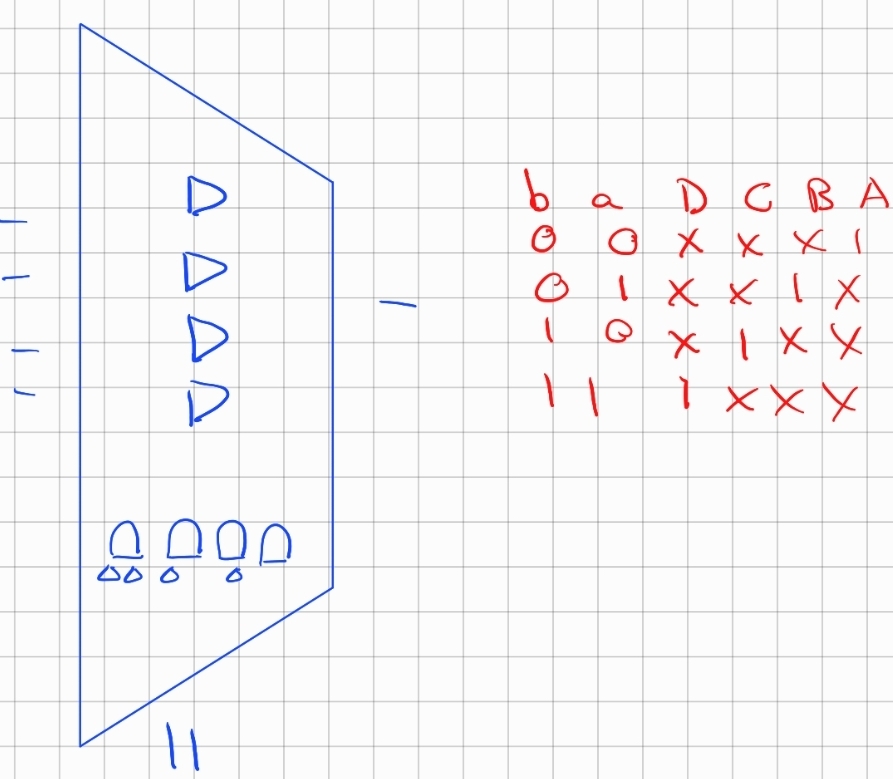

Draw a MUX and write truth table

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly
