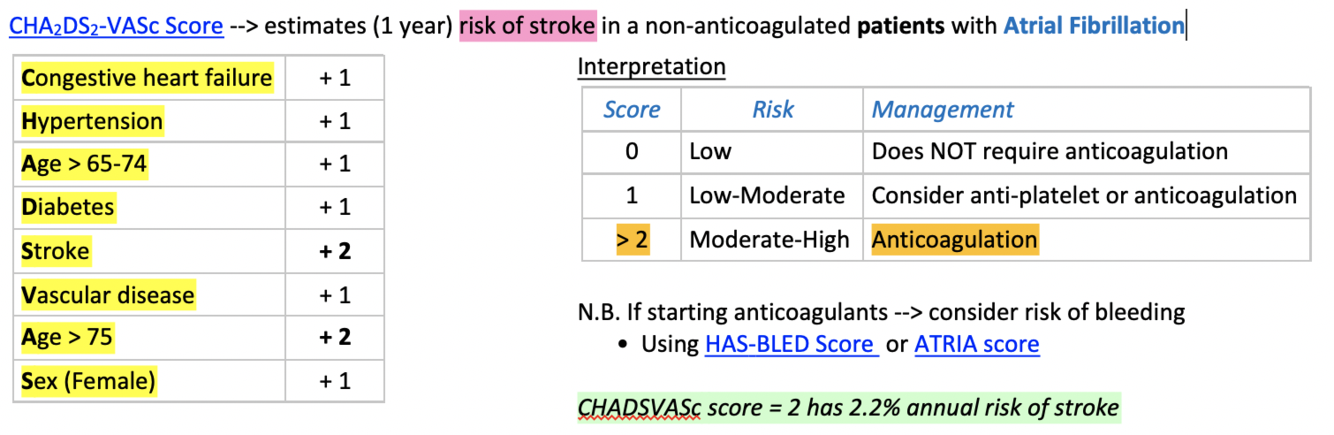

CHADSVASc Score

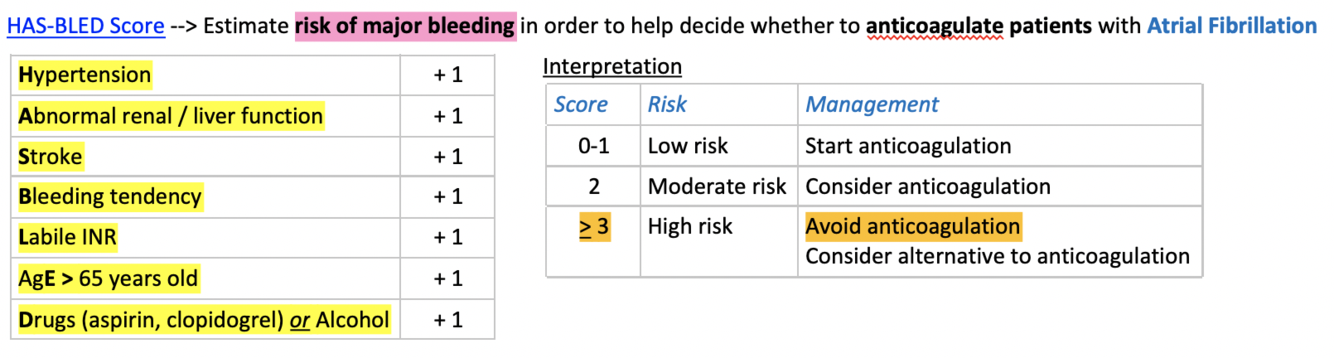

HASBLED Score

Tx for undifferentiated SVT
IV Adenosine
Slows the HR to see the underlying cause
Brings heart back to sinus rhythm
Warn patient it’ll feel like they are about to die
Causes of AF
PIRATES
+ Valvular heart disease (esp Mitral)
ECG signs of AF
Absent P waves
Fibrillatory waves
Irregularly irregular rhythm

Tx of AF
Onset < 48 hours
Onset > 48 hours
If paroxysmal –> Pill in pocket (Flecainide PRN)
If refractory to cardioversion

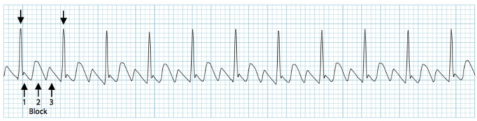

ECG signs of Atrial flutter
Narrow complex tachycardia
Fixed AV block (150bpm, 100bpm, 75bpm) or Variable
Saw-tooth pattern (flutter waves)

Tx of Atrial Flutter
If diagnostic uncertainty –> Carotid massage or IV Adenosine
Treat underlying cause
Rate control (B blockers, CCB, Amiodarone)
Anticoagulation
Rhythm control (TOE + Cardioversion)
Tx of WPW
If unstable –> Cardioversion
If stable

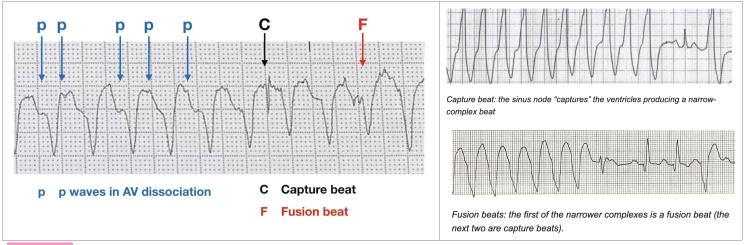

ECG features of VT
Broad QRS + tachycardia
Capture beats (pathognomonic)
Fusion beats

Tx of VT
Unstable
Stable
If Torsades de Points –> Magnesium sulphate
Tx of sinus bradycardia
Atropine

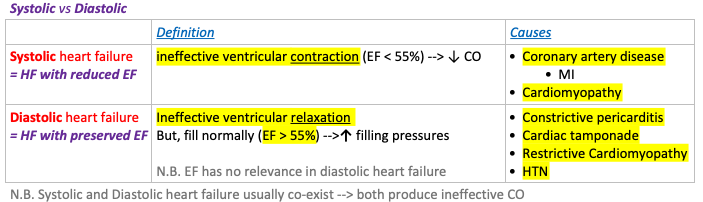

Systolic vs Diastolic HF

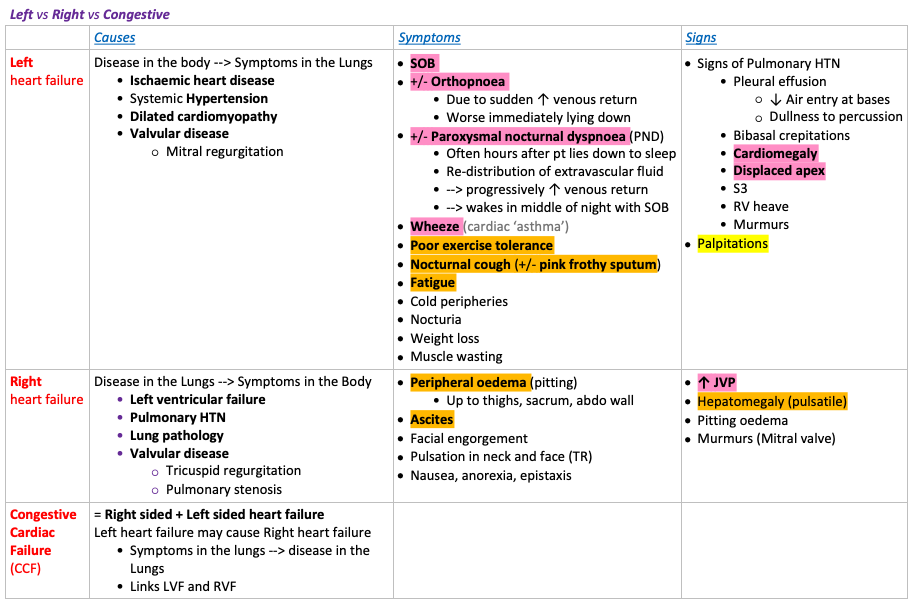

L vs R heart failure vs CCF

New York Heart Association (NYHA) Classification
NYHA 1 : disease present, no limitation
NYHA 2 : slight limitation, improves with rest
NYHA 3 : marked limitation on exertion, improves with rest
NYHA 4 : SOB at rest
Ix for heart failiure
Screening –> BNP (sensitive but not specific)
If high BNP or abnormal ECG or Hx of MI –> Doppler Echo (diagnostic)
Tx for acute pulmonary oedema
FOGDC
IV Furosemide
+/- Oxygen
+/- IV Diamorphine
+/- IV GTN
+/- CPAP
+/- Intubation + Ventilation
Tx of heart failure
ALL HF
If EF < 55% (systolic heart failure) ==> ABCD HI DICD
Recurrent chest infections
Ejection systolic murmur (LUSE)
Fixed, widely split S2
Diagnosis?
ASD
Hypertension in R arm
ESM
Radio-femoral delay
Diagnosis
Coarction of the Aorta
HOCM
Cause
Sx
Ix
Tx
Cx
HOCM
Autosomal dominant
Sx
Ix
Tx
Cx
Diliated cardiomyopathy
Causes
Sx
Ix
Tx
Cx
Dilated cardiomyopathy
Types of heart block
1st degree: fixed prolonged PR
2nd degree (Mobitz 1): progressively prolonged PR , then drop beats
2nd degree (Mobitz 2): fixed PR with drop beats
3rd degree: P-QRS dissociation
Tx for heart block
1st degree and 2nd degree (Type 1)
2nd degree (Type 2) and 3rd degree
