Chapter 4: Distributed Systems in Context

Question 1

Why does DNS work?

Answer 1

• Hierarchical, federated system

  • Delegation of requests
• Distributed world-wide
• Caching at multiple levels

  • Trusting cached result through signatures
• Based on UDP

Question 2

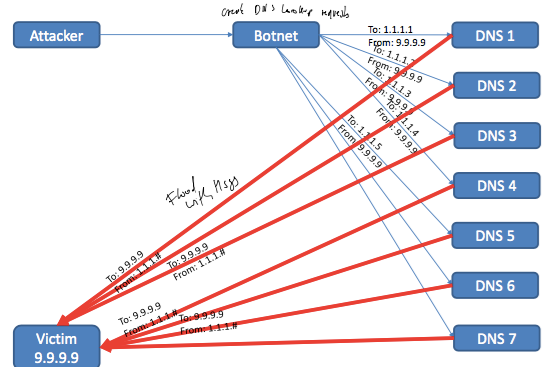

DNS Attacks? How to mitigate?

Answer 2

• Type of denial-of-service attack

  • Attackers use EDNS0, an extension of the DNS protocol
  • http://www.rfc-editor.org/rfc/rfc2671.txt
• In certain cases a 36 byte long requests can trigger a 3000 bytes long reply => amplification of ~100x
• Last attack March 19, 2013 Spamhaus

  • 75Gbps DDOS
  • Mitigated by load balancing requests
  • http://blog.cloudflare.com/the-ddos-that-knocked- spamhaus-offline-and-ho

Mirigation:

• DNSSEC – DNS security extensions
• Resource records digitally signed
• Recursive resolver validates data integrity and origin authentication
• Deployed in 2010, not everywhere available

Question 3

What are key-value stores?

Answer 3

• Container for key-value pairs
• Distributed multi-component systems
• Category of NOSQL-databases (not only SQL)
• Databases that break with philosophy of traditional (relational) DBMS to overcome their idiosyncrasies (weaknesses ?)

Question 4

Key value store compared to DBMS - SQL

Answer 4

DBMS

• Relational data schema
• Normalized data model
• Datatypes
• Relationsbetween tables (e.g., foreign key)
• Row-orientation

KVS

• No data scheme or modifiable data schema
• De-normalizedmodel
• Raw byte access
• No relations
• Column-orientation
• Distributed data

Question 5

Why are key-value stores needed?

Answer 5

• Today’s internet applications

  • Huge amounts of stored data (PB (1015 bytes)+)
  • Huge number of users (e.g., 1.11 billion)
  • Frequent updates
  • Fast retrieval of information
  • Rapidly changing data definitions
• Ever more users, ever more data
• Incremental scalability
  • User growth, traffic patterns
  • Adapt to number of requests & data size
• Flexibility

  • Adapt to changing data definitions
• Reliability

  • Thousands of components at play
  • Provide recovery in presence of failure
• Availability

  • Users are worldwide
  • Guarantee fast access

Question 6

Key-Value store client interface

Answer 6

• Main operations

  • Write/update - put(key, value)
  • Read - get(key)
  • Delete - delete(key)
• Usually no aggregation, no table joins

Question 7

Common features of key-value stores

Answer 7

• Flexible data model
• Horizontal partitioning
• Store big chunks of data as raw bytes
• Fast column-oriented access
• Memory store & write ahead log (WAL)

  • Keep data in memory for fast access ( Bath / Fasw had access)
  • Keep a commit log as ground truth ( Basis )
• Versioning

  • Store different versions of data
• Replication

  • Store multiple copies of data
• Failure detection & failure recovery

Question 8

Common non-features

Answer 8

• Integrity constraints
• Transactional guarantees, i.e., ACID
• Powerful query languages
• Materialized views

Question 9

Bigtable components

Answer 9

• Client library
• Master

  • Metadata operations
  • Load balancing
• Tablet server

  • Data operations (read / write)

Question 10

Master

Answer 10

• Assigns tablets to tablet servers
• Detects addition and expiration of tablet servers
• Balance tablet server load
• Etc.

Question 11

Tablet server

Answer 11

• Manages a set of tablets (up to a thousand)
• Handles read and write requests for the tablets it manages
• Splits tablets that have grown too large

Question 12

Bigtable building blocks

Answer 12

• Chubby

  • Metadata storage
• GFS (Google file system)

  • Data log, storage
  • Repiclation
• Scheduler

  • Monitoring
  • Failover

Question 13

Chubby “& ZooKeeper lock service

Answer 13

• Highly-available, persistent, distributed lock service
• Use in Bigtable

  • Ensure at most one active master at any time
  • Store bootstrap location of data (root tablet)
  • Discover tablet servers (manage their lifetime)
  • Store schema information

Question 14

Representation & use of configuration information with lock service

Answer 14

Managed via directories, small files Directories, files can serve as locks Reads, writes are atomic.

Clients maintain sessions If session lease expires and can’t be renewed, locks are released.

Question 15

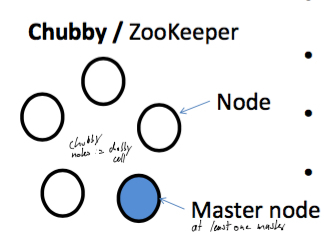

Lock service in context

Answer 15

• Comprised of five active replicas

  • Consistently replicate writes
• One replica is designated as master

  • We need to elect the master (leader)
• Service is life when:

  • majority of replicas are running and
  • can communicate with one another
  • A quorum needs to be established

Question 16

Core mechanisms Big TAble

Answer 16

• Keep replicas consistent in face of failures

  • Paxos algorithm based on replicated state machines
  • Atomic broadcast
• Ensure one active Bigtable master at any time

  • Mutual exclusion, but in a distributed setting
  • Relevant lectures
    – Cf. lect. on Paxos & RSM

– Cf. lect. on coordination – Cf. lect. on replication

Question 17

Chubby example: leader election

Answer 17

• Electing a primary (leader) process: emulate by acquiring an exclusive lock on a file

  • Clients open a lock file and attempt to acquire the lock in write mode
  • One client succeeds (i.e., becomes the leader) and writes its name to the file } Successor
  • Other clients fail (i.e., become replicas) and discover the name of the leader by reading the file
  • Primary obtains sequencer and passes it to servers (servers know that primary is still valid)

Question 18

HBase architecture overview

Answer 18

• Client

  • Issues put, get, delete operations
• Zookeeper (Chubby)

  • Distributed lock service for HBase components
• HRegion (tablet)

  • Tables are split into multiple key-regions
• HRegionServer (tablet server)

  • Stores actual data
  • Can host multiple key-regions (tablets)
  • Answers client requests
• HMaster (master)

  • Coordinates components

    • Startup, shutdown, failure of region servers
    • Opens, closes, assigns, moves regions
  • Not on read or write path
• Write Ahead Log (WAL)
• MemStore

  • Keeps hot data in main memory
• HDFS

  • Underlying distributed file system
  • Table data is stored as HFile
  • Replicates data over multiple data nodes

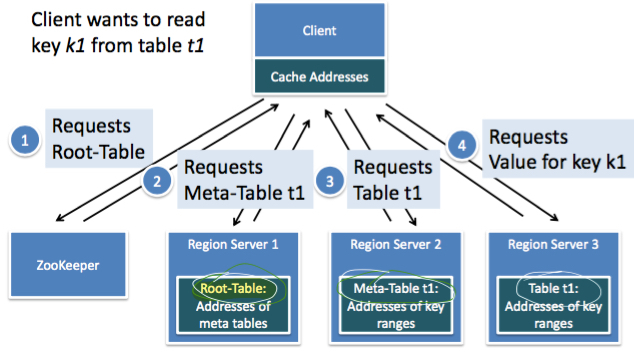

Question 19

HBase global read-path

Answer 19

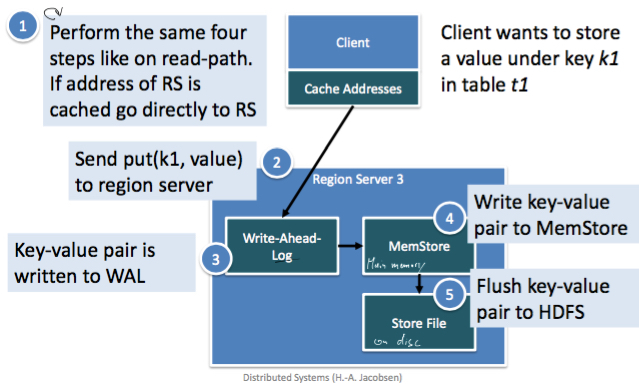

Question 20

HBase write path

Answer 20

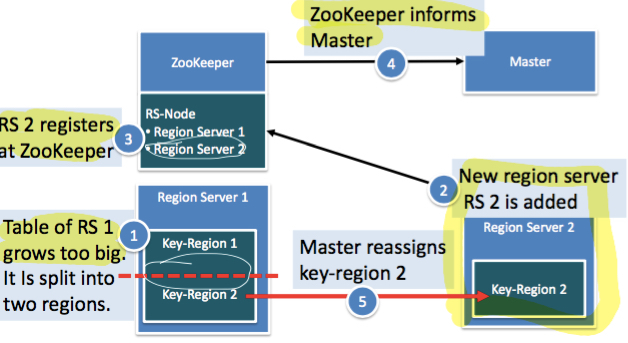

Question 21

HBase adding of components

Answer 21

• Components can be added on-the-fly
• Add multiple backup master servers

  • Avoid single point of failure
  • In case of crash, backup master takes over
• Add multiple region servers

  • Additional capacity can be added
  • Master takes care of load balancing

Question 22

Core mechanisms HBase nn

Answer 22

• Heavy involvement of ZooKeeper for coordination tasks

  • Cf. lect. on Paxos & RSM (i.e., a look inside)
• HBase reliability relies on HDFS (replication)

  • Cf. lect. on replication

Question 23

Hbase storage unit failure

Answer 23

Question 24

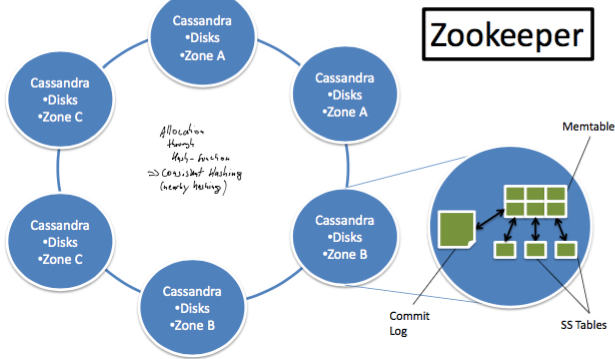

Cassandra architecture overview

Answer 24

Question 25

Cassandra global read-path

Answer 25

Question 26

Cassandra global write-path

Answer 26

Question 27

Incremental scaling in Cassandra

Answer 27

Question 28

Storage unit failure cassandra

Answer 28

Question 29

Core mechanisms cassandra

Answer 29

* **Incremental scalability** * Cf. Lect. on consistent hashing * **Reliability** * Cf. Lect. on replication (e.g., **quorum** protocols) * **Membership management** * Cf. Lect. on replication (e.g., **gossip** protocols) * **Uses leader election as part of replication** * Cf. Lect. on coordination
