Chapter 6: Consistency & Replication

Question 1

Why Replication?

Answer 1

• Performance

  • Caching data at browsers and proxy servers
  • e.g. Content Delivery Network with several locations
• High availability

  • Upon crashes, service offered by replica
  • Upon network partition, service available to clients in partition
• Fault tolerance

  • Providing reliable service in face of faulty servers

Question 2

The “cost” of replication NN

Answer 2

• Cost to keep replicas up to date in face of updates?

  • E.g., additional bandwidth, number of messages exchanged, higher latency (i.e., service‐response time), complexity of code, etc.
• How can the problem of stale (out‐of‐date) data current reads at replicas be overcome?

Question 3

Consistency Models

Answer 3

• Definition (Consistency model)

  • A contract between a distributed data store and a set of processes, which specifies what the results of read/write operations are in the presence of concurrency
  • Distributed data store as synonym for
    distributed database, shared memory, shared files, etc.

Question 4

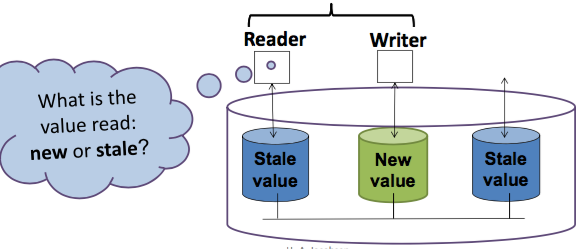

Consistency Violation

Answer 4

• With concurrent read & write operations on a distributed data store, data inconsistency may arise

Question 5

Overview: Consistency Models important - know lal

Answer 5

• Strict consistency
• Sequential consistency
• Linearizable consistency
• Causal consistency
• FIFO consistency
• Weak consistency

Question 6

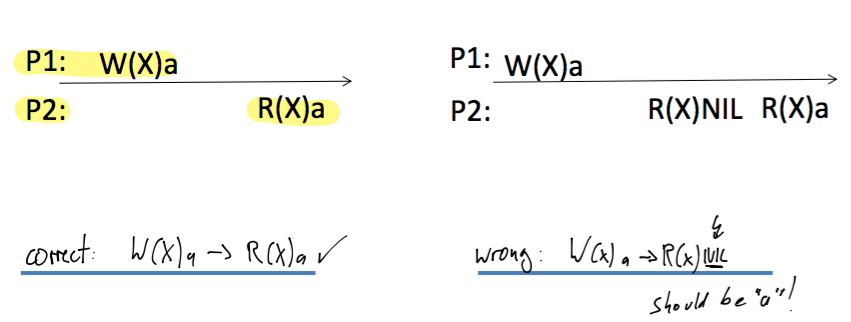

Strict Consistency

Answer 6

• Definition: Any read on a data item x returns a value corresponding to the result of the most recent write on x
• Uni‐processor systems have traditionally observed strict consistency, … but what about multi‐processor systems?
  a = 1; a = 2; print(a); Output? most recent !
• Definition assumes existence of absolute global time for unambiguous determination of “most recent“.
• What do we know about uniquely time stamping events in distributed systems via absolute time references?
• Under strict consistent, all writes are instantaneously visible to all processes and absolute global time order is maintained
• Similarly, if a read is done, then it gets the most recent value, no matter how quickly the next write is done

Question 7

Strict Consistency: Thought Experiment

Answer 7

• To satisfy strict consistency, laws of physics may have to be violated! Obviously, not an option!!!
• To realize strict consistency in this case, R(X)a would have to travel at 10 times the speed of light!
• Strict consistency is impossible to guarantee in distributed systems, due to reliance on precise global time in its definition

Question 8

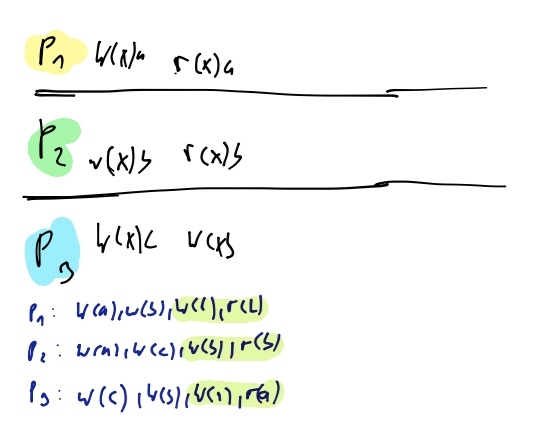

Definition of Sequential Consistency

Answer 8

• The result of any execution is the same as if the operations by all processes on the data store were executed in some sequential order and …
• … the operations of each individual process appear in this sequence in the order specified by its program
• Operations refer to read and write
• Weaker than strict consistency
• When processes run concurrently, any valid interleaving of read and write operation is acceptable behavior, but all processes see the same interleaving of operations
• Nothing is said about time, i.e., no reference to “most recent”, unlike strict consistency
• Property: if the read time is r, the write time is w, and the minimal packet transfer time between nodes is t, then r+w>=t holds (if you reduce reading time, writing time goes up)

Question 9

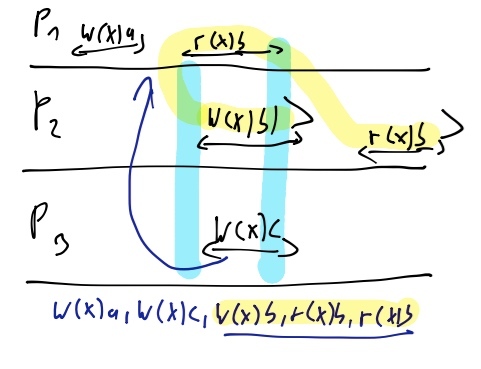

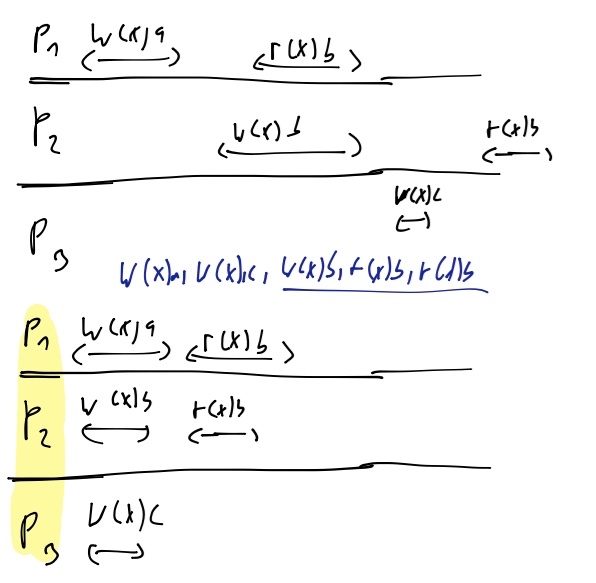

Definition of Linearizability

Answer 9

• Like Sequential consitency
• If there is an overlap order is not important - if not it is
• In addition, if tsOP1(x) < tsOP2(y), then operation OP1(x) should precede OP2(y) in this sequence (t is defined as intervals)
• ts_OP(x) denotes the timestamp assigned to operation OP that is performed on data item x, and OP is either read (R) or write (W).
• Like strict consistency, assumes global time, but not absolute global time
• Assumes processes in the system have physical clocks synchronized to within an error bounded
• If W(x)b was the most recent write operation and there is no other write operation overlapping with W(x)b, then any later read should return b
• If W(x)a and W(x)b were two most‐recent overlapping write operation, then any later read should return either a or b, not something else
• A linearizable data store is also sequentially consistent
• I.e., linearizability is more restrictive
• Difference is the ordering according to a set of synchronized clocks

Question 10

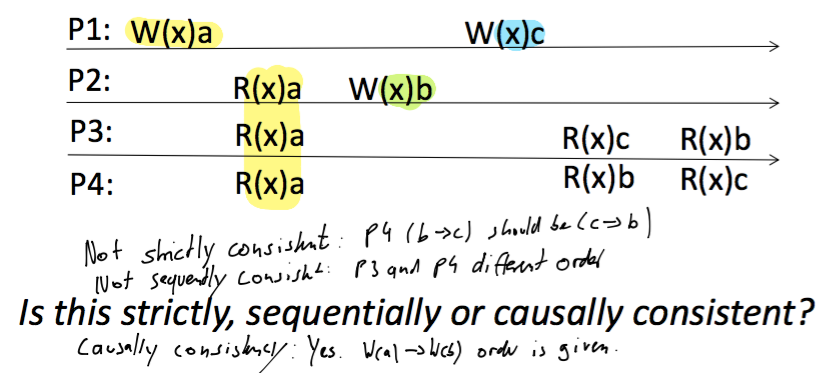

Intuition for Causal Consistency

Answer 10

• Weaker than sequential consistency
• Distinguish events that are potentially causally related and those that are not (concurrent events) Rb
• If event B is influenced (caused) by an earlier event A, causality requires that everyone first sees A then B
• Concurrent events (i.e.,writes) may be seen in a different order on different machines
• Reading of x and writing of y are potentially causally

related

• Computation of y may have depended on value of x read by P2 (written by P1); e.g., y = f(x)
• On the other hand, y may not have depended on x, yet potential causality still holds in our formalization!
• Read followed by write in the same process, the two are potentially causally related

  • Example: R(x)a … W(y)b (e.g., it may be that y=f(x))
• Read is potentially causally related to write that provided the value read got

  • Example: W(x)a … R(x)a
• Independent writes by two process on a variable are not causally related (they are concurrent)

  • Example: W(x)a … W(x)b
• Potentially causally related writes must be seen by all processes in the same order
• Concurrent writes may be seen in a different order by different processes

Question 11

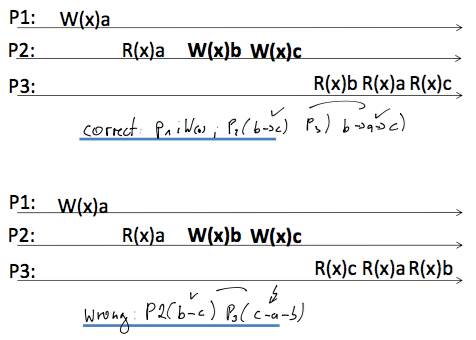

Definition of FIFO Consistency

Answer 11

• Writes by a single process are seen by all other processes in the order in which they were issued
• Writes from different processes may be seen in a different order by different processes

Question 12

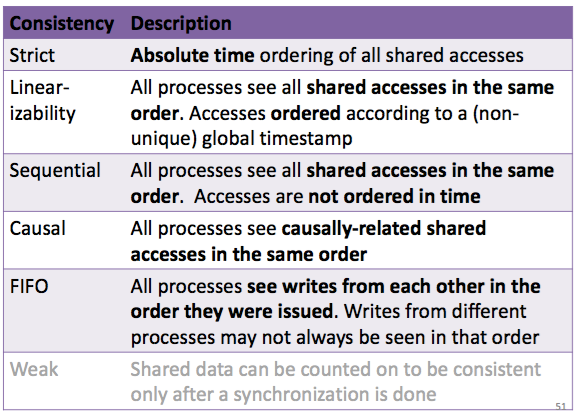

Summary of Consistency Models

Answer 12

Question 13

Eventual Consistency Motivation

Answer 13

• So far, goal was to maintain consistency in presence of concurrent read/write operations
• There are use cases with no (few) updates to the same data, while most operations are reads
• E.g., distributed database, DNS, Web, K/V‐Stores

  • Majority of operations are reads
  • Writes are mostly done by central authorities (domain owners, Web masters, etc.)
  • Updates are keyed and arrive from single point, only
• Few concurrent updates and updates propagate lazily
• If no updates take place for a long time, all replicas will gradually become consistent

Question 14

Eventual Consistency

Answer 14

• Eventual consistency is desirable for large‐scale distributed systems where high availability is important
• Tends to be cheap to implement
• Constitutes a challenge for environments where strong consistency is important
• How well does eventual consistency work for mobile user? For high load of requests not suitable
• Here, we need another class of consistency, i.e., client-centric consistency models

Question 15

Client‐Centric Consistency Models

Answer 15

• Goal: How can we avoid system‐wide consistency by concentrating on what clients want, instead of what should be maintained by servers.
• Different client‐centric consistency models – Monotonic reads

  • Monotonic writes
  • Read‐your‐writes
  • Write‐follows‐reads

Question 16

Definition: Monotonic Reads

Answer 16

• A data store provides monotonic‐read consistency if the following condition holds:

  • If a process reads the value of a data item x, any successive read operation on x by that process will always return that same value or a more recent value
• Monotonic‐read consistency guarantees that if a process has seen a value of x at time t, it will never see an older version of x at a later time
• The previously seen value by the process must have reached the new site, where the reader wants to read

Question 17

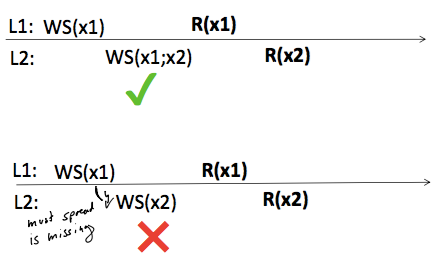

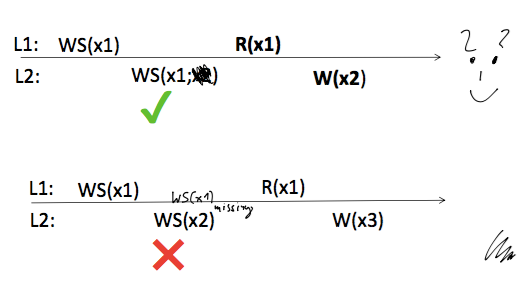

Monotonic Writes

Answer 17

• Propagation of writes in the correct order to multiple destinations (copies of data store)
• A data store provides monotonic‐write consistency if the following condition holds:

  • A write operation by a process on a data item x is completed before any successive write operation on x by the same process
• In other words, a write operation on a copy of data item x is performed only if that copy has been brought up to date

Question 18

Read Your Writes

Answer 18

• A data store provides read‐your writes consistency if the following condition holds:

  • The effect of a write operation by a process on data item x will always be seen by a successive read operation on x by the same process
• A write operation is always completed before a successive read operation by the same process, no matter where that read operation takes place

Question 19

Writes Follow Reads

Answer 19

• A data store is said to provide writes‐follow‐reads consistency if the following condition holds:

  • A write operation by a process on a data item x following a previous read operation on x by the same process, is guaranteed to take place on the same or a more recent value of x that was read
  • E.g., … R(x) … W(x) (for W, same or more recent value of x)
• Any successive write operation by a process on a data item x will be performed on a copy of x that is up to date with the value most recently read by that process

Question 20

Replication Techniques Satisfying Sequential Consistency

Answer 20

• • Two main techniques

  • Primary Backup
  • Active Replication

Question 21

System Model

Answer 21

• Processes are either clients or replicas
• Clients and replicas exchange messages through point‐to‐point links
• Processes can crash

Question 22

Passive Replication: Primary Backup

Answer 22

• Primary

  • Receives invocations from clients and sends back the answers (clint talks always to primary)
• Backup

  • Interacts with the primary
  • Is used to replace the primary when it crashes

Question 23

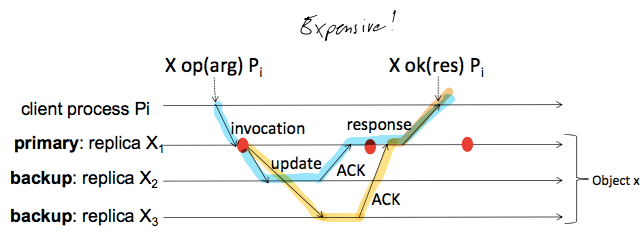

Primary Backup Scenario

Answer 23

Guarantee sequential consistency: Order in which the primary receives clients’ invocations define the order of the operation on the data item(s).

Question 24

Primary Backup: Presence of Crash

Answer 24

• Three scenarios

  • Primary fails after the client receives the answer -> continue
  • Primary fails before sending update messages -> details needed
  • Primary fails after sending update messages and before receiving all the ACK messages –> leader election
• In all cases, a new primary is elected from among the backups

Question 25

Primary fails after the client receives the answer

Answer 25

* **Nothing bad happens** since the client has already received the response * **A new primary is elected**

Question 26

Primary fails before sending update messages

Answer 26

* Client does not get an answer and **resends the requests after a timeout** * The **newly** elected **primary** will **handle** the **request** as new

Question 27

Primary fails after sending update messages and before receiving all ACK messages

Answer 27

* When a primary fails, a **new primary is elected** by the backup replicas * **Client** does not get an answer and **resends** the **requests** after a timeout * **Since the new primary has already processed the update** message, it **immediately** **sends** the **response** **to** the **client** without further action (we need a log file for processed requests)

Question 28

Active Replication

Answer 28

* There is **no coordinator,** **all replicas play the same role** * **Each** **replica** is **deterministic**: If all replicas start from the same state and receive the same input, they **will produce the same output** * As a matter of fact, clients will receive the same response, one from each replica

Question 29

Gossip Architecture

Answer 29

* Gossip architecture **aims at achieving high availability** * Does **not** **offer** **strong** **consistencies** guarantees such as sequential consistency * **Updates** are **propagated** in a **lazy** fashion * **Response** **received** by a client from a replica to its query should **not** be **older** **than** the **last** **response** that the client had received from any replicas * **Client** and **replicas** are **separate processes** * **Replicas** **periodically** **exchange** ‘**gossip**’ messages to convey updates to other replicas * Front end (or client directly) communicates with an individual replica, but it may interact with other replicas, e.g., to tolerate failures

Question 30

Message Types in Gossip Architecture

Answer 30

* **Query message**: A **message** **from** a **client** **to** its closet **replica** to **determine** the **state** **of** the **system** * **Update message**: A **message** **from** a **client** **to** the **closest** **replica** **to** **update** the state of the **system** * **Gossip message:** This message **contains** some **updates** that a **replica** **thinks** that some **other** **replica** **might** **not** **have** **received** (send to a number of other replicas)
