Pulmonary embolism features on ECG

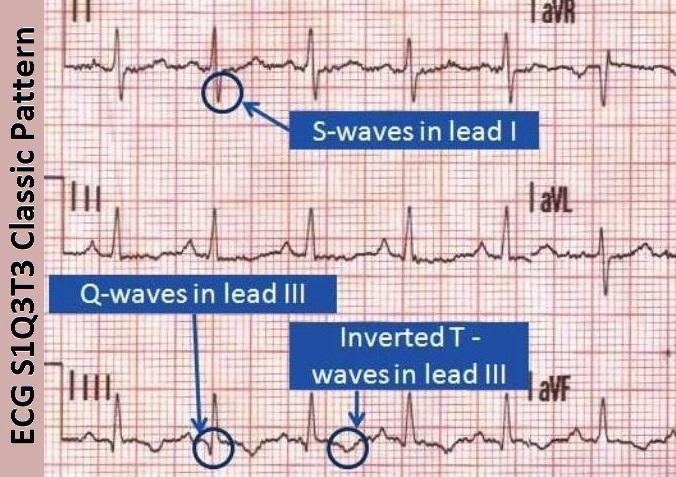

May have S1Q3T3 abnormality on ECG

PE diagrams
pg 654
Flow-volume loops
Pg 655
RV in obstructive lung disease
↑
RV in restrictive lung disease
↓
FRC in obstructive lung disease
↑
FRC in restrictive lung disease
↓
TLC in obstructive lung disease
↑
TLC in restrictive lung disease
↓
FEV1 in obstructive lung disease
↓↓
FEV1 in restrictive lung disease
↓
FVC in obstructive lung disease
↓
FVC in restrictive lung disease
↓
FEV1/FVC in obstructive lung disease
↓
FEV1/FVC in restrictive lung disease
Normal or ↑ FEV1 decreased proportionately to FVC
Flow volume loops pg
655
Blue bloater disease
Chronic bronchitis
Pink puffer disease
Emphysema
Chronic bronchitis presentation
Pathology of chronic bronchitis
Hypertrophy and hyperplasia of mucus-secreting glands in bronchi → Reid index (thickness of mucosal gland layer to thickness of wall between epithelium and cartilage) > 50%
DLCO is usually normal
Diagnostic criteria of chronic bronchitis
Productive cough for > 3 months in a year for > 2 consecutive years
Emphysema presentation
Barrel-shaped chest
Exhalation through pursed lips (increases airway pressure and prevents airway collapse)
Pathology of emphysema
Imaging of emphysema
CXR: ↑ AP diameter, flattened diaphragm, ↑ lung field lucency
