Directed Study Artillery

Question 1

M777A2 Rate of fire

Answer 1

Rate of fire 4 Rnds per min for 2 min maximum
2 Rnds per min sustained
After 30 minutes the rate of fire is
dropped to 1 Rnd per minute

Question 2

M777A2 Crew size

Answer 2

10 PERS

Question 3

M107 frag quanitity

Answer 3

1950 fragments approx

Question 4

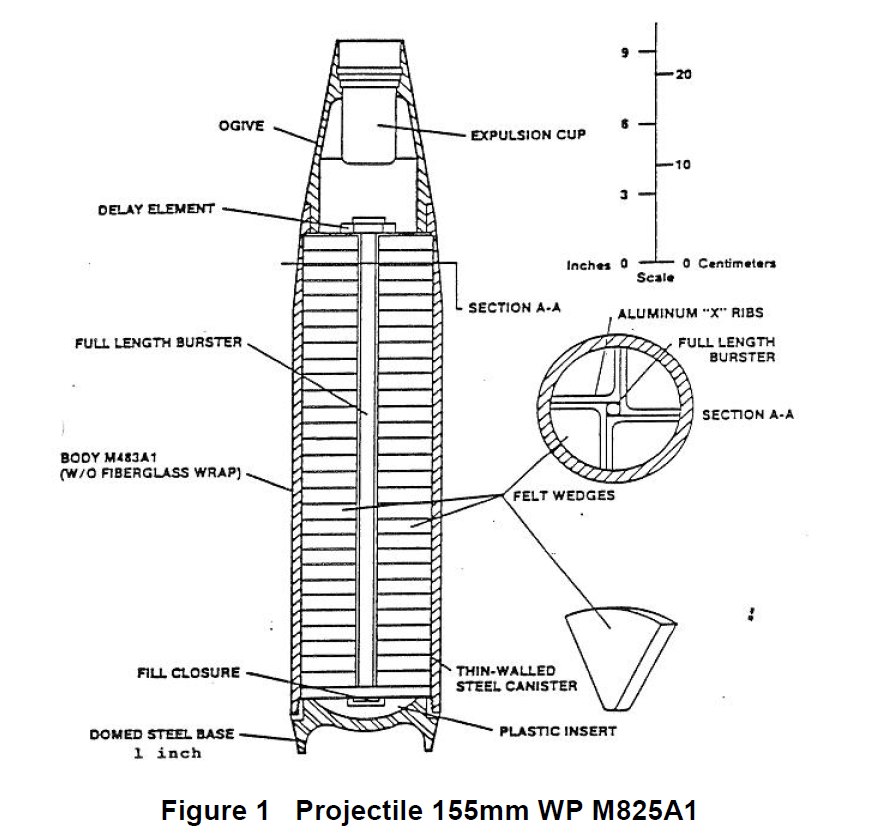

M825A1 SMK effects

Answer 4

The smoke screen establishes in-less than 45 sec
to a width of 125-250 m and last for 5-10 min

Question 5

The tactical variant of the Projectile 155mm HE XM982 Excalibur FSA has three selectable set modes:

Answer 5

Proximity (Airburst) 500µsec

Point Detonation

Point Detonation with Delay 8.5 +/ 0.5 msec

Question 6

Excalibur has RADHAZ of what distance?

Answer 6

3m

Question 7

How many canards does the Excalibur have?

Answer 7

4

Question 8

M767A1/M762A1 ET setting

Answer 8

Clockwise or anticlockwise, LCD screen

Question 9

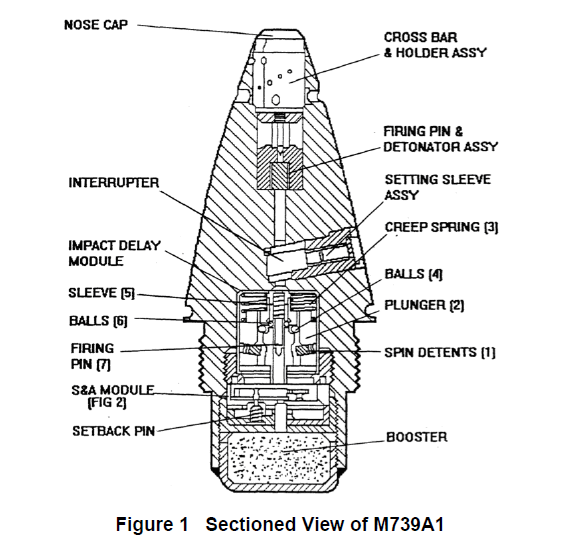

739A1 has a cocked striker

Question 10

Answer 10

Question 11

Answer 11
