EO Markings

Question 1

Ammunition can be formed into local lots: what must be assured?

Answer 1

the ammunition is serviceable

Each Local Lot is confined to nature, type and
mark or model.

Quantity is not to exceed normal production
Lot qty.

It is certain that no existing restriction applies.

Question 2

Ammunition Serial Number (ASN)

Two Parts:

Answer 2

Five character Prefix which utilises the current (TSN).
Two character suffix which denotes;
Model Number.
Packaging method.

Question 3

CG A:

Answer 3

Primary Explosive Substance.

Question 4

CG B:

Answer 4

Article containing a primary explosive substance and
not containing two or more effective protective
features e.g. Detonators.

Question 5

CG C:

Answer 5

Propellant explosive substance or other deflagrating
explosive substance or article containing such
explosive substance e.g. Pyrotechnics.

Question 6

CG D:

Answer 6

Secondary detonating explosive substance or Black
Powder or article containing a secondary detonating
explosive substance, in each case without (its own)
means of initiation and without a propelling charge, or
article containing a primary explosive substance and
containing two or more effective features.

Question 7

CG E:

Answer 7

Article containing a secondary detonating explosive
substance without means of initiation, with a
propelling charge.

Question 8

CG F:

Answer 8

Article containing a secondary detonating explosive
substance with its own means of initiation, with a
propelling charge (other than one containing a
flammable or hypergolic liquid) or without a propelling
charge.

Question 9

CG G:

Answer 9

Pyrotechnic substance, or article containing a
pyrotechnic substance, or article containing both an
explosive substance and an illuminating, incendiary
lachrymatory or smoke producing substance.

Question 10

CG H:

Answer 10

An article containing both an explosive substance and white phosphorus.

Question 11

CG J:

Answer 11

An article containing both an explosive substance and
a flammable liquid or gel.

Question 12

CG K:

Answer 12

An article containing both an explosive substance and
a toxic chemical agent.

Question 13

CG L:

Answer 13

Explosive substance or article containing an
explosive substance and presenting a special risk
needing isolation of each type.

Question 14

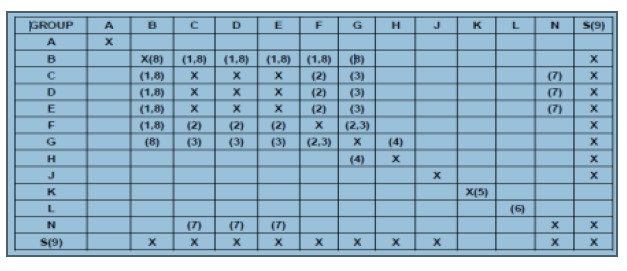

CG Mixing Table

Answer 14

Question 15

CG N:

Answer 15

Articles containing only extremely insensitive
detonating substances.

Question 16

CG S:

Answer 16

Substance or article so packed or designed than any
hazardous effects arising from accidental functioning
are confined within the package unless that package
has been degraded by fire e.g. SAA.

Question 17

DEOP Library Topics

Answer 17

TOPIC 010 DESCRIPTIVE DATA.
TOPIC 021 SURVEILLANCE PLANS.
TOPIC 024 LIFING DATA.
TOPIC 025 PACKAGING DATA.
TOPIC 031 EXPLOSIVE ORDNANCE DISPOSAL.
TOPIC 036 NON DESTRUCTIVE INSPECTION.

Question 18

Experimental Development Codes

Answer 18

XM1:
During research.

M1:
On standardisation.

XM1E1:
Further research.

M1A1:
When put into production.

Question 19

Fraction Labels:

Answer 19

Original packages containing less than the full
quantity of stores are to have a ‘FRACTION’ label
or the word stencilled in white on the package.

Question 20

Front Face

Answer 20

Quantity.
Logistic Name.
Special feature markings:
For SAA denotes type of projectile.
Batch/Lot details including manufacturers
monogram: 001 ADI 08/96
Sub batch component model and lot detail.

Question 21

HD 1.1

Answer 21

Blast

Contains ammunition which presents a mass explosion
hazard, which will produce severe structural damage to
surrounding buildings in the immediate neighbourhood.

The severity of the damage is dependent upon the
quantity of explosives involved and the distance of the
buildings from the explosion site.

Blast and high velocity fragments are the major hazards
although there may be a danger from heavy fragments
propelled from the structure in which the explosion
occurs.

Question 22

HD 1.2 Projection Effects

Answer 22

Contains ammunition which has a projection hazard
but not a mass explosion hazard.

The explosion will result in items burning and exploding
a few at a time. Fragments, firebrands and
unexploded items may be projected in considerable
numbers, some of which may explode on impact and
so propagate fire, and/or explosion.

Blast effects will be limited to the immediate vicinity of
the exposed site.

Question 23

HD 1.2 Subdivisions

Answer 23

HD 1.2.1
HD 1.2.1 comprises those munitions that contain a
high explosive charge and may also contain a
propelling or pyrotechnic charge. These items will have
an individual NEQ greater than 0.73kg.

HD 1.2.2
HD 1.2.2 comprises those munitions that contain a
high explosive charge and may also contain a
propelling or pyrotechnic charge. These munitions will
have an individual NEQ equal to or less than 0.73kg.

Question 24

HD 1.3.3 Producing a mass fire effect.

Answer 24

Consists of the more hazardous items of HD 1.3 and are
more likely to be bulk packed gun propellants which
produce a fireball with intense radiant heat, firebrands
and some fragments.

The firebrands may be only small glowing particles of
packaging materials but sometimes there may be
massive fiery chunks of burning propellant.

Ammunition that gives rise to considerable radiant heat.

Question 25

HD 1.3.4 Not producing a mass fire effect.

Answer 25

Consists of the less hazardous items of HD 1.3 that produce a moderate fire with moderate projections and firebrands.

Question 26

HD 1.3 Fire and Radiant Heat

Answer 26

Contains ammunition which has a fire hazard and either a minor blast hazard or a minor projection hazard or both, but not a mass explosion hazard. Items in this division may explode but do not usually form dangerous fragments. Firebrands and burning containers may be projected. It includes some items which burn with great violence and intense heat emitting considerable thermal radiation (mass fire hazard) and others which burn sporadically.

Question 27

Left Hand Face

Answer 27

-UN number. -Orange HCC label. -Subsidiary dangerous goods labels if applicable. (Class 6 / class 8.)

Question 28

Lot Sizes

Answer 28

Fuzes, Igniters, Primers or Tracers: 2500. AS primers 2000 Detonators: 1000 / 2000.

Question 29

Mandatory Markings Outer Packages

Answer 29

UN Number. HCC Label. UN Shipping Name. Quantity. Service nomenclature. Stock Number (NSN). Lot/Serial Number details. Net Explosive Quantity for the package. Volume and gross weight. Operational abbreviation. Mandatory Markings Outer Packages SHIPCAT. Contents label unless elsewhere on package: Stock Number (NSN). Quantity of items in package. Lot/Serial Number. Requisition/order details. FRACTION Label. First Issue Label (EO102). DG Subsidiary Risk Label. Exposed time expired date.

Question 30

Metal or Plastic seals which are embossed with station monogram. Plastic seals:

Answer 30

-Blue ADI. -Red Inspectors working for DEOS (JLU EOS). -Orange Proof & Experimental Units. -Green Army or other Defence organisations. -Black Deployed off shore.

Question 31

Name the methods of identification?

Answer 31

Permanent markings. Overall body colour. Wide band or discs identifying primary role. Narrow band identifying hazard. Narrow band indicating tactical effect of chemical store. Non permanent markings ie: name of item. Symbols. Identification labels, plates and tags.

Question 32

Naming Ammo Conventions

Answer 32

BASIC NAME; Cartridge MODIFIERS; 76mm ADDITIONAL MODIFIERS; Cannister MODEL NUMBER; L33A1

Question 33

Package Marking Purpose

Answer 33

To ensure quick correct and sufficient identification of contents: To provide all necessary details to assist inspection. Identify EO that is faulty / suspended. To facilitate the issue of the correct nature and type of EO. To provide sufficient information for storage and transport.

Question 34

Rear Face

Answer 34

Proper shipping name. Contractors seal. (If required.) Identification details: (UN) package detail.

Question 35

Right Hand Face

Answer 35

-Mass (kg). -Volume (m3). -NEQ (Kg).

Question 36

Top Face

Answer 36

Operational Name: Or logistic name if non operational / abbreviated. Technical Restrictive Marking: Not to be fired over heads of troops. Firing Temperature Limitations. Inspection Markings.

Question 37

Types of ammunition sub batched:

Answer 37

Fixed ammunition. Semi fixed ammunition. Separate loaded ammunition. Mortar ammunition.

Question 38

HD 1.4

Answer 38

No Significant Hazard Contains ammunition with only a moderate fire hazard which will not contribute excessively to the fire. The effects will be largely confined to the package, however the external fire may cause the package to be degraded such that it will not entirely contain the effects of the ammunition. No fragments of appreciable size or range are to be expected. An external fire will not cause a mass explosion of the total contents of the package, irrespective of the number of items in the package.

Question 39

HD 1.5

Answer 39

Blast Contains ammunition which although potentially mass explosive, very insensitive: Usually when conditions of extreme confinement plus large quantities are involved. Ammunition in this division is confined to certain types of bulk explosives which are so insensitive that there is very little probability of a transition from burning to detonation under normal conditions of storage and transport.

Question 40

Position of Identification package

Answer 40

Rectangular and cylindrical metal packages: Embossed or engraved. Rectangular wooden packages: Branded or stamped. Plastics: Engraved, embossed, moulded or applied by some other method. Base or lower rear face

Question 41

Colour of Markings (Text)

Answer 41

White on olive drab lustreless. Black on unpainted or natural finishes Black on grey. Inspection and other work marking are to be in golden yellow.
