Year 2 Med > ECG > Flashcards

ECG Flashcards

(41 cards)

Study These Flashcards
1
Q

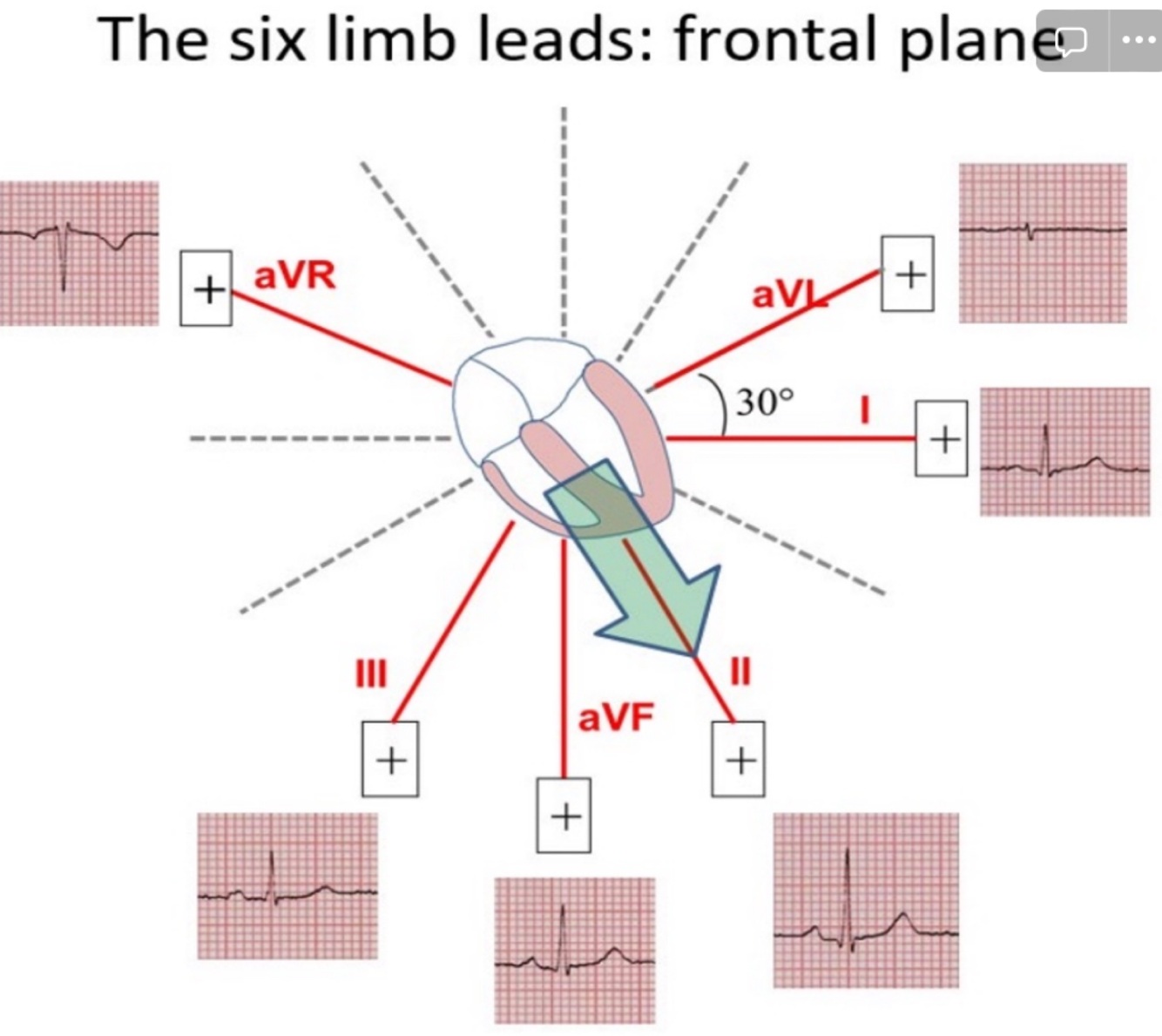

What are the axis of the ECG leads?

A
  • Axis refers to the overall electrical direction within the heart.
  • Electricity moving towards an electrode is POSITIVE
  • Electricity moving away from an electrode is NEGATIVE
  • If there is a change in the overall direction of the energy, the axis will be described as deviated- left, or right
  • Look at leads I and II. If both are positive, the axis is normal
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

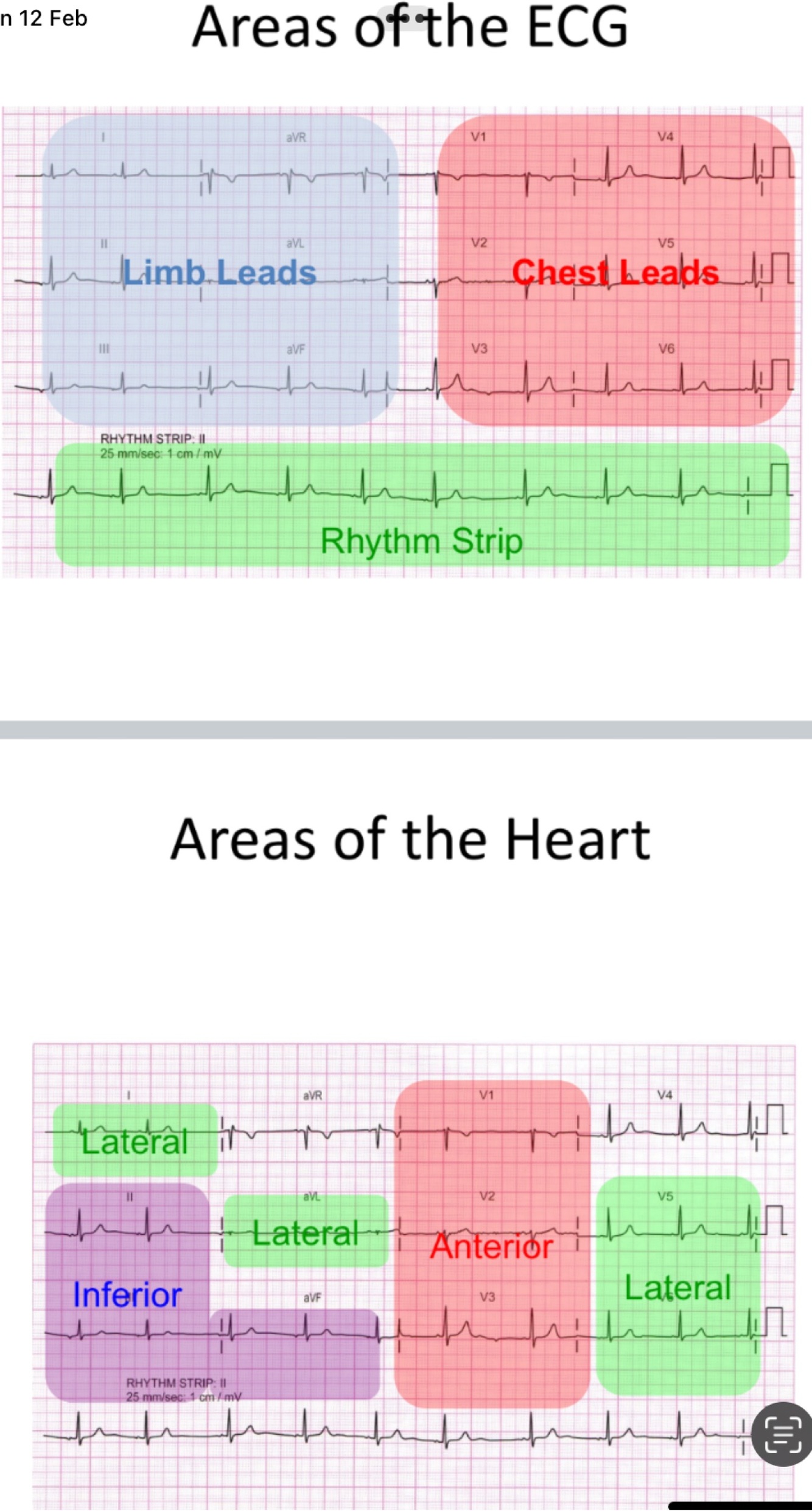

What do the different areas of the ECG mean?

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

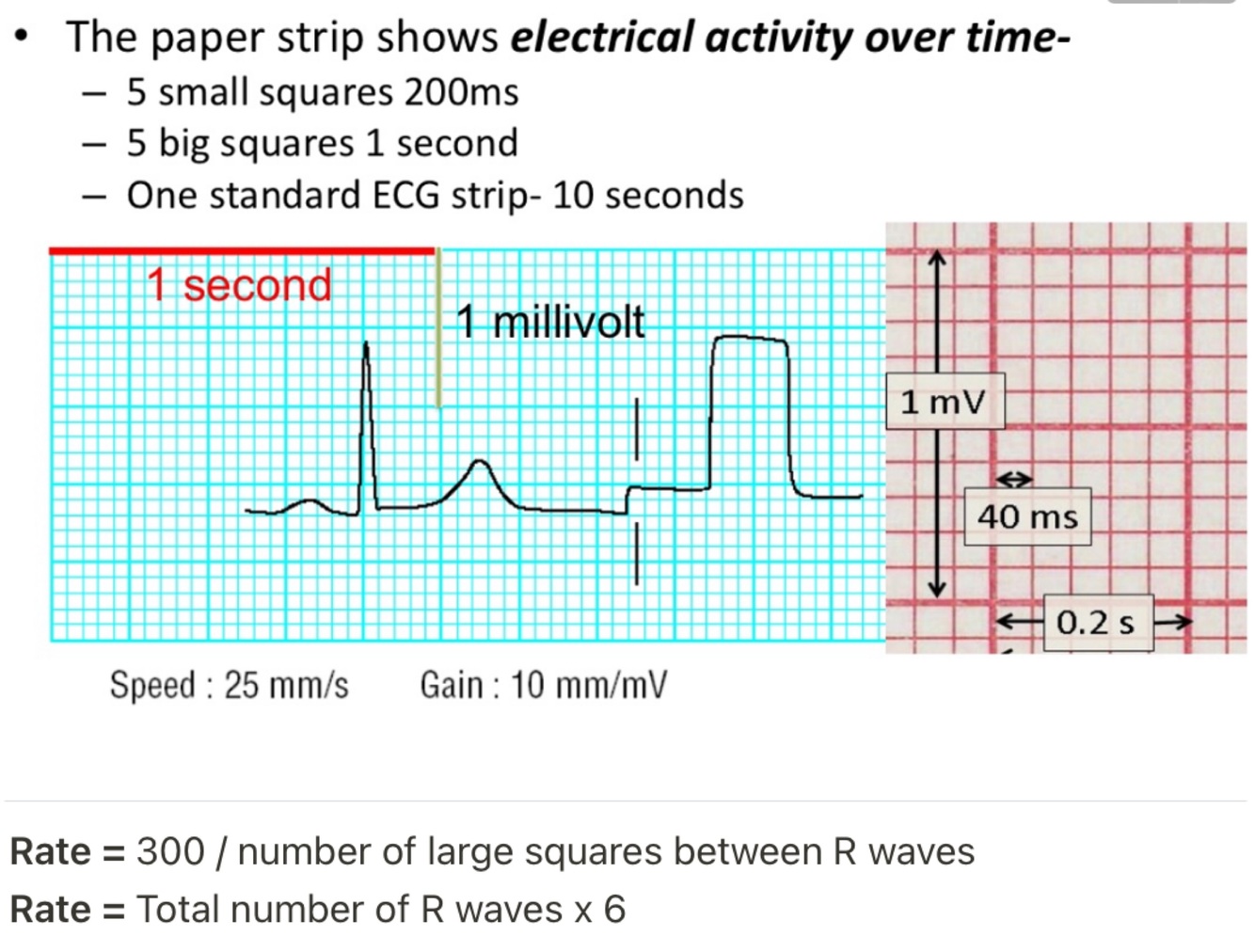

How to calculate rate in ECG?

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

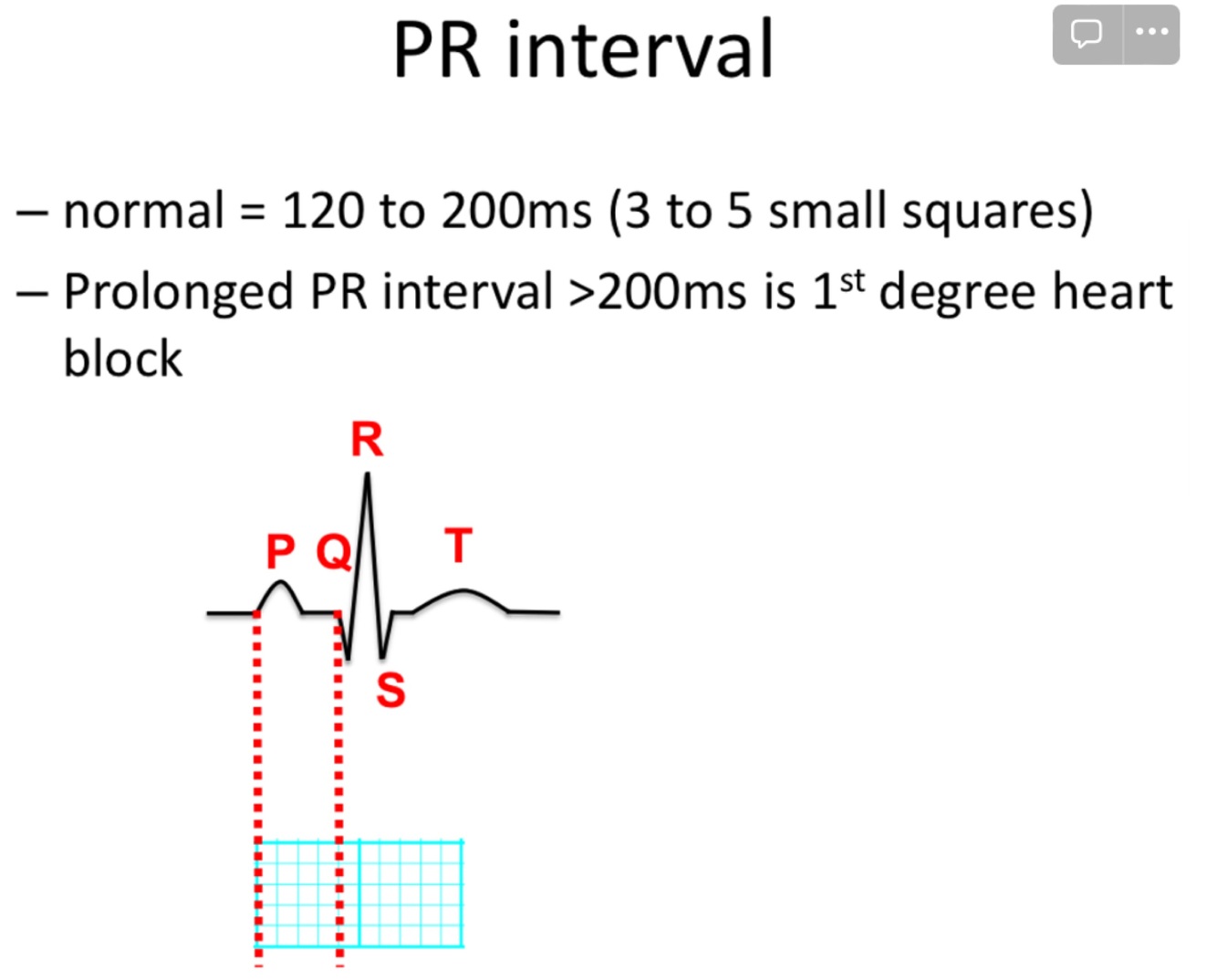

What is a normal PR interval?

A

Upright P wave=sinus

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

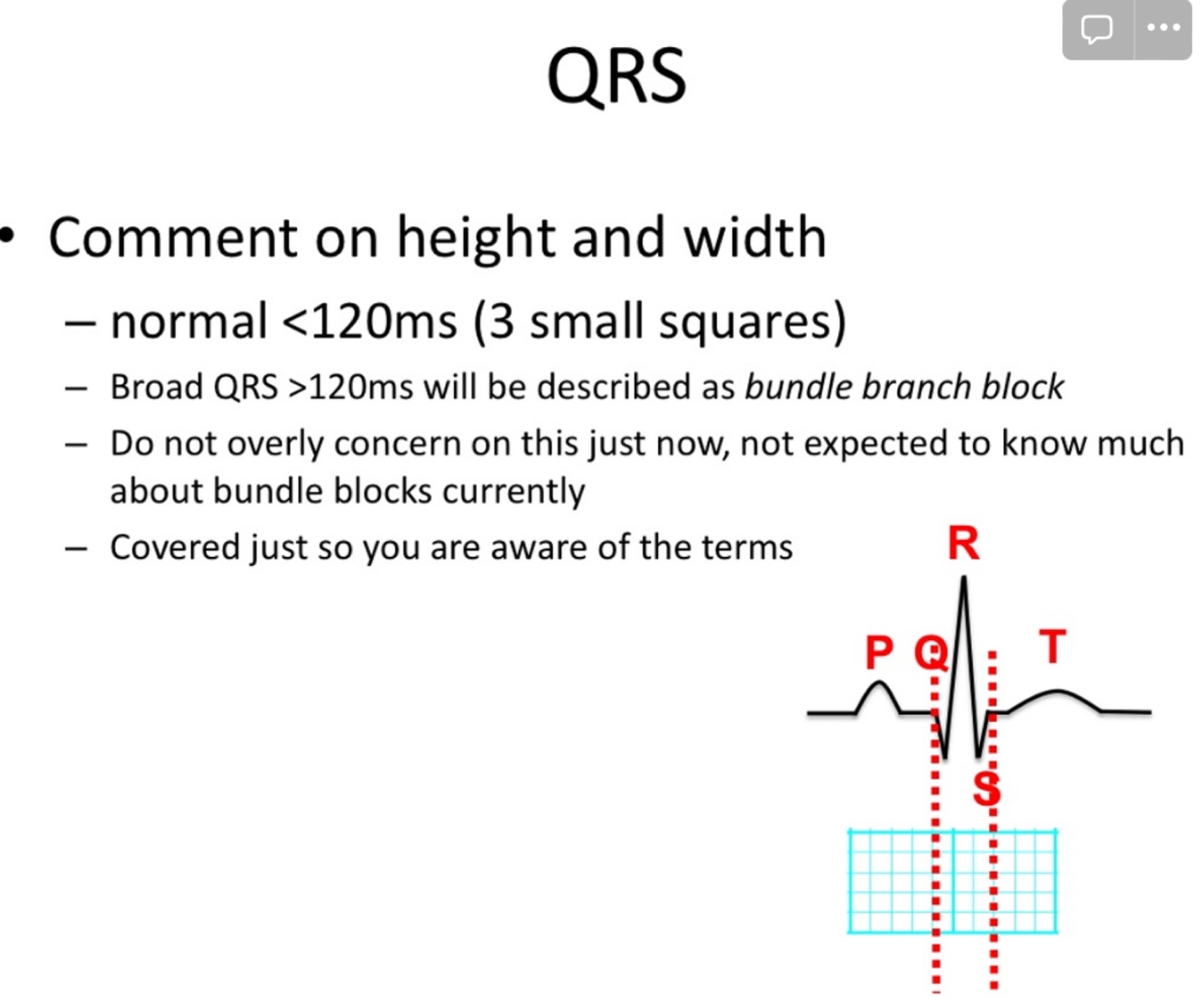

What is a normal QRS complex?

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

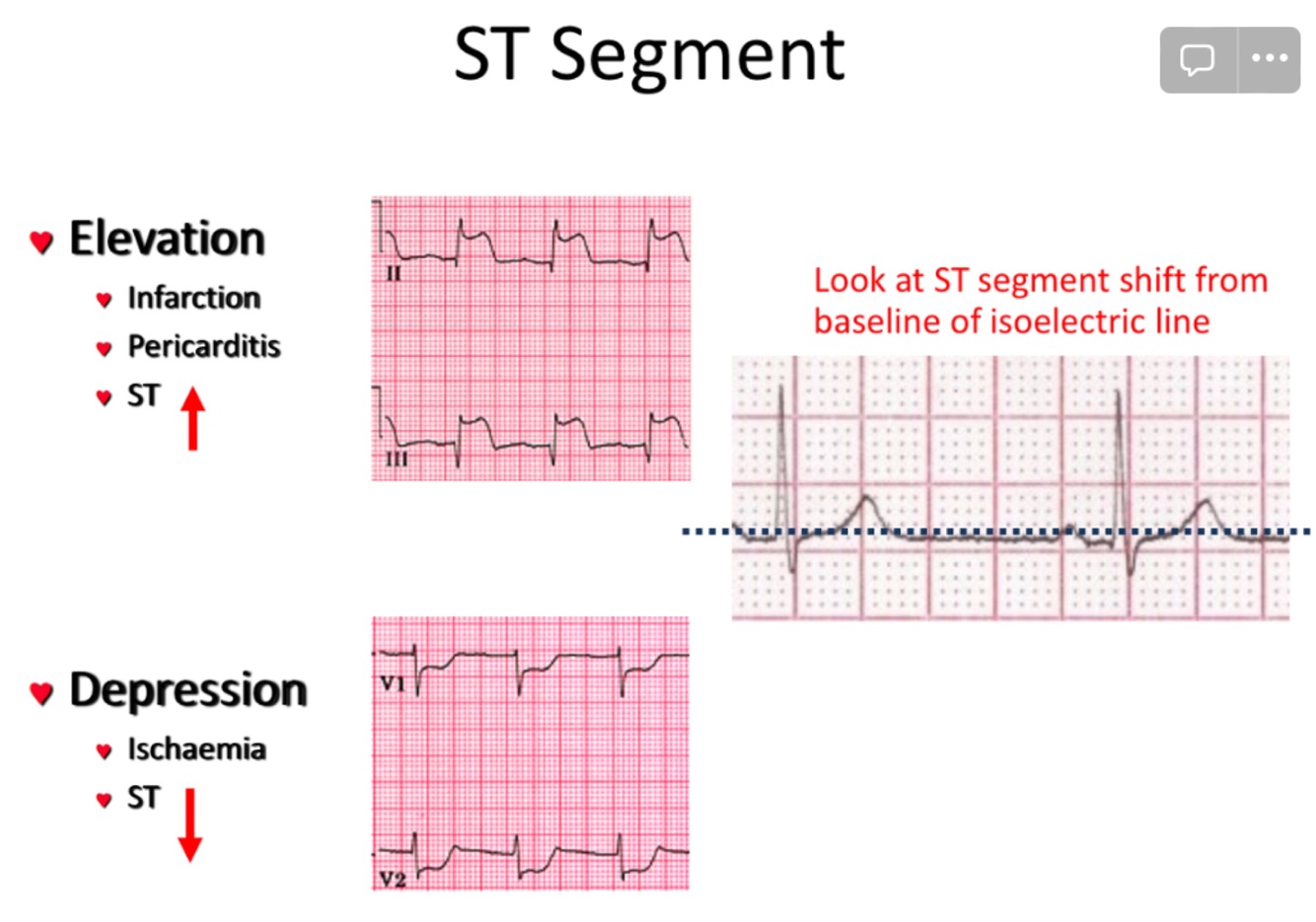

What is a normal ST segment?

A

Depression=angina

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

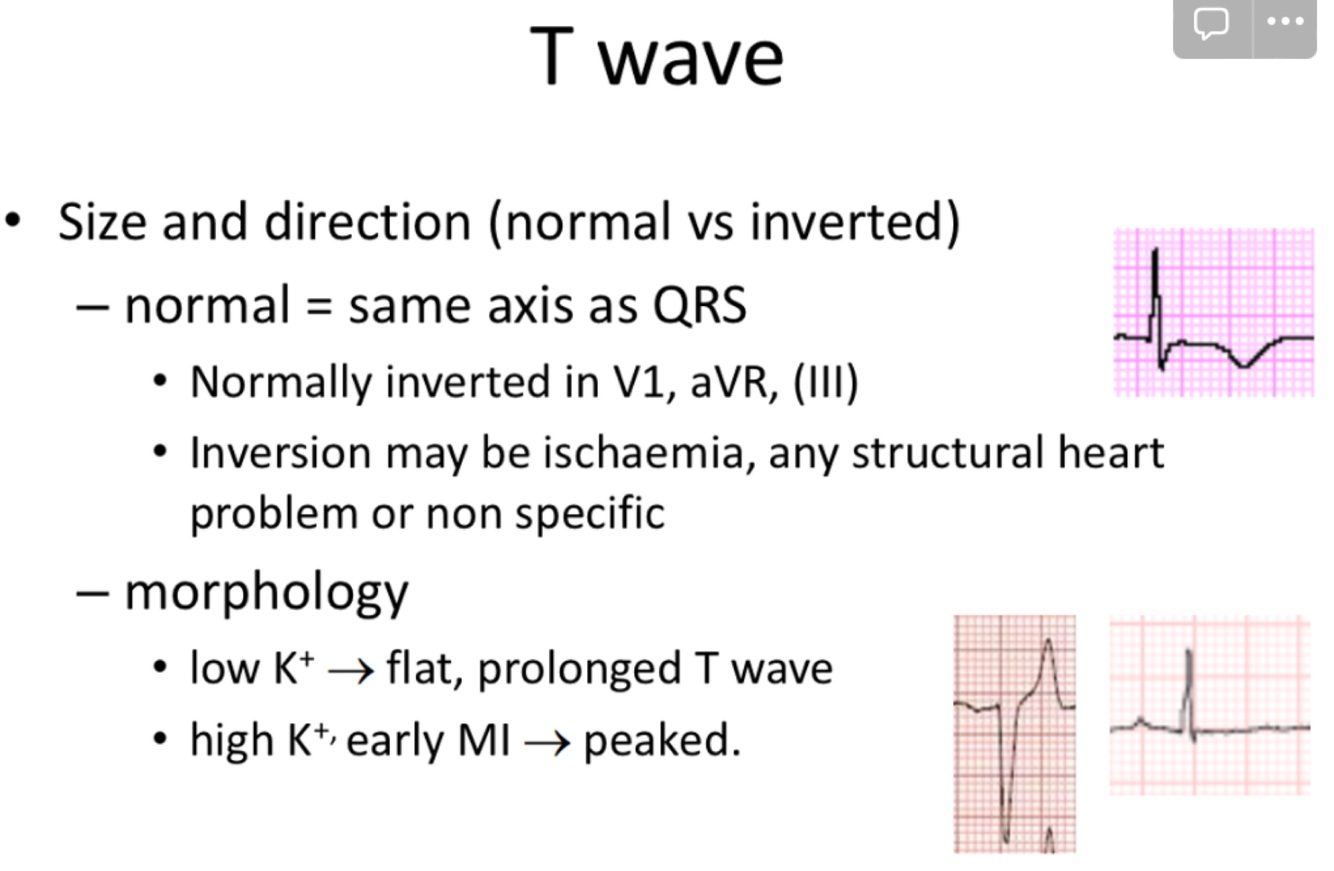

What is a normal T wave?

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

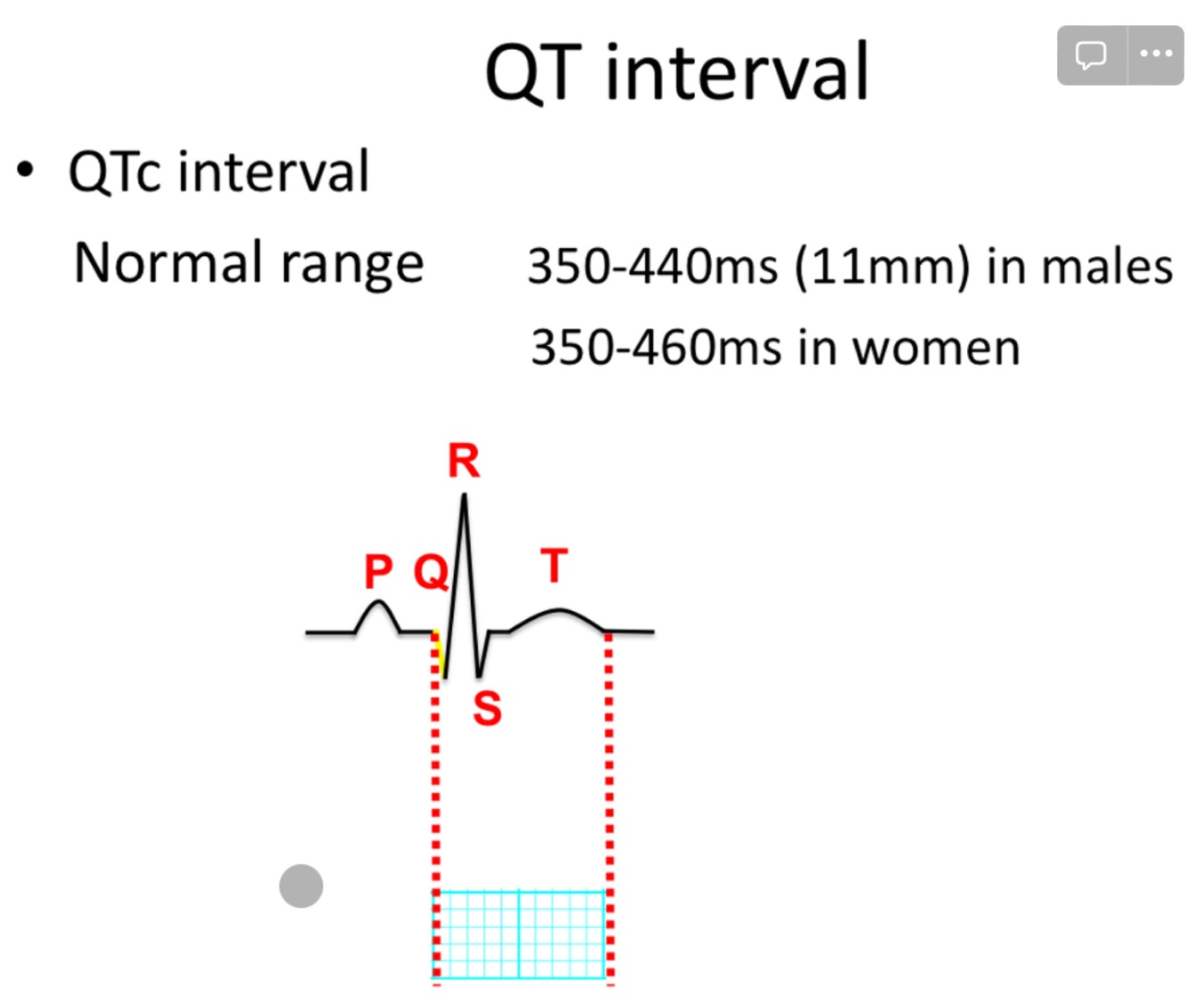

What is a normal QT interval?

A

Long QT=danger for arrhythmia

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

How do you read an ECG?

A
  1. Is the rhythm regular or irregular?
  2. Is the heart rate fast or slow?
  3. Is the axis in Lead I & II positive?
  4. Ratio; Is there one ‘p’ wave to each QRS?
  5. Is there any ST elevation or depression?
  6. Check intervals (PR, QRS, QT)
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

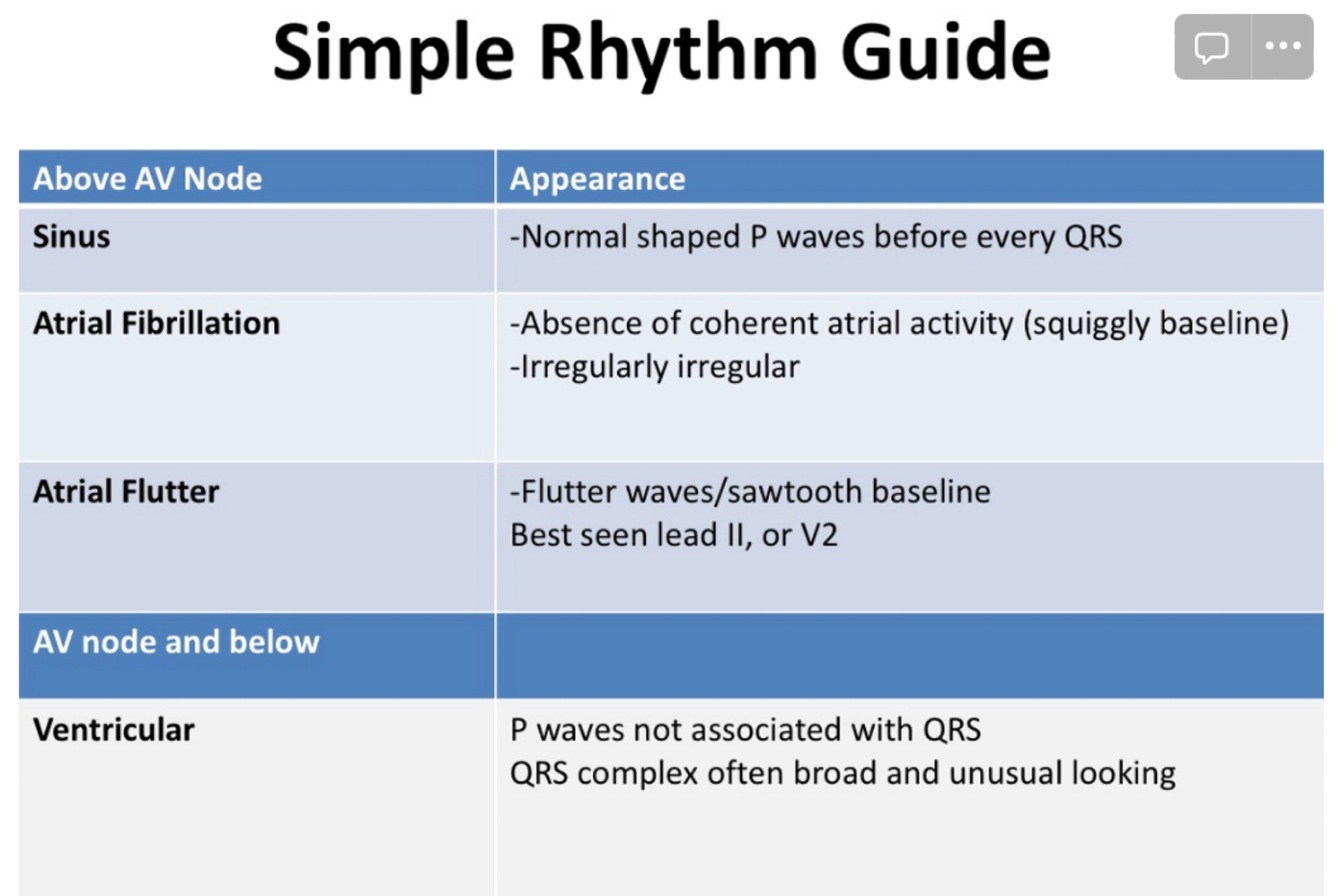

Appearance of rhythms above vs below AV node

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

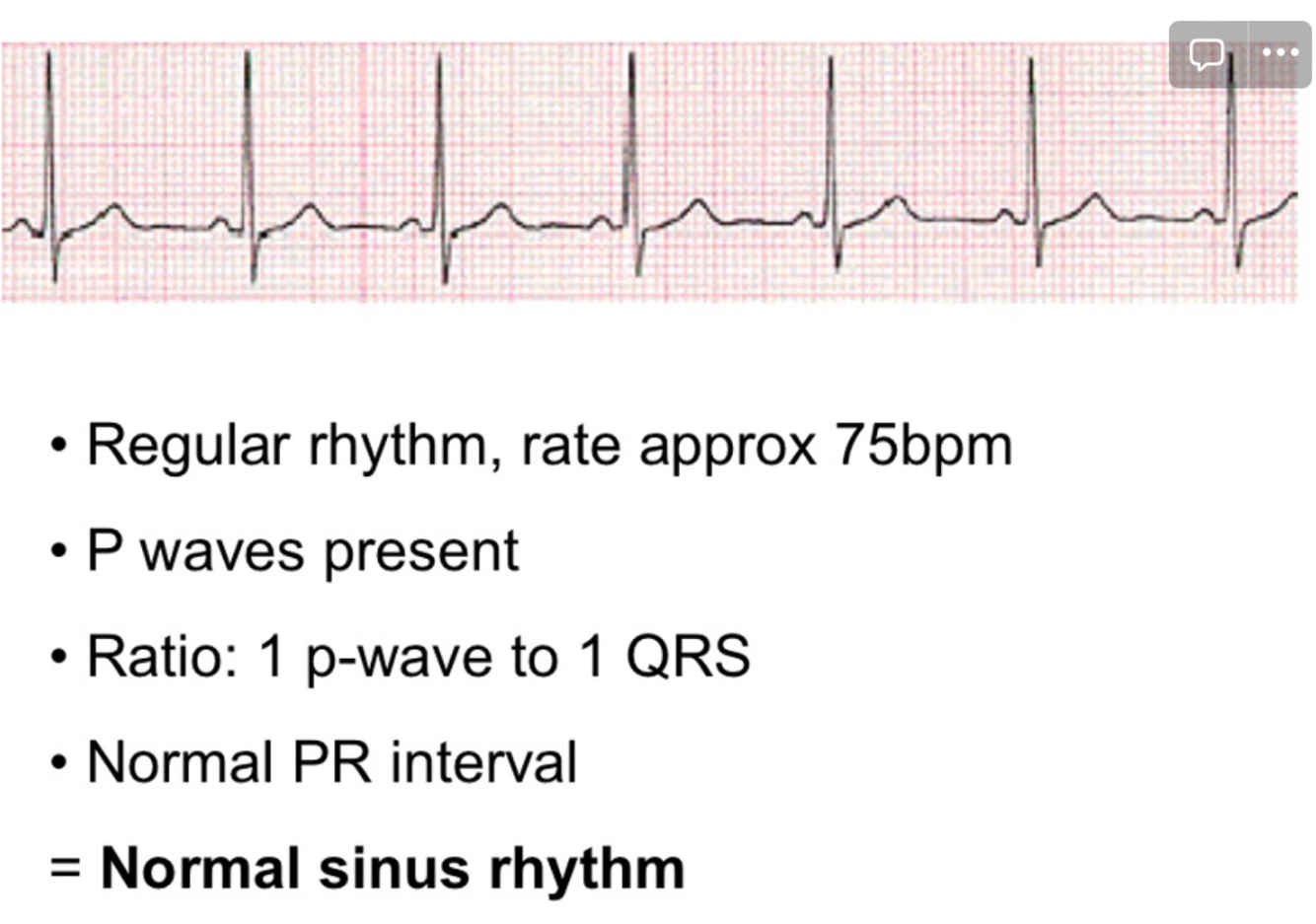

What does a normal sinus rhythm look like?

A

Normal rate = 60-100

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

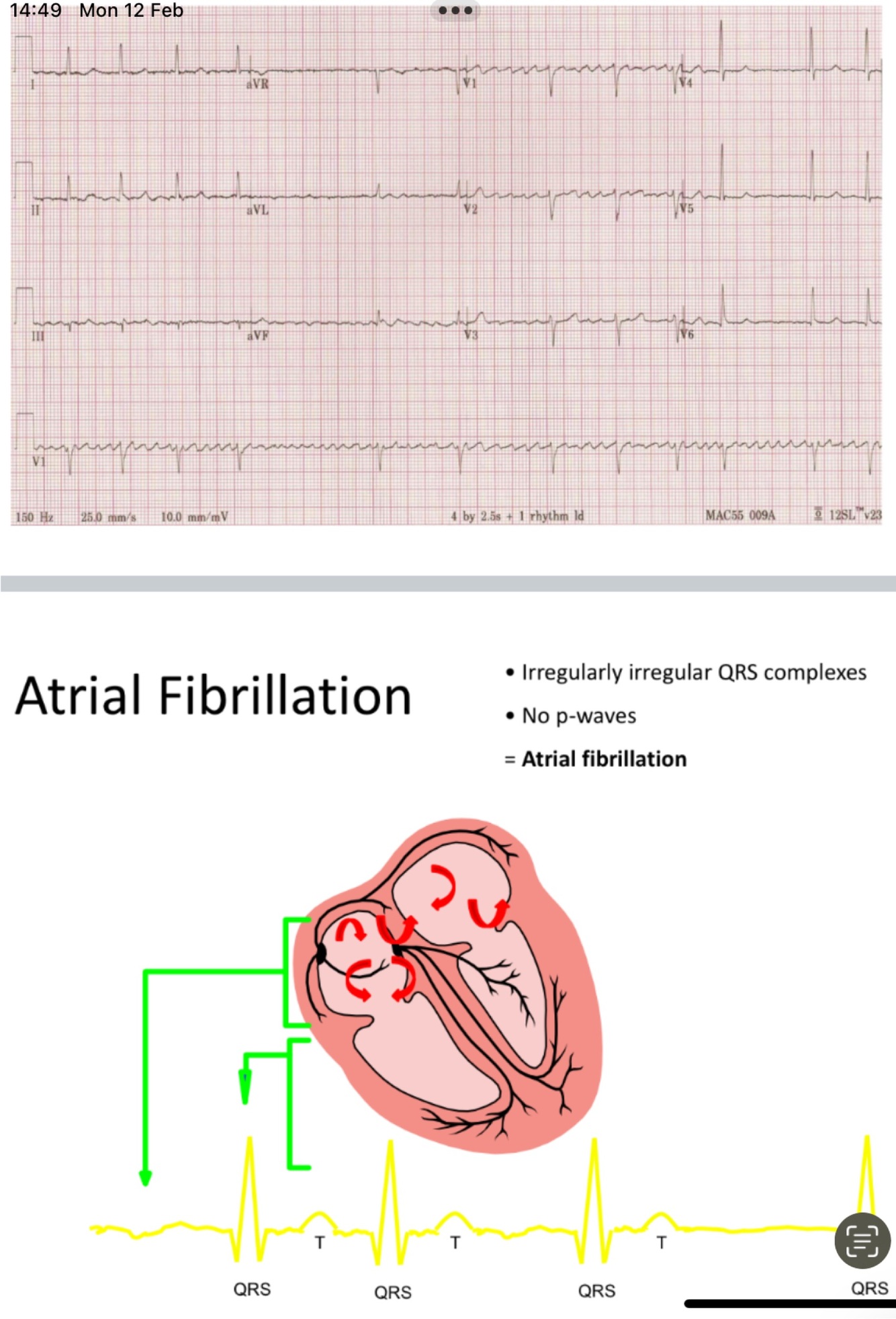

What does atrial fibrillation look like?

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

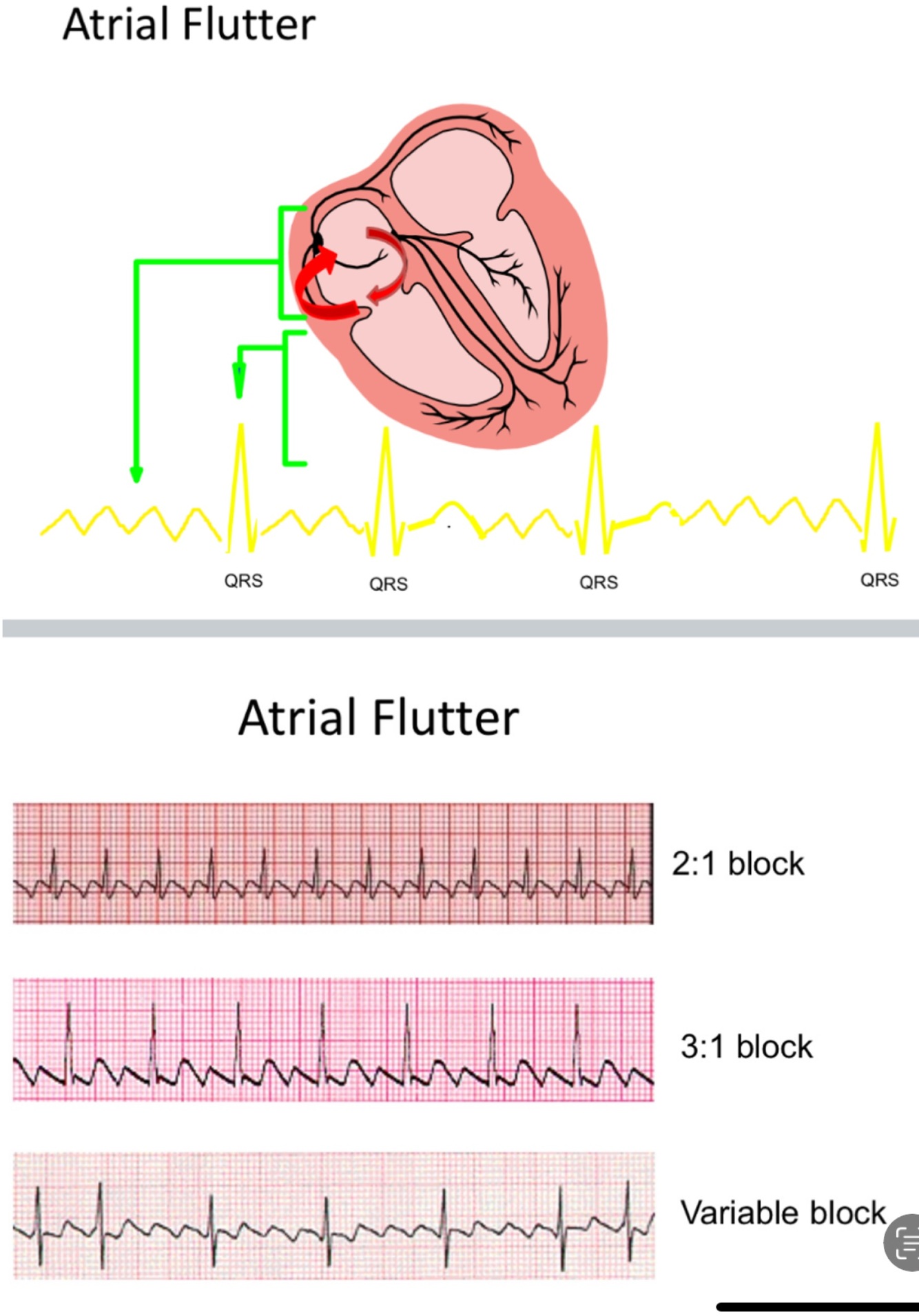

What does atrial flutter look like?

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

What does heart block look like?

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

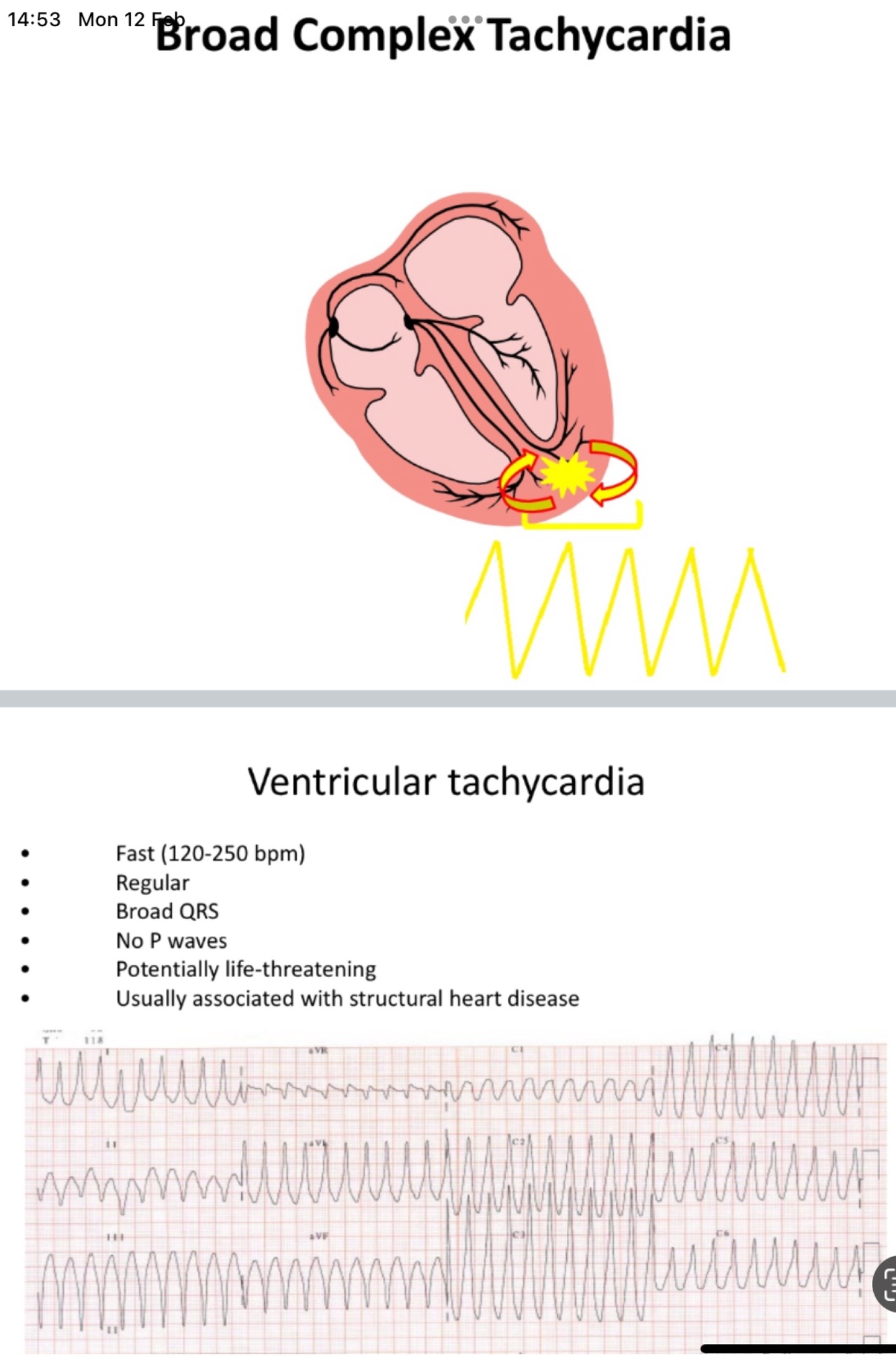

What does tachycardia look like?

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

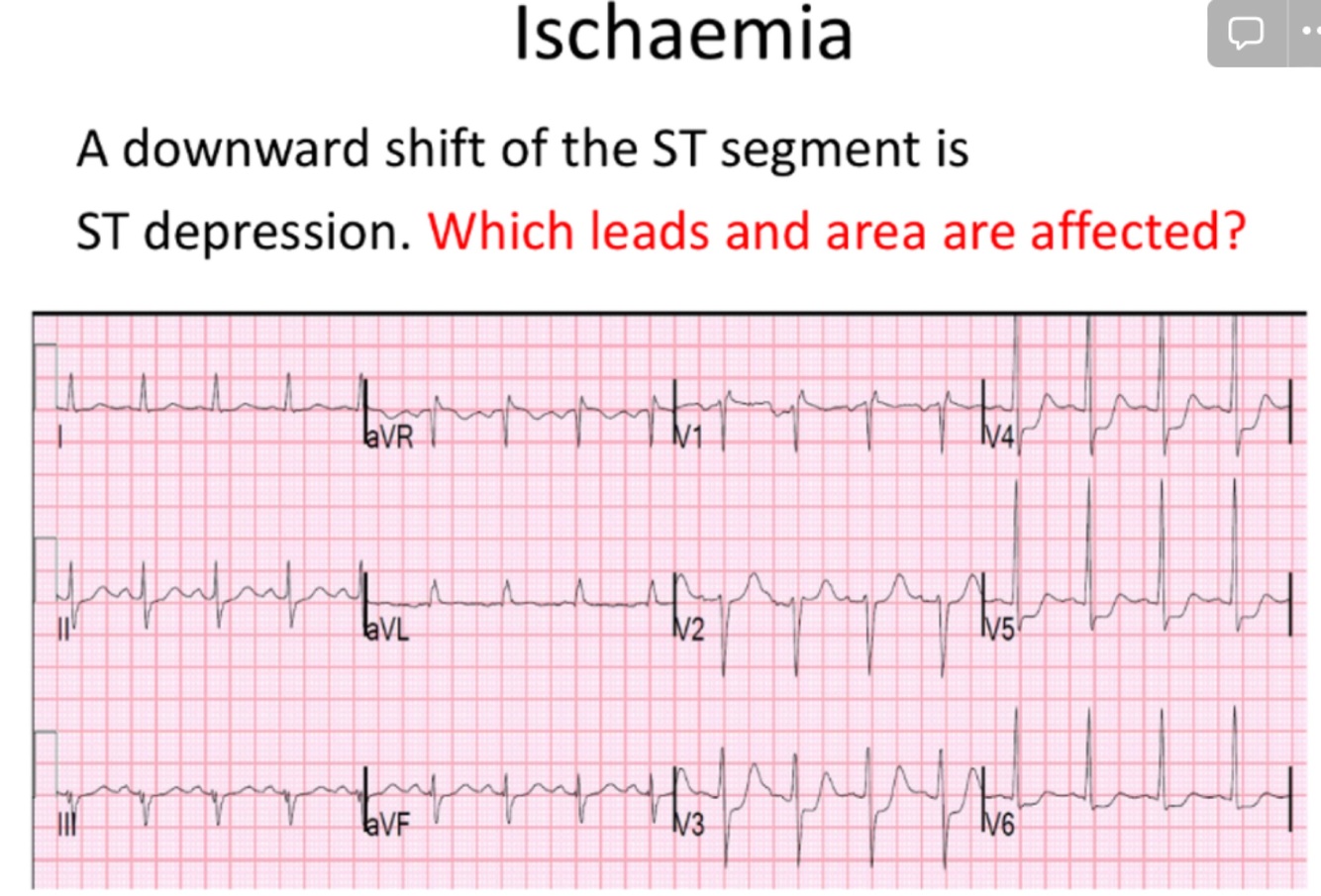

What does ischaemia look like?

A
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
17
Q

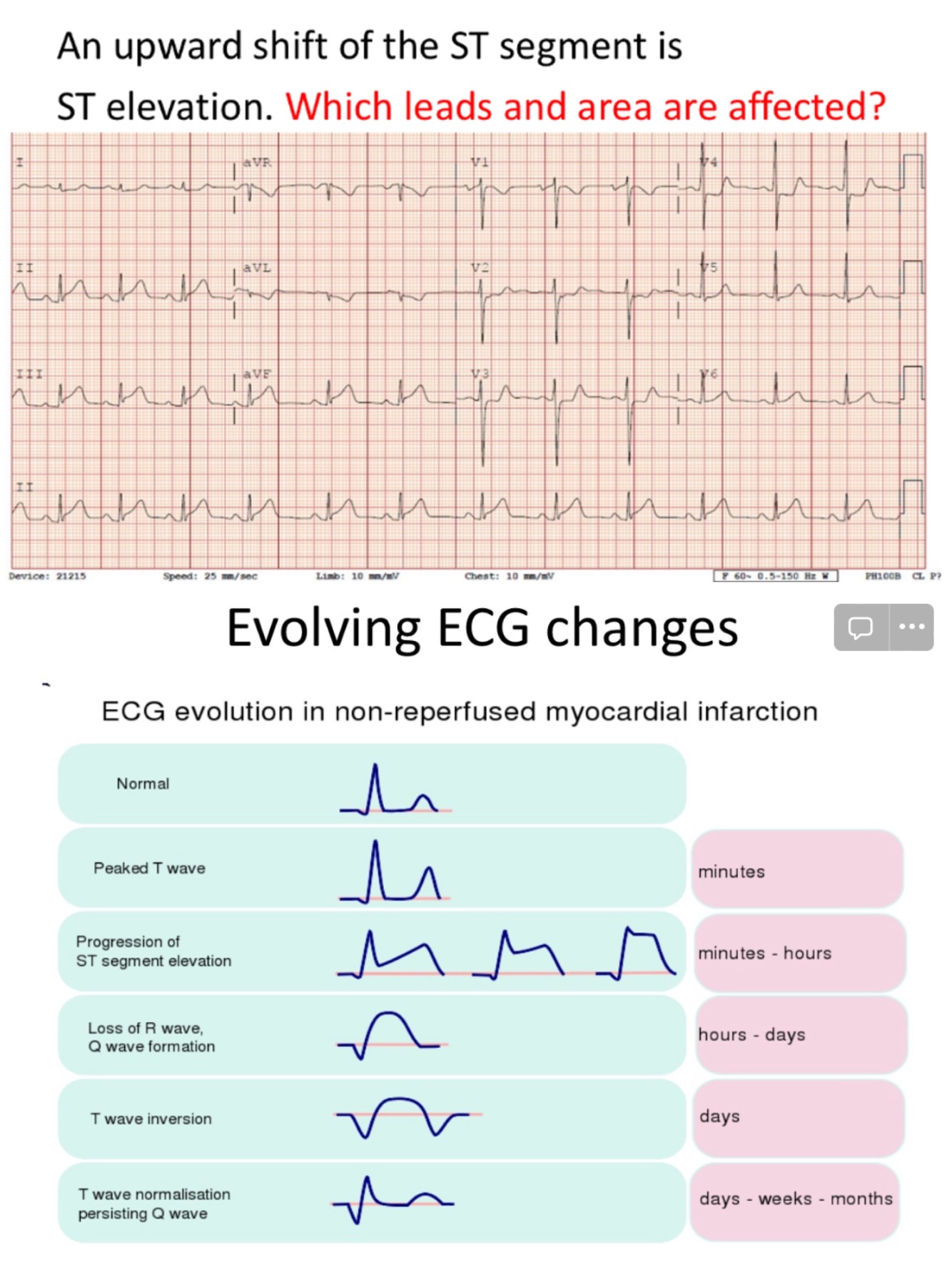

What does a MI look like?

18
Q

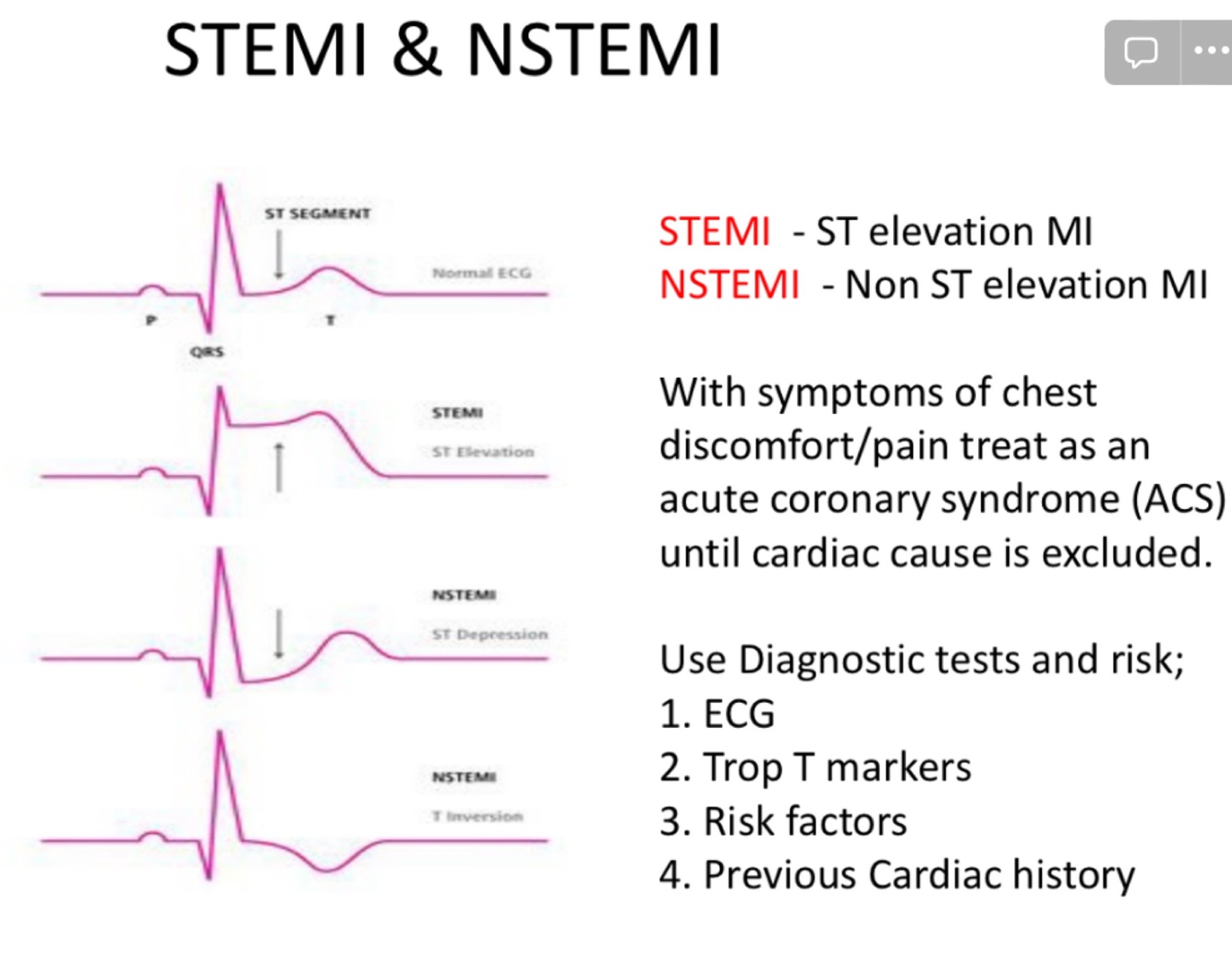

STEMI vs NSTEMI

19
Q

What are cardiac arrhythmias?

Study These Flashcards
A
  • An abnormality of the cardiac rhythm is called a cardiac arrhythmia.
  • Arrhythmias may cause sudden death, syncope, heart failure, chest pain, dizziness, palpitations or no symptoms at all.
  • There are two main types of arrhythmia:
    • Bradycardia: the heart rate is slow (<60b.p.m. during the day or
    <50b.p.m. at night).
    • Tachycardia: the heart rate is fast (>100b.p.m.).
  • Tachycardias are more symptomatic when the arrhythmia is
    fast and sustained.
  • Tachycardias are subdivided into:
    • supraventricular tachycardias (SVT), which arise from the atrium
    or the AV junction
    • ventricular tachycardias, which arise from the ventricles.
  • Some arrhythmias occur in patients with apparently normal
    hearts or originate from diseased tissue (scar) because of
    underlying structural heart disease.
  • When myocardial function is poor, arrhythmias are more
    symptomatic and are potentially life-threatening
20
Q

What are sinus arrhythmias?

Study These Flashcards
A
  • Fluctuations of autonomic tone result in phasic changes of
    the sinus discharge rate.
  • During inspiration, parasympathetic tone falls, and the heart
    rate quickens; on expiration, the heart rate falls.
  • This variation is normal, particularly in children and young adults.
  • Typically, sinus arrhythmia results in predictable irregularities of the pulse
21
Q

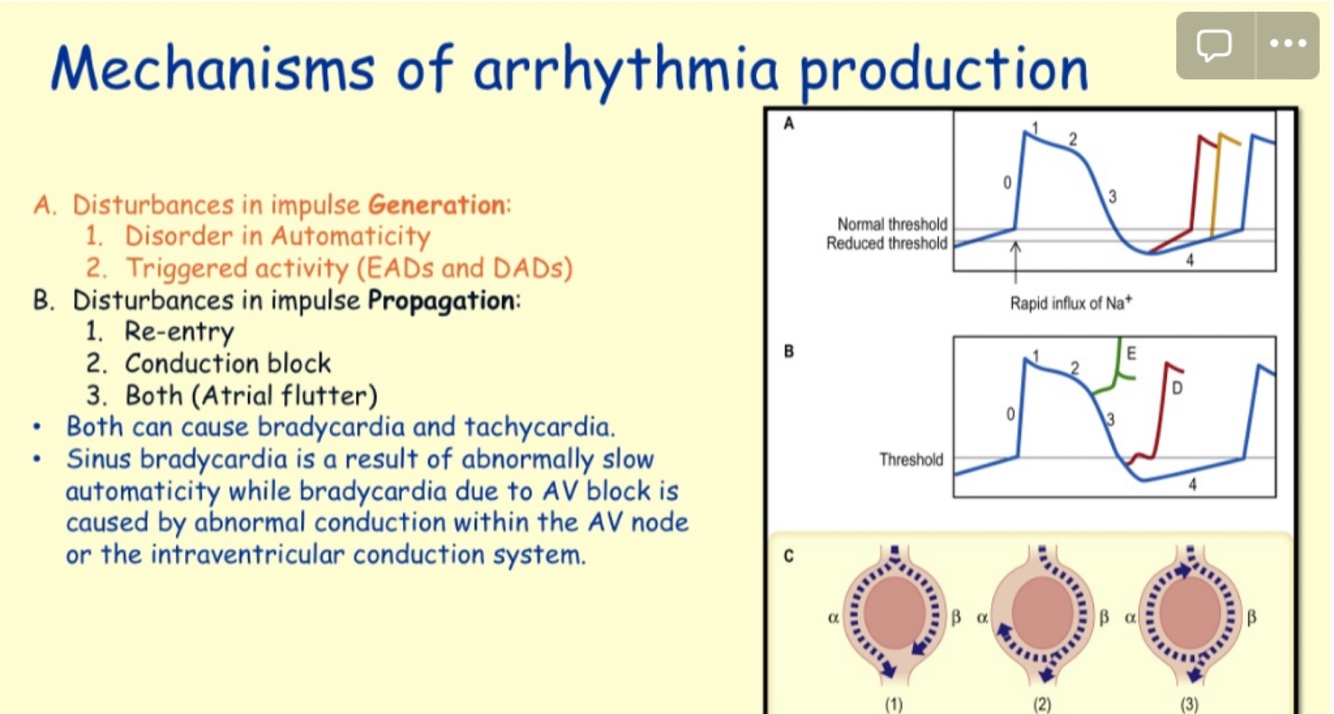

What are the mechanisms for arrhythmia production?

22
Q

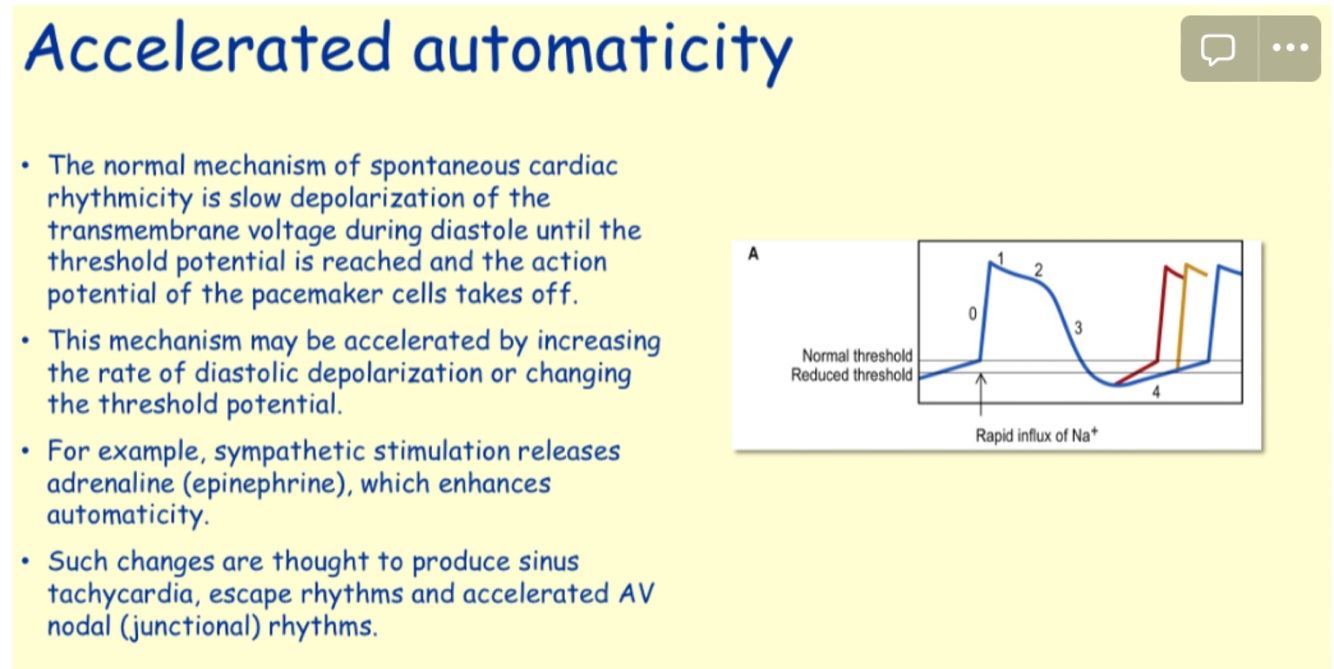

What is accelerated automacity?

23
Q

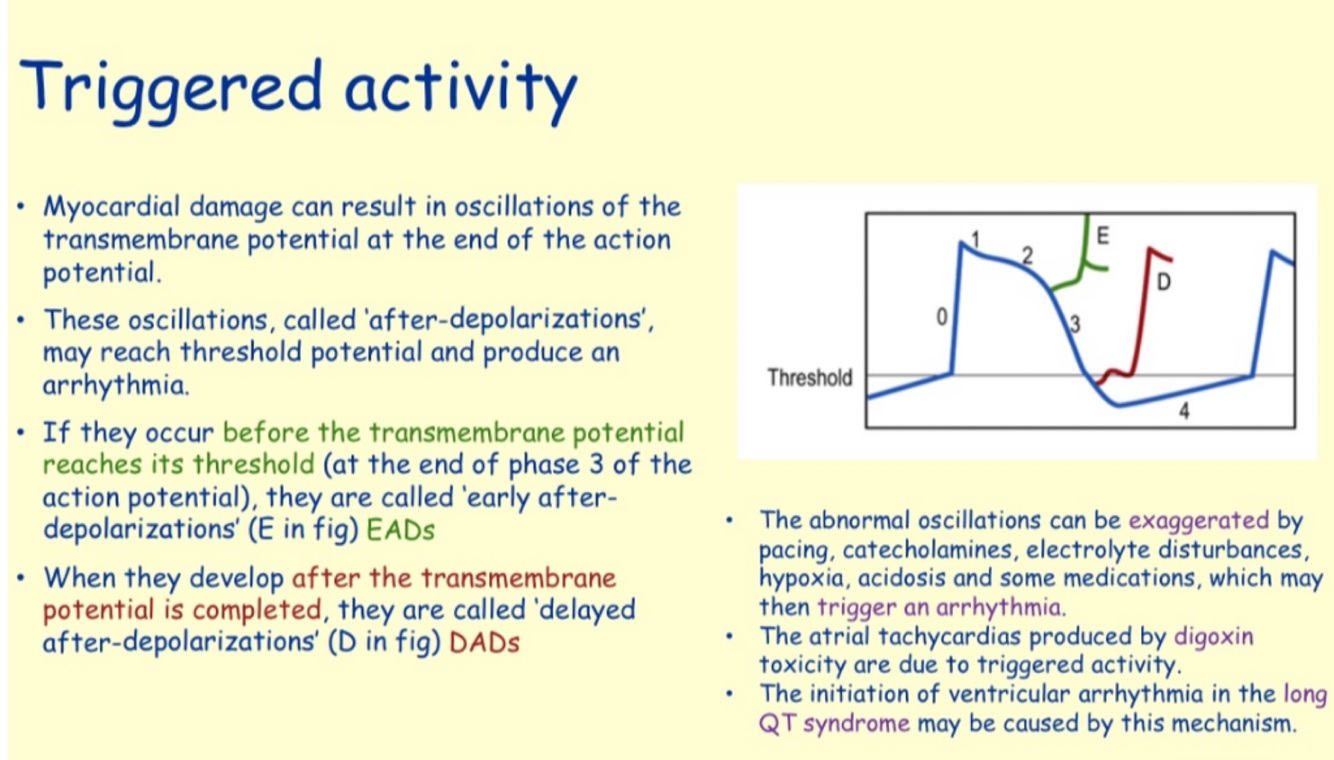

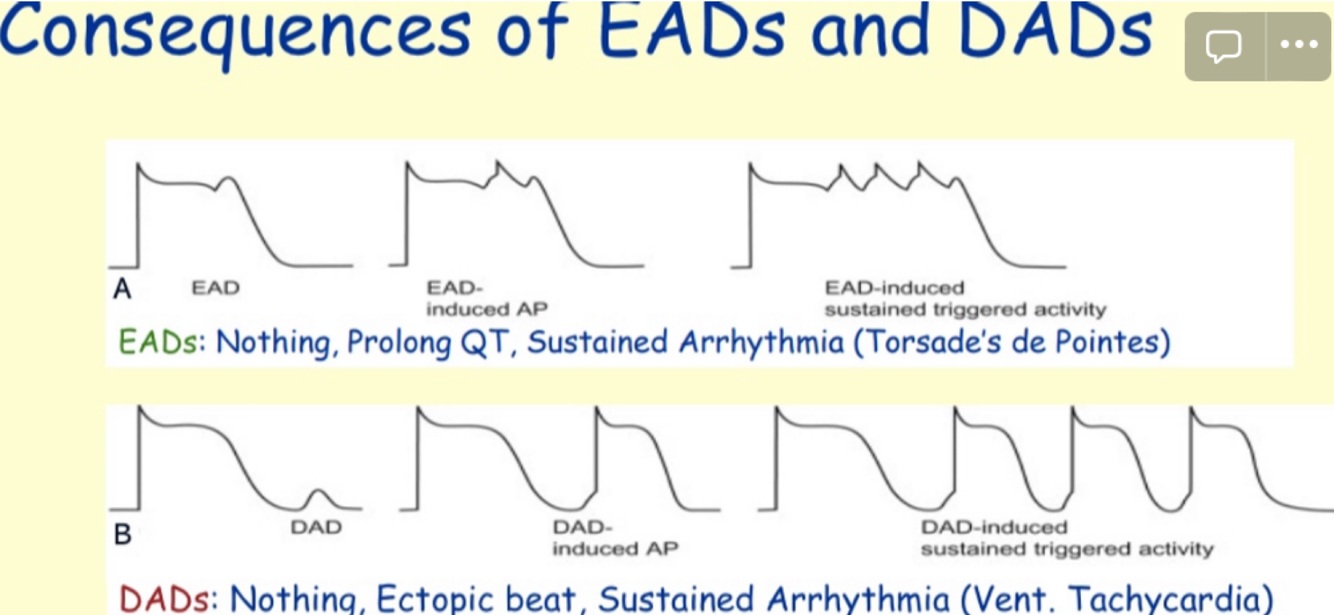

What is triggered activity?

Study These Flashcards
A
  • Is always preceded by AP
  • Caused by afterdepolarizations
  • 2 types:
    • early afterdepolarizations (EADs)
    • delayed afterdepolarizations (DADs)
  • EADs may appear either at the end of the action potential plateau
    (phase 2) or approximately midway through repolarization (phase 3)→ prolonged QT, Torsade’s de pointes
  • DADs occur near the very end of repolarization or just after full repolarization (phase 4)→ Ectopic beat, VT
24
Q

What is the aetiology of triggered activities and what are the consequences?

Study These Flashcards
A

Causes of EADs:

  1. Slow HR
  2. Prolonged action potentials.
  3. Certain antiarrhythmic drugs like quinidine which prolongs the
    action potential.

Causes of DADs:

  1. Increased serum Calcium Activate a 3Na+/Ca2+ exchanger
  2. Increased Adrenaline
  3. Drug Toxicity like Digoxin
  4. Myocardial Infarction
25
What is re-entry?
- Requirements for re-entry - Two possible routes for electrical impulse to flow down • Fast-pathway →Long RP • Slow-pathway →Short RP - Impulse flows down one pathway, back up the other, and gets caught in a loop. - Slower pathway/route can be caused by: 1. Central area of block e.g. scar tissue, refractory cells 2. Area/path of variable blocking e.g. dead myocyte, myocytes with different RP/conduction speed
26
What is sinus bradycardia and its causes?
**Sinus bradycardia** - Sinus bradycardia is due either to extrinsic factors that influence a relatively normal sinus node, or to intrinsic sinus node disease. - The mechanism can be acute and reversible, or chronic and degenerative. - Common extrinsic causes: • hypothermia, hypothyroidism, cholestatic jaundice and raised intracranial pressure • drug therapy with beta-blockers, digitalis and other antiarrhythmic drugs • neurally mediated syndromes (carotid sinus syndrome, vasovagal attacks) - Common intrinsic causes: • acute ischaemia and infarction of the sinus node (as a complication of acute myocardial infarction) • chronic degenerative changes, such as fibrosis of the atrium and sinus node (sick sinus syndrome)
27
What is heart block?
- Block in either the AV node or the His bundle results in AV block - Block lower in the conduction system produces bundle branch block. - 3 forms: 1. First-degree 2. Second-degree 3. Third-degree
28
What is first degree heart block?
29
What is second degree heart block?
Due to a block at an infranodal level, such as the His bundle. Pacing usually indicated.
30
Type 1 vs 2 second degree heart block
31

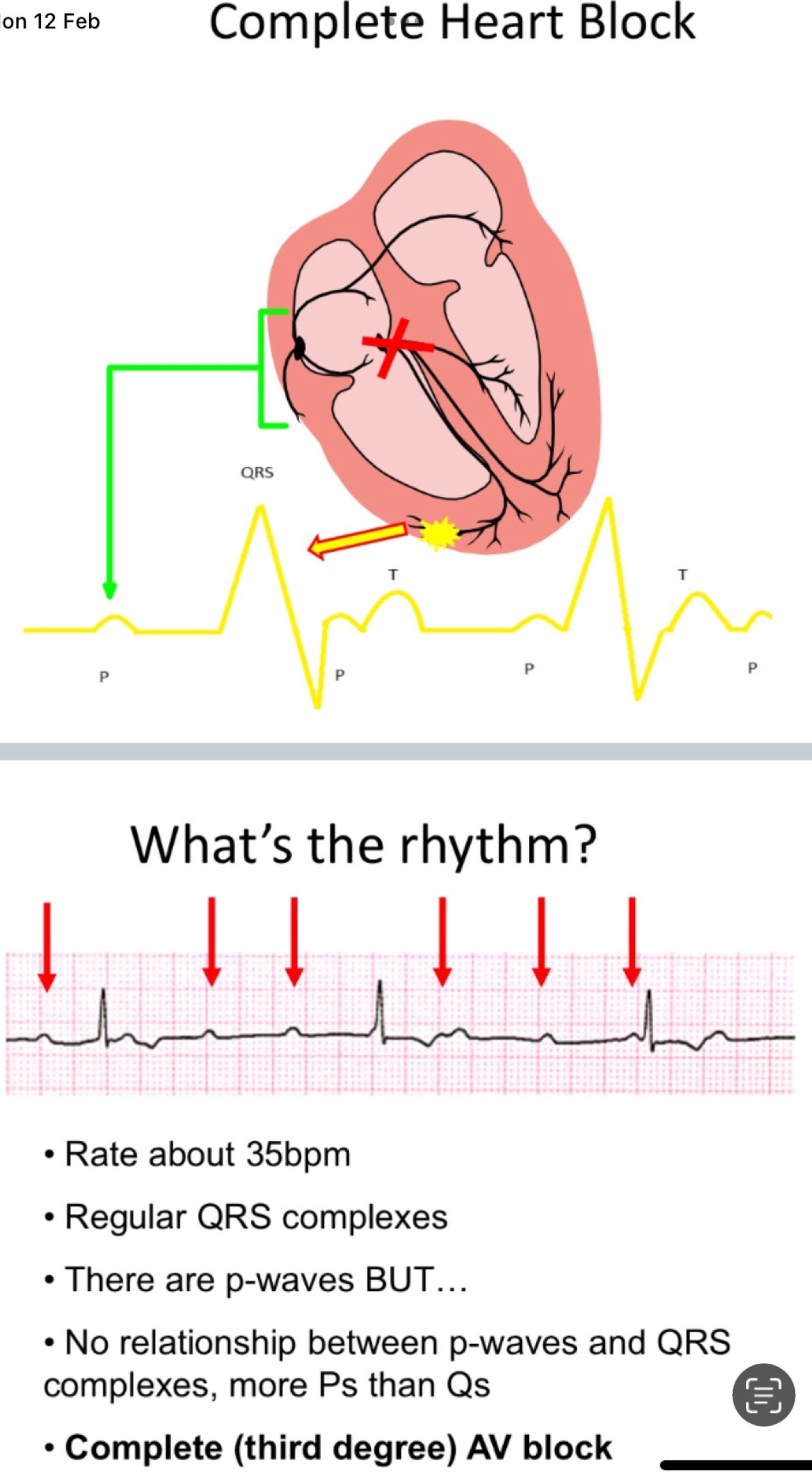

What is third degree heart block?
32
What is the aetiology of complete block?
- **Congenital**: transposition of great vessels - **Idiopathic fibrosis**: Lev’s disease (older people), Lenegre’s disease (younger people) - **IHD**: acute MI, ischaemic cardiomyopathy - **Non-IHD**: Calcific aortic stenosis, Idiopathic dilated cardiomyopathy, Infiltrations (e.g. amyloidosis, sarcoidosis, neoplasia) - **Cardiac surgery**: Following aortic valve replacement, CABG, VSD repair - **Iatrogenic**: Radiofrequency AV node ablation and pacemaker implantation - **Drug-induced**: Digoxin, beta-blockers, amiodarone, non-dihydropyridine calcium- channel blockers - **Infection**: Endocarditis, lyme disease, chagas’ disease - **Autoimmune**: SLE, RA - **Neuromuscular disease**: Duchenne muscular dystrophy
33
What is the pathophysiology of complete block?
- Complete heart block occurs when there is complete dissociation between atrial and ventricular activity - P waves and QRS complexes occur independently of one another - Ventricular contractions are maintained by a spontaneous escape rhythm originating below the site of the block either from: • His bundle: narrow complex QRS (<0.12 s), rate 50–60 bpm, if due to transient ischaemia, IV atropine (no need for pacing), if chronic then pacing • His-Purkinje system: broad QRS complex (>0.12 s), rate <40 bpm, associated with dizziness and blackouts (Stokes–Adams attacks), Lev’s disease in elderly and Lenegre’s disease in younger pt., permanent pacemaker indicated
34
What is bundle branch block?
35
What are the narrow complex tachycardias?
36
What is atrioventricular nodal re-entrant tachycardia?
Anterograde re-entry; from atrium to ventricle. Red is delta wave
37
AVRT vs AVNRT
38
What is atrial flutter
39
What is atrial fibrillation?
40
Atrial fibrillation vs flutter
- Definition: • Flutter: Regular, rapid atrial contractions at a rate of 250-350 beats per minute. • Fibrillation: Chaotic, irregular atrial contractions at rates exceeding 300 beats per minute - ECG: • Flutter: Sawtooth (F waves), typically in a 2:1, 3:1, or 4:1 conduction ratio. • Fibrillation: ƒ waves, no P waves, irregularly irregular rhythm. - Symptoms: • Flutter: palpitations, chest discomfort, and fatigue. • Fibrillation: palpitations, dyspnoea, dizziness, and fatigue. - Complications: • Flutter: Less commonly associated with embolic events compared to atrial fibrillation. • Fibrillation: Higher risk of embolic events and stroke due to blood stasis in the atria. - Management: • Flutter: rate control medications or rhythm control such as ablation. • Fibrillation: rate control, anticoagulation, and rhythm control based on patient characteristics. - Prognosis: • Flutter: Generally considered less severe compared to atrial fibrillation in terms of thromboembolic risk. • Fibrillation: Higher risk of complications like stroke and heart failure compared to atrial flutter.
41
What part of an ECG refers to which part of conduction?
