F70 Differences

Question 1

F70 Low Pressure Tyres

Answer 1

Question 2

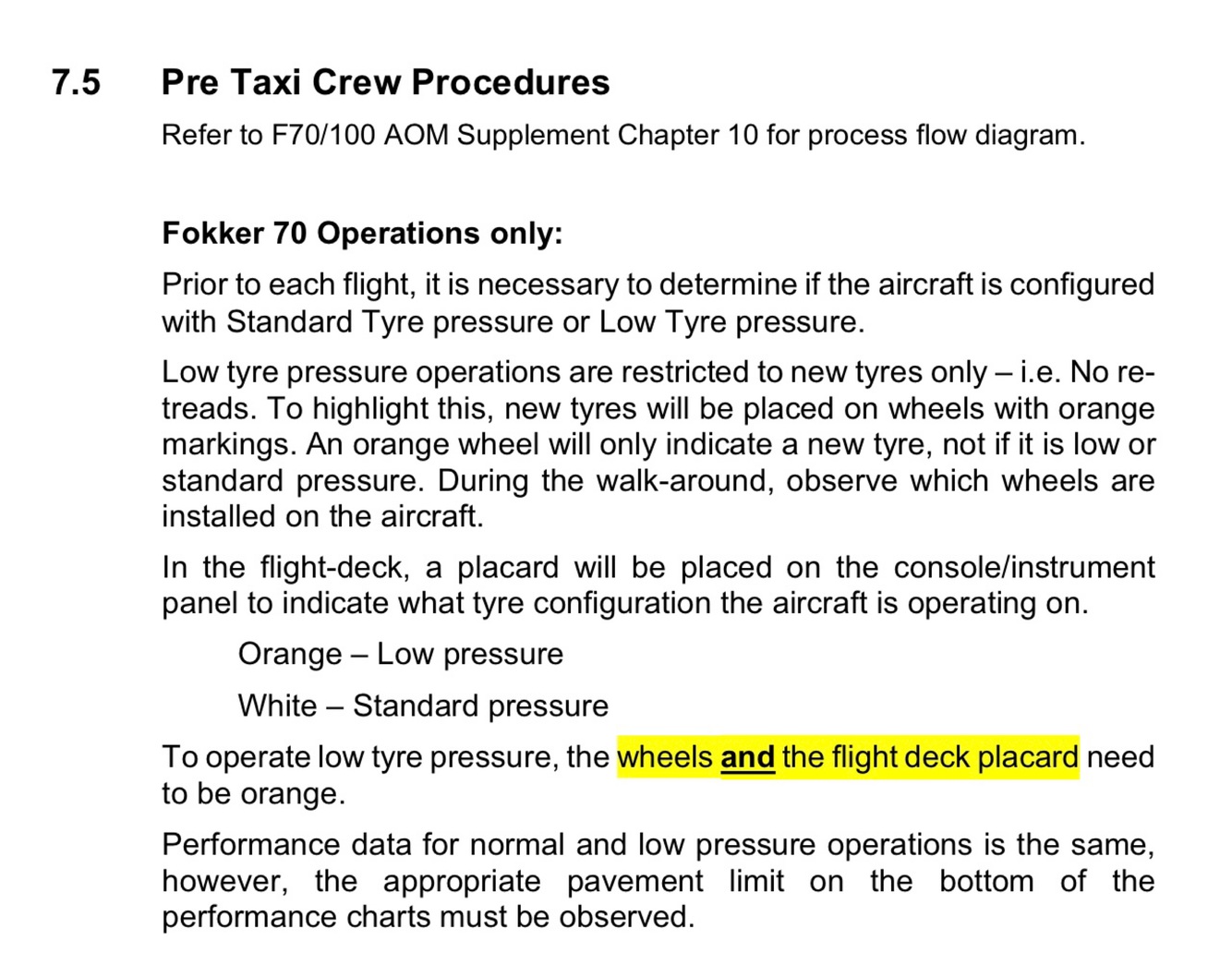

Orange Wheels and Flight Deck Placards

Answer 2

Question 3

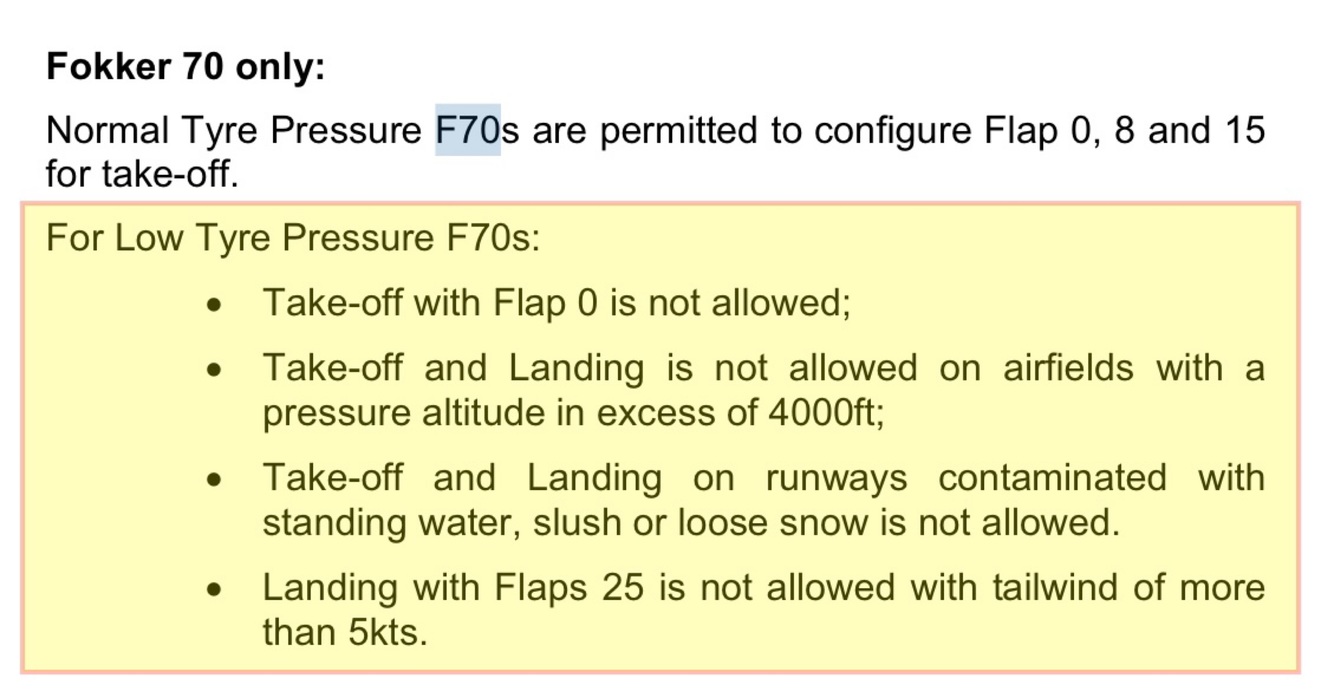

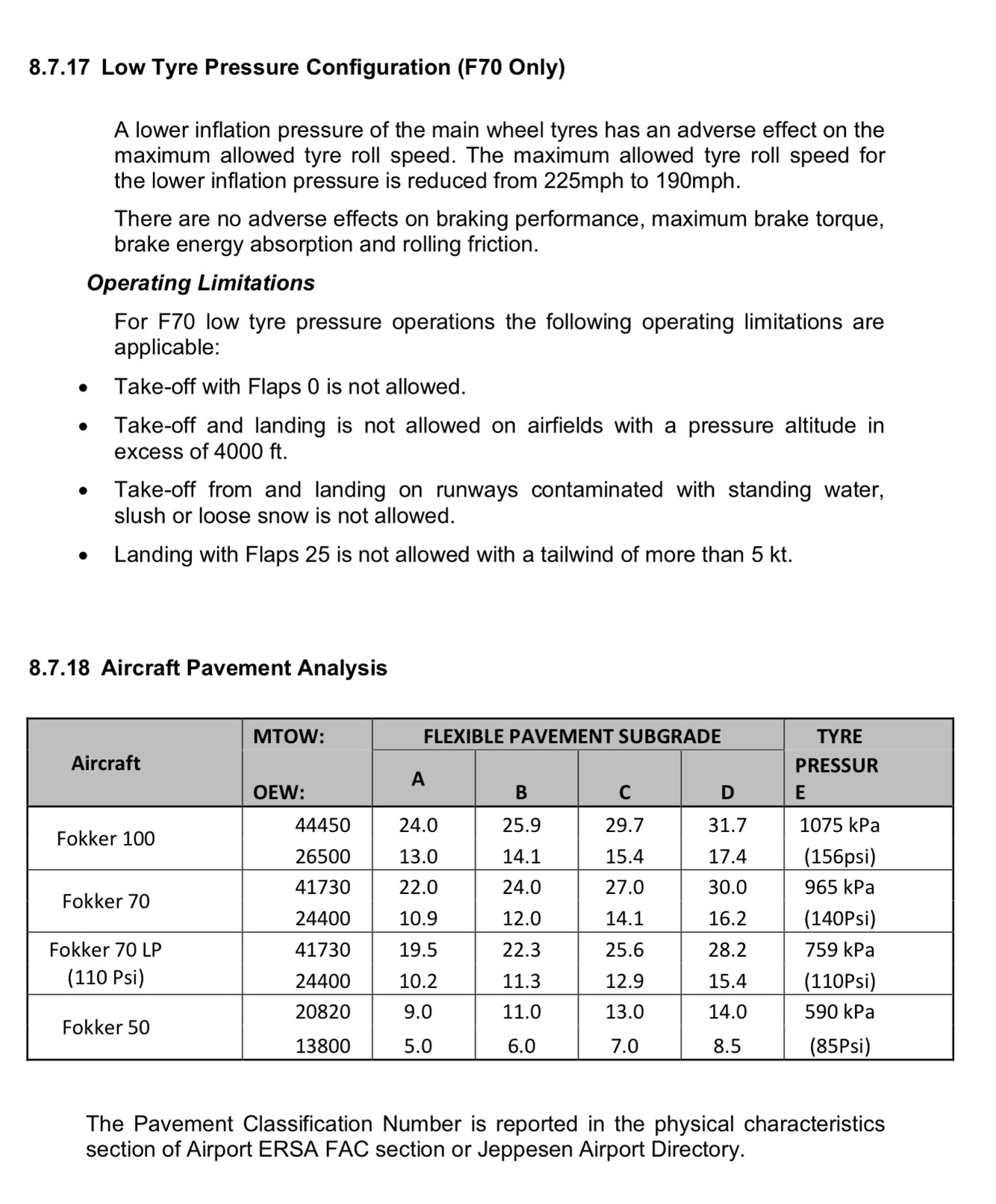

Low Pressure Tire Limitations

Answer 3

Question 4

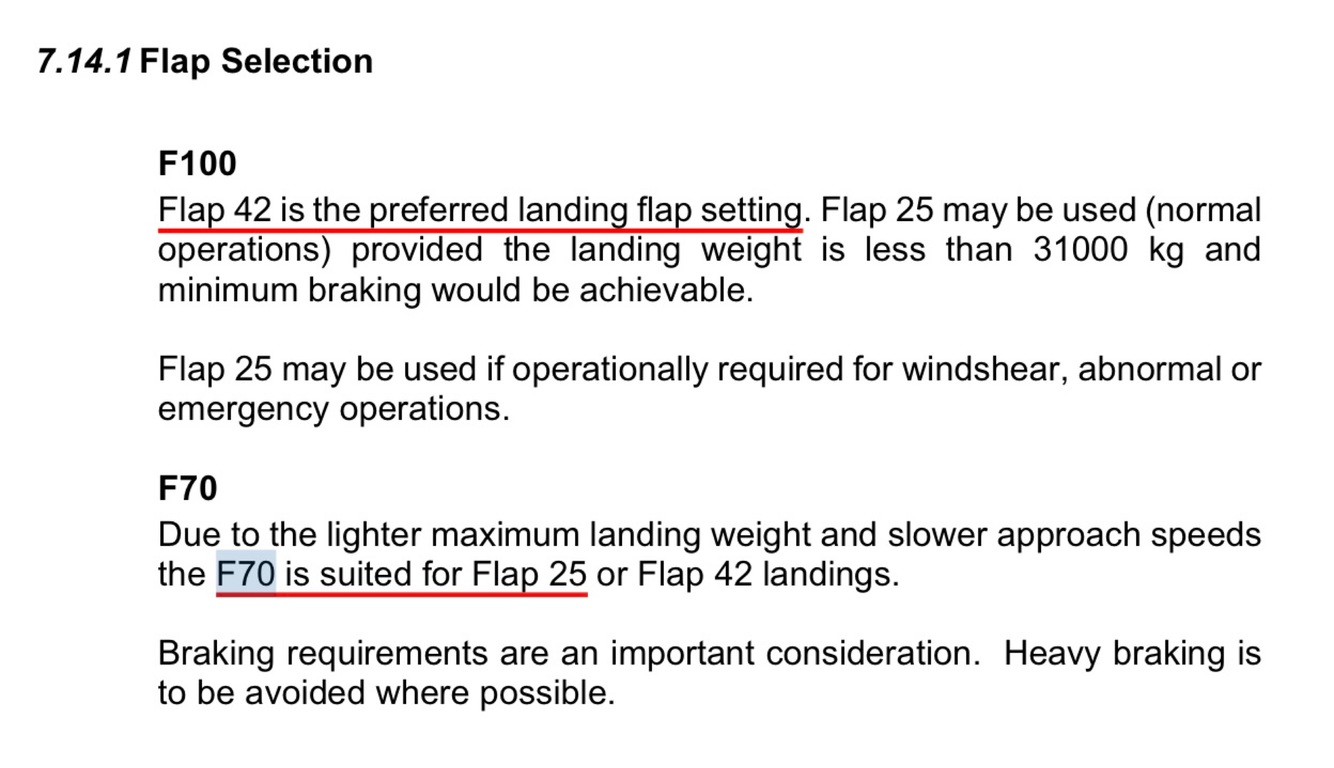

F70 Flap Selection

Question 5

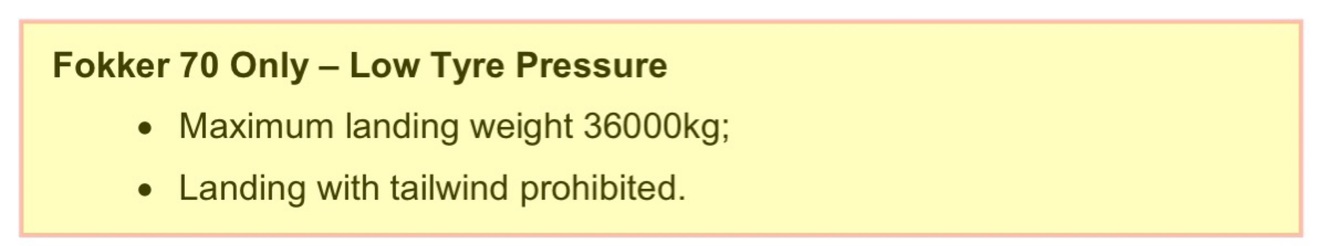

Low Pressure Tires

Max Landing Weight

Answer 5

Question 6

F70 Limitation Differences

Answer 6

Weights

   Maximum taxi weight 41 955 kg    (or 40140 kg)
   Maximum take-off weight 41 730 kg    (or 39915 kg)
   Maximum landing weight 36740 kg (LP tires 36000 kg)
   Maximum zero fuel weight 33565 kg
   Minimum inflight gross weight: 26 000 kg

Engine Limitations

   Engine Start limit TGT       - 700 deg C (2 sec)
   Relight limit TGT                - 780 deg C (2 sec)
   Overtemp limit                  - 820 deg C (20 sec)
   Max takeoff TGT.              - 800 deg C (5 min)
   Max Reverse TGT.             - 800 deg C (60 sec)
