Frequency Domain Analysis - Phasor Analysis and Laplace Transform to Fourier Analysis

Question 1

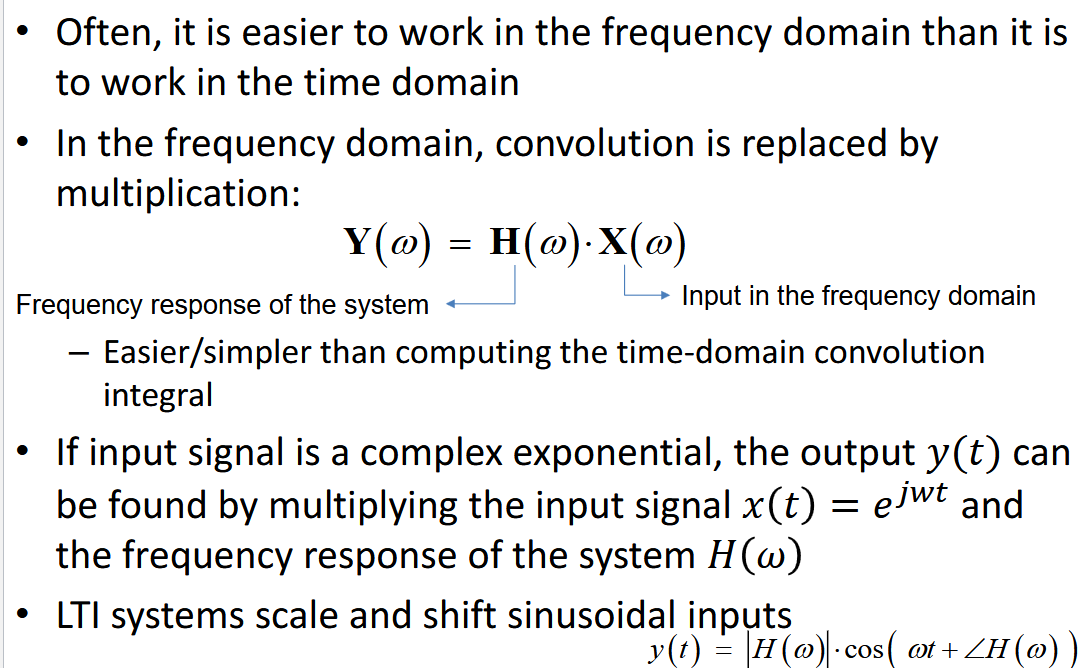

What is the main advantage of working in the frequency domain compared to the time domain?

Answer 1

It simplifies the convolution operation by replacing it with multiplication.

Question 2

What is the relationship between input and output in the frequency domain for LTI systems?

Answer 2

Y(ω) = H(ω) * X(ω)

Question 3

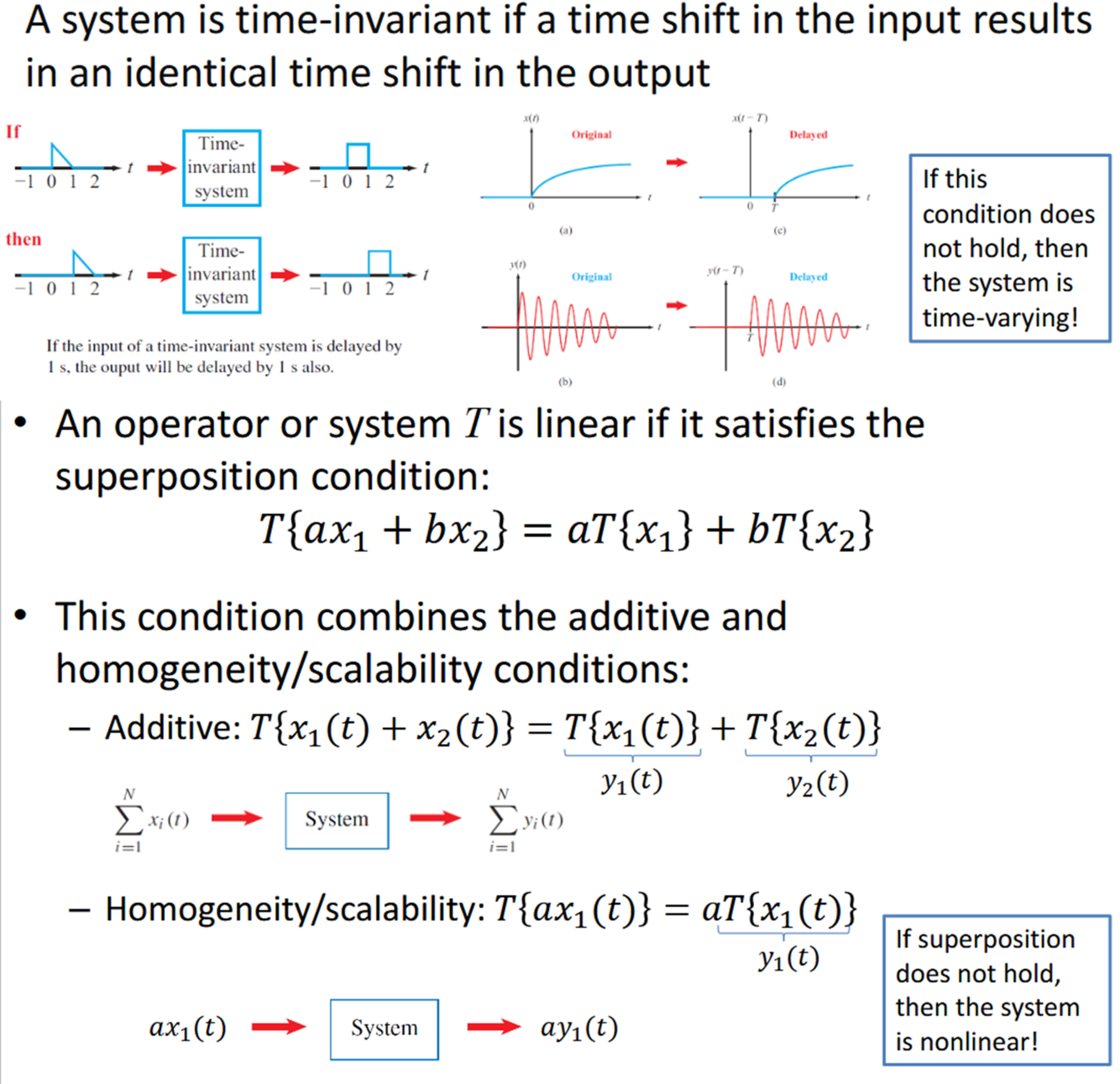

What does LTI stand for?

Answer 3

Linear Time-Invariant

Question 4

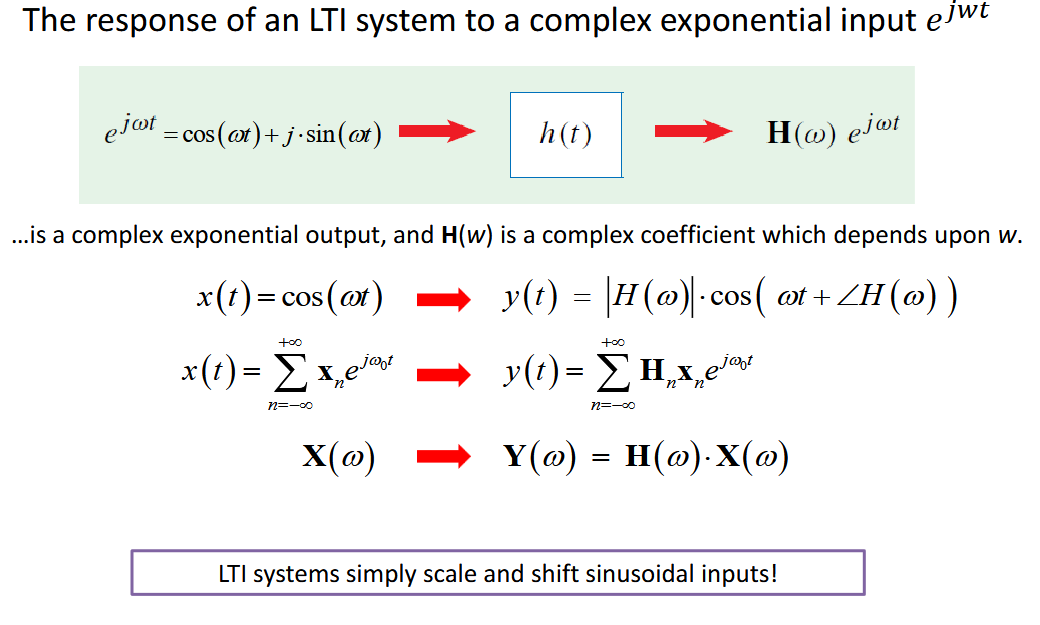

What is the output response of an LTI system to a complex exponential input e^(jωt)?

Answer 4

The output is a complex exponential scaled by H(ω).

Question 5

Fill in the blank: In the frequency domain, convolution is replaced by _______.

Answer 5

multiplication

Question 6

True or False: Phasor analysis can be used to analyze transient signals.

Answer 6

False

Question 7

What is the fundamental angular frequency (ω₀) formula for a periodic function of period T₀?

Answer 7

ω₀ = 2π/T₀

Question 8

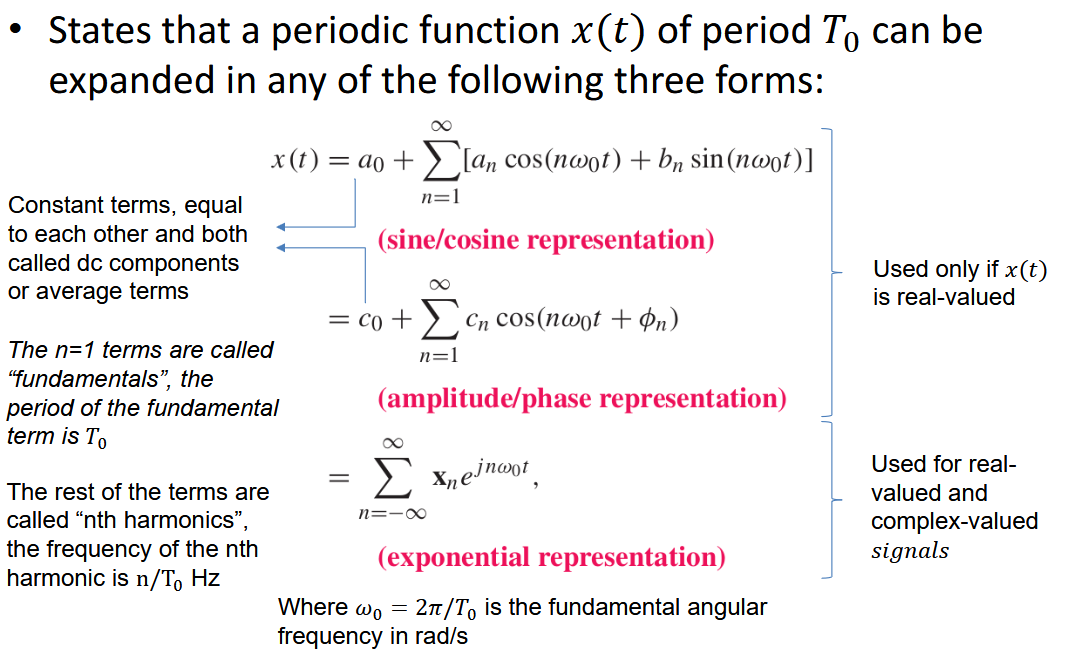

What is a Fourier series used for?

Answer 8

To express periodic signals in terms of sinusoidal components.

Question 9

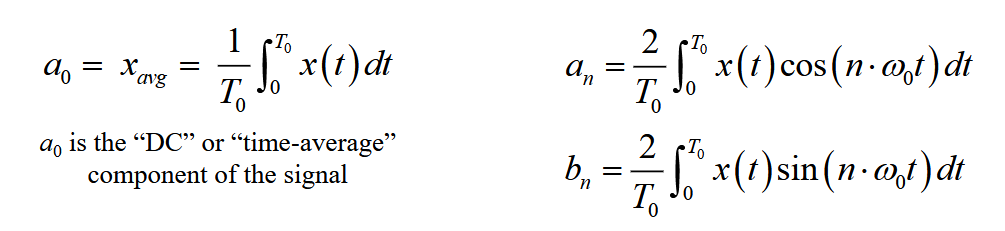

What are the Fourier coefficients for a periodic function x(t)?

Answer 9

• a₀ = (1/T₀) * ∫₀^T₀ x(t) dt
• aₙ = (2/T₀) * ∫₀^T₀ x(t)cos(nω₀t) dt
• bₙ = (2/T₀) * ∫₀^T₀ x(t)sin(nω₀t) dt

Question 10

What does the term ‘fundamental’ refer to in Fourier analysis?

Answer 10

The n=1 term in the Fourier series, representing the base frequency of the periodic function.

Question 11

What are the implications of LTI systems reacting to complex exponentials?

Answer 11

It allows for easy determination of output by scaling and shifting sinusoidal inputs.

Question 12

What is the significance of the Laplace transform in system analysis?

Answer 12

It handles exponentials, transients, and system stability.

Question 13

Fill in the blank: Fourier analysis decomposes signals into sums of _______.

Answer 13

sinusoids or complex exponentials

Question 14

True or False: Fourier analysis can be applied to signals that grow exponentially.

Answer 14

False

Periodic signals only

Question 15

What type of signals can be studied using Fourier analysis that cannot be handled by Laplace transforms?

Answer 15

Some signals do not have a Laplace transform but are Fourier transformable, like the sinc function.

and vice vera

Question 16

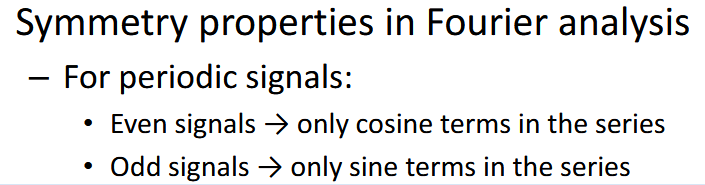

What is the purpose of symmetry properties in Fourier analysis?

Answer 16

They determine the presence of cosine or sine terms in the Fourier series for even and odd signals.

Question 17

What is the role of the term ‘DC components’ in Fourier series?

Answer 17

They represent the average value of the periodic signal.

Question 18

What does the variable ‘s’ represent in the context of Laplace transforms?

Answer 18

s = σ + jω, where σ is the real part and ω is the imaginary part.

Question 19

Fill in the blank: The convolution-to-multiplication property is derived from transforming functions from the _______ to the frequency domain.

Answer 19

time domain
