Linear Time Invariant Systems

Question 1

What is a Linear Time-Invariant (LTI) system?

Answer 1

A system that satisfies the superposition principle and is time-invariant.

Question 2

What does superposition in LTI systems refer to?

Answer 2

The principle that T(ax1 + bx2) = aT(x1) + bT(x2).

Question 3

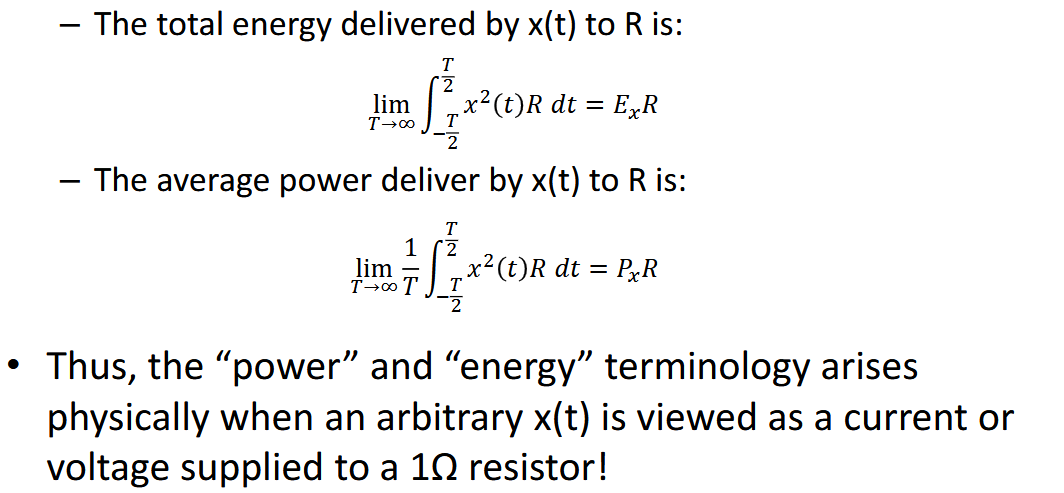

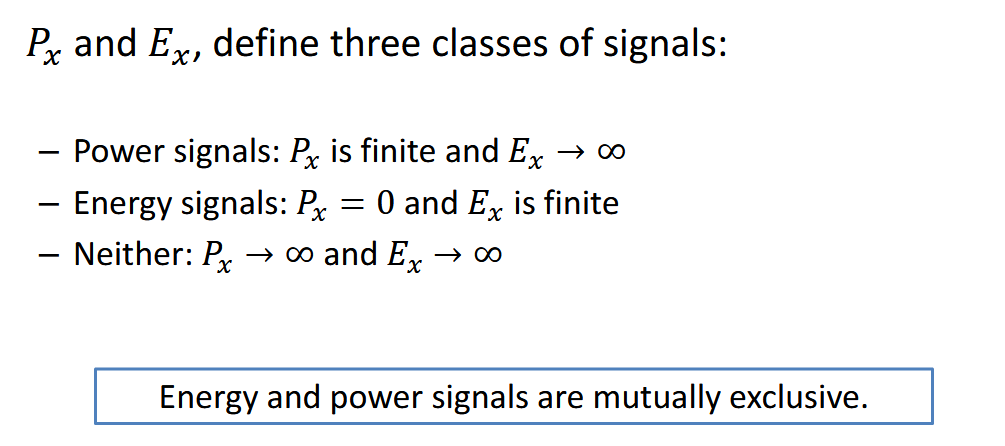

What defines a power signal?

Answer 3

A signal for which Px is finite and Ex approaches infinity.

Question 4

What defines an energy signal?

Answer 4

A signal for which Px equals 0 and Ex is finite.

Question 5

What are the characteristics of signals that are neither power nor energy?

Answer 5

Px approaches infinity and Ex approaches infinity.

Question 6

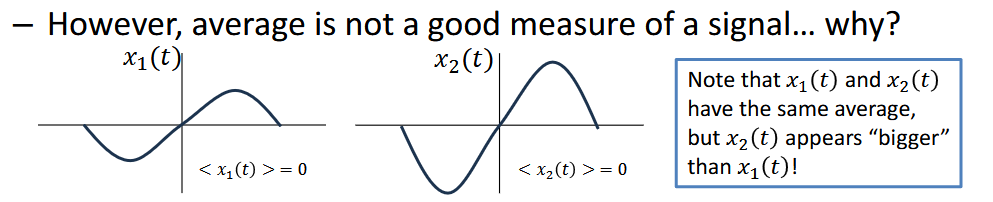

True or False: The average of a signal is equal to its power.

Answer 6

False.

Question 7

What are energy signals typically associated with?

Answer 7

One-time events like pulses or communication bursts.

Question 8

What do power signals represent?

examples

Answer 8

Ongoing sources like radio carriers or AC electricity.

Question 9

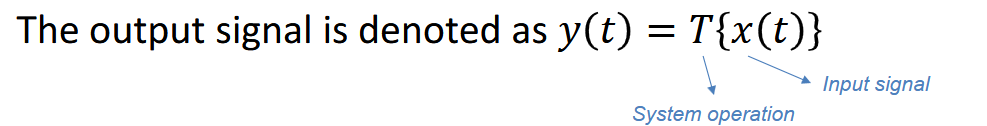

What is the output signal of a system denoted as?

Answer 9

y(t)

Question 10

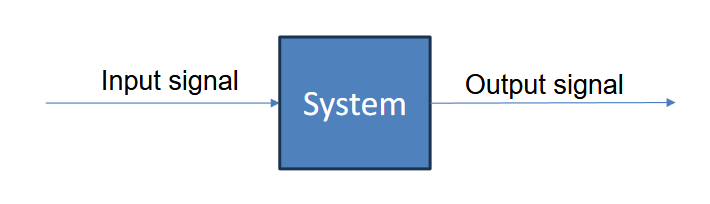

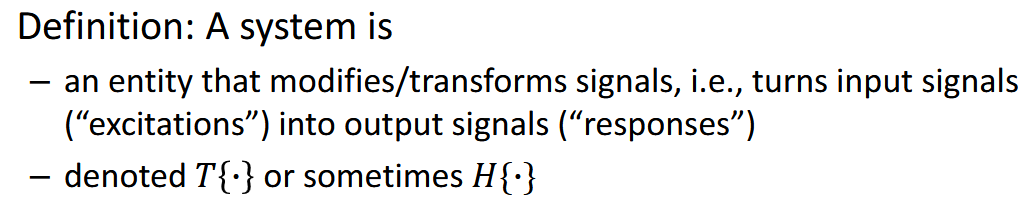

What is the definition of a system?

Answer 10

An entity that modifies or transforms input signals into output signals.

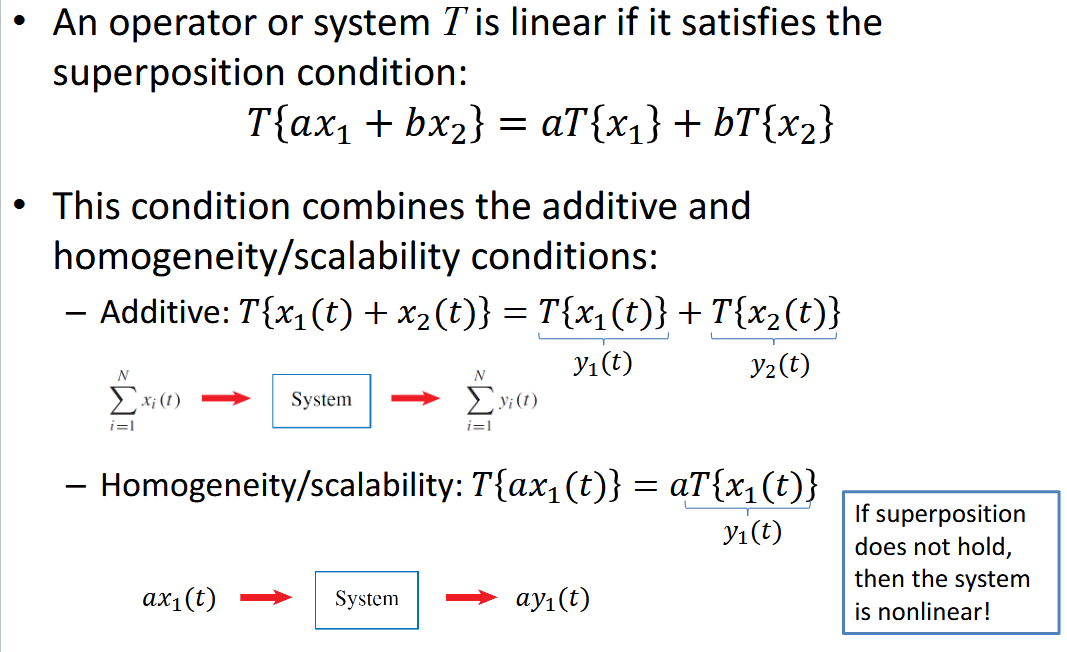

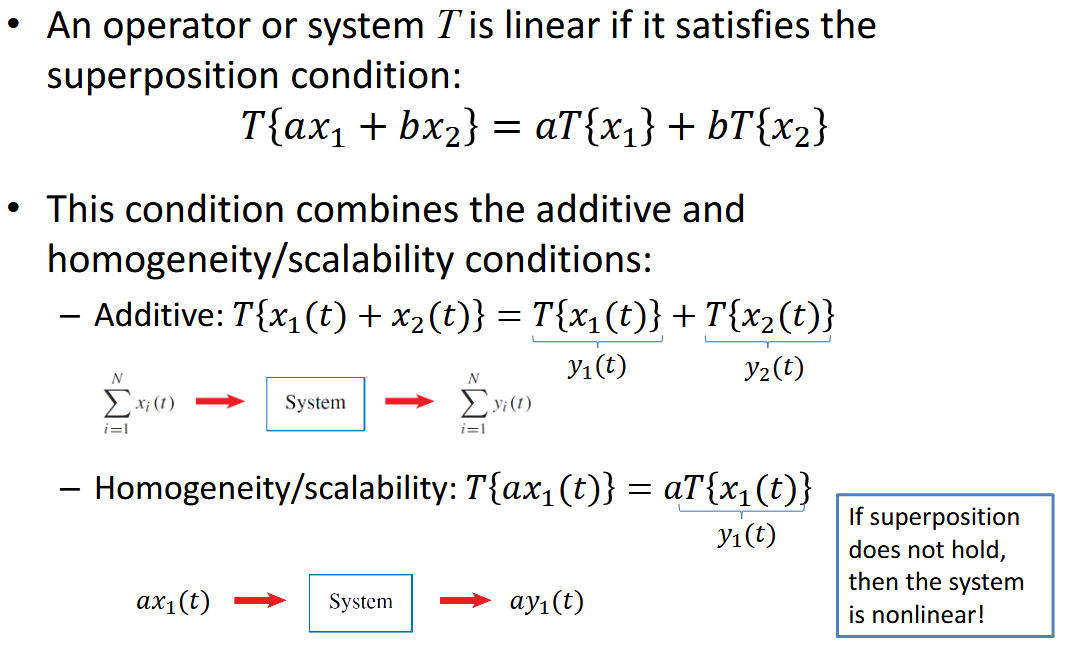

Question 11

What condition must an operator T satisfy to be classified as linear?

Answer 11

It must satisfy the superposition condition.

Question 12

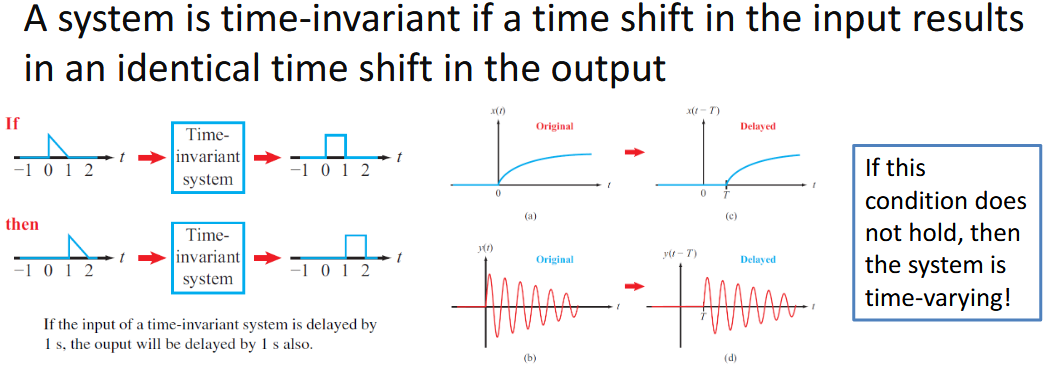

What is the result of a time shift in the input of a time-invariant system?

Answer 12

It results in an identical time shift in the output.

Question 13

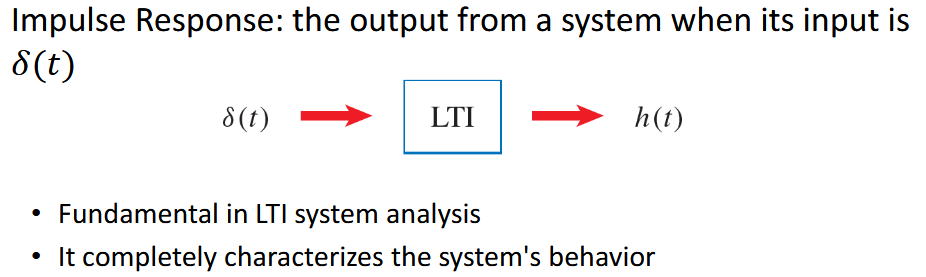

What is the impulse response of an LTI system?

Answer 13

The output from a system when its input is an impulse function δ(t).

denoted as h(t)

Question 14

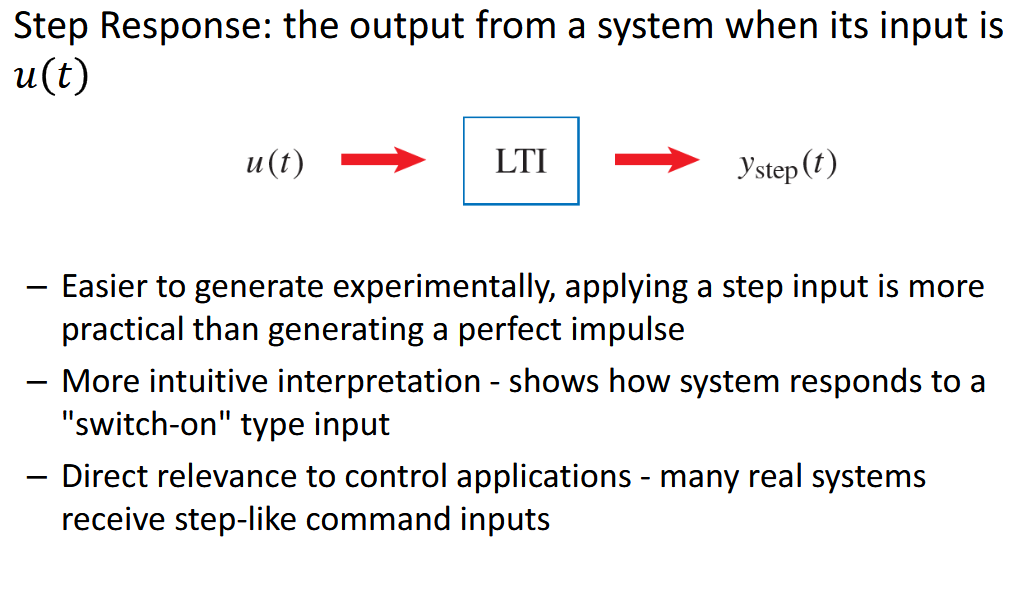

What is the step response of a system?

Answer 14

The output from a system when its input is a step function u(t).

denoted at ystep(t)

Question 15

What is convolution in the context of LTI systems?

Answer 15

A mathematical operation to determine the output y(t) in response to an arbitrary input x(t).

Question 16

Fill in the blank: A system is time-invariant if a time shift in the input results in an identical time shift in the _______.

Answer 16

output.

Question 17

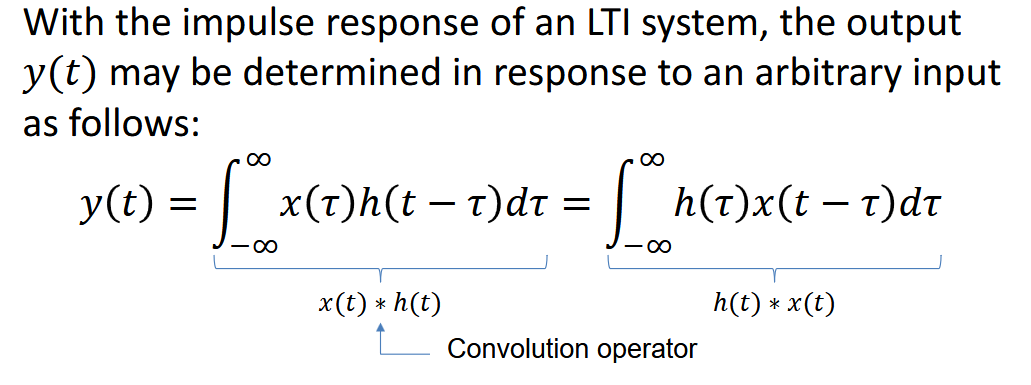

What is the formula for the convolution integral?

Answer 17

y(t) = ∫(−∞ to ∞) x(τ)h(t − τ)dτ.

Question 18

True or False: LTI systems can often be approximated for real-world applications.

Answer 18

True.

Question 19

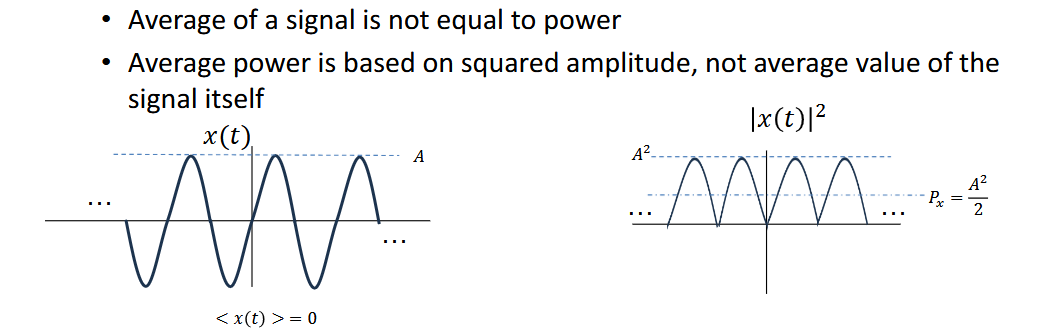

What does the term ‘average power’ refer to in signal analysis?

Answer 19

It is based on squared amplitude, not the average value of the signal itself.

Question 20

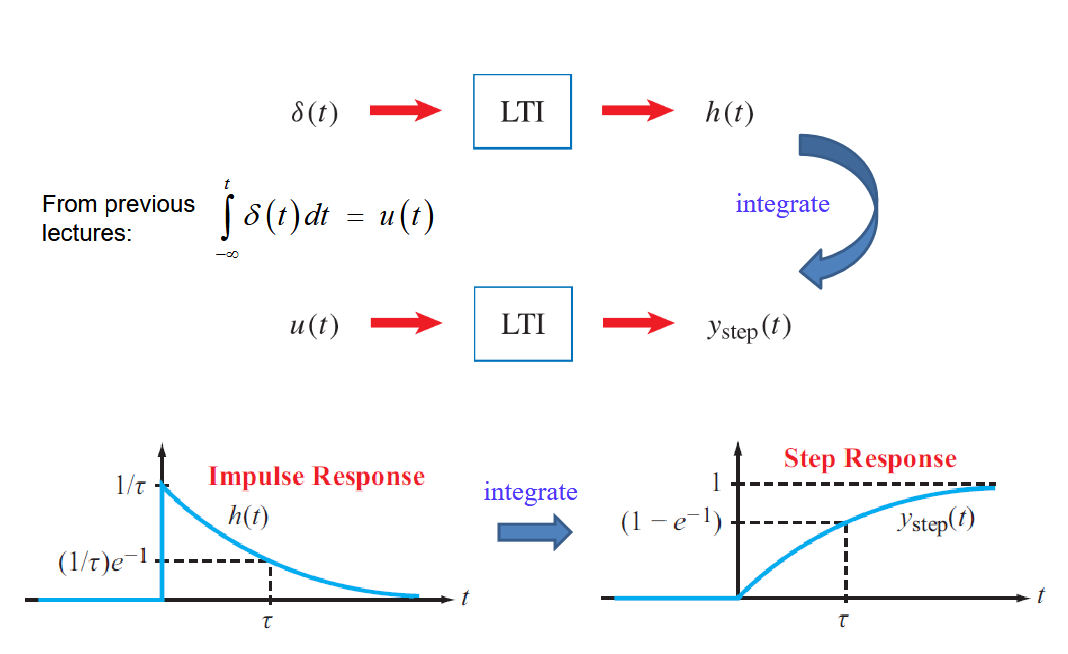

What is the relationship between impulse response and step response?

Answer 20

The step response can be derived from the impulse response through integration.
