Hand Flashcards

Question

Complications with DRUJ Resection

Answer 1

* **Pain** * **Residual ulnar instability** * This is the number one problem with reported outcomes of up to 50% with any resection procedure * Short term outcomes are good, but there is difficulty to understand which patients will have persistent instability * **Reossificaton (Sauve-kapanji)** * **Ulnar translation of the carpus** * **Painful abutment of stump on radius** * **Radioulnar convergence** * Ulna abuts onto the radius from the loss of the bolster effect of the ulnar head

Answer 2

**DISI** * **Scapholunate interosseous ligament** * _dorsal fiber thickened (2-3mm)_ compared to volar fibers * _dorsal component provides the greatest constraint to translation_ between the scaphoid and lunate bones * proximal fibres have minimal mechanical strength **VISI** * **Lunotriquetral ligament** * comprised of thick dorsal and volar regions and weak membranous portion * _dorsal LT ligament most important as a rotational constraint_ * _volar LT ligament thickest and strongest portion_ of the LT ligament * transmits extension moment of the triquetrum * **Dorsal radiocarpal ligament** (aka dorsal radiotriquetral ligament) * extrinsic ligament that serves as a secondary restraint to VISI deformity, and loss of integrity allows lunate to flex more easily

Answer 3

**DISI** * **Carpal instability disociative** * ****instability with-in one row * **Incidence** * acute injury * occurs in _approximately 10-30% of intra-articular distal radius_ fractures or carpal fractures * degenerative injury * _degenerative tears in \>50% of people over the age of 80 years old_ * **History** * acute FOOSH injury vs. degenerative rupture * age, nature of injury, duration since injury, degree of underlying arthritis, level of activity * usually dorsal and radial-sided wrist pain * Diminished grip strength * pain increased with loading across the wrist (e.g. push up position) * clicking or catching in the wrist * may be associated with wrist instability or weakness * **Physical exam** * _inspection_ * may see swelling over the dorsal aspect of the wrist * _palpation_ * tenderness in the anatomical snuffbox or over the dorsal scapholunate interval (just distal to Lister's tubercle) * assess for weakend grip strength * _motion_ * pain increased with extreme wrist extension and radial deviation * _Watson test_ * when deviating from ulnar to radial, pressure over volar aspect of scaphoid produces a clunk secondary to dorsal subluxation of the scaphoid over the dorsal rim of the radius which induces pain * dorsal wrist pain or a clunk during this maneuver may indicate instability of scapholunate ligament * _LT shuck test (aka ballottement test)_ * grasp the lunate between the thumb and index finger of one hand while applying alternative dorsal and palmar loads across the triquetrum with the thumb and index of the other hand * positive test elicits pain, crepitus or increased laxity, suggesting LT interosseous injury

Answer 4

**DISIS** * Can use contralateral wrist for comparison * **AP radiographs** * _SL gap \> 3mm_ with clenched fist view (Terry Thomas sign) * _cortical ring sign_ (caused by scaphoid malalignment) * humpback deformity with DISI associated with an unstable scaphoid fracture * scaphoid shortening * **Lateral radiographs** * _SL angle \> 70°_ on neutral rotation lateral * _radiolunate angle \> 15°_ * **radial and ulnar deviation views** * **flexion and extension views** * **clenched fist (can attenuate the diastasis)** * **Arthrography** * indications * may be used as screening tool for arthroscopy * views * radiocarpal and midcarpal views * always assess the contralateral wrist for comparison * findings * may demonstrate the presence of a tear but cannot determine the size of the tear * positive finding of a tear may indicate the need for wrist arthroscopy * **MRI** * often overused as a screening modality for SLIL tears * _findings_ * requires careful inspection of the SLIL by a dedicated radiologist to confirm diagnosis * low sensitivity for tears * **Arthroscopy** * indications * **considered the gold standard for diagnosis** * Geissler Classification 1. Attenuation or hemorrahage of ligament 2. Hemorrhage with slight gap 3. Incongruity of step-off or carpal alignment 4. Incongruity from both radiocarpal and midcarpal space

Answer 5

* **AP radiographs** * _SL gap \> 3mm_ with clenched fist view (Terry Thomas sign) * _cortical ring sign_ (caused by scaphoid flexion) * _humpback deformity_ with DISI associated with an unstable scaphoid fracture * _scaphoid shortening_ * Lateral radiographs * dorsal tilt of lunate leads to _SL angle \> 70°_ on neutral rotation lateral * _radiolunate angle \> 15_°

Answer 6

**DISI** * **NSAIDS, rest +/- immobilization** * _indications_ * acute, undisplaced SLIL injuries * chronic, asymptomatic tears * _technique_ * splinting and close follow-up with repeat imaging and clinical response with acute injuries * _outcomes_ * most people feel casting alone is insufficient * may be effective with incomplete tears * **scapholunate ligament repair or SL reconstruction** (if repair not possible) * _indications_ * acute scapholunate ligament injury without carpal malalignment * chronic but reducible scapholunate ligament injuries * **primary repair can be performed up to 18 months** from the time of injury * _primary repair_ * SL joint pinning with k-wires * suture anchors with k-wires * Blatt dorsal capsulodesis * often added to a ligament repair and remains a viable alternative for a chronic instability when ligament repair is not feasible * _tendon reconstruction_ * FCR tendon transfer (direct SL joint reduction) * ECRB tendonosis (indirect SL joint reduction) * weave not recommended due to high incidence of late failure * **Stabilization with wrist fusion (STT or SLC)** * _indications_ * rigid and unreducible DISI deformity * DISI with severe DJD * _technique_ * scaphotrapezialtrapezoidal (STT) fusion * scapholunocapitate (SLC) fusion * scapholunate fusion alone has highest nonunion rate

Answer 7

* **Approach** * small incision is made just distal to the radial styloid * care to avoid cutting the radial sensory nerve branches * **technique** * place two k-wires in parallel into the scaphoid bone * reduce the SL joint by levering the scaphoid into extension, supination and ulnar deviation and lunate into flexion and radial deviation * pass the k wires into the lunate * confirm reduction of the SL joint under fluroscopy * **place patient in short arm cast** * **post-operative care** * remove k-wires in 8-10 weeks * no heavy labour for 4-6 months

Answer 8

**Watson Staging** * **Stage I** * Arthritis between scaphoid and radial styloid * **Stage II** * Arthritis between scaphoid and entire scaphoid facet of the radius * **Stage III** * Arthritis between capitate and lunate * *The radiolunate joint is often preserved* * *some say there is pancarpal OA as IV; others will say a separate etiology needs to be present for this to occur*

Answer 9

* **NSAIDs, wrist splinting, and possible corticosteroid injections** * _Indications_ * mild disease * **Radial styloidectomy and scaphoid stabilization** * _indications_ * Stage I * _technique_ * prevents impingement between proximal scaphoid and radial styloid * may be performed open or arthroscopically via 1,2 portal for instrumentation * **PIN and AIN denervation** * _indications_ * Stage I * _technique_ * since posterior and anterior interosseous nerve only provide proprioception and sensation to wrist capsule at thier most distal branches, they can be safely dennervated to provide pain relief * can be used in combination with below procedures for Stage II or III * **proximal row carpectomy** * _Indications_ * Stage II * contraindicated if there is an incompetant radioscaphocapitate ligament * contraindicated with caputolunate arthritis (Stage III) because capitate articulates with lunate fossa of the distal radius * _technique_ * excising entire proximal row of carpal bones (scaphoid, lunate and triquetrum) while preserving radioscaphocapitate ligament (to prevent ulnar subluxation after proximal row carpectomy) * _outcomes_ * provides relative preservation of strength and motion * **scaphoid excision and four corner fusion** * _Indications_ * Stage II or III * _technique_ * also provides relative preservation of strength and motion * wrist motion occurs through the preserved articulation between lunate and distal radius (lunate fossa) * _outcomes_ * similar long term clinical results between * scaphoid excision/ four corner fusion and * proximal row carpectomy * **wrist fusion** * _indications_ * Stage III * any form of pancarpal arthritis * _outcomes_ * wrist fusion gives best pain relief and good grip strength at the cost of wrist motion

Answer 10

1 - Attenuation or hemorrahage of ligament 2 - Hemorrhage with slight gap 3 - Incongruity of step-off or carpal alignment 4 - incongruity from both radiocarpal and midcarpal space

Answer 11

* **Volar Ligaments** * _Radioscaphoid_ - ligament of testut * functions primarily as a neurovascular conduit. * _Radioscaphocapitate_ * at risk for injury with excessively large radial styloid * Strongest ligament and needs to be repaired during volar appraoch to scaphoid (rousse) * _Radioscapholunate_ * _Short Radiolunate_ * _Long Radiolunate_ * **Dorsal Ligaments** * _Radiotriquetral_ * must also be disrupted for VISI deformity to form (in combination with rupture of lunotriquetral interosseous ligament rupture) * _Radiolunate_ * _Radioscaphoid_ * **Ulnar Carpal Ligaments** * Ulnocapitate * Ulnolunate * Ulnotriquetral

Answer 12

* **Proximal row** * lunotriquetral interosseous ligament * must also be disrupted for VISI deformity to form (in combination with rupture of dorsal radiotriquetral rupture) * scapholunate interosseous ligament * DISI deformity * **Distal row** * trapeziotrapezoid interosseous ligament * trapeziocapitate interosseous ligament * capitohamate interosseous ligament

Answer 13

* **Mechanism** * LT ligament injury occurs with * wrist hyperextension or * extension and radial deviation * scaphoid induces the lunate into further flexion while triquetrum extends * **Injured ligaments** * _lunotriquetral ligament_ * _dorsal radiotriquetral ligament_ * allows the lunate to flex * volar radiolunate ligament

Answer 14

* **Normal** * _scaphoid imparts a flexion moment_ * _triquetrum imparts an extension moment_ * These opposing moments are balanced by the ligamentous attachment to the lunate. * **DISI** * With loss of the integrity of the scapholunate ligament, the scaphoid tends to flex, while the lunate and triquetrum tend to extend * **VISI** * Conversely, with loss of the integrity of the LT ligament, the triquetrum tends to extend, while the scaphoid and lunate attempt to flex

Answer 15

* **Symptoms** * ulnar sides pain that is worse with pronation and ulnar deviation (power grip) * **Physical exam** * Will have ulnar sided wrist pain * Palpable clunk with ulnar deviation, pronation and axial loading * Maybe also get with non-dissociative * _LT shuck test_ (aka ballottement test) * grasp the lunate between the thumb and index finger of one hand while applying alternative dorsal and palmar loads across the triquetrum with the thumb and index of the other hand * positive test elicits pain, crepitus or increased laxity, suggesting LT interosseous injury * _Kleinman's shear test_ * stabilize the radiolunate joint with the forearm in neutral rotation and with the contralateral hand load the triquetrum in the AP plane, producing shear across the LT joint * positive test produces pain or a clunk * _Lunotriquetral compression test_ * displacement of triquetrum ulnarly during radioulnar deviation which is associated with pain

Answer 16

* **Radiographs** * _lateral_ * volar flexion of lunate - **SL angle (normal is 47°) and VISI deformity** * capitolunate zigzag deformity seen with **capitolunate angle \> 15°** (lunate and capitate normally co-linear) * _AP_ * **NO widening of LT interval** * break in Gilula's arc * may see proximal translation of triquetrum and/or LT overlap * **Radial Deviation or Grip View** * ****will accentuate the deformity and help with diagnosis on plain films * **Arthroscopy** * helpful in making diagnosis, as radiographs may be normal * MRI is not helpful * Intra-articular injections can help if you are unsure of the diagnosis

Answer 17

* **helpful in making diagnosis, as radiographs may be normal** * Volar and dorsal LT ligaments are assessed from 4/5 * Step-off of LT joint is assessed from the mid-carpal joint * **Geissler's classification** * I _Attenuation or hemorrhage_ of the interosseous ligament as seen from the radiocarpal space. No incongruency of carpal alignment in the midcarpal space. * II _Attenuation or hemorrhage_ of the interosseous ligament as seen from the radiocarpal space. _Incongruency or step-off of carpal space._ There may be slight gap (less than width of probe) between carpal bones. * III _Incongruency or step-off of carpal alignment_ as seen from both radiocarpal and midcarpal space. _Probe may be passed through gap_ between carpal bones. * IV Incongruency or step-off of carpal alignment as seen from both radiocarpal and midcarpal space. There is gross instability with manipulation. A _2.7-mm arthroscope may be passed through gap between carpal bones._

Answer 18

**VISI** * **CRPP (multiple K-wire fixation) with acute ligament repair +/- dorsal capsulodesis** * _acute instability_ * _technique_ * ligament reconstructions with bone-ligament-bone autograft and LT fusion have fallen out of favor in acute setting * Dorsal approach, ligament sparing * some will argue for second volar approach * technically demanding, nonabsorbable suture with k-wire augmentation * **LT fusion** * _chronic instability_ * _Technique_ * __dorsal ligament sparing approach * denude the articular surface, cortical bone graft with compression screw * complications * nonunion is a known complication * **arthroscopic debridement of LT ligament with ulnar shortening** * chronic instability secondary to _ulnar positive variance_ * long ulna chronically impacts the triquetrum, resulting in LT tear with instability * often associated with degenerative tear of _triangular fibrocartilage complex (TFCC)_

Answer 19

* **Mechanism** * Extension, ulnar deviation * intercarpal supnation * **Description** * _Greater arc_ = fracture * _Lesser arc_ = ligamentous * Named based on bone fracture (ie; trans-scaphoid perilunate dilsocation) * **Herzberg** * ****_Stage 1_ - perilunate dislocation * _Stage 2_ - lunate dislocation * A * B \> 90% * **Mayfeild Classification****** * _Stage I_ * scapholunate dissociation * _Stage II_ * + lunocapitate disruption * space of porier * _Stage III_ * lunotriquetral disruption, "perilunate" * _Stage IV_ * dorsal radiolunate ligament torn * lunate dislocated from lunate fossa (usually volar) * volar ligaments remain intact * continues to receive blood supply from the ligament of testut * associated with median nerve compression

Answer 20

* **AP Plain film** * break in Gilula's arc * lunate and capitate overlap * lunate appears triangular "_piece-of-pie sign_" * **lateral** * loss of colinearity of radius, lunate, and capitate * _SL angle \>70 degrees_ * **MRI** * usually not required for diagnosis * **CT** * ****helpful to assess fractures for pre-op planning

Answer 21

**Trans-scaphoid perilunate dislocation** * **emergent closed reduction/splinting** * Adequate local and concious sedation is key * Finger traps with 15lb weight, allow relaxation 10 min * Reduction is gentle! * Dorsal = traction with ext, then flex * IIA injury = flex wrist with volar support on the lunate, then extend and flex via capitate * **open reduction, ligament repair, fixation, possible carpal tunnel release** * 3-4 days following closed reduction when swelling goes down * _indications_ * all acute injuries * _technique_ * __Dorsal - 3rd compartment with EPL transposition * can do scaphoid from here * SL and LT * Volar * carpal tunnel release * RSC ligament * tear in capsule threw space of poirier * scaphoid fracture * Fix the radius, don't resect the radial syloid * 1 - fix associated fractures * 2- repair scapholunate ligament * suture anchor fixation to scaphoid (usually torn here) * The ligament is often in bad condition * Can use the radiocarpal ligament to agument your repair * 3 - protect scapholunate ligament repair * controversy of k-wire versus intraosseous cerclage wiring * 4 - repair of lunotriquetral interosseous ligament * decision to repair based on surgeon preference as no studies have shown improved results * _Postop_ * __thumb spica with finger, elbow movement * 6-8 weeks, splint with gentle ROM * 8-10 weeks , pins out, full ROM * _outcomes_ * emergent closed reduction leads to * decreased risk of median nerve damage * decreased risk of cartilage damage * return to full function unlikely * decreased grip strength and stiffness are common * **proximal row carpectomy** * _indications_ * chronic injury (defined as **\>8 weeks** after initial injury) * not uncommon, as initial diagnosis frequently missed * **total wrist arthrodesis** * _indications_ * chronic injuries with degenerative changes

Answer 22

* **pros** * added exposure * easier reduction * access to distal scaphoid fractures * ability to repair volar ligaments * carpal tunnel decompression * **cons** * some believe volar ligament repair not necessary * increased swelling * potential carpal devascularization * difficulty regaining digital flexion and grip

Answer 23

* **Surgical** * pin tract infection * superficial or deep wound infection (including septic arthritis) * skin irritation * implant failure * flexor tendon adhesions * loss of reduction * scaphoid nonunion or malunion * painful implant * **Post-traumatic** * posttraumatic arthrosis * median nerve dysfunction * complex regional pain syndrome * hand or wrist weakness * tendon ruptures or dysfunction * residual carpal instability * wrist or hand stiffness * **Transient ischemia is a known complication with no know permanent sequale**

Answer 24

**Radiocarpal dislocation** * Fall from height, MVA, industrial * **Short radiolunate** - primary volar soft tissue restraint of carpus * **RSC** - volar retraint to ulnar translation of the carpus * **Most commonly avulsed fractures** * Radial styloid - RSC * Volar lunate facet - short RL * Ulnar styloid

Answer 25

* **AP** * ****guilula's lines * Radial syloid fracture, ulnar styloid fracture * SL widening * **Lateral** * ****dislocation * Rim fracture * **Tear drop - 10deg proximal** * Assess for rim fractures * **CT** * **Moneium classification** * Type I - without associated intercarpal dissociation * Type II - with an associated intercarpal dissociation * **Doumontier** * Group 1 - purely ligamentous or involves only a small cortical avulsion fracture off the radius * Group 2 - large radial styloid fracture fragment (involving at least one third of the scaphoid fossa)

Answer 26

* **Emergent closed reduction with adequate sedation and traction** * **Principles** * Concentric reduction of radiocarpal joint * Identify intercarpal ligament injuries * Stable repair of osseous-ligament avulsions * **Steps** * 1) provisional radiocarpal joint reduction * Volar-ulna approach * (2) decompression of neurovascular structures * Carpal tunnel * Guyon's canal * (3) exposure and débridement of the joint * Provisional stay sutures * (4) treatment of intercarpal injuries * Use flouro to assess SL and LT joint * Separate dorsal incision via 3rd compartment * (5) fracture fixation and/or soft- tissue repair * Fix the radial styloid with compression screw or k-wires * Fix the lunate facet with screws if possible, or soft tissue repair * **Short radiolunate** and **radioscaphocapitate** are repaired * Address fractures or soft tissue deficiet of the ulna * Can pin the DRUJ if it's very unstable * Ex-fix if still unstable or if open wound to monitors

Answer 27

* **Factors associated with poor outcome** * open injury * complete radiocarpal ligamentous injury * associated nerve injury * intercarpal ligamentous injury * **Complications** * Stiffness * Post-traumatic OA * Chronic instability * Hardware irritation, tendon injury, infection

Answer 28

* major blood supply is **dorsal carpal branch** (branch of the radial artery) * enters scaphoid in a nonarticular ridge on the dorsal surface and supplies proximal _80% of scaphoid via retrograde blood flow_ * minor blood supply from **superficial palmar arch** (branch of volar radial artery) * enters distal tubercle and supplies distal 20% of scaphoid

Answer 29

* **AP, lateral, scaphoid view** * AP view of the scaphoid with the hand in ulnar deviation * 20 deg ulnar deviation with 30 deg wrist ext, 45° pronation view * _displacement \> 1 mm_ * _radiolunate angle \> 15°_ * _scapholunate angle \> 60°_ * _intrascaphoid angles \> 35°_ * **Bone scan** * effective to diagnose occult fractures - have a good positive predicitve value * specificity of 98%, and sensitivity of 100%, PPV 85% to 93% when done at 72 hours * positive within 24 hours, perform at 72 hours * **MRI** * MRI has the highest positive and negative predictive values * \*\*Study in 2013 showing no cost benefit to immobilizing patients for 2 weeks and getting MRI at first appointment is just as effective with patient satisfaction * effective diagnose occult fractures * allows immediate identification of fractures and ligamentous injuries in addition to assessment of vascular status of bone (vascularity of proximal pole) * **CT scan with _1mm cuts_** * less effective than bone scan and MRI to diagnose occult fracture * can be used to evaluate location of fracture, size of fragments, extent of collapse, and progression of nonunion * _scapholunate angle \> 60°_ * _intrascaphoid angles \> 35°_ * _height ratio_

Answer 30

**Clinical scaphoid fracture** * Non-diagnostic in 30% of cases * if radiographs are negative and there is a high clinical suspicion options include * _MRI within 24 hours_ * _bone scan at 72 hours_ * _repeat plain radiographs in 14 to 21 days_ * \*\*\*Recommendation is immobilization for 2 weeks, reimage with XR, and if continued pain get MRI

Answer 31

* **These are poor prognostic factors that put patients at risk of nonunion and therefor should be treated surgically to prevent this** * proximal pole fx * if presents with clear evidence of nonunion or AVN can treat initially with bone graft * displacement \> 1 mm * radiolunate angle \> 15° * scapholunate angle \> 60° * intrascaphoid angles \> 35° * scaphoid fx with perilunate dislocation * comminuted fx * vertical oblique fractures * following delay in treatment

Answer 32

* **Faster union, faster return to activity than patients treated with a cast** (this idea is because there are high rates of complications with open fixation and high rates of nonunion with casting) * **Lower risk to damage blood supply and ligamentous support** * There is increased risk of subchondral screw penetration with percutaenous

Answer 33

**Acute Scaphoid Fracture** * **Indications** * proximal pole fx * displacement \> 1 mm * radiolunate angle \> 15° * scapholunate angle \> 60° * intrascaphoid angles \> 35° * comminution * vertical oblique fracture * associated dislocation * **percutaneous approach** * ****quicker healing and return to activity * less risk of vascular and ligamentous injury * **Dorsal approach** * indication * _proximal pole fractures_ * care must be taken to preserve the blood supply when entering the dorsal ridge by limiting exposure to the proximal half of the scaphoid * _Apporach_ * 3-4 cm straight up from listers tubercle * Release EPL sheath and tendon radially, and EDC ulnarly * small capsulotomy over the proxiaml scaphoid * care to preserve the SL ligament * **volar approach** * _indications_ * waist and distal pole fractures * humpback flexion deformities * allows exposure of the entire scaphoid * _Approach_ * uses the interval between the FCR and the radial artery * Open the FCR sheath and ligate the superifical palmar branch of the radial artery * During this approach you will go threw the _radioscaphocapetate ligament_, this must be repaired at the end of the case * If you need to go proxiamally you can divide the _long radiolunate ligament_ which also must be repair

Answer 34

**Spica cast immobilization** * _indications_ * in stable nondisplaced fracture (majority of fractures) * if patient has normal xrays but there is a high level of suspicion immobilize in thumb spica and reevaluate in 12 to 21 days * \*\*\*controversial in the literature whether cast immobilizaiton or percutaneous is better * cast = high nonunion rates * Open = infection, stiffness, CRPS * Review of the literature showed no difference with various casting techniques * Several studies to suggest you don't need to include the thumb in your cast * Don't need to cast in flexion, they will just loose extension * _Technique_ * start immobilization early (**nonunion rates increase with delayed immobilization of \> 4 wks**) * duration of casting depends on location of fracture * distal-waist for 3 months * mid-waist for 4 months * proximal third for 5 months * athletes should not return to play until imaging shows a healed fracture * may opt to augment with pulsed electomagnetic field (studies show beneficial in delayed union)

Answer 35

* Nonunion * AVN - especially to proxiaml pole * for proximal pole consider bone graft at intial treatment * Malunion * Infection * Subchondral screw protrusion * Injury to doral branch of radial sensory nerve * Extensor tendon injury * Comminution of proximal pole * Injury to scaphotriquetral joint

Answer 36

1. Radial styloid OA 2. + scaphoid facet OA 3. + Captitate OA 4. Pancarpal OA

Answer 37

**Scaphoid Nonunion with no SNAC** * **Inlay (Russe) bone graft** * indication * no adjacent carpal collapse * no excessive flexion deformity (humpback scaphoid) * Volar approach with cortical graft used as intramedullary fixation * If the fracture is stable you can put graft without fixation * More common to use cortical graft with k-wire or even better, cannulated screw (headless compression screw) * 92% union rate * **Interposition (Fisk) bone graft** * Modified by Fernandez (originally went radial and used radial bone graft) * an opening wedge graft that is designed to restore scaphoid length and angulation * _Indication_ * adjacent carpal collapse (no OA) * excessive flexion deformity (humpback scaphoid) * Can be used for revision of a failed ORIF * results show 72-95% union rates * _Contraindication_ * Avascular necrosis * SLAC * If patient doesn't need extension of wrist * _Technique_ * Volar approach * to preserve blood supply * Needs to be more extensile than incision used for acute * Pre-op - determine your angle * Curettage and debridement of nonunion site * Fill with tricortical graft (corticocancellous) * Radial cancellous graft * **Iliac graft - best option** * Synthetic * Take off the volar lip of the triquetrum to get a better angle on your screw * Stabilize with k-wire and derotational k-wire PRN * Cancellous screw * Better fixation with a cannulated screw * Use headless compression screw * **Vascular bone graft from radius** * gaining popularity and a good option for _proximal pole fractures with osteonecrosis_ confirmed by MRI * _Contraindications_ * SLAC - II/III * Damage to radial artery * Relative - smoker * Dorsal appraoch * vascularized graft is harvested from dorsal aspect of distal radius and is based on **1-2 intercompartmental supraretinacular artery** (branch of radial artery) * 1.9mm from the styloid * 2cm graft with saw then osteotome * Secure with screw or k-wire

Answer 38

**Stage 1 SNAC** * **Stage 1 (kissng osteophyte with styloid OA)** * _radial sylectomy_ * _scaphoid ORIF with bone graft_ * **Stage 2 (scaphoid facet OA)** * _Distal pole excision_ * _4 corner fusion (STT)_ * _Proximal row carpectomy_ * ease of procedure * less immobilization * no risk nonunion * **Stage 3 (capitate OA)** * _STT_ * **Stage 4 (pancarpal OA)** * _Wrist fusion_

Answer 39

Capitate, hamate, triquetrum, lunate * **Indications** * Stage II/III SLAC * results similar to PRC * Stage II/III SNAC (scaphoid facet) * VISI * midcarpal instability * Dorsal approach between 3/4 compartments, need to open the dorsal ligaments * **Excise the scaphoid preserving the volar ligaments** * Decorticate the capitate/luntate/triquetrum/hamate * Use k-wires to line up appropriately * Can use a circular plate * the circular plates tend to lead to nonunion although there are new ones that are better * **Better to use screws** * lunate - capitate * triquetrum - hamate * Leave the EPL transposed, close the retinaculum * also provides relative preservation of strength and motion * wrist motion occurs through the preserved articulation between lunate and distal radius (lunate fossa)

Answer 40

* **Indications** * Stage II SNAC * Stage II SLAC * Stage IIIB, IV keinbochs * Chronic perilunate dislocation * Scaphoid AVN (Preser's) * Wrist contracture * **Contraindications** * Inflammatory OA * Capitate OA * Ulnar carpal translocation * Controversial * Heavy labourer * **Approach** * Dorsal longitudinal incision in line with 4th extensor compartment * Incise retinaculum in line with incision, protect the dorsal radial artery * Excise the PIN in the capsule * Examine the capitate - if arthritis perform an arthrodesis * Protect the radioscapholunate ligament, avoid iatrogenic cartilage injury * Place osteomte parallel to FCR, excise the proximal scaphoid * Remove the lunate, scaphoid, triquetrum and pisiform whole, * Seat the capitate in the lunate fossa and assess for impingement on the trapesium * do a radial styloid excision if necessary * Maintenance of the volar ligaments is important to prevent subluxation * Close capsule and retinaculum seperately

Answer 41

* Beak ligament - anterior oblique * Biconcave or saddle joint * 9 muscles give the joint dynamic support * Volar - APB, FPB, opponens, FPL, adductor Dorsal - EPL, APL, EPB, 1st interosseous

Answer 42

* female (hormones) * trauma (bennet's) * hyperlaxity (\>90deg 5th digit extension) * BMI * incompeant oblique ligament

Answer 43

**Eaton and Littler** * **Stage I** * slight joint space widening (pre-arthritis) * **Stage II** * slight narrowing of CMC joint with sclerosis * osteophytes * **Stage III** * marked narrowing of CMC joint * osteophytes \>2mm * **Stage IV** * pantrapezial arthritis (STT involved)

Answer 44

**1st CMC OA** * **Symptoms** * pain at base of thumb * difficulty pinching and grasping * concomitant carpal tunnel syndrome * up to 50% incidence * **Physical exam** * painful CMC grind test * combined axial compression and circumduction * swelling and crepitus * metacarpal adduction and web space contractures * are later findings * may have adjacent MCP fixed hyperextension * during pinch * Do a full NV exam to rule out carpal tunnel * **Imaging** * ****beam centered on trapezium with thumb hyperpronated

Answer 45

* **NSAIDS, bracing, symptomatic treatment** * indicated as first line of treatment for mild symptoms * _technique_ * splints (thumb spica orthosis) * PT - first inerosseous ligament stretching * Strengthening * **hyalgan injections** * show no difference for the relief of pain and improvement in function when compared to placebo and corticosteroids * NOT FDA approved * **Cortisone injections** * Should always try cortisone injections first * The evidence behind this is controversial * **trapezial resection with LRTI (ligament reconstruction and tendon interposition)** * _indications_ - gold standard * Stage II-IV disease * most common procedure and favored in most patients * _technique_ * there are many different surgical options available * trapezial excision appears to be the most important step to this procedure * FCR tendon most commonly used in reconstruction to suspend metacarpal * APL, palmaris * outcomes * can expect 25% subsidence postoperatively * results in improved grip and pinch strengths * **Ligament reconstruction with FCR** * _indications_ * Failed nonoperative attempt at treatment * Stage I disease * joint is hypermobile * Stress view will shows radial subluxation * _Technique_ * Volar approach * FCR or APL * Looped threw thumb metacarpal ulanr to radial * **CMC arthroscopy and debridement** * _indications_ * early stages of disease * Especially good for post-traumatic OA for debridement of the joint * _Technique_ * 1U and 1R portals with 2.7mm scope * **extension osteotomy of the first metacarpal** * Offloads the arthritis volar compartment * _indications_ * early Stage disease * minimal arthritic degeneration of CMC joint * No evidence of joint subluxation (this is better for ligament reconstruction) * _technique_ * Dorsal closing wedge osteotomy * Redirects the force to the dorsal, more uninvolved portion of the first carpometacarpal joint * Fix with plate or k-wires * _outcomes_ * has gained in popularity and studies show that 93% are improved at seven years out * **trapeziometacarpal arthrodesis and fusion** * _indications_ * Stage II and Stage III disease * young male * heavy laborers * _technique_ * S-shape incision over APL and APB * Incise the capsule, ensure no ST invovlement * TM joint fused in "key pinch position" * 35° radial abduction * 30° palmar abduction * 15° pronation * _outcomes_ * Advantage * good pain relief * Good stability * length preservation * improved strength * _Disadvantage_ * decreased ROM (casting 3 months); difficult getting hands into pockets * Adjacent DJD * nonunion rate of 12% * **volar capsulodesis, EPB tendon transfer, sesamoid fusion, or MCP fusion** * _indications_ * if thumb MCP hyperextension instability (joint can hyperextend \> 30°) * otherwise a Swan neck deformity will arise * **silicone replacements** * _indications_ * not recommended due to complications of prosthesis fracture, subluxation, or silicone synovitis

Answer 46

* **_basic principles_** * **donor must be expendable and of similar excursion and power** * **one tendon transfer performs one function** * **synergistic transfers rehabilitate more easily** * it is optimal to have a **straight line of pull** * **one grade of motor strength is lost following transfer** * **match muscle strength** * force proportional to cross-sectional area * greatest force of contraction exerted when muscle is at resting length * amplitude proportional to length of muscle * work capacity = (force) x (amplitude) * motor strength will decrease one grade after transfer * should transfer motor grade 5 * **appropriate tensioning** * **joint surround tendon transfer should have full ROM** * **adequat soft tissue bed** * **appropriate excursion** * can adjust with pulley or tenodesis effect * _Smith 3-5-7 rule_ * 3 cm excursion - wrist flexors, wrist extensors * 5 cm excursion - EDC, FPL, EPL * 7 cm excursion - FDS, FDP * **surgical priorities** * elbow flexion (musculocutaneous n.) * shoulder stabilization (suprascapular n.) * brachiothoracic pinch (pectoral n.) * sensation C6-7 (lateral cord) * wrist extension and finger flexion (lateral and posterior cords) * _selection_ * determine what function is missing * determine what muscle-tendon units are available * evaluate the options for transfer

Answer 47

* **classified according to location of lesion proximal or distal to the origin of PIN** * _low radial nerve palsy_ * PIN syndrome * Radial deviation of the wrist * Loss of thumb and finger extension * _high radial nerve palsy_ * loss of radial nerve proper function (triceps, brachioradialis, ECRL plus muscles innervated by PIN) * Loss for wrist strength = loss of grip strength * Reduced 2 point discrimination * _Elbow extension_ * **Lat dorsi/deltoid/biceps to triceps** * _Ulnar wrist extension_ * **Pronator to ECRB** * _Finger Extension_ * FDS/**FCR**/FCU **to EDC** * _Thumb Extension_ * Palmaris/**FDS to EPL** * ******Post-op** * ****Immobilize for 4 weeks * Start active ROM fingers * 6 weeks active ROM wrist with start to retrain * 8 weeks strengthening

Answer 48

* **low median nerve palsy** * loss of thumb opposition (ABP function) * **high median nerve palsy** * loss of thumb opposition * loss of thumb, index finger, and middle finger flexion * weak pronation, sensory palsy * _Thumb opposition and abduction_ * **__Ring FDS to APB (Bunnel opponenplasty)** * ****Bunnel pulley uses the pisiform to redirect the line of pull * **EIP to APB** (pulley around the wrist) * routed around the ulnar side of the wrist and through the palm * _Thump IP Flexion_ * **__Brachioradialis to FPL** * _Index and Long Finger_ * **__Side to side transfer of FDP**

Answer 49

* **Low ulnar nerve palsy** * loss of power pinch * froment sign (loss adduction) * abduction of the small finger (Wartenberg sign) * clawing * results from imbalance between intrinsic and extrinsic muscles * _Thumb Adduction_ * **FDS/ECRB to adductor** * _Finger abduction_ * **APL/EIP to 1st interosseous** * _Clawing_ * **FDS/ECRL to lateral bands ulnar digit** * must pass volar to transverse metacarpal ligament * goal is to prevent MCP hyperextension to allow IP extension * **High ulnar nerve palsy** * loss of ring and small finger FDP function * primary distinguishing deficit * clawing less pronounced because extrinsic flexors are not functioning * _Thumb IP Flexion_ * **BR to FPL** * _Finger Flexion_ * **Side to side of FDP**

Answer 50

* **Studies** * Sensory and motor evoked potentials * better than standard EMG/NCS * **Treatment** * _Nonoperative_ * physical therapy, splinting, and antispasticity medications * _indications_ * decreased passive range of motion * spasticity * **Operative** * _early surgical intervention (3 weeks to 3 months)_ * indications * total or near-total brachial plexus injury * high energy injury * _late surgical intervention (3 to 6 months)_ * indications * partial upper-level brachial plexus palsy * low energy injury * **postoperative care** * protect for 3-4 weeks then begin ROM of fingers * continue with protective splint for 3-6 weeks, start ROM of wrist * strength and re-training to start at 8 weeks * synergistic transfers are easier to rehabilitate

Answer 51

* Elbow flexion * Pec major or lat dorsi to biceps * Stindler's flexorplasty

Answer 52

female sex obesity pregnancy hypothyroidism rheumatoid arthritis advanced age chronic renal failure smoking alcoholism repetitive motion activities mucopolysaccharidosis mucolipidosis

Answer 53

* **Associated conditions** * diabetes mellitus * hypothyroidism * rheumatoid arthritis * pregnancy * amyloidosis * **good prognostic indicators include** * night symptoms * short incisions * relief of symptoms with steroid injections * not improved when incomplete release of transverse carpal ligament is discovered

Answer 54

* **scaphoid tubercle and trapezium radially** * **hook of hamate and pisiform ulnarly** * tunnel is narrowest at the hook of hamate * **transverse carpal ligament palmarly (roof)** * **proximal carpal row dorsally (floor)**

Answer 55

* palmar cutaneous branch of median nerve * lies between PL and FCR at level of the wrist flexion crease

Answer 56

* **50% are extraligamentous** with recurrent innervation * **30% are subligamentous** with recurrent innervation * **20% are transligamentous** with recurrent innervation * cut transverse ligament far ulnar to avoid cutting if nerve is transligamentous

Answer 57

**CARPAL TUNNEL SYNDROME** * **Symptoms** * numbness and tingling in radial 3-1/2 digits * clumsiness * pain and paresthesias that awaken patient at night * _self administered hand diagram_ * _the most specific test (76%) for carpal tunnel syndrome_ * rule out neck pain, radiulopathy * Vocation, Smoking, EtOH * PMHx - RA, diabetes, amyloidosis, thyroid, pregnancy * **Physical exam** * inspection may show thenar atrophy * Examine neck * **carpal tunnel compression test (Durkan's test)** * is the most sensitive test to diagnose carpal tunnels syndrome * performed by pressing thumbs over the carpal tunnel and holding pressure for 30 seconds. * onset of pain or paresthesia in the median nerve distribution within 30 seconds is a positive result. * _Phalen test_ * wrist flexed with elbow extended for ~60 sec produces symptoms * _Tinel's test_ * provocative tests performed by tapping the median nerve over the volar carpal tunnel * _Provocative tests_ (will cause numbness) * hand above head 60 sec * grip test * tourniquette test * _Semmes-Weinstein testing_ * most sensitive sensory test for detecting early carpal tunnel syndrome * measures a single nerve fiber innervating a receptor or group of receptors * _innervation density test_ * static and moving two-point discrimination * measures multiple overlapping of different sensory units and complex cortical integration * the test is a good measure for assessing functional nerve regeneration after nerve repair * **EMG and NCV** * overview * often the only objective evidence of a compressive neuropathy (valuable in work comp patients with secondary gain issues) * not needed to establish diagnosis (diagnosis is clinical) * demyelination leads to * **NCV - Nerve conduction velocity** * increase latencies (slowing) of NCV * _distal sensory latency \> 3.2 ms_ * _motor latencies \> 4.3 ms_ * decreased conduction velocities less specific than latencies * _velocity of is abnormal_ * **EMG** * test the electrical activity of individual muscle fibers and motor units * detail insertional and spontaneous activity * potential pathologic findings * *decreased insertional activity* * *sharp waves* * *fibrillations* * *fasciculations* * *complex repetitive discharges* * **Histology** * edema, fibrosis, and vascular sclerosis are most common findings * scattered lymphocytes * amyloid deposits shown with special stains in some cases

Answer 58

**CARPAL TUNNEL SYNDROME****** * **NSAIDS, night splints, activity modifications** * _indications_ * first line of treatment * _modalities_ * night splint in neutral (good for patients with nocturnal symptoms only) * activity modification (avoid aggravating activity) and ergonomic assessement * medication - NSAIDS, diuretics, cortisone * **steroid injections** * _indications_ * second line of treatment * _outcomes_ * 80% have transient improvement of symptoms (of these 22% remain symptoms free at one year) * failure to improve after injection is poor prognostic factor * Steroids more beneficial short term, surgery more benefical \> 1 yr * **Carpal tunnel release** * _indications_ * failure of nonoperative treatment (including steroid injections) * temporary improvement with steroid injections is a good prognostic factor that the patient will have a good result with surgery) * acute CTS following ORIF of a distal radius fx * _outcomes_ * pinch strength return in 6 week * grip strength is expected to return to 100% preoperative levels by 12 weeks postop * Endoscopic vs open are similar, endoscopic has faster return to work with lower patient satisfaction * **Revision CTR for incomplete release** * _Indications_ * failure to improve following primary surgery * incomplete release most common reason * _outcomes_ * only 25% will have complete relief after revision CTR * 50% some relief * 25% will have no relief

Answer 59

* pinch strength return in 6 week * grip strength is expected to return to 100% preoperative levels by 12 weeks postop

Answer 60

* **inadequate release (most common)** * motor branch disection * hypertrophic scar * **pillar pain** - pain over trapeizium and hamate prominence * can result from division of the palmar cuteanous branch * some sources quote this as more common * adhesions * laceration superificial palmar arch * hematoma * recurrence

Answer 61

* **fibrous tissue anterior to the radiocapitellar joint** * between the brachialis and brachioradialis * **“leash of Henry”** * are recurrent radial vessels that fan out across the PIN at the level of the radial neck * **extensor carpi radialis brevis edge** * medio-proximal edge of the extensor carpi radialis brevis * **"arcade of Fröhse"** * which is the proximal edge of the superficial portion of the supinator * _most common_ * **supinator muscle edge** * distal edge of the supinator muscle * _least common_

Answer 62

* **course** * passes between the two heads of origin of the supinator muscle * direct contact with the radial neck osteology * passes over abductor pollicis longus muscle origin to reach interosseous membrance * transverses along the posterior interosseous membrane * **innervation** * common extensors * ECRB (often from radial nerve proper, but can be from PIN) * Extensor digitorum communis (EDC) * Extensor digiti minimi (EDM) * Extensor carpi ulnaris (ECU) * deep extensors * Supinator * Abductor pollicis longus (APL) * Extensor pollicus brevis (EPB) * Extensor pollicus longus (EPL) * _Extensor indicis proprius (EIP)_ * **sensory fibers to dorsal wrist capusle** * provided by terminal branch which is located on the floor of the 4th extensor compartment

Answer 63

* **Symptoms** * insidious onset, often goes undiagnosed * defining symptoms * pain in the forearm and wrist * location depends on site of PIN compression * e.g., pain just distal to the lateral epicondyle of the elbow may be caused by compression at the arcade of Frohse * weakness with finger, wrist and thumb movements * reduced grip strength associated with lack of extension * **Physical exam** * _inspection_ * chronic compression may cause forearm extensor compartment muscle atrophy * _motion_ * finger metacarpal extension weakness * wrist extension weakness * inability to extend wrist in neutral or ulnar deviation * the wrist will extend with radial deviation due to intact ECRL (radial n.) and absent ECU (PIN). * _provocative tests_ * resisted supination * will increase pain symptoms * normal tenodesis test * tenodesis test is used to differentiate from extensor tendon rupture from RA * **MRI** * ****might be helpful to look for compression, edema in the nerve * space occupying lesion

Answer 64

* **rest, activity modification, streching, splinting, NSAIDS** * _indications_ * recommended as first-line treatment for all cases * **lidocaine/corticosteroid injection** * a compressive mass, such as lipoma or ganglion, has been ruled out * isolated tenderness distal to lateral epicondyle * trial of rest, activity modification, anti-inflammatories were not effective * _technique_ * single injection 3-4 cm distal to lateral epicondyle at site of compression * **surgical decompression** * _indications_ * symptoms persist for greater than three months of nonoperative treatment * compressive mass detected on imaging * _outcomes_ * results are variable * spontaneous recovery of motor function was seen in 75 - 97% of non-traumatic case series * may continue to improve for up to 18 months * **Complications****** * _Neglected PIN compression syndrome_ * muscle fibrosis of PIN innervated muscles * resulting in tendon transfer procedures to re-establish function * _Chronic pain_

Answer 65

* **Annular ligaments** * A2 and A4 are critical to prevent bowstringing * A1, A3, and A5 overlie the MP, PIP and DIP joints respectively * A1 pulley most commonly involved in trigger finger * **Cruciate pulleys** * function to prevent sheath collapse and expansion during digital motion * 3 total at the level of the joints

Answer 66

* **Oblique pulley** * originates at proximal half of proximal phalanx * _most important pulley in thumb_ * facilitates full excursion of flexor pollicis longus * prevents bowstringing of flexor pollicis longus * **Annular pulleys** * A1 pulley * at the level of the volar plate at the MCP joint * ~6mm in length * A2 pulley * contributes least to arc of motion of thumb

Answer 67

* **intrinsic plus** * **causes****** * _trauma_ * _rheumatoid arthritis_ (secondary to distal joint malalignment) * **pathology** * **spastic intrinsics** * ******lead to flexion of the MCP and extension of the IP joints** * ******weak EDC** * fails to provide balancing extension force of MCP * **weak FDS & FDP** * fails to provide balancing flexion force on PIP and DIP * **Bunnell test - for intrinsic** * diff between intrinsic and extrinsic * test is positive when there is less PIP flexion with MCP extension than when the MCP is flexed

Answer 68

* **Intrinsic minus hand (or tight extrinsics)** * **causes** * _ulnar nerve palsy_ * cubital tunnel syndrome * ulnar tunnel syndrome * _median nerve palsy_ * Volkmann's ischemic contracture * leprosy (Hansen's disease) * _failure to splint the hand_ in an intrinsic-plus posture following a crush injury * _Charcot-Marie-Tooth_ disease (hereditary motor-sensory neuropathy) * _compartment syndrome_ of the hand * **Pathoanatomy** * **loss of intrinsics** * leads to loss of baseline MCP flexion and loss of IP extension * **strong extrinsic EDC** * leads to unopposed extension of the MCP joint * remember the EDC is not a significant extensor of the PIP joint * most of the MCP extension forces on the terminal insertion of the central slip come from the interosseous muscles * **strong FDP and FDS** * leads to unopposed flexion of the PIP and DIP * **Tests** * ulnar nerve worse in 4/5 * median nerve worse in 2/3 * _Opposite to bunnels_ - get less IP flexion with MTP flexion, and more IP flexion with MTP extension * passive MTP flexion, the IP joints will extend

Answer 69

* **Boutinnere = button hole** * A _Zone III extensor tendon injury_ characterized by * PIP flexion * DIP extension * **Mechanism** * caused by _rupture of the central slip over PIP_ * laceration * traumatic avulsion (jammed finger) * capsular distension in rheumatoid arthritis * **Pathoanatomy** * caused by * disruption of central slip * attenuation of triangular ligament * palmar migration of collateral bands (and lateral bands) * deforming forces * rupture of central slip leads to lack of extension force of PIP * because the lateral band has migrated volar, it now places a flexion force on the PIP joint and an extension force on the DIP joint. * **Associated conditions** * rheumatoid arthritis * pseudo-boutonniere * refers to PIP joint flexion contracture in the absence of DIP extension

Answer 70

**ELSON TEST** * is the most reliable way to diagnose a central slip injury before the deformity is evident * bend PIP 90° over edge of a table and extend middle phalanx against resistance. * in presence of central slip injury there will be * weak PIP extension * the DIP will go rigid * in absence of central slip injury DIP remains floppy because the extension force is now placed entirely on maintaining extension of the PIP joint; the lateral bands are not activated

Answer 71

**Boutinnerre Deformity** * **Nonoperative** * splint PIP joint in full extension for 6 weeks * _indications_ * acute closed injuries ( * _technique_ * encourage active DIP extension and flexion in splint to avoid contraction of oblique retinacular ligament * complete part-time splinting for an additional 4-6 weeks * **Primary central band repair** * indications * acute displaced avulsion fx (proximal MP avulsion seen on x-ray) * open wound that needs I&D * **lateral band relocation vs. terminal tendon tenotomy vs. tendon reconstruction** * _indications_ * in chronic injuries after FROM is obtained with therapy or surgical release * _technique_ * Brayden - may have to plicate the lateral bands to the central slip to help move the tension dorsally * Still stiff, but more functional * terminal tendon tenotomy (Fowler)(never central slip tenotomy) * secondary tendon reconstruction (tendon graft, Littler, Matev) * triangular ligament reconstruction * **PIP arthrodesis** * _indications_ * rheumatoid patients * painful, stiff and arthritic PIP joint * _Technique_ * Decorticate the cartilage * Single antegrade screw * Position * 20-25 deg of flexion in the index finger * 30 deg of flexion in the long finger * 40 deg of flexion in the ring finger * 40-50 deg of flexion in the little finger

Answer 72

**Swan Neck Deformity** * **Characterized by** * hyperextension of PIP * flexion of DIP * **Caused by** * _lax volar plate_ and collateral ligaments * _imbalance of muscles forces on PIP_ (extension force \> flexion force) * **Injuries include** * MCP joint volar subluxation (rheumatoid arthritis) * mallet finger * FDS laceration * intrinsic contracture * **Primary lesion is lax volar plate that allows hyperextension of PIP** * ****trauma * RA * Hyperlaxity * **Secondary lesion is imbalance of forces on the PIP joint (PIP extension forces that is greater than the PIP flexion force)** * _mallet injury_ * leads to transfer of DIP extension force into PIP extension forces * _FDS rupture_ * leads to unopposed PIP extension with an intact FDP * _intrinsic contracture_ * tethering of the lateral (collateral) bands by the transverse retinacular ligament as a result of PIP hyperextension. * if the lateral (collateral) bands are tethered, excursion is restricted and the extension force is not transmitted to the terminal tendon, and is instead transmitted to the PIP joint * _RA_ * MCP joint volar subluxation * instability contributes to swan neck * lateral bands sublux superiorly and become contracted with the triangular ligament - accentuates extension at PIP * Deviation at the wrist may also contribute

Answer 73

* **Nonoperative** * double ring splint * _indications_ * can prevent hyperextension of PIP * ***In RA you must address the wrist and MCP pathology as well as it can contribute to the deformity*** * **Volar plate advancement and PIP balancing with central slip tenotomy** * _indications_ * progressive deformity * flexible joint * _technique_ * address volar plate laxity with volar plate advancement * correct PIP joint muscles imbalances with either * FDS tenodesis indicated with FDS rupture * or lateral band tenodesis is an option in RA, both reconstitute the checkrein * spiral oblique retinacular ligament reconstruction * central slip tenotomy (Fowler) * **DIP Arthrodesis** * Dorsal approach * Extensor tenodesis with capsulotomy

Answer 74

**Mallet Finger** * A finger deformity caused by disruption of the terminal extensor tendon distal to DIP joint * the disruption may be bony or tendinous * **Mechanism** * traumatic impaction blow * usually caused by a traumatic impaction blow to the tip of the finger in the extended position. * dorsal laceration * a less common mechanism of injury is a sharp or crushing-type laceration to the dorsal DIP joint * **Symptoms** * painful and swollen DIP joint following impaction injury to finger * often in ball sports * ask about chronicity, associated injuries * Vocation, PMHx * **Physical exam** * fingertip rest at ~45° of flexion * lack of active DIP extension * * assess for open injury * assess for swan neck defomity in chronic wounds * **Imaging** * ****AP/Lateral * assess for joint congruity * avulsion fracture \> 1/3 of joint surface * **Classification****** * **I -** Closed injury, with or without small dorsal avulsion fracture * **II -** Open injury (laceration) * **III -** Open injury (deep abrasion * involving skin and tendon * **IV -** Mallet fracture * A - Distal phalanx physeal injury (pediatric) * B - 20% to 50% of articular surface (adult) * C - \>50% of articular surface (adult)

Answer 75

**Mallet Finger** * **Extension splinting of DIP joint for 6-8 weeks** * Can be done even for an injury \> 4 week out * Often times splinting will improve outcomes * Surgery can be done early or much later (\>6months) to allow correction of extensor lag * Casts can be used in children and noncompliant patients * _indications_ * acute soft tissue injury ( * nondisplaced bony mallet injury * * _technique_ * maintain free movement of the PIP joint * worn for 6-8 weeks * volar splinting has less complications than dorsal splinting * avoid hyperextension (can comprimise skin) * begin progressive flexion exercises at 6 weeks * **Measurements of good outcome** * Extensory lag * DIP flexion arc \> 50 deg * Minimal pain

Answer 76

**Mallet Finger** * **CRPP vs ORIF** * _indications_ * absolute indications * volar subluxation of distal phalanx * _relative indications_ * \>50% of articular surface involved * \>2mm articular gap * _technique_ * simple pin fixation * dorsal blocking pin * _Post-op_ * K-Wire is removed at 6 weeks * Followed by 2 weeks of nighttime splinting * **CRPP with percutnaeous tendon repair** * _Indications_ * Open injury (type II/III) * _Technique_ * Nonabsorbable suture fixation of skin and tendon together * Pin the DIP * Remove sutures in 12 days with pins out at 6 weeks * **For severe soft tissue deficit** * Stage procedure with soft tissue closure and a free tendon graft when soft tissues have healed

Answer 77

* **Complications** * _Extensor lag_ * a slight residual extensor lag of * * _Swan neck deformities_ * attenuation of volar plate and transverse retinacular ligament at PIP joint * dorsal subluxation of lateral bands * resulting PIP hyperextension * contracture of triangular ligament maintains deformity * **surgical reconstruction of terminal tendon** * _indications_ * chronic injury (\> 12 weeks) with healthy joint * _technique_ * this may be done with direct repair/tendon advancement, tenodermodesis, or spiral oblique retinacular ligament reconstruction * Goal is to correct the flexor-extensor balance of the finger * _outcomes_ * tendon reconstruction has a high complication rate (~ 50%) * **DIP arthrodesis** * _indications_ * painful, stiff, arthritic DIP joint * _Technique_ * Neutral-10 deg of flexion * **Swan neck deformity correction** * techniques to correct Swan neck deformity include * _lateral band tenodesis_ * _FDS tenodesis_ * _Fowler central slip tenotomy_ * Be careful not to cut the triagnular ligament * minimal Swan Neck deformities may correct with treatment of the DIP pathology alone * **Complications of surgery vs non-op****** * Associated with nonoperative - short term * Skin maceration/ulceration, tape allergy, splint related pain * Associated with operative - long term * Infection, nail plate deformity, hardware failure, joint incongruity, DIP prominence

Answer 78

**Jersey Finger** * Refers to an avulsion injury of FDP from insertion at base of distal phalanx * _a Zone I flexor tendon injury_ * FDP muscle belly in maximal contraction during forceful DIP extension * **Ring finger involved in 75% of cases** * during grip ring fingertip is _5 mm more prominent_ than other digits in ~90% of patients * _Weaker insertion point_ * _Least independent movement_ * __Proximal to A5 there is a dual vascualr supply, treatment will depend on whether one or both are disrupted * Vinculum Longus Profundus (VLP) * Vinculum Longus Superficialis (VSP) * **Leddy Packer Classification** * _Type I_ * FDP tendon retracted to palm * Leads to disruption of the vascular supply * **Prompt surgical treatment within 7 to 10 days** * _Type II_ * FDP retracts to level of PIP joint * VLP intact * Attempt to repair within several weeks for optimal outcome * _Type III_ * Large avulsion fracture limits retraction to the level of the DIP joint (A4) * All blood supply intact * Attempt to repair within several weeks for optimal outcome * _Type IV_ * Osseous fragment incarcerated in A4 and simultaneous avulsion of the tendon from the fracture fragment ("Double avulsion” with subsequent retraction of the tendon usually into palm) * If tendon separated from fracture fragment, first fix fracture via ORIF then reattach tendon as for Type I/II injuries * _Type V_ * boney avulsion with comminution

Answer 79

**Jersey Finger** * **Physical exam** * pain and tenderness over volar distal finger * finger lies in slight extension relative to other fingers in resting position * _Disruption of the cascade_ * no active flexion of DIP * may be able to palpate flexor tendon retracted proximally along flexor sheath * Find the point of maximal tenderness * Look for _tendon retraction of boney avulsion_ * **Prognostic factors** * Tendon retraction * Preservation of VLP/VBP or synovial sheath blood supply * Chroncity * Presence of osseous fragments * **Radiograhs** * may see avulsion fragment * **MRI** * May be useful if no identified fragment to identify location of tendon * **Direct tendon repair or tendon reinsertion with dorsal button** * _indications_ * acute injury ( * _technique_ * Must be able to dilate pulley system and advance the tendon * Can incise the cruciates * Make sure to set the tendon under A2/A4 and in camper's chiasm * advancement of \> 1 cm carries risk of a DIP flexion contracture or quadrigia * Restore digit cascade * Once the tendon is advance the classic bunnel method is to repair with a button * Can also do an osseous tunnel or suture anchor to avoid nailbed comlications (combination is also an option) * Do not overtighten, buttress the button, use the concave side, trim the button * postoperative rehab should include either * Wrist at neutral, MCP at 90 * Ensure nothing will cause resistance at the repair site * _early patient assisted passive ROM (Duran) or_ * _dynamic splint-assisted passive ROM (Kleinert)_ * **Options if you can't repair the tendon** * _Close and follow_ - fuse if necessary * _Primary fusion_ * _Immediate tendon graft_ - if you can dilate the pulleys, but can't repair without \>1cm tip-palm * _Staged pulley dilation with later tendon repair_ (reserved for a certain population) * muscians, labourers, athletes * not good outcomes * **ORIF fracture fragment with repair** * _indications_ * types III and IV (for type IV then repair as for Type I/II injuries) * _techniques_ * with K-wire, mini frag screw or pull out wire * once osseous fragment fixed then you can repair the tendon * examine for symmetric cascade once fixation completed

Answer 80

* **Two stage flexor tendon grafting** * _indications_ * chronic injury (\> 3 months) in patient with full PROM of the DIP joint * Can't dilate the pulleys * Young patient * Labourer with requirements for dexterity (musician, athelte, skilled labourer) * _Technique_ * Use a silastic spacer to create space in the pulleys * Can attempt to fix the tendon or use a free graft * _Outcomes_ * Not as predictable, should only be used in special circumstances * **DIP arthrodesis** * indicated as salvage procedure in chronic injury (\> 3 months) with chronic stiffness or OA * More predictable outcomes

Answer 81

* Stiffness/contracture * Importance of post-op PT * Quadragia * * Joint instability * Arthrosis * Re-rupture

Answer 82

* The quadrigia effect is characterized by an active flexion lag in fingers adjacent to a digit with a previously injured or repaired flexor digitorum profundus tendon. * **most commonly caused by a functional shortening of the FDP tendon due to** * over-advancement of the FDP during tendon repair * \>1 cm advancement associated with quadrigia * adhesions * retraction of the tendon * "over-the-top" FDP repair of the distal phalanx after amputation * **Pathoanatomy** * Usually following injury of _zone 1_ * FDP tendons of long, ring, and little fingers share a common muscle belly * therefore excursion of the combined tendons is equal to the shortest tendon * improper shortening of a tendon during repair results in inability to fully flex adjacent fingers * **FDP release only indicated in severe limitation of function** * ****prevention is the best strategy

Answer 83

* **Characterized by paradoxical extension of the IP joints while attempting to flex the fingers** * **Mechanism** * most commonly caused by _FDP laceration distal to the origin of the lumbicals_ (FDP avulsion) * DIP amputation * Conditions that lead to lumbrical plus * FDP transection * FDP avulsion * "too long" tendon graft * amputation through middle phalanx shaft * **Location** * commonest in middle finger (2nd lumbrical) * FDP 3, 4, 5 share a common muscle belly * cannot independently flex 2 digits without pulling on the third * index finger has independent FDP belly, and when making a fist following FDP2 transection, it is possible to only contract FDS2 (and not FDP2), thus avoiding paradoxical extension * **Pathoanatomy** * lumbricals originate from FDP * with FDP laceration, FDP contraction leads to pull on lumbricals * lumbricals pull on lateral bands leading to PIP and DIP extension of involved digit * with the middle finger, when the FDP is cut distally, the FDP shifts ulnarly (because of the pull of the 3rd lumbrical origin)(bipennate) * this leads to tightening of the middle finger lumbrical (2nd lumbrical, unipennate), and amplifies the "lumbrical plus" effect

Answer 84

* **tenodesis of FDP to terminal tendon or reinsertion to distal phalanx** * _indications_ * FDP lacerations * **lumbrical release** * _indications_ * if FDP is retracted or segmental loss makes it impossible to fix * _contraindications_ * do not transect lumbricals 1 & 2 if there is concomitant ulnar nerve palsy * with ulnar nerve paralysis, the interosseous muscles are also lost * (interosseus muscles extend the IP joints) * _technique_ * transect at base of flexor sheath (in the palm)

Answer 85

* **Flex-ex views C-spine** * Treat appropriately * **Medicine Consult****** * ****cardiovascular assessment * high risk of MI and cariac events * **Consider stress dose steroid** * Give stress dose if \> 10mg/day * Follow for AI post-op if patient has taken steroids \>1yr ago * _Adrenal insufficiency_ * Weakness, fatigue * Hypovolemia and Na depletion * **Medications to hold (topic of hot debate, some will just go at the end of their cycle so the drugs are lower in their system)** * ****NSAIDS - 5-10 days * ASA - 7-10 days * Predisone - stress dose * Methotrexate - continue * Hydroxycholroquinilone (Plaquinel) - continue * TFF - alpha * _hold enteracept_ - 1 week, restart 10-14 days post-op * others plan for the end of cycle

Answer 86

* **Differential for inability to extend fingers** * Extensor tendon rupture * Saggital band rupture and subluxation * MCP dislocation * Consider PIN palsy if all invovled * **Physical exam - Assess passive and active ROM** * Assess ability to independantly extend EDQ * With intact tendons, tenodesis will cause MCP extension on wrist flexion * If the finger can be held in extension following passive positioning = saggital band * Arthritis/dislocation = inability to extend MCP * If all digits/thumb invovled = pin palsy

Answer 87

**Vaughn-Jackson Syndrome** * **Differential for inability to extend fingers** * Extensor tendon rupture * Saggital band rupture and subluxation * MCP dislocation * Consider PIN palsy if all invovled * **Extensor Tendon Rupture** * _epidemiology_ * frequency EDM \> EDC (ring) \> EDC (small) \> EPL * _treatment_ * tendon transfer, interposition graft, or Darrach's procedure * Tendon transfer is usually more reliable than interposition * Side to side is easiest for isolated EDM * Darrach's/Sauve-kapanji procedure necessary to help prevent further tendon irriation * **Vaughan-Jackson syndrome** * describes the rupture of the hand digital extensor tendons which occur from the ulnar side of the wrist first then moves radially * _pathoanatomy_ * results when DRUJ instability results in dorsal prominence of the ulnar head which results in an attritional rupture of the extensor tendons * EDM is the first extensor ruptured. * _treatment_ * EIP to EDC transfer and distal ulna resection * **Common extensor transfers****** * _EPL_ - EIP to EPL * _EDM_ - leave alone * _EDM and EDC5_ * EIP to EDC5 * _EDM, EDC5, EDC4_ * EIP to EDM, EDC4 side to side to EDC3

Answer 88

**Mannerfelt syndrome** * **introduction** * rupture of FPL (most common flexor rupture) in carpal tunnel due to scaphoid osteophytes * **Presentation** * Loss of thumb flexion * Physical - assess AIN, IP joint, passive and active ROM * **DDX** * AIN palsy * IP OA * Trigger thumb * **XR** - assess IP joint, if bad OA then FPL transfer won't have much functional gain * **FDS to FPL tendon transfer** (or FPL pullthrough with spicule excision, or PIP fusion) * Need to assess for bone spicule on scaphoid or will damage your new tendon * Usually use index FDS; if FDP is rupture can use middle or ring FDS

Answer 89

**Caput-ulna syndrome** * **pathoanatomy** * synovitis in the DRUJ \> ECU subsheath stretching \> ECU subluxation \> supination of the carpal bones away from the head of the ulna \> volar subluxation of the carpus away from the ulna \> increased pressure over the extensor compartments \> tendon rupture * be sure to distinguish from extensor lag caused by PIN compression neuropathy (seen in RA due to elbow synovitis) * **distal ulna resection (Darrach)** * must also relocate ECU dorsally with a retinacular flap or perform ECU stabilization of ulna * More commonly used, but more unpredictible with more complications * **Sauvé-Kapandji ulnar pseudoarthrosis** * has advantage of preserving the TFCC * good option for younger patients, more active patients * Can still get instability and ECU subluxation, but it is not as common

Answer 90

* **synovectomy** * _indications_ * early disease * _technique_ * Can be performed open or arthroscopically * Between 5th/6th compartments * Debride all prominences - listers, ulna * If ulna is unstable perfrom darrach or suave/kapanji * **transfer of ECRL to ECU to diminish deforming forces (Clayton's procedure)** * Helps to prevent ulnar subluxation of the carpus and the zig-zag deformity they often get * Some think it comes from the wrist * **radiolunate fusion (Chamay)** * _indications_ * intermediate disease * _Technique_ * Bone graft * Radius is fused to the lunate preserving the mid-carpal joint * If scaphoid joint is invovled can inculde it as well * Wrist denervation can help, especially if there is mild midcarpal OA * _Outcomes_ * Successful fusion * Predictable pain relief even with midcarpal OA * No evidence of rapid degeneration of midcarpal joint * **wrist fusion** * _indications_ * advanced disease * remains gold standard * often combined with Darrach * _Technique_ * Doral approach * Radius to 3rd MC * Plate is a reliable option with minimal need for hardware removal (15%) * _Outcomes_ * Predictive pain control with less complications than arthroplasty * Can exacerbate issues with more proximal joints * **total wrist arthroplasty** * _indications_ * is an option in some patients * advantages over fusion is motion and best in patients with reasonable motion preop * Patients often prefer this

Answer 91

**Rheumatoid Nodules** * **epidemiology** * most common extra-articular manifestation of RA * seen in 25% of patients with RA and associated with aggressive disease * an extraarticular process found over IP joints, over olecranon, and over ulnar border of the forearm * **prognosis** * erosion through skin may lead to formation of sinus tract * **presentation** * patients complain of pain and cosmetic concerns * **non operative** * steroid injection * **surgical excision** * _indications_ * cosmetic concerns, pain relief, diagnostic biopsy

Answer 92

* **introduction** * volar subluxation associated with ulnar drifting of digits * **pathoanatomy** * joint synovitits \> radial hood sagittal fiber stretching \> concomittant volar plate stretching extrinsic extensors subluxate ulnarly \> lax collateral ligaments allow ulnar deviation deformity \> ulnar intrinsics contract further worsening the deformity \> wrist radial deviation further worsens \> flexor tendon eventually drifts ulnar * **presentation** * extensor lag at level of MCP joint * **synovectomy, extensor tendon centralization, and intrinsic release** * _indications_ * early disease * **MCP arthroplasty** * silicone MCP arthroplasty is most common * _indications_ * late disease * _techniques_ * important to correct wrist deformity at same time if it is radially deviated * synovectomy, volar capsular resection, ulnar collateral ligament release, radial collateral ligament repair/reconstruction, extensor tendon realignment, intrinsic tendon release * _outcomes_ * ultimate function is less predictable * overall patient satisfaction of 70% * 1 year followup shows improved ulnar drift and extensor lag * **complications** * infection * implant failure * deformity recurrence

Answer 93

* **Type 1** * Boutonniere * Stage 1: Synovectomy with extensor hood reconstruction * Stage 2: MCP fusion or arthroplasty * Stage 3: IP and MCP fusion (if CMC is normal). IP fusion and MCP arthroplasty (if CMC is diseased) * **Type 2** * Boutonniere with CMC subluxation * Same as Type 1 and 3 * **Type 3** * Swan neck deformity * Stage 1:splinting vs CMC arthroplasty * Stage 2: MCP fusion * Stage 3: MCP fusion with first web release * **Type 4** * Gamekeeper deformity * Stage 1 (passively correctable): synovectomy, UCL reconstruction, and adductor fascia release * Stage 2 (fixed deformity) MP arthroplasty or fusion * **Type 5** * Swan neck with MPJ disease * MP stabilized in flexion by volar capsulodesis * **Type 6** * Skeletal collapse (arthritis mutilans) * Combination of arthrodesis

Answer 94

* **First-degree (Class I)** * _Seddon's neuropraxia_ and first-degree are the same * nerve is stretched * will have a negative tinnel sign * **Second-degree (Class II)** * Seddon's axonotmesis and second-degree are the same * Endoneurium, epineurium and perineurium remain intact * **Third-degree (Class II)** * Axonotemsis * _lesion of the endoneurium_, but the epineurium and perineurium remain intact * Recovery from a third-degree injury is possible, but surgical intervention may be required * **Fourth-degree (Class II)** * Axonotemesis * In fourth-degree injury, only the epineurium remain intact * In this case, surgical repair is required. * **Fifth-degree (Class III)** * complete transection of the nerve * Recovery is not possible without an appropriate surgical treatment.

Answer 95

arcade of Struthers medial intermuscular septumm edial epicondyle cubital tunnel deep flexor pronator aponeurosis

Answer 96

* **Zone 1** * Proximal to bifurcation of the nerve * Ganglia and hook of hamate fractures * _Mixed motor and sensory_ * **Zone 2** * Surrounds deep motor branch * Ganglia and hook of hamate fractures * _Motor only_ * **Zone 3** * Surrounds superficial sensory branch * Ulnar artery thrombosis or aneurysm * _Sensory only_ * **Zone 4** * ****compression of the motor branch with sparing of hypothenar * **Zone 5** * ****compression of only index/middle interosseous with adductor

Answer 97

* **Floor** * Transverse carpal ligament, hypothenar muscles * **Roof** * Volar carpal ligament * **Ulnar border** * Pisiform and pisohamate ligament, abductor digiti minimi muscle belly * **Radial border** * Hook of hamate

Answer 98

* gaglia are most common * if making a list you can list any benign tumor of the hand or several carpal articulations * vibratory compression is second most common * or prolong pressure, as in cycling * hook of hamate - most common traumatic finding * can also list pisiform, MT base, DR, ulnar styloid * arterial thrombosis/anerysm (hypothenar hammer syndrome) * Anomalous muscle, fibrous bands * OA/RA - synovitis, pannus, boney deformity * DM, EtOH, renal failure, scleroderma * Iatrogenic - CTR

Answer 99

peripheral neuropathy (cubital tunnel more common location of compression) infectious/polio neuropathy brachial plexopathy malignant nerve sheath tumors CMT ALS

Answer 100

* **palmaris brevis sign** = excessive contraction of palmaris brevis with 5th digit abduction * loss brevis with compression at guyons canal, but not cubital tunnel...need to clarify; potentially martin-gruber??? * PB is innervated by the superficial sensory branch of the ulnar nerve, so you will loose function with a zone 3 injury * **Sensation of dorsal 4/5 digits** * **Tinels sign at elbow** * **numbness with 1 min elbow flexion**

Answer 101

* decreased grip/pinch - 1st interosseous/adductor * Froment sign - weak adductor * Wartenberg sign - inability to aDduct the 5th digit (loss 3rd interosseous) * Inability to cross index/middle finger - weak interosseous

Answer 102

NOT DUE TO VIBRATION Symptoms worsening over 2-4 months Intrinsic muscle weaknes, hypothenar atrophy persistent sensory deficiet

Answer 103

* **Medial Gastroc flap** * Used for medial and midline defects over proximal third of tibia * Pedicle supplied by _medial sural artery_ * **Lateral Gastroc flap** * Used for lateral defects over proximal third of tibia * **Soleus** * Used for wounds over middle third of tibia * Supplied by branches of the popliteal artery trunk, the posterior tibial artery (medial), and the peroneal artery (proximal) * **Gracilis** * Most common donor for free muscle transfer * Nerve is _anterior division of obturator nerve_ * Artery is branch of _medial femoral circumflex artery_ * **Free flaps** * Used for wound coverage over distal third of tibia, or in the middle and proximal leg when soleus and gastrocnemius are damaged * **Groin flap** * Axial flap that has been a mainstay of providing soft-tissue coverage of the upper extremity * Based on the _superficial circumflex iliac artery_

Answer 104

* **Finger Tip** * Straight or Dorsal Oblique laceration * _V-Y Advancement flap_ * _Digital island artery_ * Volar Oblique laceration * _Cross finger flap (if \> 30 yrs)_ * _Thenar flap (if_ * _Digital island artery_ * **Volar Proximal Finger** * _Cross finger (if \> 30 yrs)_ * Axial flag flap from long finger * **Dorsal Proximal Finger & MCP** * _Reverse cross finger_ * _Axial flag flap from long finger_ * **Volar Thumb** * _Moberg Advancement Volar Flap (if_ * _FDMA (if \> 2 cm)_ * _Neurovascular Island Flap_ (up to 4 cm) * **Dorsal Thumb** * _FDMA_ * **First Web Space** * Z-plasty with 60 degree flaps * Posterior interosseous fasciocutaneous flap (if \> 75%) * **Dorsal Hand** * Groin Flap

Answer 105

* **Flap failure** * _inadequate arterial flow_ * vasospasm often leads to thombosis at anastamosis * need to take them back to OR * _inadequate venous outflow_ * heparin, pie-crust nailbed * leeches * treat with cipro * **Hook nail deformity** * tight tip closure * insufficient bony support * _treatment_ * variety of reconstructive procedures have been described

Answer 106

* **healing by secondary intention** * _indications_ * adults and children with no bone or tendon exposed with * children with exposed bone * **primary closure (revision amputation)** * _indications_ * finger amputation with exposed bone and the ability to rongeur bone proximally without compromising bony support to nail bed * **full thickness skin grafting from hypothenar region** * _indications_ * fingertip amputation with no exposed bone and \> 2cm of tissue loss * **flap reconstruction** * _indications_ * exposed bone or tendon where rongeuring bone proximally is not an option

Answer 107

**Zone I** * Disruption of terminal extensor tendon distal to or at the DIP joint of the fingers and IP joint of the thumb (EPL) * _Mallet Finger_ **Zone II** • Disruption of tendon over middle phalanx or proximal phalanx of thumb (EPL) **Zone III** • Disruption over the PIP joint of digit (central slip) or MCP joint of thumb (EPL and EPB _• Boutonneire deformity_ **Zone IV** • Disruption over the proximal phalanx of digit or metacarpal of thumb (EPL and EPB) **Zone V** • Disruption over MCP joint of digit or CMC joint of thumb (EPL and EPB) _•"Fight bite" common_ • _Sagittal band rupture_ **Zone VI** * Disruption over the metacarpal * _Nerve and vessel injury likely_ **Zone VII** * Disruption at the wrist joint * Must repair retinaculum to prevent bowstringing * Tendon repair followed by immobilization with wrist in 40° extension and MCP joint in 20° flexion for 3-4 weeks **Zone VIII** • Disruption at the distal forearm **Zone VIII** * Extensor muscle belly * Usually from penetrating trauma * Often have associated neurologic injury * Tendon repair followed by immobilization with elbow in flexion and wrist in extension

Answer 108

* **immobilization with early protected motion** * lacerations * **DIP extension splinting** * _indications_ * acute ( * nondisplaced bony mallet * chronic mallet finger (\>12 weeks) if joint supple, congruent * _techniques_ * full-time splinting for six weeks * part-time splinting for four to six weeks * avoid hyperextension, which may cause skin necrosis * maintain PIP motion * _outcomes_ * noncompliance is a common problem * **PIP extension splinting** * _Indications_ * closed central slip injury (zone III) * _techniques_ * full-time splinting for six weeks * part-time splinting for four to six weeks * maintain DIP flexion * **MCP extension splinting** * _Indications_ * closed zone V sagittal band rupture * _techniques_ * full-time splinting for four to six weeks

Answer 109

* **immediate I&D** * fight bite to MCP joint (zone V) * _techniques_ * close loosely or in delayed fashion * treat with culture-specific antibiotics, although Eikenella corrodens is a common mouth organism * **tendon repair** * laceration \> 50% of tendon width in all zones * **fixation of bony avulsion** * boney mallet finger with P3 volar subluxation * _techniques_ * closed reduction and percutaneous pinning through DIP joint * extension block pinning * ORIF if it involves \>50% of the articular surface * **tendon reconstruction** * _indications_ * chronic tendon injury or when repair not possible * **central slip reconstruction** * _techniques_ * tendon graft * extensor turndown * lateral band mobilization * transverse retinacular ligament * FDS slip * **EIP to EPL tendon transfer** * _indications_ * chronic EPL rupture * This tendon is not worth repairing

Answer 110

* **Adhesion formation** * leads to loss of finger flexion * common in zone IV and VII and older patients * prevented with early protected ROM and dynamic splinting (zone IV) * _treatment_ * extensor tenolysis with early motion indicated after failure of nonoperative management, usually 3-6 months * tenolysis contraindicated if done in conjunction with other procedures that require joint immobilization * **Tendon rupture** * causes include poor surture material or surgical technique, aggressive therapy, and noncompliance * incidence = 5% * most frequently during first 7 to 10 days post-op * _treatment_ * early recognition may allow revision repair * tendon reconstruction for late rupture or rupture with excessive scarring * **Swan neck deformity** * caused by prolonged DIP flexion with dorsal subluxation of lateral bands and PIP joint hyperextension * _treatment_ * Fowler central slip tenotomy * spiral oblique ligament reconstruction * **Boutonniere deformity (DIP hyperextension)** * caused by central slip disruption and lateral band volar subluxation * _treatment_ * dynamic splinting or serial casting for maximal passive motion * terminal extensor tenotomy, PIP volar plate release

Answer 111

* **Inflammatory** * 0-5 * cellular proliferation * no strength * **Fibroblastic** * 5-28 * fibroblastic proliferation with disorganized collagen * increasing strength * **Remodeling** * \>28 * linear collagen organization * will tolerate controlled active motion

Answer 112

* **Zone I** * Distal to FDS insertion * _Jersey finger_ * **Zone II** * DIP to distal palmar crease * Zone is unique in that _FDP and FDS in same tendon sheath_ (both injured within the flexor retinaculum) * _Direct repair of both tendons_ * early ROM (Duran, Kleinert) * preserve A2 and A4 pulley * Historically poor results * **Zone III** * Palm * Often associated with _neurovascular injury_ which carries a worse prognosis * _Direct tendon repair._ * Good results from direct repair can be expected * **Zone IV** * Carpal tunnel * Often complicated by postoperative adhesions due to close quarters and synovial sheath of the carpal tunnel * _Direct tendon repair._ * Transverse carpal ligament should be repaired in a lengthened fashion * **Zone V** * Wrist to forearm * Often associated with neurovascular injury which carries a worse prognosis * _Direct tendon repair_ * **Thumb** * TI, TII, TIII * Outcomes different than fingers * Early motion protocols do not improve long-term results * higher re-rupture rate * Direct end-to-end repair of FPL is advocated * Avoid Zone III - recurrent motor branch of the median nerve * Oblique pulley is more important than the A1 pulley; however both may be incised if necessary * Attempt to leave one pulley intact to prevent bowstringing

Answer 113

* \>50% of tendon laceration * outcome will depend on the zone * **approach** * incisions should always cross flexion creases transversely or obliquely to avoid contractures (never longitudinal) * **timing of repair** * _within three weeks_ of injury (2 weeks ideal) * waiting longer leads to difficulty due to tendon retraction * **# of suture strands that cross the repair site is more important than the number of grasping loops** * linear relationship between strength of repair and # of sutures crossing repair * _4-6 strands_ provide adequate strength for early active motion * _high-caliber suture material_ increases strength and stiffness and decreases gap formation * _locking-loops decrease gap_ formation * ideal suture purchase is _10mm from cut edge_ * _core sutures placed dorsally_ are stronger * meticulous atraumatic tendon handling minimizes adhesions * **circumferential epitendinous suture** * improves tendon gliding * improves strength of repair (adds 20% to tensile strength) * allows for less gap formation (first step in repair failure) * simple running suture is recommended * **sheath repair is controversial** * theoretically improves tendon nutrition through synovial pathway * clinical studies show no difference with or without sheath repair * most surgeons will repair if it is easy to do * **pulley management** * critical to preserve A2 and A4 pulleys in digits and oblique pulley in thumb * **FDS repair** * in zone 2 injuries, repair of one slip alone improves gliding when compared to repair of both slips * **outcomes** * repair failure * _tendon repairs are weakest between postoperative day 6 and 12_ * repair usually _fails at suture knots_

Answer 114

* tendon repairs are weakest between postoperative day 6 and 12 * repair usually fails at suture knots

Answer 115

* **Indications** * failed primary repair * chronic injury * **requirements** * supple skin * sensate digit * adequate vascularity * full passive range of motion of adjacent joints * **usually performed as a two-stage procedure** * first a _silicone tendon implant_ is placed to create a favorable tendon bed * wait _3-4 months_ and then pass a biologic tendon graft through the sheath after the silicone rod is removed * only perform a single-stage reconstruction if the flexor sheath is pristine and the digit has full ROM * **graft choices** * _palmaris longus_ (absent in 15% of population) * most common * _plantaris_ (absent in 19%) * indicated if longer graft is needed * _long toe extensor_ * **pulley reconstruction** * one pulley should be reconstructed proximal and distal to each joint * methods include belt loop method and FDS tail method

Answer 116

* **indications** * localized tendon adhesions with minimal to no joint contracture and full passive digital motion * may be required if a discrepancy between active and passive motion exists after therapy * **timing of procedure** * wait for soft tissue stabilization (\> 3 months) and full passive motion of all joints * **technique** * careful technique to preserve A2 and A4 pulleys * **postoperative care** * follow with extensive therapy

Answer 117

* **Postoperative controlled mobilization has been the major reason for improved results with tendon repair** * especially in zone II * _improved tendon healing_ biology * _limits restrictive adhesions_ * _increased tendon excursion_ * **Early active motion protocols** * moderate force and potentially high excursion * dorsal blocking splint limiting wrist extension * perform “place and hold” exercises with digits * **Early passive motion protocols** * _Duran protocol_ * low force and low excursion * active finger extension with patient-assisted passive finger flexion * _Kleinert protocol_ * low force and low excursion * active finger extension, dynamic splint-assisted passive finger flexion * _Mayo synergistic splint_ * low force and high tendon excursion * adds active wrist motion which increases flexor tendon excursion the most * **Immobilize children and noncompliant patients** * Children should be immobilized following repair * Casts or splints are applied with the wrist and MCP joints positioned in flexion and the IP joints in extension

Answer 118

* diffuses through synovial fluid in sheath * comes from vinacular system

Answer 119

* **Tendon adhesions** * most common complication following flexor tendon repair (causing stiffness, non complicance is an issue) * Need to wait until tissues reach equilibrium * Release tendons without releaseing pulley * If not possible need to do a staged procedure * **Tendon re-rupture** * 15-25% rerupture rate * _treatment_ * if * if \>1cm of scar is present, perform tendon graft * if the sheath is intact and allows passage of a pediatric urethral catheter or vascular dilator, perform primary tendon grafting * if the sheath is collapsed, place Hunter rod and perform staged grafting * **Joint contracture** * rates as high as 17% * **Swan-neck deformity** * **Trigger finger** * **Lumbrical plus finger** * **Quadrigia** or will be unble to fully extend the finger (which is what is more common than quadrigia)

Answer 120

* **Indications** * thumb * multiple digits * almost all parts in children * wrist or forearm * elbow and above elbow * individual digits distal to insertion of FDS * **Contraindications** * single digit proximal to FDS insertion (Zone II) * mangled parts * multiple levels * other serious medical conditions * prolonged ischemia time * self-inflicted wound * mentally unstable patients

Answer 121

* **Transport of amputated tissue** * keep wrapped in moist gauze in lactate ringers solution * place in sealed plastic bag and place on ice * **Time to replantation** * proximal to carpus * warm ischemia time * cold ischemia time * distal to carpus (digit) * warm ischemia time * cold ischemia time

Answer 122

* **sequence of repair (befanvs)** * bone * extensor tendons * flexor tendons * arteries * nerves * veins * skin * **Finger order** * thumb, long, ring, small, index * **For multiple amputations structure-by-structure sequence is most efficient** * digit-by-digit sequence takes the most time

Answer 123

* **Environment** * keep patient in warm room (80°F) * avoid caffeine, chocolate, and nicotine * **Replant monitoring** * _skin temperture most reliable_ * concerning changes include a \> 2° drop in skin temp in less than one hour or a temperture below 30° celcius * _pulse oximetry_ * * **Anticoagulation** * adequate hydration * medications (aspirin, dipyridamile, low-molecular weight dextram, heparin) * **Arterial Insufficiency** * release constricitng bandages * place extremity in dependent position * consider heparinization * consider stellate ganglion blockade * early surgical exploration if previous measures unsuccessful * _thrombosis secondary to vasospasm is most common cause of early replant failure_ * **Venous congestion** * treatment * elevate extremity * leech appliation * releases Hirudin (powerful anticoagulant) * Aeromonos hydrophila infection can occur (prophylax with Bacrtim or ciprofloxacin) * heparin soaked pledgets if leeches not available * nail bed pie-crusting

Answer 124

* **Infection** * **Cold intolerence** * **Stiffness** * replanted digits have 50% of total motion * tenolysis is most common secondary surgery * **Myoglobinuria** * caused by muscle necrosis in larger replants (forearm and arm) * can lead to renal failure and be fatal * **Reperfusion injury** * mechanism thought to be related to ischemia-induced hypoxanthine conversion to xanthine * allopurinol is the best adjunctive therapy agent to decrease xanthine production

Answer 125

30mm Hg can cause paresthesias (increased latencies) 60 mm Hg can cause complete block of conduction

Answer 126

* **age** * is single most important factor influencing success of nerve recovery * **level of injury** * is second most important (the more distal the injury the better the chance of recovery) * **sharp transections** * have better prognosis than crush injuries * **repair delay** * worsen prognosis of recovery (time limit for repair is 18 months)

Answer 127

* **denervation of muscle** * fibrillations * positive sharp waves (PSW) * fasiculations * **neurogenic lesions** * fasiculations * myokymic potentials * **myopathies** * complex repetitive discharges * myotonic discharges

Answer 128

* _increase latencies (slowing) of NCV_ * distal sensory latency of \> 3.2 ms are abnormal for CTS * motor latencies \> 4.3 ms are abnormal for CTS * _decreased conduction velocities_ less specific that latencies * velocity of * _motor action potential (MAP)_ decreases in amplitude * _sensory nerve action potential (SNAP)_ decreases in amplitude

Answer 129

* If delayed * EMG at 6 weeks * then repeat at 3 months to assess improvement * At time of injury * tag the ends if you are there * sooner the better (up to 12 months) * **Direct muscular neurotization** * insert proximal nerve stump into affected muscle belly * results in less than normal function but is indicated in certain cases * **Epineural Repair** * primary repair of the epineurium in a tension free fashion ( * first resect proximal neuroma and distal glioma * "breadloafing" fashion * it is critical to properly align nerve ends during repair to maximize potential of recovery * **Grouped Fasicular repair** * _indications_ * median nerve in distal third of forearm * ulnar nerve in distal third of forearm * sciatic nerve in thigh * _technique_ * similar to epineural repair, but in addition repair the perineural sheaths (individual fascicles are approximated under a microscope) * _outcomes_ * no improved results have been demonstrated over epineural repair * **Nerve cable grafting** * autologous graft * remains the gold standard of repair for _segmental defects \> 5cm_ * sural, saphenous, lateral antebrachial, medial antebrachial * allograft * the only synthetic graft which shows equal results to autologous nerve grafting is a collagen conduit * collagen conduits allow for nutrient exchange and accessibility of neurotrophic factors to the axonal growth zone during regeneration

Answer 130

* 1st & 2nd lumbricals * originate from radial side of FDP tendons & insert onto dorsal expansion as radial lateral bands * 3rd & 4th lumbricals * bipennate, with origins from middle & ring FDP (3rd), ring & small (4th)

Answer 131

* **extension** → occurs by tension on sagittal bands (@MCP), central slip (@PIP), & terminal tendons (@DIP) * there must be a balance b/w intrinsics & extrinsics * **intrinsics contribute 53% of grip strength & 85% of pinch** * \*w/o intrinsics, grasp of cylinder not possible → they must flex MCP when FDS flexes PIP & FDP flexes DIP

Answer 132

* **trauma/infection** → edema & immobilization → adhesions & fibrosis * **ischemia/compartment syndrome** → fibrosis & dysfunction * **lumbrical+ finger:** * ****rupture of FDP * lax FDP graft * fingertip amputation * converts that tendon into an extensor via its associated lumbrical (paradoxical extension when trying to make fist) * **spasticity**: CP, stroke, TBI * **congenital:** arthrogrypotic syndromes * **RA**

Answer 133

* **Prevention is the best** * ****can try splints for swan neck * progressive static splints * antispasmatic medications * hand therapy * **Distal intrinsic release** * ****resection of ulnar and/or radial lateral bands can improve PIP ROM * amount of fiber resection determined by degree of PIP flexion obtained during intra-op Bunnell testing * **Radial lateral band resection** * **** to correct paradoxical extension of lumbrical+ finger * **Intrinsic tenodesis** → for swan necks * **Lateral band translocation** → alternative to tenodesis * **Lateral band mobilization** → lateral bands released from attachment to central slip * **Crossed intrinsic transfer** → adjuvant procedure in MCP arthroplasty for RA to reinforce attenuated radial side * ulnar interossei tendons of index, middle, ring are cut & resecured to radial side of adjacent ulnar digits * **Proximal interosseous muscle slide** → for spasticity; distalizes origins of interossei * **Interosseous fractional lengthening** * **Proximal intrinsic release** → proximal to MCP; salvage for non-fxnal intrinsics * **Ulnar neurectomy** → for spastic pts with no volitional control; may be needed for hygiene

Answer 134

**Neuraligic amyotrophy** * Infection * Virus: Epstein-Barr, varicella-zoster, Coxsackie B, par- vovirus B19, cytomegalovirus, Mumps, Variola major and V minor (smallpox), human immunodeficiency virus * Bacteria: Leptospira, Mycobacterium tuberculosis, Yersinia, Salmonella, Borrelia burgdorferi * Immunization * Tetanus, hepatitis B * Stress * Perioperative, peripartum, exercise, burn * Drugs * Abacavir, streptokinase, heroin, infliximab * Iatrogenic * Interscalene block, surgery, irradiation * Other * Giant cell arteritis, lymphoma, Guillain-Barré syndrome, rheumatoid arthritis, diabetes mellitus, history of aller- gies, polyarteritis, hepatitis

Answer 135

* **Collaterals may also be disrupted** * **Dorsal** * ****Volar plate - loose the static restraint * **Volar** * ****lateral bands/central slip ## Footnote *The third is refered to as a pilon fracture*

Answer 136

* **Dorsal** * * 30-50%, * _\>50% OR \>30 flexion to maintain = unstable_ * **__Volar** * _\>50% OR unable to maintain with extension_ * **Pilon** * ****either stable or grossly unstable

Answer 137

* reduced joint is the most important thing * anatomic reduction is less important

Answer 138

* **Extension block pinning (transarticular)** * ****reducible joint with tenuous stability * **CRPP** * ****reducible joint with tenous stability * larger fragment ammenable to pinning * not superior to extension pinning * **Dynamic distraction and Ex-fix** * ****unstable pilon * off-loads the joint and permits early ROM * **Volar Plate arthroplasty** * ****augmented with button * proected with k-wire * **Hemihamate reconstruction arthroplasty (more for volar fractures)** * ****section of hamate if meausred and transplated * better when B type fracture (AO) * 2 week extension splint then ROMAT * no long term studies

Answer 139

**Dorsal PIP dislocation** * **Type I-Stable** * * **Type II-Tenuous** * 30-50%-if reducible in flexion, dorsally based extension block splint * **Type III-Unstable** * \>50%-ORIF, hamat autograft, or volar plate arthroplasty

Answer 140

* deformity * 5mm rotation = 1.5cm rotation at finger * 2mm short = 7 deg ext lag * neck fractures * multiple MC * 10/20/40/60 * comminution * open fracture * transverse/short spiral * apex dorsal due to long flexors and interosseous * easy to reduce with traction; difficult to maintain * transverse usually need to be reduced, if you can reduce it then ok to cast, otherwise need to fix * easy to control with "Ex-fix" - pinning to other MC * DC at 3-4 weeks * long spiral * difficult to maintain closed due to shortening and rotation * if not displaced; can treat in cast * if it's displaced, you can't reduce it without ORIF * can't fix with "ex-fix"; fix wtih lag screws * wear intrinsic plus splint during high risk situations; but can start moving right away * ORIF * 2-5mm shortening * malrotation * comminution * multiple * 10/20/30/40

Answer 141

* **synovitis** * palmar side of the distal radius * waist of the scaphoid, and the triquetrum * synovitis affectsthe intrinsic and extrinsic wrist ligaments * palmar radiocarpal * scapholunate * lunotriquetral ligaments * Dorsal intercalated segmental instability or palmar intercalated segmental instability may develop with collapse * Classically, the proximal carpal row translates both palmarly and ulnarly and supinates (leading to radial deviation and zig-zag deformity)

Answer 142

* w/ rheumatoid involvement of MP joint, there will be weakening & elongation of MP capsule & ligaments; * as resistance to displacing forces is lost, extensor tendons are displaced in an ulnar and palmar directions; * flexor tendons enter fibrous sheath at angle, exerting ulnar & palmar pull that is resisted in the normal hand; * as a result base of proximal phalanx moves ulnarly and palmarly; * role of the ECU tendon: * increased mobility of fourth & fifth metacarpals, results from rheumatoid involvement of CMC joints & dysfunction of ECU; (caput ulnae); * relative increase in tension of the radial wrist extensors contributes to wrist supination deformity;

Answer 143

* **MCP silastic arthroplasty** * **intrinsic release** * each portion of the extensor apparatus along the ulnar side of the digit * MP joint is usually entered along the ulnar side of the extensor tendon (through the saggital band); * w/ ulnar deviation of MPJ long extensor tendon released by incising dorsal hood along tendon's ulnar margin, except in index and little fingers, where incision made between EDC and extensor digiti minimi tendons; * an adequate intrinsic release should divide the transverse and oblique fibers; * w/ only moderate deformity, consider release of only the oblique fibers; * **crossed intrinsic transfer: (ulnar drift)** * involves division of the intrinsics on the ulnar side of the wrist and transfer to the radial side * divide intrinsic tendons on ulnar side of index, middle, & ring fingers from their attachment to the extensor mechanism; * consider rerouting tendons across adjacent web space, & then attaching them to the adjacent (radial) extensor hood, or alternatively the intrinsic tendons may be anchored into the radial collateral ligament (may potentially decrease chance of postoperative swan neck deformity); * **complications:** * may potentially worsen swan neck deformity

Answer 144

* Characteristics * usually idipathic but more common in * dibetics * RA * amyloidosis * **night splinting, activity modification, NSAIDS** * first line of treatment * **steroid injections** * best initial treatment for fingers, not for thumb * _technique_ * give 1 to 3 injections in flexor tendon sheath * diabetics do not respond as well as non-diabetics * **surgical debridement and release of the A-1 pulley** * in cases that fail nonoperative treatment * **release of A1 pulley and 1 slip of FDS (usually ulnar slip)** * pediatric trigger finger * presents with Notta's nodule (proximal to A1 pulley), flexion contracture and triggering * may need to release remaining FDS slip and A2 or A3 pulley as well

Answer 145

* Common overuse syndrome * More common than trigger finger * Can be a significant cause of loss of work in labourers * Best treatment is rest, NSAIDS and splinting * May require release of the first compartment

Answer 146

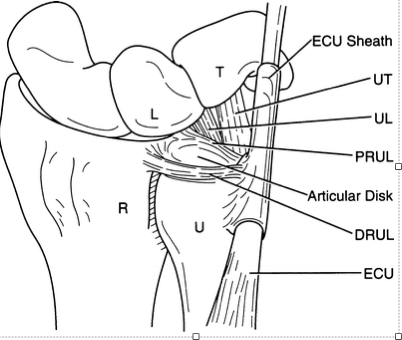

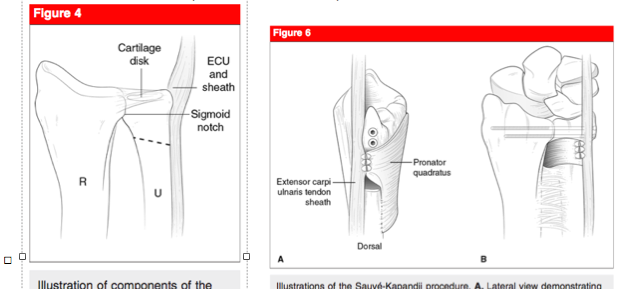

* The number one treatment is a TFCC repair; although this is often not possible * The dorsal and volar RU ligaments can be reconstructed with palmaris or FCU * Dorsal approach, preserve the ECU sheath and the reminants of the TFCC * Drill a hole in the radius and the ulna and weave the graft through the holes * Immobilized in neutral for 2 weeks in a splint, convert to long arm cast, then munster for another 3 weeks

Answer 147

* **Forces on fracture** * Volar oblique ligament * Abductor pollicis longus (PIN) - base * Extensor pollicis longus (PIN) - base * Adductor pollicis (Ulnar) - shaft * **Reduction maneuver** * Traction * Abduction * Extension * Pronation

Answer 148

**Bennet fracture** Abductor pollicis longus extensor pollicis longus adductor pollicis

Answer 149

* usually requires operative treatment * **Bennet** * **\> 1mm and large = screw** * lateral incision curved volarly toward FCR * protect the superficial radial nerves * incise the capsule volar to abductor pollicis longus, identify, clean and reduce the fracture, stabilize with a k-wire * Fix with 2-0 or 4-0 accutrac screw * can augment with k-wire fixation * **\> 1mm and small = k-wire (wagner pinning)** * one=oblique ligament, one=counter tendons * Rolando * **simple can be fixed with T-plate** * **Mini-spanning ex fix from trapezium to MC** * ****very comminuted fracture that would be difficult to control

Answer 150

Apical ectodermal ridge (AER): Guides proximal distal growth Zone of polarizing activity (ZPA): guides anteroposterior growth (radioulnar). Mediated by Sonic Hedgehog Genes Wnt signaling center guides dorsoventral growth. Mediated by Wnt7a & other homeobox genes

Hand Flashcards

(174 cards)
