1
Q
ICMPv6 Use cases
A
- Diagnostics
- Neighbor discover
- Multicast group management
- Issue notification
- Includes ARP (Address resolution protocol) and IGMP (Internet group messaging protocol)
2
Q

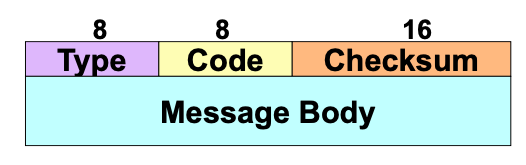

ICMPv6 Message format
A
In IP packets, long at most 576bytes
3
Q

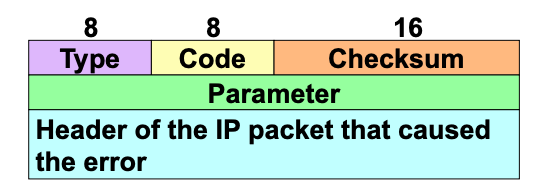

ICMPv6 error message
A
t = 1: dest unreachable
t = 2: packet too big
t = 3: time exceeded
t = 4: parameter problem
4
Q

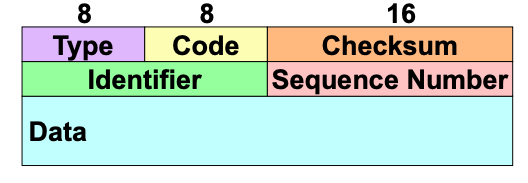

ICMPv6 Echo messages
A
request: type = 128
reply: type = 129
5
Q

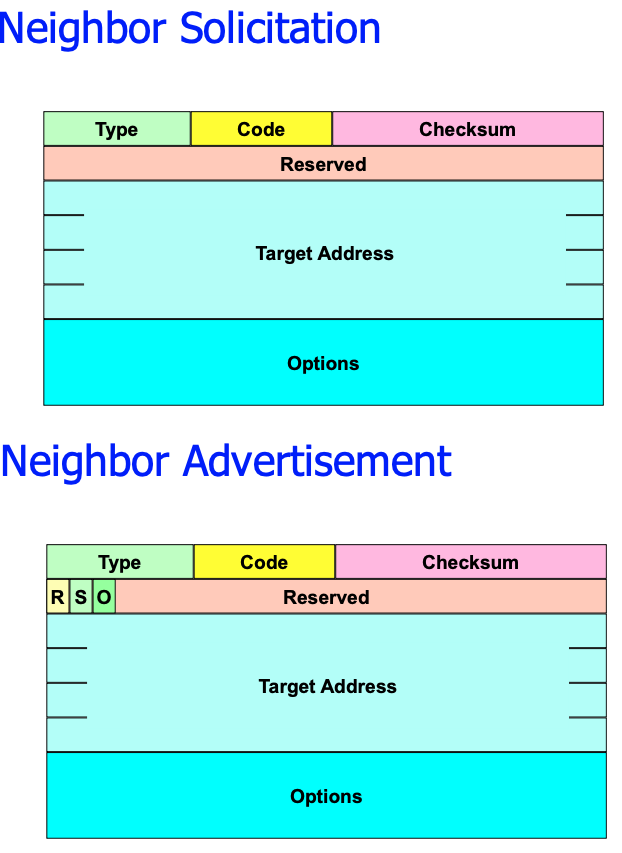

ICMP Neighbor Solicitation/Adv Message
A
6
Q
ICMPv6 and multicast communication in the internet
A
Packets addressed to a multicast adress.
Process:
- Withing a link rely on mapping IPv6 addresses onto MAC multicast addr.
- Among links packets are routed by routers
- ICMPv6 to konw on-link members (hosts that want to received packets)
- Multicast routing protocols to know who are off-link memebers
ICMPv6 group managements;
Multicast listener query:
- General: routers asks if hosts are interested in an arbitrary group
- Multicast address specific query: router requests if hosts are interested in particular group
MC L report: hosts notifies router that wants to get multicast packets from a group
MC L done: hosts notifies that wants to stop receiving packets from multicast group
