L13: Transfer Function Flashcards by Jake Neighbour

Q

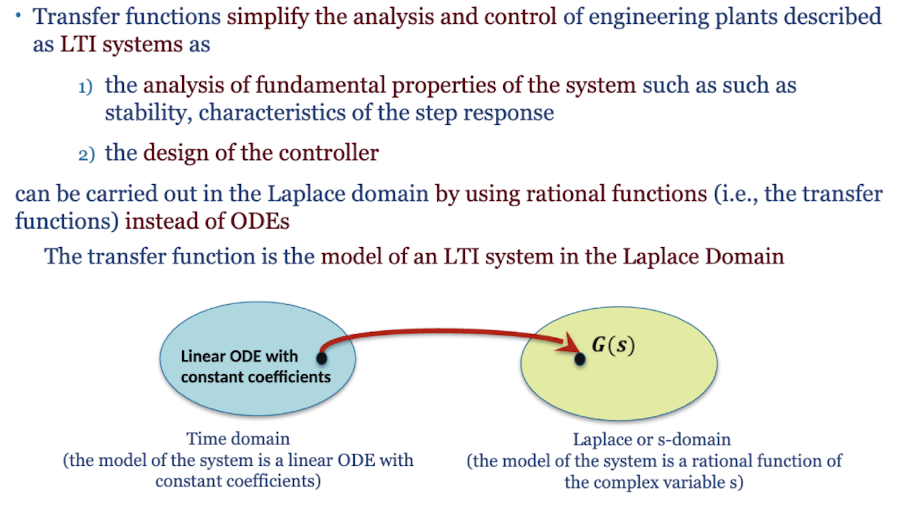

What are Transfer Functions and what do they do

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

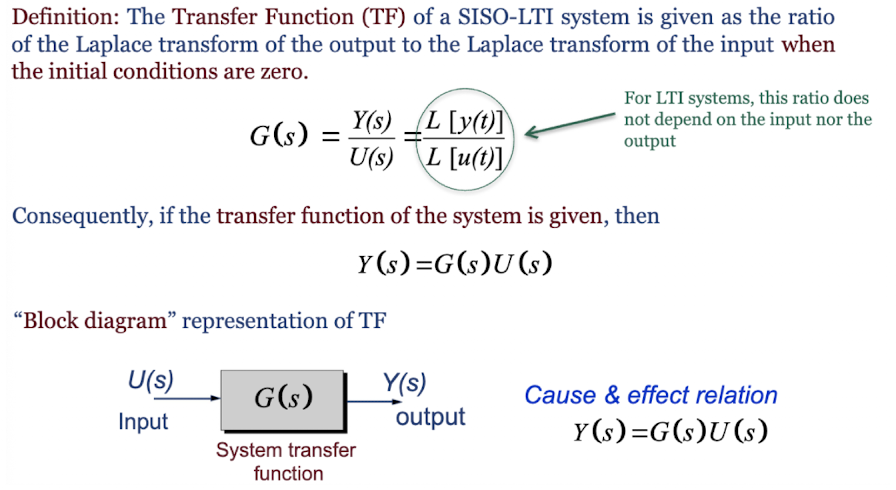

Transfer Function Definition

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

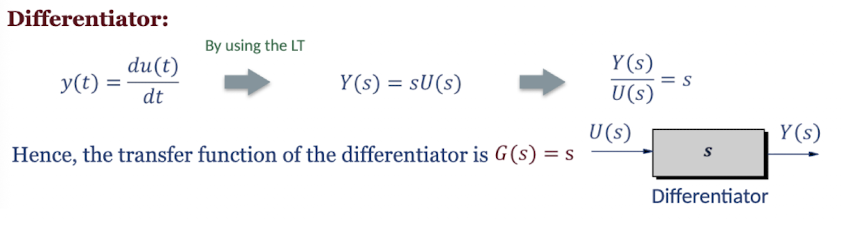

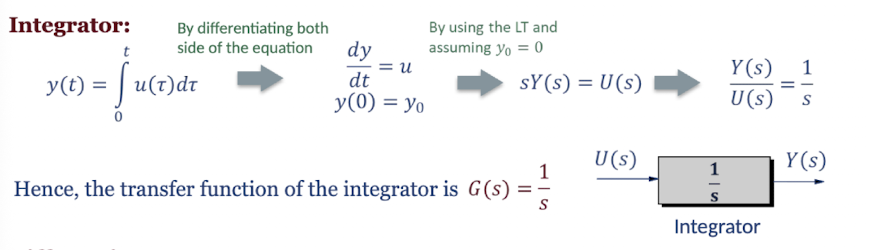

Example Question: Integrator and Differentiator System

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

Example Question: Integrator and Differentiator System

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

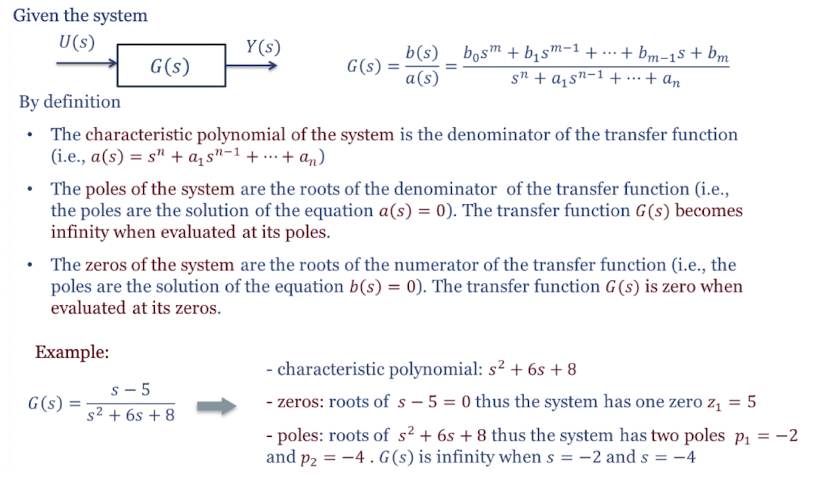

How are the poles a zero of a transfer function

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly

Q

A

How well did you know this?

1

Not at all

2

3

4

5

Perfectly
