1
Q

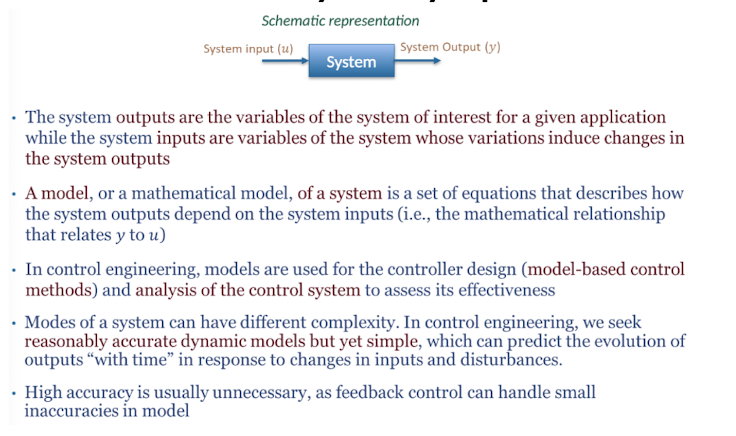

What is a model and why are they important
A
2
Q

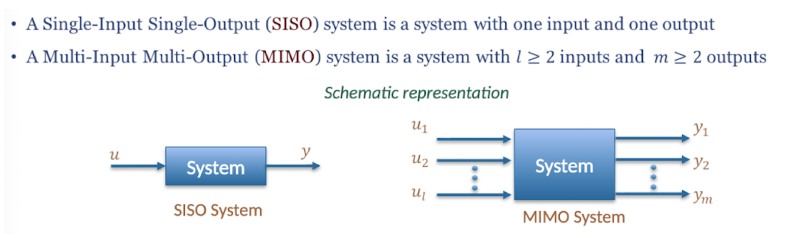

What are SISO and MIMO systems
A
3
Q

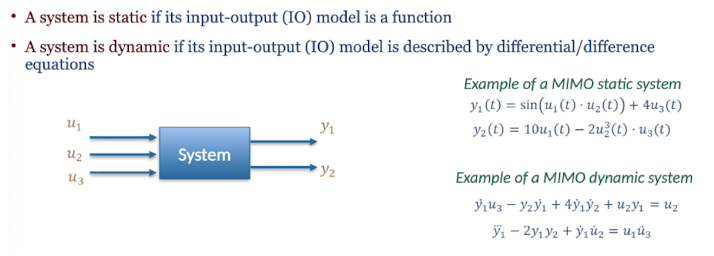

What are static and dynamic systems
A
4
Q

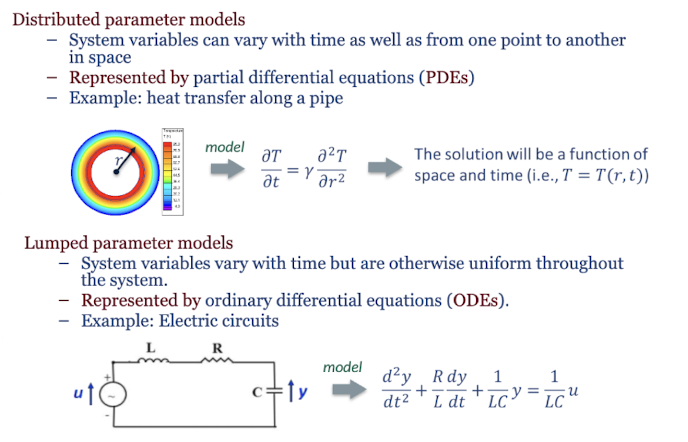

What are two types of system model classification: Distributed Parameter Models & Lumped Parameter models
A
5
Q

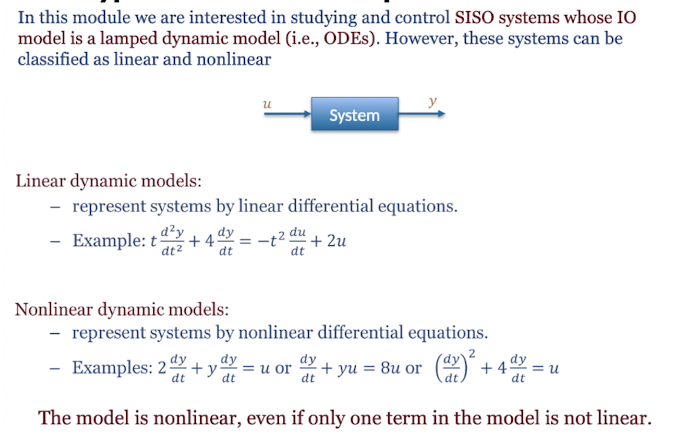

What types of models come up in this module
A
6
Q

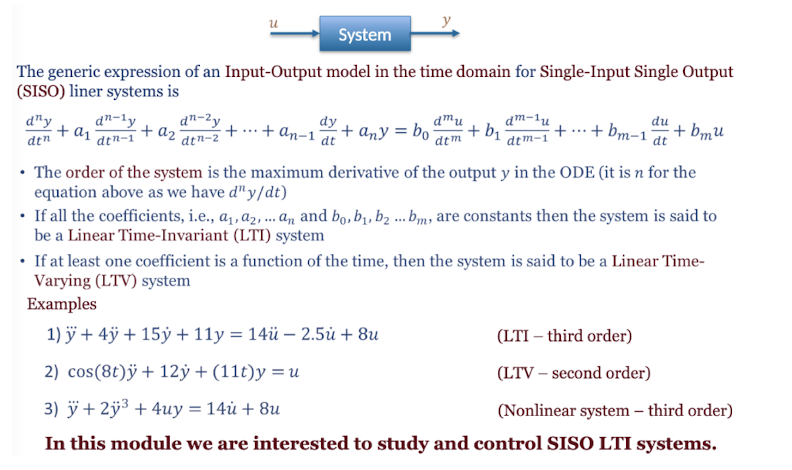

What makes systems Linear-Time Invariant and Linear-Time Variant
A
7
Q

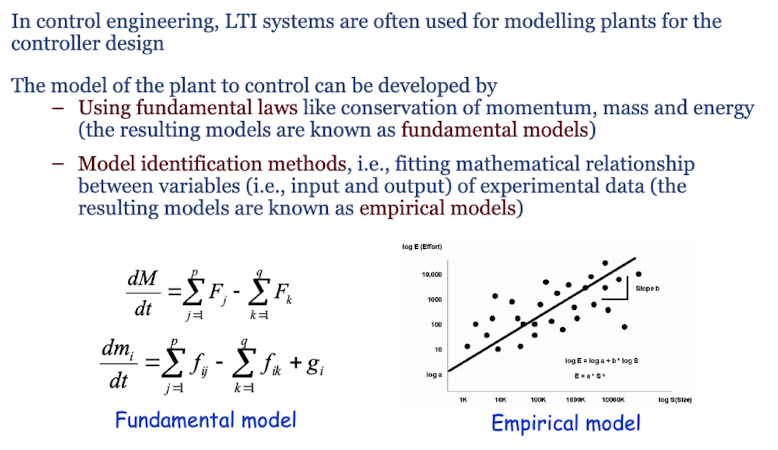

What are LTI systems often used for in control engineering
A
