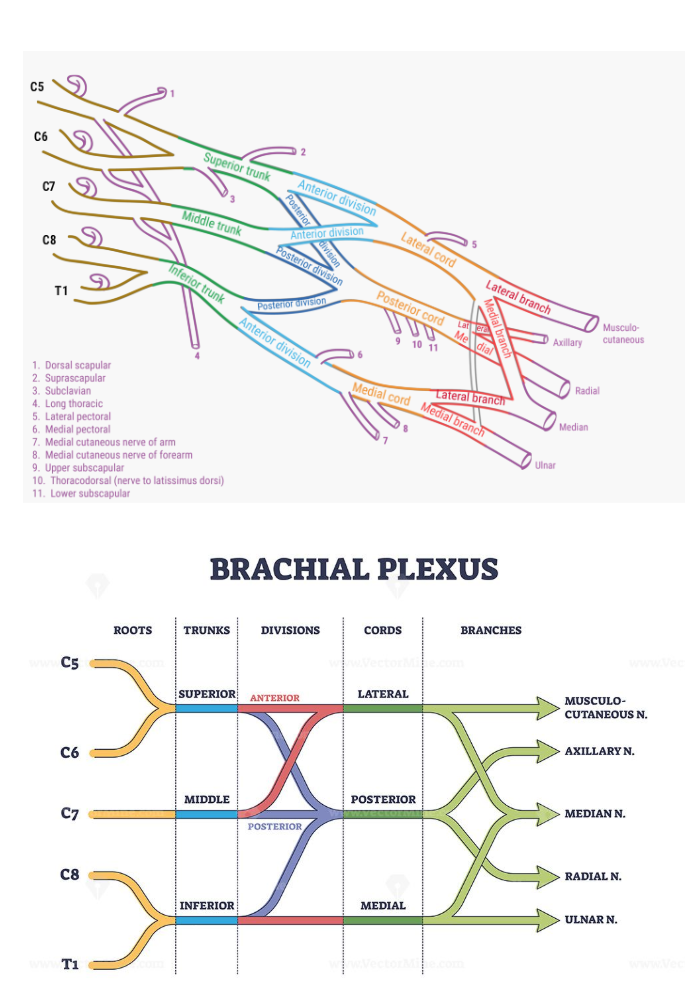

Brachial plexus components
Roots, Trunks, Divisions, Cords, Branches (Read That Damn Cadaver Book)
Terminal Branches MARMU
- musc
- axil
- rad
- med
- ulnar

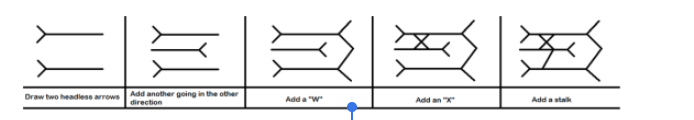

Cheats way to draw the Brachial Plexus
Branches of the brachial plexus
Lateral - Lucy Loves Me
lateral pectoral
musculocutaneous
lateral root of median nerve
Medial - Most Medical Men Use Morphine
Medial cutaneous nerve of arm
Medial cutaneous nerve of forearm
Medial pectoral nerve
ulnar nerve
medial root of median nerve
Posterior - ULNAR
upper subscapular
Lower subscapular
nerve to Lat Dorsi
Axillary nerve
radial nerve
Root contributions to hand movement
Hand method
3 Musketeers: Musculocutaneous (C5, 6, 7).
Assasinated (C5, C6)
5 Rats: Radial (C5, 6, 7, 8, T1).
5 Mice: Median (C5, 6, 7, 8, T1).
2 Unicorns: Ulnar (C8, T1).

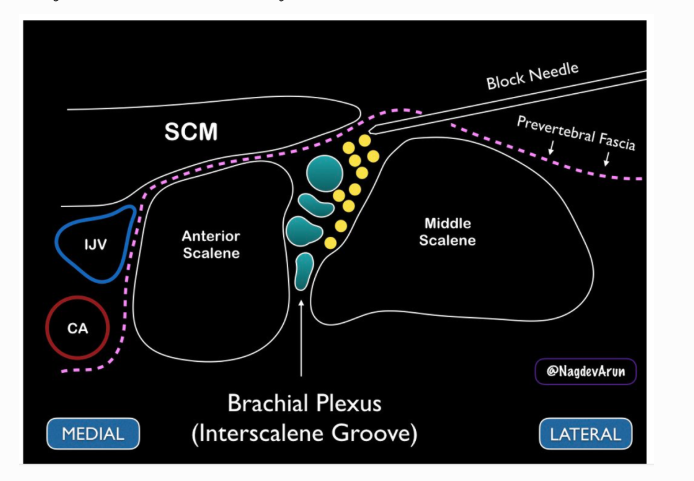

Cross sectional drawing of interscalene block
Nb C5, C6 + C6 and C7 make up traffic lights
veterbral artery at c7 transverse process
phrenic nerve passes over anterior scalene away from c5

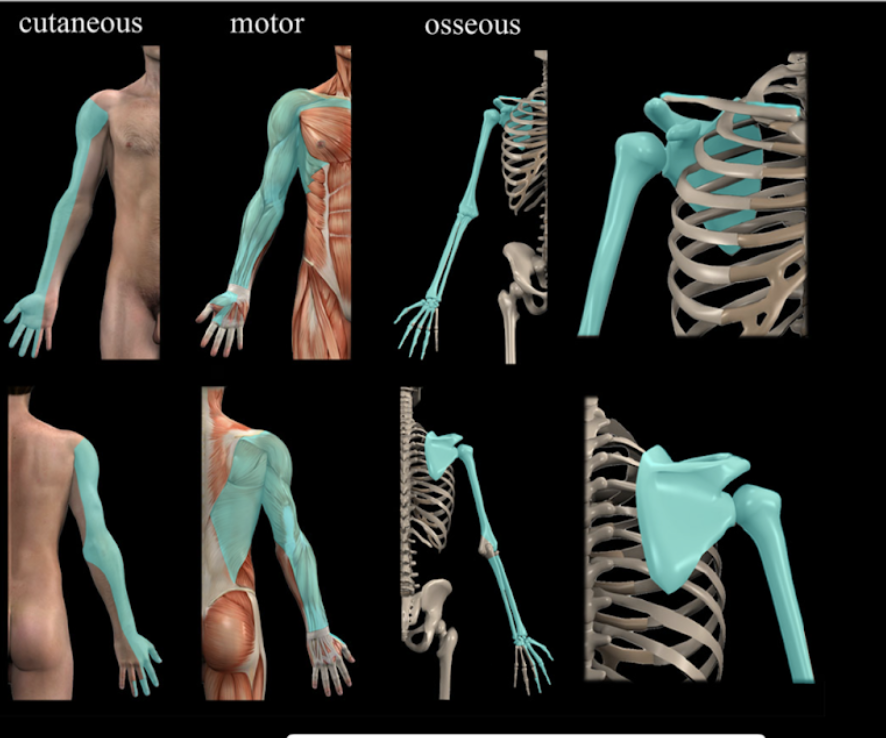

Interscalene coverage

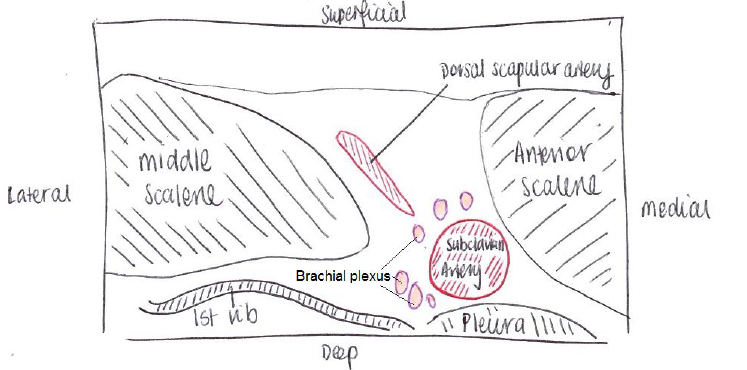

Draw a supraclavicular block

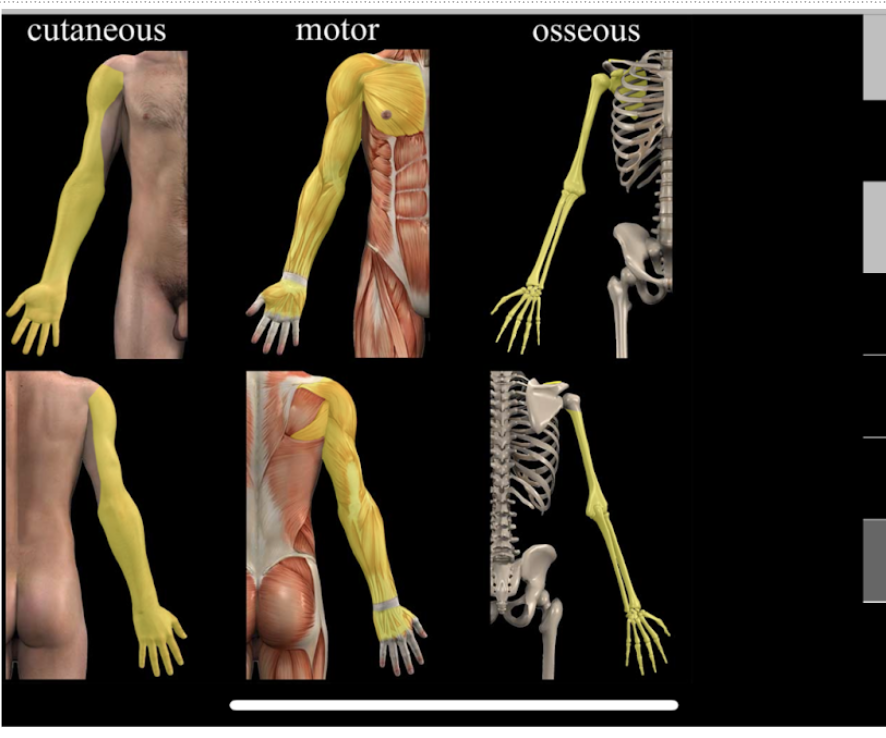

Coverage of supraclavicular block

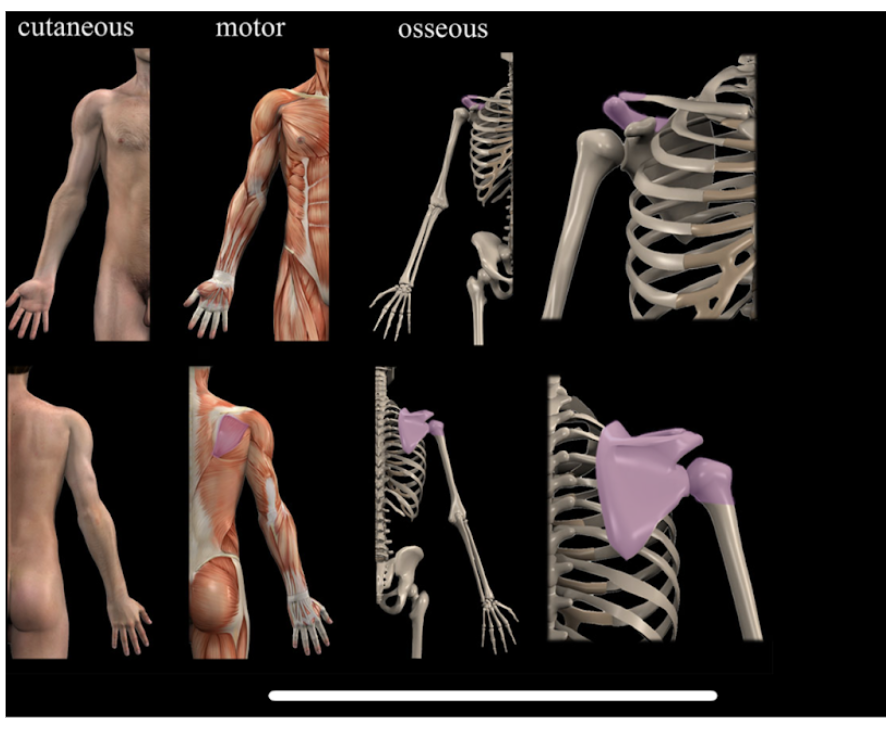

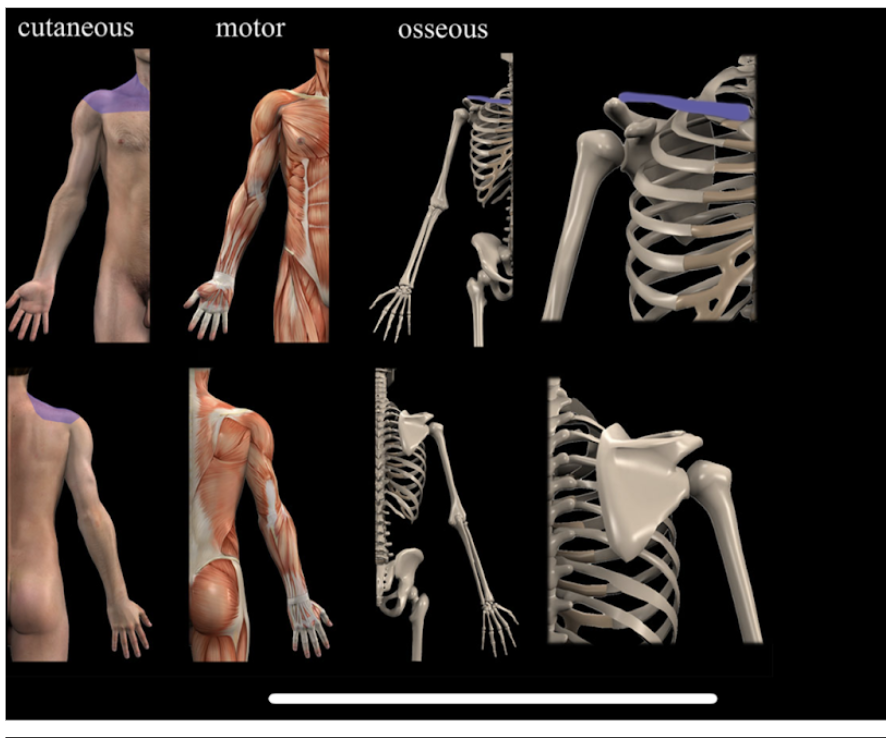

Cover of suprascapular block
Cover of supraclavicular nerves

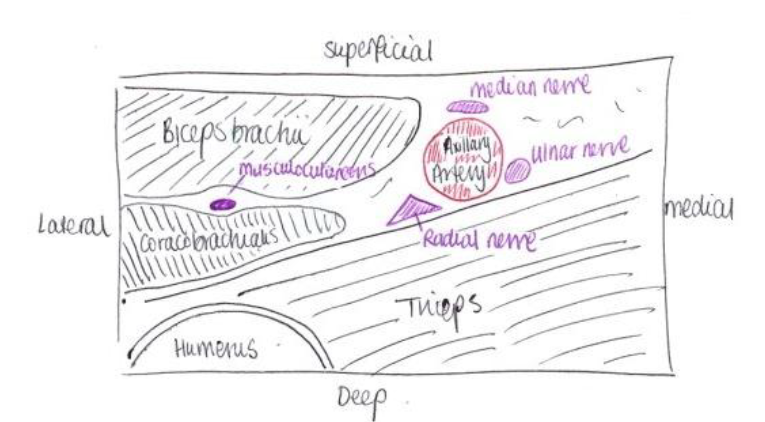

Draw the axillary nerve block

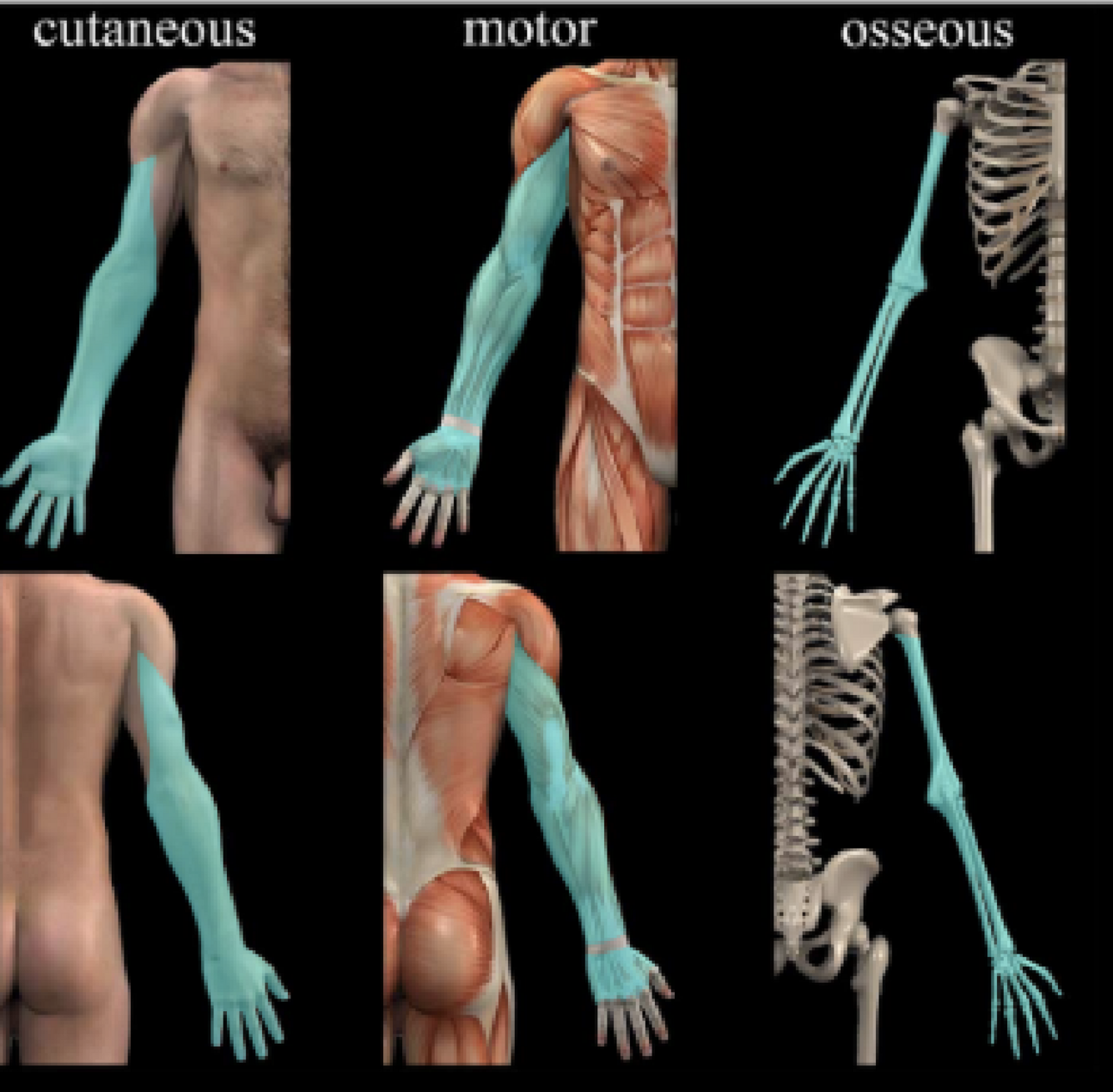

Axillary nerve coverage
Nerves in the ankle block
Medial to lateral
- Posterior tibial
- Saphenous
- Deep peroneal
- Superficial peroneal
- Sural
Dorsal foot innervation

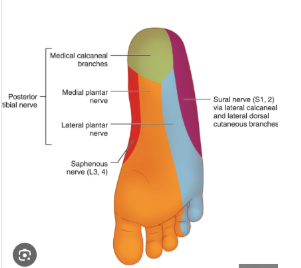

Plantar foot innervation

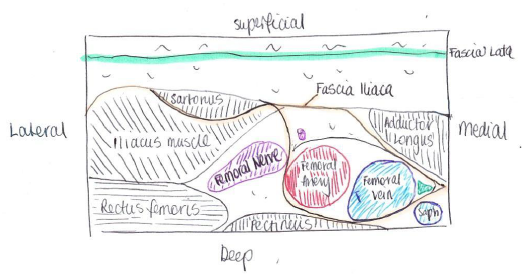

Draw the femoral nerve block

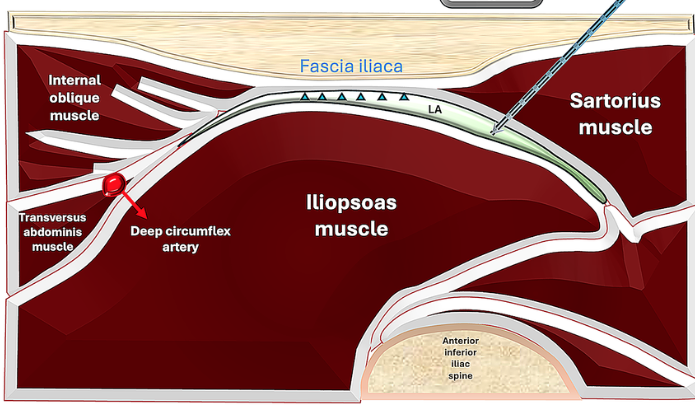

Draw suprainguinal fascia iliaca block
bow tie sign

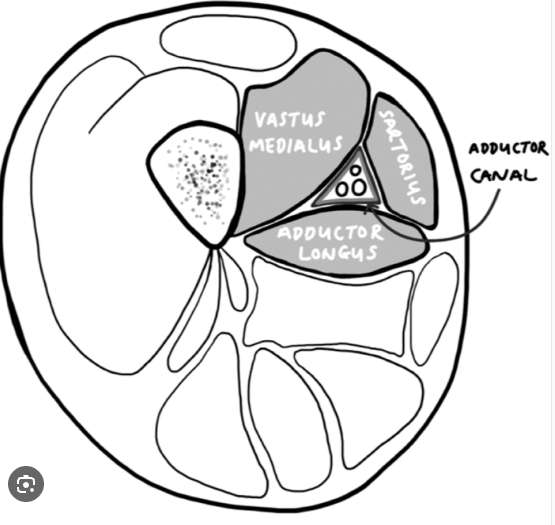

Draw the adductor canal
Vastus medialus lateral (adjacent to femur)
Sartorius anteromedial
adductor longus posterior

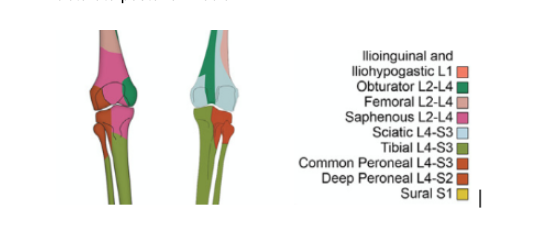

Knee joint innervation

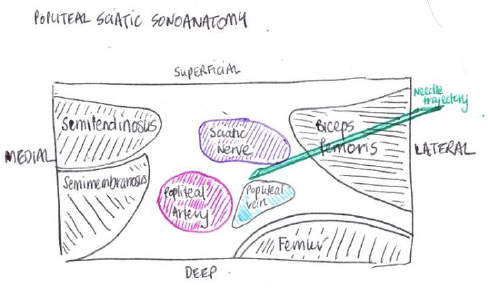

Draw the pop sciatic block
shoulder joint innervation

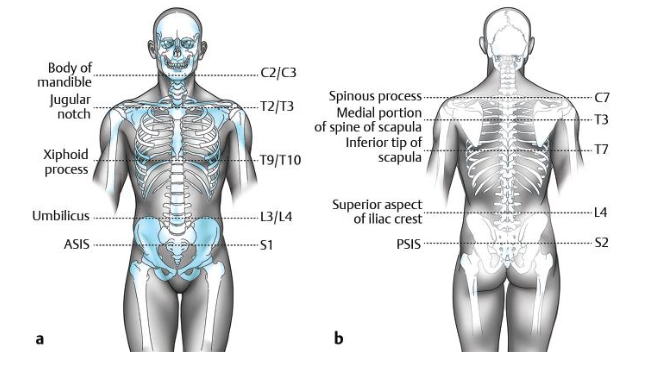

Surface landmarks veterbral height

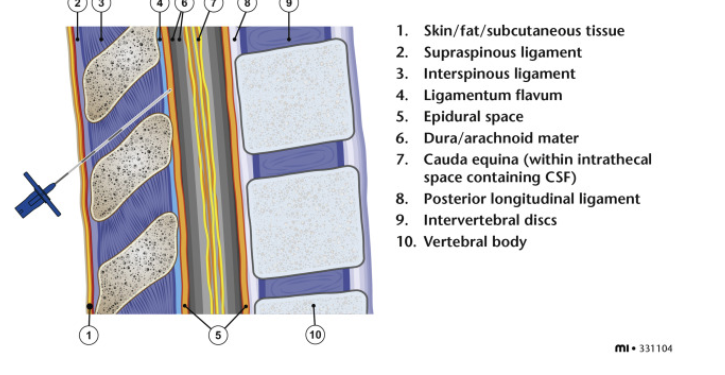

Draw the epidural anatomy

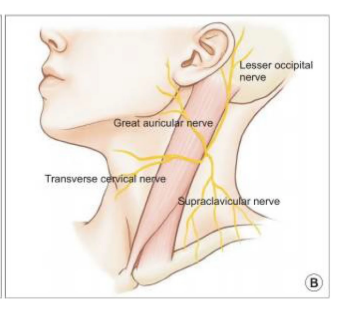

Nerves blocked in cervical plexus block
supraclavicular
greater auricular
lesser occipital
transverse cervical
(SGLT
