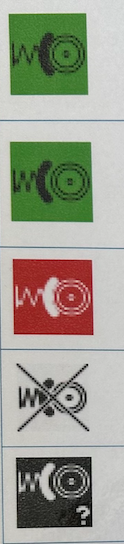

What do these icons indicate?
- Park Brake operational and applied
- Park Brake operational and not applied
- Parking Brake Faulty
- Parking Brake Isolated
- Parking Brake Unknown State

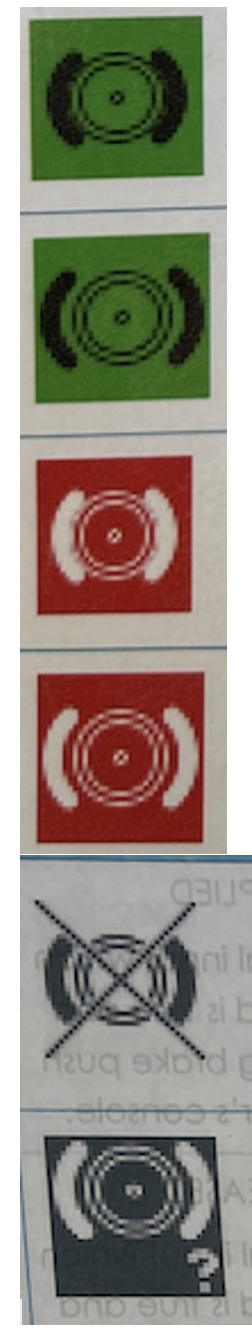

What do these icons indicate?
- Pneumatic Brake Operational and applied
- Pneumatic Brake Operational and released
- Pneumatic Brake Faulty and applied
- Pneumatic Brake Faulty and released
- Pneumatic Brake Isolated
- Pneumatic Brake Unknown State

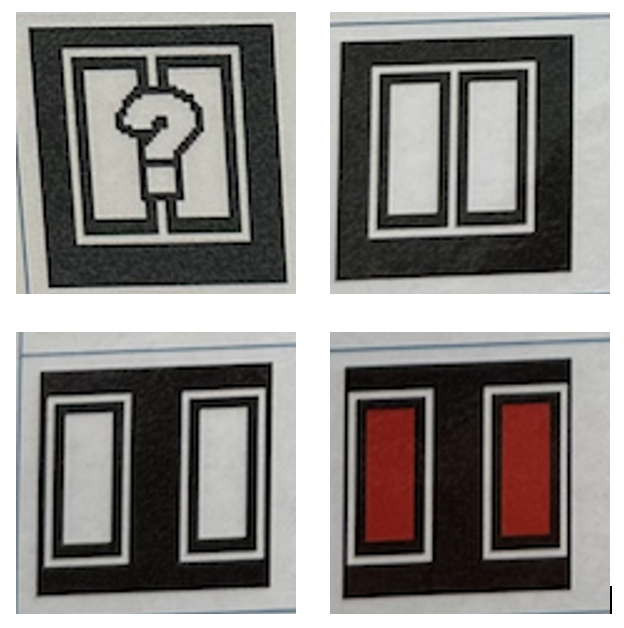

What do these icons indicate?
- PSD/PEB door status unknown
- PSD/PEB doors closed and locked
- PSD/PEB doors open
- PSD/PEB door failure detected

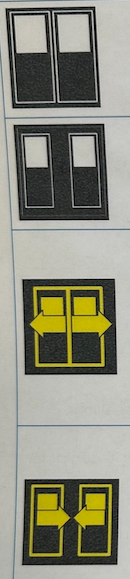

What do these icons indicate?

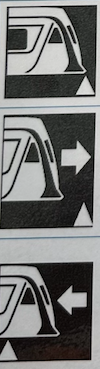

- Train Doors Closed & Locked
- Train Doors Open (at last 1 door)
- Open Doors Order
- Close Doors Order
What does this indicate?
Start Order
Train operator is requested to start the train (blinks when displayed)
What do these icons indicate?
RED SQUARE An EB has been triggered by the ATC (Signalling EB)
ORANGE SQUARE An EB is about to be triggered by ATC (e.g. target speed close to exceeded)
What does this icon indicate?
Change of ends / Turn Around
This icon is displayed when approaching the service stopping point where a change of end is performed, or where a train change of direction is possible.
What does this icon indicate?
Neutral Zone / No Stopping Zone
Displayed when part of train is withing a non-stopping zone
What do these icons indicate?
- Dwell Time - remaining time before departure
- No Departure Info

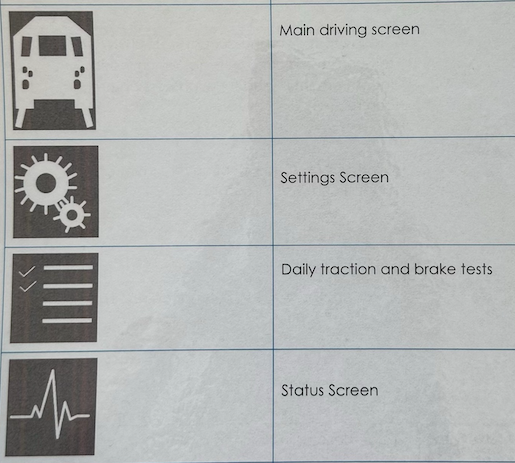

What are the main screens on the TCMS?
- Main Driving Screen
- Seting Screen
- Daily Traction & brake tests
- Status Screen (health screen)
What do these icons indicate?
- Train Localised
- Train not Localised
- Localisation Confirmation in Progress
What do these icons indicate?
- Partially Operational - A failure is detected in ATC equipment, the ATC is still working properly.
- Not Operational - A failure in detected in the ATS equipment, the ATC is not working properly.
What do these icons indicate?
- Correctly Docked
- Short Docked
- Long Docked
What do these icons indicate?
- Slip Detection ongoing
- ‘Slide Detection ongoing
What do these icons indicate?
- System bypass not activated
2.System bypass activated
What do these icons indicate?

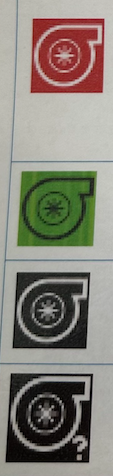

- Compressor Faultly
- Compressor OK and Running
- Compressor OK & Stopped
- Compressor Status Unknown

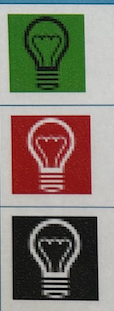

What do these icons indicate?
- Saloon lighting ok
- Saloon lighting faulty
- Saloon lighting switched off
What do these icons indicate?

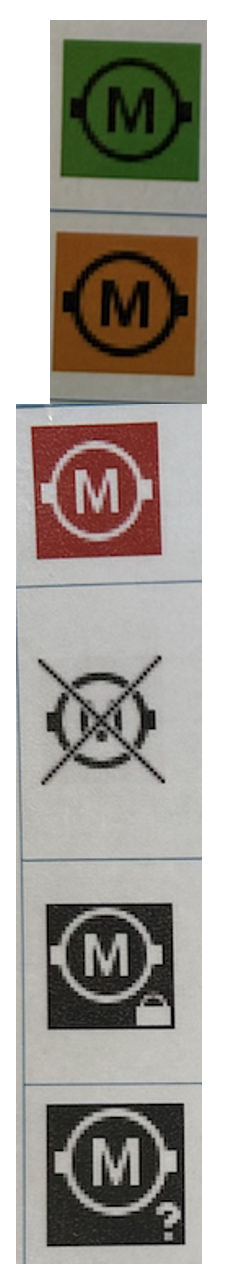

PCE (Power Control Electric)
1. PCE OK
2. PCE Minor Fault
3. PCE Major Fault
4. PCE Isolated
5. PCE Locked Out
6. PCE Communication Loss (unknown)
What do these icons indicate?

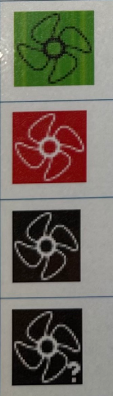

HVAC (Heating Ventilation Air Conditioning)
1. HVAC Operational
2. HVAC Faulty
3. HVAC Switched off
4. HVAC Status Unknown

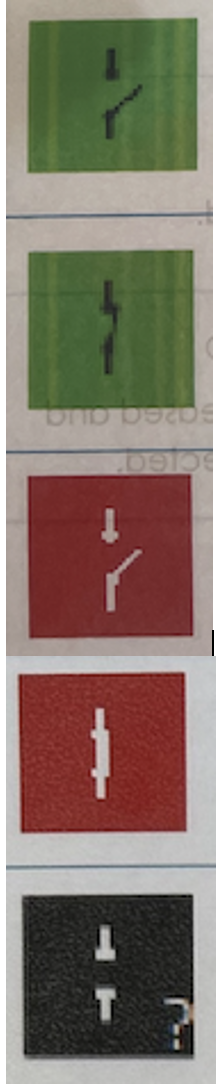

What do these icons indicate?
HSCB High Speed Circuit Braker
1. HSCB Opened
1. HSCB Closed
1. HSCB Abnormally Opened Fault
1. HSCB Abnormally Closed Fault
1. HSCB Unknown State
What do these icons indicate?
ACE - Auxillary Control Electric
1. ACE OK with high voltage presence
2. ACE OK without high voltage presence
3. ACE Faulty
4. ACE Supply by Shore Socket
5. ACE Isolated
6. ACE Unknown State
What do these icons indicate?

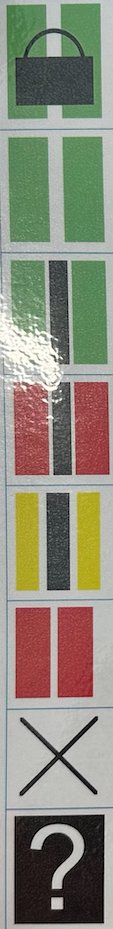

Train Doors
2. Closed & Locked
2. Clocked & Unlocked
3. Open
4. Obtruction Detected
5. Crew Switch on Open position
6. Door Fault
7. Door Isolated
8. Communication Lost

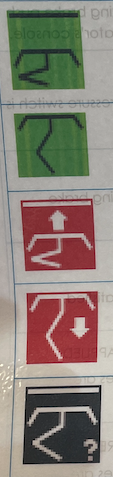

What do these icons indicate?
Pantographs
1. Down and OK
2. Up and OK
3. Fault when rising
4. Fault when lowering
5. Unknown State

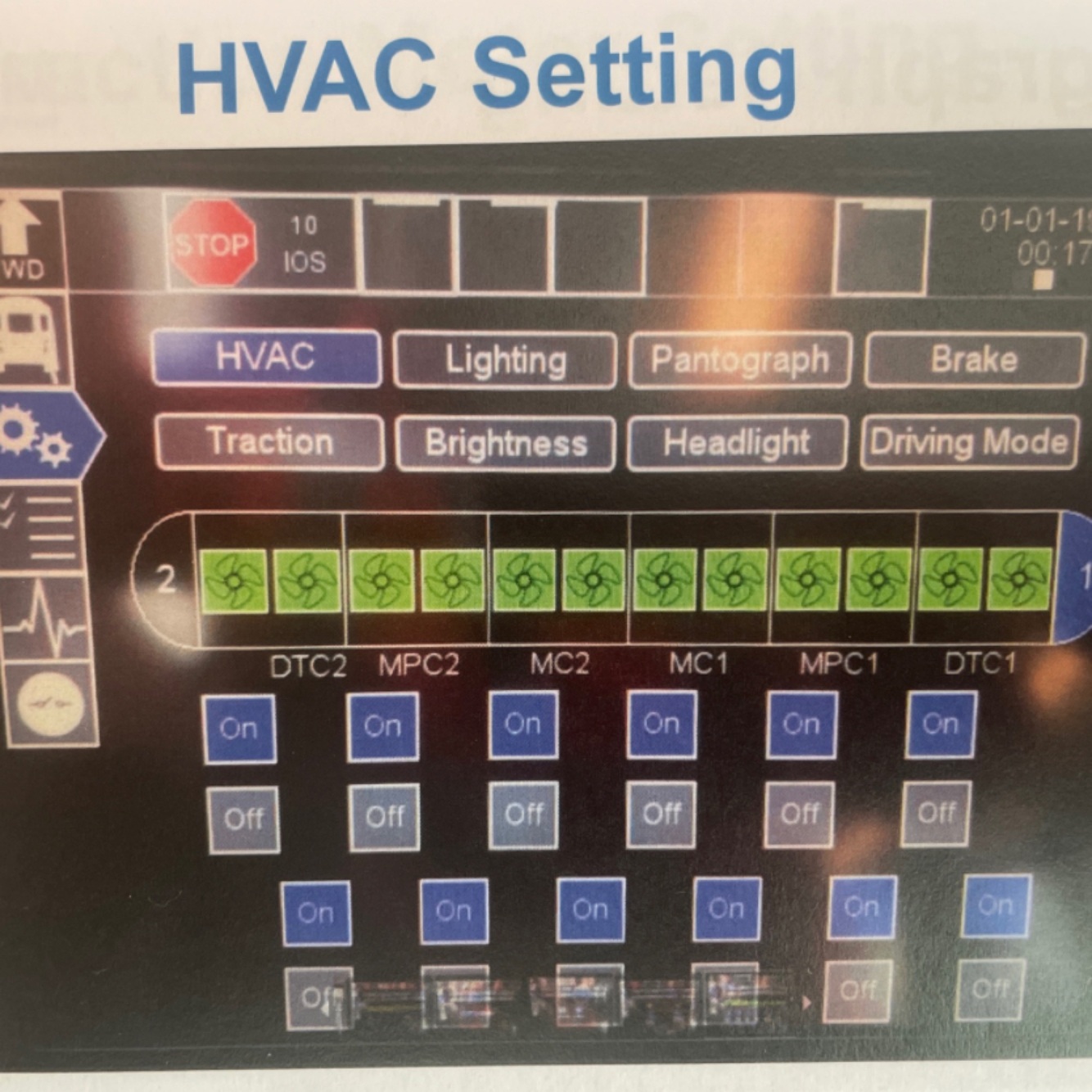

What are the different functions in ‘Settings’ on the TCMS?
- HVAC
- Lighting
- Pantograph
- Brake
- Traction
- Brightness
- Headlight
- Driving Mode
