1
Q

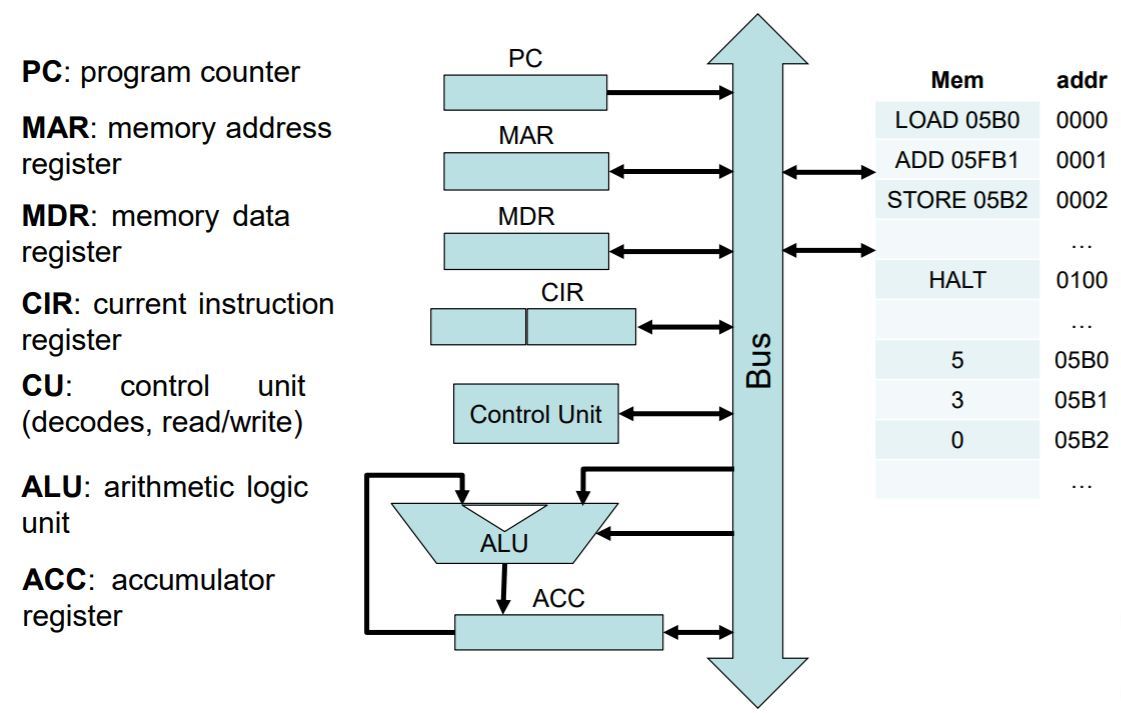

The components of the simple von Neumann machine?
A
2
Q
what are registers?
A
Registers are small and fast areas of memory and they are part of the microprocessor.
3
Q
Classification of registers
A
Registers are classified as
Dedicated/special purpose
General purpose
4
Q

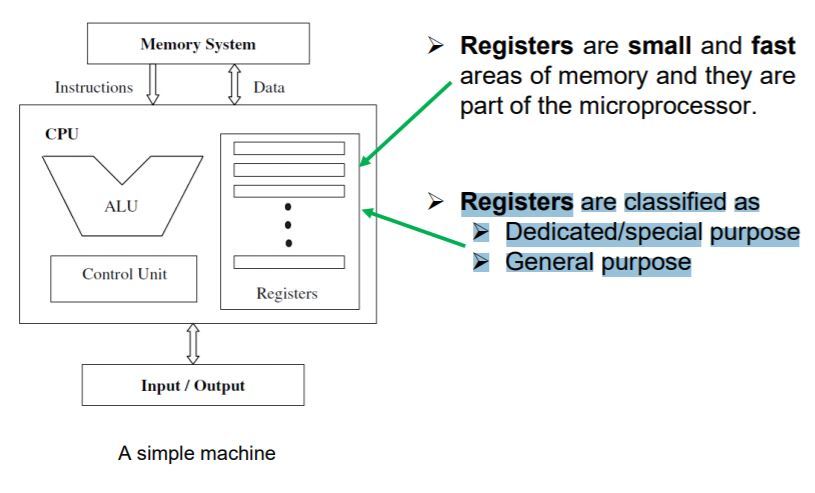

Register location in a simple machine?
A
5
Q
Details regarding the General purpose registers?
A
Multipurpose registers
- Available to store data or a memory location address temporarily
- Hold intermediate results during the execution of a program.
6
Q
Details regarding the Dedicated, special purpose registers?
A
Memory address register
- Memory data register
- Current instruction register
- Accumulators
- Flags or status register
7
Q

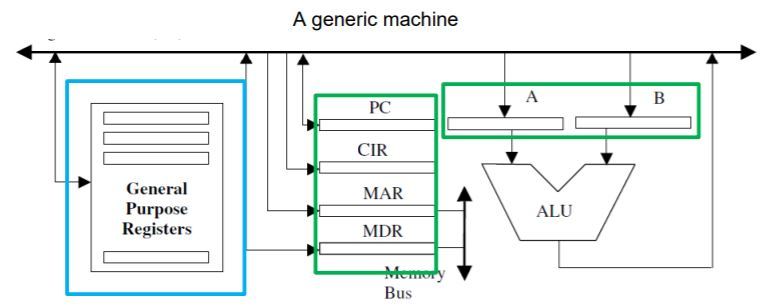

Generic machine, general and dedicated register positions
A
8
Q
Ways registers can be implemented in system verilog?
A
Vectors
Arrays
9
Q

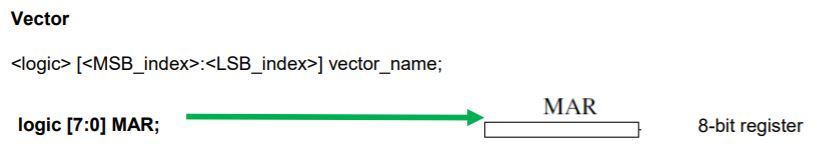

Vectors in system verilog
A
10
Q

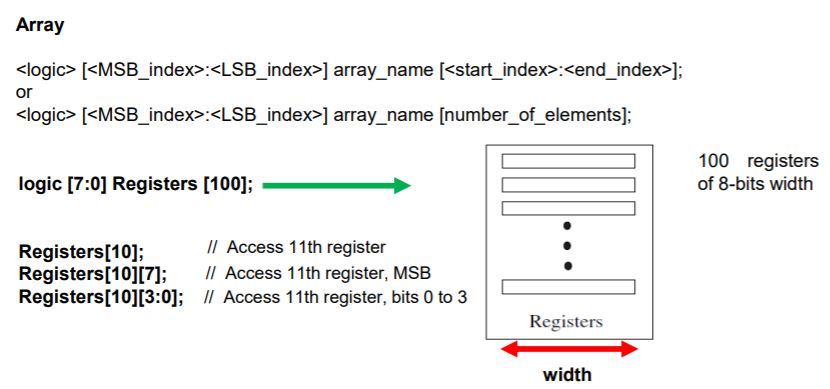

Arrays in system verilog
A
11
Q

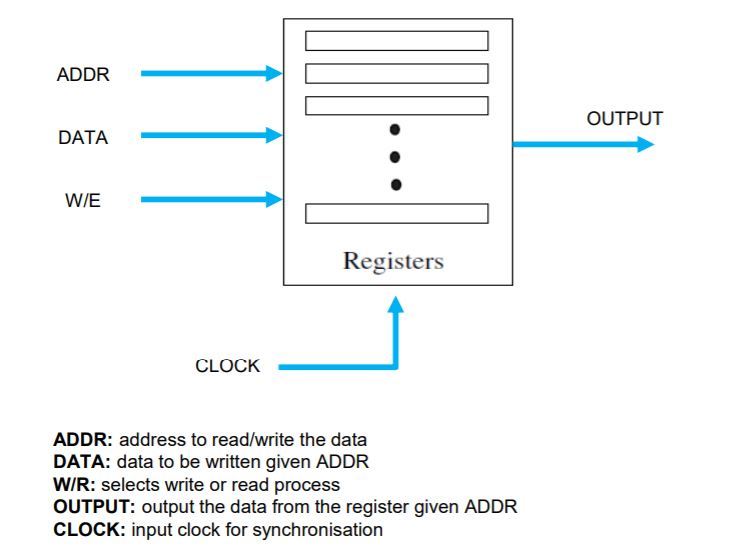

General overview of register use in system verilog?
A
