Type one diabetes - Frequency- onset
1:5000
- childhood onset (mostly)
- autoimmune - body attacks B cells in pancreas thus can’t produce insulin
Both types if diabetes have
Genetic components to them
Type 2 diabetes

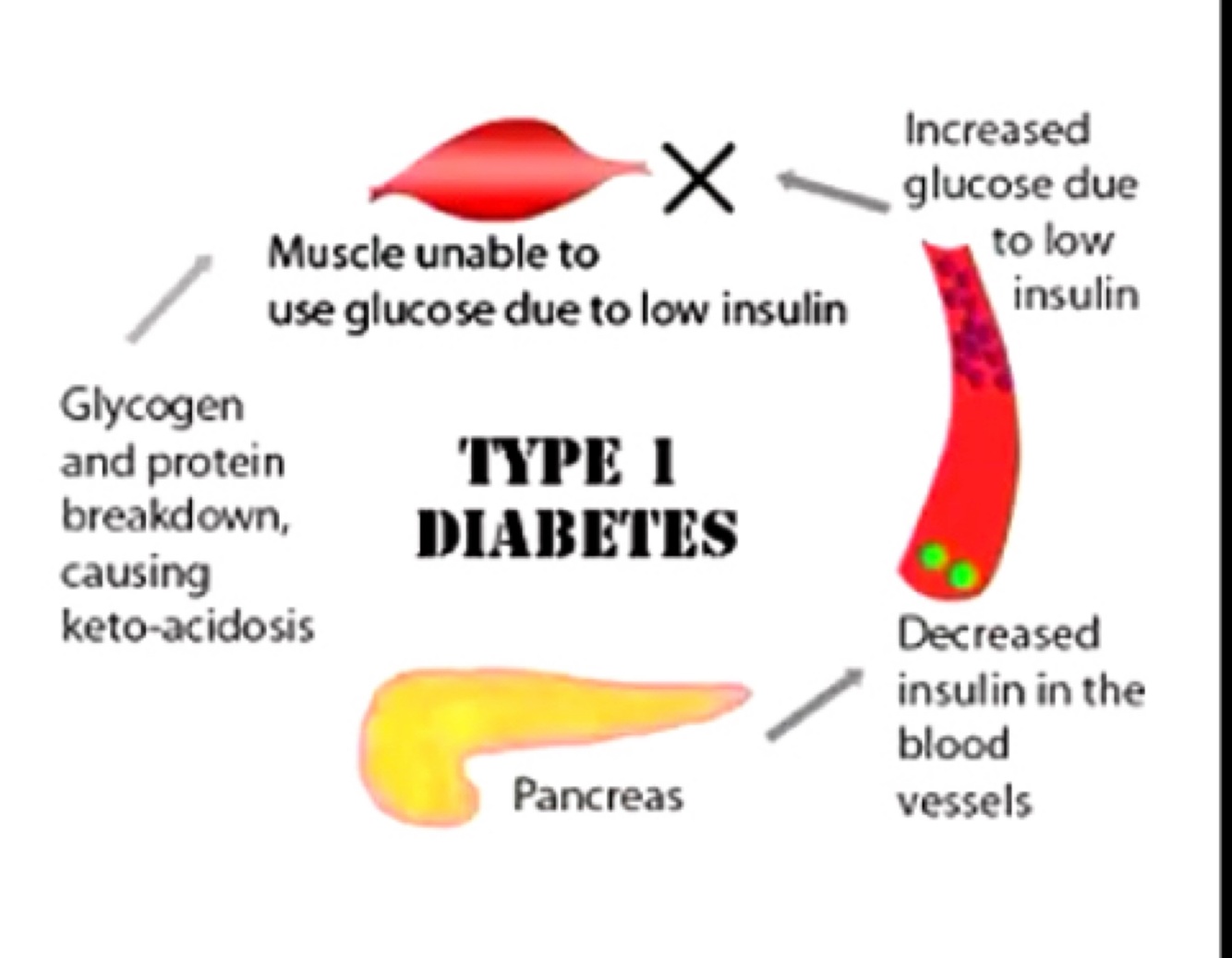

Diagram of type 1 diabetes
Progression of gene therapy knowledge in 1960
1922: insulin first isolated from pig and cattle
1950s: identified protein sequences/structure

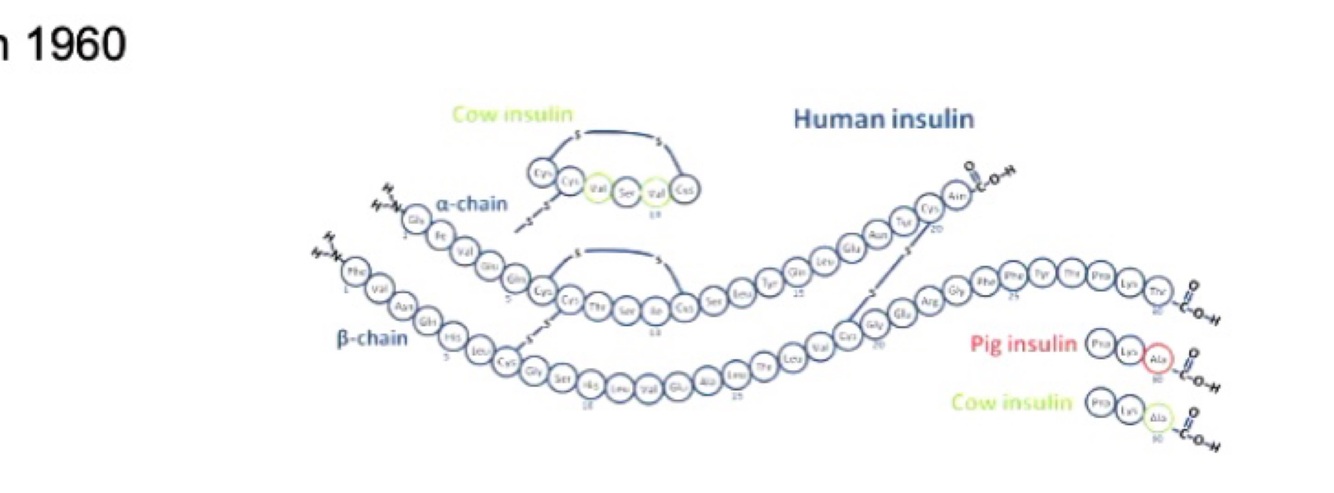

Consequences (and why) of insulin purified from pancreas of cattle or pigs
(Cow insulin has 2 amino acid changes in alpha chain surrounding the disulphides bond, pig insulin has one extra amino acid at the C terminal of the peptide chain - the 3 amino acid changes in cow and one in pig at great enough to induce immune response if injected into human)
Therapeutic proteins - human sources being used - pathogen transmission
Profession in gene therapy up to 2010
1922: insulin first isolated from pig and cattle
1950: insulin protein sequence ‘ structure identified
1973: recombinant DNA technology born
1977: insulin gene mapped too chromosome 11
1980: gene for insulin sequenced
1982: Eli Lilly produced the first recombinant insulin
What are recombinant DNA technologies
Joining bits of DNA together (sometimes form different species). These are inserted onto an organisms to produce (express) a useful protein.
(E.g : Aequorea Victoria - GFP - produced fluorescent glow in stress response - can be inserted into other animals
- beta barrel structure )
Plasmids are critical elements for…
… recombinant DNA technologies
What are plasmids
Where are plasmids found
What do plasmids provide?
-provide a benefit to hosts EG antibiotic resistance

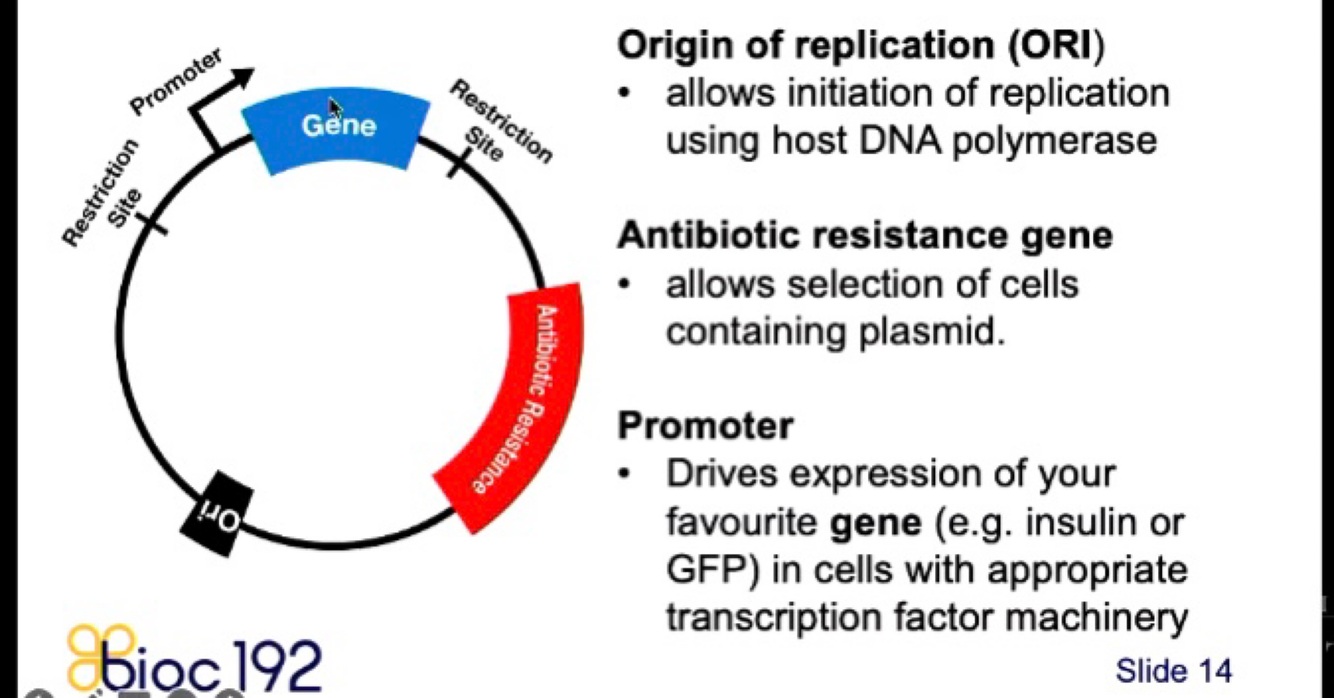

Key components of recombinant DNA plasmids
(In recombinant DNA plasmids) Origin of replication allows…
Initiation of replication using host DNA polymerase
(In recombinant DNA plasmids) antibiotic resistance genes…
Allow selection of cells containing plasmid
(In recombinant DNA plasmids) what does the promotor do?
GFP (or variant) =
Gene
Promotor allows
The expression of protein in a specific cell type or organism
Promotor differ - can have promorotrs theta are only expressed in bacteria, eukaryotes or specific cell types

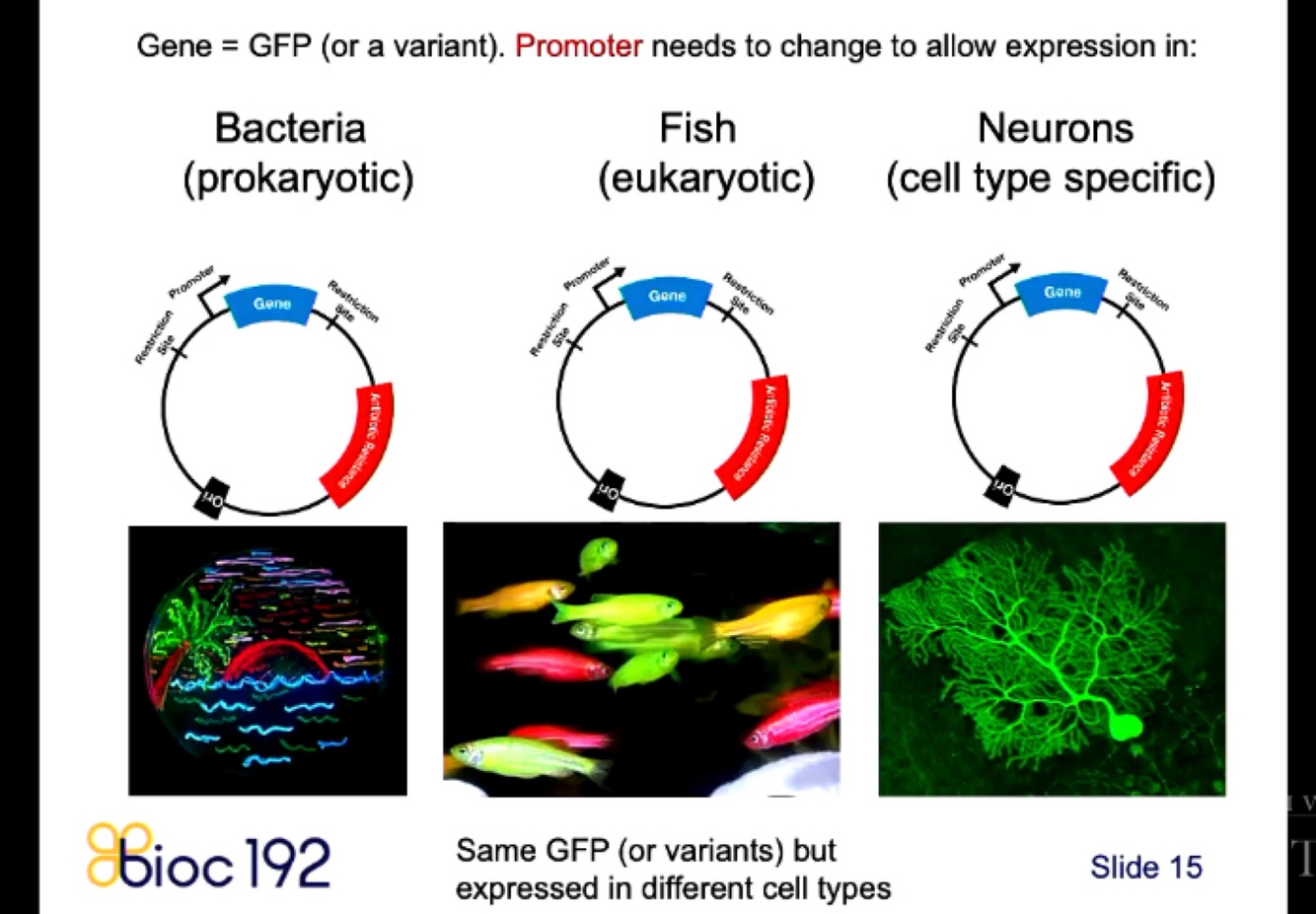

SAME GFP (or variants) but expressed in different cell types
- need a different promotor to allow different expression
Where are restriction enzymes found and what do they do?
Most common restriction enzyme an what sequence does it cut at (FIRST STEP OF CUTTING AND PASTING DNA INTO PLASMIDS)
EcoRI enxyme
Cuts at GAATTC sequence between the G and the A on the 5’ end and the G and the A on the 3’ end
- ends up with an overhang
- can insert this into other DNA with complementary ends

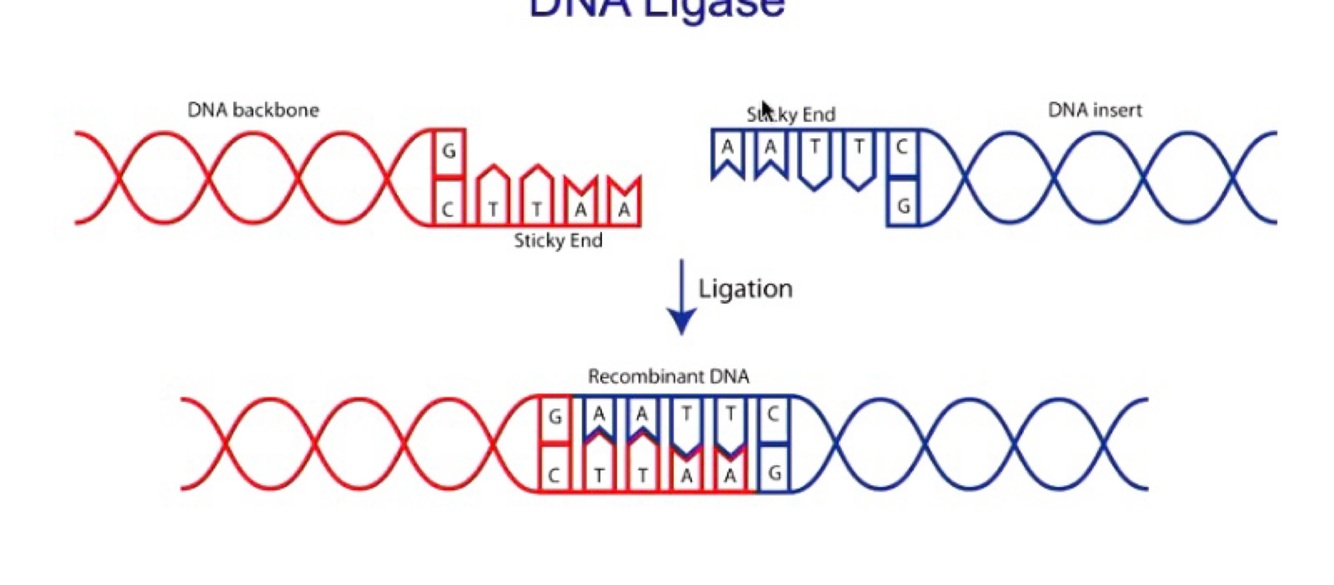

The role of DNA ligase in cutting and pasting DNA into plasmids
