3.1 timber processes,techniques,specialist tools TMR

Question 1

What to use to mark out wood

Answer 1

a pencil

Question 2

5 different machining processes

Answer 2

-milling/routing
-drilling
-turning
-stamping

Question 3

What does milling do

Answer 3

makes small holes or channels in wood or metal

Question 4

What kind of process is milling

Answer 4

is a slower process than routing but can be linked to CNC manufacture

Question 5

What do routing machines do

Answer 5

make slots and holes in wood and can be done with a manual plunge router or CNC router

Question 6

What kind of process is drilling

Answer 6

-a rotating drill bit drills into static material such as wood,metal or polymer
-the drill produces holes for items such as dowels ,screws and fittings

Question 7

What does Turning use

Answer 7

Turning uses a lathe and can be used for metal or wood and can also be an CNC process

Question 8

What happens in Turning

Answer 8

-the material is rotated
- a cutting tool is pressed against the material surace to remove excess material and make the required shape

Question 9

What is turning used to make

Answer 9

products such as table legs, bowls, chess pieces, doorknobs and handles

Question 10

What does stamping do

Answer 10

sheet material is removed using a CNC stamping procedure which stamps the material shape out of the sheet

Question 11

How is the material removed in stamping

Answer 11

the shearing action of the upper tool (die) and lower tool (die) removes the material

Question 12

What is stamping used for

Answer 12

usually used for smaller production runs of sheet metal from 0.5 to 6mm thick

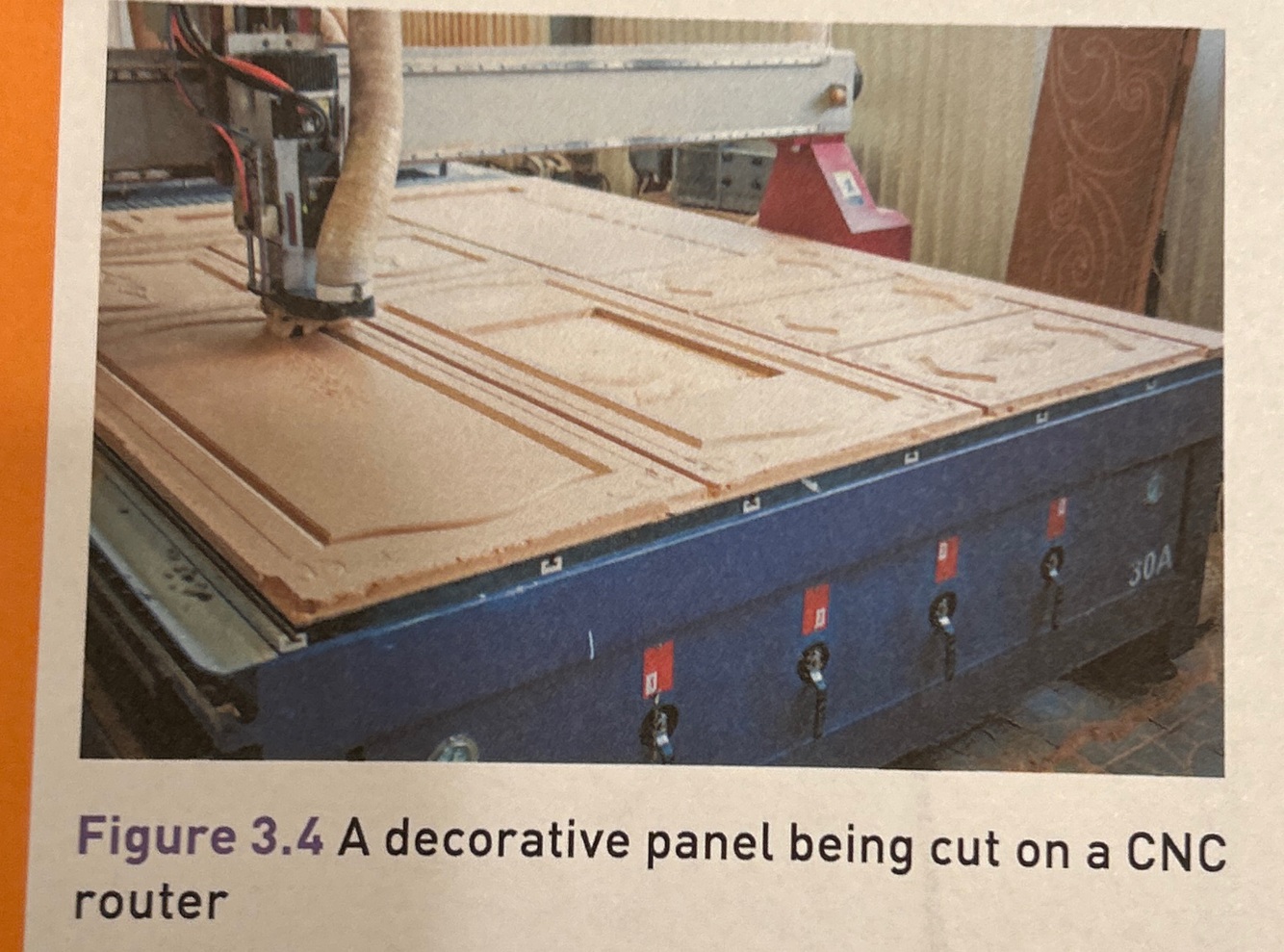

Question 13

Figure of a CNC router

Answer 13

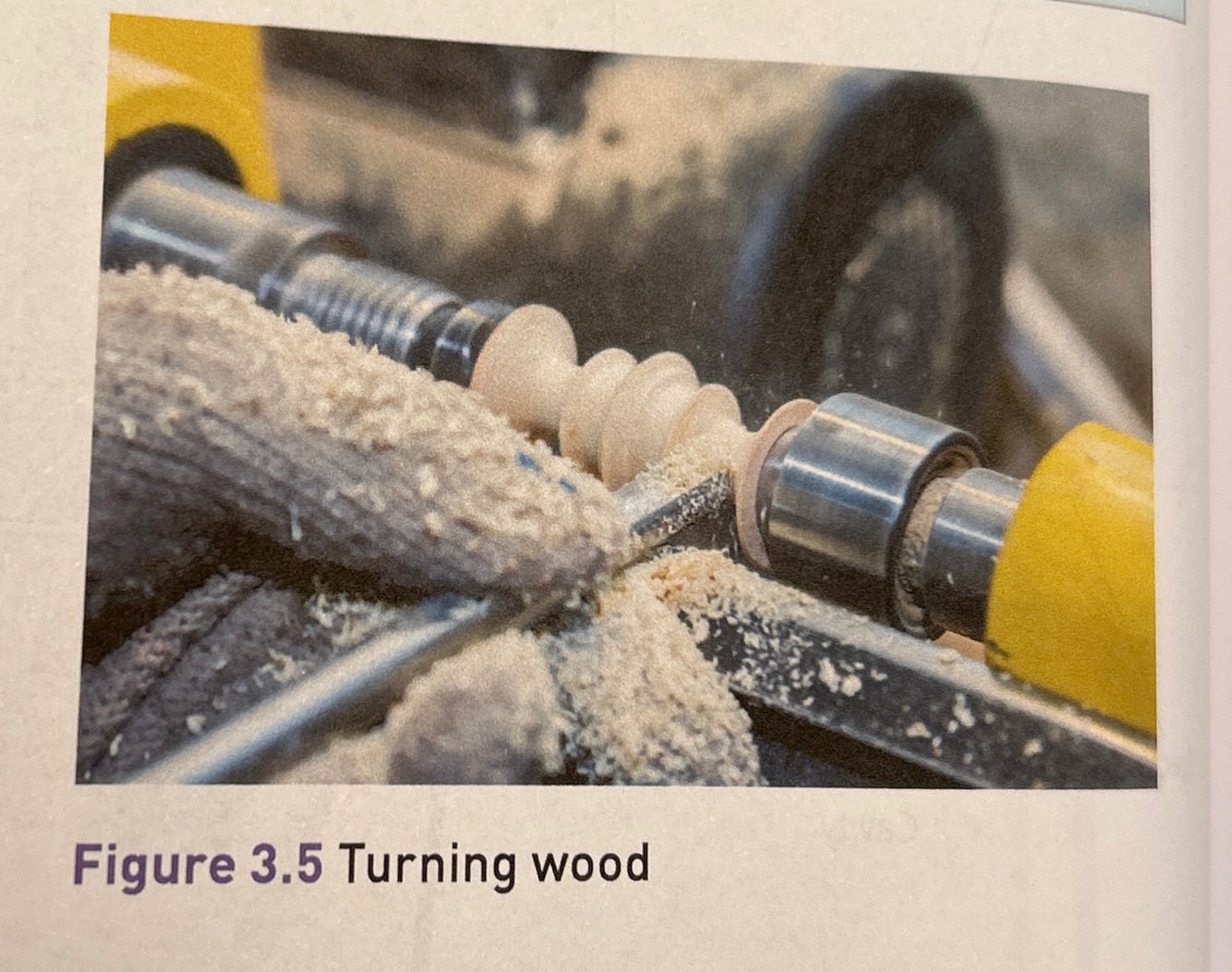

Question 14

Figure of turning wood

Answer 14

Question 15

What is used for laminating wood

Answer 15

wood veneers or thin manufactured boards such as 3mm plywood

Question 16

Features of laminating wood

Answer 16

-bonds material together using adhesive and pressure
-wood has adhesive applied then is bent over a former and when dry they form a thicker board in the shape of the former
-wood held over the former whilst drying by clamps or a vacuum bag

Question 17

products from laminating wood

Answer 17

furniture items such as chairs ,chair backs, tables, bent table legs, stair bannisters, curved cupboard fronts

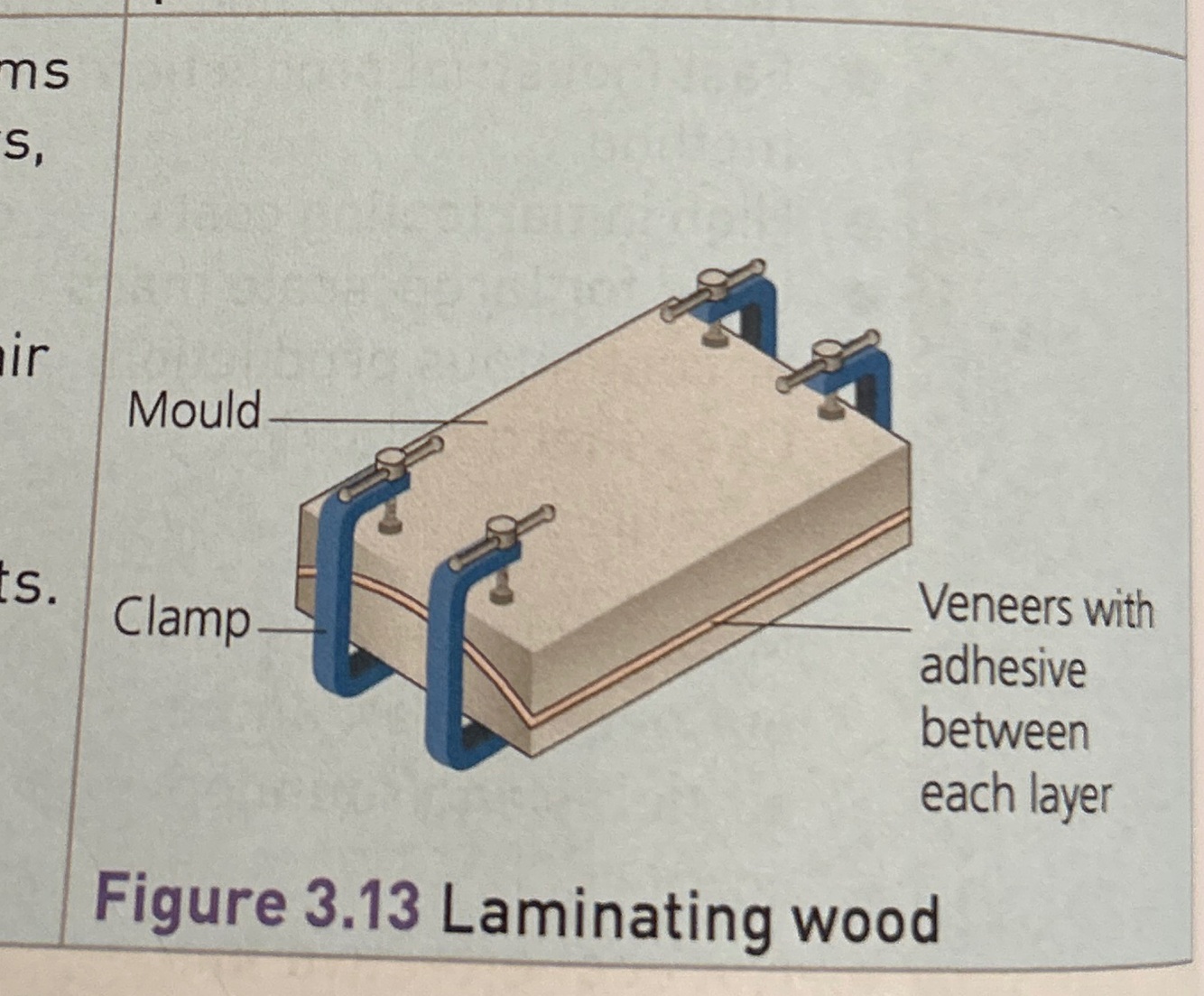

Question 18

figure of laminating wood

Answer 18
