787 SYS 4 Warning Systems

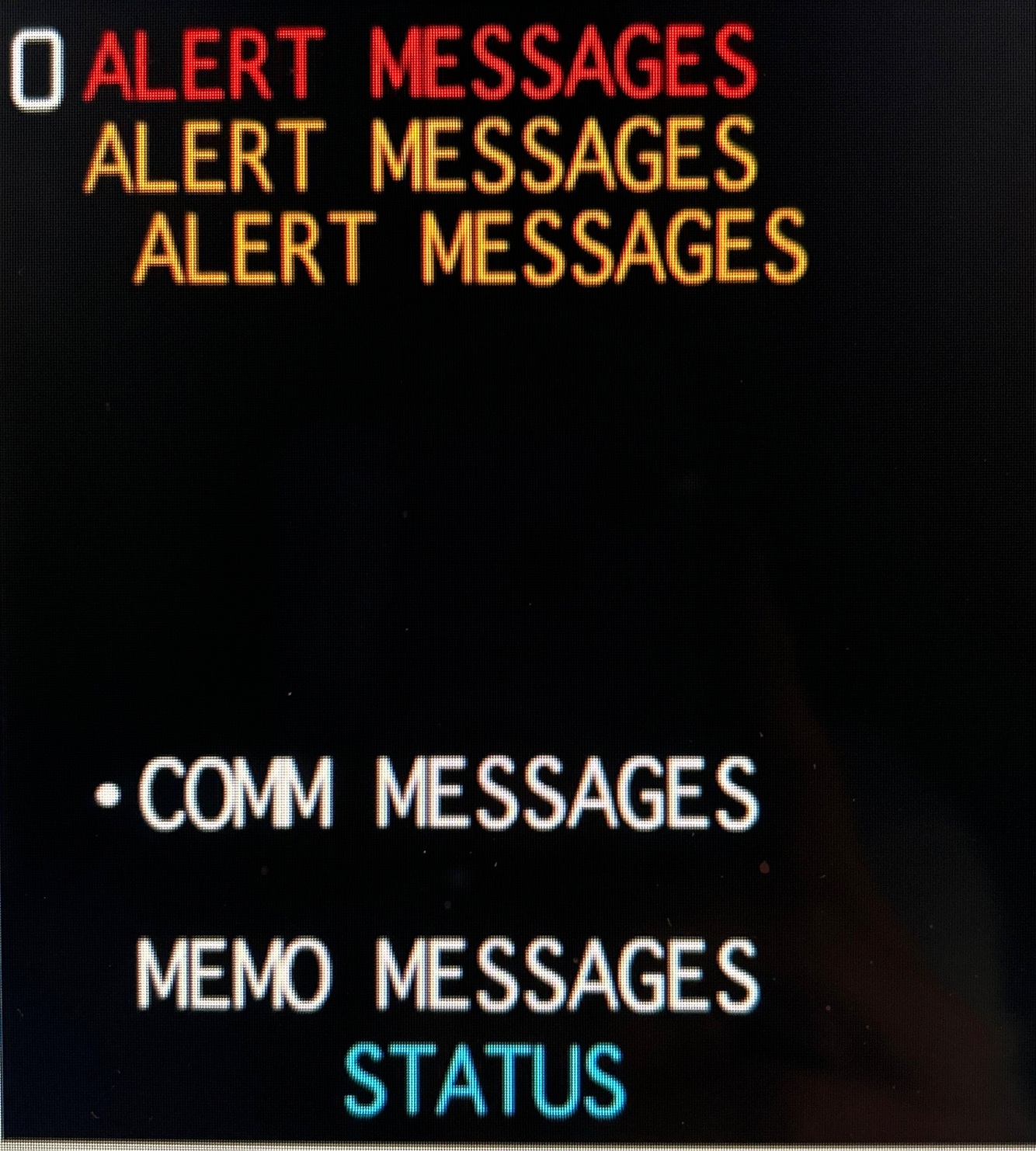

Question 1

What are the 4 types of EICAS messages

Answer 1

1) Alerts
2) Comm
3) Memo
4) Status

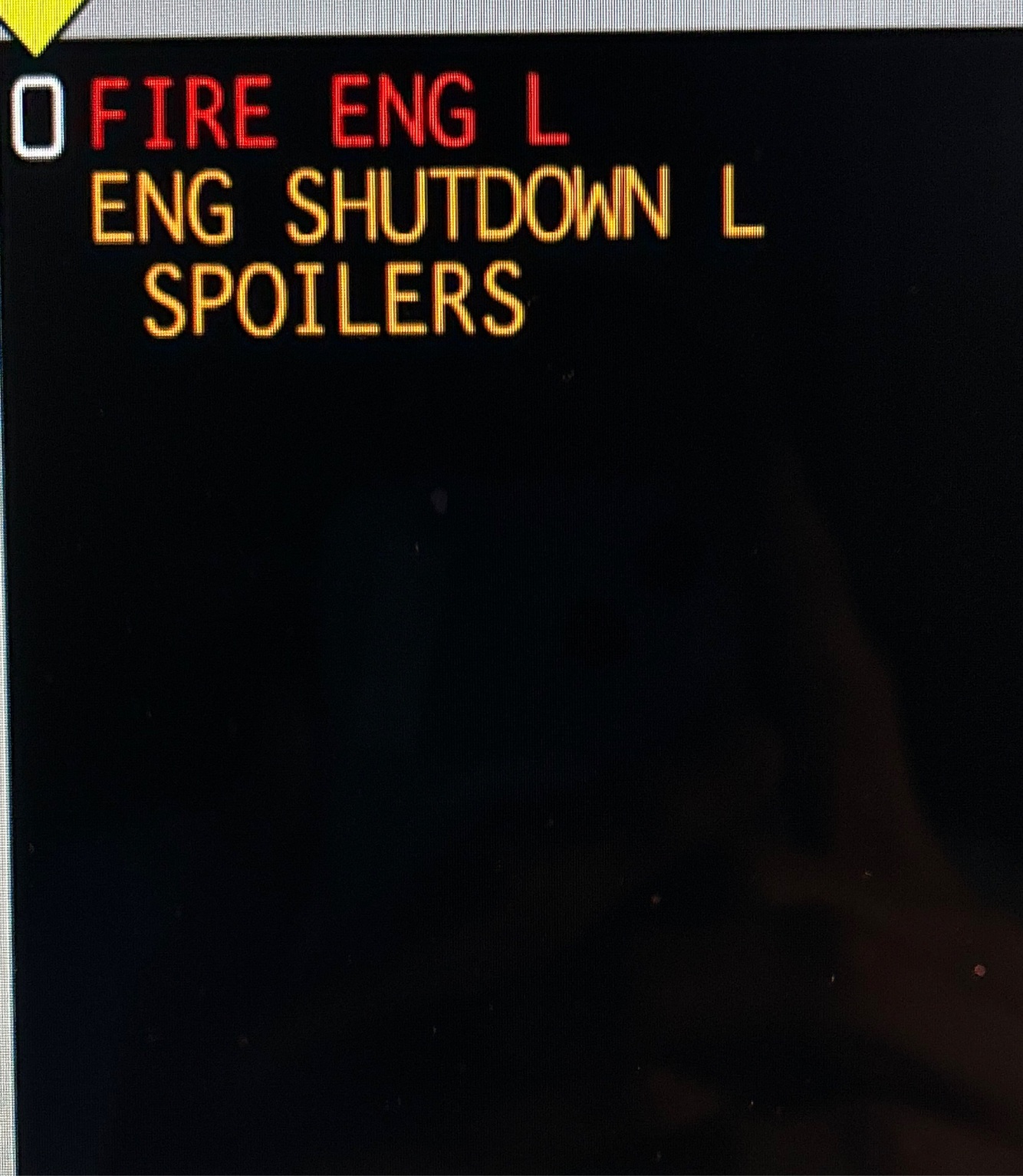

Question 2

What are the 4 types of EICAS Alert messages

Answer 2

1. Time critical (Master Warn, Audible tone, PFD display, stick shakers)
2. Warning…action
3. Caution…immediate awareness
4. Advisory…routine awareness

Question 3

What does this mean

Answer 3

Associated Electronic Checklist

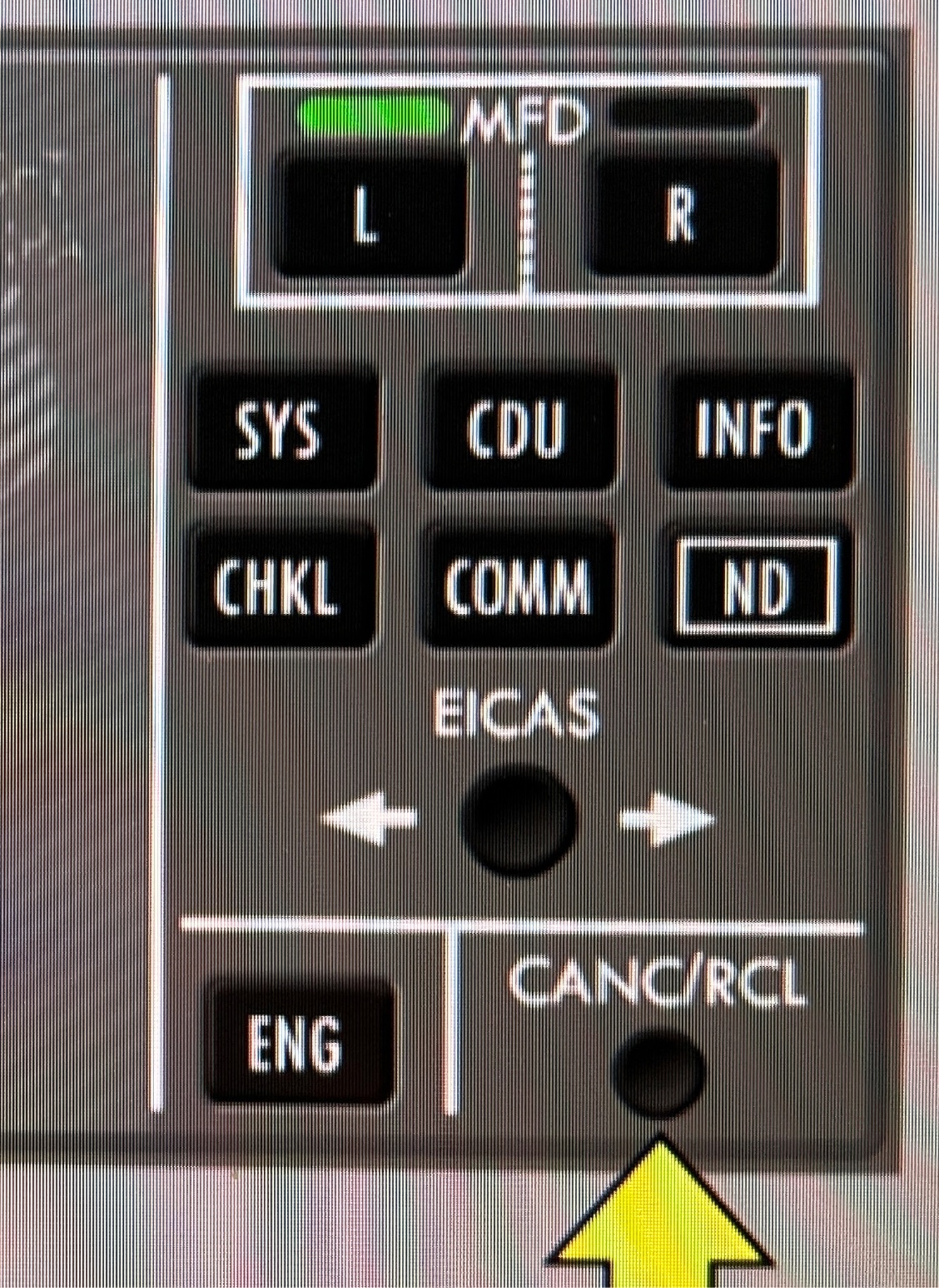

Question 4

When EICAS Caution and Advisory messages are displayed what does pushing this do?

Answer 4

1) Next page if there is one
2) cancels Caut/Adv msgs if on last page
3) cancels red box on Engines if no longer exceeded

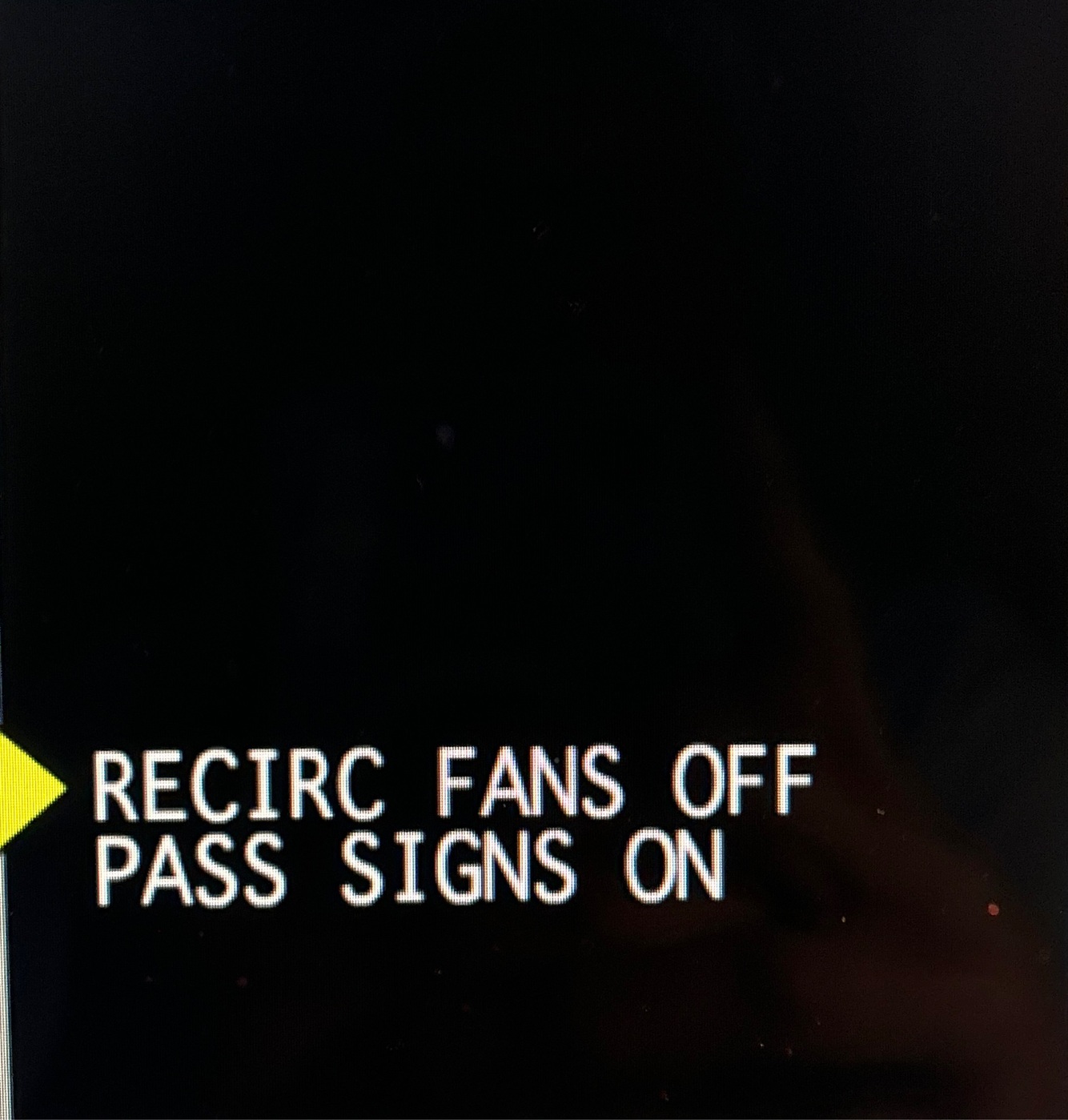

Question 5

For memo messages, what is the order of display

Answer 5

Most recent at top

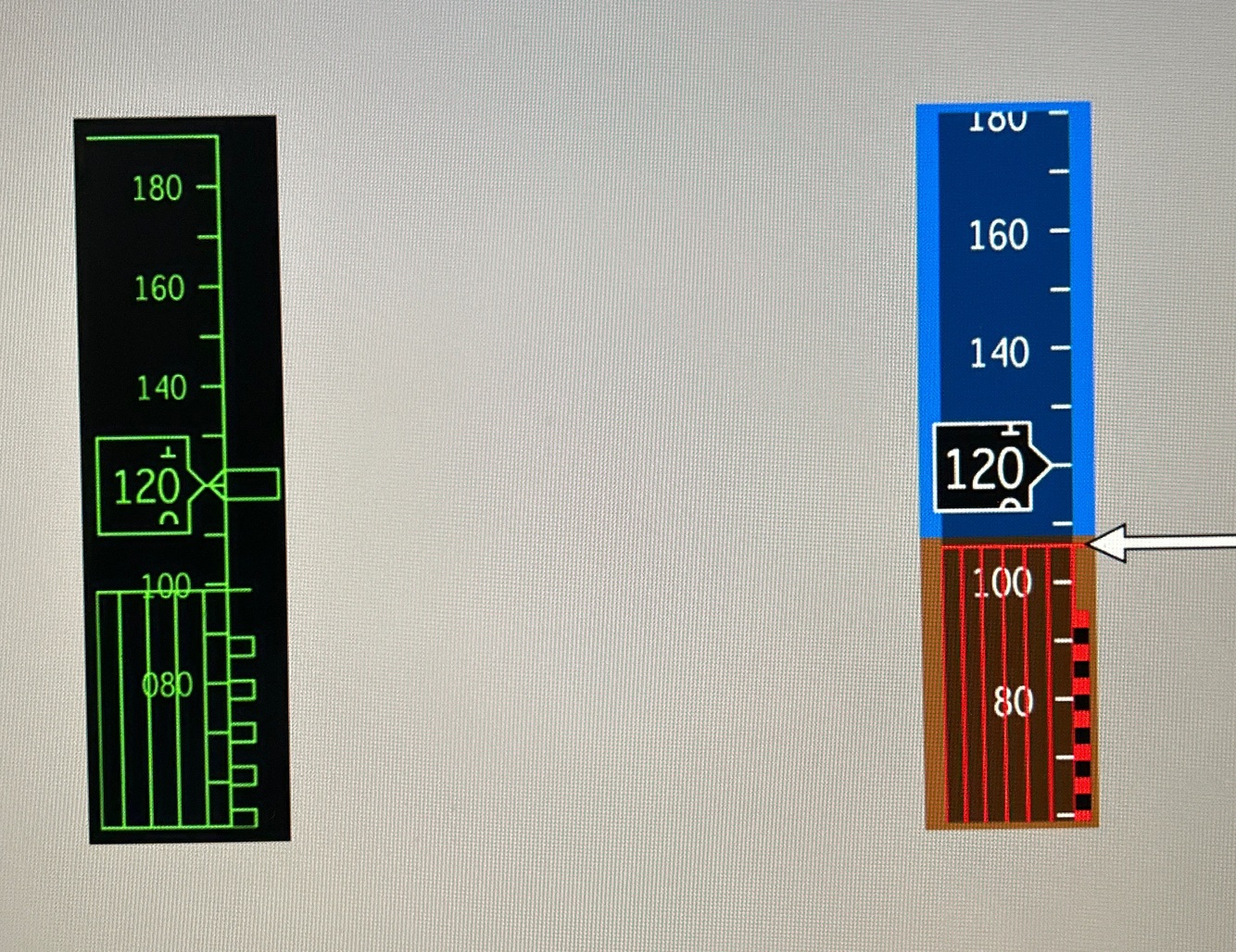

Question 6

What is displayed and when is it displayed

Answer 6

-Thrust Asymetry Minimum Control speed
-Large thrust asymetries

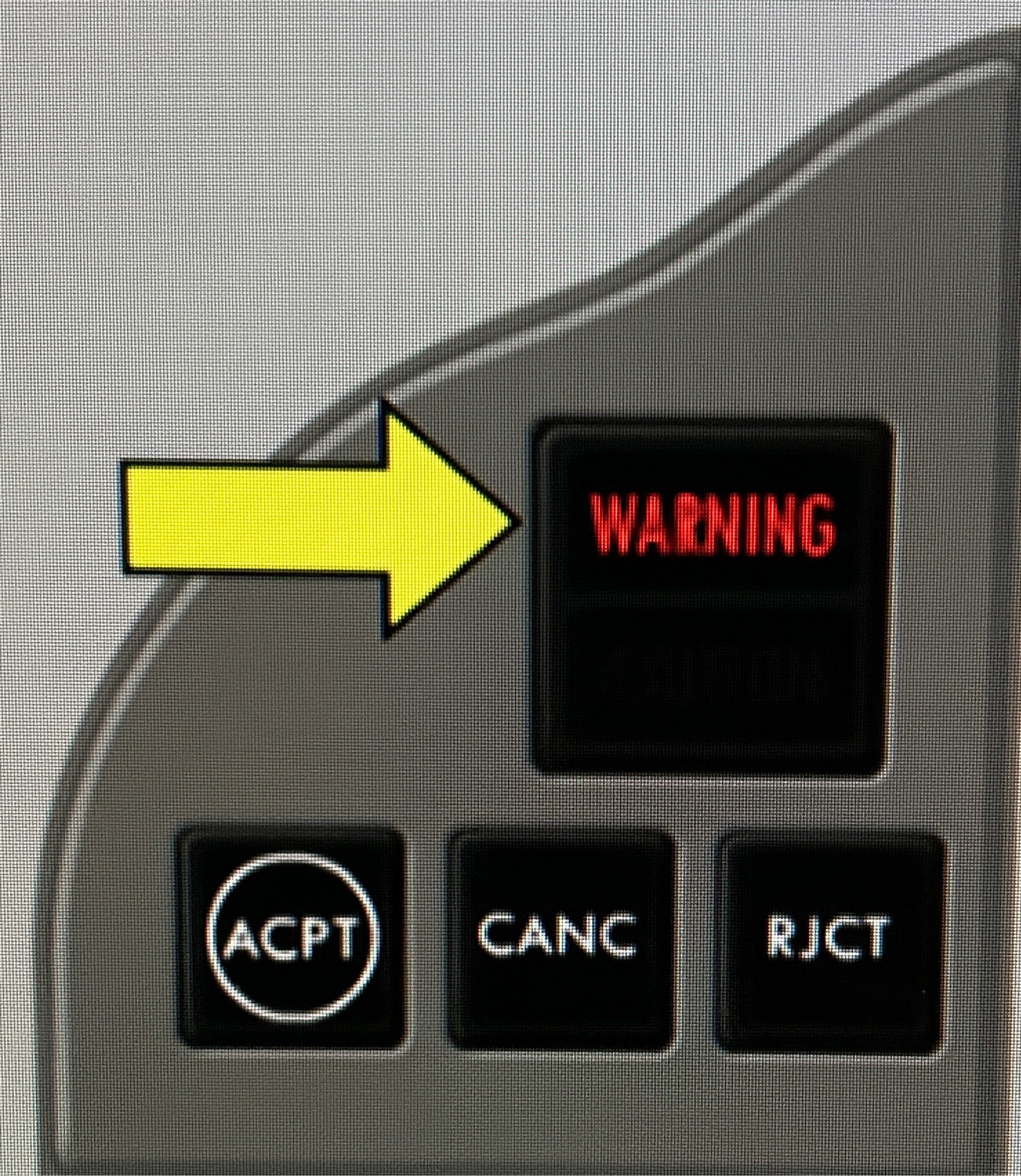

Question 7

When do you get this

Answer 7

-new EICAS warning msg
-PFD Displays:
—ENGINE FAILURE
—PULL UP
—WINDSHEAR
