Drawings

Question 1

2 stroke timing diagram

Answer 1

Question 2

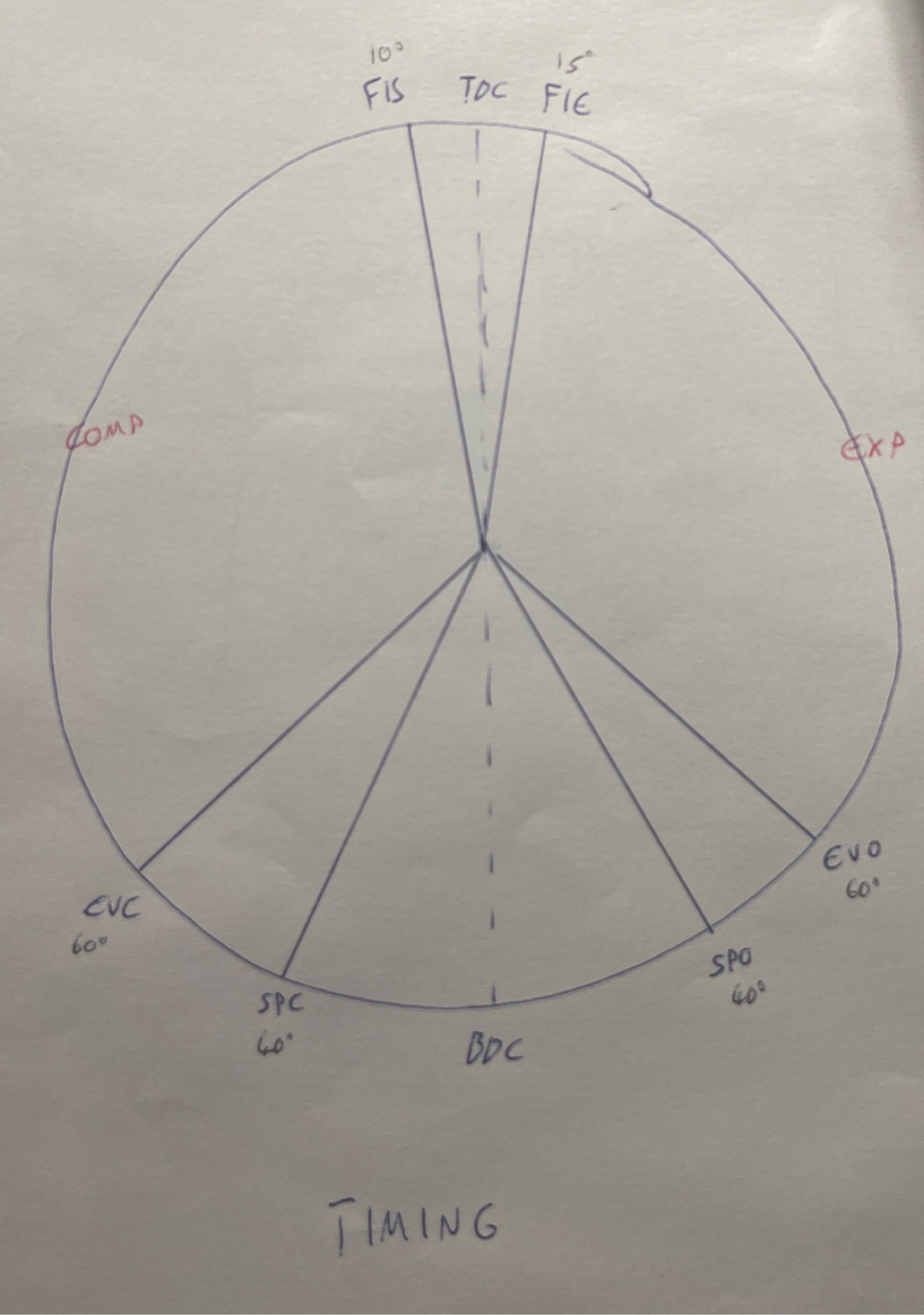

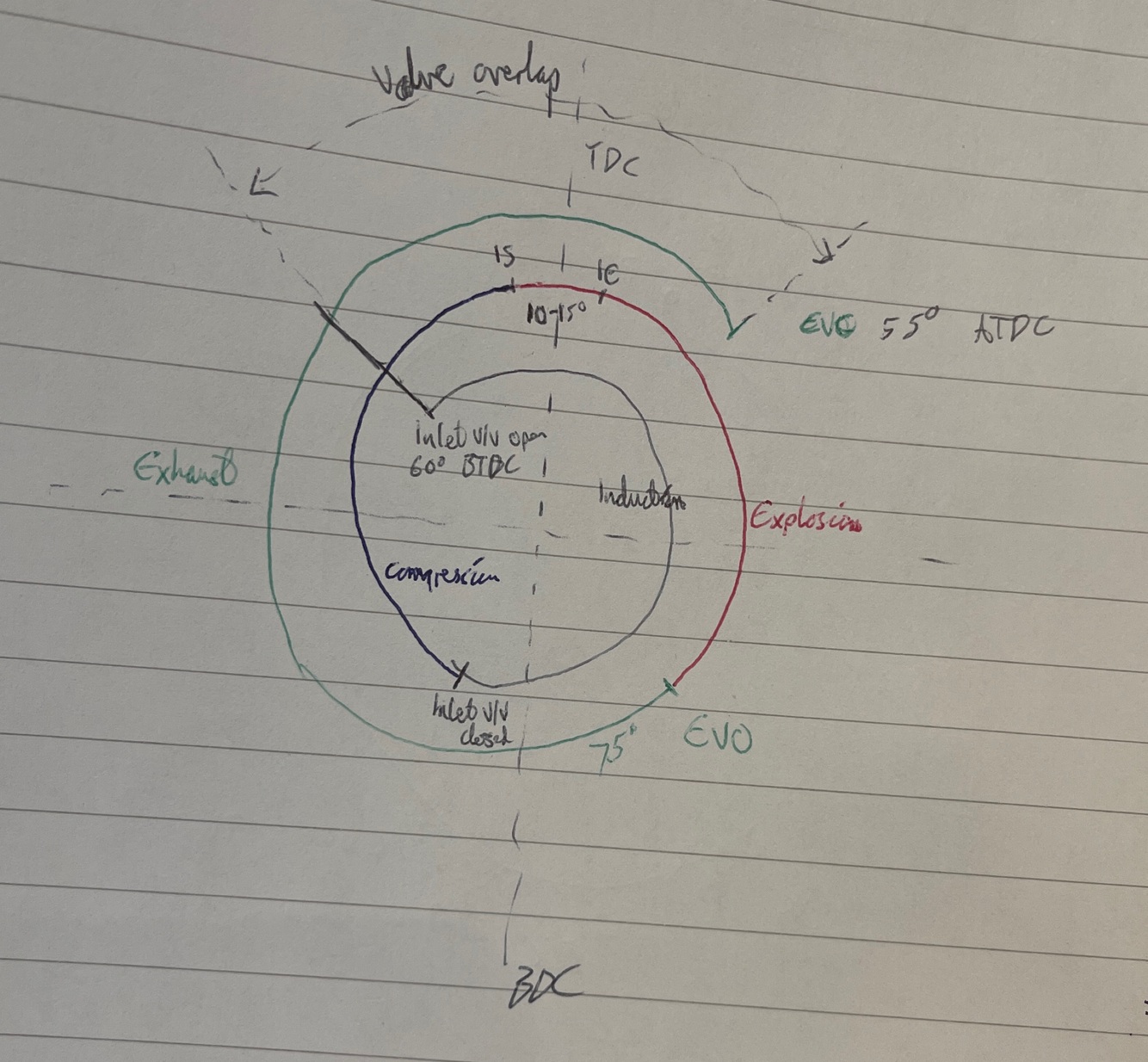

4 stroke timing diagram

Answer 2

Question 3

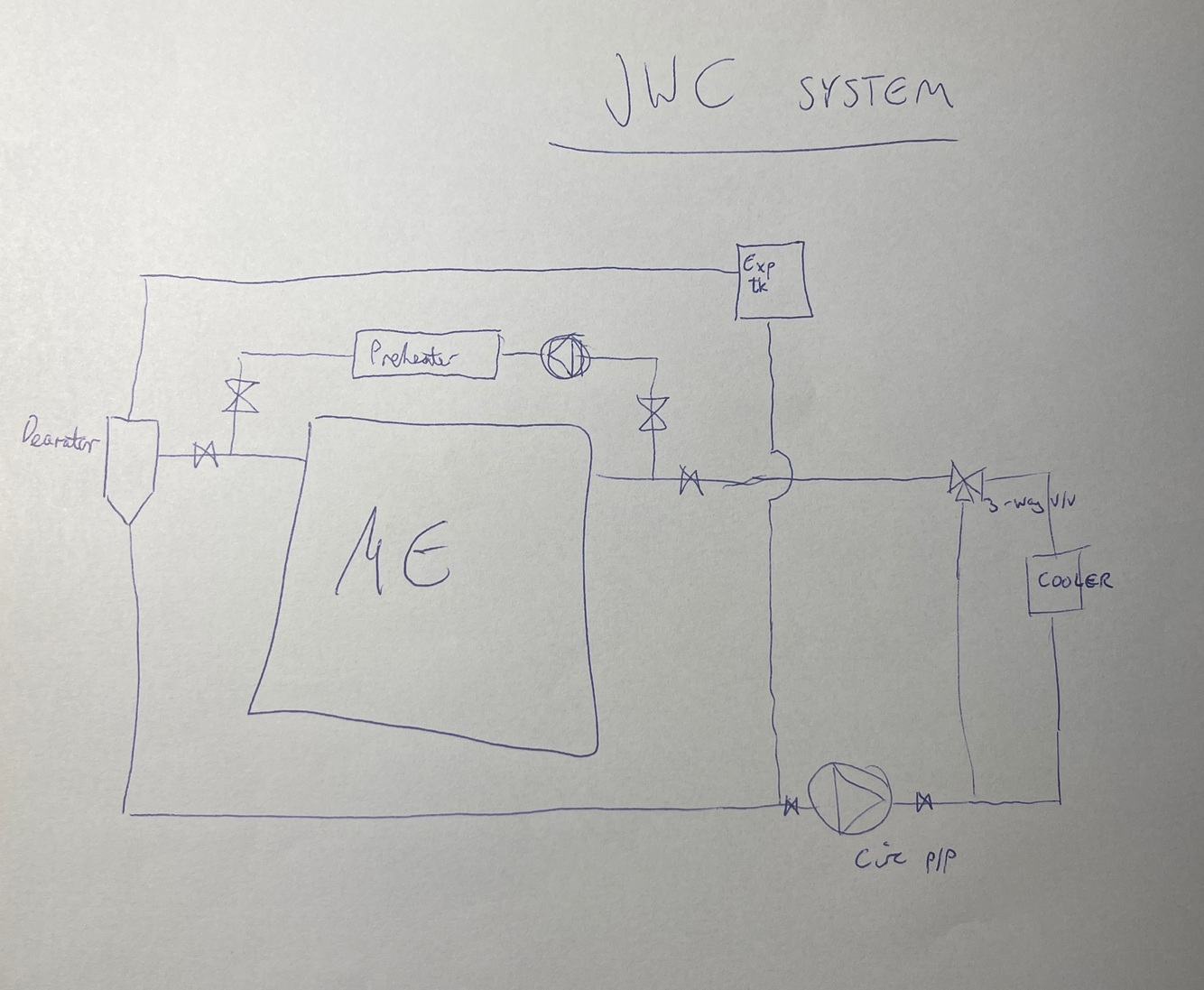

Draw JWC system

Answer 3

Question 4

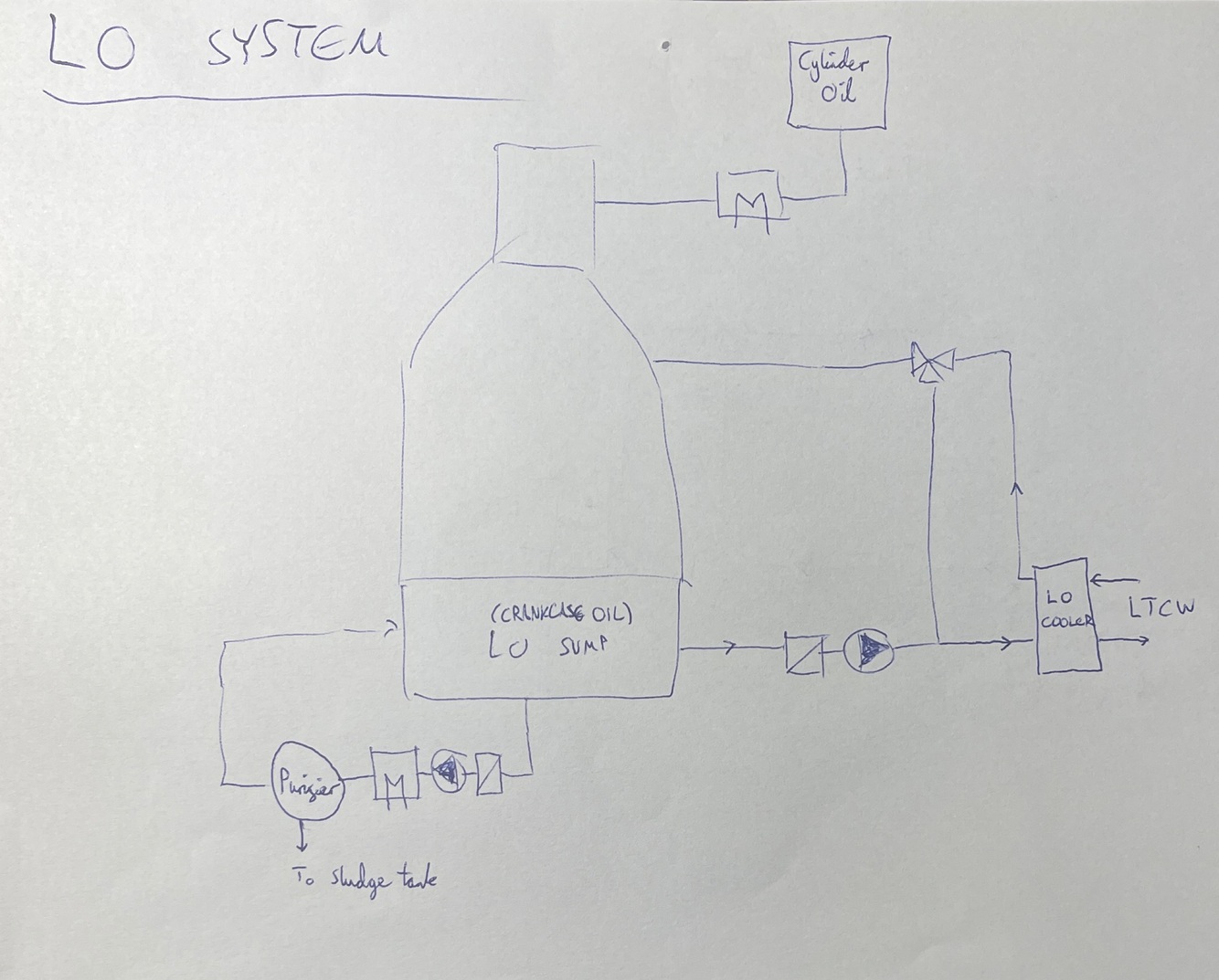

Draw LO system

Answer 4

Question 5

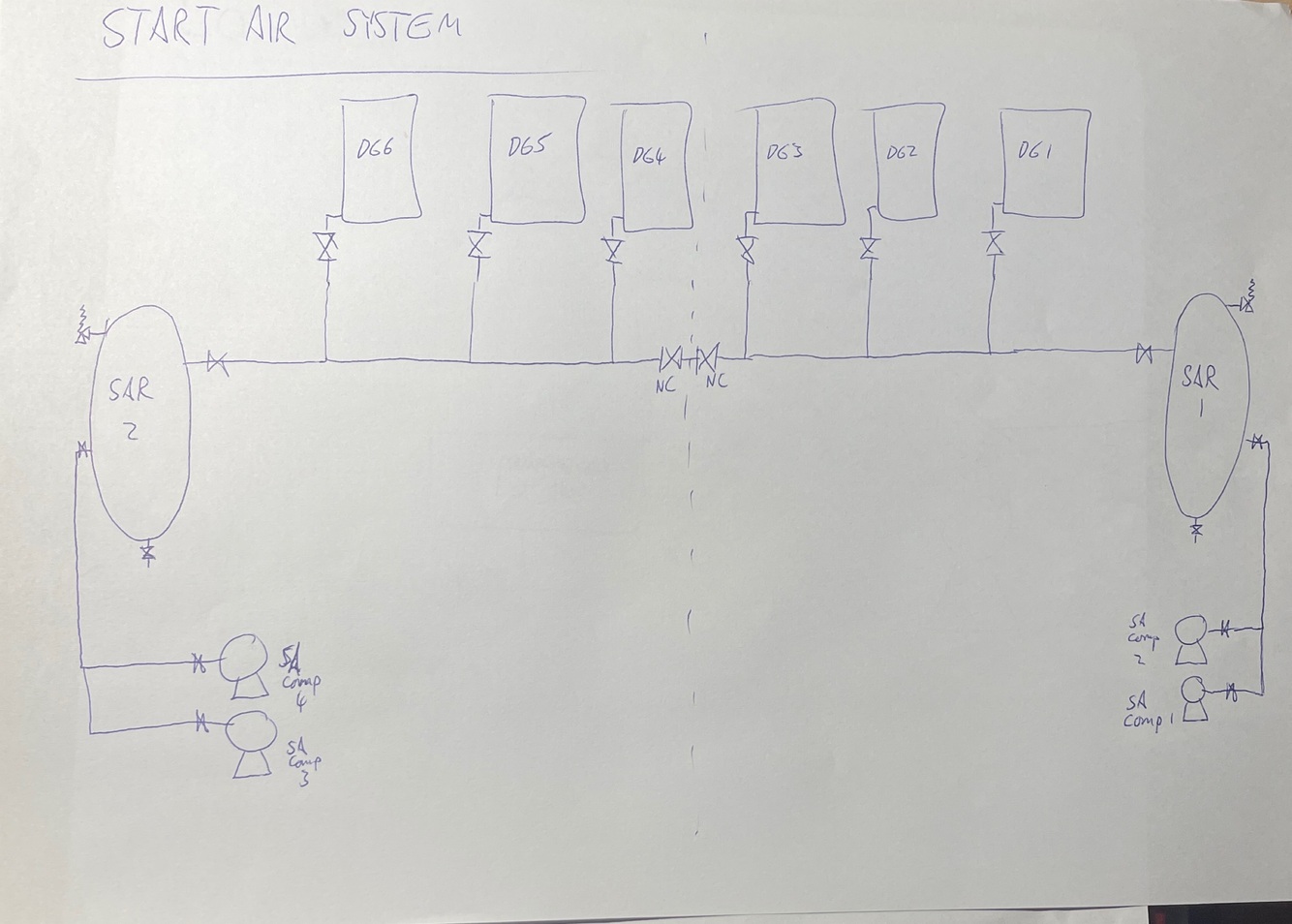

Draw a start air system

Answer 5

Question 6

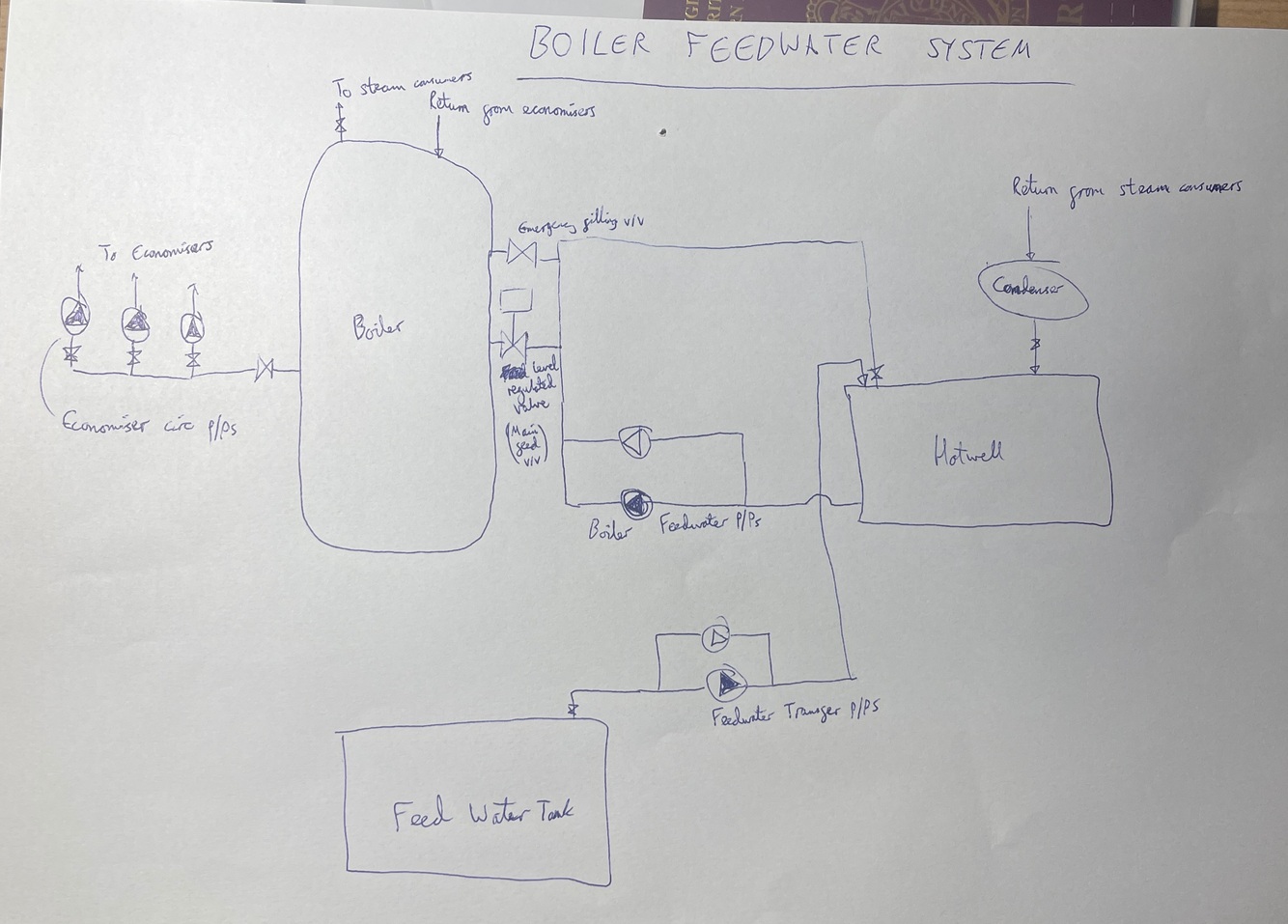

Draw a boiler water feed system

Answer 6

Question 7

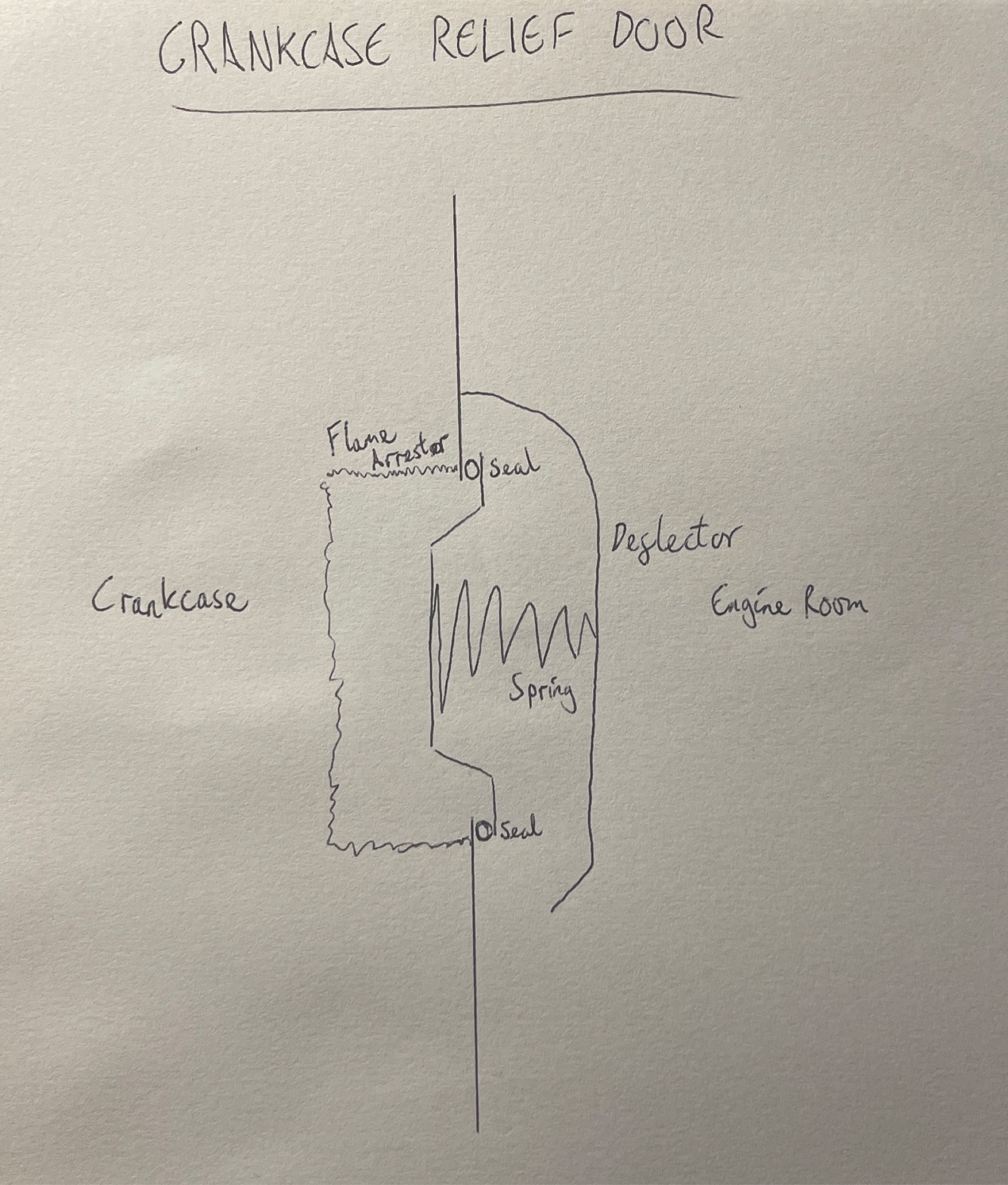

Draw a crankcase relief door

Answer 7

Question 8

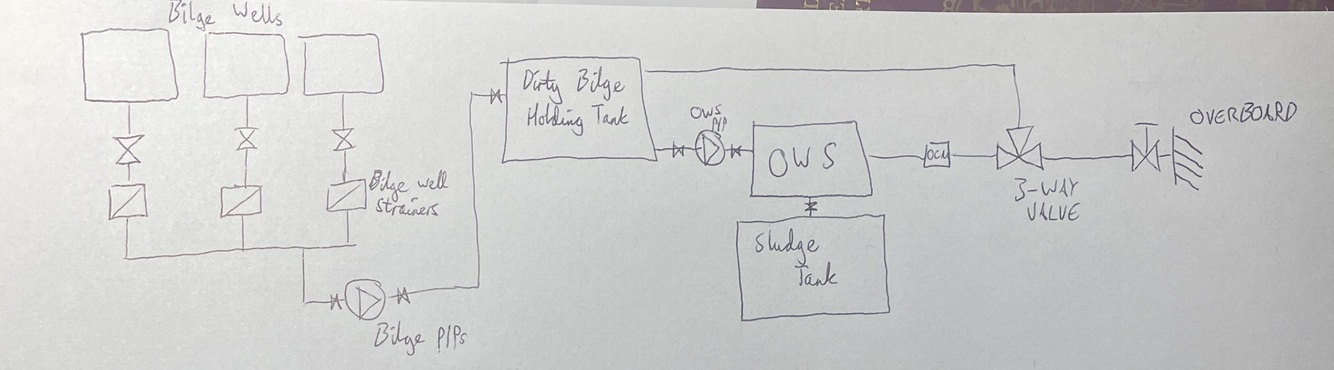

Draw the bilge system

Answer 8

Question 9

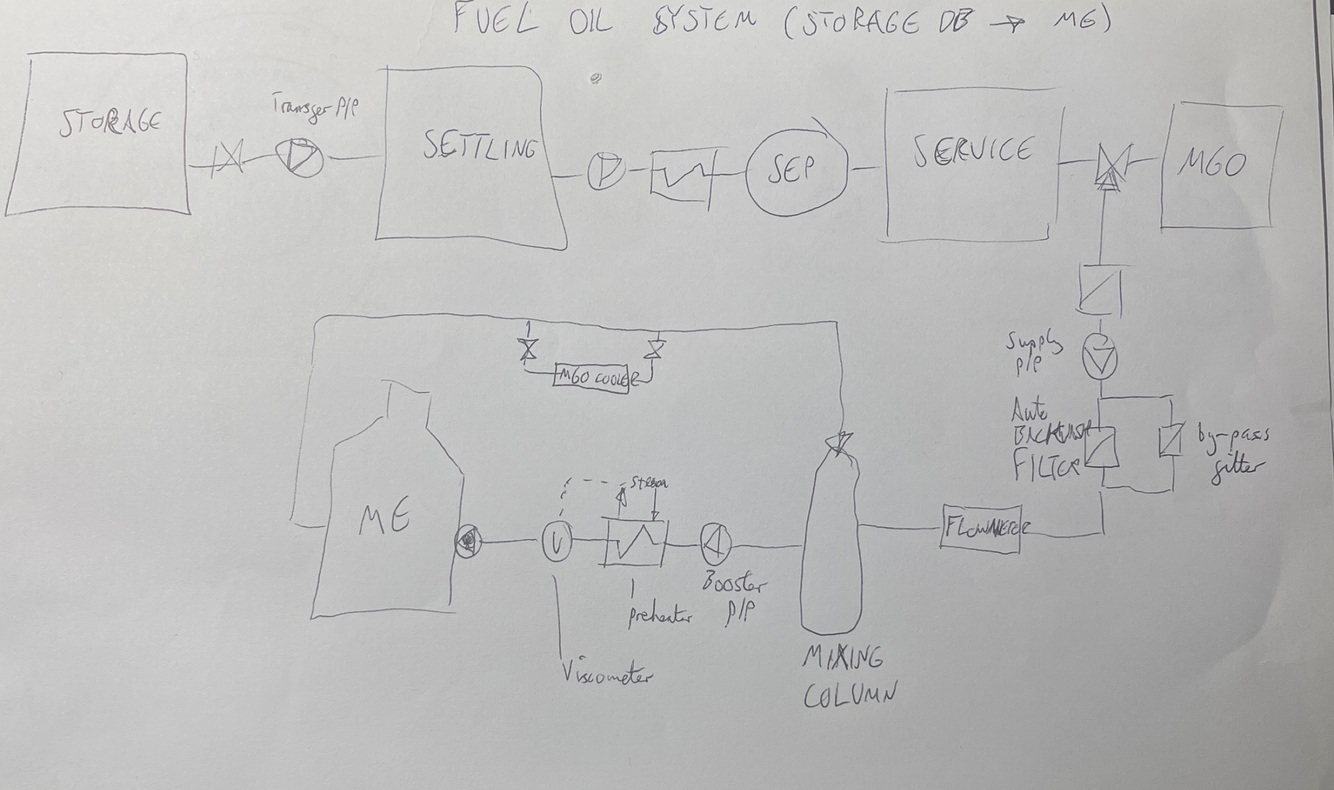

Draw the FO system from the DB tank to Engine

Question 10

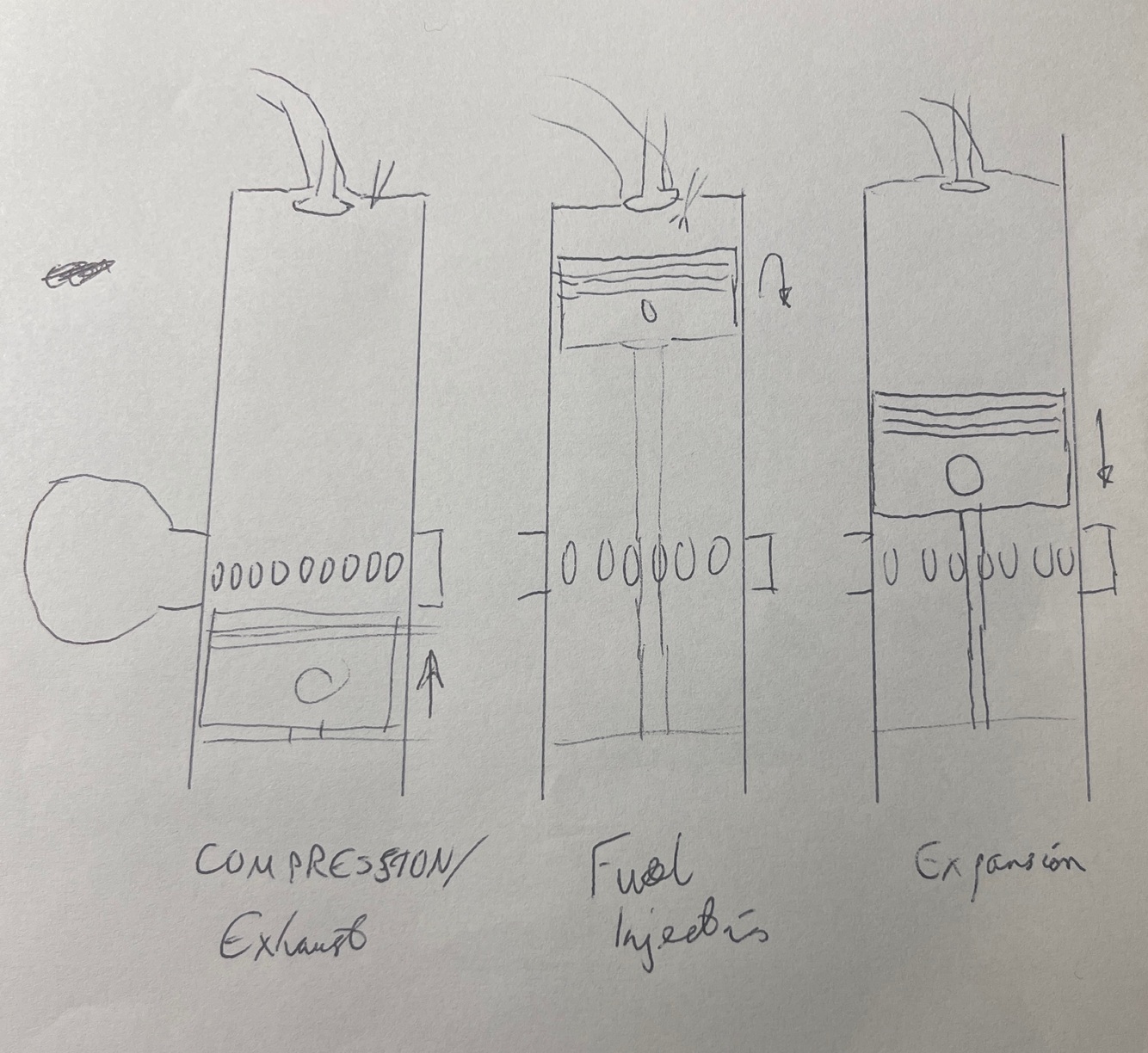

Draw the 2 stroke engine cycle

Answer 10

Question 11

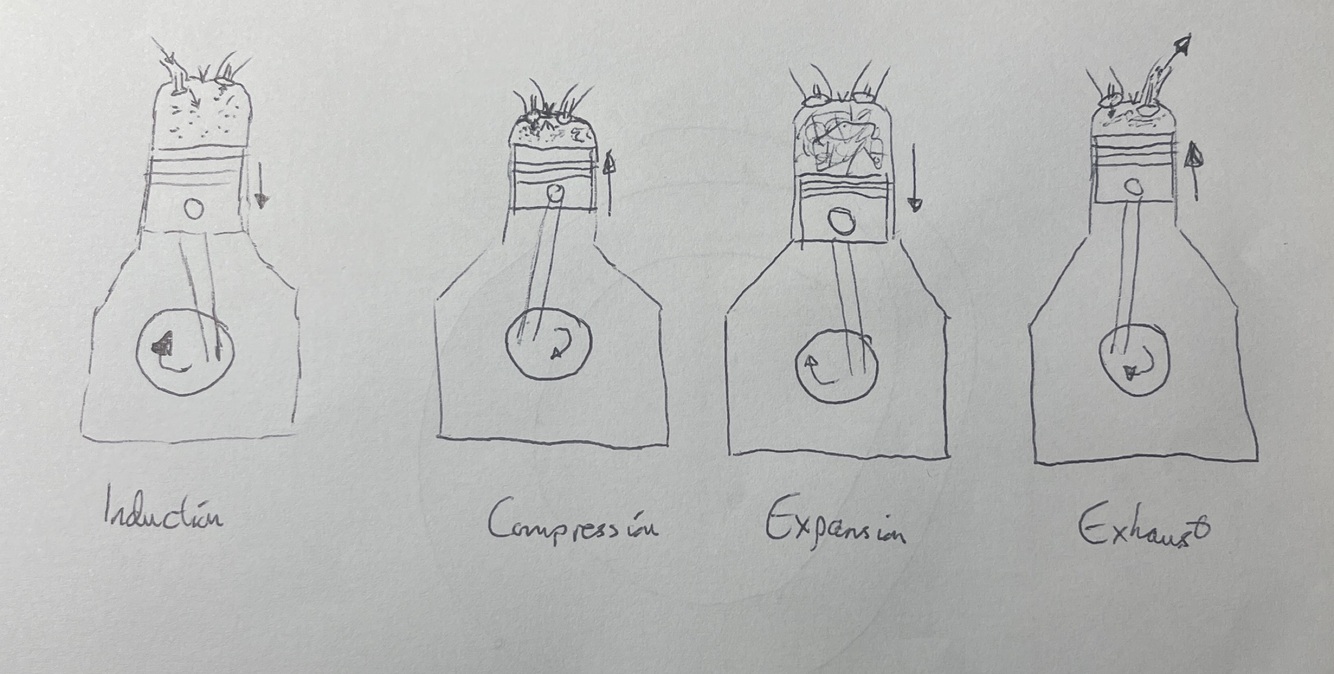

Draw the 4 stroke engine cycle

Answer 11

Question 12

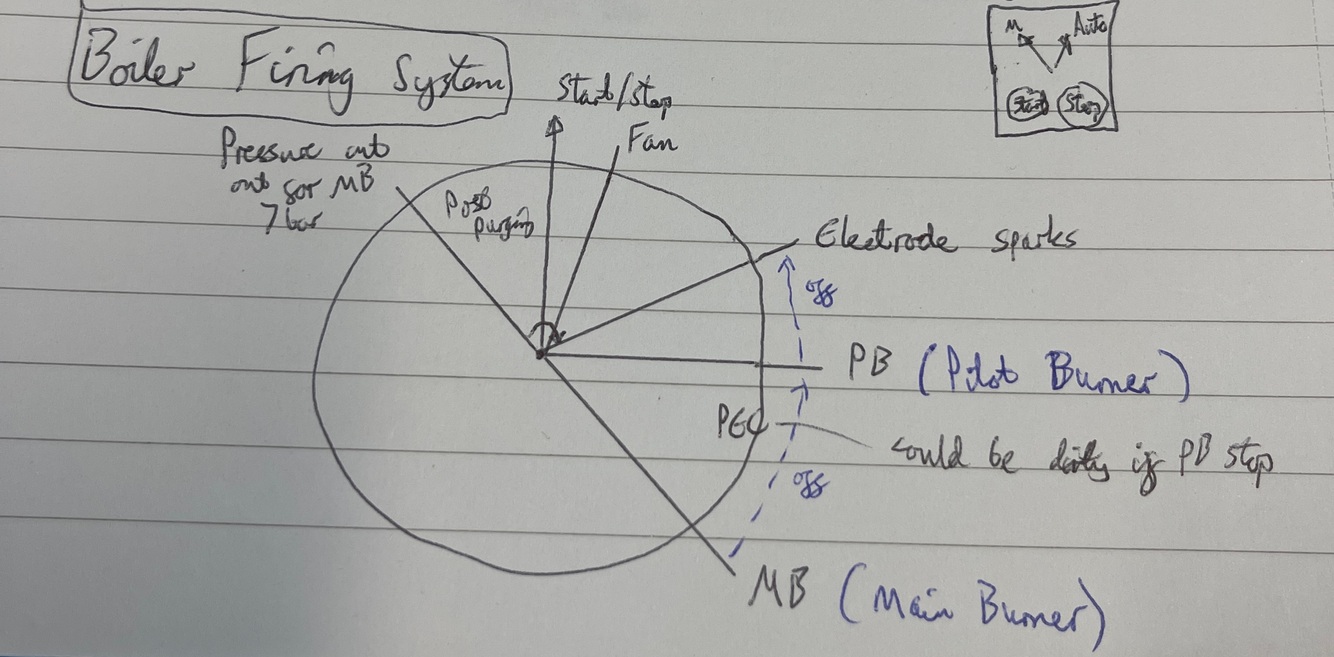

Draw & describe the boiler starting cycle

Answer 12

• Boiler is purged of exhaust gases & products of combustion
• A spark is ignited between the 2 electrons then the pilot burner will feed diesel which will create a flame
• The flame eye senses the light from the burner & the fuel p/p starts & fuel is supplied by a solenoid operated valve
• When the flame eye senses this larger flame the pilot burner will stop
• Air flow then reduces & stabilises for stable ignition

Question 13

Draw a rectifier

Question 14

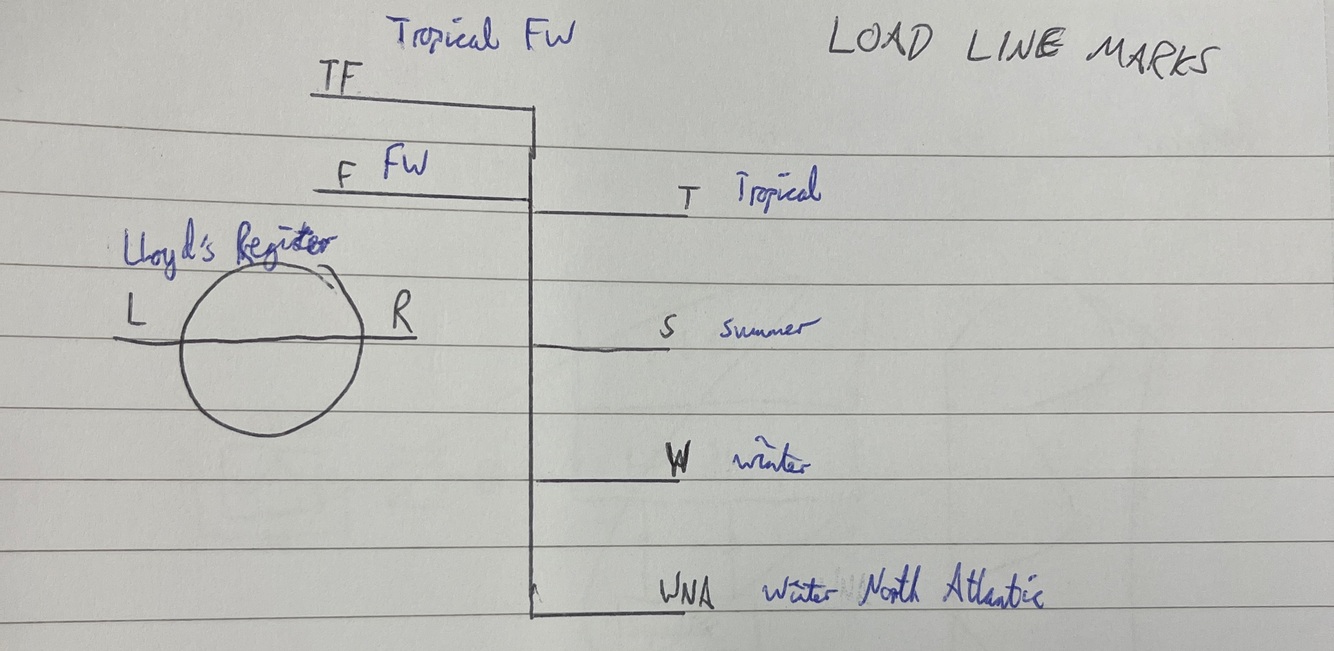

Draw Load Line diagram

Answer 14

Question 15

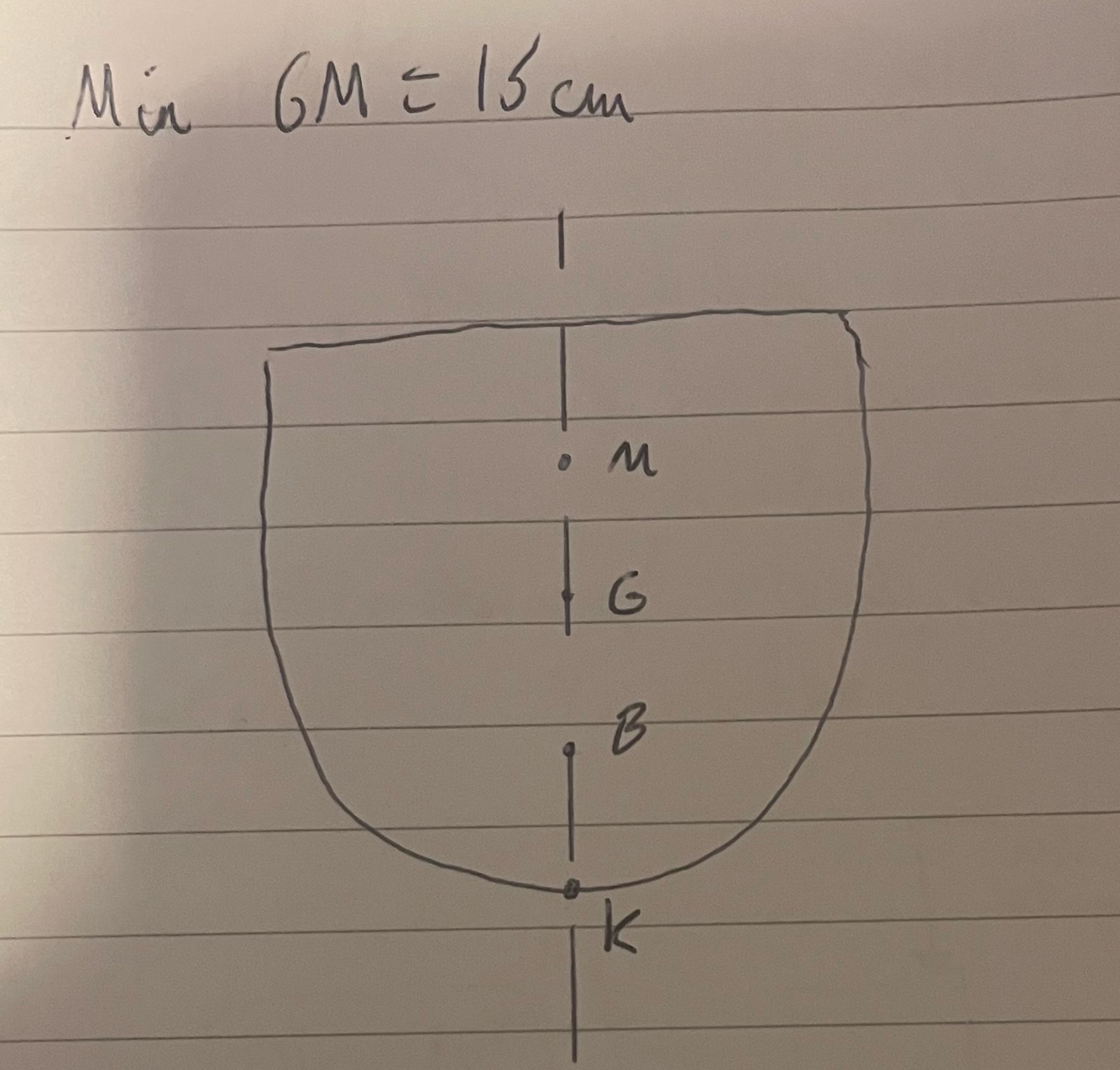

Stability diagram and minimum allowable GM

Answer 15

Bottom to top (K B G M)
Min GM = 15cm

Question 16

Draw 2 stroke scavenging methods

Answer 16

Cross-flow
Loop
Uniflow

Question 17

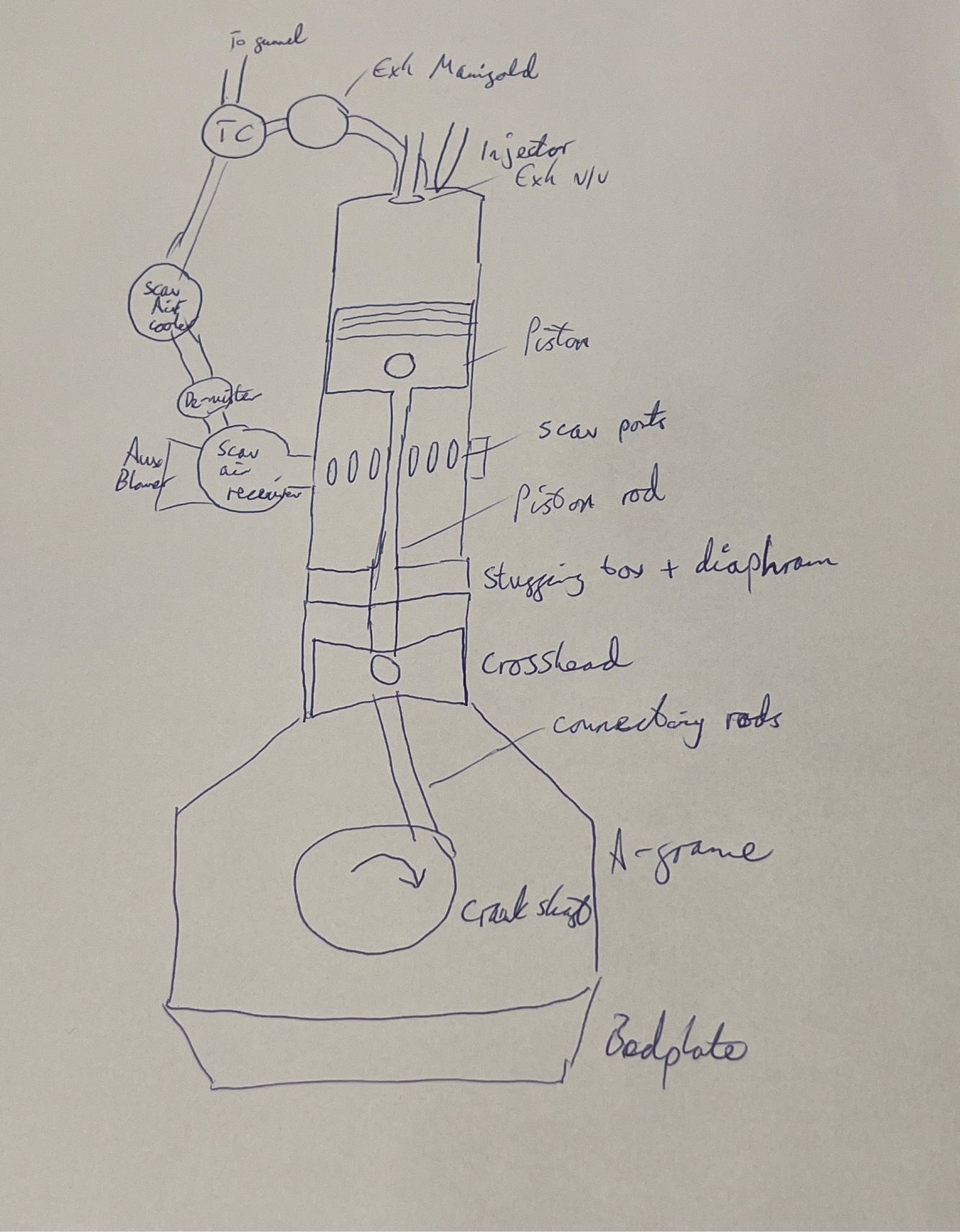

2 stroke cross section

Answer 17

Question 18

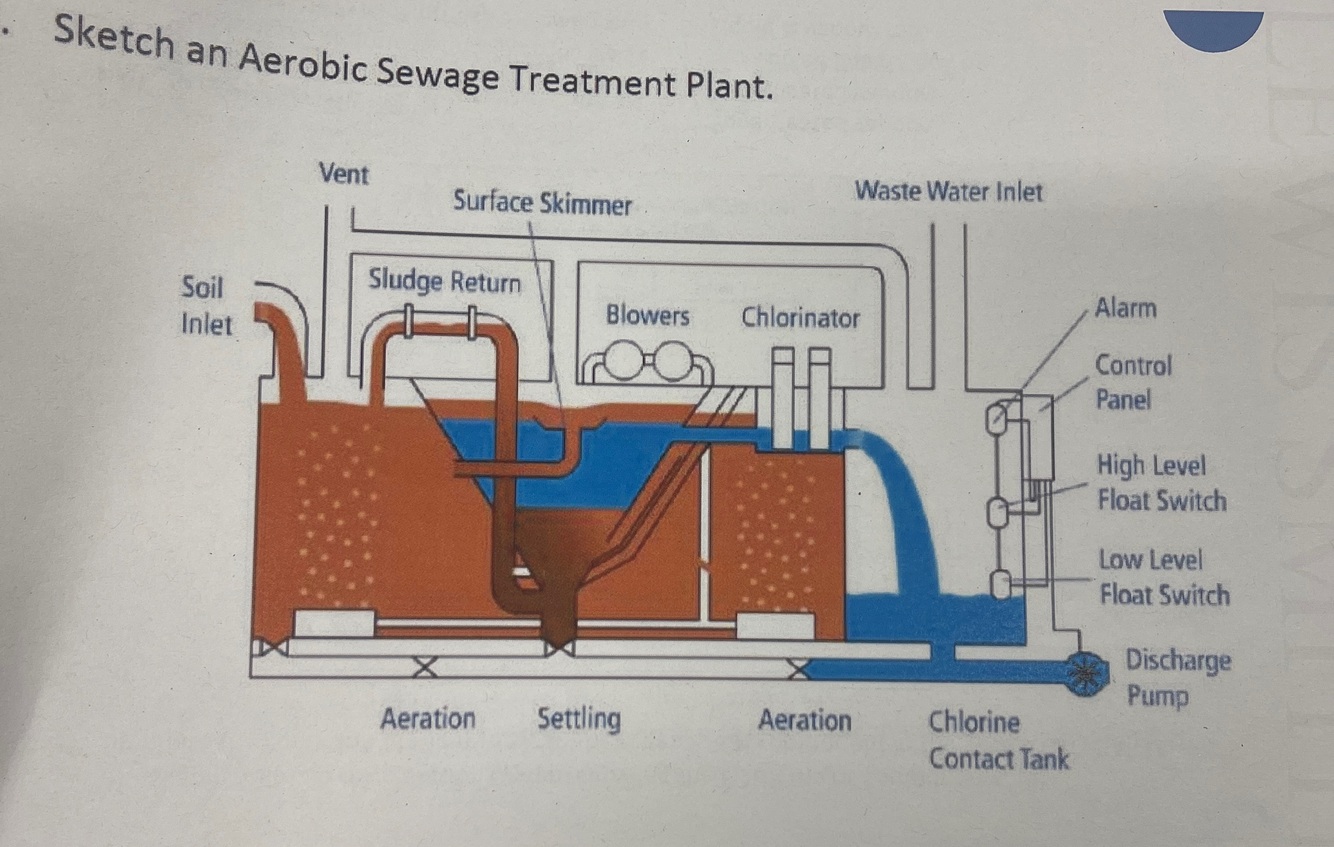

Draw sewage treatment plant

Answer 18
