ECG examples

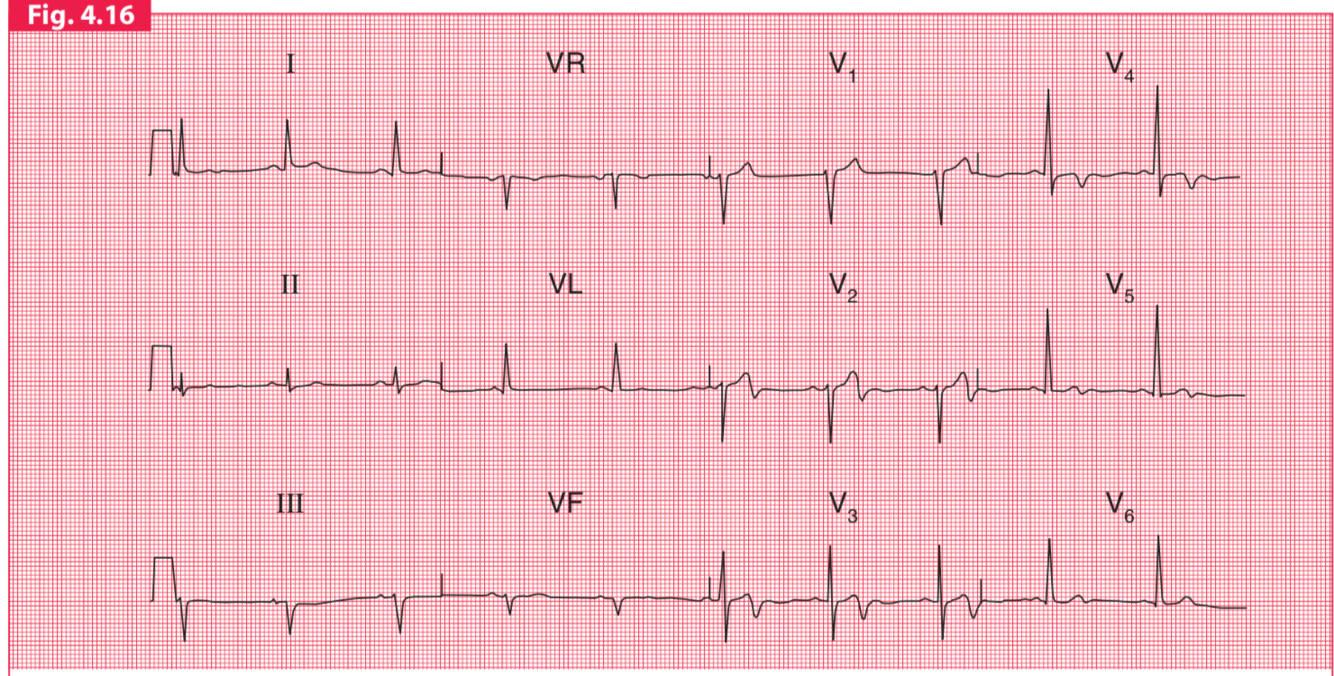

Question 1

What does this ECG show?

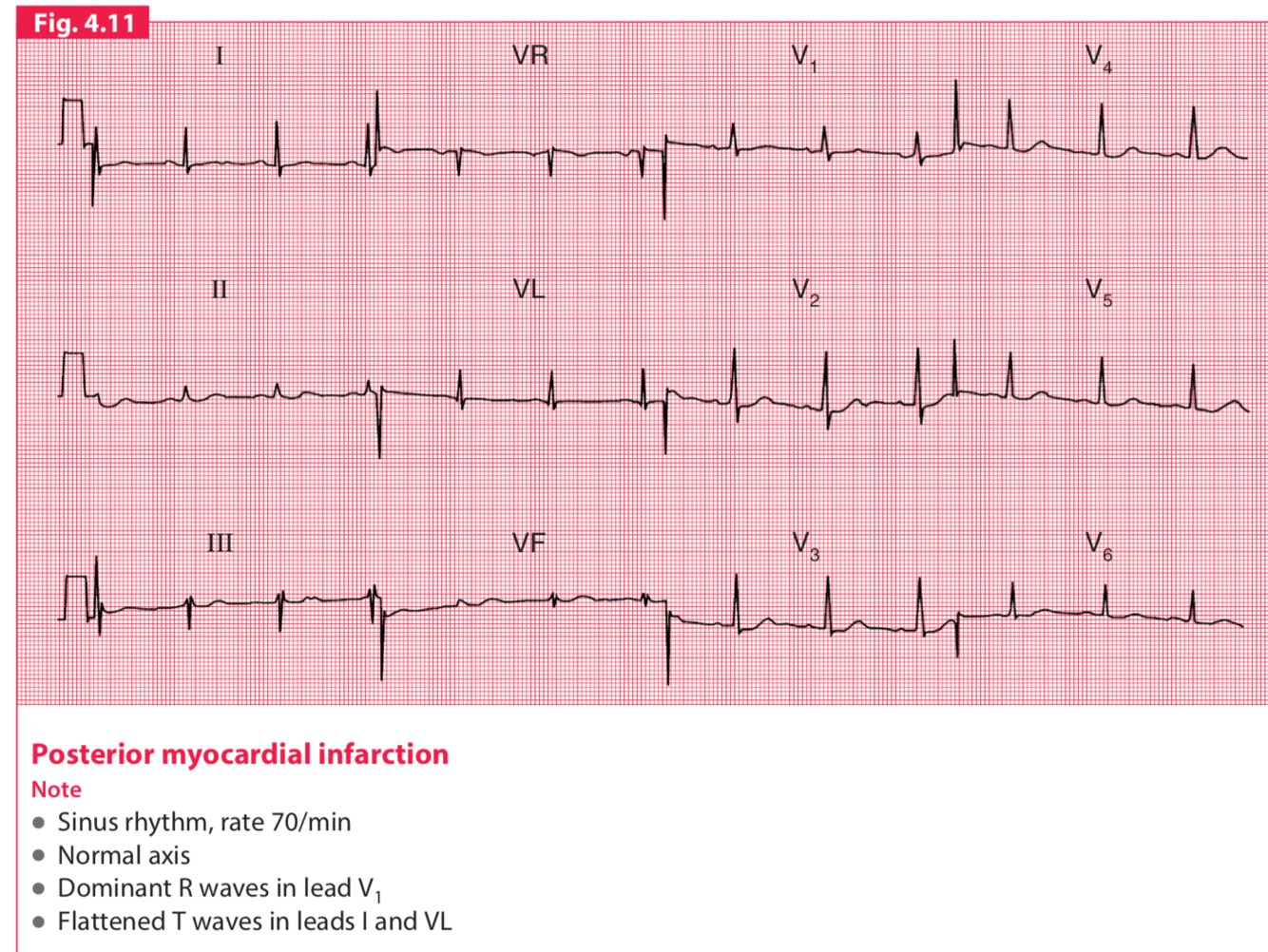

Answer 1

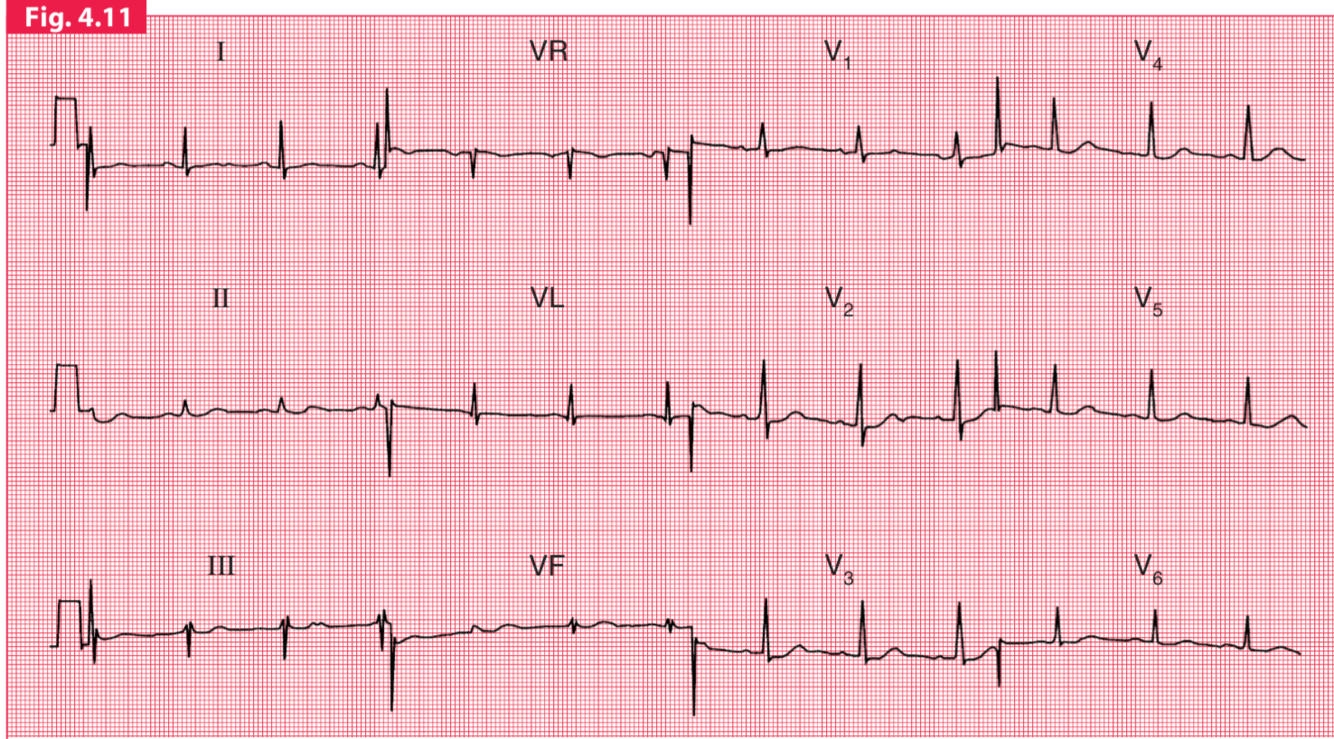

Question 2

What does this ECG show?

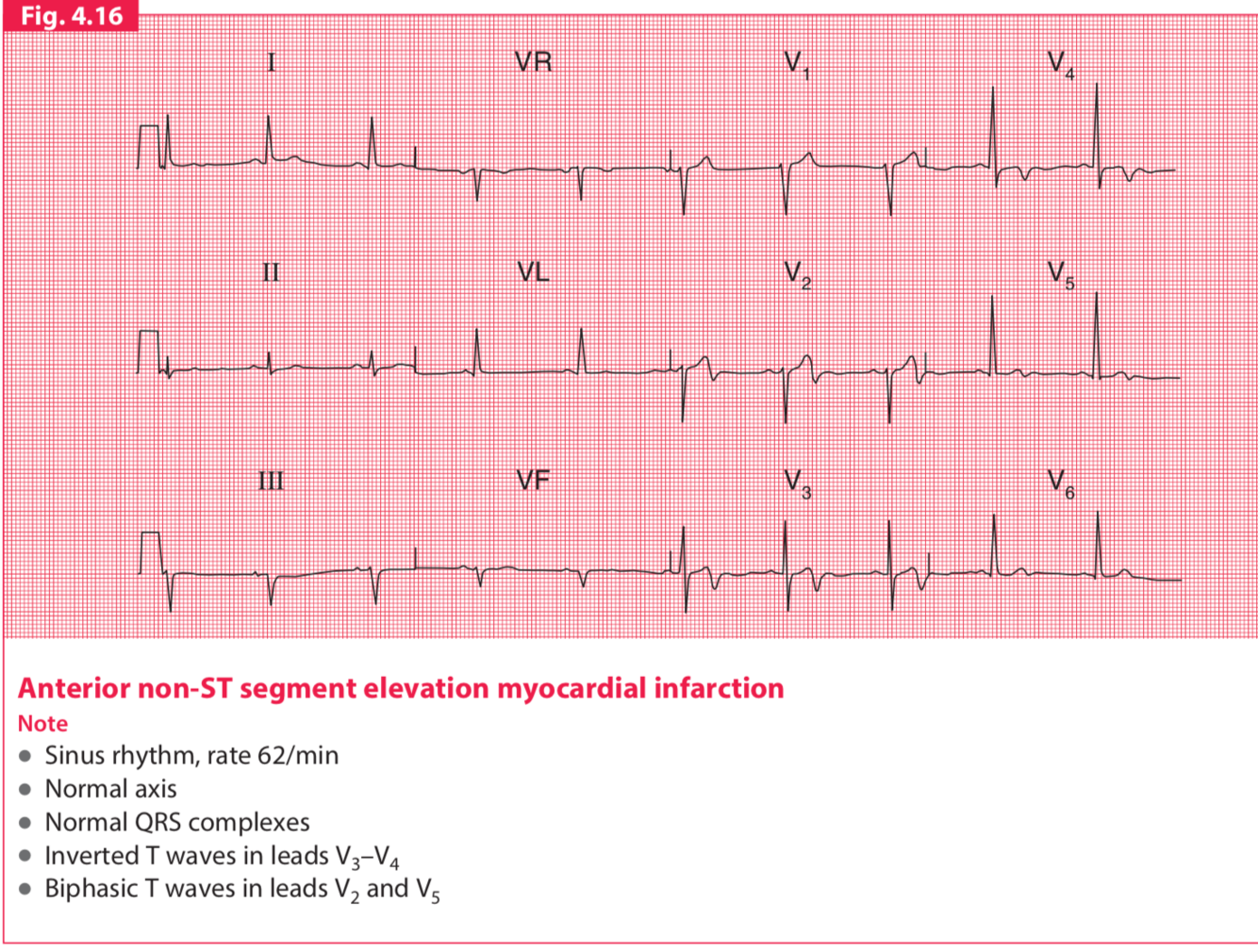

Answer 2

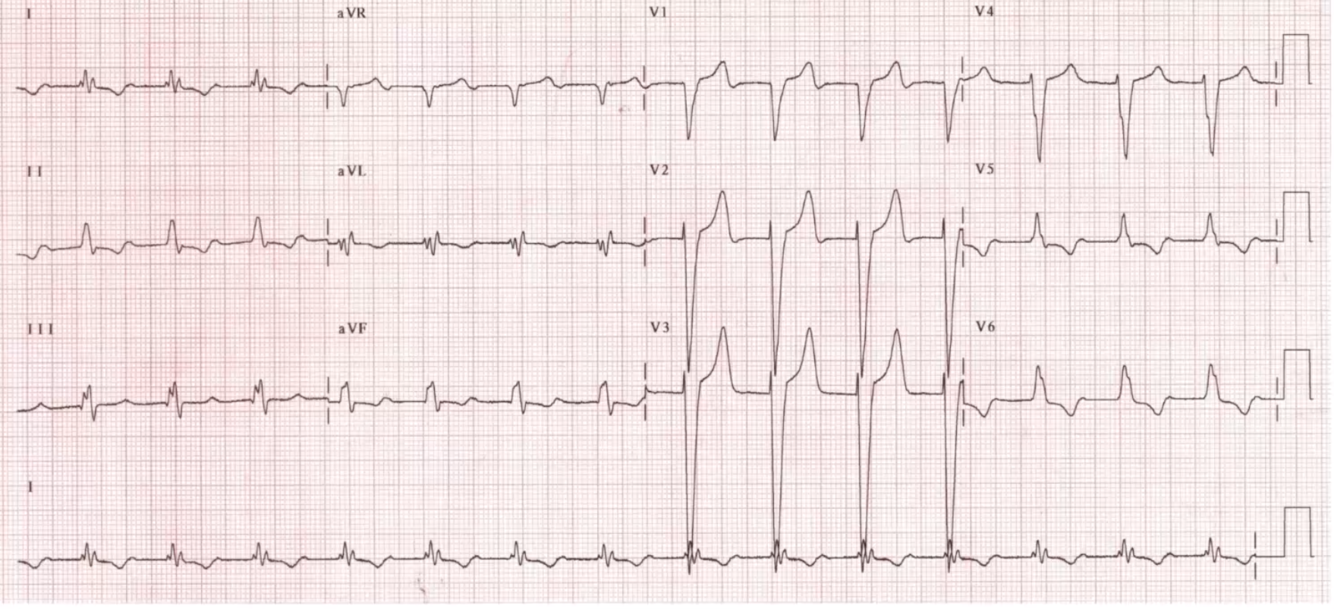

Question 3

What does this ECG show?

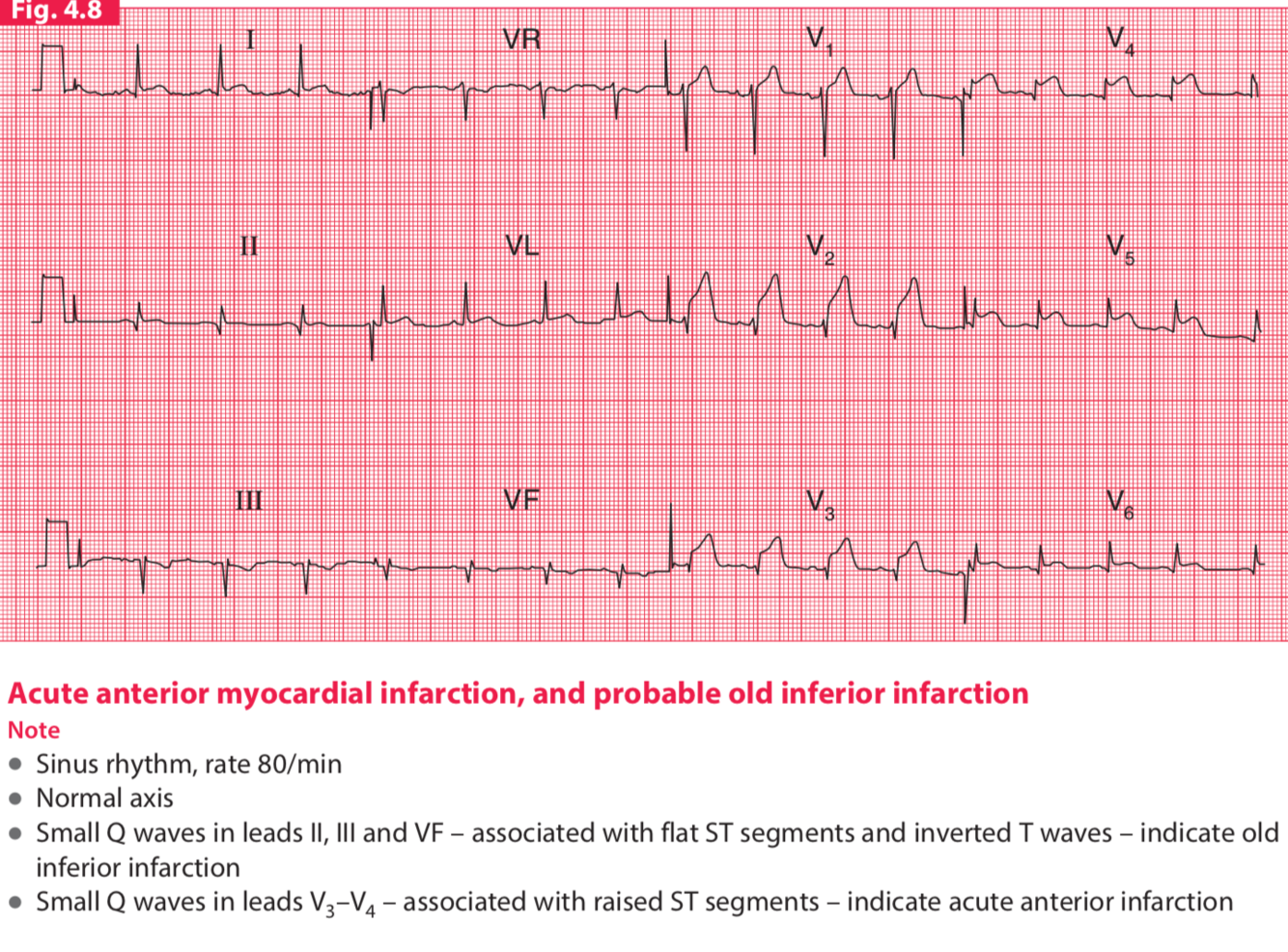

Answer 3

Question 4

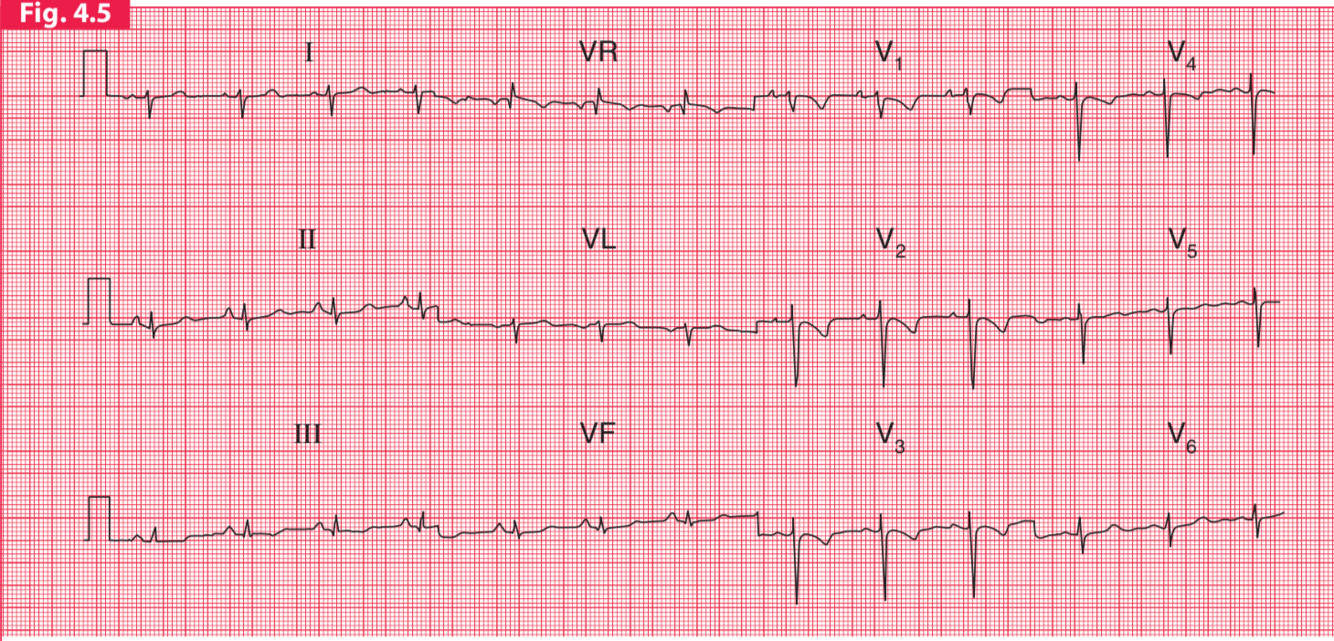

What does this ECG show?

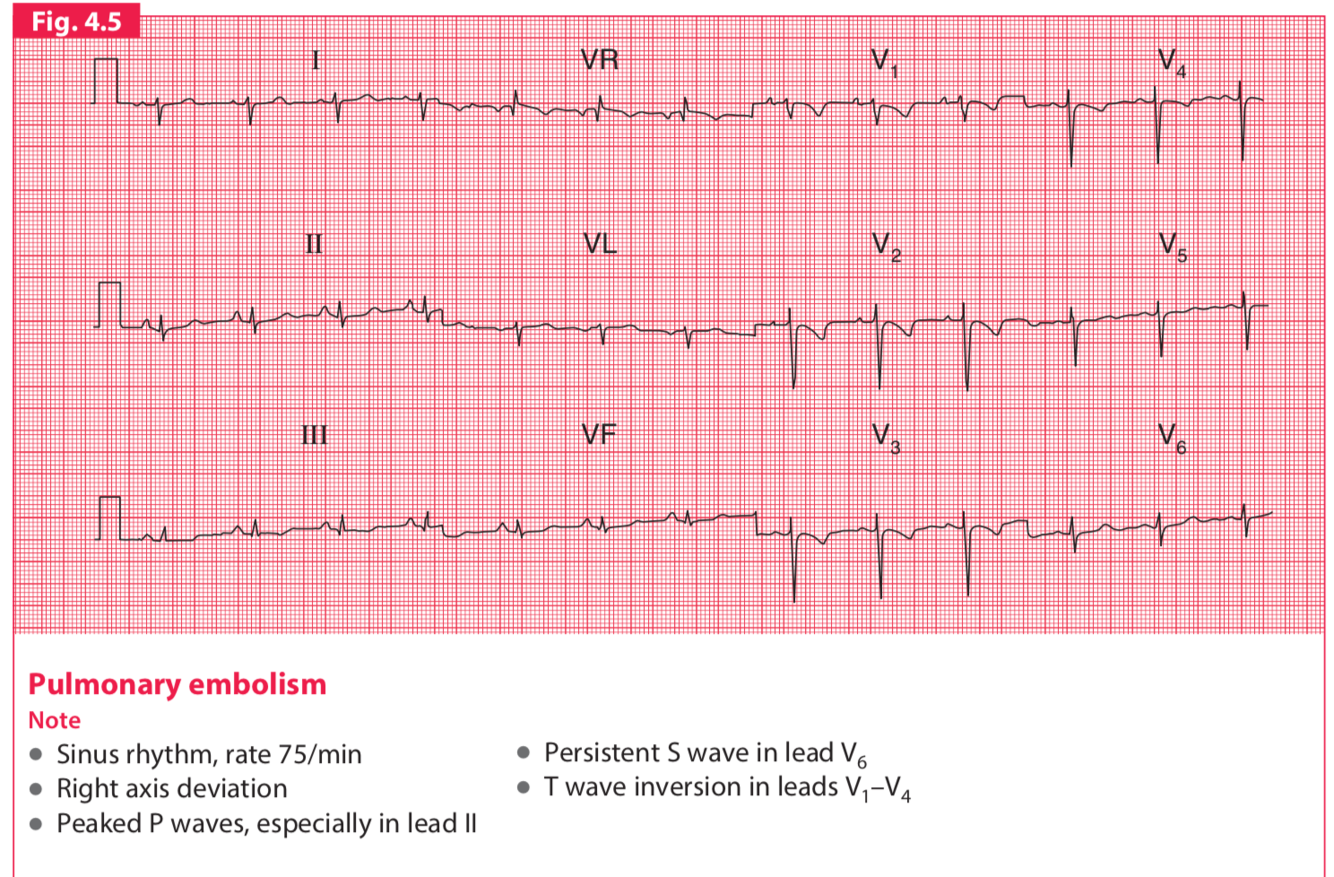

Answer 4

Question 5

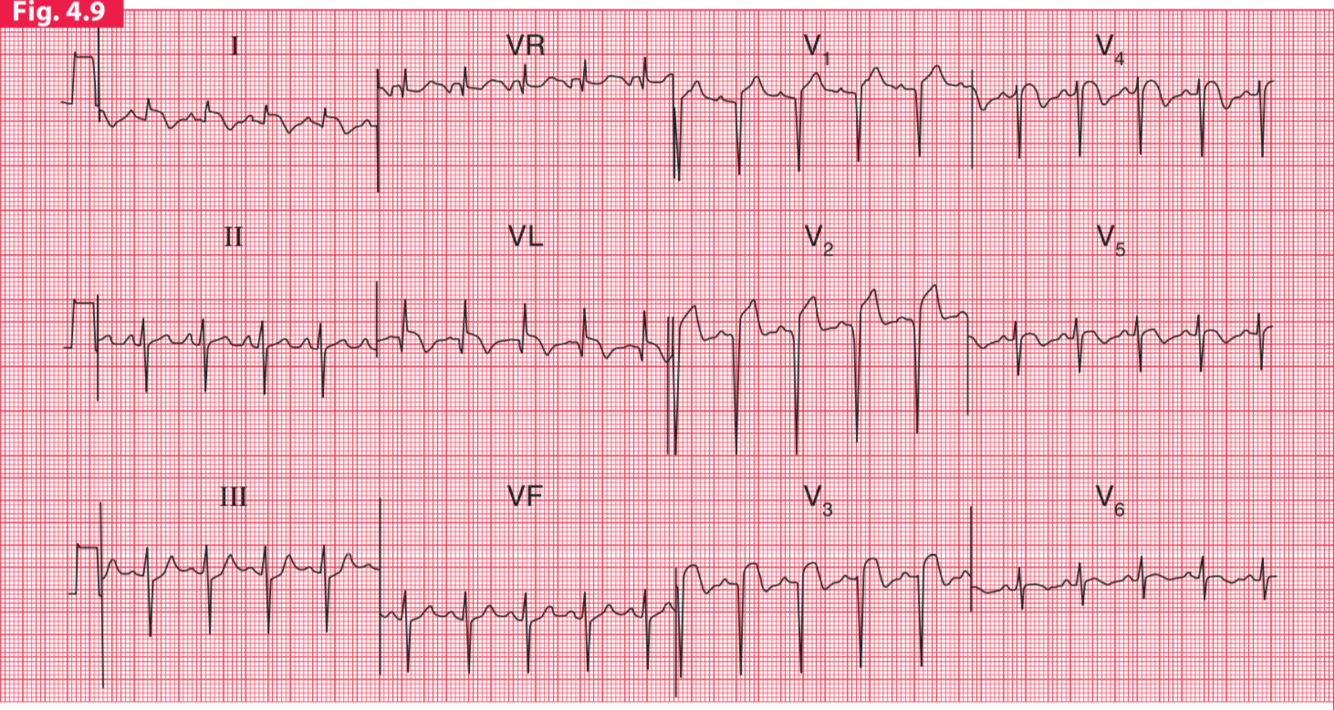

What does this ECG show?

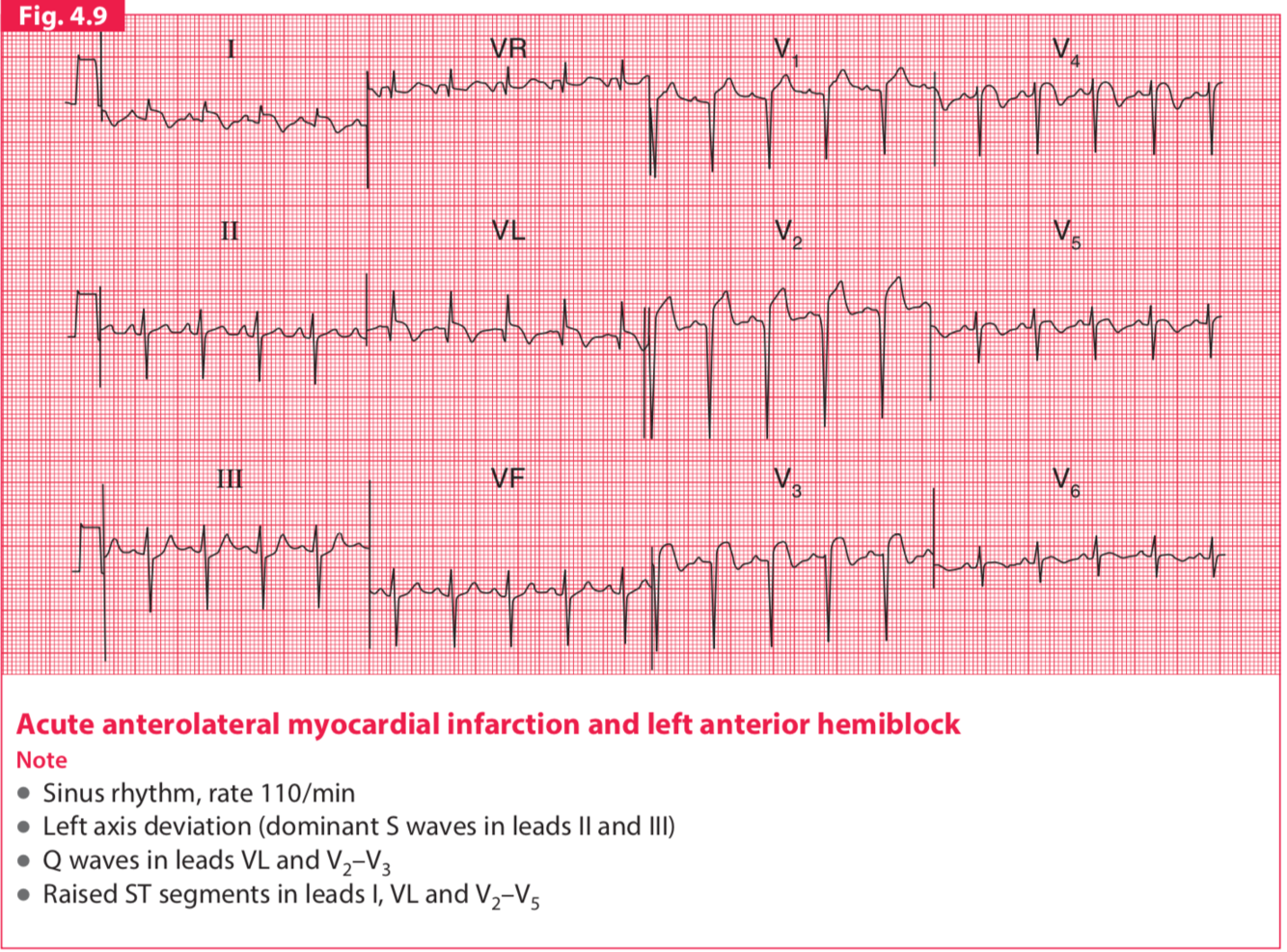

Answer 5

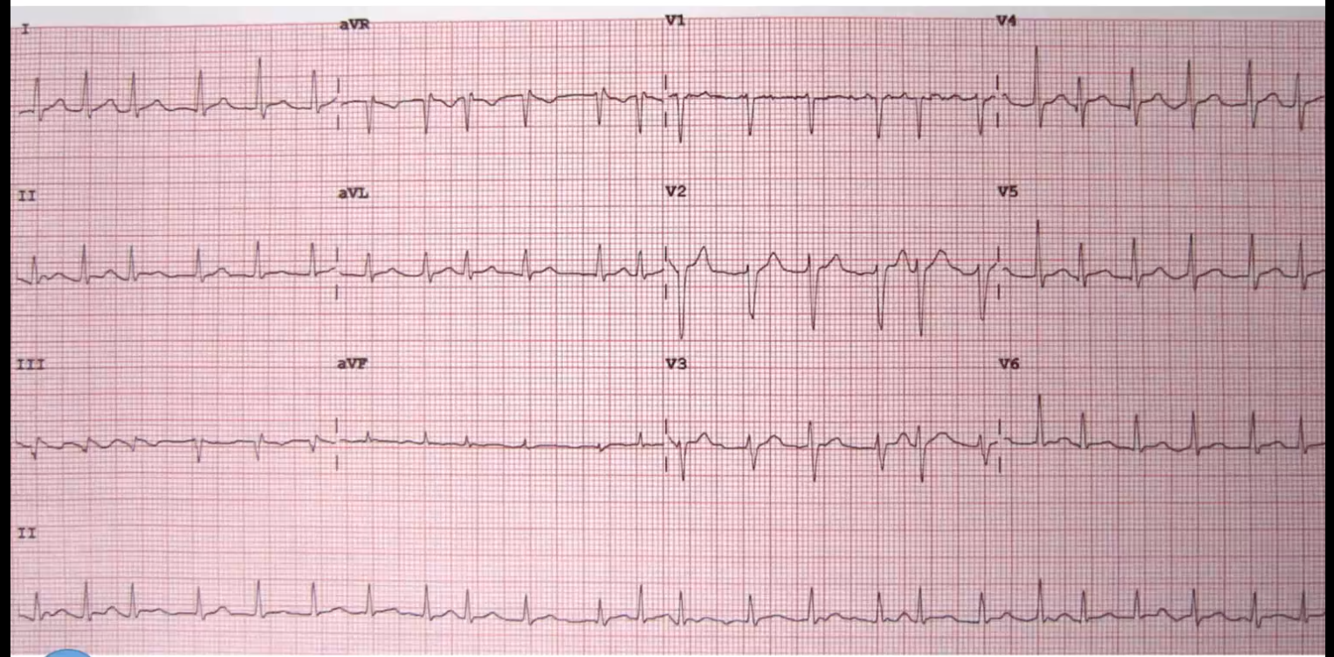

Question 6

What does this ECG show?

Answer 6

AF

• R-R interval changes
• importantly seen in the rhythm strip

Question 7

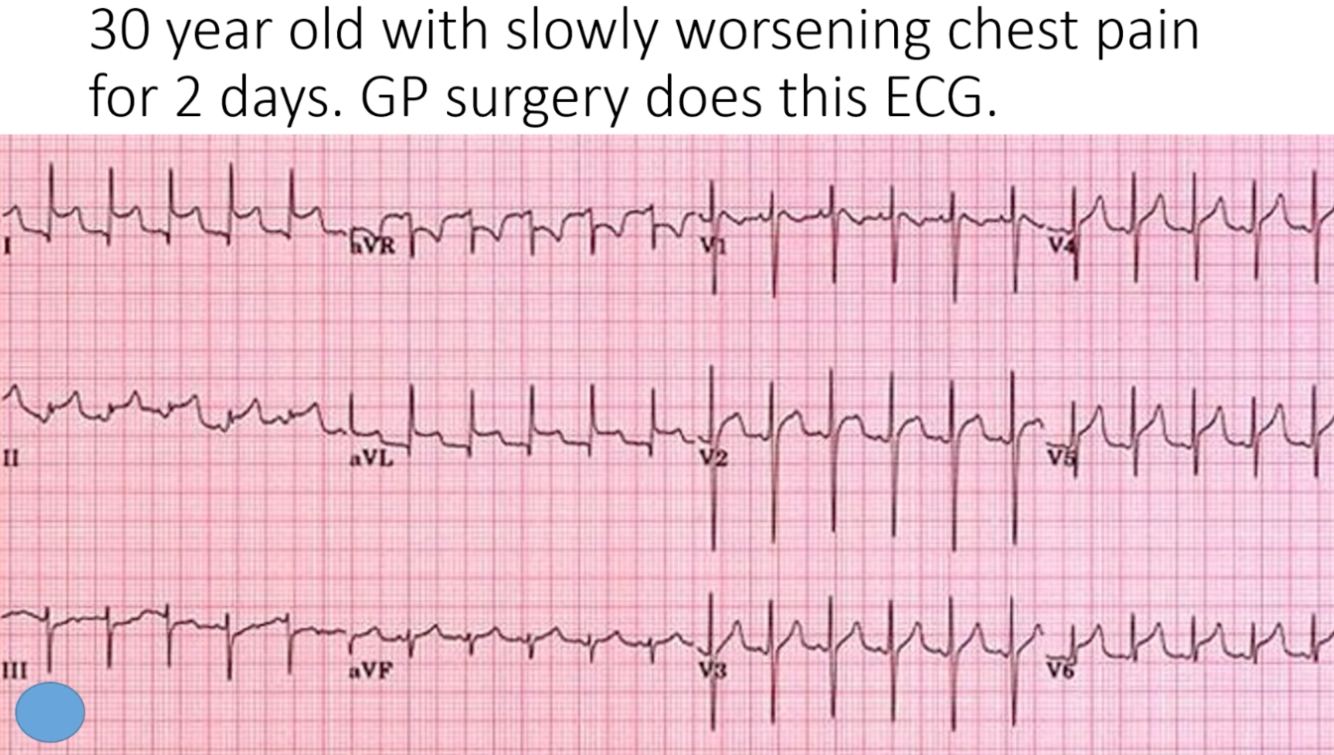

What does this ECG show?

Answer 7

acute pericarditis (not STEMI)

• ECG shows ST elevation - widespread in all leads

usually viral - hence no antibiotics needed

Question 8

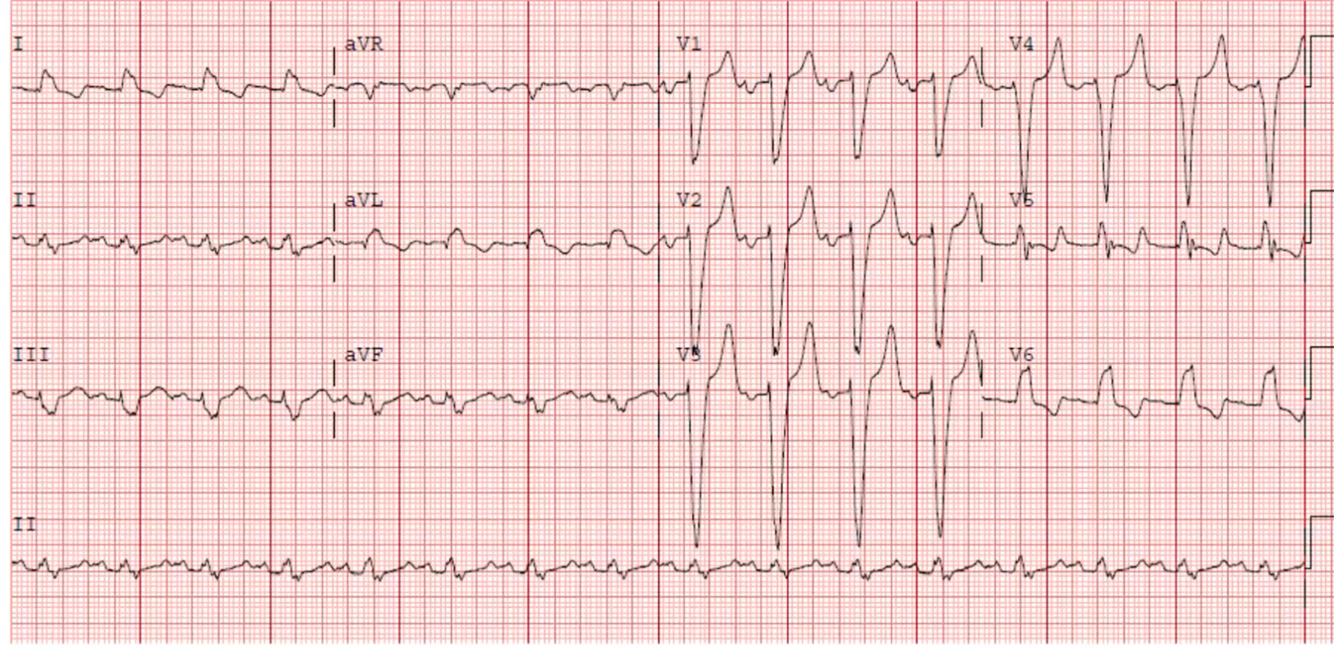

What does this ECG show?

Answer 8

LBBB

• WilliaM
• V1 - W shaped tips of QRS complex

  • broad complexes
• V6 - M shaped tips of QRS complex

  • • broad complexes

the implication is that ST segments are uninterpretatble - hence ischaemia/MIs cannot be determined

Question 9

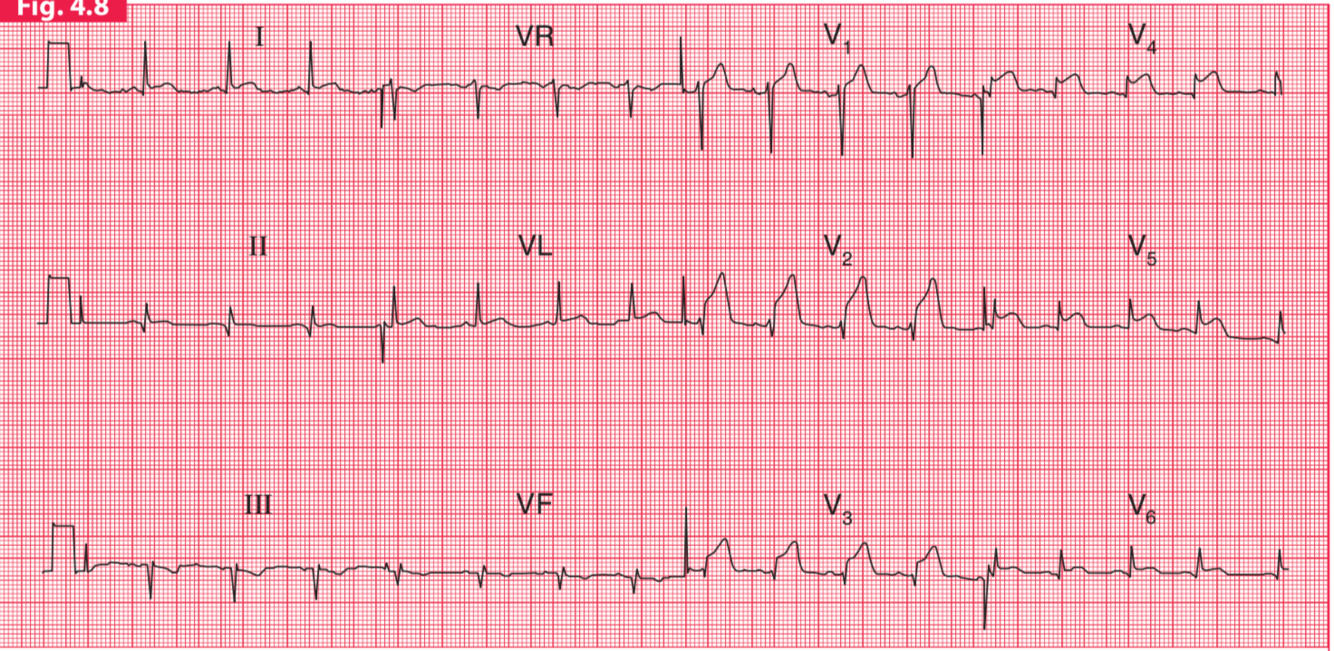

What does this ECG show?

Answer 9

LBBB

• WilliaM
• V1 - W shaped tips of QRS complex

  • broad complexes
• V6 - M shaped tips of QRS complex

  • broad complexes

Question 10

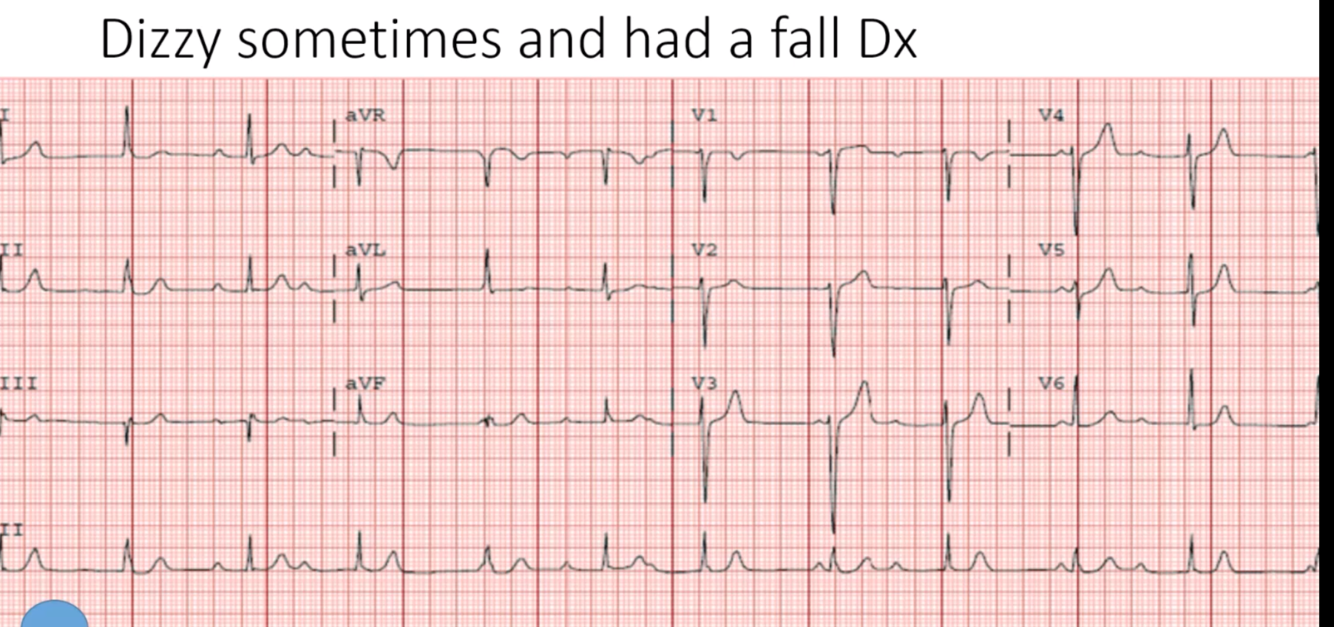

What does this ECG show?

Answer 10

complete (3rd degree) heart block

O/E

• may see cannon waves (in jugular vein)
