Equipment Identification

Question 1

Answer 1

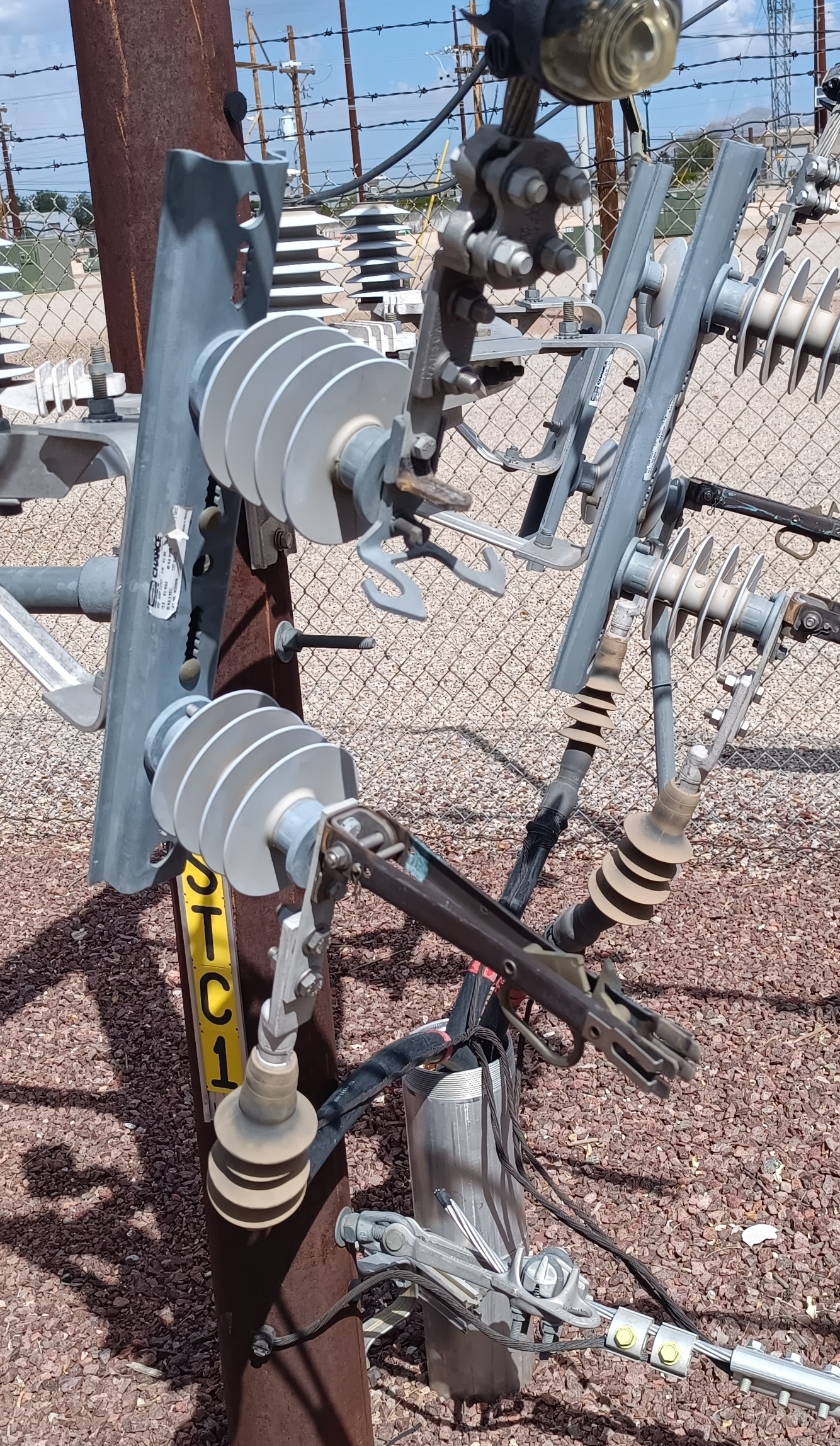

Solid blade disconnects 600A feeder

Question 2

Answer 2

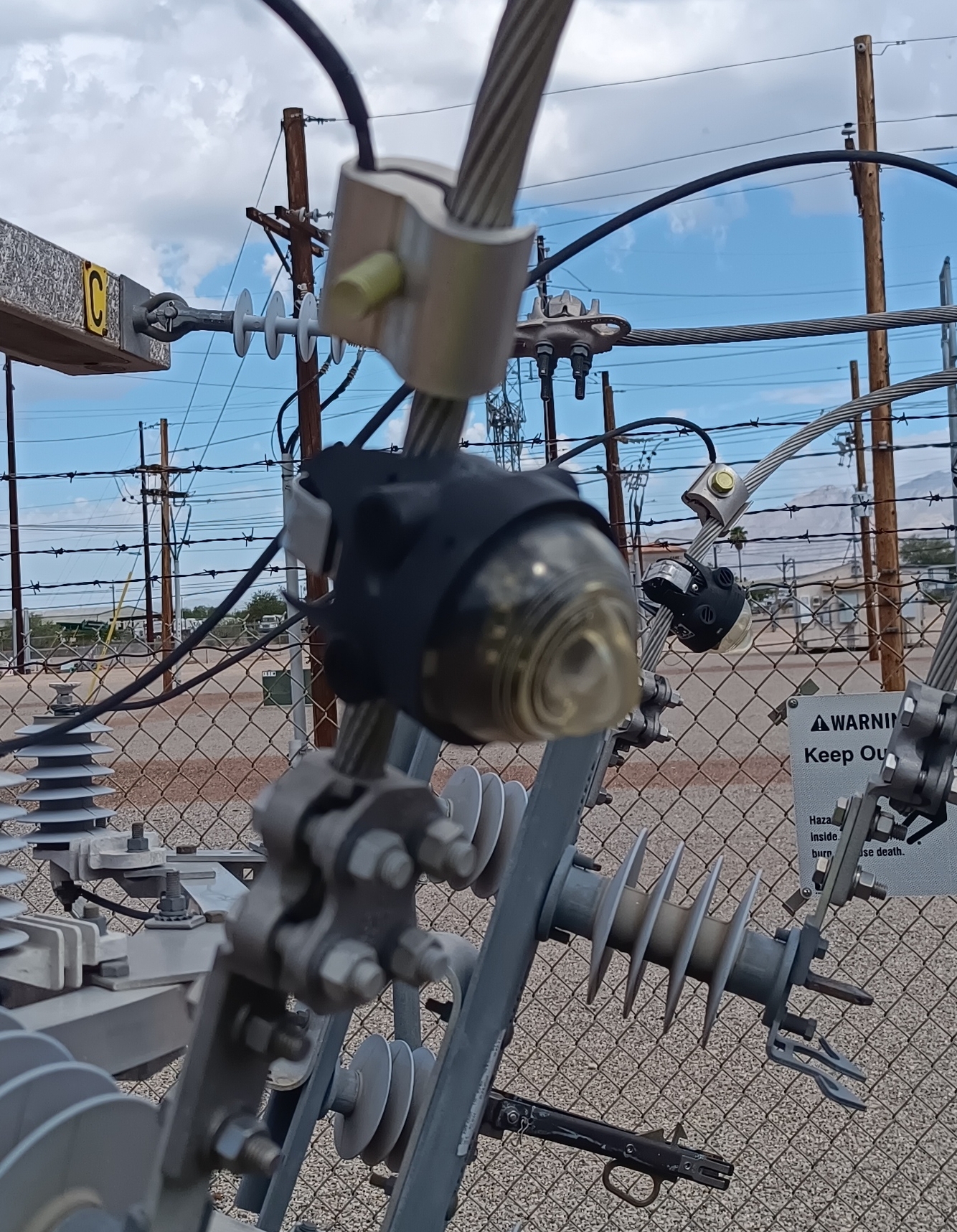

Fault indicator

Question 3

Answer 3

Recloser

Question 4

Answer 4

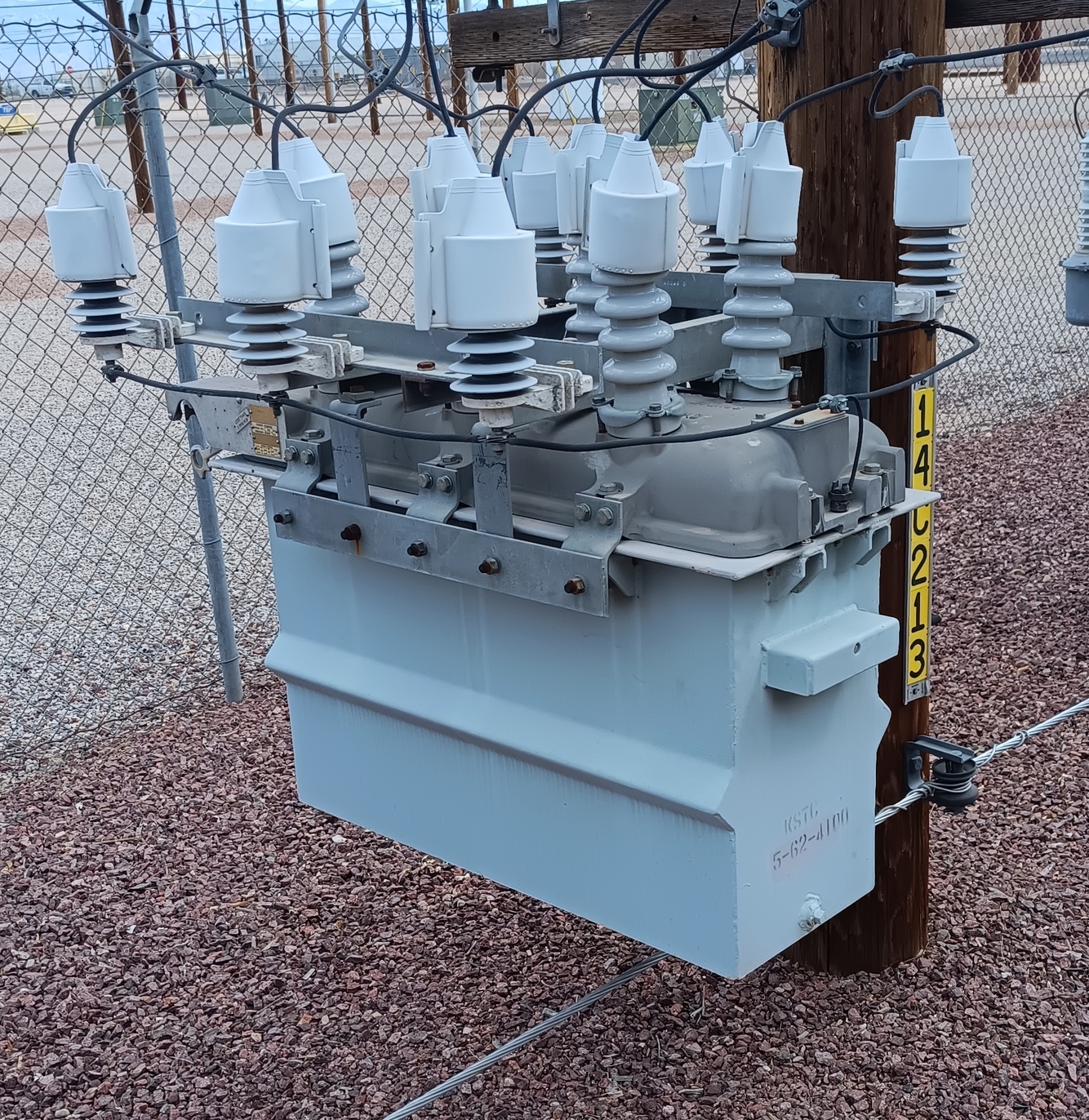

Auto-switch capacitor

Question 5

Answer 5

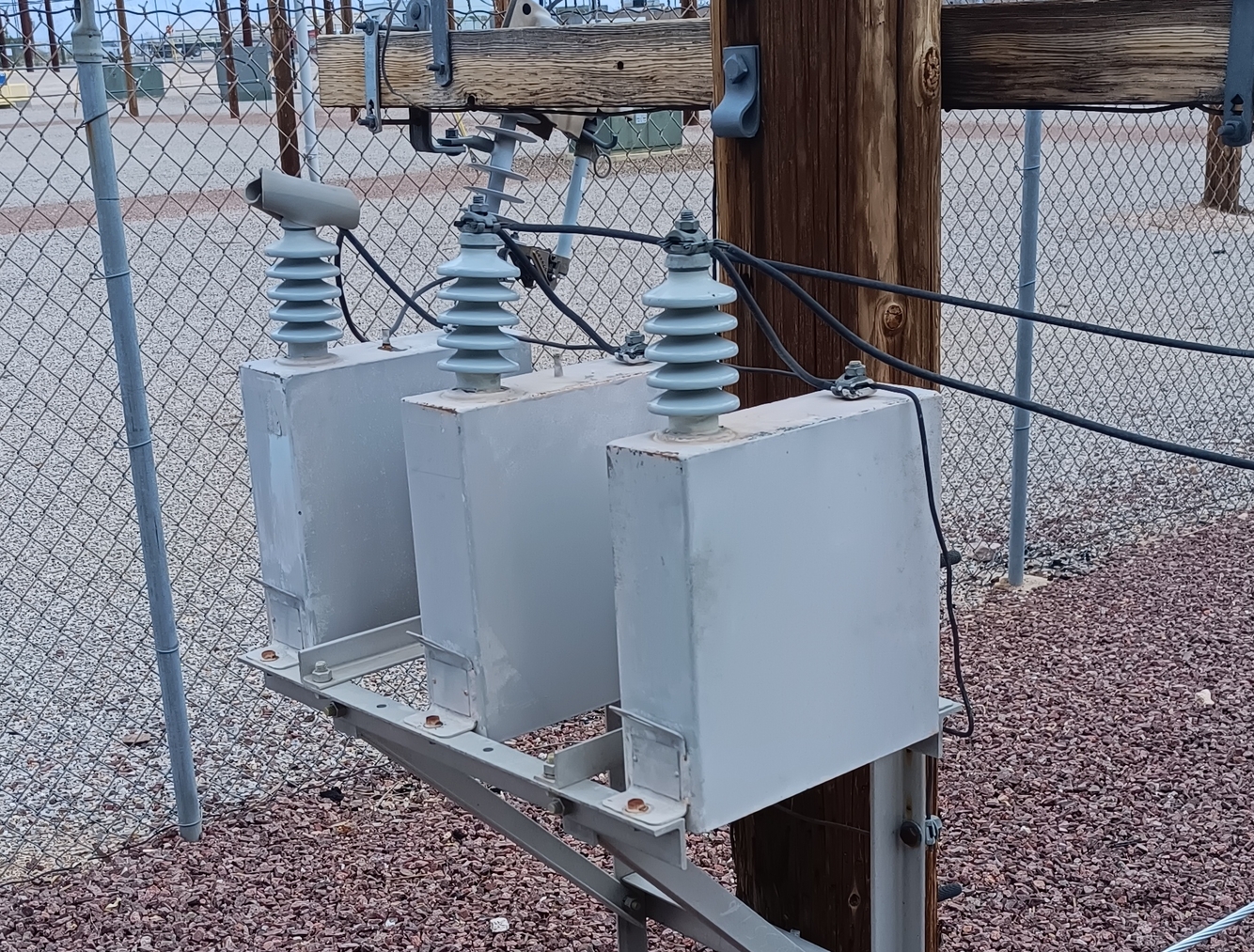

Fixed capacitor

Question 6

Answer 6

Fused cut-out 200A

Question 7

Answer 7

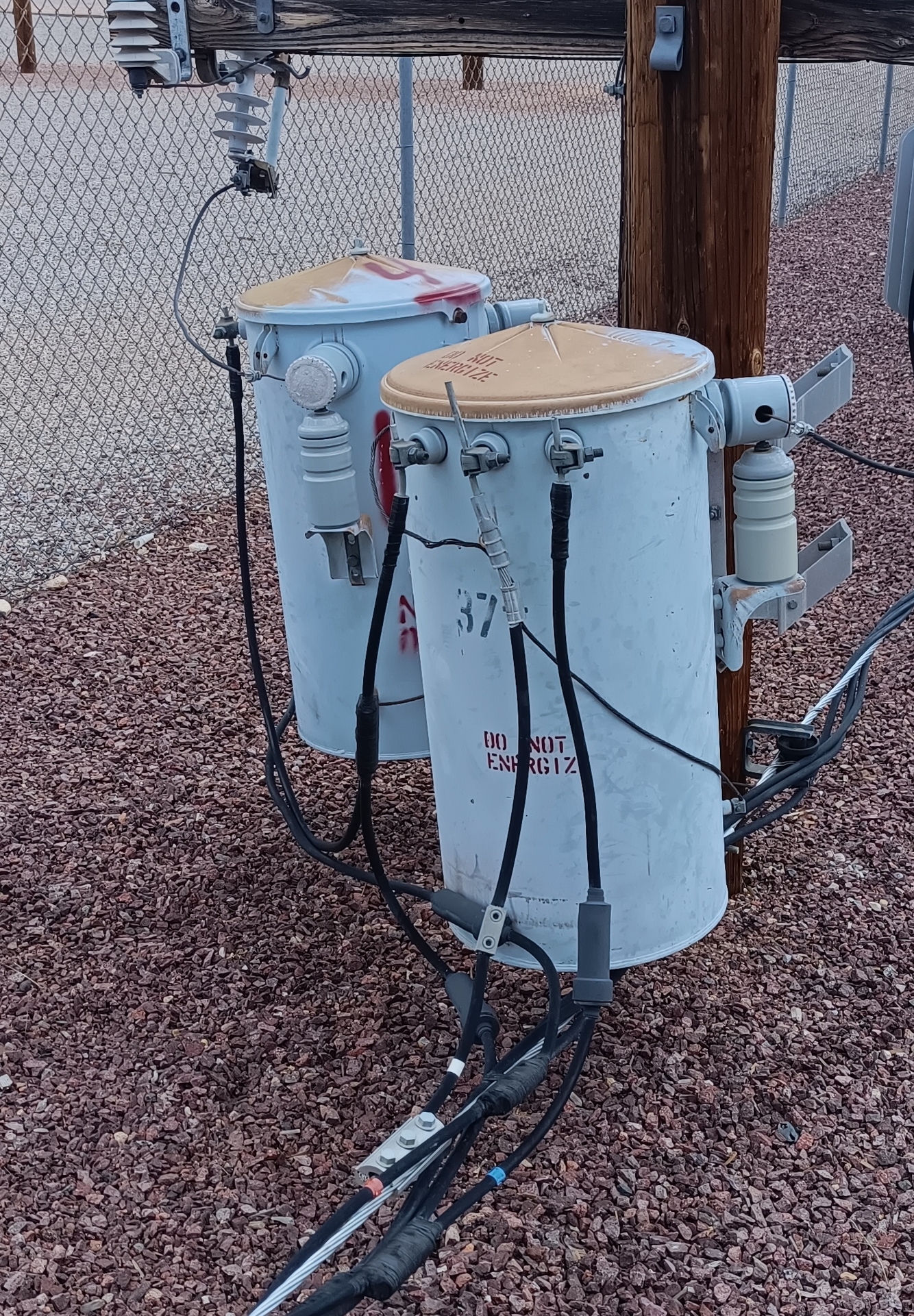

120/240v Open delta 3-phase

Question 8

Answer 8

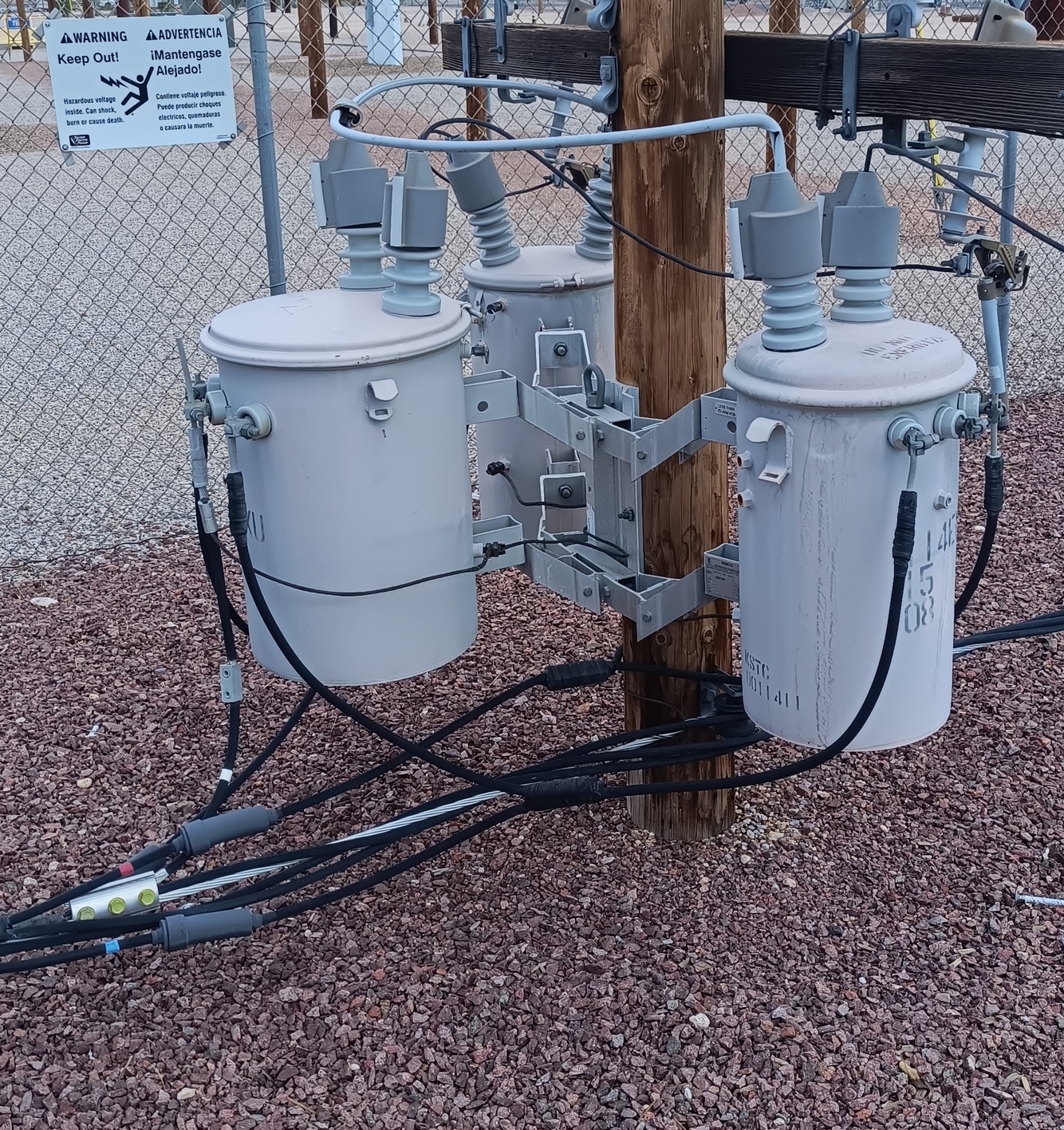

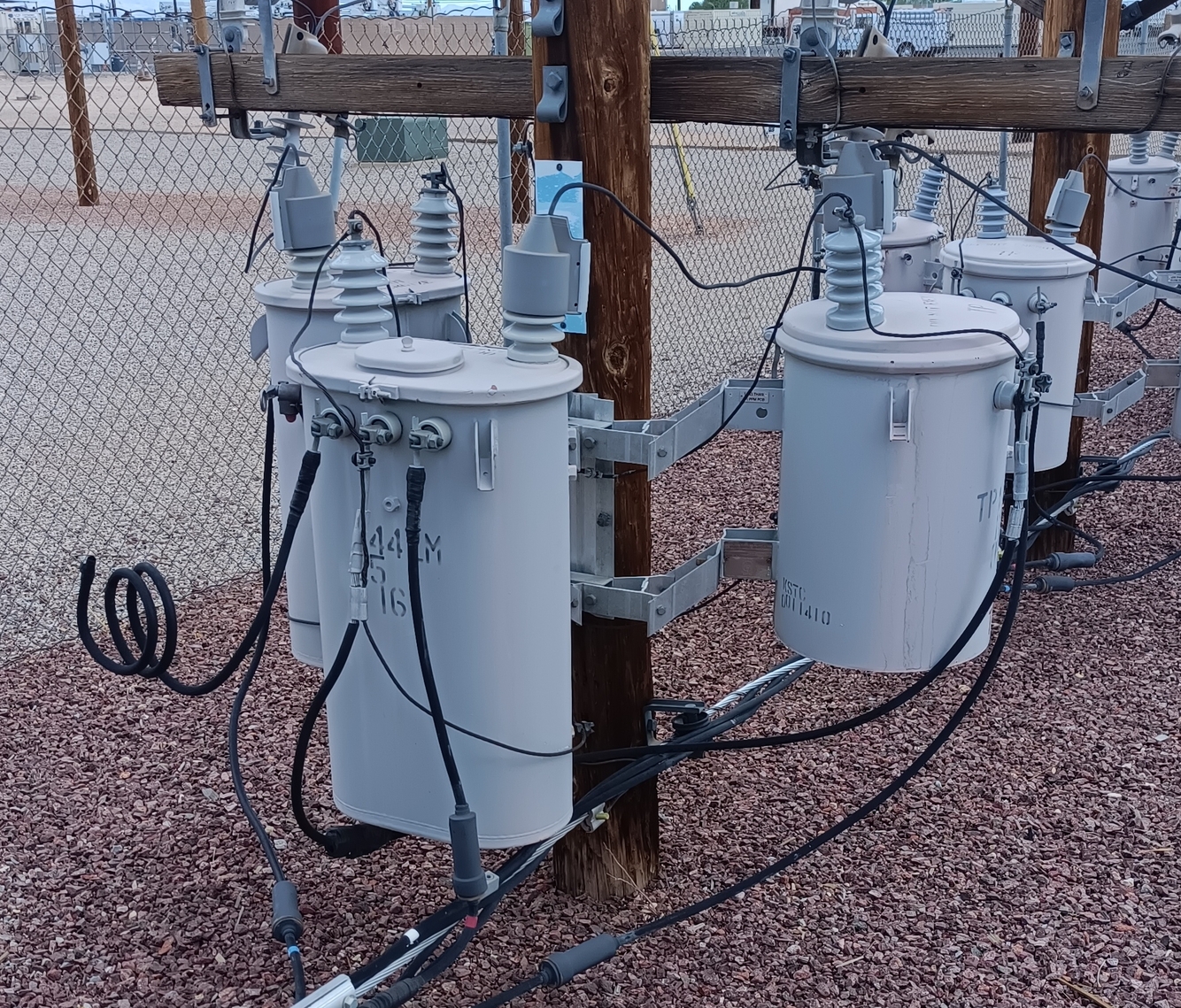

3-phase transformer bank

Question 9

Answer 9

120/208 3-phase transformer bank tied-parallel

Question 10

Answer 10

120/240v y-delta 3-phase bank w/floating neutral (halo)

Question 11

Answer 11

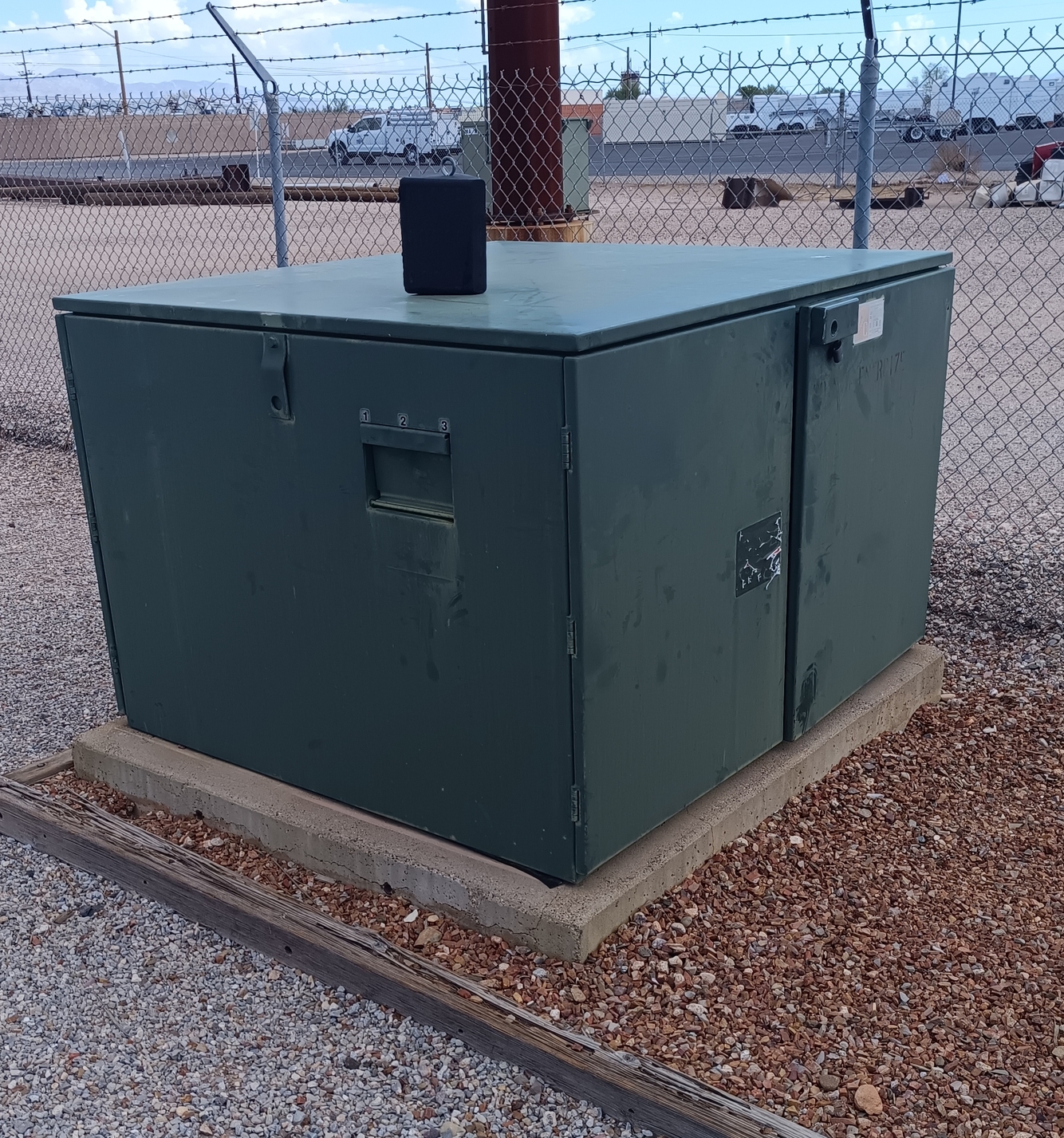

PME/PMH switch cabinet

Question 12

Answer 12

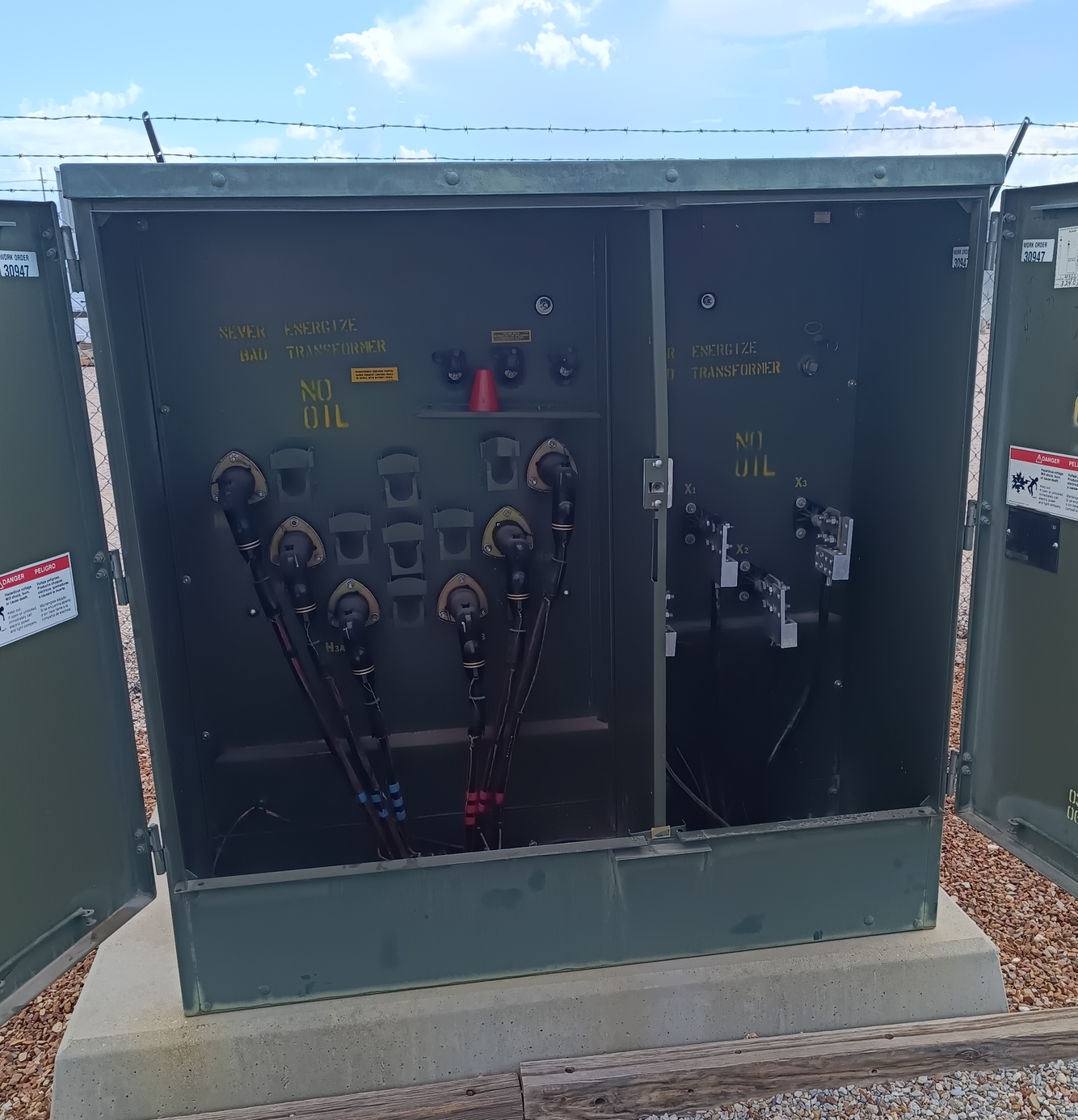

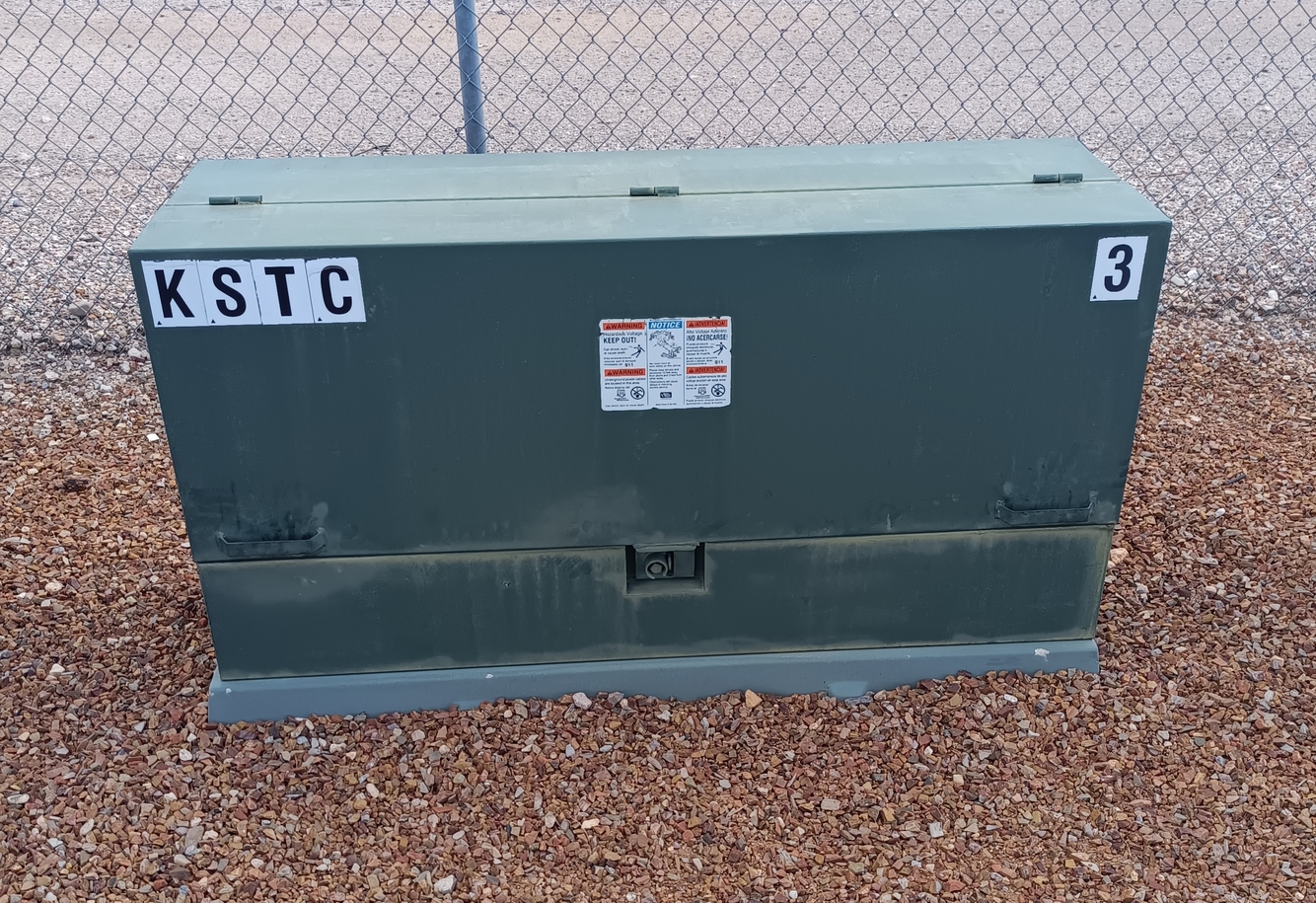

3-phase transformer, pad-mounted

Question 13

Answer 13

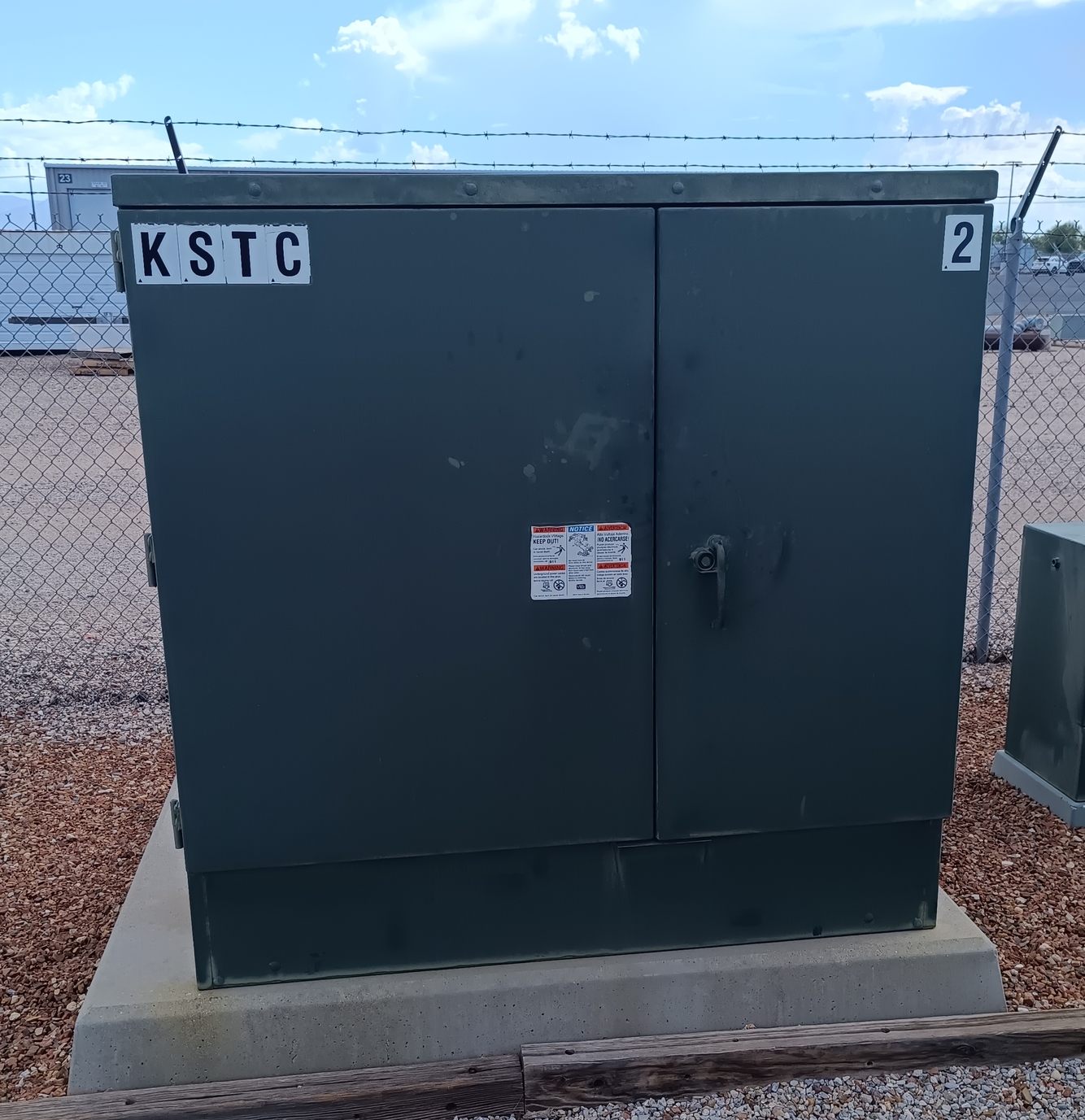

3-phase transformer, pad-mounted

Question 14

Answer 14

J-2 cabinet (inside)

Question 15

Answer 15

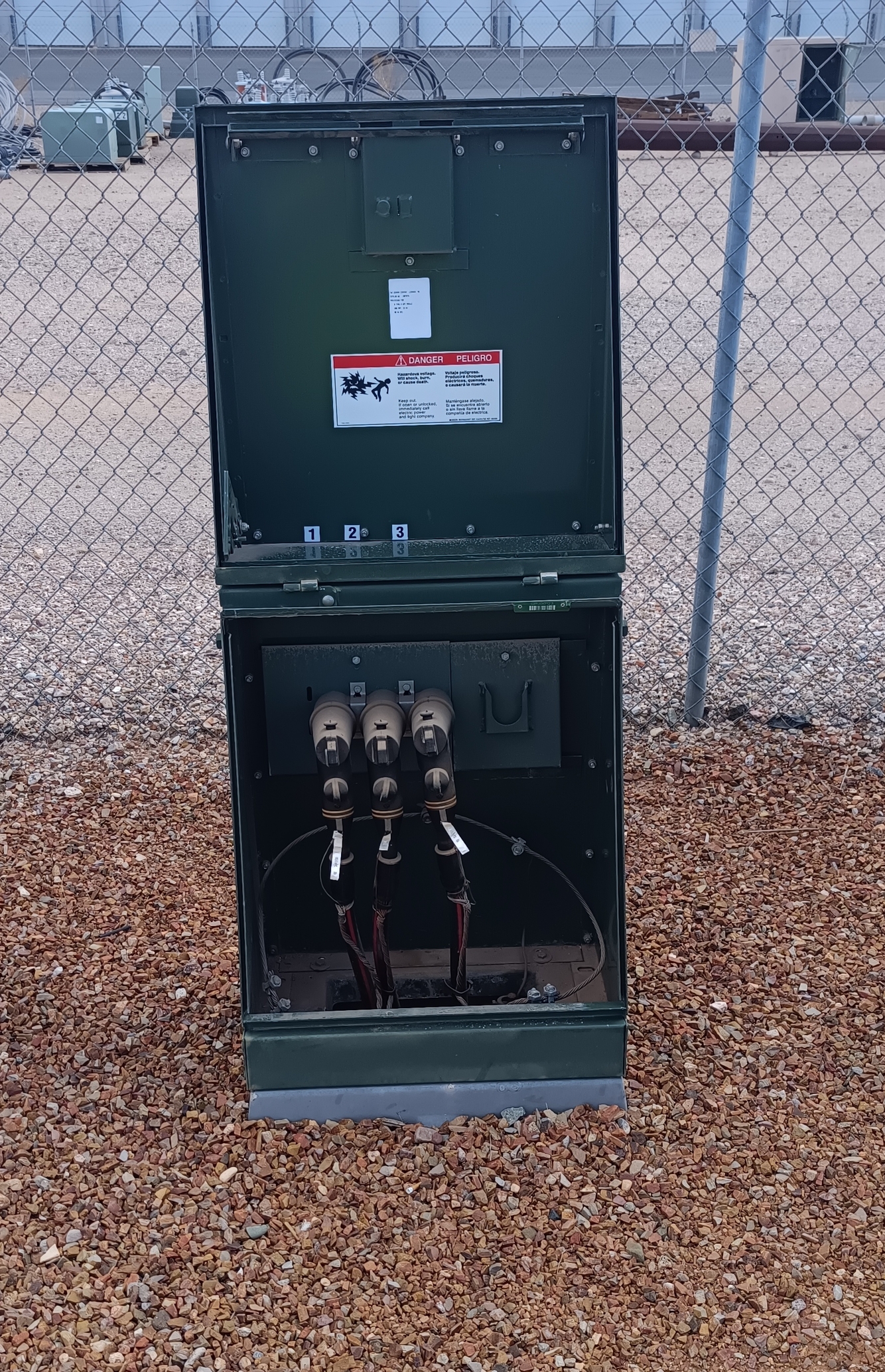

J-2 cabinet

Question 16

Answer 16

J-1 (inside)

Question 17

Answer 17

J-1

Question 18

Answer 18

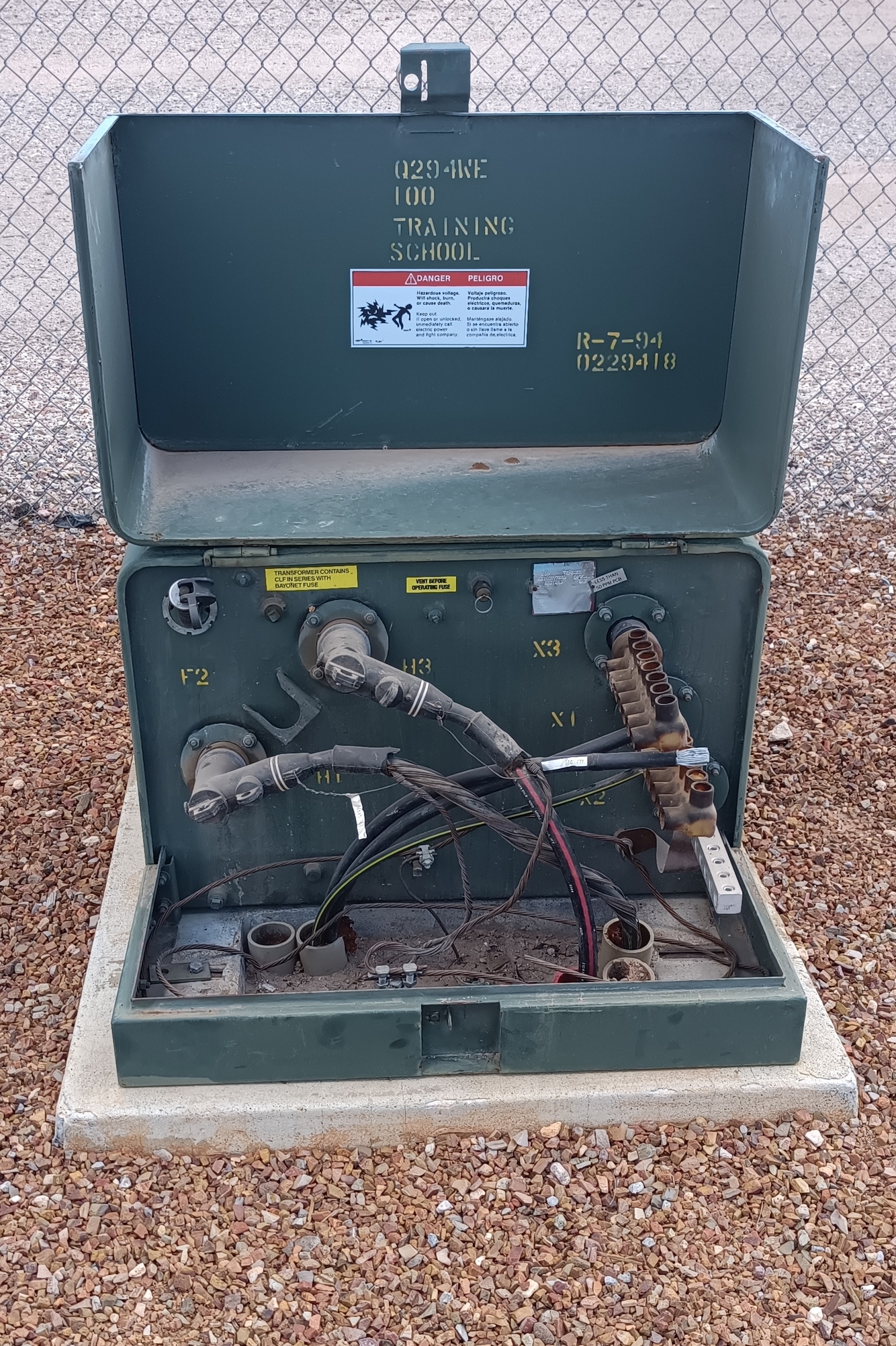

1-phase transformer w/minipad (inside)

Question 19

Answer 19

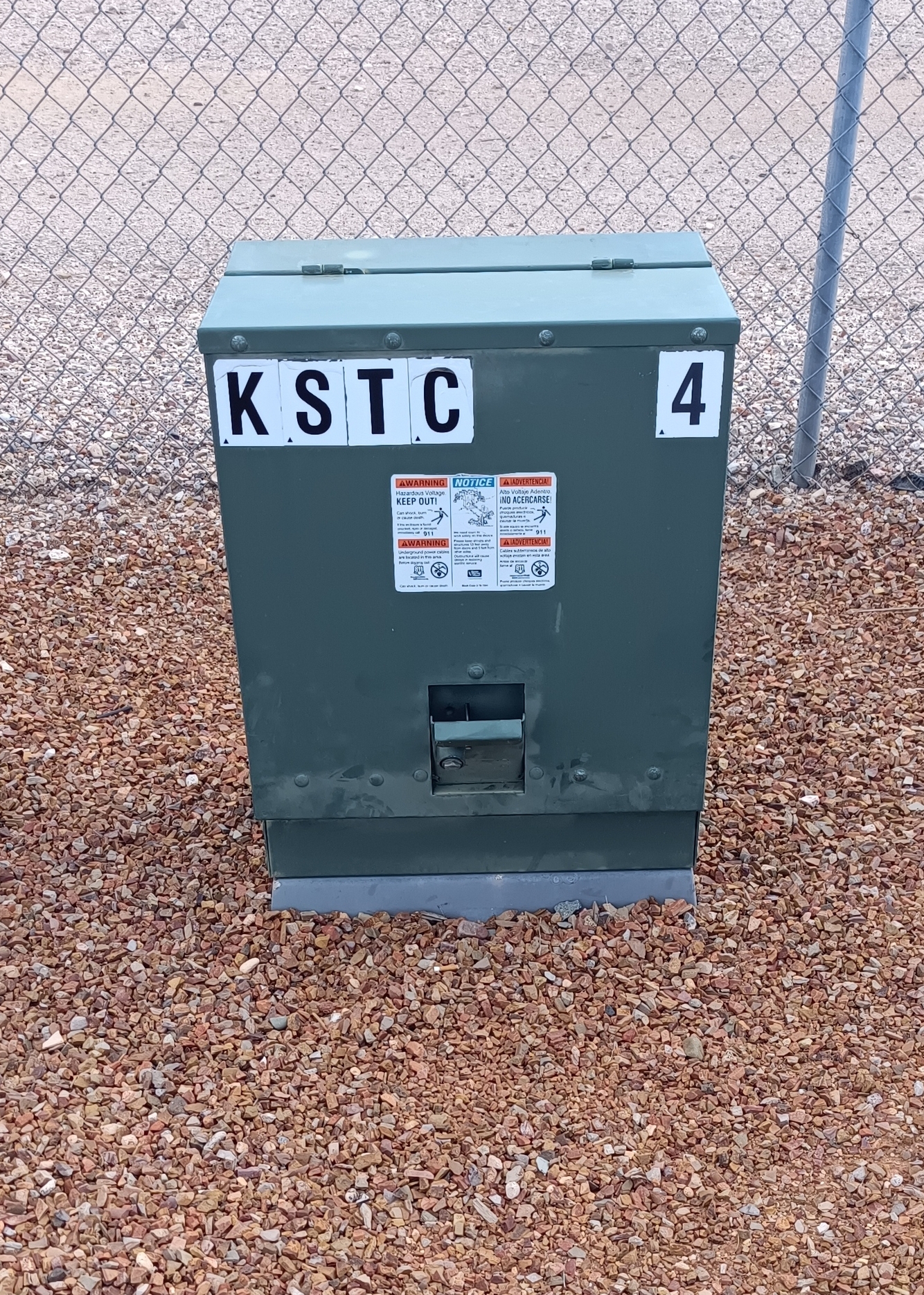

1-phase transformer w/minipad

Question 20

Answer 20

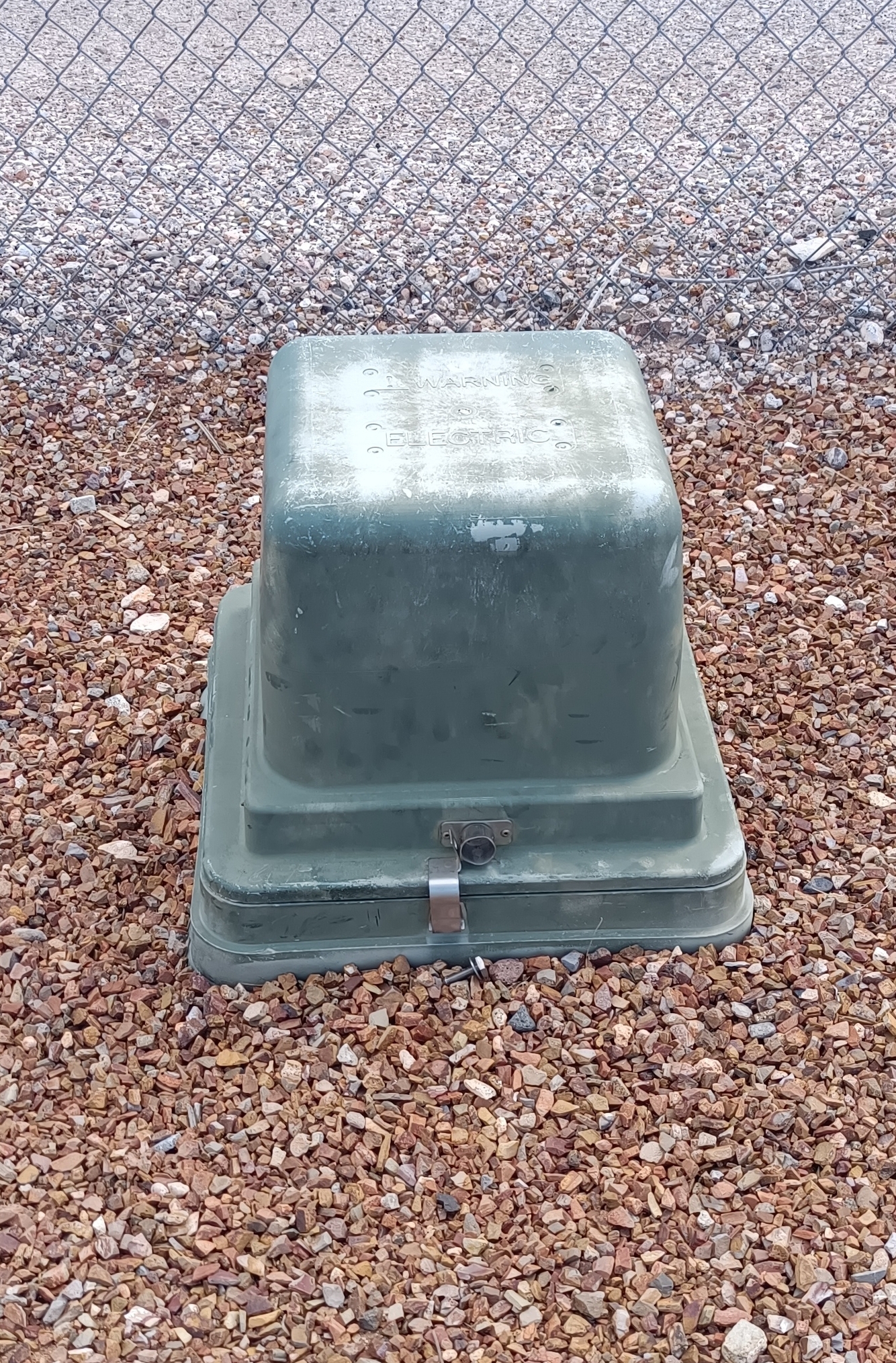

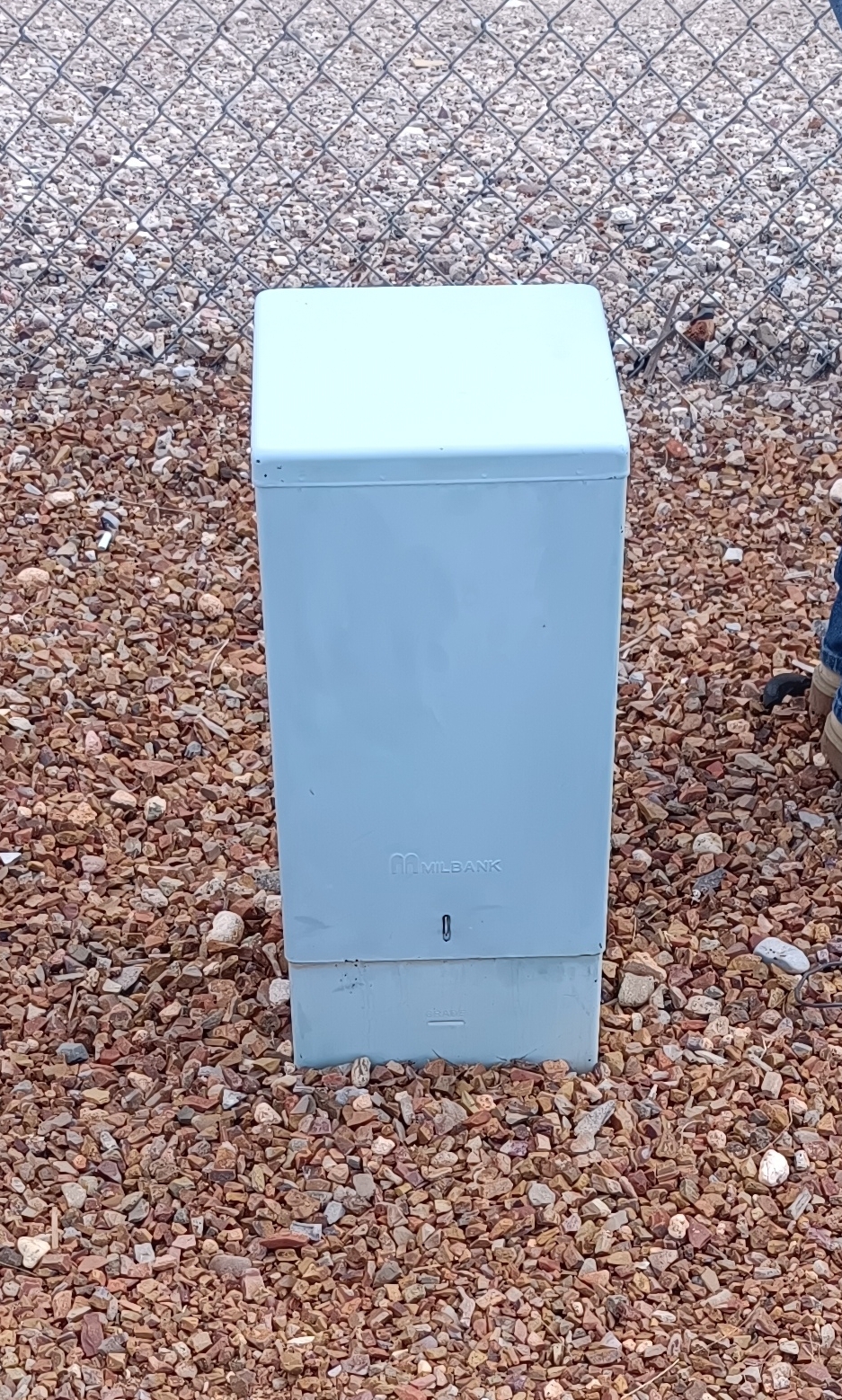

Millbank pedestal

Question 21

Answer 21

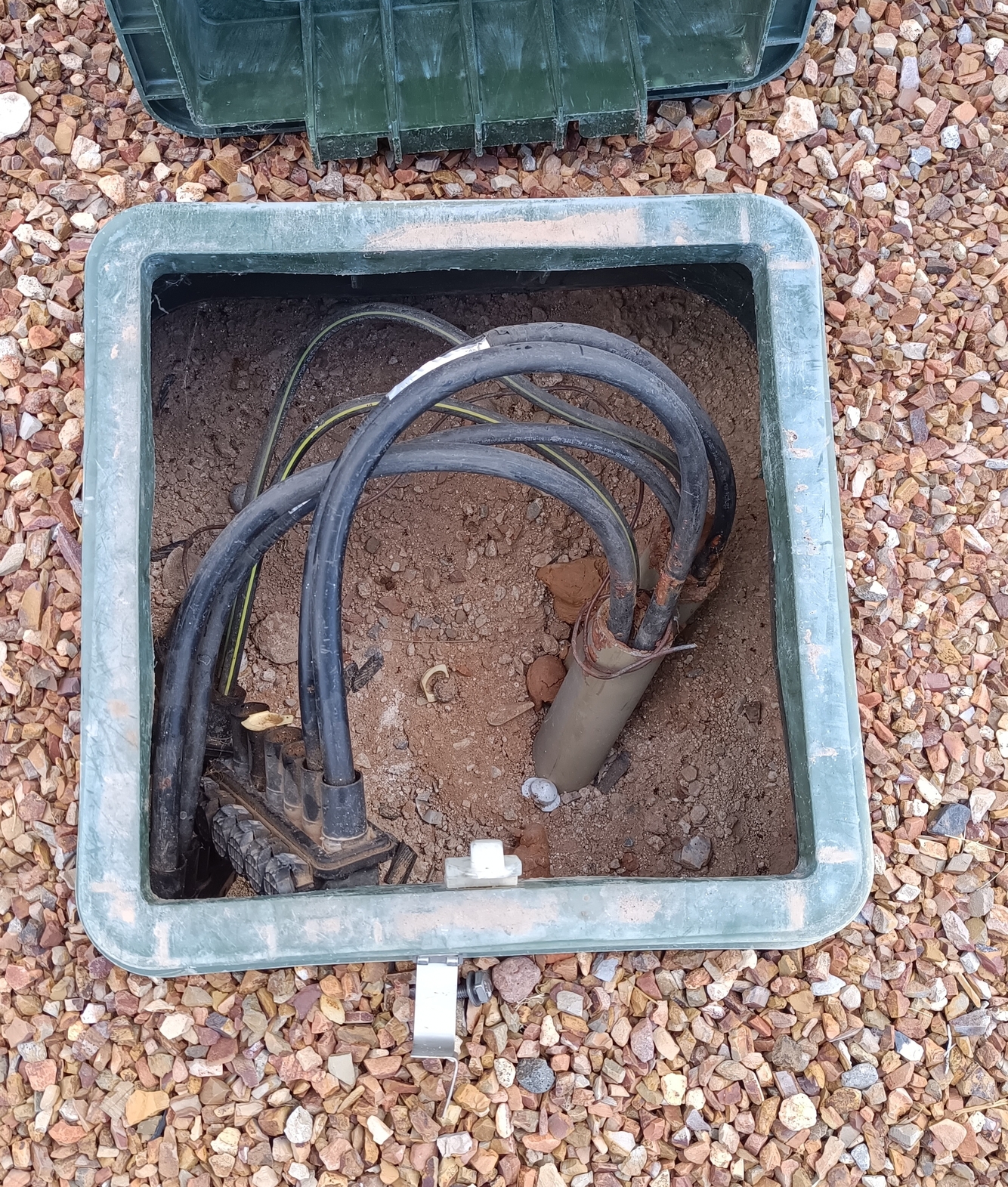

Poly-pad (inside)

Question 22

Answer 22

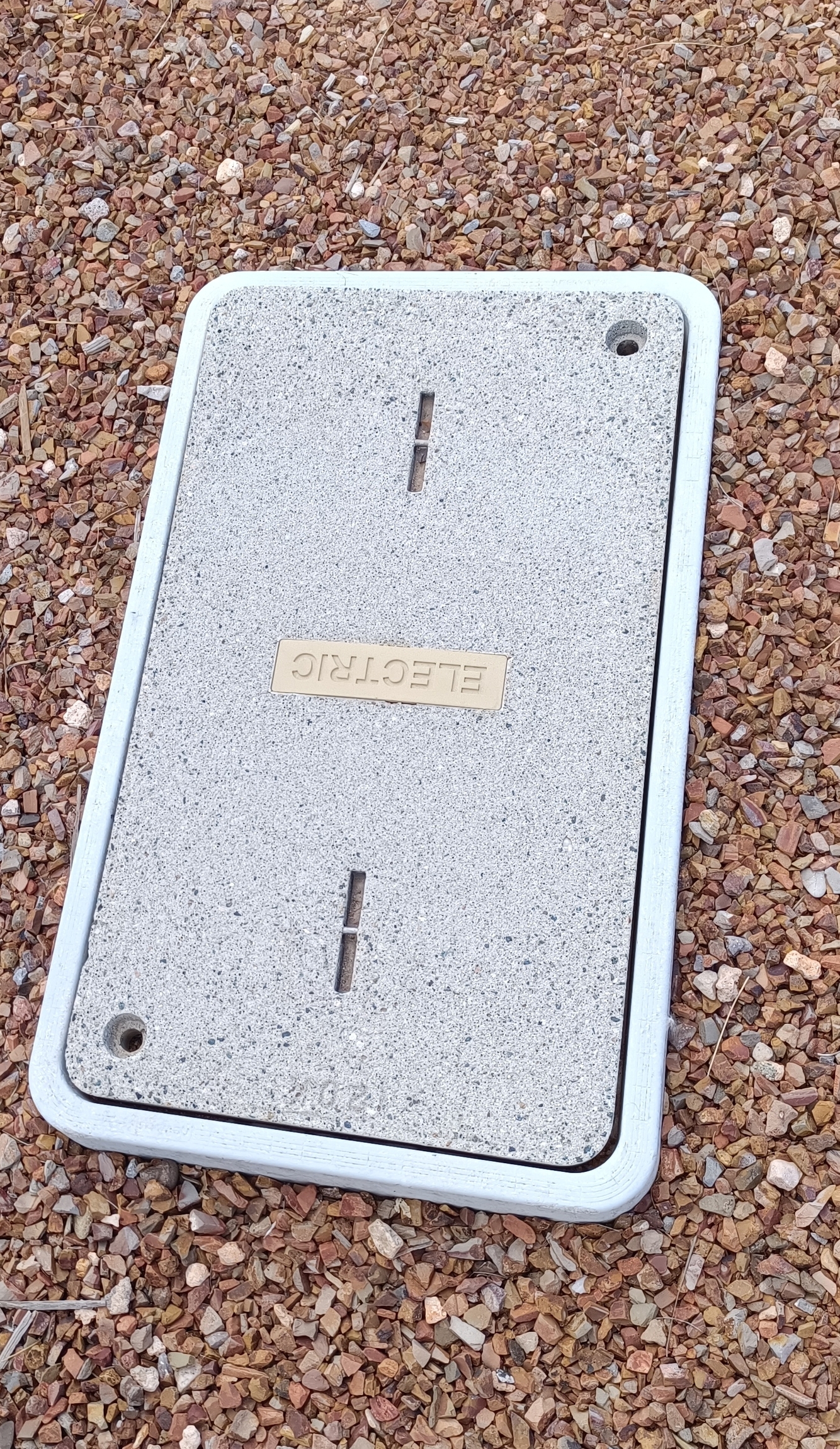

J-10 sub-surface pedestal

Used for 120/240 1-phase secondary

Question 23

Answer 23

Poly-pad

Question 24

What is a 111 transformer?

Answer 24

4kV primary transformer

Question 25

What is a 114 transformer?

Answer 25

13.8kV primary transformer

Question 26

What is a 694 transformer?

Answer 26

120/208v 3 phase secondary transformer

Question 27

What is a 696 transformer?

Answer 27

277-480v 3 phase secondary transformer

Question 28

What identifying number is a 4kV primary transformer?

Answer 28

111

Question 29

What is the identifying number of a 13.8kV primary transformer?

Answer 29

114

Question 30

What is the identifying number of a 120/208v 3-phase secondary transformer?

Answer 30

694

Question 31

What is the identifying number of a 277/480v 3-phase secondary transformer?

Answer 31

696

Question 32

Answer 32

Lightning arrester

Question 33

Answer 33

1-bolt parallel connect

Question 34

Answer 34

35kv (dead end suspension) insulator

Question 35

Answer 35

15kv dead end suspension insulator

Question 36

Answer 36

Wedge connector

Question 37

Answer 37

Dead end shoe

Question 38

Answer 38

Sidewalk guy bracket

Question 39

Answer 39

3-bolt parallel connector

Question 40

Answer 40

Cross arm brace

Question 41

Answer 41

Tangent

Question 42

Answer 42

Ridgepin insulator

Question 43

Answer 43

4kV Primary bushings

Question 44

Answer 44

Secondary bushings

Question 45

Answer 45

Diving board

Question 46

Answer 46

Tied parallel 3-phase bank 120/208v

Question 47

Answer 47

120/240v 3-phase bank floating neutral (halo)

Question 48

Answer 48

Insulink

Question 49

Answer 49

Transclosure

Question 50

Answer 50

Secondary break

Question 51

Answer 51

CT can

Question 52

Answer 52

CT switches

Question 53

Answer 53

Johnny ball

Question 54

Answer 54

Bayonet

Question 55

Answer 55

In-line disconnects

Question 56

What is the lower cross brace called?

Answer 56

Cut out arm or drop arm

Question 57

Answer 57

In-line disconnects

Question 58

Answer 58

Double "T" tap

Question 59

What is the wire connecting the two lines called?

Answer 59

Fly tap

Question 60

Answer 60

Underslung disconnects

Question 61

What condition is this pole in?

Answer 61

Shell rot

Question 62

Answer 62

13kV to 4kV Conversion bank

Question 63

Answer 63

Vice-top insulator

Question 64

Answer 64

Vista switch

Question 65

A 7/16" guy wire is required when?

Answer 65

Whenever feeder wire 477 ACSR or 4/0 is on the pole. ## footnote A 5/16" guy wire is used any other time.

Question 66

Answer 66

Pad mounted capacitor

Question 67

Answer 67

Protective can for meter
