Map Legend

Question 1

Answer 1

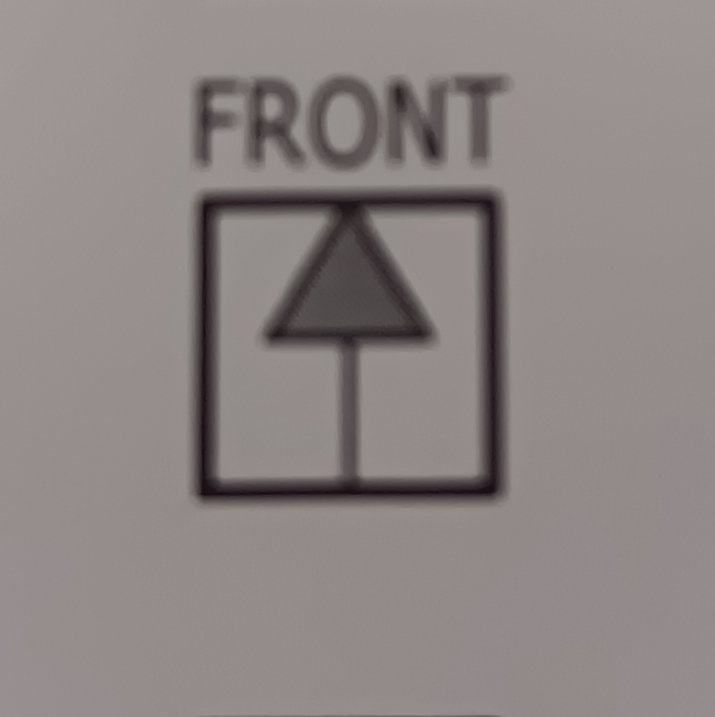

1-phase pad mounted transformer

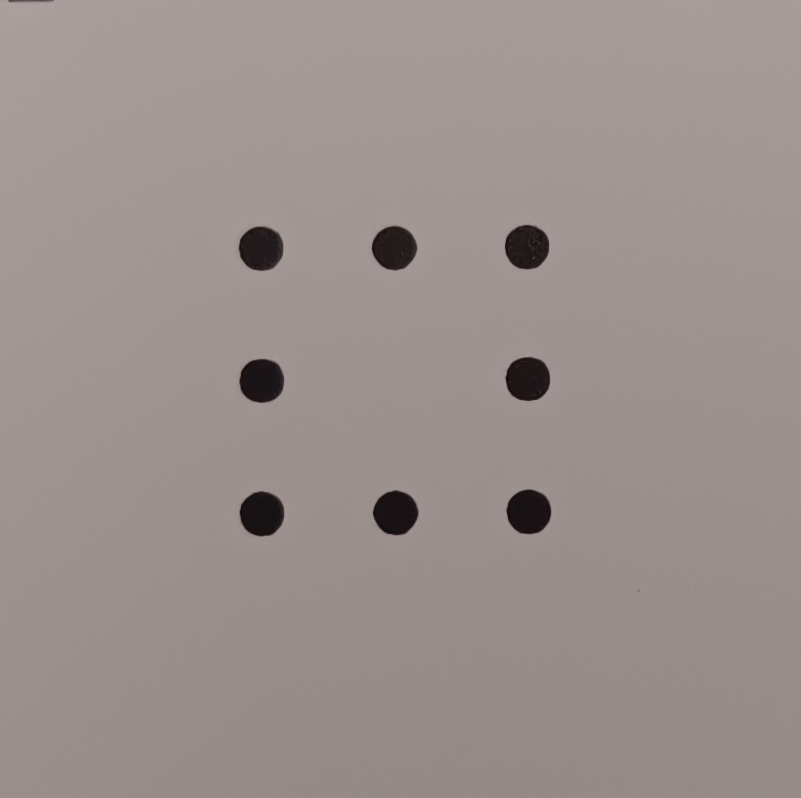

Question 2

Answer 2

J-1 cabinet

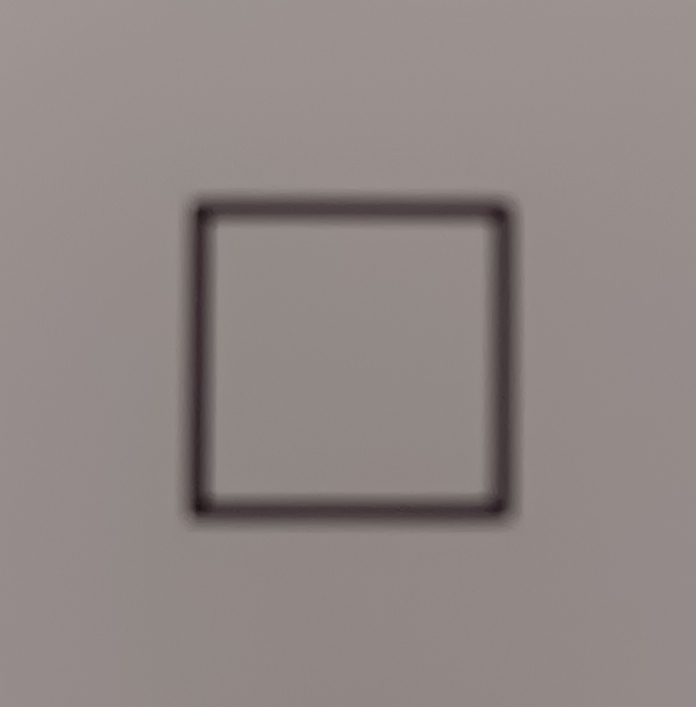

Question 3

Answer 3

Secondary pedestal, such as a milbank or poly-pad.

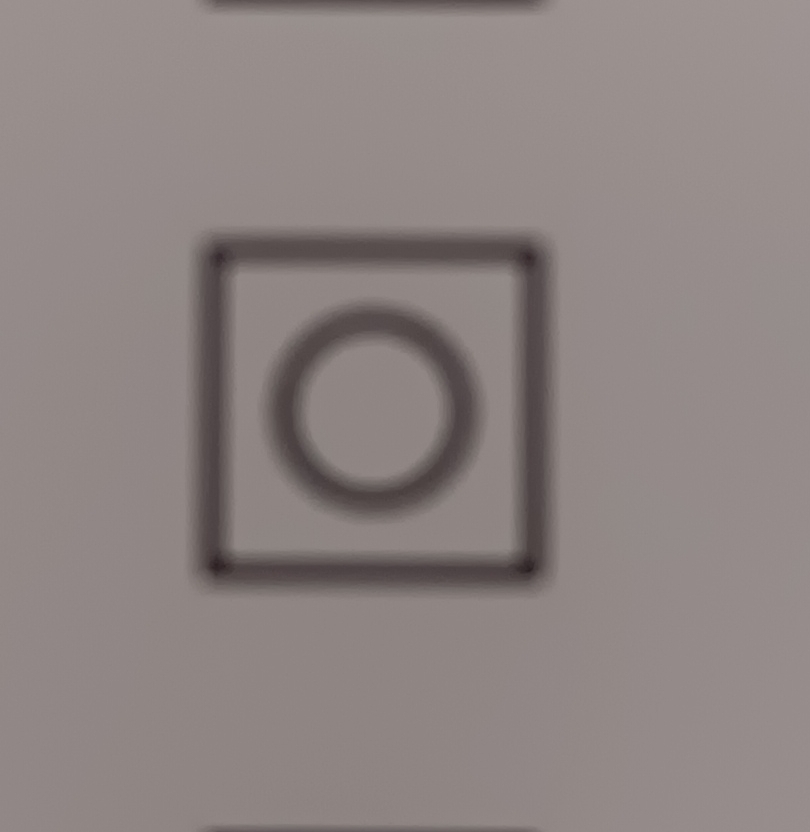

Question 4

Answer 4

J-10 sub-surface secondary pedestal

Question 5

Answer 5

A. 2-wire service
B. 3-wire service
C. 4-wire service
D. 2-wire secondary
E. 3-wire secondary
F. 4-wire secondary
G. Primary single phase
H. Primary two phase
I. Primary three phase

Question 6

Answer 6

A. TEP pole non-joint use
B. TEP pole joint use
C. Telco pole joint use
D. Pole removal
E. Steel structure
F. 3rd party owned pole
G. 1-ph OH transformer (proposed)
H. 3-ph OH open delta bank (proposed)
I. 3-ph OH transformer bank (proposed)
J. 1-ph OH transformer (in-service)
K. 3-ph OH open delta bank (in-service)
L. 3-ph OH transformer bank (in-service)

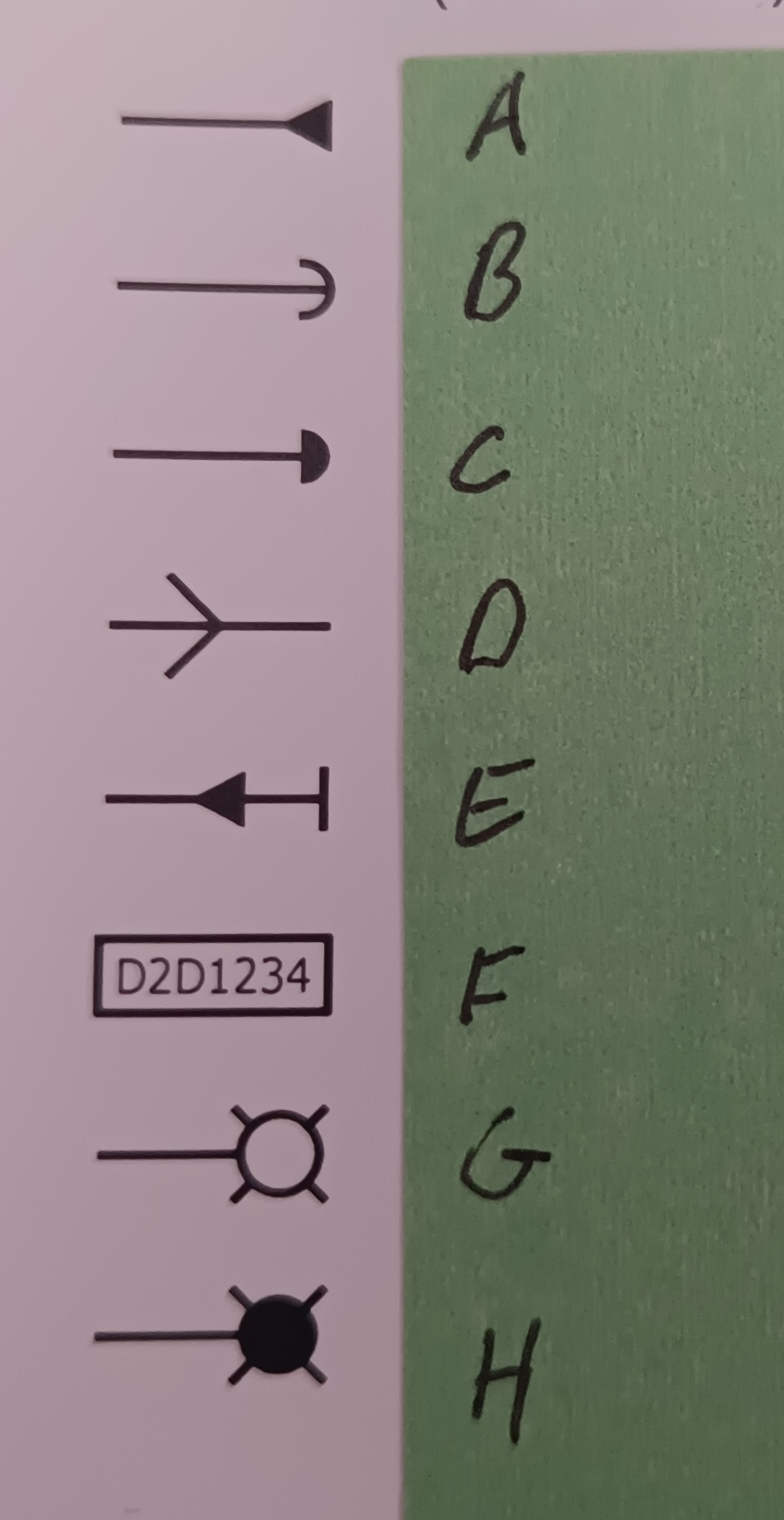

Question 7

Overhead Legend

Answer 7

A. Anchor guy
B. Anchor guy (proposed)
C. Anchor guy (removal)
D. Span guy
E. Push brace anchor
F. Dusk to dawn identification
G. Dusk to dawn light
H. Dusk to dawn light (removal)

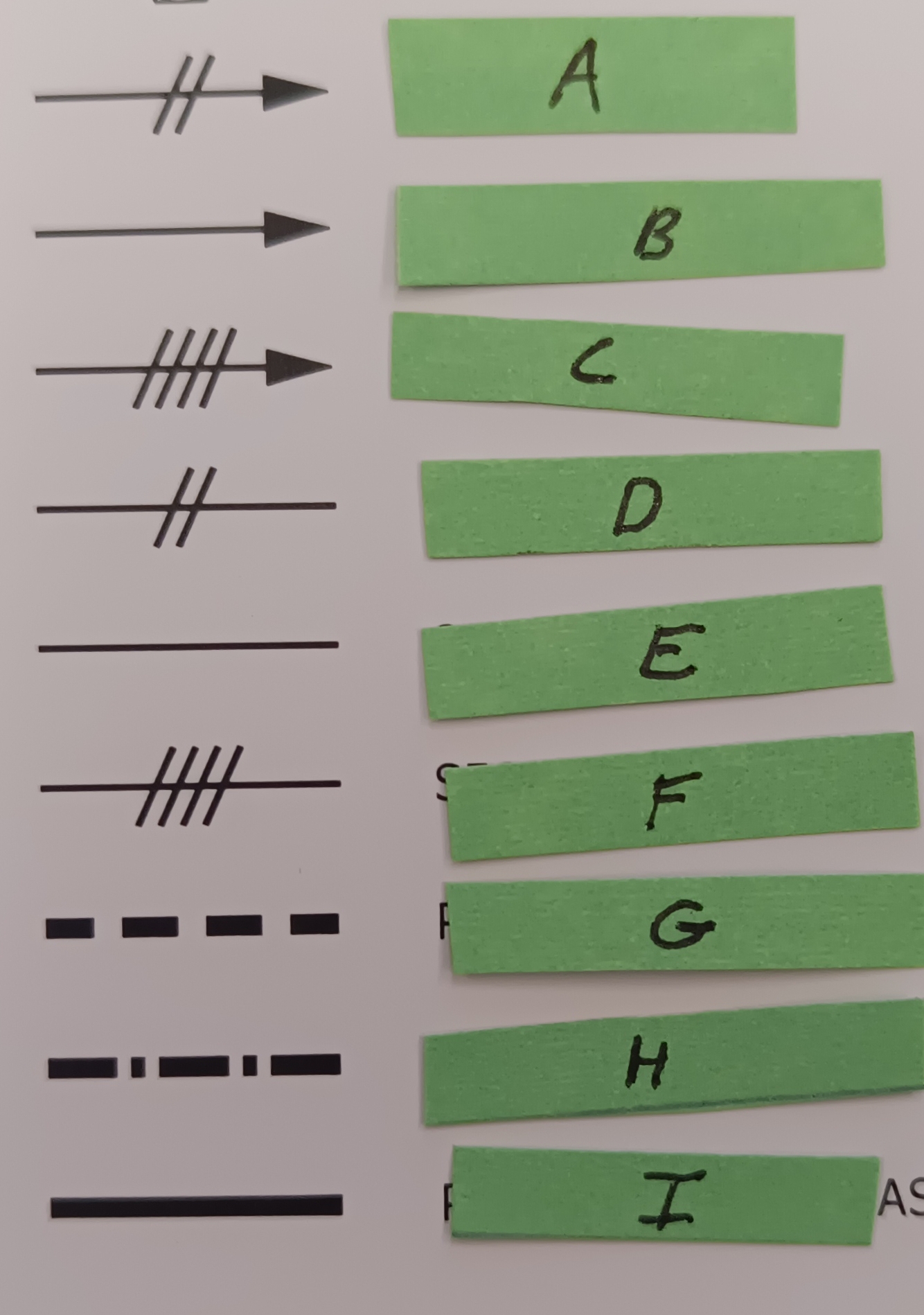

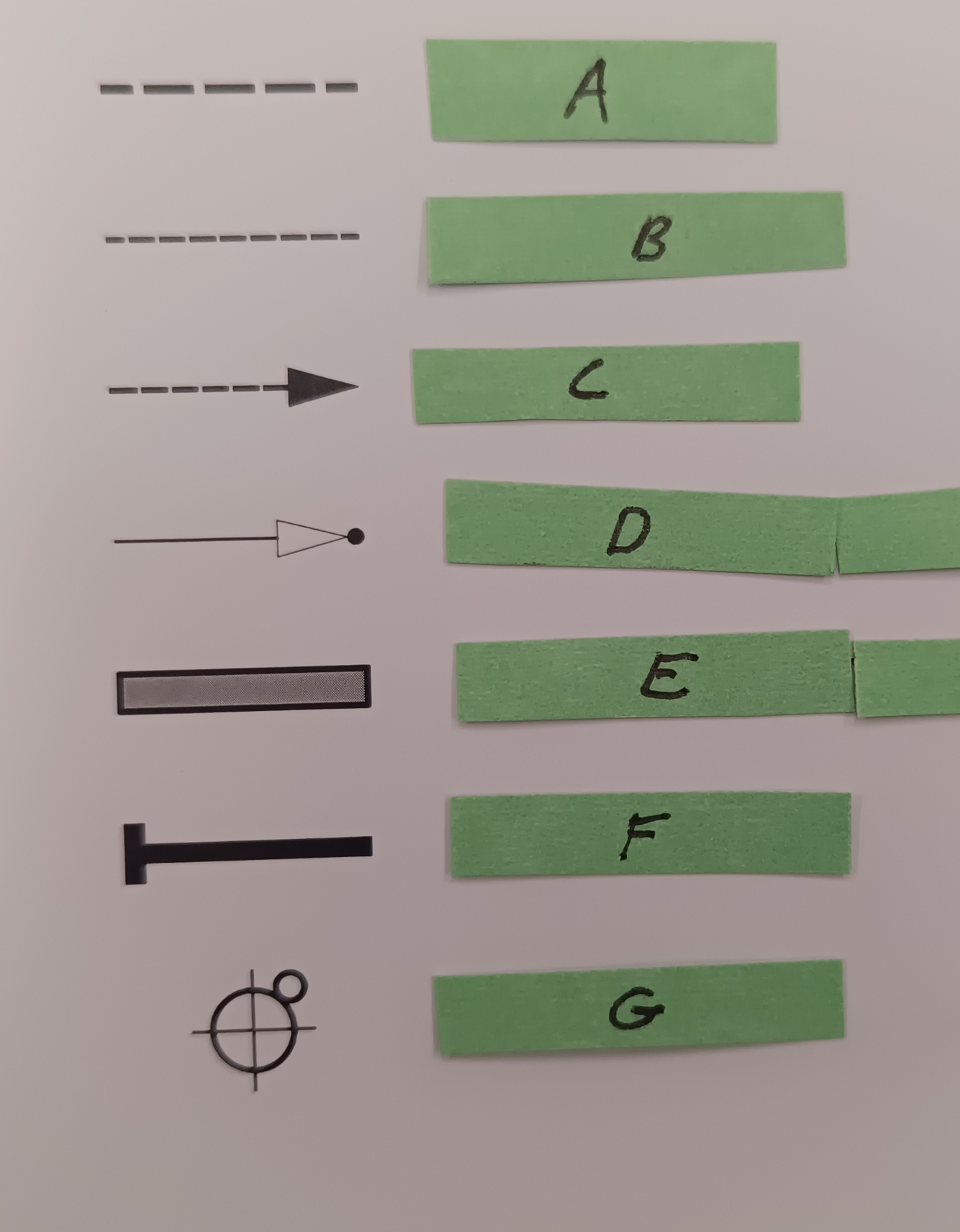

Question 8

Underground, Single Phase

Answer 8

A. Primary cable UG
B. Secondary cable UG
C. Service cable UG
D. Meter/service entrance UG
E. Sleeve or spare conduit
F. Duct stub
G. Riser quadrant

Question 9

Legend: Underground, 3-ph

Answer 9

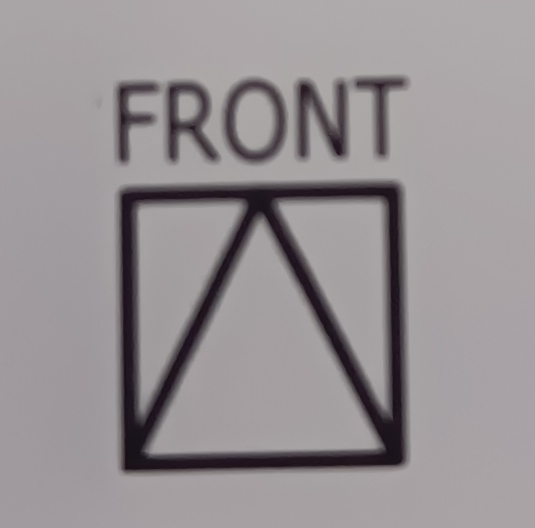

A. 3-ph pad-mounted transformer
B. PME switchgear (proposed)
C. Vista switchgear
D. PME/PMH switchgear (existing)
E. J-2 or J-6 cabinet
F. Pull box (manhole)
G. Pull box (lid type)
H. J-30 sub-surface pedestal

Question 10

Legend: Underground, 3-ph

Answer 10

A. Capacitor (pad-mounted)
B. Riser quadrant
C. Customer-owned 4-wire service
D. Company-owned secondary
E. Primary cable (green=OH, blue=UG)

Question 11

Answer 11

Bumper posts

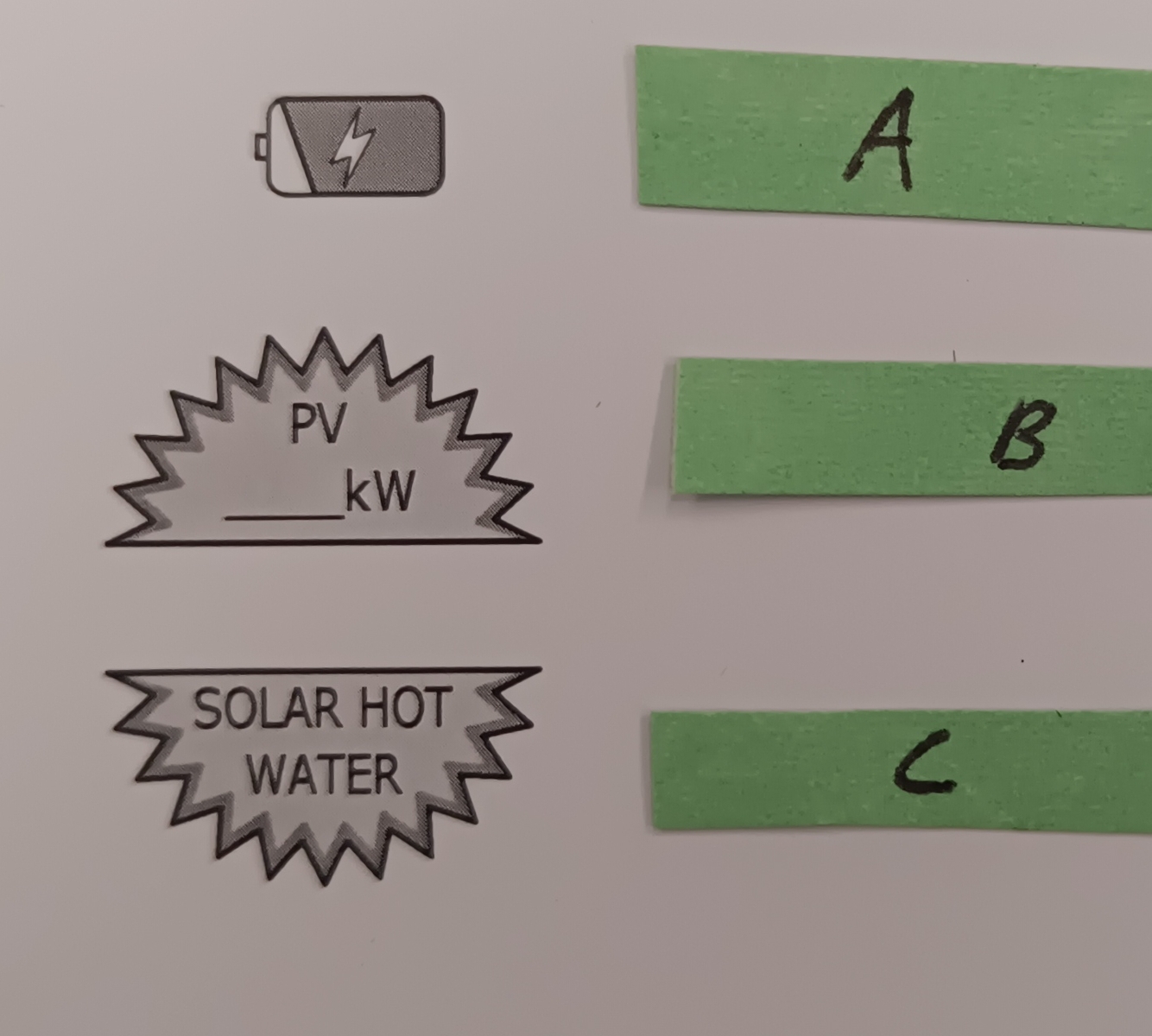

Question 12

Answer 12

A. Battery storage
B. Photovoltaic (P.V. solar)
C. Hot water (solar)
