FINAL COPY

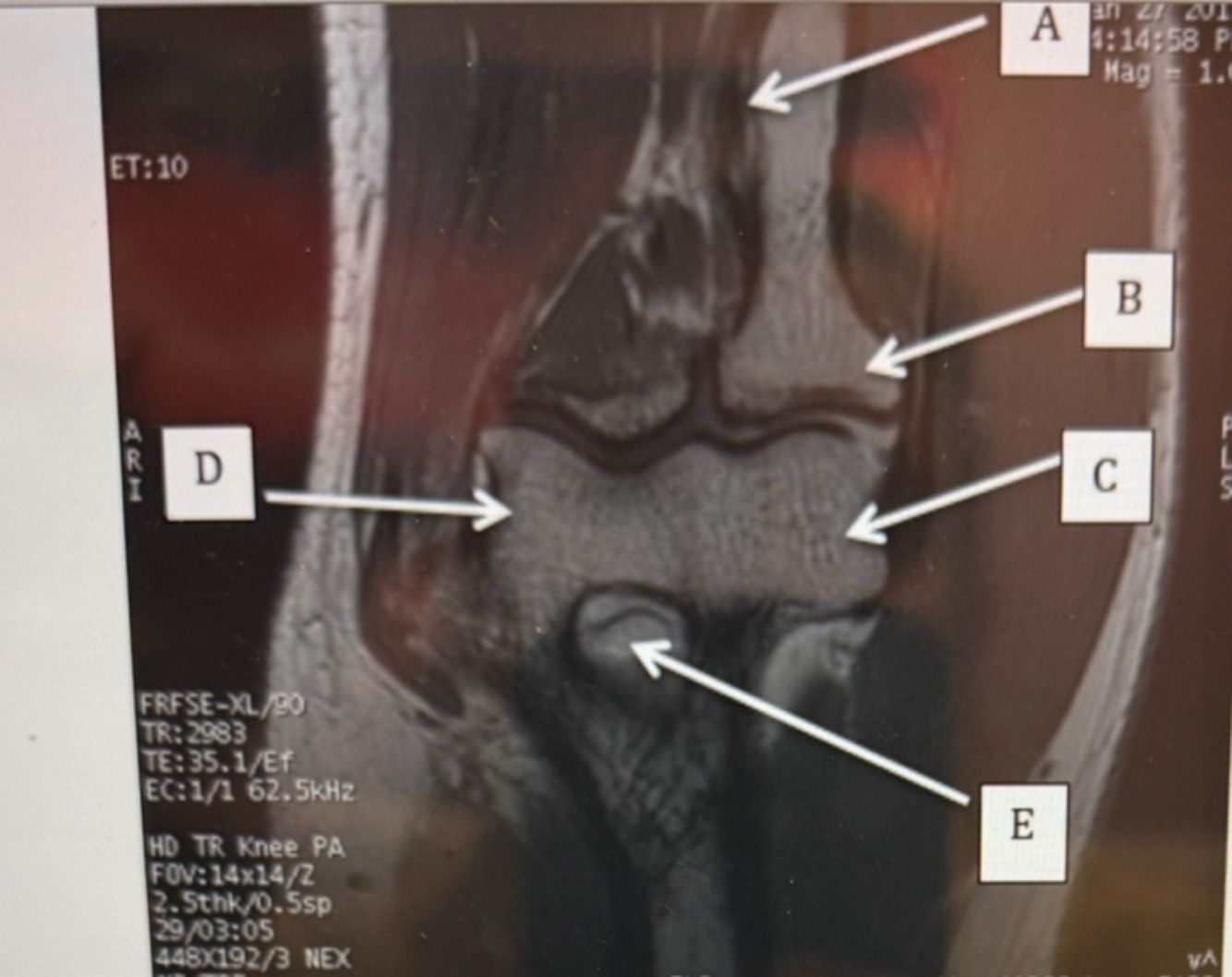

Question 1

Label B
A. Flexor Tendon
B. Extensor Tendon
C. Ulnar Collateral Ligament
D. Radial Collateral Ligament

Answer 1

B. Extensor Tendon

Question 2

Capitulum
Radial head
Trochlear

Answer 2

B radial head
C capitulum
D trochlear

inverted elbow

Question 3

To get better fat saturation on a humerus scan, which of the following techniques may be used:
a) break the slices and FOV into two small stacks
b) use shim to cover the slices
c) use STIR instead of a T2 FS
d) position the patient such that humerus is away from the side of the bore and closer to the center.

a) a and b only
b) a and c only
c)a, b, and d only
d) all of the above

Answer 3

d) all of the above

Question 4

While scanning Elbow with hx of Bicep tear, what is the most important area we have to cover?
A. Ulnar tuberosity
B. Radial tuberosity
C. Olecranon process

Answer 4

Radial tuberosity

Question 5

When patient comes in with Dx of Kienbocks’s disease, which bone is area of interest?
A. Lunate
B. Scapular
C. Schapoid
D. Trapezium

Answer 5

Lunate

Question 6

What passes through the carpal tunnel?

A. Flexor Tendon
B. Extensor tendon
C. Median nerve

Answer 6

C. MEDIAN

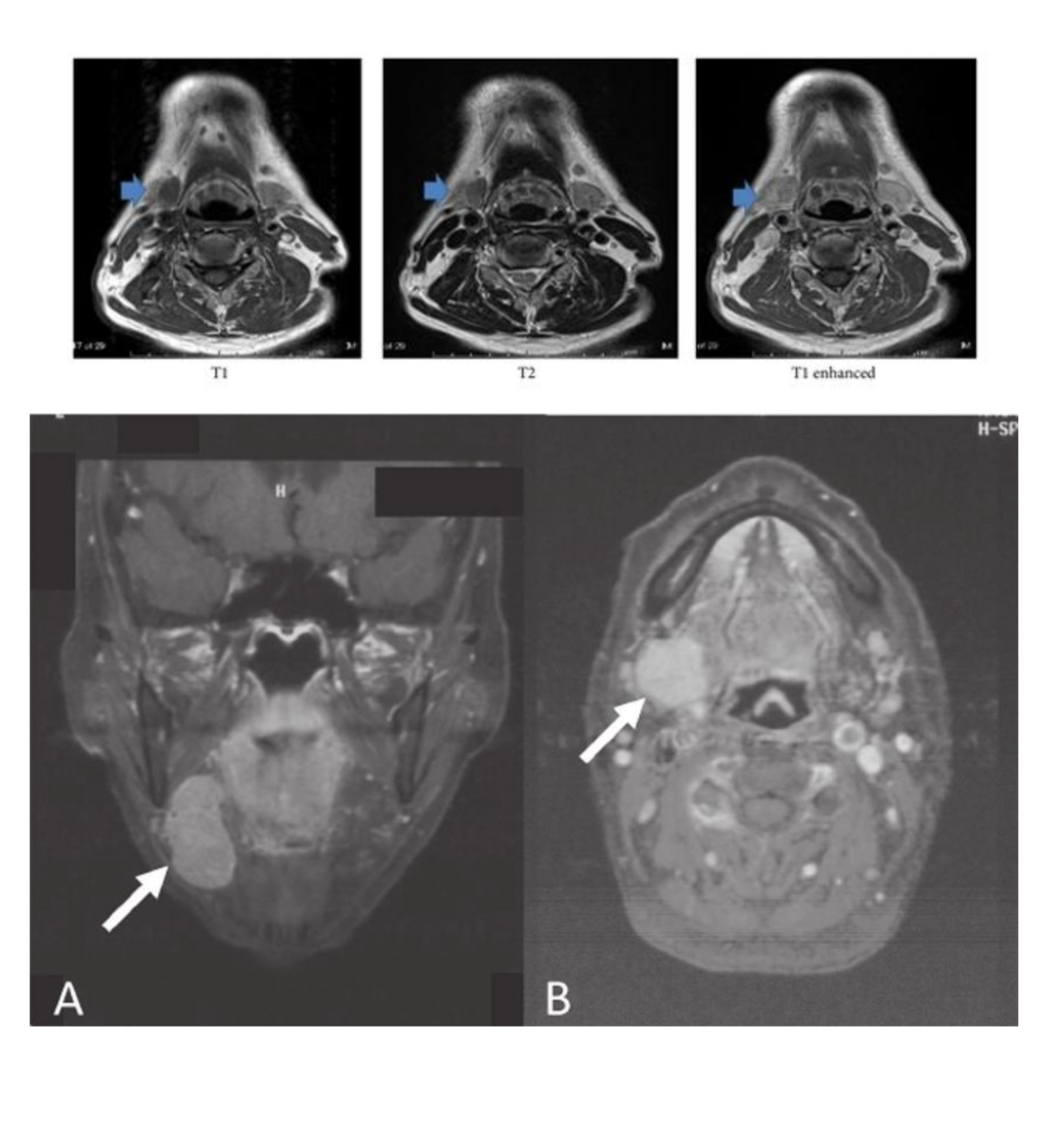

Question 7

What pathology indicated?

Answer 7

Mass - right parotid gland

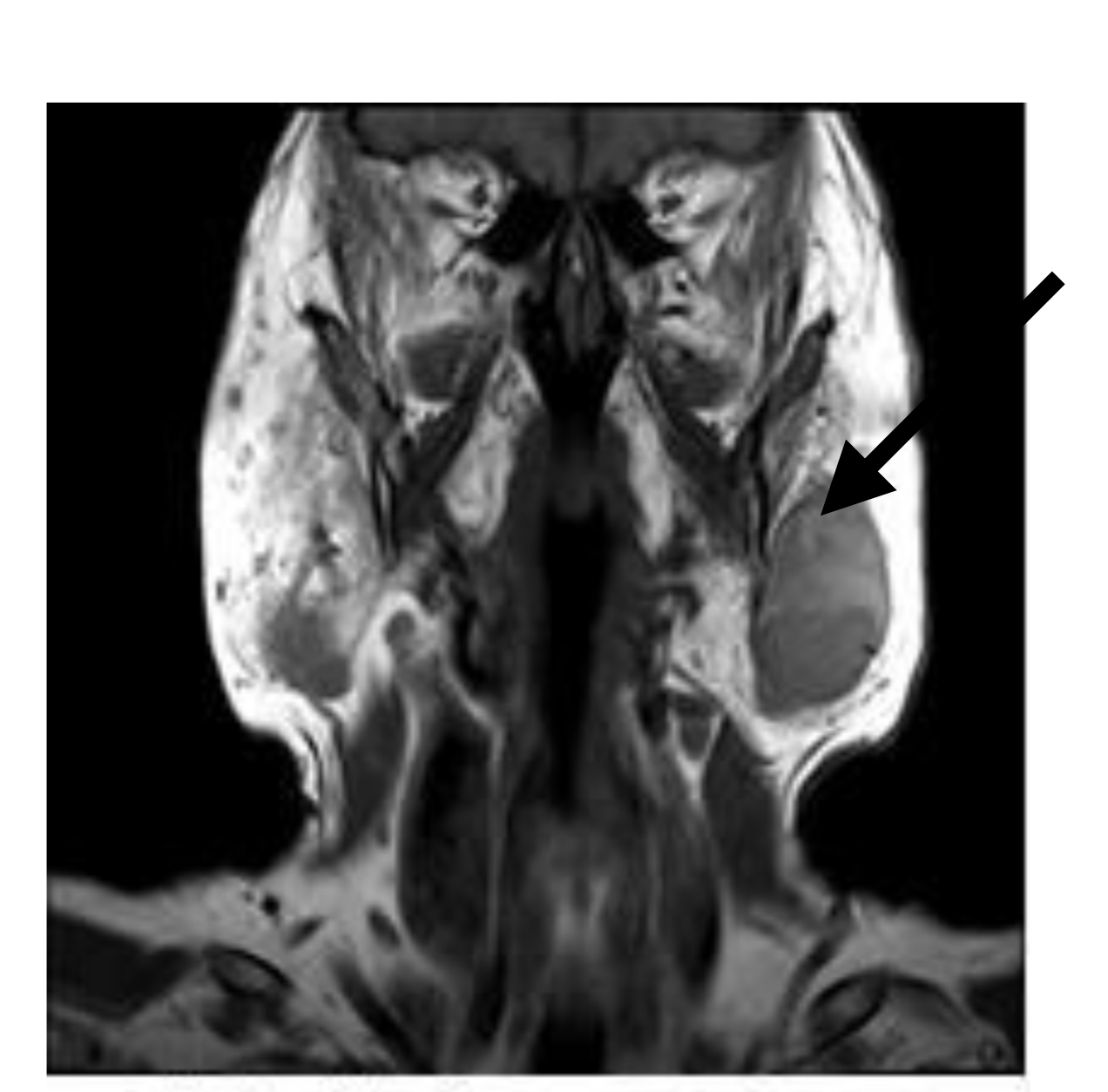

Question 8

What does arrow indicate?

Answer 8

left parotid mass

Question 9

What does arrow indicate ?

Answer 9

submandibular gland

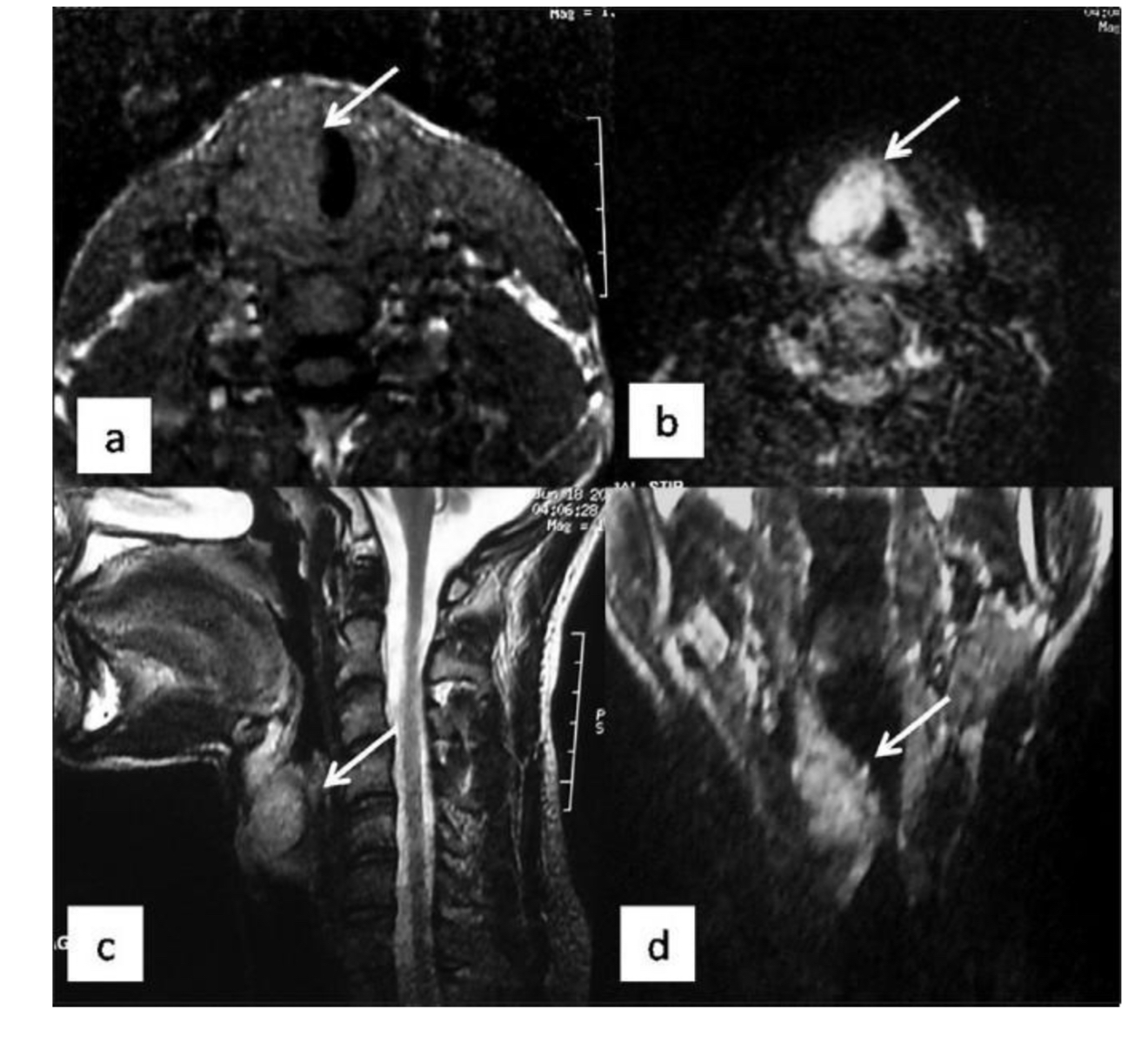

Question 10

What does arrow indicate?

Answer 10

Vocal cord Schwannoma

Question 11

Match:
Mandibular fossa,
External auditory meatus (EAM),
Mastoid air cells,
Condyloid process of mandible (condyle), Articular eminence

Answer 11

A. Mandibular fossa
B. Articular eminence
C. Condyloid process of mandible (condyle)
D. Mastoid air cells
E. External auditory meatus (EAM)

Question 12

MATCH
Mandibular fossa
Condyloid process
Articular eminence
Articular disk

Answer 12

C - Mandibular fossa
D - Condyloid process
A - Articular eminence
B - Articular disk

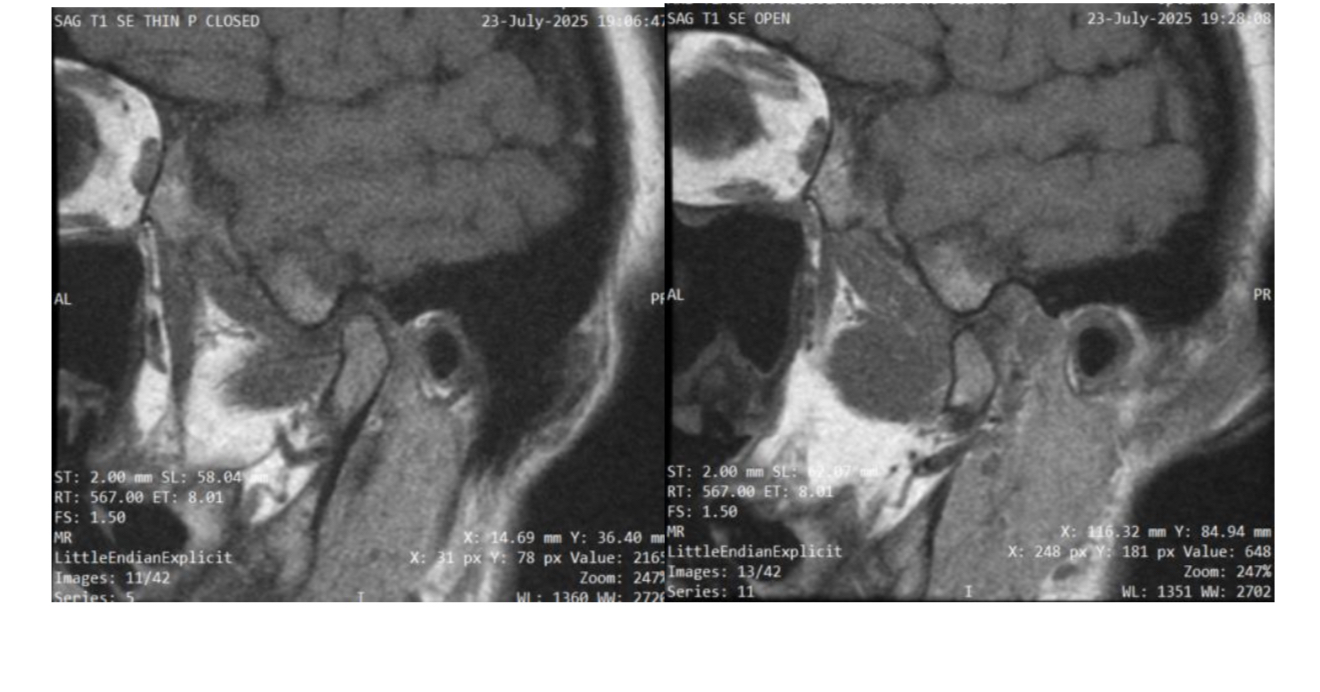

Question 13

What plane

Answer 13

Sagittal oblique TMJ (closed vs. open mouth)

Question 14

To get better fat saturation on a humerus scan, the following techniques may be used:
a) break the slices and FOV into two small stacks
b) use shim to cover the slices
c) use STIR instead of a T2 FS
d) position the patient such that humerus is away from the side of the bore and closer to the center.

a) a and b only
b) a and c only
c) a, b, and d only
d) all of the above

Answer 14

d) all of the above

Question 15

While scanning Elbow with hx of Bicep tear, what is the most important area we have to cover?
A. Ulnar tuberosity
B. Radial tuberosity
C. Olecranon process

Answer 15

B. Radial tuberosity

Question 16

MATCH to letters
1. Subscapularis muscle
2. Inferior labrum
3. Glenoid
4. Supraspinatus muscle
5. Clavicle
6. Superior labrum

Question 17

On a sagittal T-spine localizer image, the vertebral level can be determined by using:
a) The xyphoid as a landmark, and counting up to T12
b) The sternal notch as a landmark and counting down from TI
c) A larger FOV and counting down from C2
d) Lead markers to mark T12 and T1 on large FOV images

Answer 17

c) A larger FOV and counting down from C2

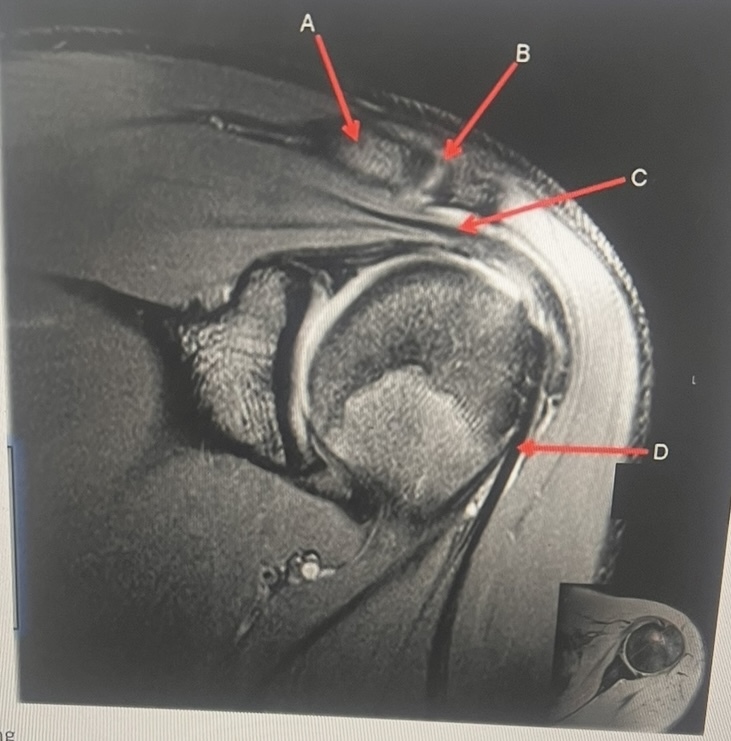

Question 18

clavicle, AC joint, supraspinatus tendon, biceps tendon

Answer 18

A. clavicle
B. AC joint
C. supraspinatus tendon
D. biceps tendon

Question 19

When scanning the brachial plexus axial slice alignment is ___________ to the long axis (C4 to C7) with coverage from C3 through T3 whereas coronal slice alignment is ___________ to the long axis (C4 to C7) with coverage from Anterior neck wall to posterior aspect of the spinal cord.

Answer 19

perpendicular , parallel

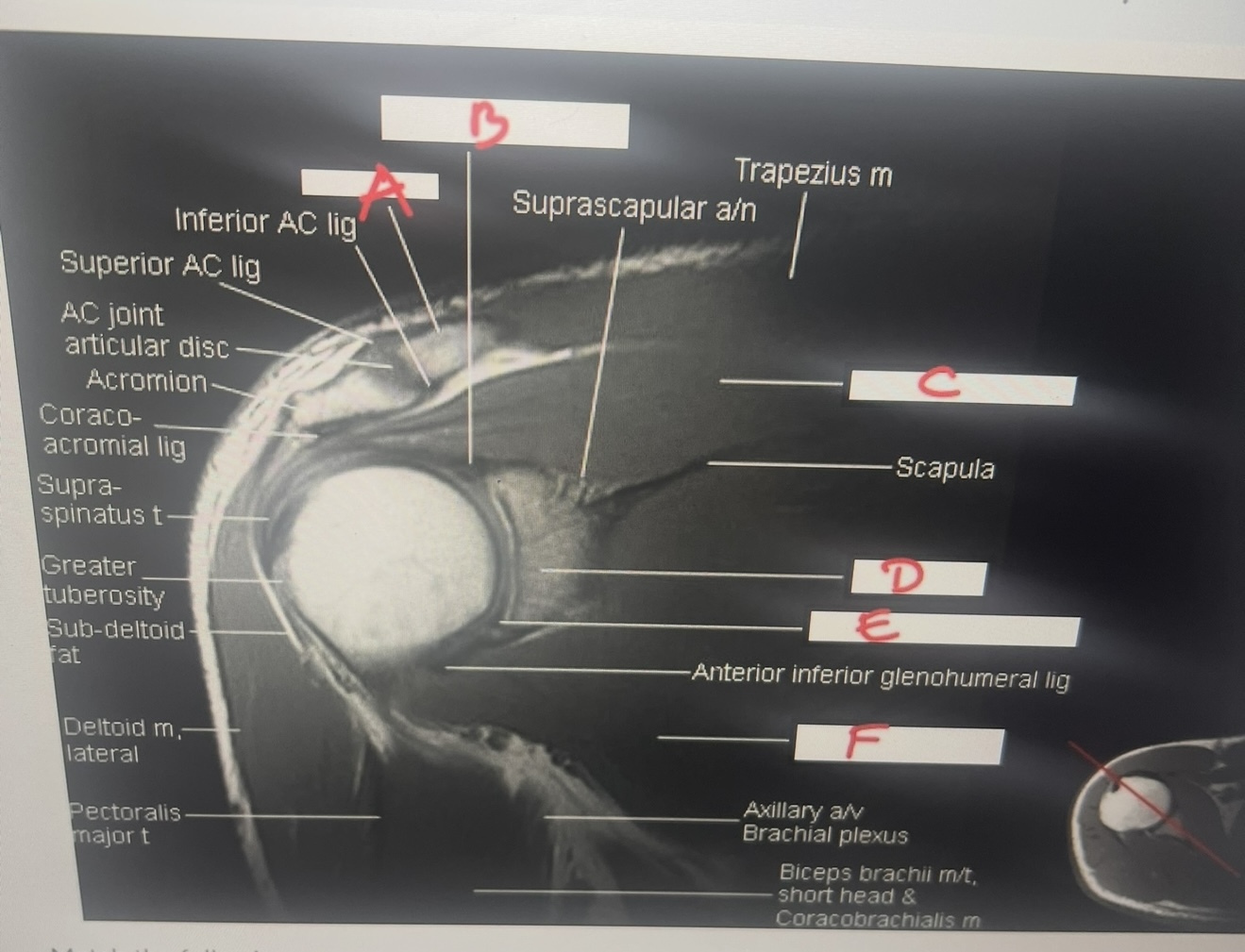

Question 20

1. Subscapularis muscle
2. Inferior labrum
3. Glenoid
4. Supraspinatus muscle
5. Clavicle
6. Superior labrum

Answer 20

A. clavicle
B. superior labrum
C. supraspinatus muscle
D. glenoid
E. inferior labrum
F. subscapularis muscle

Question 21

Patient has hx of prolactinoma and is ordered brain w/wo, what exam will you scan?
A. MS Brain
B. Orbits
C. IAC
D. Pituitary

Answer 21

D. Pituitary

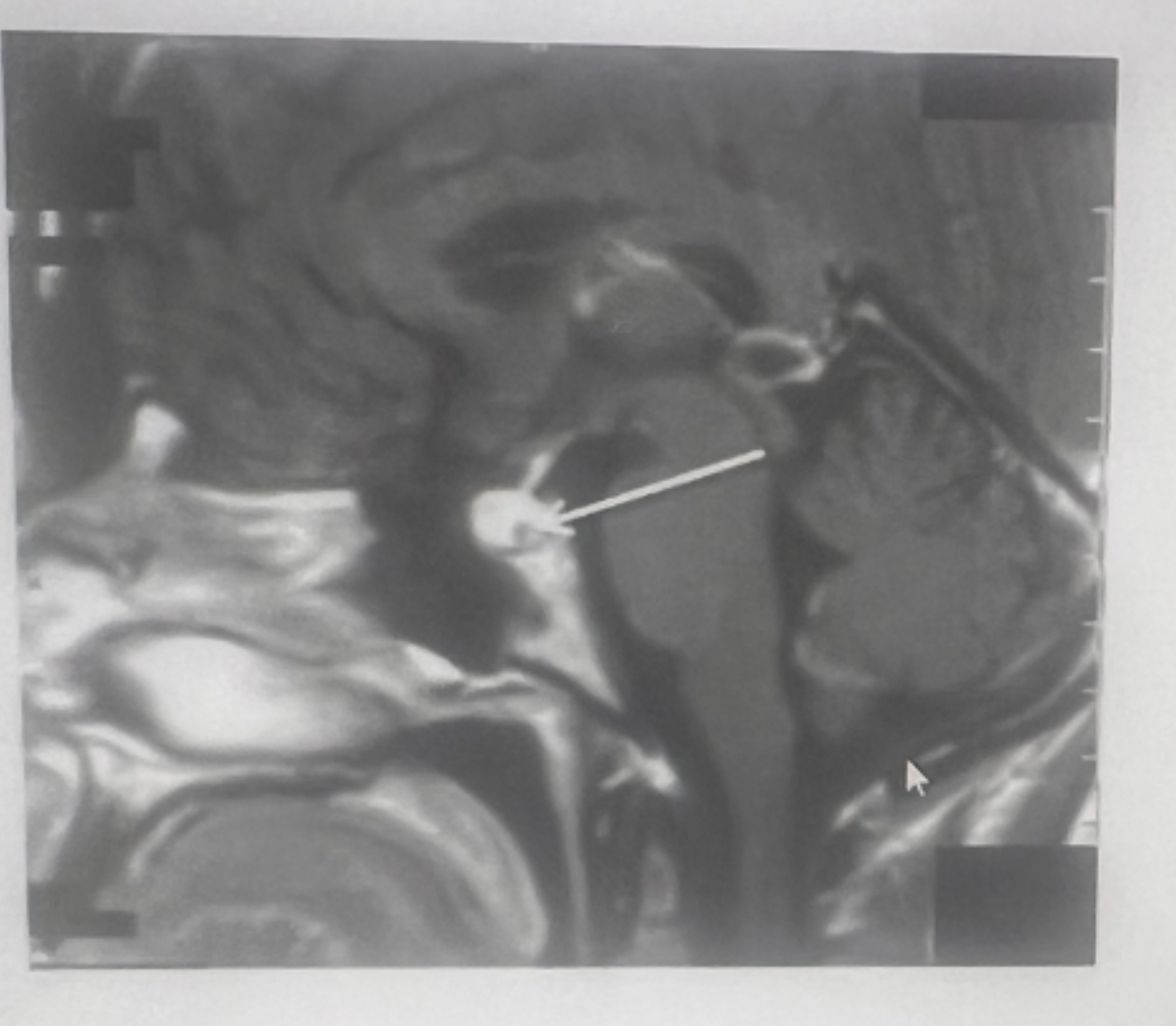

Question 22

What is the name of this lesion?
a. meningioma
b. astrocytoma
c. macroadenoma
d. microadenoma

Answer 22

d. microadenoma

Question 23

Brachial plexus refers to which spinal nerves

Answer 23

C5 to T1

Question 24

Passive shielding is achieved by incorporating ________ in the walls
a) Steel
b) Copper
c) Aluminum

Answer 24

b) Copper

Question 25

Shoulder imaging is acquired with oblique acquisition. How are coronal oblique images prescribed? A. Parallel to the supraspinatus tendon B. Parallel to the glenoid fossa C. perpendicular to scapular spine D. Along the subscapularis muscle E. A or B

Answer 25

A. Parallel to the supraspinatus tendon

Question 26

What do you cover while scanning a shoulder in axial plane? A. Superior Iabrum to inferior labrum. B. supraspinatus tendon down to glenoid process C. AC joint to inferior labrum

Answer 26

C. AC joint to inferior labrum

Question 27

spinous process, pedicle, cauda equina, conus medullaris

Answer 27

conus medullaris

Question 28

Letter D points to A. Grey matter B. White matter C. Lentiform nucleus D. Caudate nucleus E. Internal capsule
