Physics 2.5: Electrostatics

Question 1

** coulomb:**

• fundamental unit of charge *
• SI unit of charge*

Answer 1

e= 1.60 x 10^-10 C

A proton and an electron each have this amount of charge:

• the proton is positively charged (q = +e),
• the electron is negatively charged (q = − e).

Question 2

Coulomb’s law

Answer 2

F=(kq₁q₂)/r²

magnitude of the electrostatic force F between two charges q1 and q2 whose centers are separated by a distance r

Question 3

electric field

Answer 3

Electric fields are produced by source charges (q). When a test charge (q₀) is placed in an electric field (E), it will experience an electrostatic force (F) equal to q₀E.

• If no point charge is present: E_field=kq/r²
• If point change is present: Use this equation to determine the electric field produced by a source charge at a chosen point in space: E_field=F/q₀

[E_field is the magnitude of electric field, F is force felt by test charge q_o, k is the electrostatic constant, q is the source charge magnitude, and r is the distance between the charges]

Question 4

stationary charges in an electric field (testing)

Answer 4

stationary test charge: q_o the charge placed in the electric field

**stationary source charge: **the charge that sets up the electric field

Question 5

field lines (lines of force)

Answer 5

• imaginary lines that represent how a positive test charge would move in the presence of the source charge
• drawn in the direction of the actual electric field vectors.
• Field lines also indicate the relative strength of the electric field at a given point in the space of the field
• every charge exerts its own electric field, a collection of charges will exert a net electric field at a point in space that is equal to the vector sum of all the electric fields: E_total = E_q1 + E_q2 + E_q3 + …

Question 6

Force in an electric field

Answer 6

force will be generated on the test charge by the electric field:

F=q₀E

NOTE: vector equation—be sure to maintain the sign on the charge so that the direction of the force vector is in the direction of q_oE.

• +q: the force will be in the same direction as the electric field vector;
• -q: force will be in the direction opposite to the field vector.

Question 7

Electric Potential Energy

• What is the formula?
• Which gives +U (like charges or unlike charges)?
• Which gives -U?

Answer 7

• related to the relative position of one charge with respect to another charge or to a collection of charges
• one charge q is separated from another charge Q by a distance, r, the charges will have an electric potential energy:
• U=kqQ/r
• Like charges: +U
• Unlike charges: -U

Question 8

U_electrical and Work

Answer 8

electrical potential energy for a charge at a point in space in an electric field — the amount of work necessary to bring the charge from infinity to that point.

U=W=Fd

d is the distance r that separates two charges, so

U=W=Fd=Fr = (kqQ/r²)(r)= kqQ/r

Question 9

Electric Potential

• scalar or vector? (how is the sign determined?)
• Formula with test charge?
• Formula w/o test charge?

Answer 9

• SCALAR: sign is determined by the sign of the charge q_o
• the ratio of the magnitude of a charge’s electric potential energy to the magnitude of the charge itself.
• the work necessary to move a charge q_o from infinity to a point in an electric field divided by the magnitude of the charge q_o
• With test charge: V=W/q_o
  *where V is the electric potential measured in volts (V) and 1 volt = 1 joule/coulomb. *
• No test charge: V=kQ/r
  *

Question 10

Voltage: potential difference

Answer 10

• electric potential is inversely proportional to the distance from the source charge, a potential difference will exist between two points that are at different distances from the source charge
• Voltage between a and b is V_b-V_a
• V_b-V_a = W_ob/q_o
• W_ab is the work needed to move a test charge qo through an electric field from point a to point b.*
• The work depends only on the potentials at the two points a and b and is independent of the actual pathway taken between a and b.*
• Electrostatic force is conservative.*

Question 11

Electrostatic Work (From V)

Answer 11

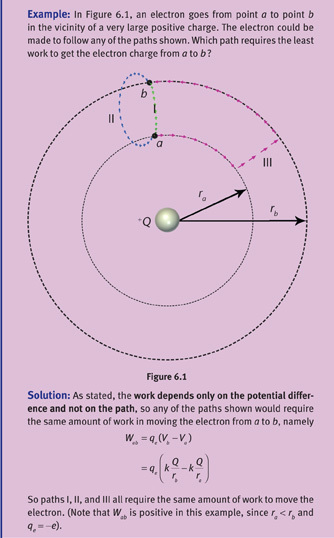

W_ab is the work needed to move a test charge qo through an electric field from point a to point b.

The work depends only on the potentials at the two points a and b and is independent of the actual pathway taken between a and b.

Question 12

Charge movement in an Electric Field

Answer 12

• **Positive charge moves spontaneously from high voltage to low voltage. **
• Negative charge moves spontaneously from low voltage to high voltage.

When a positive charge moves spontaneously though an electric field, it will move from a position of higher electric potential (higher electric potential energy divided by the positive charge) to a position of lower electric potential (lower electric potential energy divided by the positive charge).

When a negative charge moves spontaneously through an electric field, it will move from a position of lower electric potential (higher electric potential energy divided by the negative charge) to a position of higher electric potential (lower electric potential energy divided by the negative charge).

Question 13

Essential Electrostatic Questions

Question 14

Equipotential Lines

Answer 14

• potential at every point is the same
• potential difference between any two points on an equipotential line is zero
• no work is done when moving a test charge qo from one point to another on an equipotential line.
• Work will be done in moving a test charge qo from one line to another, but the work depends only on the potential difference of the two lines and not on the pathway taken between them.

Question 15

Electric Dipole

Answer 15

• Dipole moment is a VECTOR
• results from two equal and opposite charges being separated a small distance d from each other
• can be transient or permanent

Question 16

electric potential at a point in space due to an electric dipole

Answer 16

V=(kp/r²)cosø

The product of qd is defined as the dipole moment p with SI units of C· m. The dipole moment is a vector

Question 17

perpendicular bisector of the dipole

Answer 17

the plane that lies halfway between +q and – q

angle between this plane and the dipole axis is 90° (and cos 90° = 0), the electric potential at any point along this plane is 0.

Question 18

electric field due to an electric dipole along the perpendicular bisector of the dipole.

Answer 18

E= (1/4πε₀)(p/r³)

The electric field vectors at the points along the perpendicular bisector will point in the direction opposite to p (as defined directionally by physicists)

Question 19

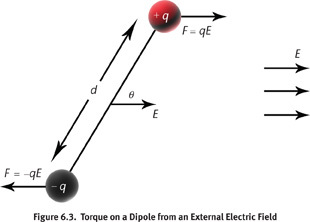

net torque experienced by an electric dipole about the center of the dipole axis due to an external electric field

Answer 19

τ=pEsinø

where p is the magnitude of the dipole moment (p = qd), E is the magnitude of the uniform external electric field, and theta is the angle the dipole moment makes with the electric field. This torque will cause the dipole to reorient itself by rotating so that its dipole moment, p, aligns with the electric fieldE.

Question 20

Gauss’s Law

Answer 20

Φ_E= EA cosθ

Φ_Eis electric flux.

E is electric field, A is area that the field goes through, and θ is the angle between the field and the normal of the area.

• Φ_E = q/ε0

For an enclosed surface, the electric flux is equal to q, the charge inside the enclosure, over the permitivity of free space.

The net electric flux through any enclosed surface is totally dependent on the charge inside. If there’s no charge inside, then the net electric flux through the enclosure is zero.

• An important application of Gauss’s law is the Faraday cage. Basically, the electric field inside a closed conducting cage is zero. This is because the charges on the conducting cage will rearrange to cancel out any external field
