ECG: Differentials

Question 1

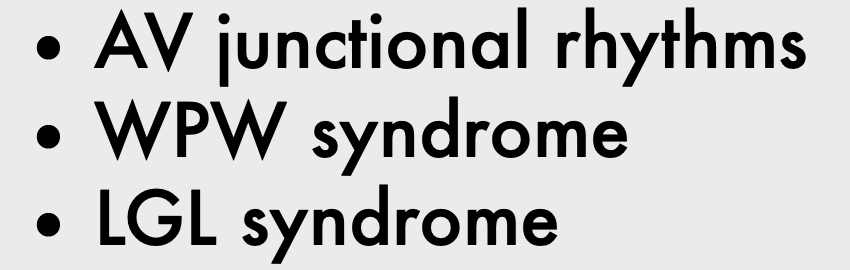

Short PR interval

Answer 1

• Lown–Ganong–Levine syndrome (LGL) is a pre-excitation syndrome of the heart due to abnormal electrical communication between the atria and the ventricles.

Question 2

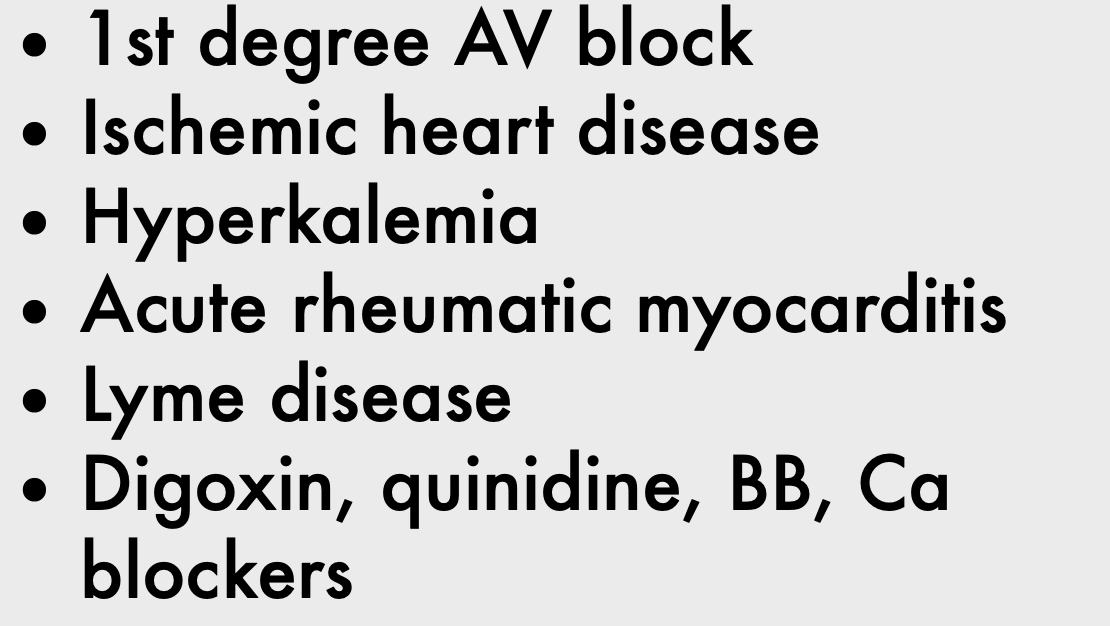

Long PR interval

Answer 2

Question 3

Wide P wave

Answer 3

LAE

Question 4

Tall P wave

Answer 4

RAE

Question 5

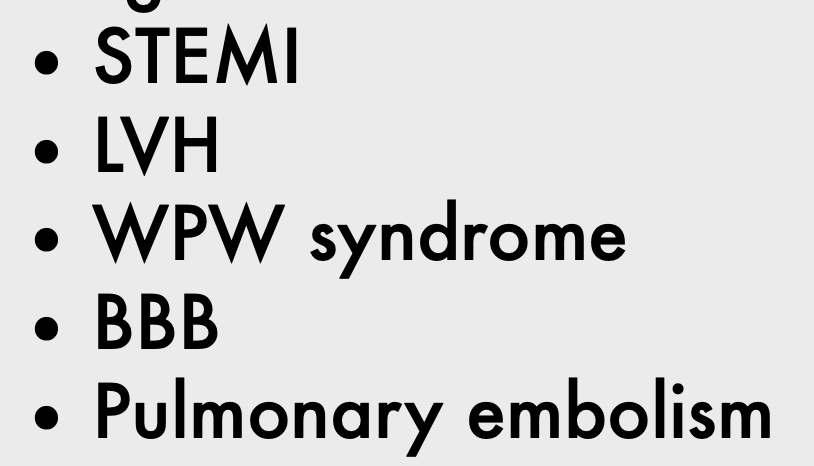

Pathological Q waves

Answer 5

Question 6

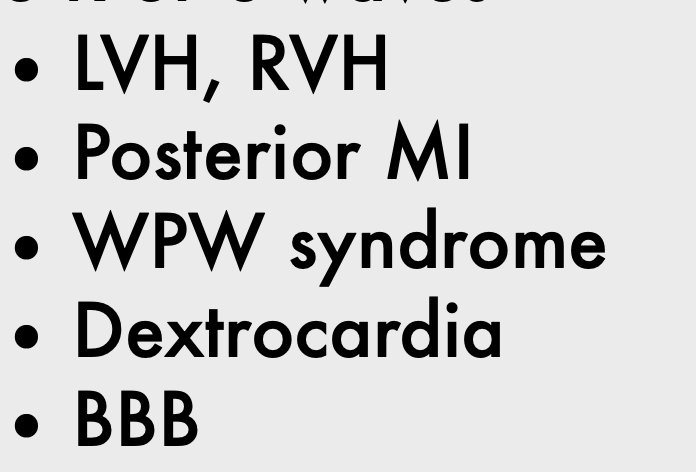

Large R or S waves

Answer 6

Question 7

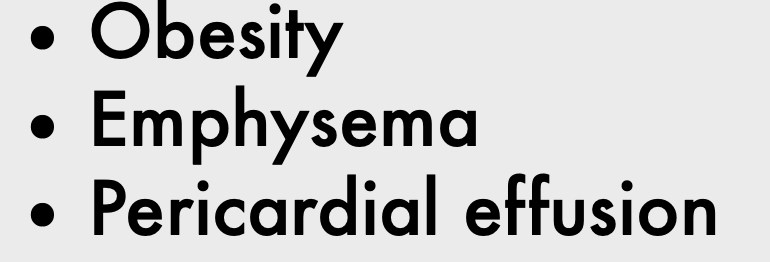

Small QRS complexes

Answer 7

Question 8

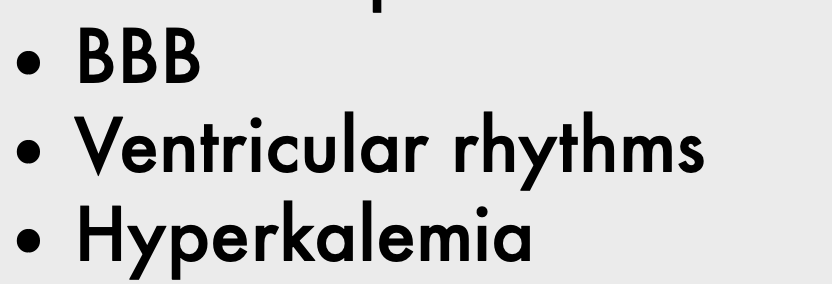

Wide QRS complexes

Answer 8

Question 9

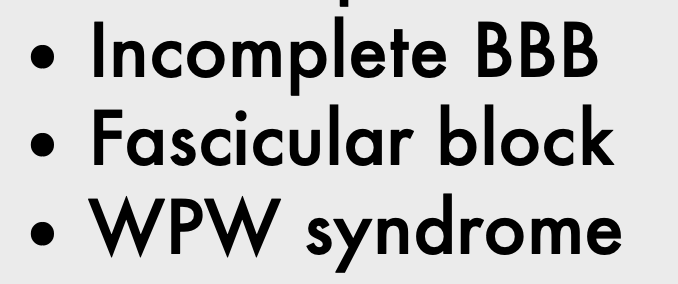

Abnormal shaped QRS complexes

Answer 9

Question 10

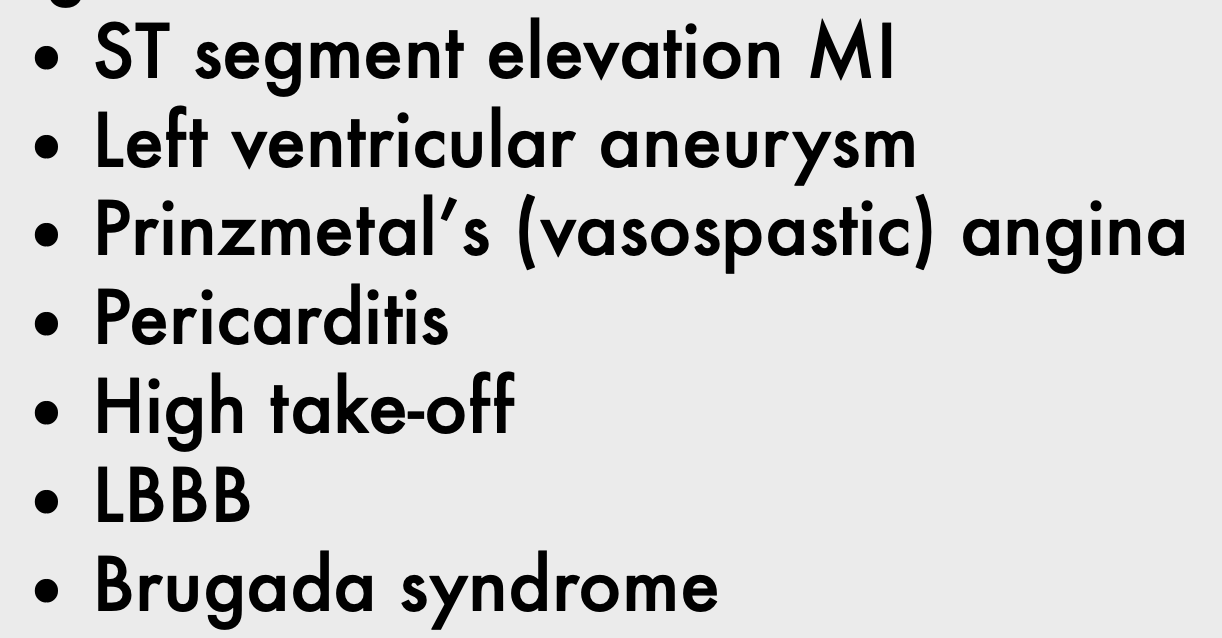

ST segment elevation

Answer 10

Question 11

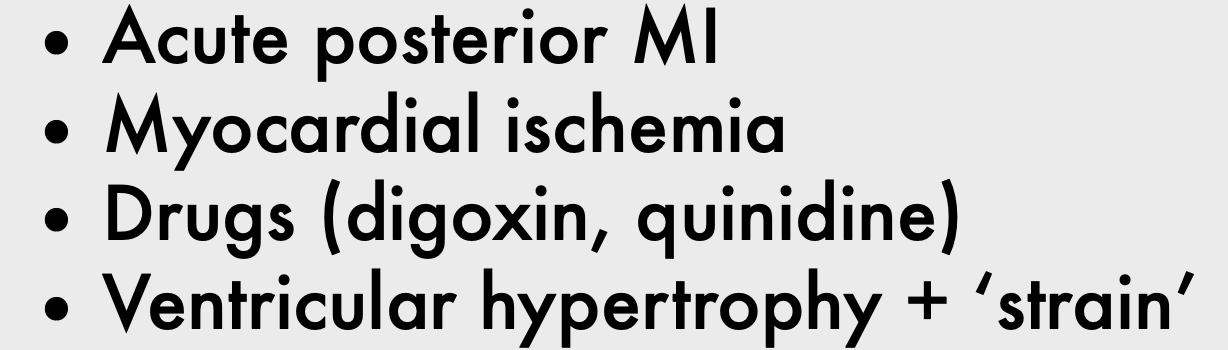

ST segment depression

Answer 11

Question 12

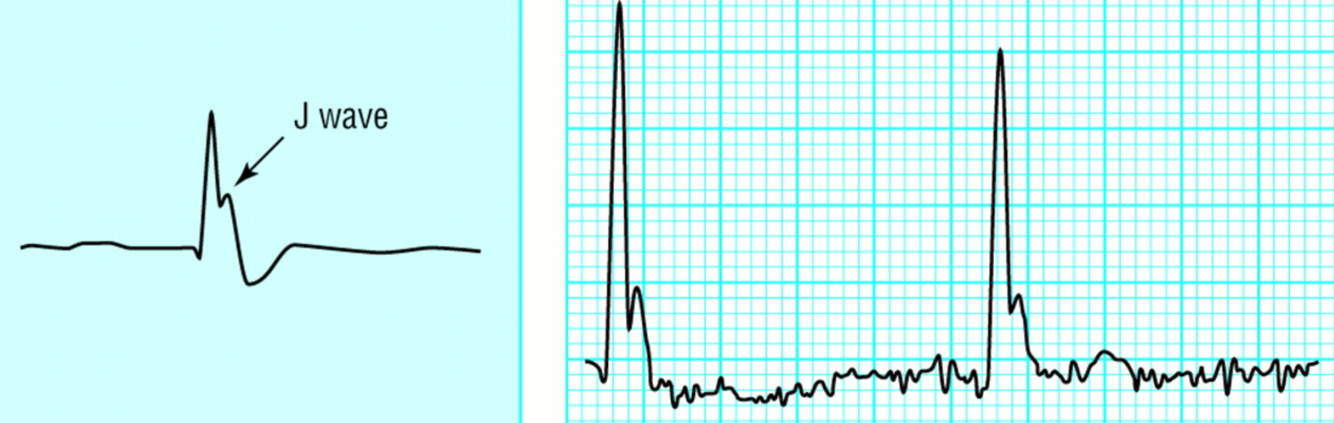

J waves present

Answer 12

Hypothermia

Question 13

Diffuse J point

Answer 13

Early repolarization, LVH with strain, pericarditis, acute MI

Question 14

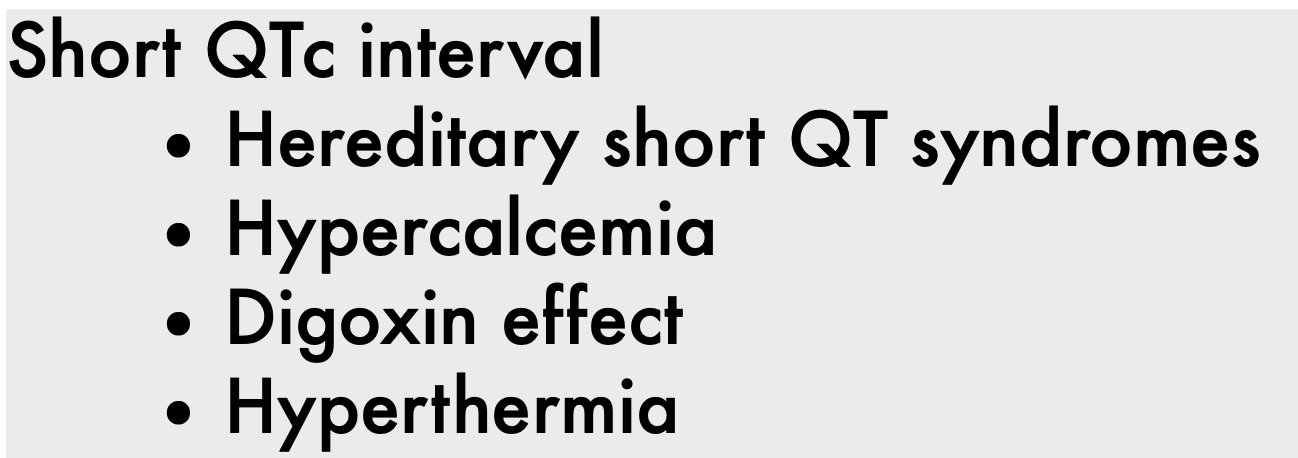

Short QTc interval

Answer 14

Question 15

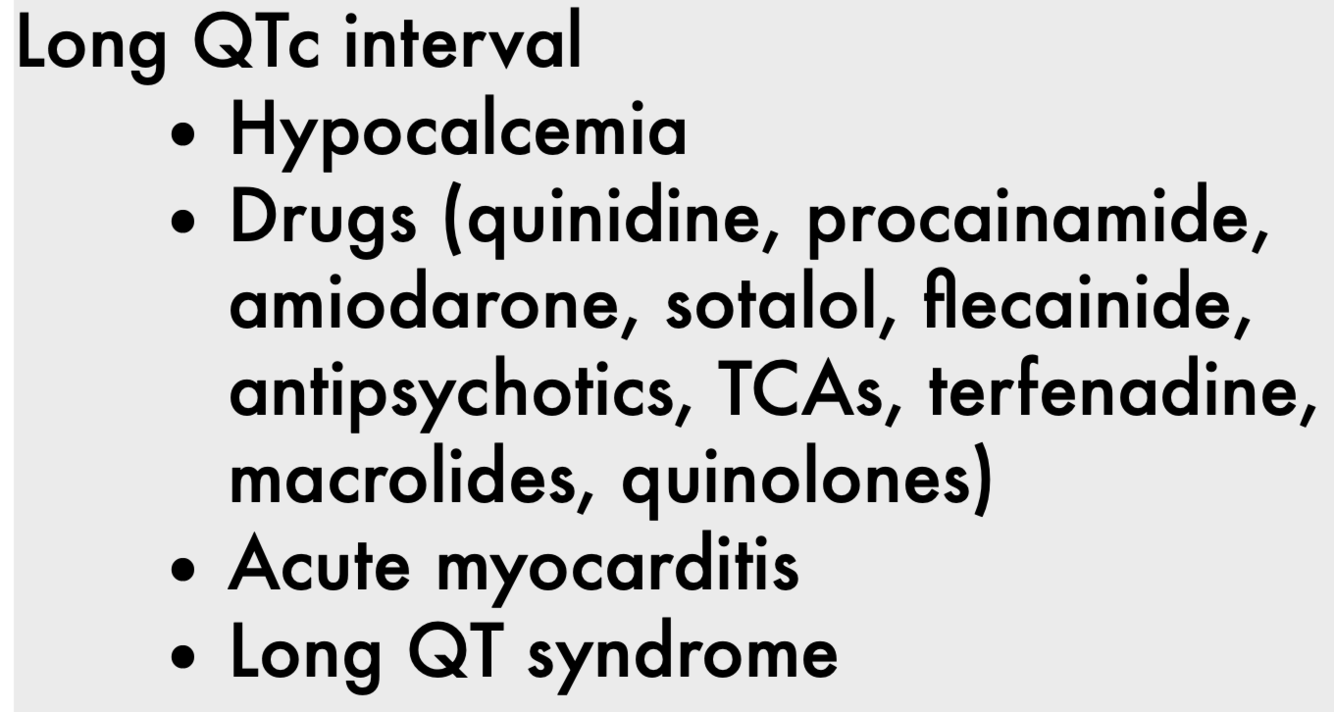

Long QTc interval

Answer 15

Question 16

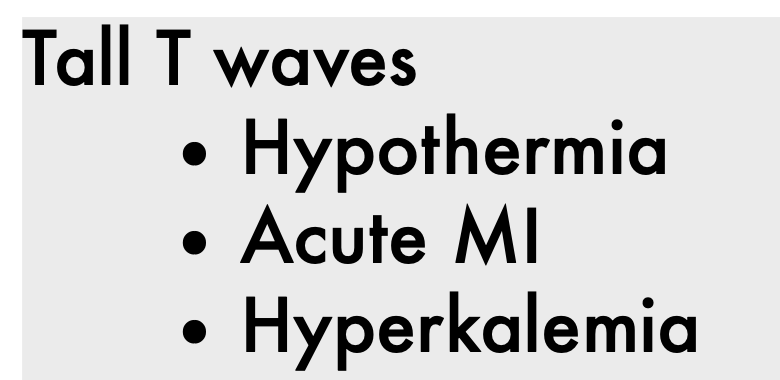

Tall T waves

Answer 16

Question 17

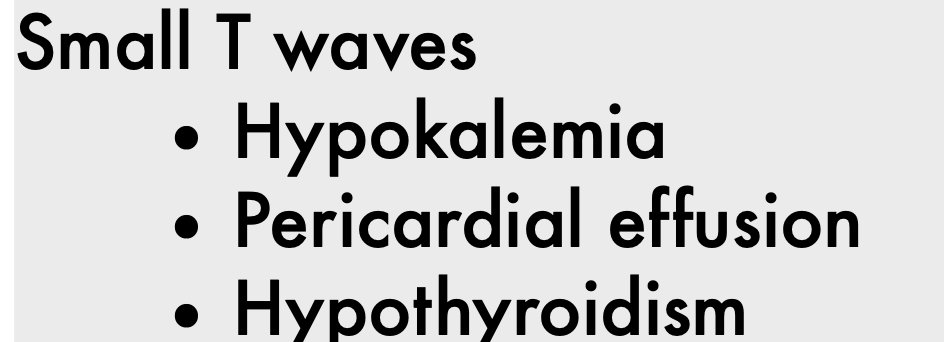

Small T waves

Answer 17

Question 18

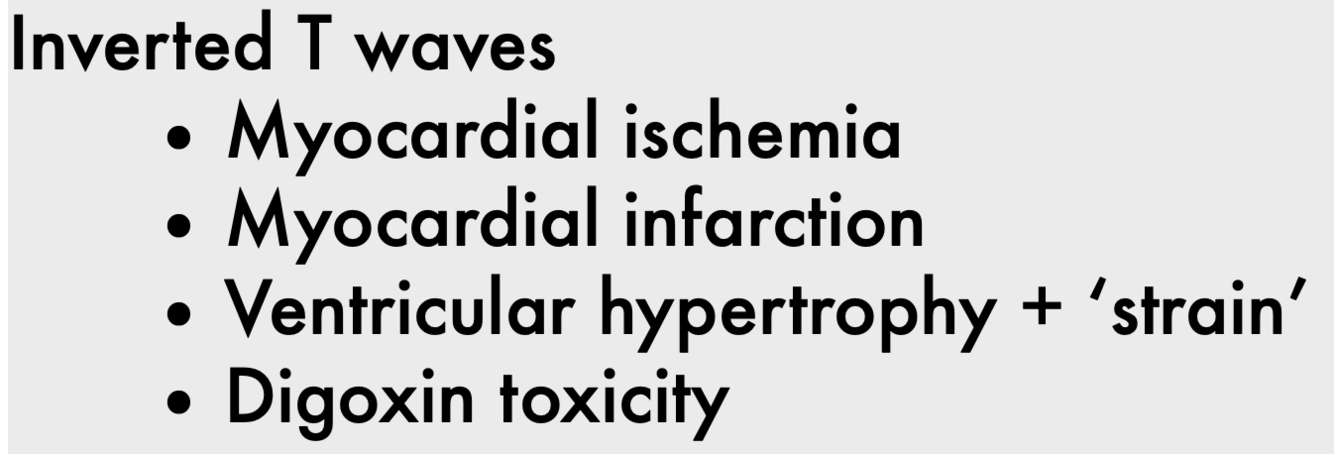

Inverted T waves

Answer 18

Question 19

Prominent U waves

Answer 19

• • Hypokalemia
• • Hypercalcemia
• • Hyperthyroidism
