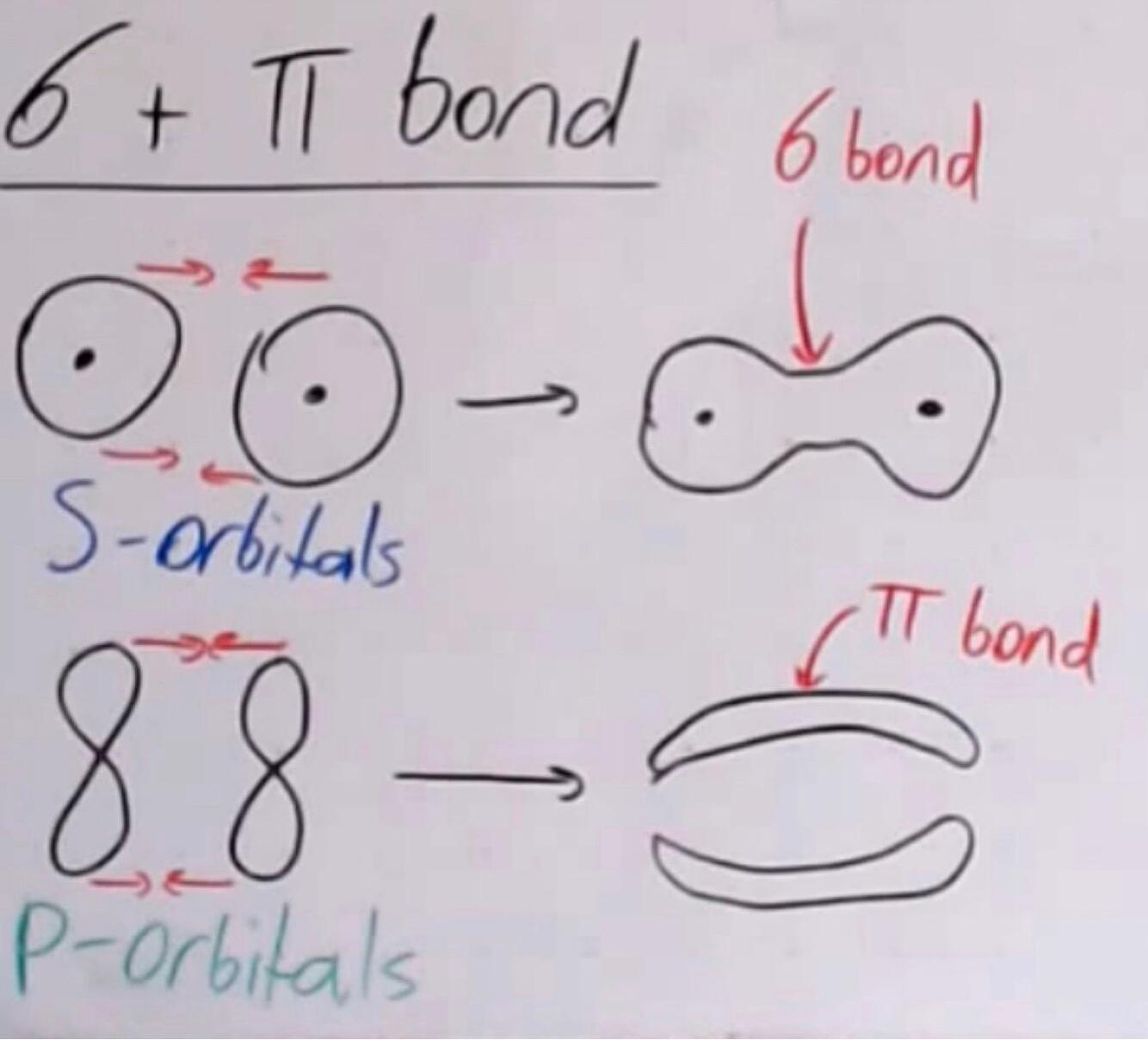

sigma bond
Consists of 2 overlapping s orbitals (covalent bond) - strong attraction between positive nucleus and electron cloud makes sigma bondsverystrong
Pi bond
Consists of 2 overlapping p orbitals (2nd covalent bond in a C=C bond) - Has no electrons in the middle but electron cloud is in the top and bottom section - this makes pi bonds weaker thansigmabonds.
What is enthalpy of hydrogenation
It is the enthalpy change when 1 mole of unsaturated compound is saturated by reacting it with hydrogen under standard conditions.
kekule suggestion of benzene stucture vs actual one

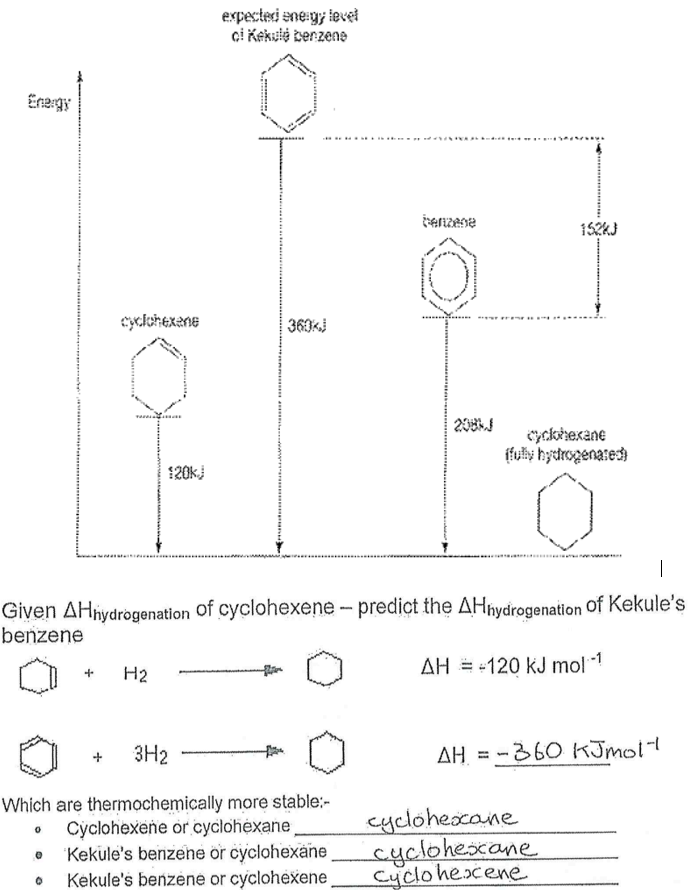

What is the enthalpy of hydration of cyclohexene, Kekule’s benzene, cyclohexane and actual benzene & which is most stable
Actual benzene is more stable that kekule’s benzene as more energy is needed to break the delocalised Pi bond system
What is an arene
name hiven to a hydrocarbon based on a benzene compound
Melting point of arenes
High relative to hydrocarbons with similar mr because benzene is fairly flat and molecules stacks on top of each other so greater surface area of contact and greater van der walls.
observation during combustion of arenes
burns with a smokey flame

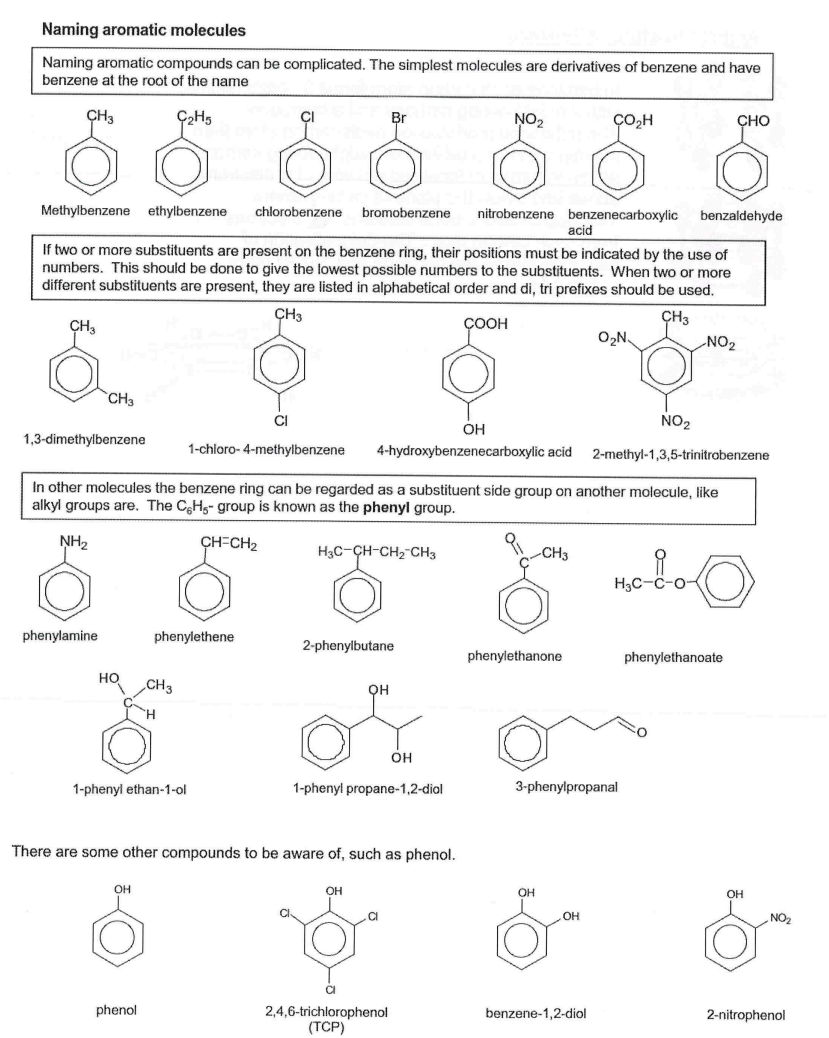

Naming arenes
Types of reactions that arenes undergo
Evidence against Kekule’s benzene - Reactions with bromine water
cyclohexene has a C=C bond & hence decolourises bromine water. Benzene doesn’t decolourise bromine water implying that it doesn’t possess a C=C bond.

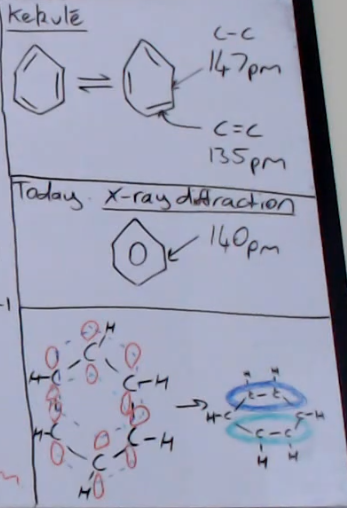

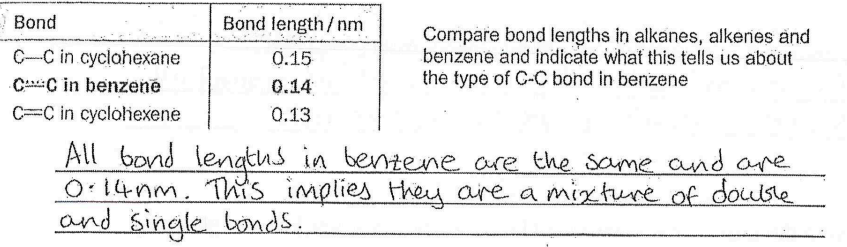

Evidence against Kekule’s benzene - Bond lengths

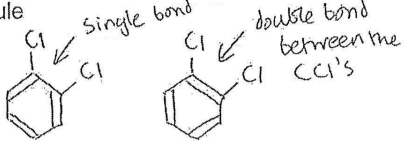

Evidence against Kekule’s benzene - lsomers of 1,2-dichlorobenzene
if kekules structure was correct then there would be 2 isomers of 1,2-dichlorobenzene but there is only 1 isomer of this compound so kekule is wrong.
What is the actual Structure of Benzene
In benzene each carbon atom forms 3 bonds (sigma) with 2 neighbouring carbons and a hydrogen. The unbonded p orbitals on each carbon atom then
overlap with the p orbitals on neighbouring carbon
atoms to form a delocalised network of pi electrons
above and below the plane of carbon atoms.
This delocalised pi bond contains 6 electrons - 1
from each carbon atom. The delocalisation of
electrons makes the benzene ring 152 kJ more stable.
What is an electrophile
electron pair acceptor e.g. NO2+,
CH3C+=O

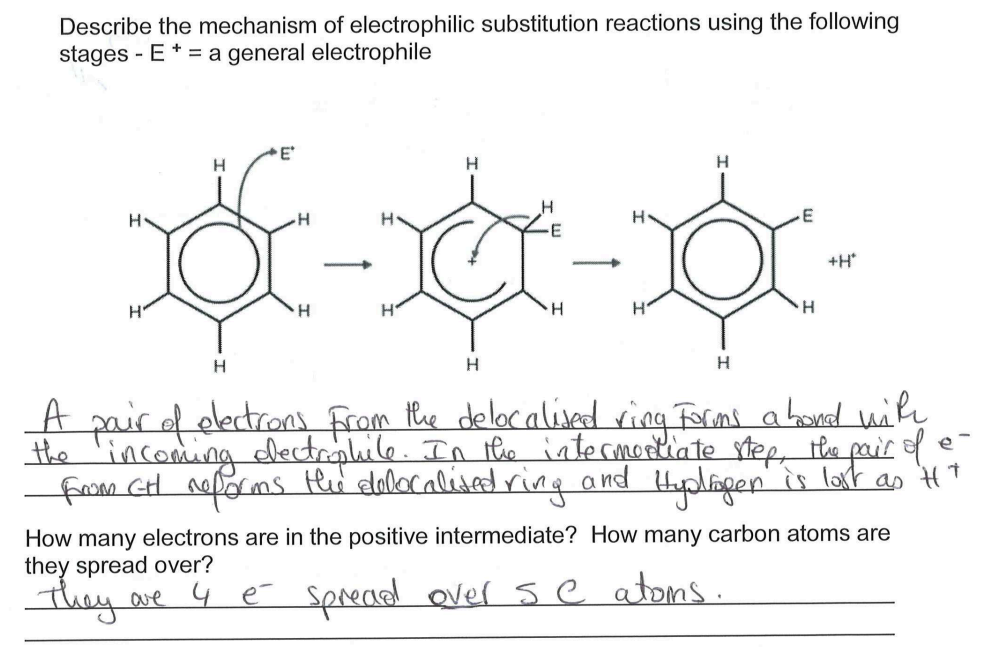

what are electrophilic substitution reactions & what is the general mechanism for this
A hydrogen atom from benzene is replaced with a nucleophile
conditions for nitration of benzene
Conc. H2SO4 (catalyst)
Conc. HNO3 (used to form electrophile)
temp 50-60 degrees C

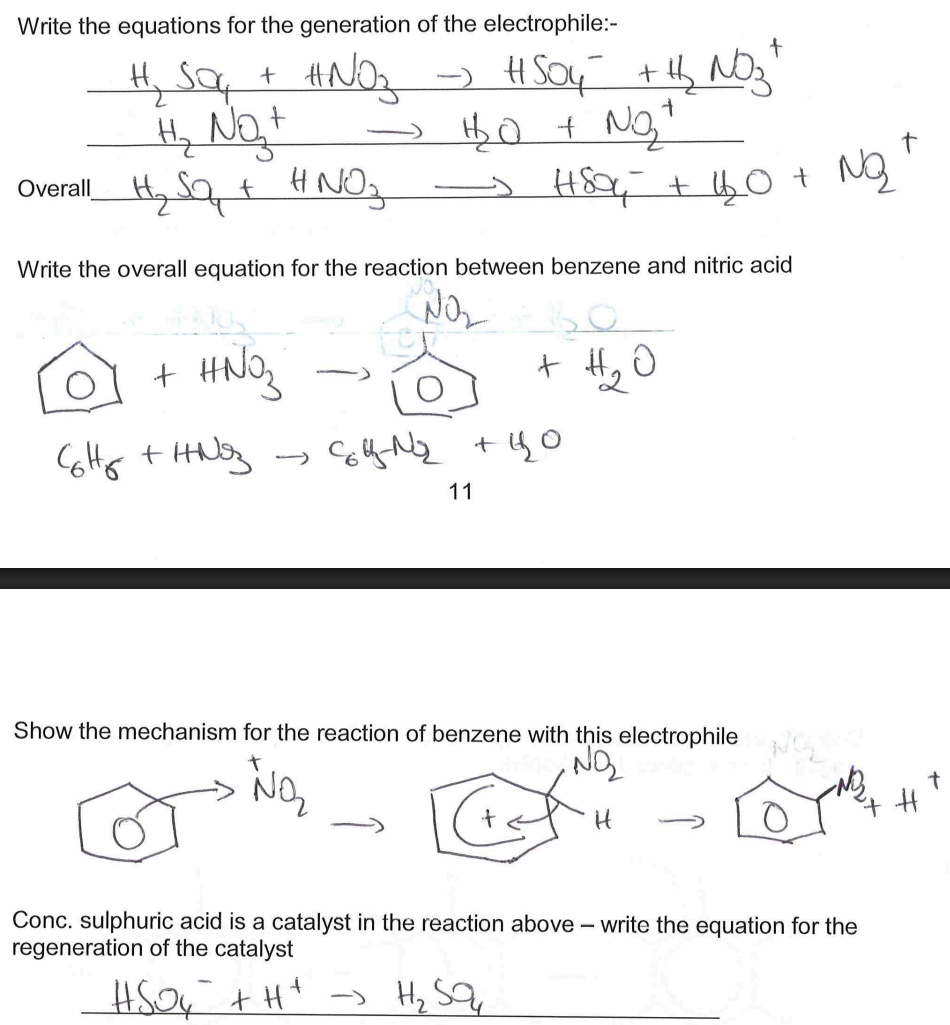

Mechanism for nitration of benzene & equation for formation of electrophile
TNT use and structure
TNT is 2,4,6-trinitromethylbenzene & is used for explosives
Use of aromatic amines
making dyes

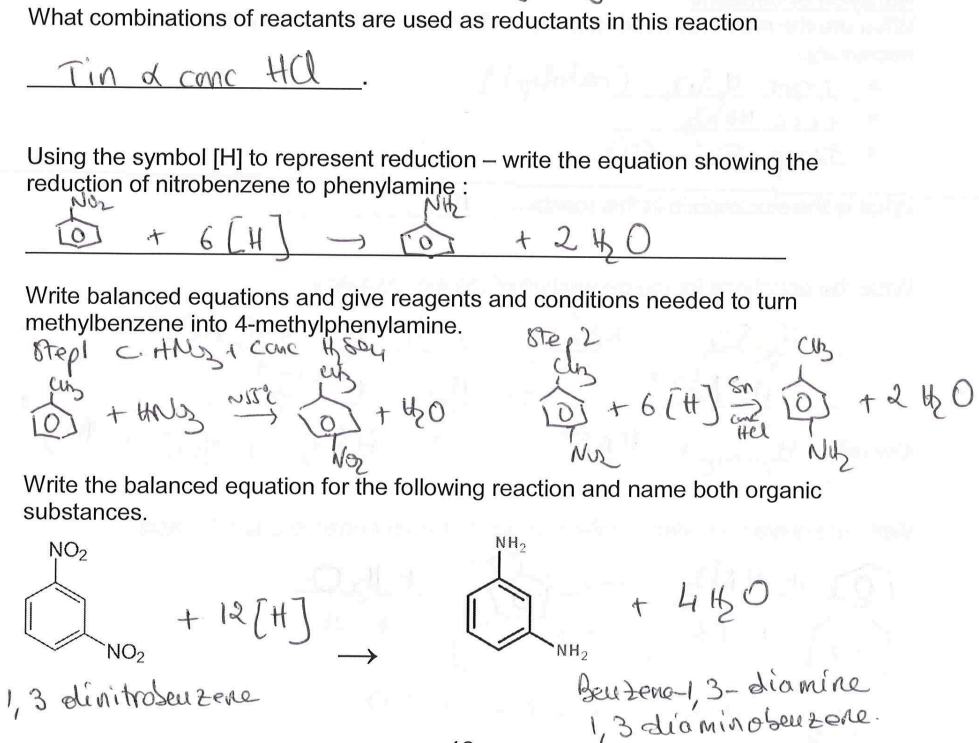

Making aromatic amines - reaction & what combo of reactants are used as reductants in this reaction

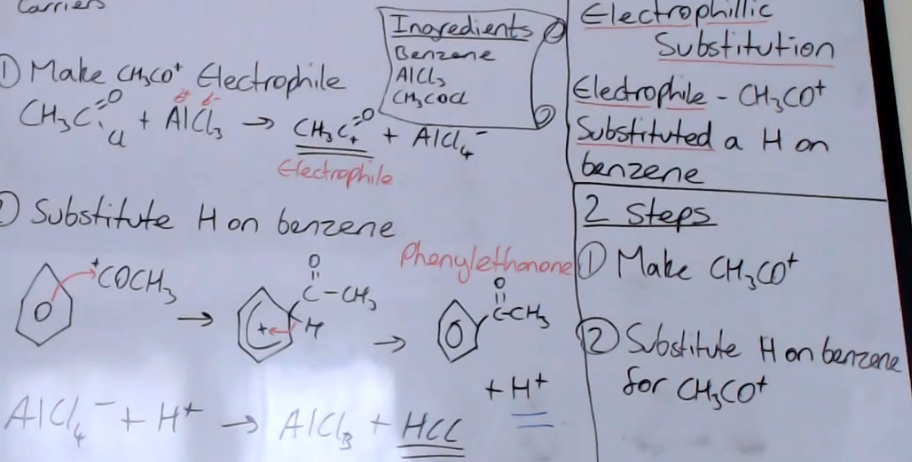

what is Friedel crafts Acylation and its mechanism
what does phenol dissolve to form
It dissolves to form weak acids
