1
Q

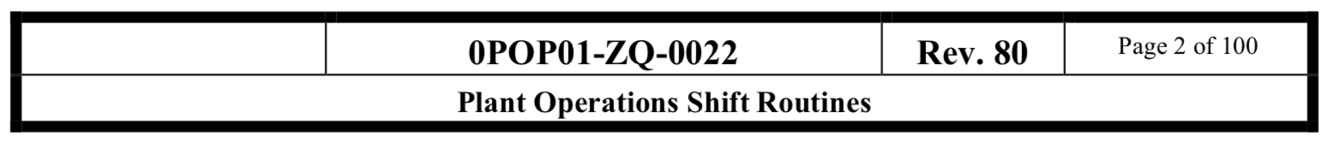

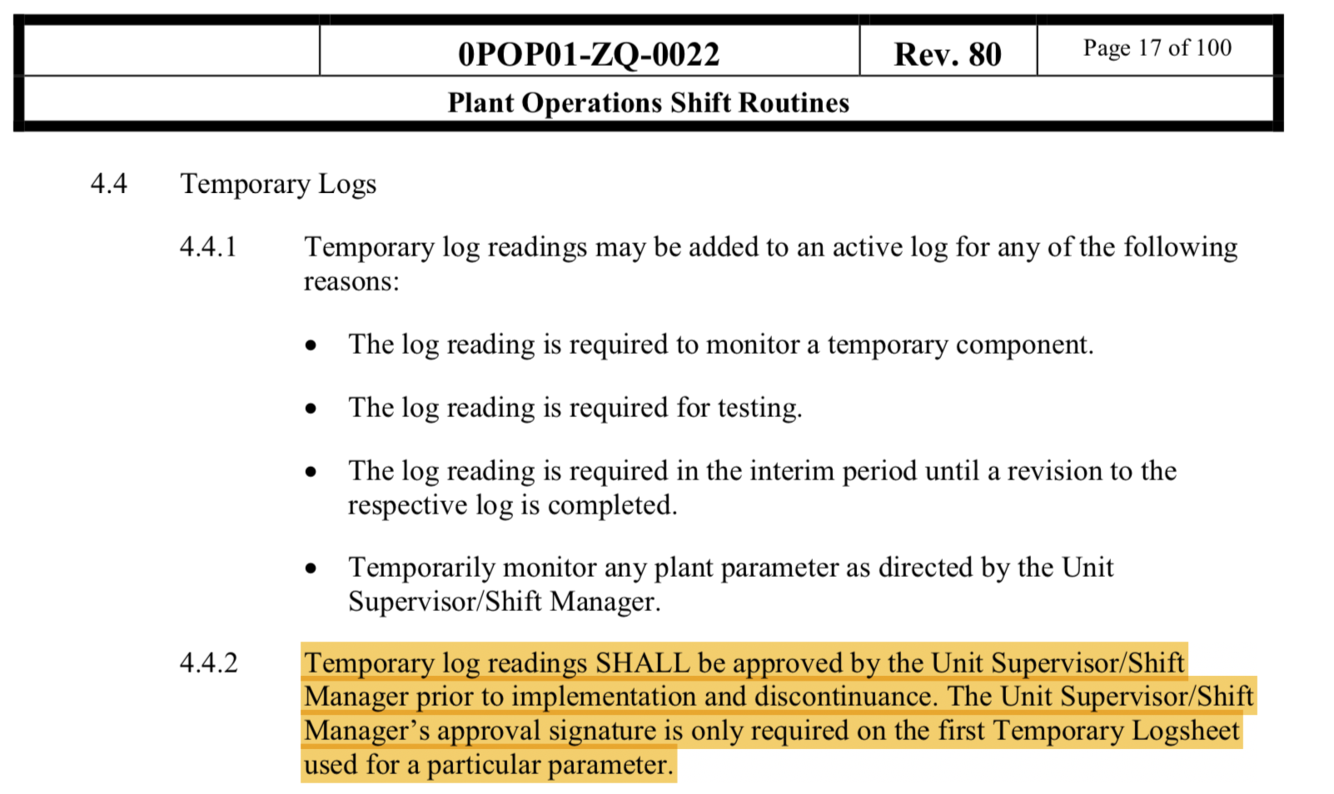

- 0POP01-ZQ-0022 Plant OPS Shift Routine*
- *
Who approves the use of temporary logs?
A
Unit Supervisor
OR
Shift Manager
2
Q

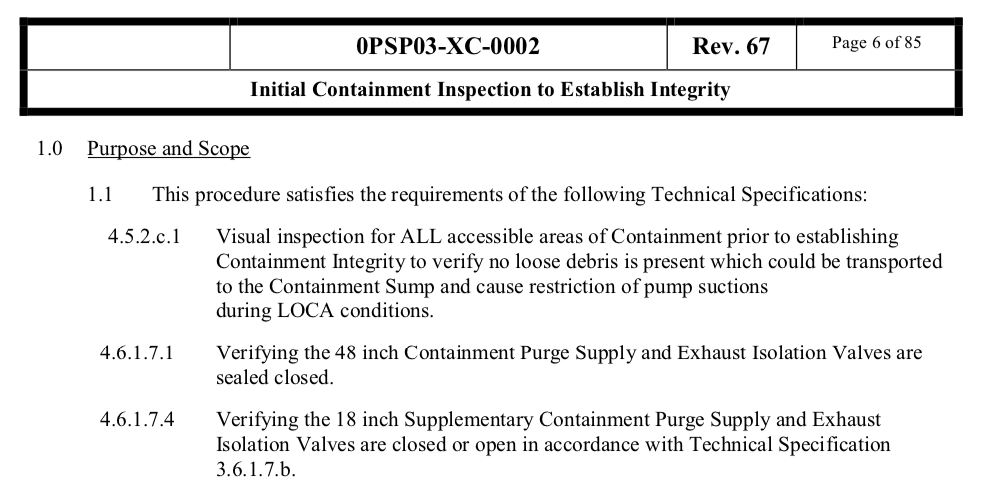

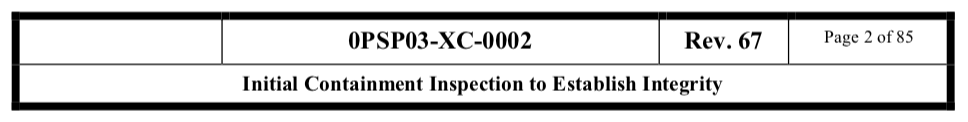

- 0PSP03-XC-0002 Initial Containment Inspection*
- *
What is the purpose of 0PSP03-XC-0002 Initial Containment Inspection to Establish Integrity?
A
- *Visual Inspection to ensure no loose debris present**
- Could clog emergency sump strainers during LOCA*
Verify 48” containment purge valves closed
Verify 18” Supplementary purge valves open/closed
3
Q

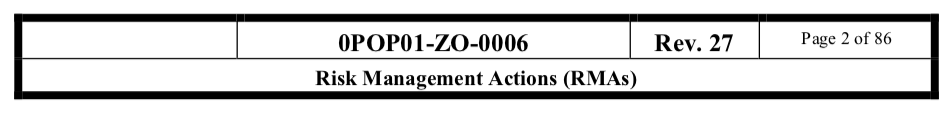

- 0POP01-ZO-0006 Risk Management Actions*
- *
What does front stop completion time and the back stop completion time mean?
A
- Front Stop Completion Time:*
- *LCO action times in conventional Tech Specs**
- Back Stop Completion Time:*
- *Ultimate LCO Action Times permitted by Risk Management Tech Specs (RMTS)**
- Takes precedence over any Risk-Informed Completion Time calculated to be greater than 30 days*
Note:
Risk-Management Technical Specifications (RMTS): Plant-specific set of configuration-based Technical Specifications, based on a formally approved configuration risk management program and associated probabilistic risk assessment, designed to supplement previous conventional plant Technical Specifications.
4
Q

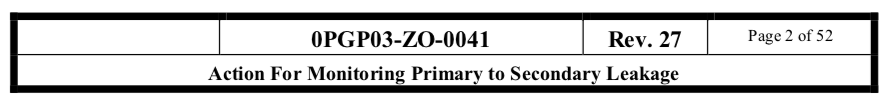

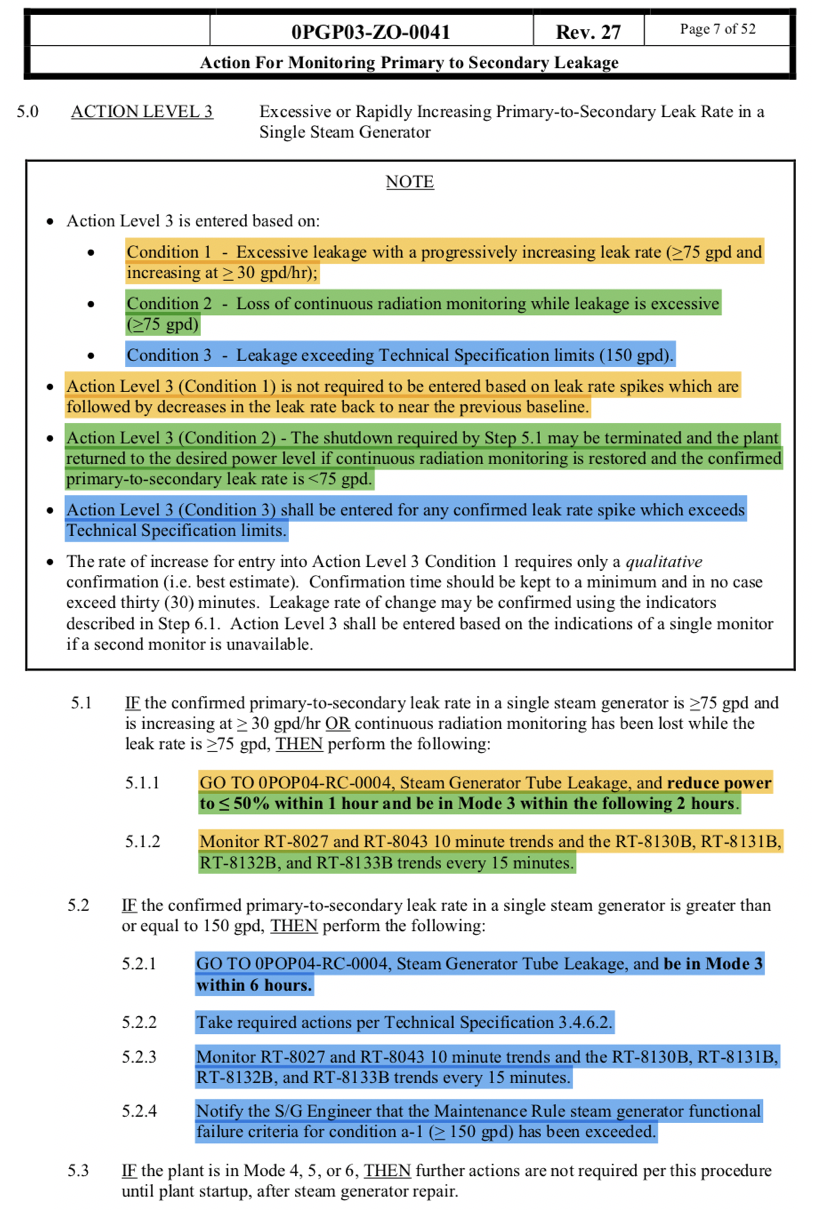

- 0PGP03-ZO-0041 Primary to Secondary Leakage*
- *
What puts you in action level 3 for primary to secondary leakage?
A
Leakage from 1 S/G:
- Condition 1:*
- *≥ 75 gpd and ↑ 30 gpd/hr**
- Not required be entered for spikes*
- Condition 2:*
- *≥ 75 gpd w/ loss of radiation monitors**
- May terminate S/D if Rad monitors restored and < 75 gpd*
- Condition 3:*
- *> 150 gpd**
- Must be entered for spikes*
- Go to POP04-RC-0004 (SG Tube Leakage)
- Condition 1 OR 2: ↓50% [1 hr] and Be in MODE 3 [Following 2 hrs]
- Condition 3: Be in MODE 3 [6 hrs]
5
Q

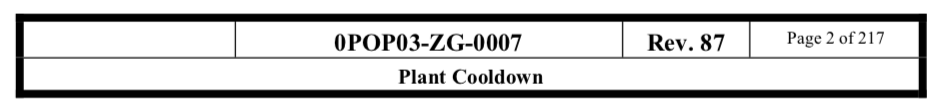

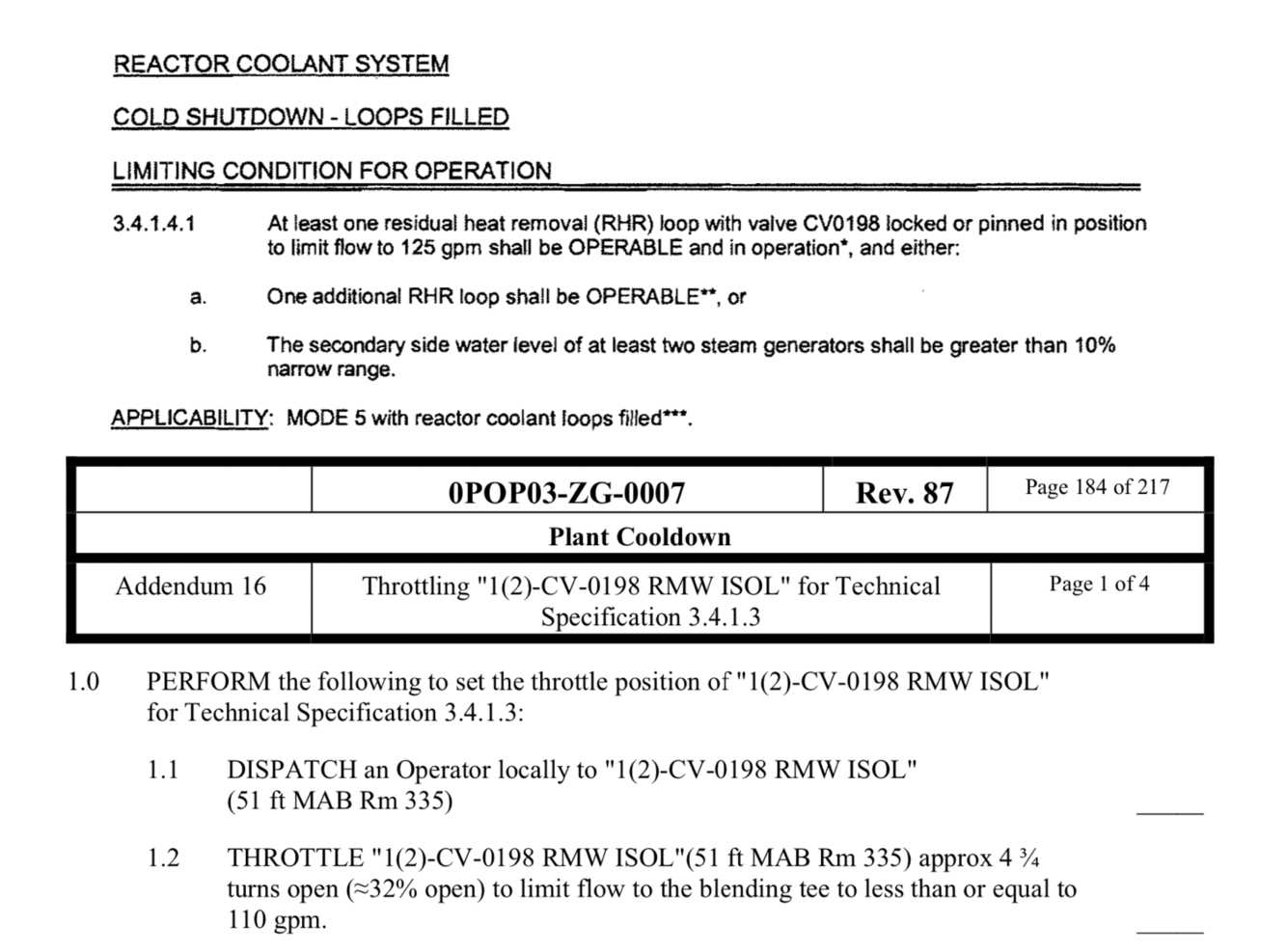

- 0POP03-ZG-0007 Plant Cooldown*
- *
What must CV-0198 RMW Isolation be throttled to in MODE 5?
A
< 110 GPM
Note:
Limited to < 125 gpm per LCO 3.4.1.4.1 Cold S/D Loops Filled
6
Q

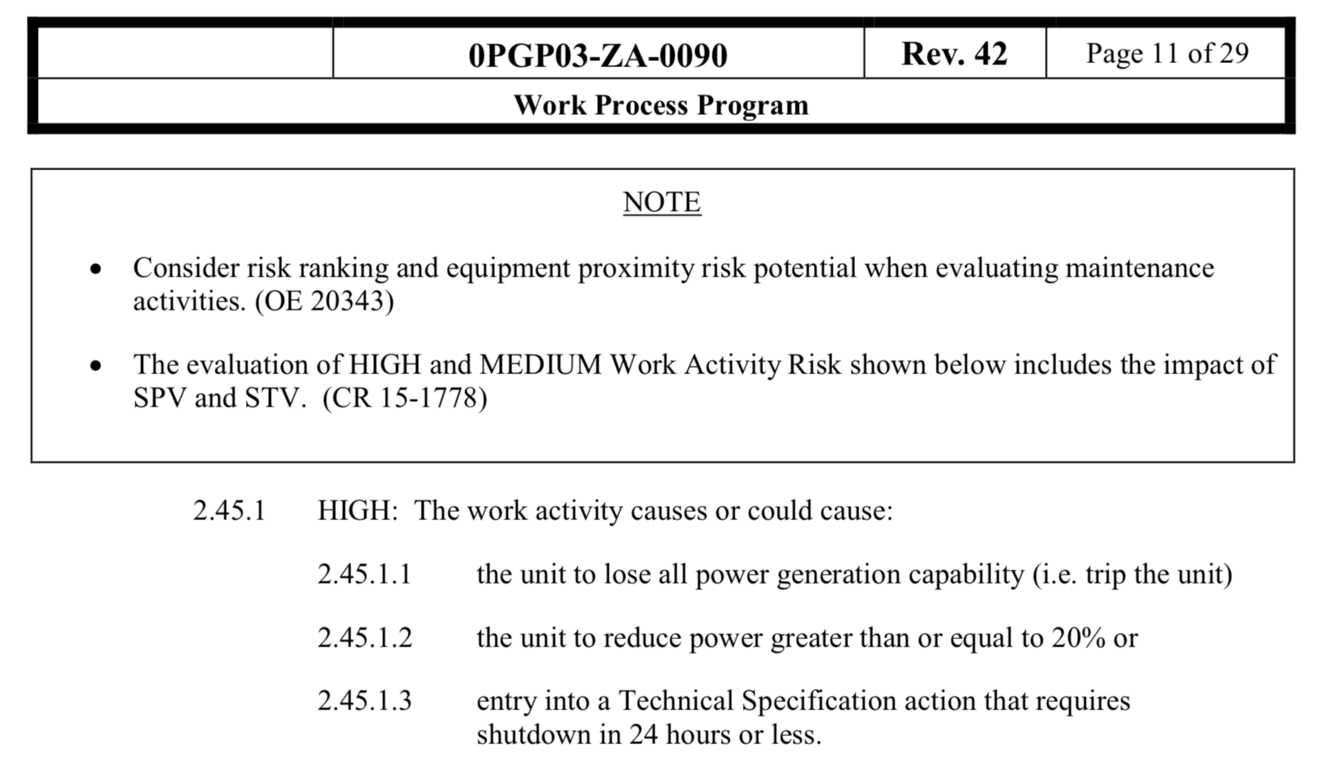

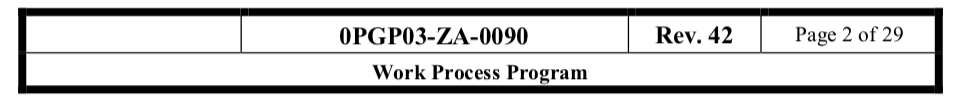

- 0PGP03-ZA-0090 Work Process Program*
- *
What is a high risk work activity?
A
Cause / Would Cause:
Unit loses all power generation capability
Reduce power ≥ 20%
Entry into LCO that requires S/D in ≤ 24 hrs
7
Q

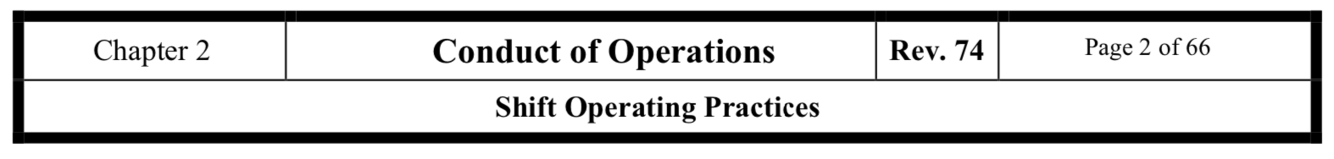

- Conduct of Operations*
- *
According to 10CFR50.72, Immediate Notification Requirements for Operating Nuclear Power Reactors, what situations require the NRC to be notified within 1 hour?
A
Emergency Class Declared
Deviation from Tech Specs
Safety Limit / T.S. Section 2.0 Exceeded
Unplanned Criticality
Radiological, Security, Environmental Events
8
Q

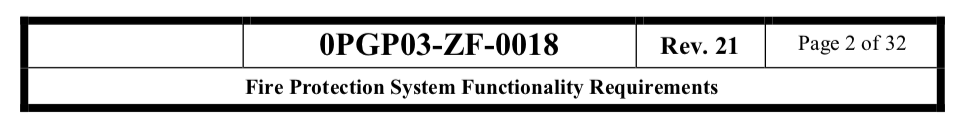

- 0PGP03-ZF-0018 FPS Functional Requirements*
- *
How often is it required to flush the Fire Protection Header?
A
Once per year
9
Q

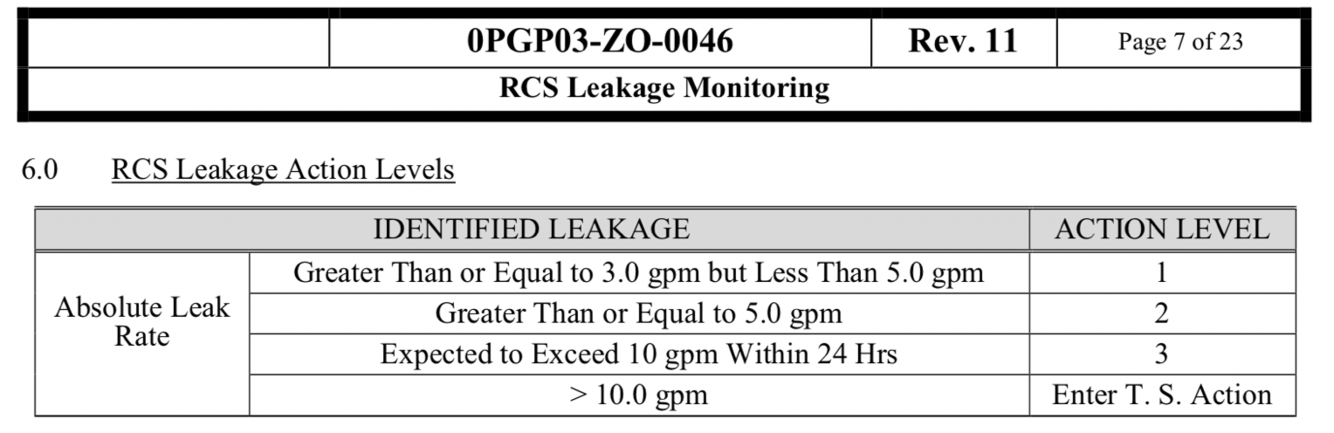

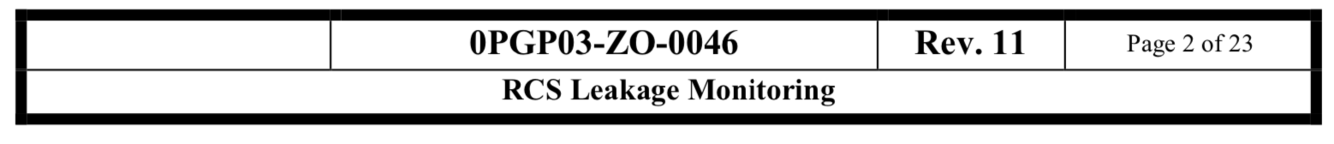

- 0PGP03-ZO-0046 RCS Leakage Monitoring*
- *
What are the action levels for identified leakage?
A
- Action Level 1:*
- *≥ 3.0 gpm - < 5.0 gpm**
- Action Level 2:*
- *≥ 5.0 gpm**
- Action Level 3:*
- *Expected to exceed 10 gpm within 24 hrs**
- LCO 3.4.6.2:*
- *> 10.0 gpm**
10
Q

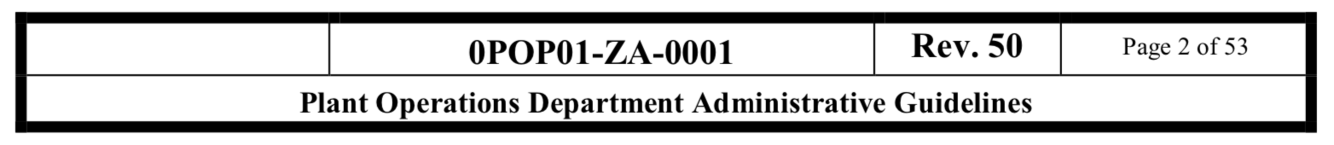

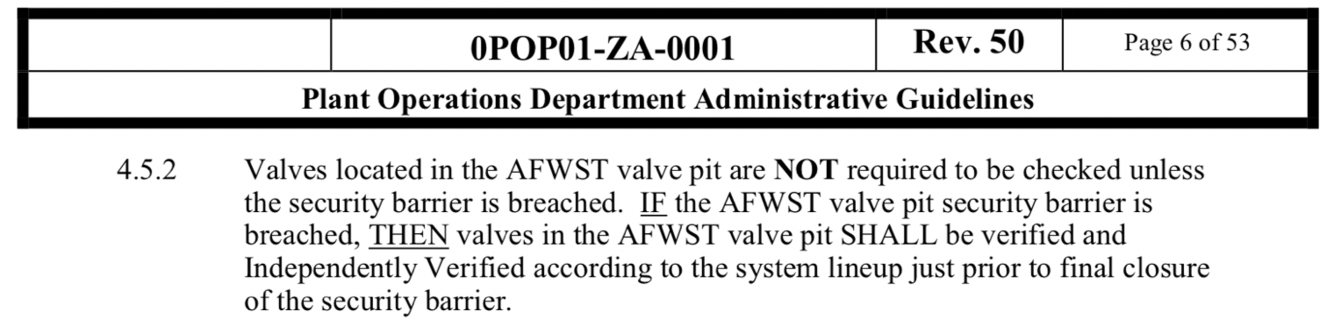

- 0POP01-ZA-0001 Admin Guidelines*
- *
When are valves in the AFWST pit required to be checked?
A
If security barrier is breached
11
Q

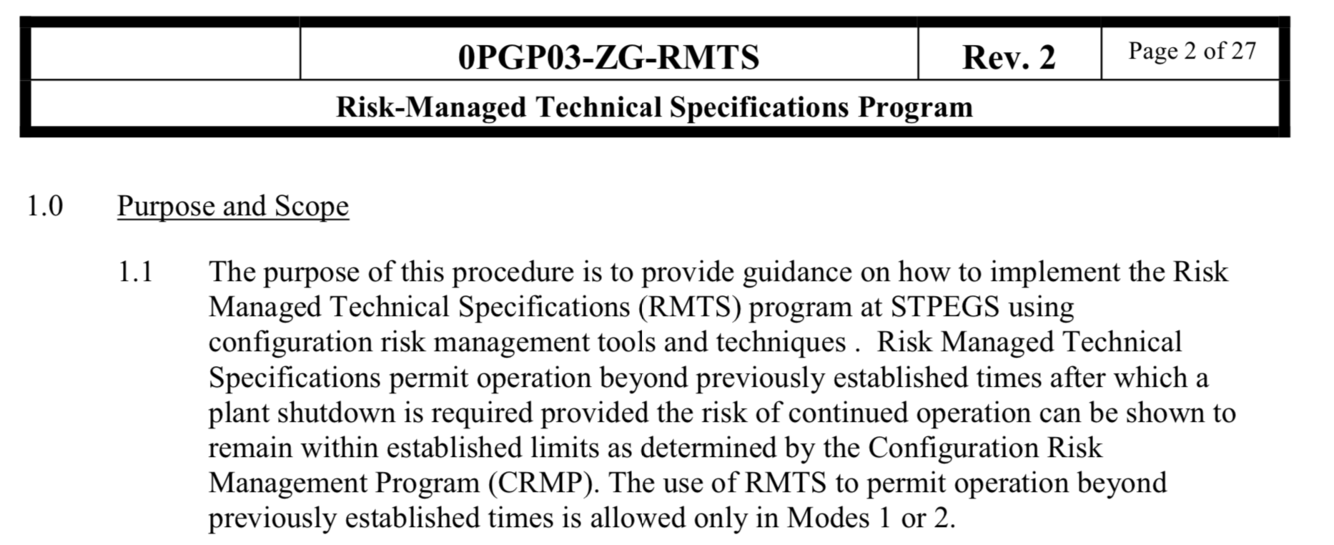

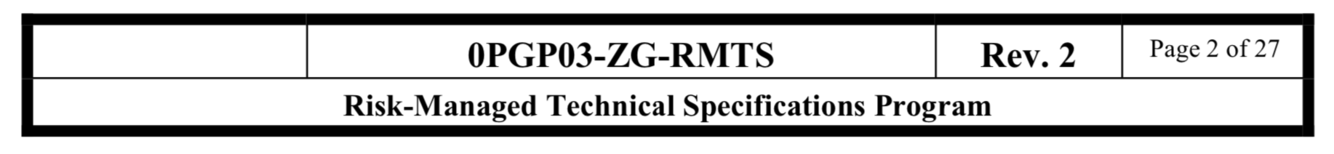

- 0PGPO3-ZG-RMTS Risk-Managed Tech Spec Program*
- *
When can risk management tech specs (CRMP) be applied?
A
MODES 1 - 2
Applies to extended LCO times.
12
Q

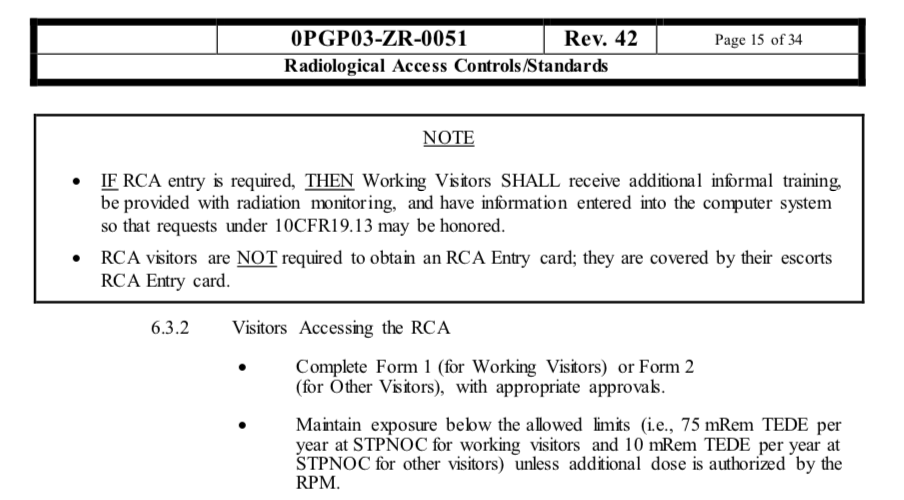

- 0PGP03-ZR-0051 Radiological Access / Work Controls*
- *
What is the maximum yearly dose that a visitor that is not qualified for unescorted access to the RCA can obtain?
A
- *75 mrem TEDE**
- Working Visitor*
- *10 mrem TEDE**
- Non-Working Visitor*
13
Q

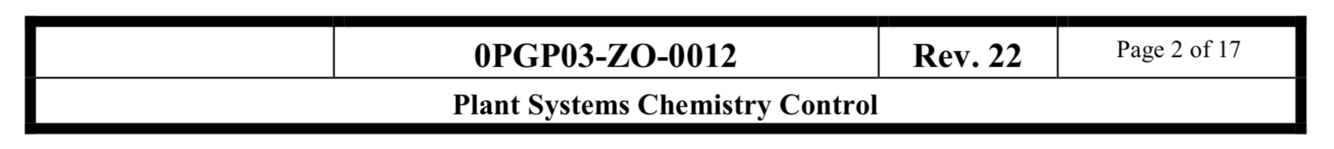

- 0PGP03-ZO-0012 Plant Systems Chemistry Control*
- *
What actions shall be performed for a secondary chemistry action level 1?
A
Generate CR
Return parameter < Action Level 1 Value
Have 21 days until it becomes action Level 2
14
Q

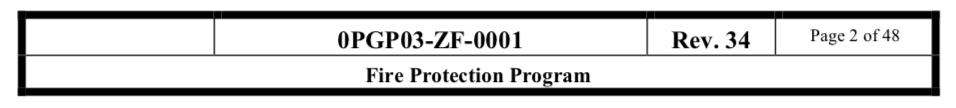

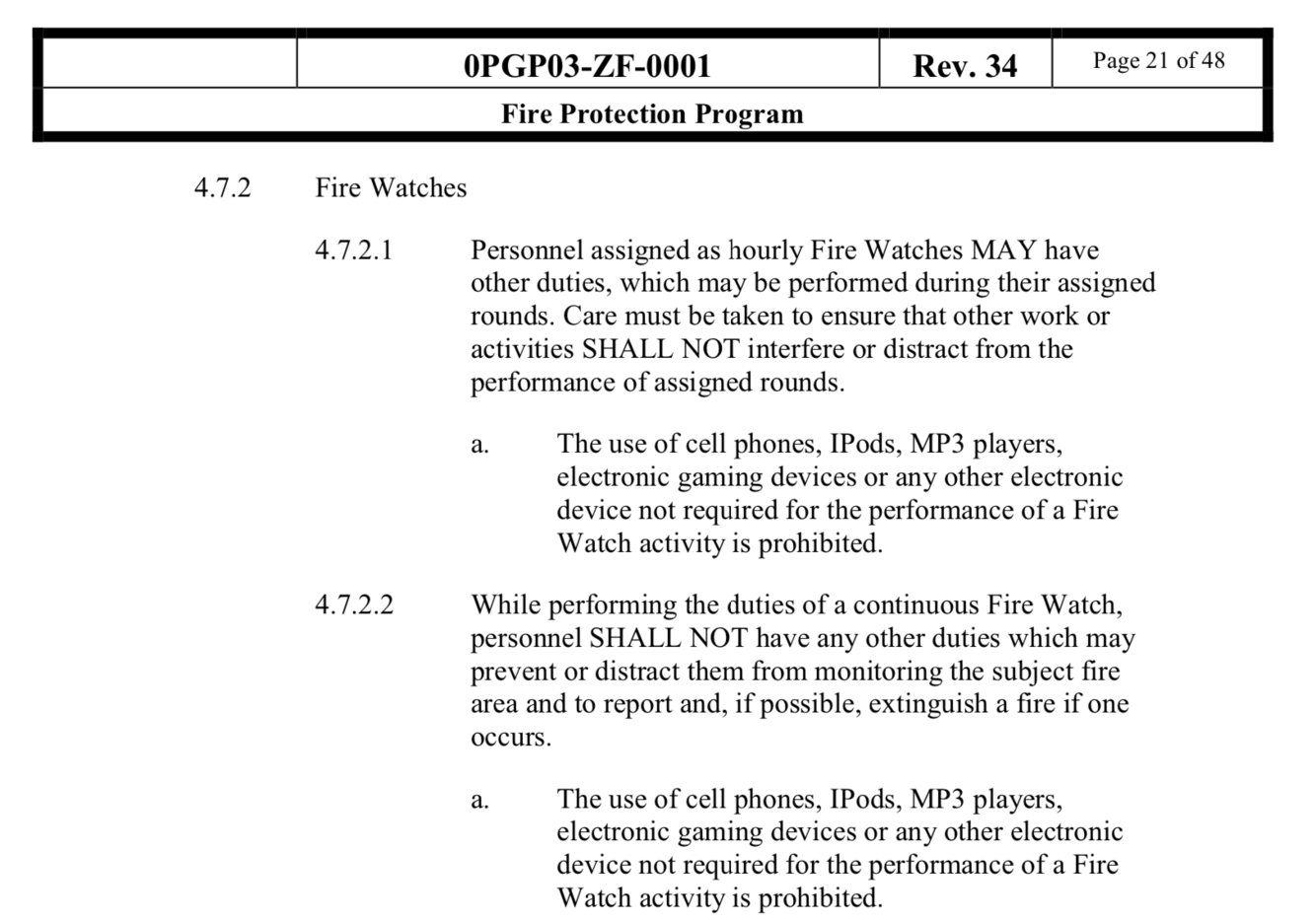

- 0PGP03-ZF-0001 Fire Protection Program*
- *
While performing a hourly fire watch, what does 0PGP03-ZF-0001 (Fire Protection Program) specifically say is not allowed?
A
Using a cell phone / mp3 / gaming devices
- Hourly fire watches may have other duties.
- Continuous fire watches may have NO other duties.
15
Q

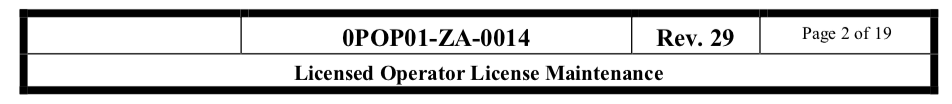

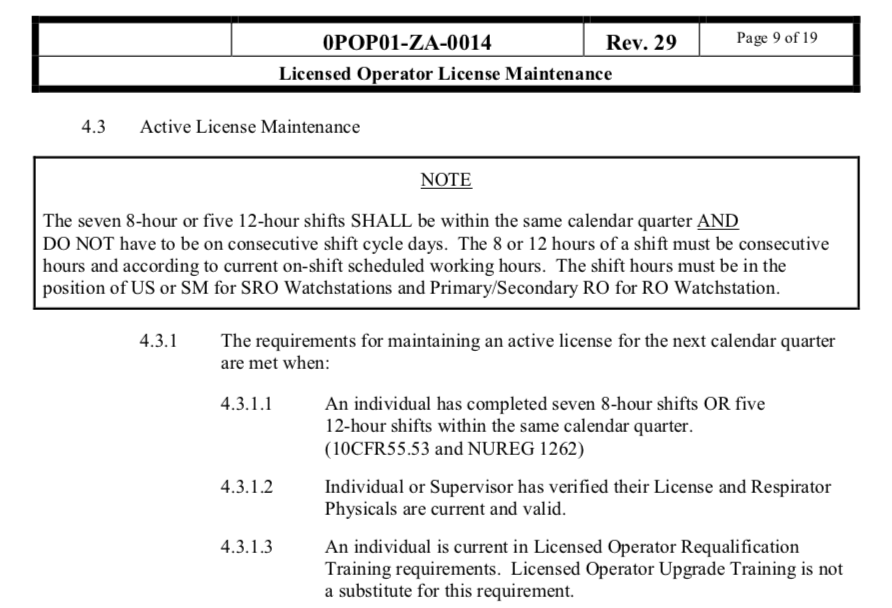

- 0POP01-ZA-0014 License Operator Maintenance*
- *
What is required to maintain an active license each quarter?
A
Seven (7) 8 hr shifts
Five (5) 12 hr shifts
Physicals are valid
- *Enrolled in License Operator Requal Training**
- License Operator Upgrade Training does NOT count*
16
Q

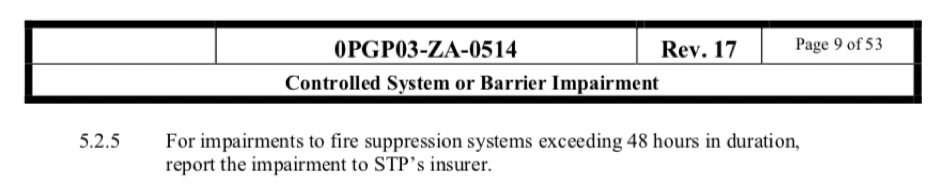

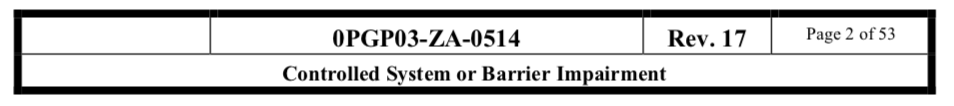

- 0PGP03-ZA-0514 Barrier Impairment*
- *
Who must be specifically notified if a fire suppression system is OOS for > 48 hours?
A
STP’s Insurer
17
Q

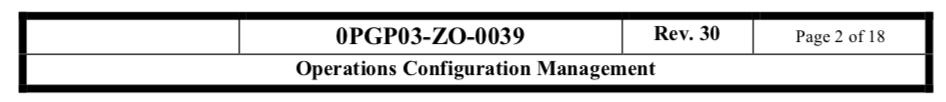

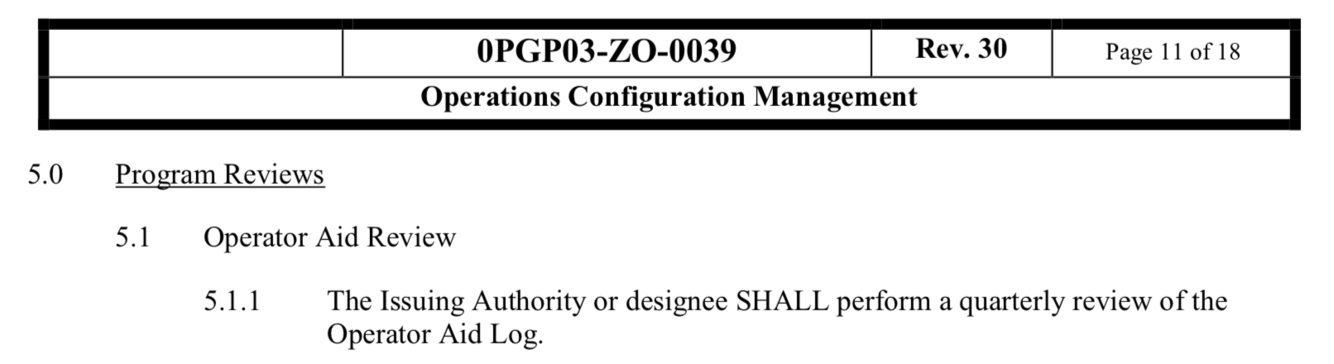

- 0PGP03-ZO-0039 Configuration Management*
- *
How often is the operator aid review performed?
A
Quarterly
Performed by issuing authority.
Note:
The continuing need for each Operator Aid does not need to be verified. (kinda strange)
18
Q

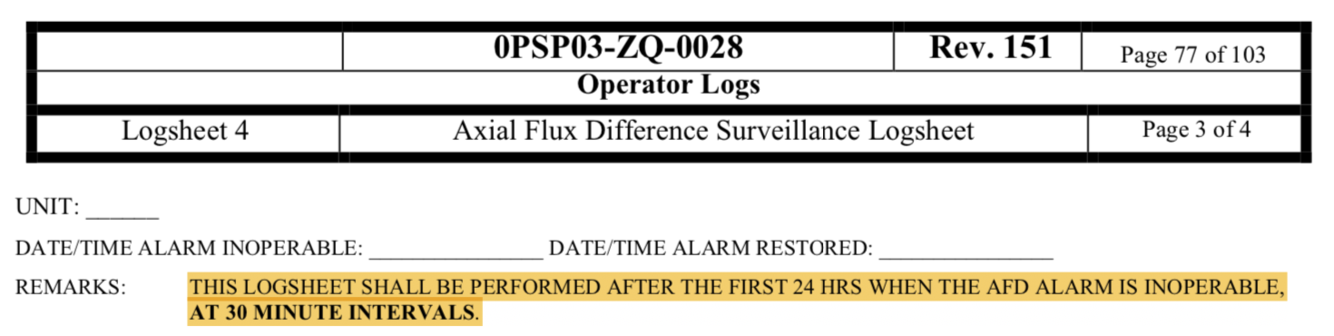

- 0PSP03-ZQ-0028 Operator Logs*
- *
If AFD alarm has been inoperable for > 24 hrs, how often must AFD be logged?
A
Every 30 mins
19
Q

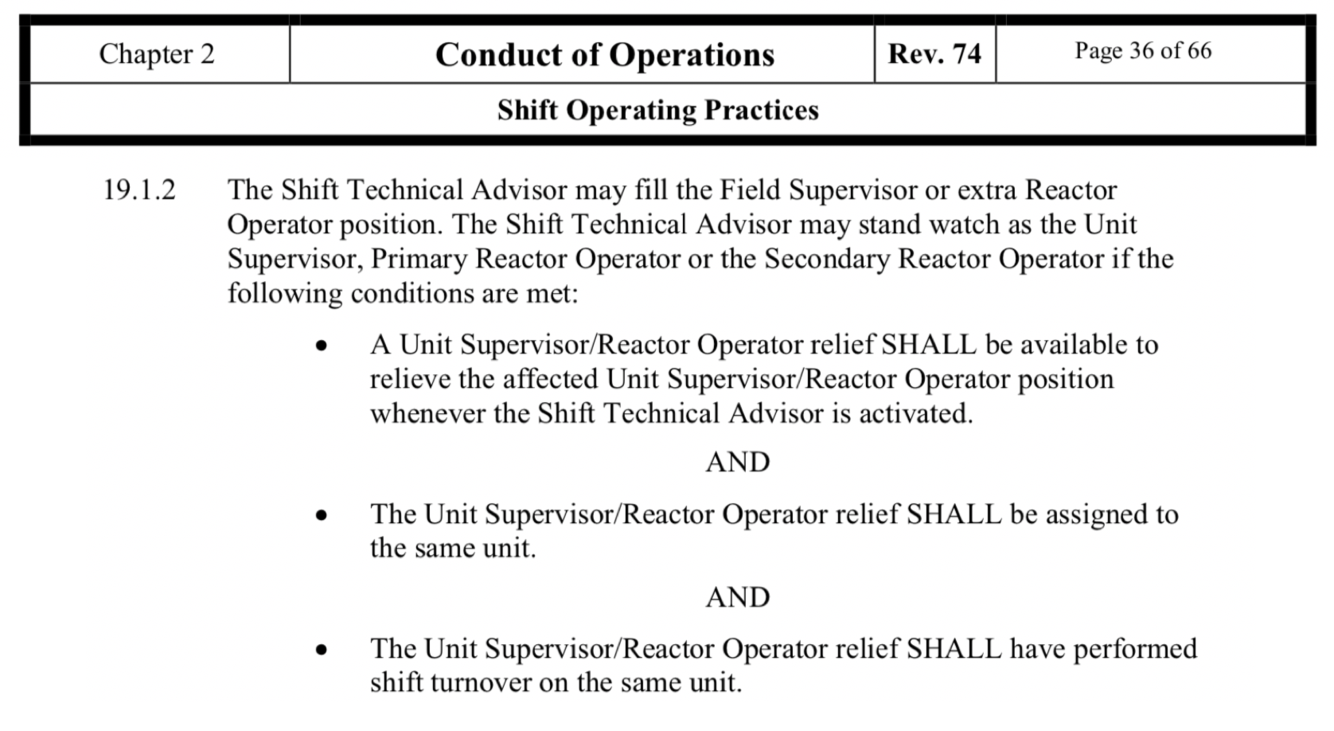

- Conduct of Operations*
- *
When can the STA stand watch as the Unit Supervisor, Primary RO, or Secondary RO?
A
US / RO must be available to re-relieve the STA if STA becomes activated
US / RO must be in same unit as STA
US / RO must perform shift turnover on same unit
20
Q

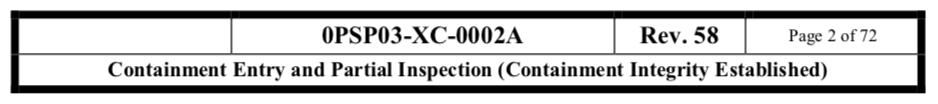

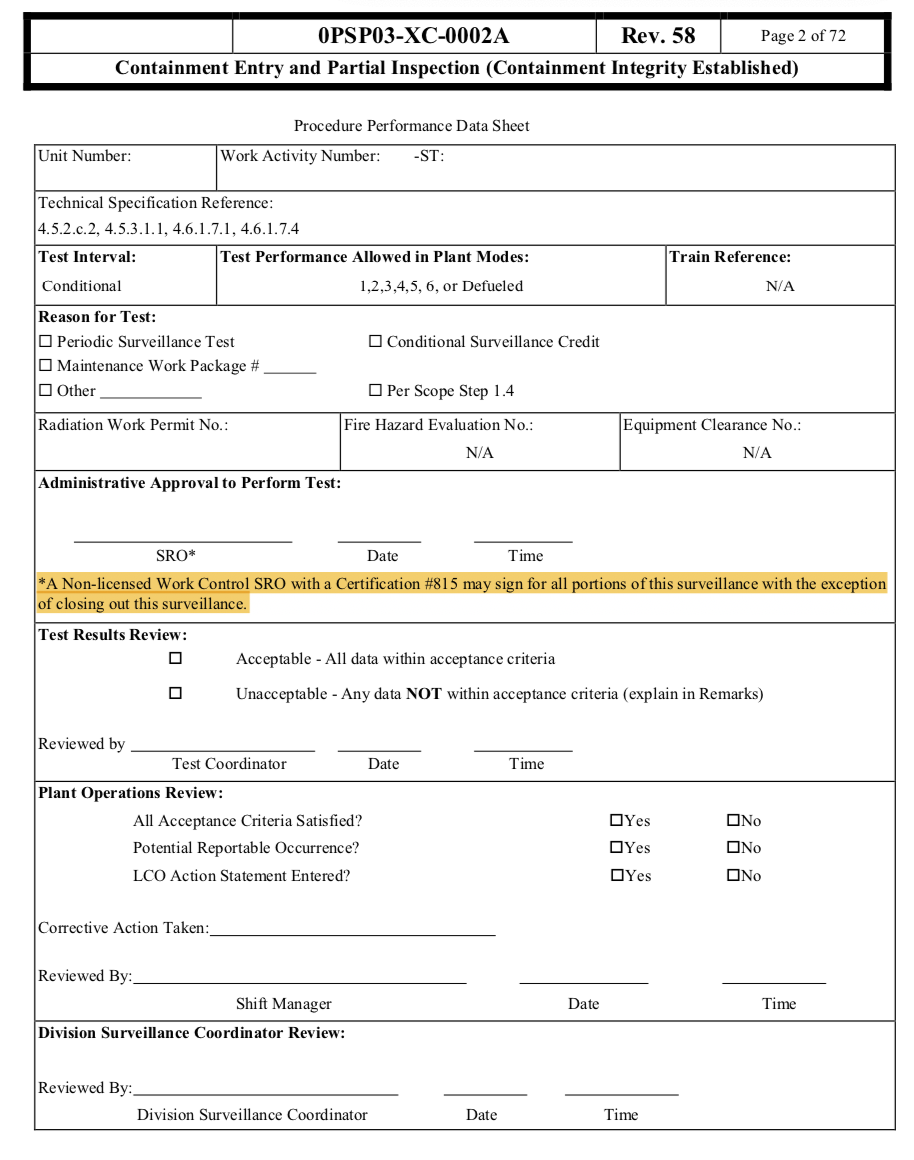

- 0PSP03-XC-0002A Containment Entry (Integrity Established)*
- *
Who can perform all sections of this surveillance with exception of closing out the surveillance?
A
Non-Licensed work control SRO
21
Q
- 0PSP03-XC-0002A Containment Entry (Integrity Established)*
- *

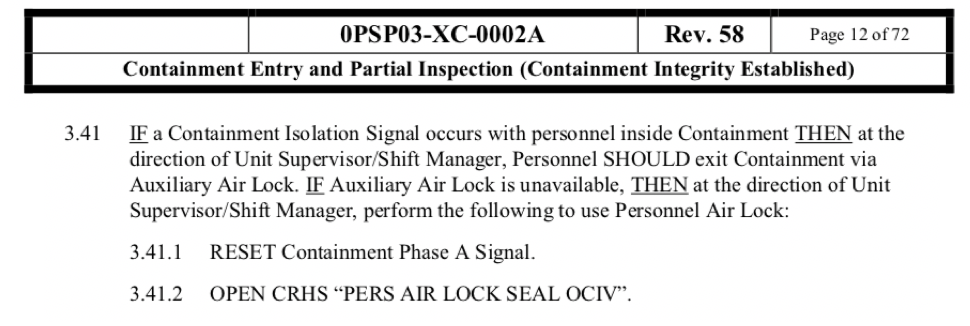

If a Øa occurs while personnel are in containment, where should personnel evacuate?
A
Aux Air Lock
If Aux Air Lock unavailable, must reset Øa and open the PAL OCIV. Personnel can then exit via the PAL.
22
Q
- 0POP01-ZA-0001 Admin Guidelines*
- *

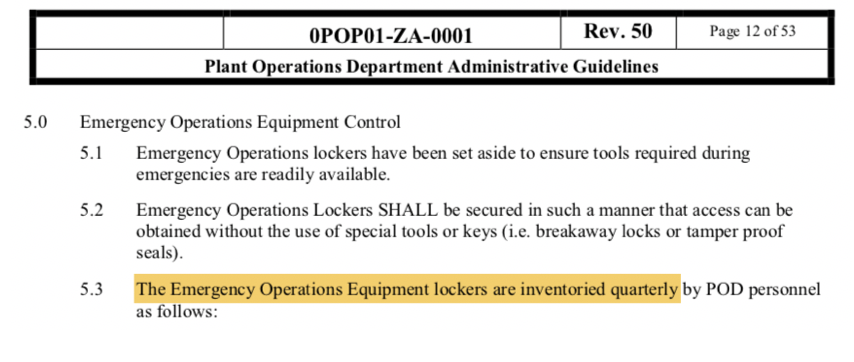

When are the emergency operations lockers audited?
A
Quarterly
23
Q

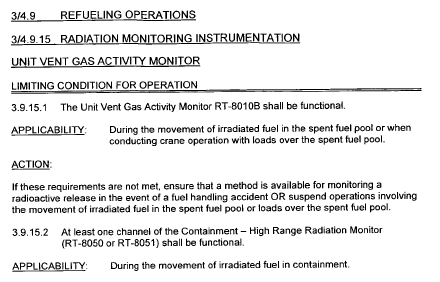

- 0POP08-FH-0009 Core Refueling*
- *
Which radiation detectors should be functional for moving irradiated fuel?
A
RT-8010B
OR
RT-8050 OR RT-8051
24
Q

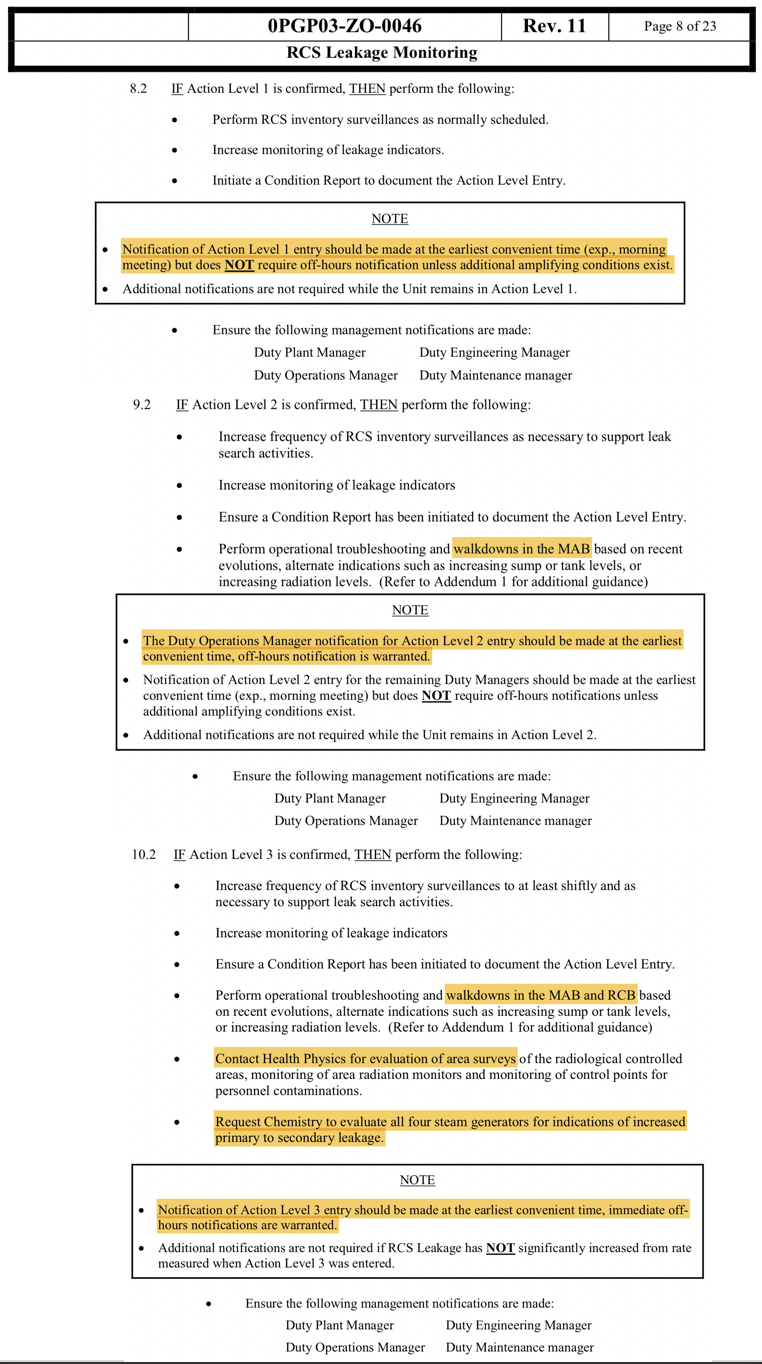

- 0PGP03-ZO-0046 RCS Leakage Monitoring*
- *
What must be done for each of the action levels?
A
Action Level 1:
Monitoring
Notifications
Action Level 2:
MAB Walkdowns
Monitoring
Notifications
Off Hours notification for Duty Ops Manager
Action Level 3:
MAB / RCB Walkdowns
Monitoring
HP Surveys / SG Samples
Notifications
Off Hours notification for everyone
25

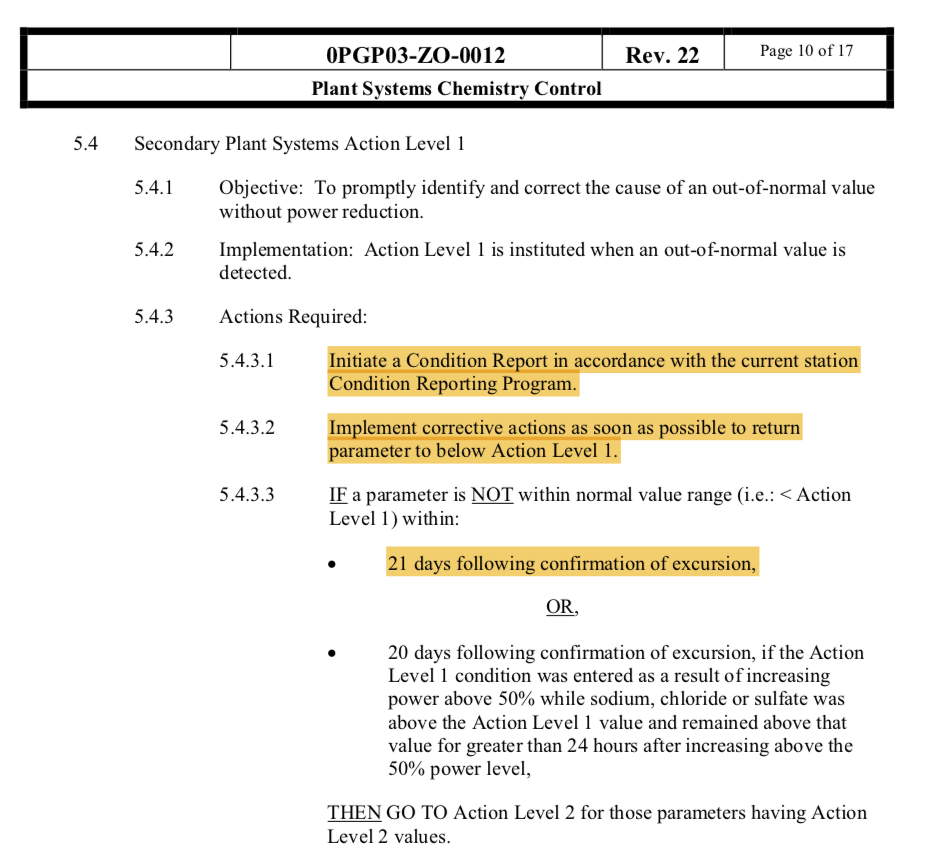

* 0PGP03-ZO-0012 Plant Systems Chemistry Control*
* * *
What is the objective of **_secondary_** chemistry action level 1?
**Identify and correct the cause of an out-of-normal value without a power reduction**
26
* 0PSP03-XC-0002 Initial Containment Inspection*
* * *
What is the max occupancy of containment during normal operations?
* *72 people**
* PAL _and_ AAL must be OPERABLE*
## Footnote
* * *
Normal Operations is MODE 1 - 4 (Doors normally closed) or MODE 5 with the doors closed
27
* 0PGP03-ZO-0046 RCS Leakage Monitoring*
* * *
What should be done if a RCS leakage calculation was performed the test results are suspect?
**Redo the Test**
## Footnote
* * *
If the 2nd test confirms the 1st test's results, then the action level entry time shall be the time of the **1st test's results.**
28
* 0PGP03-ZO-0046 RCS Leakage Monitoring*
* * *
Who performs the necessary notifications for 0PGP-ZO-0046 RCS Leakage Monitoring?
**Shift Manager**
29
* Probabilistic Risk Assessment*
* * *
What are the risk important operator actions?
**Manually start idle CRE HVAC train**
**Start RHR train**
**Start standby trains after loss of SSPS due to fire.**
**Perform bleed and feed for loss of heat sink general transient event.**
**Start PDP after LOOP**
30
* Probabilistic Risk Assessment*
* * *
What are the levels of PRA?
* _Level 1:_*
* *Core Damage**
* CDF / year*
* _Level 2:_*
* *Large Early Release of Radiation**
* LERF / year*
* _Level 3:_*
* *Public Health Consequences**
* Early and Late Casualties / year*
* * *
*Note:
STP does not have level 3 b/c industry standards do not require it.*
31
* 0PSP03-XC-0002 Initial Containment Inspection*
* * *
Who can perform the initial containment inspection to establish integrity?
**SRO**
32
* Probabilistic Risk Assessment*
* * *
What is the level 1 PRA (Likely to cause core damage) top vulnerability?
**LOOP**
33
* WCG-0001 Work Screening and Processing*
* * *
Who approves high risk plans?
**Duty Plant Manager**
34
* 0PGP03-ZO-ECO1A ECO Instructions*
* * *
What requires double valve isolation?
* *Fluid systems \> 150 psig or \> 200 ˚F**
* Hazardous System*
## Footnote
**SFP Discharge Piping**
**Systems containing radioactive fluids**
**Systems containing chemically hazardous fluids**
35
* 0PGP03-ZO-0012 Plant Systems Chemistry Control*
* * *
What are your actions for **_primary_** chemistry action level 2?
**Generate CR**
**Fix within 24 hrs**
**If cannot be fixed within 24 hrs, S/D plant to cold S/D.**
* * *
If heating up plant and \> 250 ˚F and Cl, SO4, Fl \> 150 ppb for 24 hrs or O2 \> 100 ppb for 24 hrs then lower temperature \< 250 ˚F.
36
* 0PGP03-ZI-0007 Confined Space Entry Program*
* * *
What O2 % would be considered safe in regards to Confined Spaces?
**19.5% - 23.5%**
37
* 0PGP03-ZR-0050 Radiation Protection Program*
* * *
What must be done if a woman declares herself pregnant?
**Restrict RCA Access**
**Issue new TLD**
**Figure out dose since conception**
**Woman, HR, and RP manager agree on new limit**
**Limit is _\< 450 mrem/pregnancy_**
**If _≥ 450 mrem_ since conception, then limit is _50 mrem for the rest of the pregnancy._**
* * *
*Note:
NRC limit is 500 mrem/pregnancy*
38
* 0PGP03-ZO-ECO1A ECO Instructions*
* * *
Whose permission is required to use a check valve, relief valve, or a fail open valve as a tagout boundary?
**Unit Operations Manager**
**Maintenance Division Manager / General Maintenance Supervisor**
* * *
Also need their approval if:
* Working on system \> 140 ˚F without a system vent/drain.
* Using a freeze seal
* Working on flange adjacent to boundary valve
* Any backseated valve used for single valve isolation
39
* 0PGP03-ZR-0051 Radiological Access / Work Controls*
* * *
When must an area be posted a radiation area, high radiation area, locked high radiation area, and a very high radiation area?
* _Radiation Area:_*
* *≥ 5 mR/hr @ 30 cm → \< 100 mR/hr @ 30 cm**
* _High Radiation Area:_*
* *≥ 100 mR/hr @ 30 cm → \< 1000 mR/hr @ 30 cm**
* _Locked High Radiation Area:_*
* *≥ 1000 mR/hr @ 30 cm → \< 500 Rads/hr @ 1 m**
* _Very High Radiation Area:_*
* *≥ 500 Rads/hr @ 1 m**
40
* 0PGP03-ZO-0012 Plant Systems Chemistry Control*
* * *
What chemistry transients warrant a Rx trip?
**CP Fully bypassed
_AND_
Condensate Pump Discharge cation conductivity verified \> 1.0 µS/cm**
**SG Cation conductivity rising
_AND_
SG Na, Cl, or SO4 \> 1000 ppb**
**SG Cation conductivity \> 15 µS/cm
_AND_
SG Na rising**
41
* 0PGP03-ZA-0010 Performing/Verifying Activities*
* * *
When is indirect IV used?
**ALARA (10 mRem)**
**Safety Condition**
**Emergency Conditions**
42
* 0PGP03-ZO-0012 Plant Systems Chemistry Control*
* * *
What are your actions for **_primary_** chemistry action level 1?
**Generate CR**
**Bring back in spec within 7 days**
**If cannot be fixed within 7 days, then more formal corrective actions will be performed.**
43
* 0POP01-ZQ-0022 Plant OPS Shift Routine*
* * *
How far back in the logs should the on-coming watchstanders review?
*_Whichever is less:_*
**Since last watch
_OR_
Prior 72 hrs**
44
* 0PGP03-ZR-0050 Radiation Protection Program*
* * *
What are the AAL radiation exposure limits?
* _TEDE:_*
* *2 R/year**
* _Shallow Dose:_*
* *40 R/year**
* _Lifetime:_*
* *N Rem (N=Age)**
* * *
No AAL for eyes b/c TEDE covers your eyes.
45
* 0PGP03-ZO-0012 Plant Systems Chemistry Control*
* * *
What are your actions for **_primary_** chemistry action level 3?
**Generate a CR**
**S/D immediately**
**Lower temperature to \< 250 ˚F as rapidly as possible.**
46
* Conduct of Operations*
* * *
Who must be notified if a licensed operator fails a random breathalyzer test?
**Unit Operations Manager**
47
* 0PGP03-ZR-0050 Radiation Protection Program*
* * *
What are the NRC exposure limits?
* _TEDE:_*
* *5 R/year**
* _Eyes:_*
* *15 R/year**
* _Everything Else:_*
* *50 R/year**
48
* 0PGP03-ZO-0041 Primary to Secondary Leakage*
* * *
What puts you in action level 1 for primary to secondary leakage?
* _Total Leak Rate (All 4 S/Gs):_*
* *≥ 30 gpd**
## Footnote
* * *
Monitor CARS / BD / N-16 10 min trends every 15 mins
49
* 0PGP03-ZR-0051 Radiological Access / Work Controls*
* * *
What is a DAC (Derived Air Concentration)?
* *Person will exceed yearly limit (5 Rem) if he breathes in air 40 hrs a week for 50 weeks.**
* (2.5 mrem/hr)*
50
* 0PGP03-ZO-ECO1A ECO Instructions*
* * *
What is a severity Level 1, Level 2, and Level 3 event?
* _Level 1:_*
* *Discovered after work has started**
* _Level 2:_*
* *Discovered after ECO released**
* _Level 3:_*
* *Discovered before ECO released**
* * *
To classify for these events, the error discovered potentially or could potentially expose a worker to hazardous energy.
51
* 0PGP03-ZO-0003 Temporary Modifications*
* * *
Who is responsible for reviewing a temporary modification _PRIOR_ to the approving of work?
**SRO**
52
* 0PGP03-ZI-0007 Confined Space Entry Program*
* * *
How many controlled Entry and Exit points will be established for a Permit entry Space?
**1 Entry**
**0 Exit**
53
* LCO 6.2.2 Shift Manning*
* * *
When must a RP technician be on site?
**When fuel is in the reactor**
54
* 0POP08-FH-0003 Fuel Transfer System*
* * *
Who authorizes the operation of the bypass switches on the RFM and FHM?
**Core Load Supervisor**
## Footnote
* * *
If Fuel is attached, he must have permission from reactor engineering and the SM.
55
* 0PGP03-ZA-0514 Barrier Impairment*
* * *
When does the requirements of 0PGP03-ZA-0514 not apply to a barrier impairment?
* _Fire/HVAC/Flooding/Security:\*\*_*
* *Personnel stationed to immediately close the door**
* _Flooding:\*\*_*
* *Breached for \< 1 shift**
* * *
*Note:
IVC Doors 002-005 are an exception due to HELBA*
56
* LOT 803.08 Respond to Off-Normal Conditions*
* * *
What is STP required to notify the owner QSE's of?
**Power reductions \> 25 MWe (Non-Peak)**
**Power reductions \> 5 MWe (Peak)**
**Unit / Plant Shutdowns**
**Changes in scheduled power generation**
* * *
Notifications made by EMS website and then followed by a telephone call.
57
* 0PGP03-ZR-0051 Radiological Access / Work Controls*
* * *
How you determine the dose rate received from a point source and a line source?
* _Point Source:_*
* *DR1(D1)2 = DR2(D2)2**
* _Line Source:_*
* *\< L/2 → DR1(D1) = DR2(D2)**
* *\> L/2 → DR1(D1)2 = DR2(D2)**2
* (Point Source Equation)*
58
* 0PGP03-ZA-0114 Fatigue Rule*
* * *
What are the work hour limits?
**16 hrs in 24 hrs**
**26 hrs in 48 hrs**
**72 hrs in 7 days**
* *10 hr break between days**
* 8 hr break allowed for crew transition*
**34 hr break in any 9 day calendar days**
* * *
These are rolling time periods
* * *
*Note:
If a covered worker exceeds 54 hrs in 1 week, then a CR must be generated*
59
* 0PGP03-ZO-0039 Configuration Management*
* * *
Who coordinates the computer point off scan review?
**Engineering Duty Manager**
60
* 0POP01-ZA-0014 License Operator Maintenance*
* * *
What must be done in order to activate a license?
* *Stand 60 hrs of plant familiarization**
* Only required for initial activation*
**Stand 40 hrs of U/I**
**Do a plant tour**
* *Discussion with Plant Manager**
* Command and Control*
* * *
*Note:
If license was activated in the current quarter, then do not have to perform license maintenance for that quarter to stay active.*
61
* 0PSP03-ZQ-0028 Operator Logs*
* * *
If ECW supply temperature is \< 75 ˚F and temperature lowers by ≥ 4 ˚F between consecutive log readings, what must the operator do?
**Start all ECW pumps**
62
* 0PGP03-ZA-0101 Shutdown Risk Assessment*
* * *
Who performs the final approval of the shutdown risk assessment report?
**Plant General Manager**
63
* 0PGP03-ZO-0022 Post-Trip Review*
* * *
Who authorizes unit restart after a Category I, II, or III reactor trip?
**Plant Manager**
## Footnote
* * *
For a Category III Rx trip, he must review the post trip review report.
* * *
*Note:
The STA prepares the report and the Plant Operations Review Committee (PORC) reviews the report.*
64
* 0POP01-ZO-0004 Extreme Cold Weather Guidelines*
* * *
When is cold weather guidelines implemented?
**≤ 40 ˚F for 24 hrs**
**≤ 34 ˚F**
* * *
Also done if weather is expected to achieve these temperatures.
* * *
*Note:
Extreme cold weather season is 10/31 - 3/31.*
65
* 0PGP03-ZF-0001 Fire Protection Program*
* * *
How often must a watch enter an area and still be considered a continuous fire watch?
**Every 15 minutes**
* * *
* Hourly fire watches may have other duties.
* Continuous fire watches may have _NO_ other duties.
66
* 0POP01-ZA-0001 Admin Guidelines*
* * *
Following an outage, whose permission is needed to waive the initial valve lineup for a system?
**Unit's Operation Manager**
* * *
One of the following conditions must exist:
* System has remained in service
* No work performed on system and system not modified
* If work performed, then process was controlled by ECO process
* * *
*Note:
Valves in MAB pit rooms not required to be checked for initial valve lineups*
67
* LOT 802.34 Testing Req. Following Testing*
* * *
What are the equipment groupings per ASME Section XI?
* _Class 1:_*
* *RCS Pressure Boundary**
* _Class 2:_*
* *Essential Safety Systems**
* _Class 3:_*
* *Essential Support Systems**
68
* 0PGP03-ZI-0007 Confined Space Entry Program*
* * *
What is the definition of a confined space?
**Large enough someone can enter**
**Limited entry / exit points**
**Not designed for continuous occupancy**
69
* 0PGP03-ZA-0112 Fatigue Rule Waivers*
* * *
When is a fatigue rule waiver authorized to be used?
**Mitigates or prevents condition adverse to nuclear safety**
* * *
* SM determines if waiver necessary
* Plant General Manager approves waiver
70
* 0PGP03-ZO-0042 Reactivity Management*
* * *
A planned reactivity change must be reviewed by a SRO or Rx Engineering if the reactivity change exceeds what amount?
**± 100 pcm boron**
**± 2% RTP**
* * *
Must also be approved by operations management
71
* 0PGP03-ZO-0012 Plant Systems Chemistry Control*
* * *
What is the objective of **_secondary_** chemistry action level 2?
**To minimize corrosion by operating at reduced power while corrective actions are taken.**
72
* 0PGP03-ZO-0041 Primary to Secondary Leakage*
* * *
What puts you in increased monitoring for primary to secondary leakage?
* _Total Leak Rate (All 4 S/Gs):_*
* *≥ 5 gpd and \< 30 gpd**
## Footnote
* * *
Monitor CARS / BD / N-16 every 12 hrs
* * *
*Note:
≤ 10% rise in 24 hrs, return to normal monitoring.*
73
* 0PGP03-ZO-0003 Temporary Modifications*
* * *
What kind of temporary leak repairs are covered under 0POP03-ZO-0003 Temporary Modifications?
* _Requires:_*
* *P&ID Change**
* Valve kill / packing injection excluded*
**Procedure Change**
**CROE**
**Training**
* * *
*Note:
Normal temporary leak repairs are covered under 0PGP03-ZO-0009 Temporary Leak Repair*
74
* 0PGP03-ZA-0098 Station Housekeeping*
* * *
How many drains in the RCA may be taped up for your work area?
**≤ 1 drain at a time**
## Footnote
* * *
Do not leave unattended.
* * *
*Note:
If done long term, do a T-MOD*
75
* 0PGP03-ZA-0090 Work Process Program*
* * *
Whose permission is required to start emergent work without an approved work package?
**Shift Manager**
**Emergency Director**
76
* 0PGP03-ZO-0046 RCS Leakage Monitoring*
* * *
What are the action levels for unidentified leakage?
*_Absolute Leak Rate:_*
* _Action Level 1:_*
* *7 Day (Rolling Average) \> 0.1 gpm**
* _Action Level 2:_*
* *2 Days (Consecutive) \> 0.15 gpm**
* _Action Level 3:_*
* *1 Day \> 0.3 gpm**
* _LCO 3.4.6.2:_*
* *\> 1.0 gpm**
* * *
*_Baseline Deviation:_*
* _Action Level 1:_*
* *9 Days (Consecutive) \> Baseline Mean**
* _Action Level 2:_*
* *2 of last 3 Days \> Baseline Mean + 2 Standard Deviations**
* _Action Level 3:_*
* *1 Day \> Baseline Mean + 3 Standard Deviations**
77
* 0PGP03-ZO-0042 Reactivity Management*
* * *
What are the significant levels of Reactivity Management?
* _Level 1: (Highest)_*
* *Significant Event**
* Fundamental Organizational Breakdown*
* _Level 2:_*
* *Consequential Event**
* Violation of Design Basis / License*
* _Level 3:_*
* *Unacceptable Event**
* Violation of Process / Procedures*
* _Level 4:_*
* *Precursor**
* _Level 5: (Lowest)_*
* *Concern**
* _Level 6:_*
* *No Impact**
78
* 0PSP03-ZQ-0028 Operator Logs*
* * *
What must be done if the QPTR alarm is _NOT_ clear?
**Perform 0PSP10-NI-0002 every 12 hrs**
79
* WCG-0001 Work Screening and Processing*
* * *
Who approves medium risk plans?
**Duty Operations Manager**
80
* Conduct of Operations*
* * *
When performing a controlled shutdown for a LCO action statement, how long does it take to shutdown the plant?
* _100% - 20%:_*
* *40%/hr (2 hrs)**
* _20% - 3%:_*
* *15%/hr (≈ 1 hr)**
* _3% - MODE 3:_*
* *Remaining time on LCO**
* * *
Should start shutting down as soon as you know you will not be able to fix the problem.
* * *
*Note:
Adjusted to coincide with Tech Spec action times.*
81
* 0PGP03-ZO-0002 Conduct of Operators for Cranes*
* * *
When should outdoor cranes be secured?
* *Wind Speeds \> 30 mph**
* Gust ≤ 35 mph allowed*
## Footnote
* * *
Personnel should not be hoisted in manbaskets if winds \> 15 mph.
82
* 0PGP03-ZO-0012 Plant Systems Chemistry Control*
* * *
What actions shall be performed for a **_secondary_** chemistry action level 2?
**Generate CR**
**Take actions for safe and orderly reduction of power to ≤ 50% and achieve ≤ 50% power within 24 hours of entering Action Level 2.**
**Have _300 hours_ until action becomes action level 3**
* * *
Power reduction may be terminated when no longer in action level 2 but may not raise power until out of action level 1.
83
* 0PGP03-ZA-0090 Work Process Program*
* * *
What classifies as emergency maintenance?
**Prevent / mitigate an accident**
**Prevent unplanned release**
**Protect human life**
**Prevent significant plant damage**
* * *
* Authorized by SM
* Does _NOT_ need a work package
84
* 0PGP03-ZO-0012 Plant Systems Chemistry Control*
* * *
What is the objective of **_secondary_** chemistry action level 3?
**To correct a condition that can result in rapid corrosion of a secondary side component during continued operation.**
## Footnote
* * *
Plant shutdown will minimize impurity ingress and limit exposure of steam generator, turbine, and other secondary materials to corrosive solutions.
85
* Conduct of Operations*
* * *
What is the minimum shift complement?
**SM (2)**
**US (2)**
**STA (1)**
**RO (4)**
**ENS Communicator (1)**
**Safe S/D Plant Operators (4)**
* *Fire Brigade Members (5)**
* 1 Qualified Fire Brigade Leader*
**State / County Communicator (1)**
86
* 0PAP01-ZA-0102 Plant Procedures*
* * *
Who's approval is required to perform a field change to a procedure?
**Any SRO**
87
* 0PGP03-ZA-0098 Station Housekeeping*
* * *
In order to eat or drink in a house keeping area, what must the area be zoned as?
**Zone V**
## Footnote
* * *
Zone IV is the same except no eating or drinking allowed in Zone IV. (MAB, FHB, ECW, etc.)
* * *
*Note:
Zone I is the highest degree of cleanliness (Clean room)*
88
* 0PGP03-ZE-0004 Plant Surveillance Program*
* * *
What surveillances does the plant surveillance program procedure govern?
**Tech Specs**
**TRM**
**ODCM**
89
* 0PSP03-XC-0002A Containment Entry (Integrity Established)*
* * *
Who determines what tools, test equipment, or other material may be left inside the RCB once personnel exit containment with integrity established?
**SM / Unit Supervisor**
90
* LCO 6.2.2 Shift Manning*
* * *
How long can minimum crew staffing be violated?
**2 hrs**
91
* 0PGP03-ZA-0514 Barrier Impairment*
* * *
Who is responsible for verifying Form 1 of 0PGP03-ZA-0514 is completed accurately?
* *Fire Marshal**
* FPS Section*
* *Rapid Response Team Supervisor**
* HVAC Section*
* *Mechanical/Civil Supervisor**
* Flood Barrier Section*
* *Security Force Supervisor**
* Security Section*
92
* 0POP08-FH-0009 Core Refueling*
* * *
When conducting refueling operations, who must be on communications?
**Refueling Machine**
**Fuel Handling Machine**
**FHB Console**
**RCB Console**
**Control Room Operator**
**Rx Engineer**
93
* 0PGP03-ZO-0039 Configuration Management*
* * *
If a computer point was taken off scan, removed from alarm checking, or a substitute value entered, the computer point must be tracked in the points off scan log. When must the review be performed?
**36 hrs**
## Footnote
* * *
If another point is available, then review can be extended to **_72 hrs._**
94
* 0PGP03-ZI-0007 Confined Space Entry Program*
* * *
Who is responsible for maintaining respirator protection equipment for use in Permit Entry Spaces?
**Health Physics**
95
* 0PGP03-ZO-0012 Plant Systems Chemistry Control*
* * *
If a chemistry waiver is desired and the waiver is for a control parameter, whose concurrence must be obtained?
**Plant Manager**
## Footnote
* * *
Chemistry Manager is required for all waivers.
96
* Conduct of Operations*
* * *
When is the STA activated?
**Emergency Plan Entry**
**EOPs entered**
**SM / STA discretion**
97
* 0PGP03-ZA-0114 Fatigue Rule*
* * *
What is the minimum amount of time per week that operations personnel must have off?
* _Normally: (12 hr shifts)_*
* *2.5 days/week**
* _Outage:_*
* *3 days / 15 day period**
* * *
Outage fatigue rules can only apply for 60 days.
98
* 0POP01-ZO-0006 Risk Management Actions*
* * *
What does the risk assessment calculator assess?
**Incremental Conditional Core Damage Probability**
**Weekly Trip Risk Probability**
* * *
Used in MODES 1 and 2
99
* 0PGP03-ZF-0011 STPEGS Fire Brigade*
* * *
How often are Fire Brigade meetings conducted?
**4 per year**
100
* 0PGP03-ZR-0050 Radiation Protection Program*
* * *
If your AAL TEDE is extended past 2 R/year, whose approval is required?
*_2 R - 3 R:_*
**RP Manager
Individual's Manager**
*_3 R - 4 R:_*
**(Same as 2 R - 3 R)
Plant Manager**
*_4 R - 5 R:_*
**(Same as 3 R - 4 R)
Senior Management Team Member**
* * *
*Note:
Powerpoint had 1.5 R/year as the limit but ZR-50 has 2R/year.*
101
* Conduct of Operations*
* * *
How long does the STA have to get to the control room once notified?
**10 mins**
102
* Probabilistic Risk Assessment*
* * *
What are the level 1 PRA external events (Likely to cause core damage)?
**Fire**
**Flooding**
**Tornado**
**Seismic**
103
* 0POP01-ZO-0006 Risk Management Actions*
* * *
Who approves risk management actions?
**Plant General Manager**
## Footnote
* * *
Shift Manager in charge of implementing actions.
104
* 0PGP03-ZA-0098 Station Housekeeping*
* * *
Who approves exemptions for station housekeeping?
**Plant Manager**
105
* 0PSP03-ZQ-0028 Operator Logs*
* * *
What leakage rate would force the you to declare the containment sump level / flow monitoring system inoperable?
**\> 4.7 gpm**
106
* Survey Maps*
* * *
What do the following symbols mean on a survey map?
* _Circle:_*
* *Smear**
* _Triangle:_*
* *Air Sample**
* _Rhombus:_*
* *Large area wipe**
* * *
* Number by itself is a general area reading (\<2.5)
* \*120/3.5 means 120 on contact and 3.5 @ 30 cm
107
* 0PGP03-ZO-ECO1A ECO Instructions*
* * *
Who can waive the IV on an ECO restoration?
* *Issuing Authority**
* Unit Operations Division Manager (Designee) must concur*
## Footnote
* * *
IV waived for significant radiation exposure, personnel safety reduction, or for emergency conditions.
* * *
*Note:
IV on locked components cannot be waived*
108
* LCO 6.2.2 Shift Manning*
* * *
How many plant operators are required for shift manning to satisfy tech specs?
* _MODES 1 -4:_*
* *2 / Unit**
* _At all Times:_*
* *3 Total**
* At least 1 / Unit*
109
* 0POP01-ZO-0011 Operability, Functionality, and Reportability Guidance*
* * *
If a prompt determination is performed for a \< 72 hr S/D action statement, when should the prompt determination be completed by?
**≤ 24 hrs**
## Footnote
* * *
Normally prompt determinations are completed within 1 week.
* * *
*Note:
For all CRs where the SM/US calls a component OPERABLE but degraded, a prompt determination shall be requested.*
110
* 0PGP03-ZO-0041 Primary to Secondary Leakage*
* * *
What puts you in action level 2 for primary to secondary leakage?
* _Leakage from 1 S/G:_*
* *75 gpd - 150 gpd**
* * *
Monitor CARS / BD / N-16 10 min trends every 15 mins
If \> 75 gpm for ≥ 1 hr:
* Go to POP04-RC-0004 (SG Tube Leakage)
* Be in MODE 3 [24 hrs]
* Time starts when ≥ 75 gpd first indicated
111
* Probabilistic Risk Assessment*
* * *
What is most likely to cause an early large area release? (Level 2 PRA)
**Induced SGTR**
112
* 0POP01-ZO-0002 345 kV Switchyard*
* * *
Who can be designated as a STP designated qualified operators?
**Unit Supervisor**
**SM**
**Unit Operations Manager**
113
* 0PGP03-ZR-0050 Radiation Protection Program*
* * *
Who has the authority to lift a Health Physics Stop Work Order?
**Plant Manager**
**RP Manager**
114
* 0POP01-ZA-0001 Admin Guidelines*
* * *
When is the locked component deviation log audited?
**Monthly**
## Footnote
* * *
* Note:*
* Shift Manger/Unit Supervisor responsible for ensuring log updated when locked valve positioned.*
115
* 0PGP03-ZO-0012 Plant Systems Chemistry Control*
* * *
What do the different **_primary_** chemistry action levels mean?
* _Action Level 1:_*
* *Long term reliability could be affected**
* _Action Level 2:_*
* *Significant damage could be done in a very short time**
* _Action Level 3:_*
* *Inadvisable to keep operating the plant**
116
* 0POP01-ZQ-0022 Plant OPS Shift Routine*
* * *
Who ensures appropriate entries are made in the control room logbook?
**Unit Supervisor**
117
* Conduct of Operations*
* * *
While checking the position of a normally locked closed valve, the valve operator cannot be moved due to the locking device. What is the proper method for checking the position of this valve?
**Remove the locking device**
**Check valve in closed direction**
118
* Admin Procedures*
* * *
What are the Admin and Tech Spec / TRM Heatup and Cooldown limits for the RCS and PZR?
***_Heatup Rates:_***
*_RCS:_*
**Admin: 50 ˚F/hr
Tech Spec: 100 ˚F/hr**
*_PZR:_*
**Admin: 100 ˚F/hr
TRM: 100 ˚F/hr**
* * *
***_Cooldown Rates:_***
*_RCS:_*
**Admin: 80 ˚F/hr
Tech Spec: 100 ˚F/hr**
*_PZR:_*
**Admin: 160 ˚F/hr
TRM: 200 ˚F/hr**
119
* 0PGP03-ZR-0044 Contamination Control Program*
* * *
What contamination levels are present in a contaminated area and a high contamination area?
* _Contaminated Area:_*
* *≥ 1,000 dpm/100cm2 beta/gamma**
**≥ 20 dpm/100cm2 alpha**
* _High Contamination Area:_*
* *≥ 100,000 dpm/100cm2 beta/gamma**
**≥ 1,000 dpm/100cm2 alpha**
120
* 0PGP03-ZO-0041 Primary to Secondary Leakage*
* * *
When are the N-16 monitors available to detect primary-to-secondary leakage?
**\>25% power**
* * *
* Between 20% and 25% the N-16 monitors are unreliable.
* \< 20% the N-16 monitors do not function.
121
* 0PGP03-ZO-0042 Reactivity Management*
* * *
What is the Plant manager, Operations Manager, Unit Operations Manager, and SM responsible for?
* _Plant Manager:_*
* *Ensures reactivity management philosophy**
* _Operations Manager:_*
* *Implements reactivity management program**
* _Unit Operations Manager:_*
* *Determines event classification**
* _Shift Manager:_*
* *Daily application**
122
* 0PGPO3-ZG-RMTS Risk-Managed Tech Spec Program*
* * *
Can the CRMP be applied if all trains required by the LCO are inoperable?
**Yes**
**≥ 1 train must be PRA Functional**
123
* 0PGP03-ZA-0010 Performing/Verifying Activities*
* * *
Who may authorize adding, omitting, or changing a step in a procedure?
**Shift Manager / Unit Supervisor**
* * *
Changes are allowed as long as:
* Does _NOT_ affect personnel / equipment safety
* Documented in log book / procedure
* CR generated
* * *
*Note:
Cannot be used to fix broken procedure.*
124
* 0PGP03-ZF-0011 STPEGS Fire Brigade*
* * *
Who is responsible for providing necessary keys for the Fire Brigade?
**Security Force Supervisor**
125
* 0POP01-ZO-0004 Extreme Cold Weather Guidelines*
* * *
Who is responsible for implementing the extreme cold weather program?
**Shift Manger**
126
* 0PGP03-ZF-0018 FPS Functional Requirements*
* * *
A fire door has a self-closing feature. Would the door be considered functional if the self-closing feature was broken but the door would still latch closed?
**No**
## Footnote
* * *
Both the self-closing feature and the latch must be working.
127
* 0PGP03-ZO-0012 Plant Systems Chemistry Control*
* * *
What actions shall be performed for a **_secondary_** chemistry action level 3?
**Generate a CR**
* *Take Plant to ≤ 5% power as quickly as safe plant operation permits.**
* Has to be done regardless of the duration into Action Level 3*
* * *
* Note:*
* If due to Hydrazine / FW O2 \< 2, have 8 hrs to fix and then must go to cold shutdown.*
128
* 0ERP01-ZV-IN06 Radiological Exposure Guidelines*
* * *
While the E-Plan is activated, what situations allow personnel to exceed 5 REM TEDE?
* _5 REM to 10 REM:_*
* *Protection of Property**
**Lifesaving Activities**
**Protecting Large Populations**
* * *
* _10 REM to 25 REM:_*
* *Lifesaving Activities**
**Protecting Large Populations**
* * *
* _\> 25 REM:_*
* *Lifesaving Activities**
**Protecting Large Populations**
**PERSONNEL HAVE TO VOLUNTEER**
* * *
*Note:
All personnel can receive 5 REM while in E-Plan without permission.*
129
* 0PGP03-ZO-0046 RCS Leakage Monitoring*
* * *
When can RCS Leakage action levels be exited?
**Enhanced Unidentified Leak Rate Program indicates exit from the Action Level**
**_Entry into Mode 5_**
**Directed the procedure.**
130
* 0PGP03-ZE-0004 Plant Surveillance Program*
* * *
What must be done if a SR is interrupted and that interruption extends past shift change?
**Suspend the SR**
131
* 0PGP03-ZR-0050 Radiation Protection Program*
* * *
If your total extended lifetime TEDE is extended past the limit, whose approval is required?
*_\< 1 R Past Limit:_*
**RP Manager
Dept Manager
Plant Manager
You**
*_\> 1 R Past Limit:_*
**(Same as \< 1 R Past Limit)
Senior Management Team Member**
132
* 0PGP04-ZE-0313 Maintenance Rule Program*
* * *
What satisfies the maintenance rule program during different MODES of operation?
* _MODES 1 -4:_*
* *CRMP**
* _≤ MODE 5:_*
* *Shutdown Risk Assessment**
133
* 0POP08-FH-0009 Core Refueling*
* * *
What is the only form of communication that meets the requirements 0POP08-FH-0009 when moving fuel?
**A dedicated headset**
## Footnote
* * *
If the dedicated headset were to fail, even if other forms of communication exist, movement of fuel must be stopped.
134
* Conduct of Operations*
* * *
When must you notify the FAA that the aviation lights are not working?
**Lights not working for \> 30 mins**
135
* 0PGP03-ZF-0011 STPEGS Fire Brigade*
* * *
How many Fire Drills must a Fire Brigade Member participate in?
**2 per year**
136
* 0PGP03-ZO-0022 Post-Trip Review*
* * *
What are the different categories of a reactor trip?
* _Category 1:_*
* *Cause of Trip Identified**
**Safety-Related Equipment functioned properly**
* * *
* _Category 2:_*
* *Cause of Trip Identified**
**Safety-Related Equipment did _NOT_ Function properly**
**Cause of Malfunction identified**
* * *
* _Category 3:_*
* *Cause of Trip unknown**
**Safety-Related Equipment did _NOT_ Function properly**
**Cause of Malfunction _NOT_ identified**
137
* 0PGP03-ZO-0046 RCS Leakage Monitoring*
* * *
When is Form 1 (Leakage Log) entered?
* *Any time unidentified leakage changes by 0.2 gpm**
* Increasing or Decreasing*
138
* 0PGP03-ZA-0090 Work Process Program*
* * *
What is a work activity risk (WAR)?
**Impact on operations during MODES 1 - 4**
**Primary focus is interruption of power generation**
**Includes impact of removing / returning equipment.**
* * *
Work Control / Work week manager develops WAR.
139
* Conduct of Operations*
* * *
When can a SRO perform control board manipulations?
**When directed by SM during POP04s, POP05s, POP09s, or SAMGs**
**Taking Action to save a life**
**Designated as RO in logbook**
NRC Review
flashcards
Decks in class (7)
# Cards
