Vascular images review

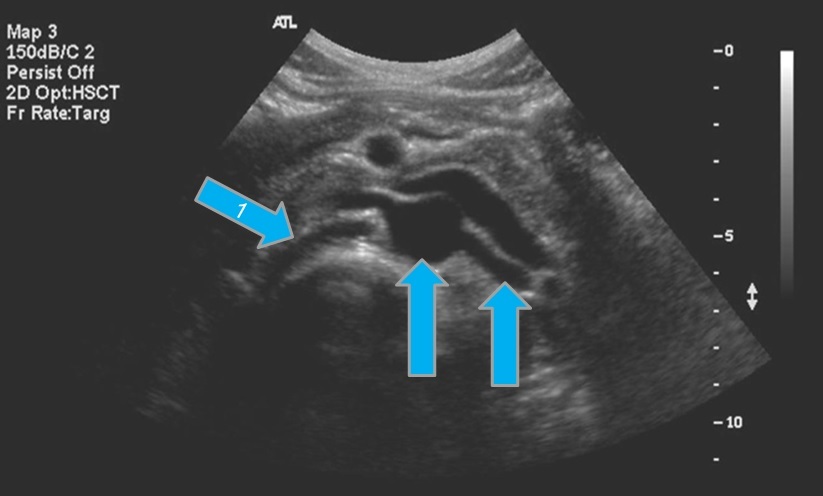

Question 1

From the left to right label the structures

Answer 1

1. IVC
2. Aorta
3. Left Renal Artery

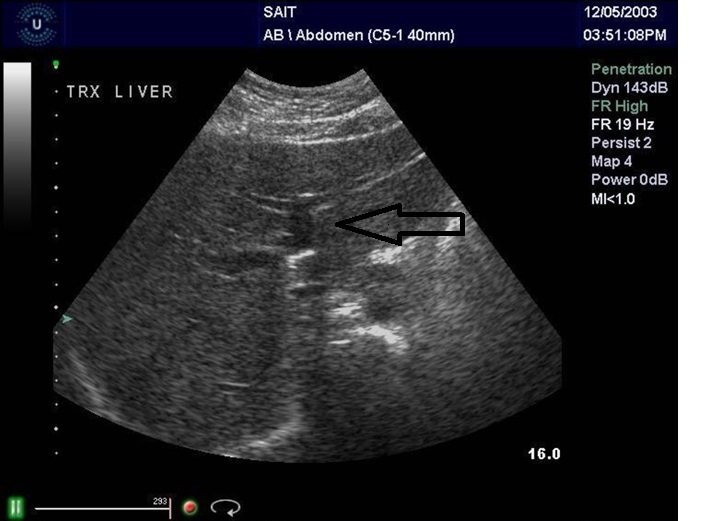

Question 2

From the left to right label the structures

Answer 2

1. Middle hepatic vein
2. Right portal vein the gallbladder is beside it and the gallbladder is a right structure
3. Right renal Artery

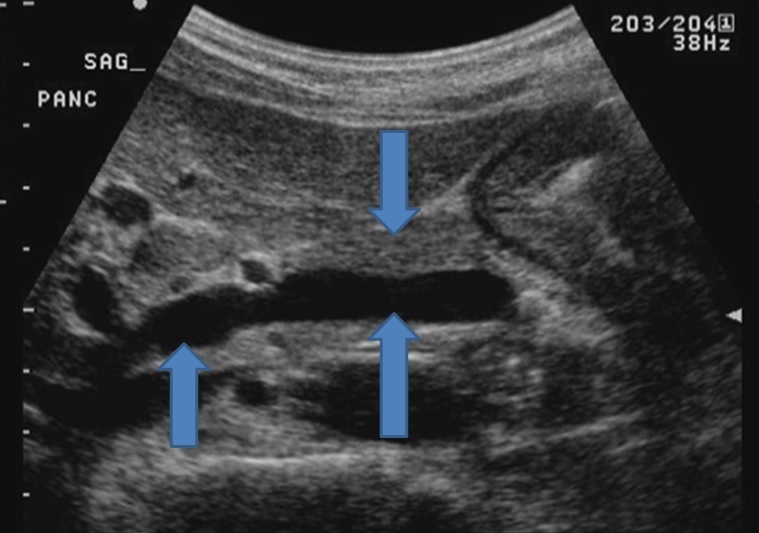

Question 3

From top down label the structures

Answer 3

1. Right Renal vein
2. Right Renal artery

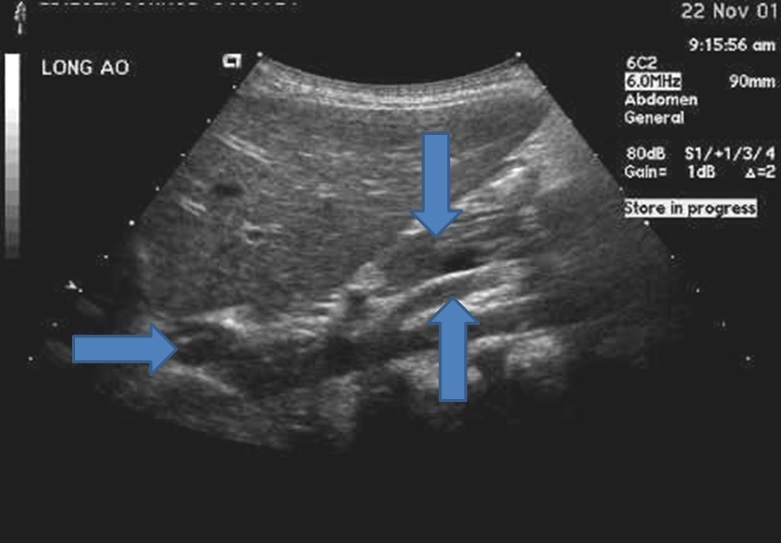

Question 4

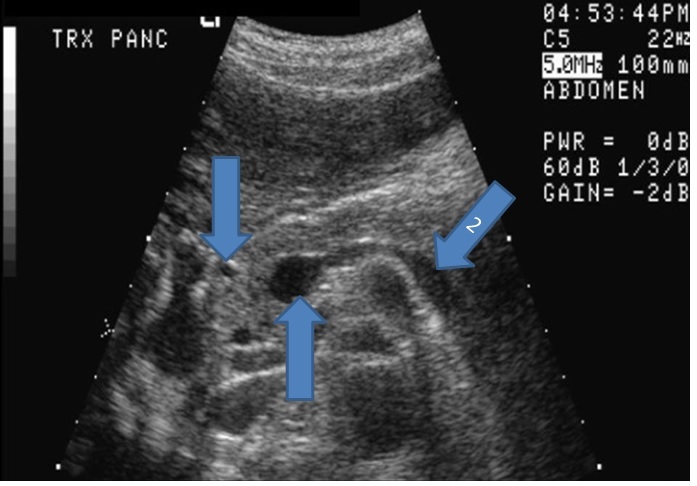

From the left to right label the structures

Answer 4

1. Gastroduodenal artery this is in the head of the pancreas
2. Porta of confluence
3. Splenic vein

Question 5

From top down what is the structures?

Answer 5

This image is the pancreas is sag view
1. Pancreatic neck
2. SMV
3. Main portal vein it is heading into the liver

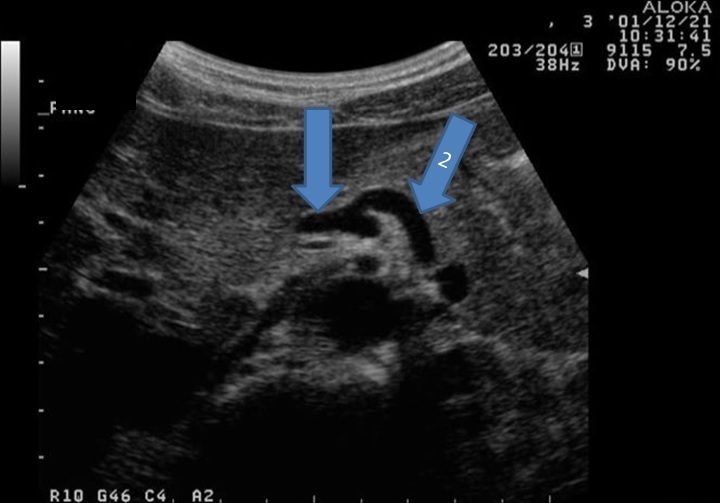

Question 6

From left to right label the structures

Answer 6

1. GE junction
2. Pancreas body of the pancreas
3. SMA

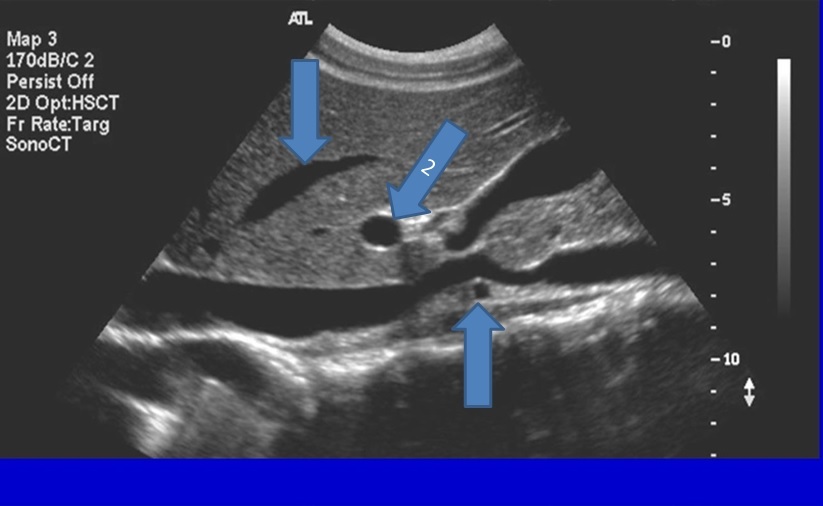

Question 7

From left to right label the structures

Answer 7

1. Common hepatic artery
2. Splenic artery

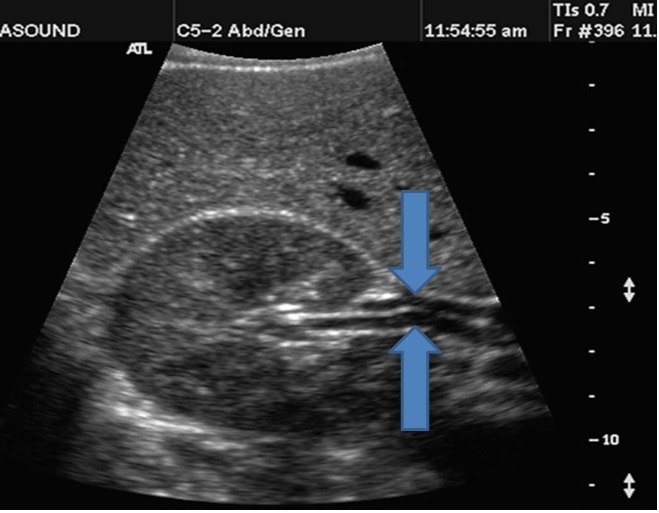

Question 8

What is the structure?

Answer 8

Left portal vein

Question 9

From left to right label the structures

Answer 9

1. Right portal vein
2. IVC
