FLIGHT CONTROLS
A and/or B
FLIGHT CONTROLS
With the loss of hydraulic system A and B, the ailerons and elevators are operated manually and the rudder is operated using the standby hydraulic system.

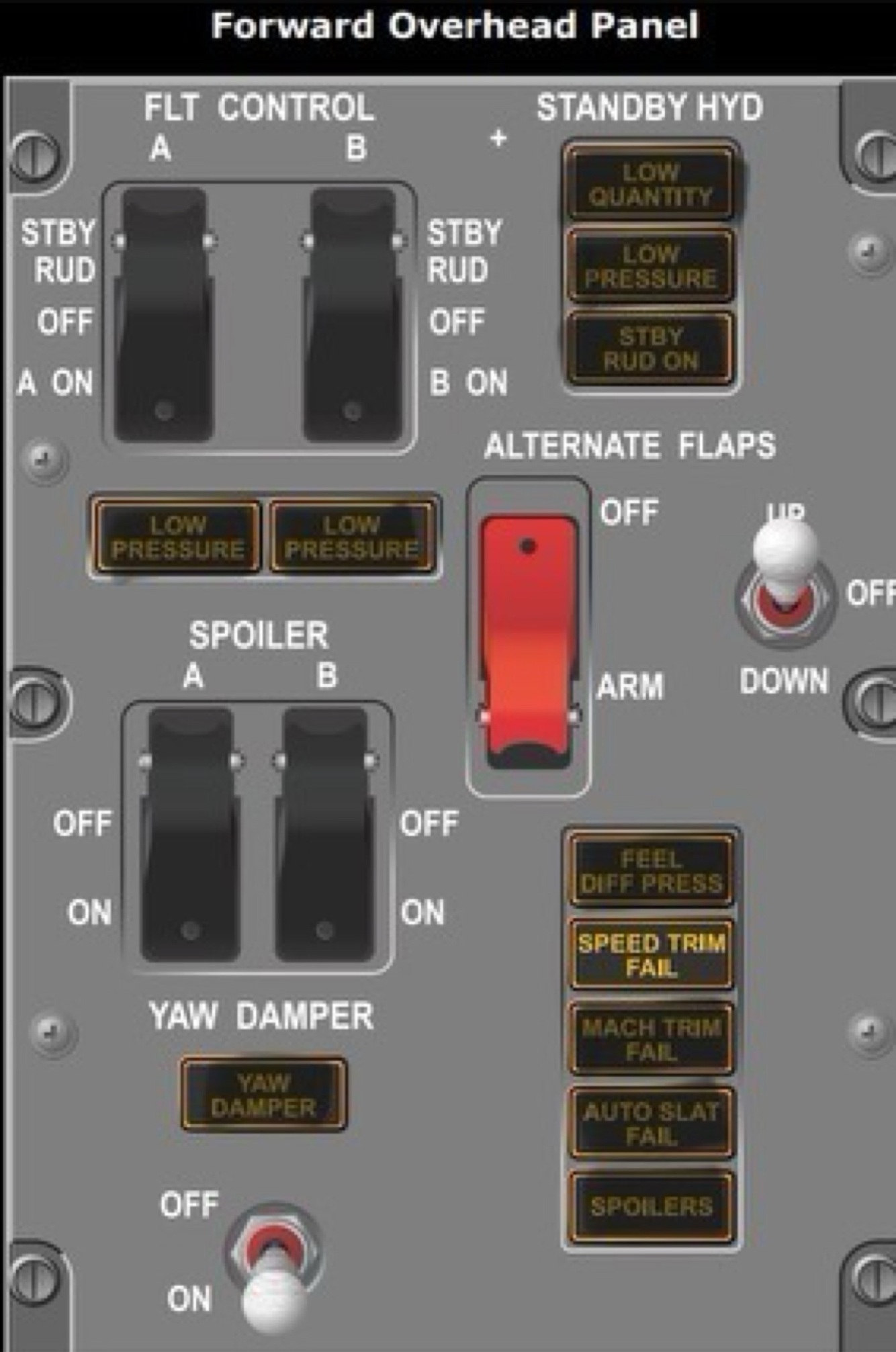

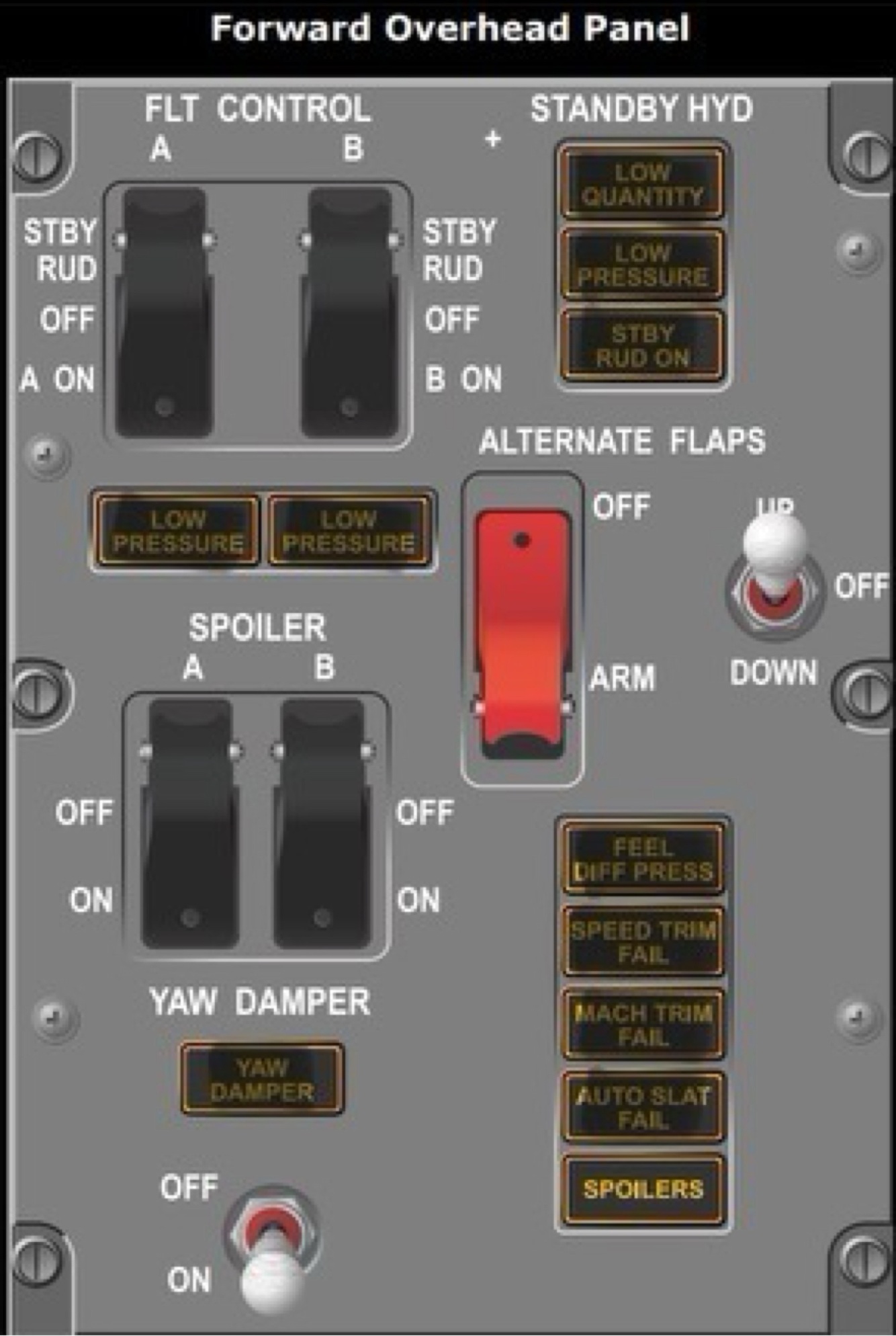

The FLT CONTROL switches are used to remove hydraulic power from the flight controls and/or to activate the standby rudder PCU.
No spoilers are available in Manual reversion.
FLIGHT CONTROLS
Normally, hydraulic system B.
If system B fails, LEDs can be extended by the standby hydraulic system and the TE flaps are operated (extended or retracted) using an electric motor.
FLIGHT CONTROLS
Force applied to the First Officer’s control wheel provides roll control from the spoilers
FLIGHT CONTROLS
an override mechanism allows the control columns to be physically separated from one another. Applying force against the jam will breakout either the Captain’s or First Officer’s control column, freeing one to provide adequate elevator control.
FLIGHT CONTROLS
The SCE unit has identified a spoiler system fault
FLIGHT CONTROLS
• activates the standby hydraulic system pump
- opens the standby rudder shutoff valve to pressurize the standby rudder power control unit
- Deactivates FLT CONTROL LOW PRESSURE light
- Arms STANDBY HYD LOW PRESSURE light
FLIGHT CONTROLS

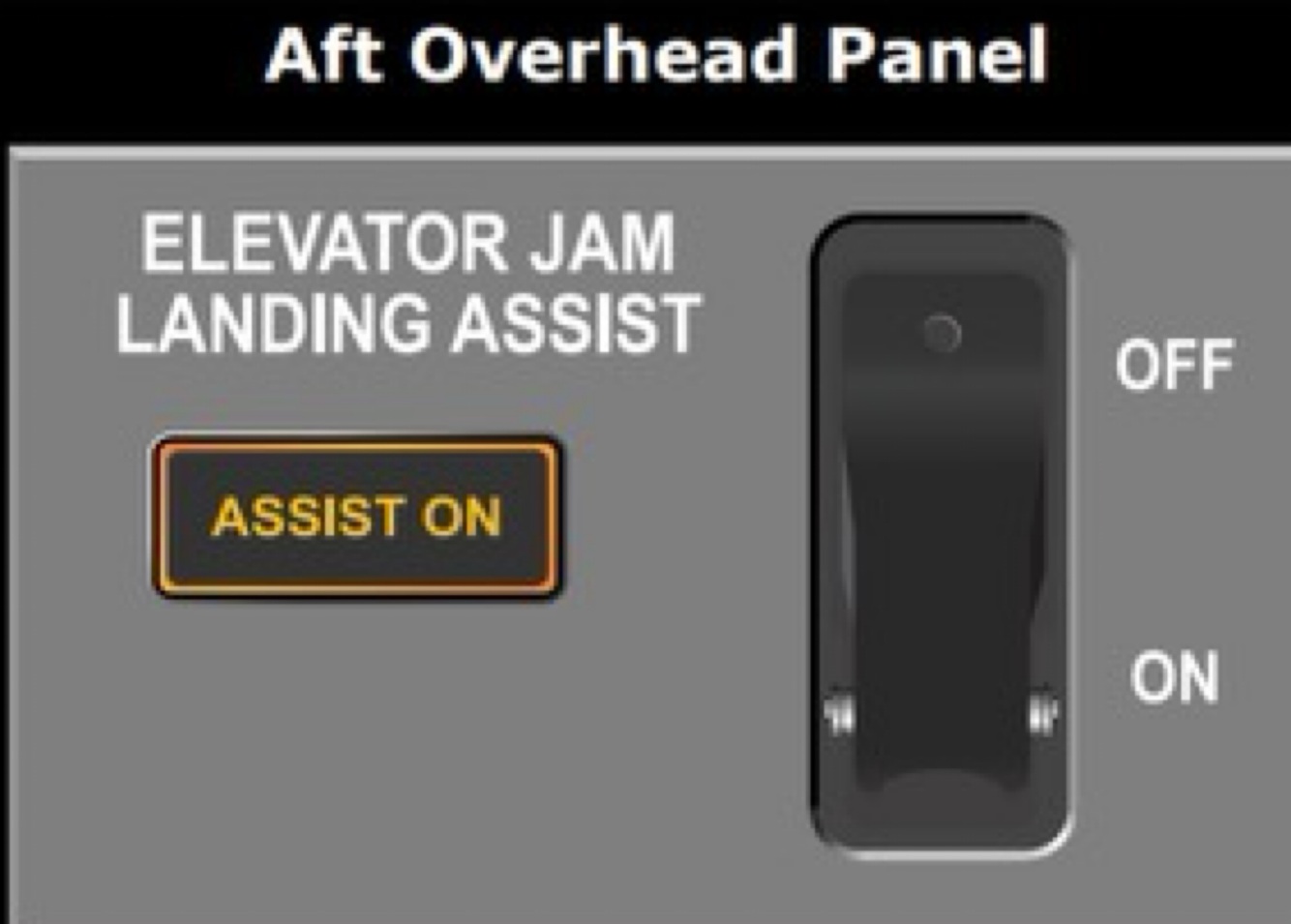

-ELEVATOR JAM LANDING ASSIST switch must be ON
-TE flap at 1 or greater
-AP disengaged
FLIGHT CONTROLS
by a single electric motor controlled by either:
-stabilizer trim switches on the control wheel, or
-autopilot trim, or
-manually rotating the stab trim wheel
-positioning either stab trim cutout switch to CUTOUT
-forward movement of the control column
Illumination of SPEED TRIM FAIL light
Yes, by;
-actuation of the control wheel trim switches (inhibits operation for 5 seconds)
-manual rotation of either stab trim wheel
-yaw damper
-Elevator Feel Shift (EFS)
-Speed Trim System (STS)
-Stall Management/Yaw Damper (SMYD) computer does calculations and sends commands for stall management and yaw damper. Also provides PLI and speeds from AOA and ADIRU outputs and wing configuration
-Both engines operating
-Airspeed above 135 knots
Normally;
-Hydraulic system B
-SMYD computer 1 (SMYD as a backup)
-YAW DAMPER switch ON
Two functions; nose gear clearance and drag.
When flaps are in positions 15 through 30 and the thrust levers are near idle, the speedbrakes symmetrically deploy to create additional drag for slowing.
At flap positions 30 and 40, LAM symmetrically deploys flight spoilers on approach to reduce lift and force the aircraft to have a higher angle of attack. LAM maintains an acceptable nose landing gear contact margin. The amount of spoiler deflection depends on the approach speed and begins at approximately VREF+10.
Armed when above 30,000 ft and cabin altitude warning is active.
Activated automatically by moving the SPEED BRAKE lever when the system is armed.
After RTO or landing, if either thrust lever is advanced

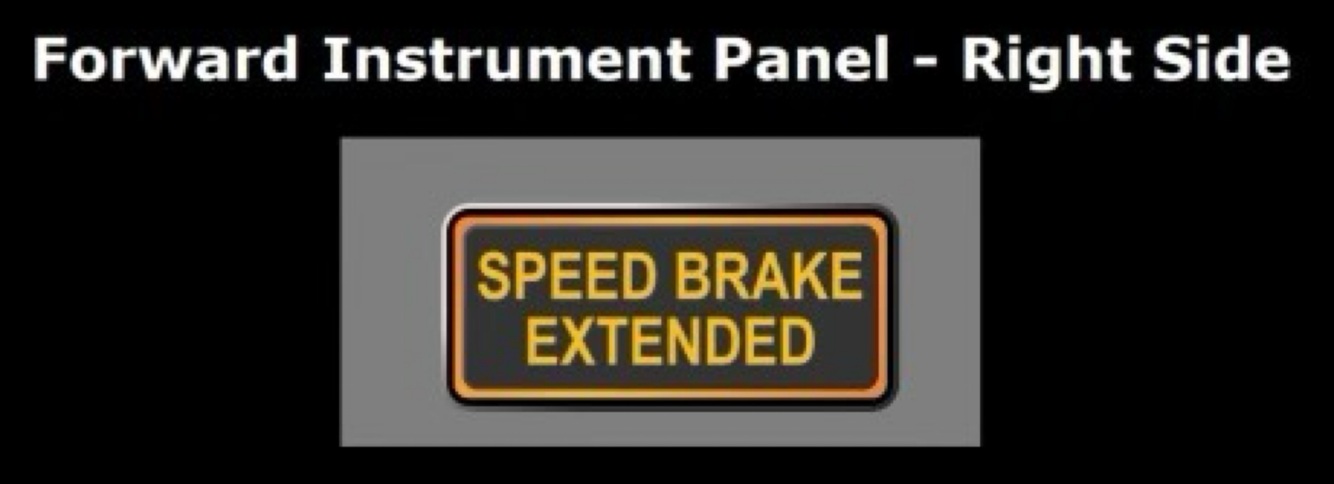

In flight if the SPEED BRK lever is beyond the ARMED detent and any of the following conditions exist:
• A thrust lever is greater than 40° for more than 3 seconds or idle for more than 15 seconds, or
• TE flaps extended more than Flaps 10, or
• Radio altitude less than 800 ft
If the speedbrakes do not deploy after landing or RTO above 80 kts
(3 sec after touchdown or initiation of RTO)
Essentially, does what the PM is supposed to do with “NO SB!” call on landing or RTO

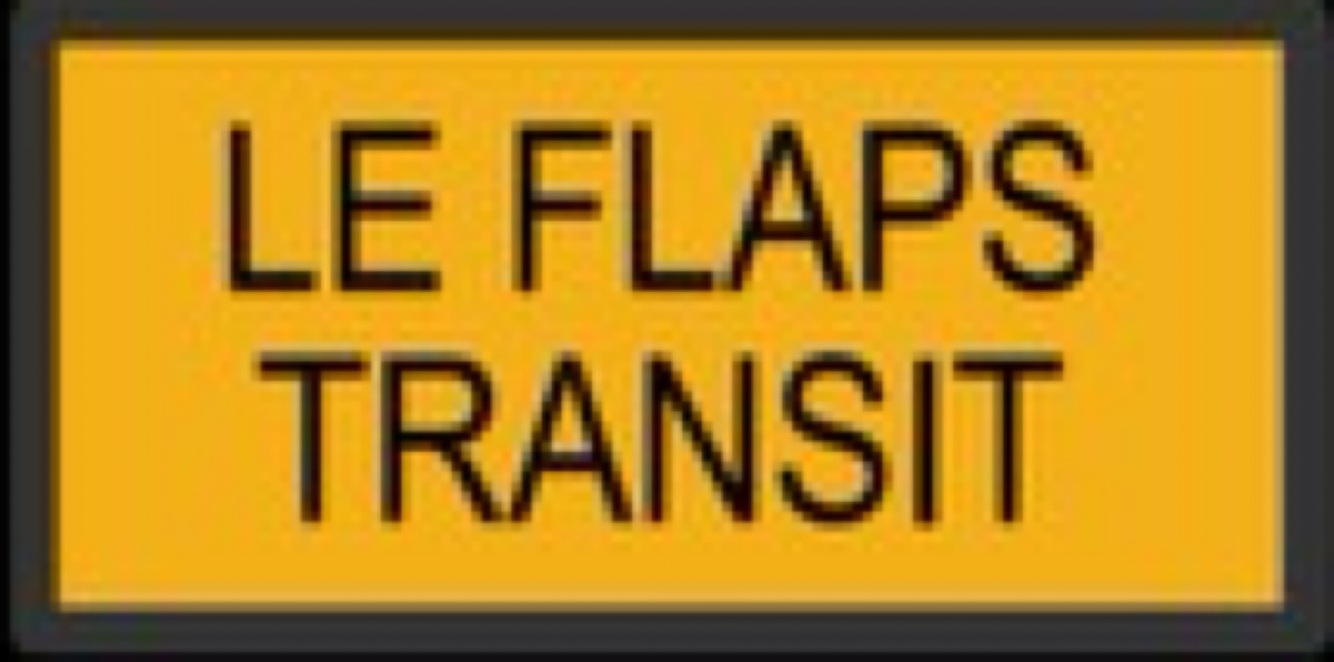

Anytime the LE devices are in motion or do not agree with scheduled flap position.

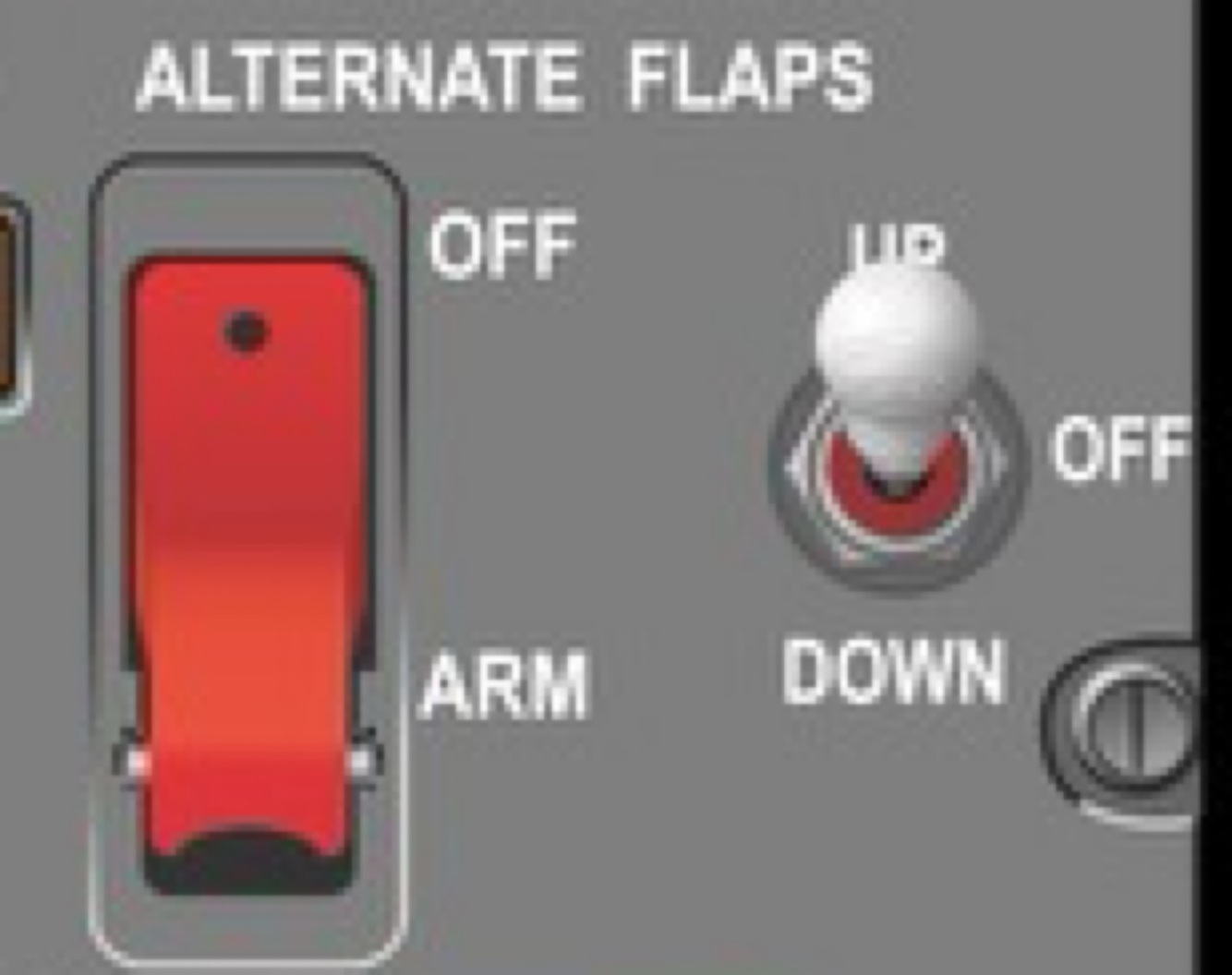

The ALTERNATE FLAPS position switch controls an electric motor that extends or retracts the TE flaps.
The LE devices may also be extended using the alternate flap system; however, the LE devices are extended using the standby hydraulic system and cannot be retracted.
No, there is no asymmetry, LE uncommanded motion, or skew protection
Protects the flaps from excessive air loads
