Cycloadditions Pt3

Question 1

In a cycloaddition, how do the orbitals interact?

Answer 1

• The HOMO of the diene interacts with the
• LUMO of the dienophile

Question 2

How to electron donating group affect the energy of orbitals?

Answer 2

They increase the energy of orbitals

Question 3

How do electron withdrawing groups affect the energy of orbitals?

Answer 3

Lowers the energy of the molecular orbitals

Question 4

What is the overall effect of these substituents

Answer 4

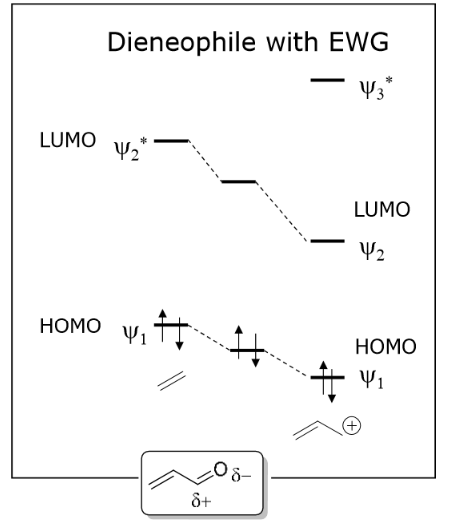

They lower/decrease the HOMO/LUMO gap

Question 5

We can apply these same ideas of “mixing” the orbitals of ethene and butadiene, with those of allyl cation and pentadienyl anion
Draw the molecular orbital diagrams for the allyl cation

Answer 5

Question 6

We can apply these same ideas of “mixing” the orbitals of ethene and butadiene, with those of allyl cation and pentadienyl anion

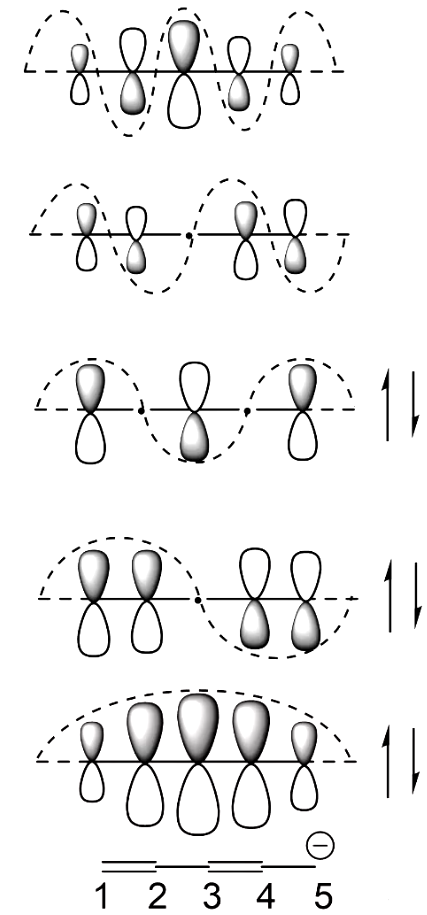

Draw the molecular orbital diagrams for the pentadienyl anion

Answer 6

Question 7

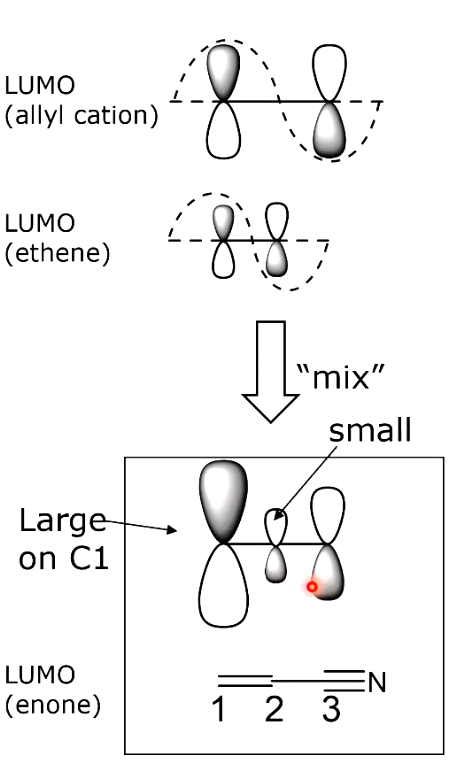

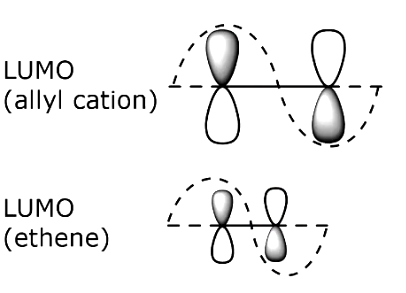

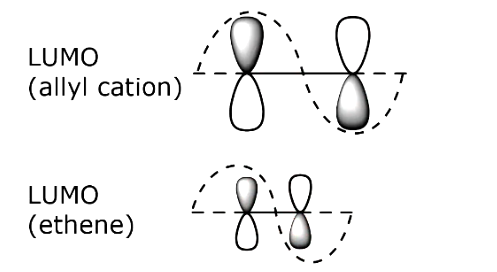

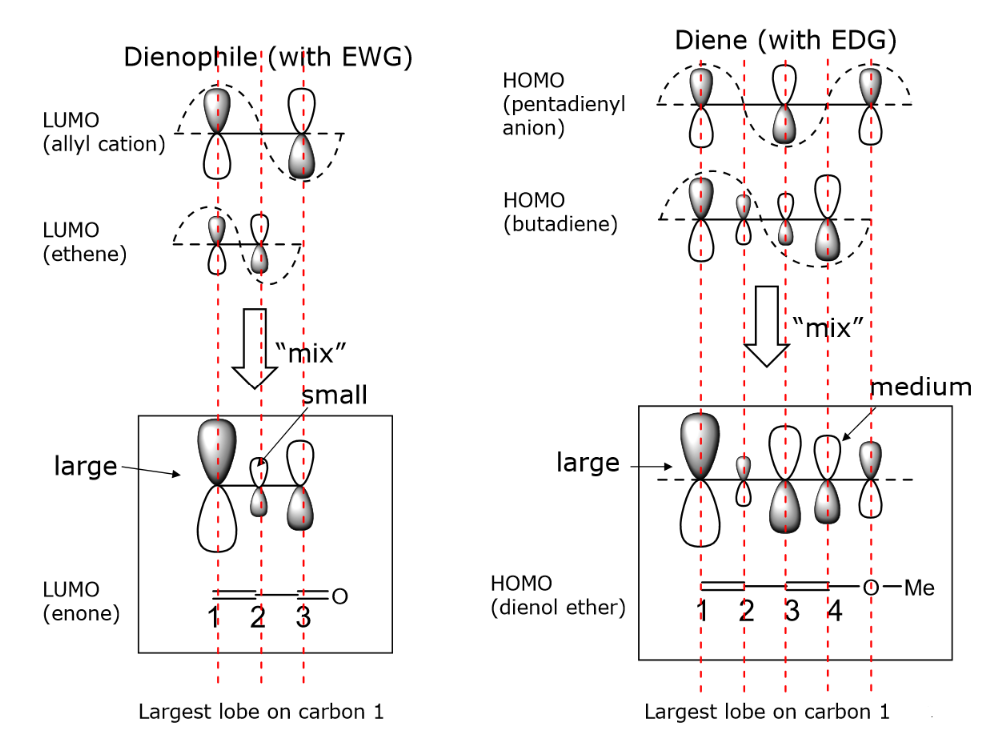

We can start off by mixing the LUMO of the allyl cation and ethene to find the intermediate
What does this look like?

Answer 7

• Where we have two orbitals combining it creates one larger one
• An orbital in ethane goes in node on the allyl cation
• Carbon 1 has the largest orbital coefficient

Question 8

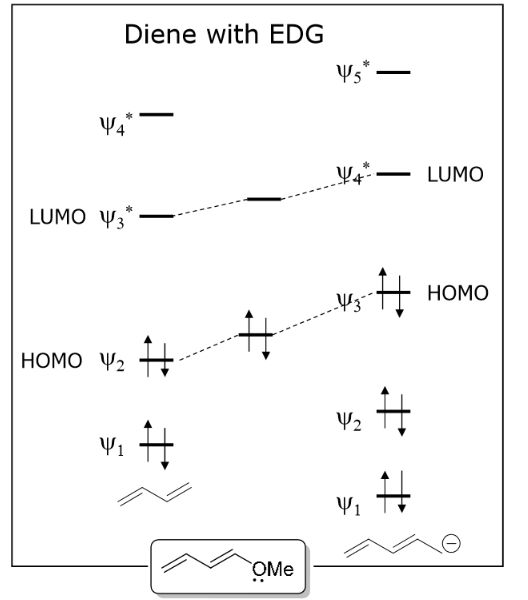

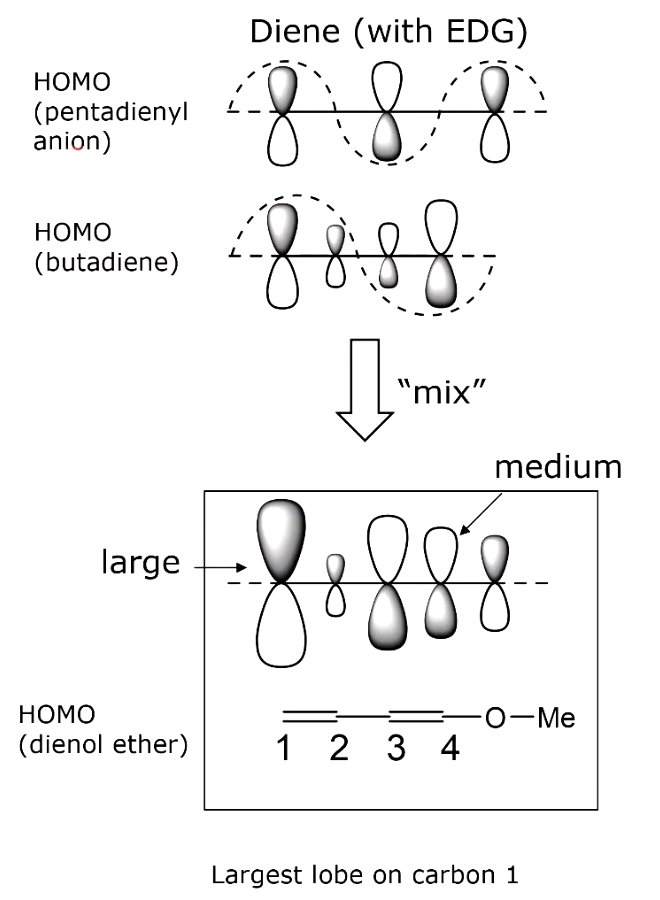

We can then mix the HOMO of the pentadienyl anion and butadiene to find the intermediate
What does this look like?

Answer 8

• Carbon 1 produces a large orbital due to mixing two medium sized orbitals
• Carbon 3 produces a slightly smaller orbital than 1 due to mixing one small and one medium orbital
• The largest lobe is on carbon 1

Question 9

When we have mixed the orbtials, what is next?

Answer 9

We want to match up the largest orbital coefficients, i.e. the largest lobes of the two respective π system - this determines regioselectivity

Question 10

Why does the orbital coefficients determine regioselectivity?

Answer 10

• Matching up the sizes of the orbtial coefficint that determines the chemical outcome

Question 11

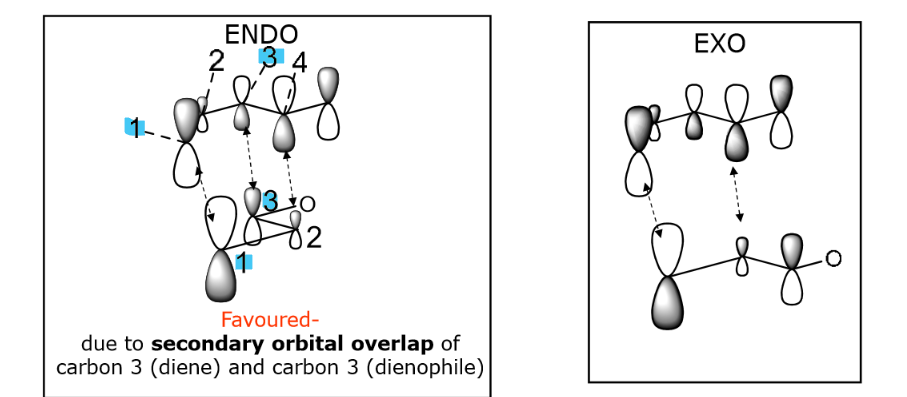

How do the orbital overlaps affect geochemical outcome (i.e. exo/endo)

Answer 11

• For the endo product, you can have a secondary orbital overlap between carbons 3 on butadiene and 3 on ethene (small bonding interaction)
• For the exo product, there is no secondary orbital interaction

Question 12

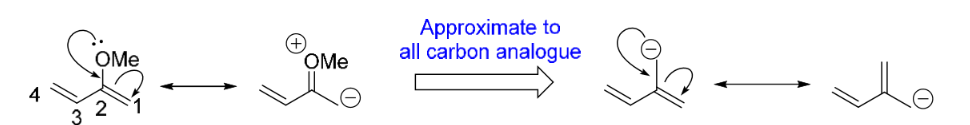

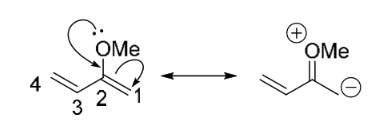

When considering alternative substitution patterns, the best way to start is considering the suitable resonance forms. Do this for the following diene

Answer 12

• It is best to push from the electron-donating group first
• Note: negative charge build-up on carbon 1. There is no possibility to get negative charge on carbon atom 4

Question 13

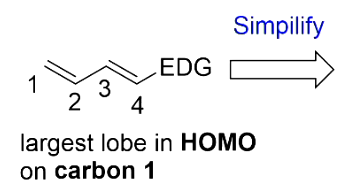

Once you have drawn resonance structures, you must now choose a suitable all-carbon approximation to best reflect the electron distribution:

Answer 13

Question 14

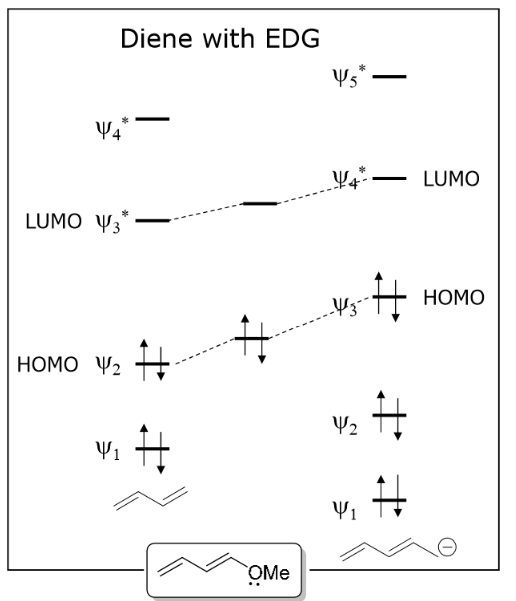

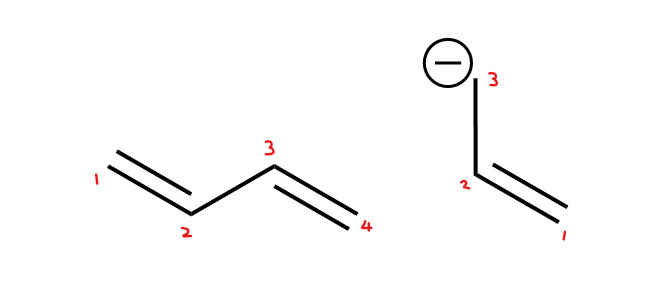

The effect of the electron donating group (OMe) on the diene’s orbital coefficient sizes can be approximated by splitting the simplified all-carbon analogue into butadiene and the propenyl anion
How do the carbon align?

Answer 14

Question 15

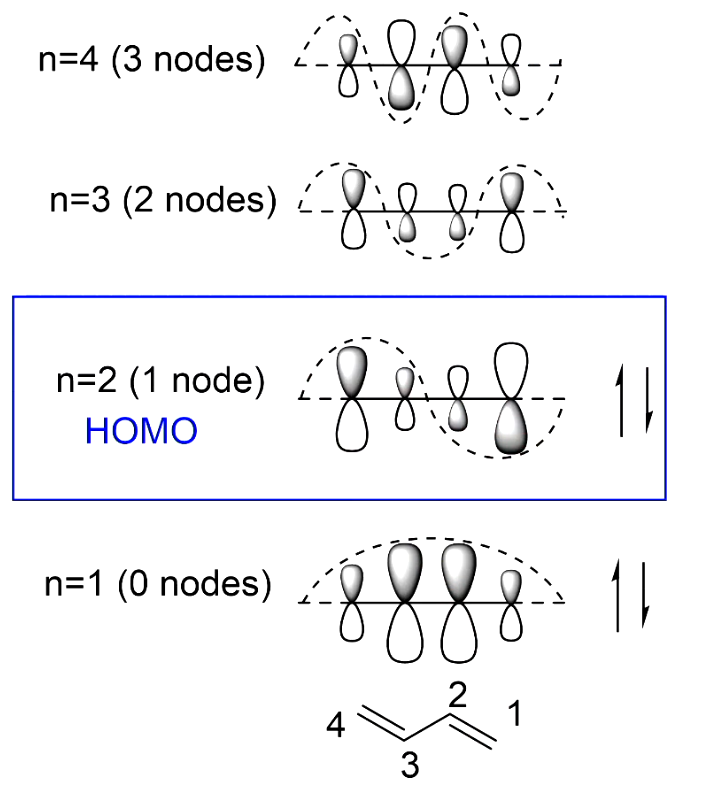

Draw the molecular orbital diagrams for the butadiene

Answer 15

Question 16

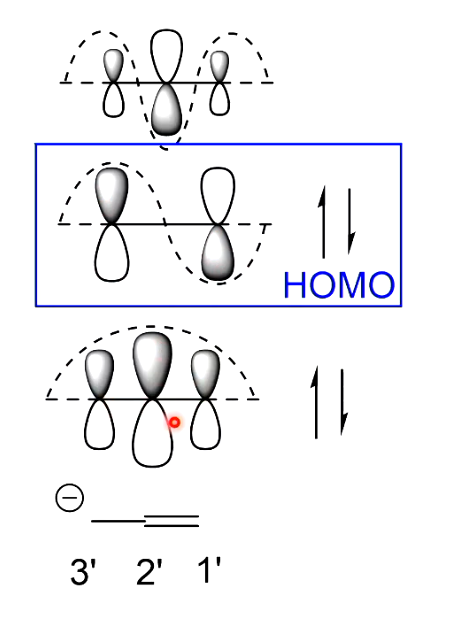

Draw the molecular orbital diagram for allyl anion

Answer 16

Question 17

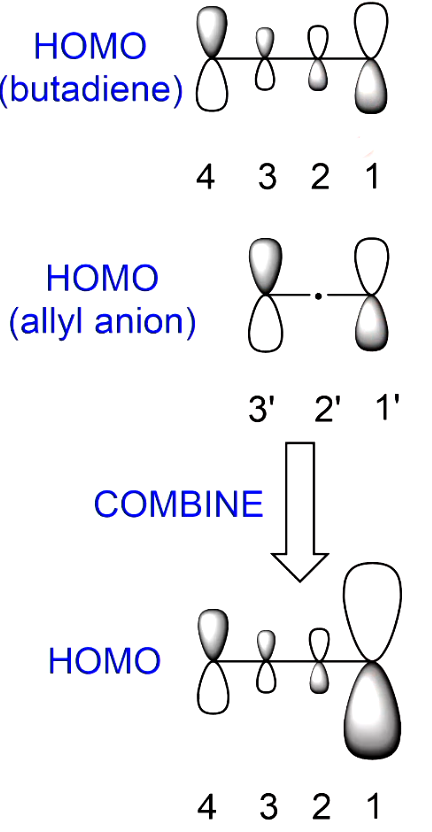

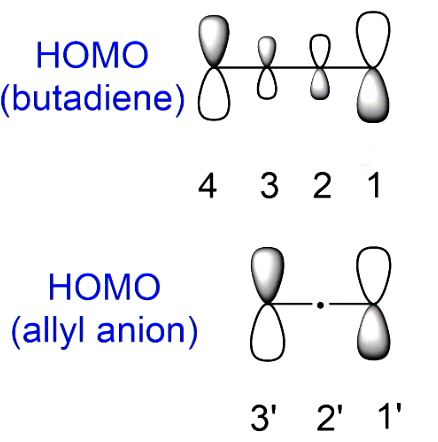

The next step is to combine the HOMO of the butadiene and allyl anion
What is the result

Answer 17

• Combine coefficient sizes on overlapping atoms to get resulting hybrid
• i.e. add 1 and 1’ and 2 and 2’
• There is a node on atom 2’, therefore there is zero effect on coefficient size on atom 2
• Coefficient on 3’ is not combined with anything as it doesnt overlap with any of the 4 atoms of butadiene
• Largest lobe on atom 1 - this is where the anion resides in the resonance form

Question 18

The dienophile is electron poor (LUMO)

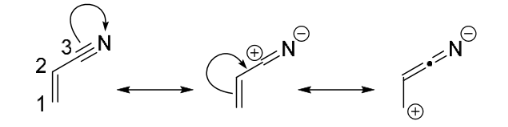

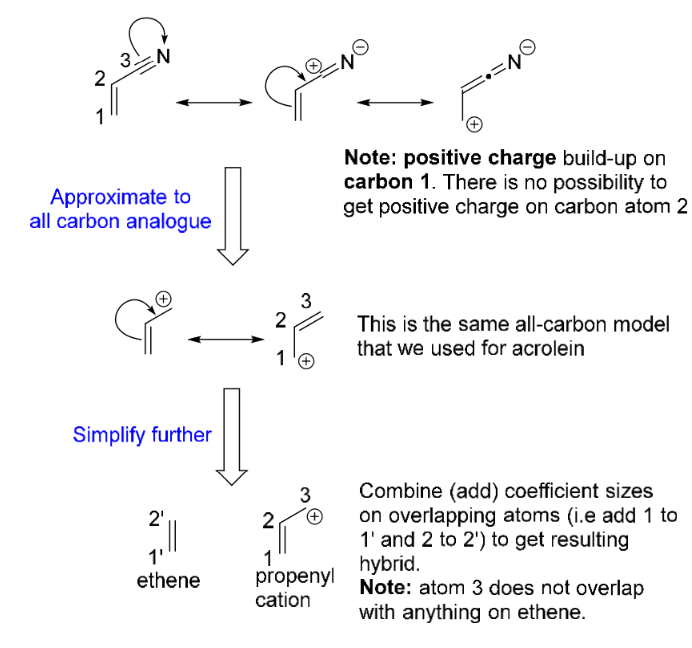

Draw all available resonance structures for the following molecule

Answer 18

Question 19

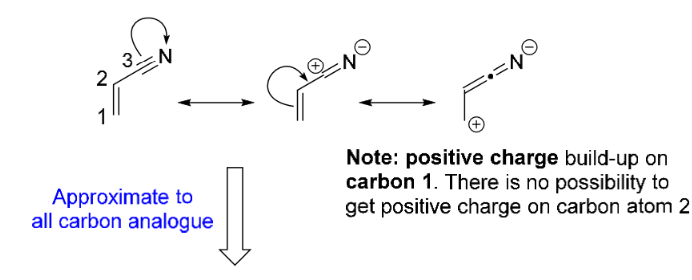

Once you have drawn resonance structures, you must now choose a suitable all-carbon approximation to best reflect the electron distribution:

Answer 19

Question 20

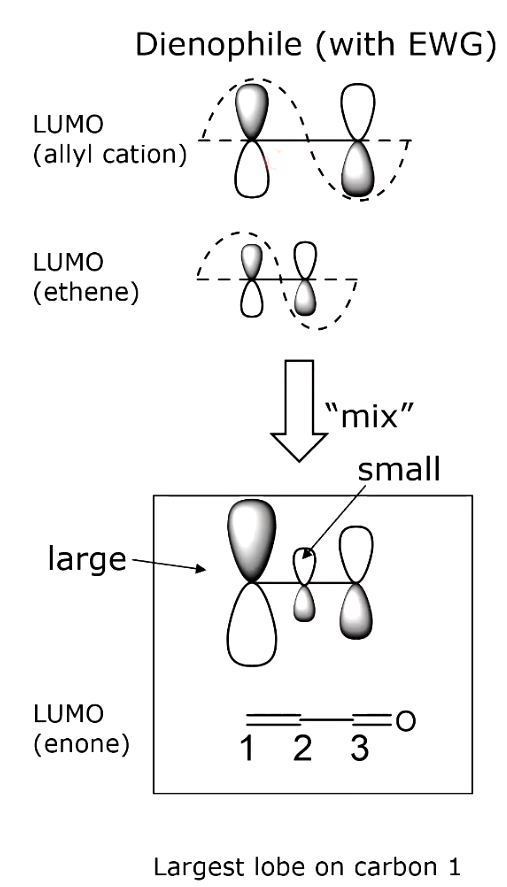

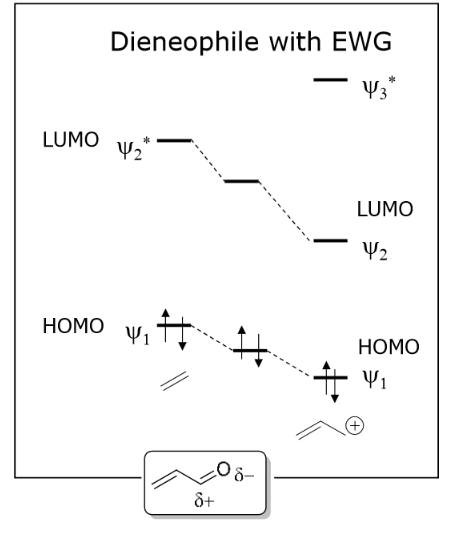

Then the next step is to mix the LUMO molecular orbitals of the allyl cation and ethene

Answer 20

Question 21

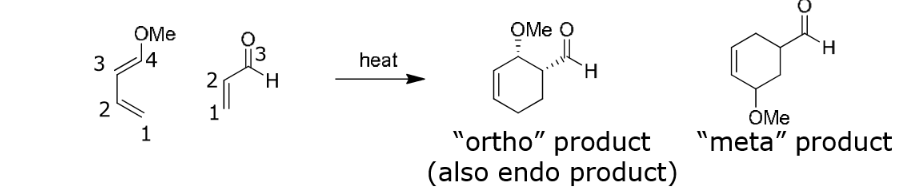

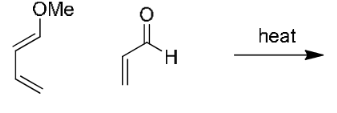

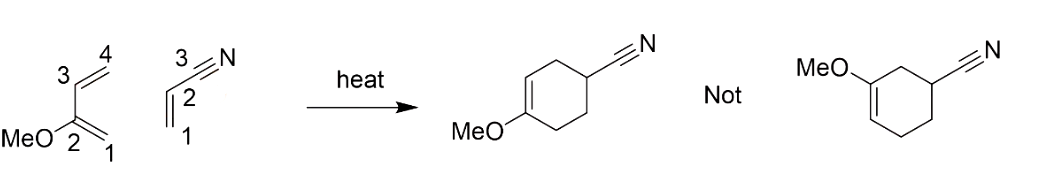

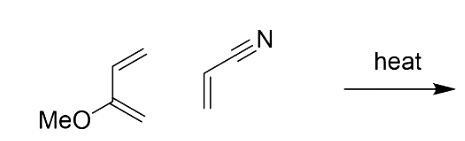

We can now use these results to predict the outcome of the Diels-Alder reaction.
Draw the final product

Answer 21

The connectivity (regioselectivity) is predicted by interacting the largest lobes on the diene and dienophile
(endo transition state also favoured but hard to see with product stereochemistry)

Question 22

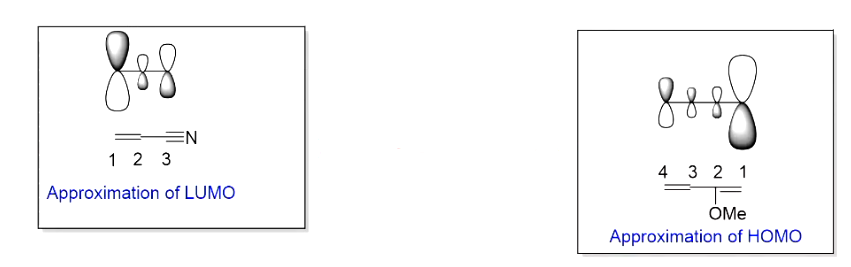

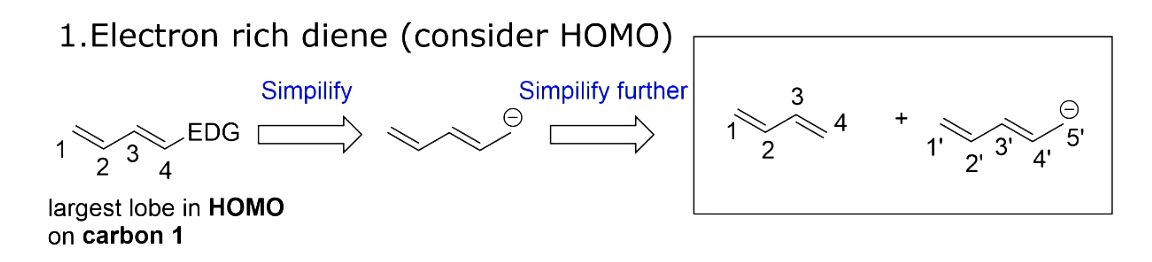

What is the following all-carbon distribution of the following electron rich diene (consider HOMO)

Answer 22

Question 23

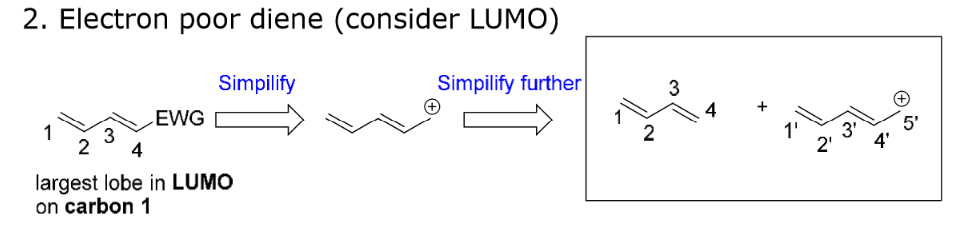

What is the following all-carbon distribution of the following electron poor diene (consider LUMO)

Answer 23

Question 24

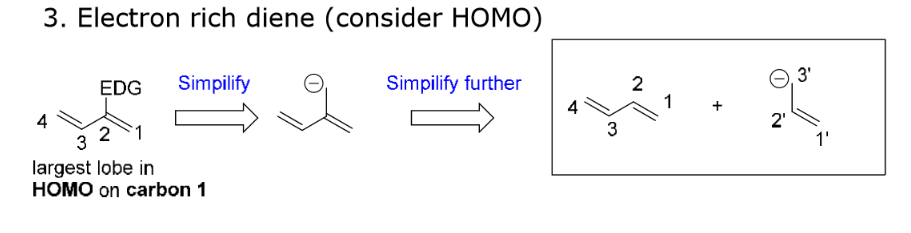

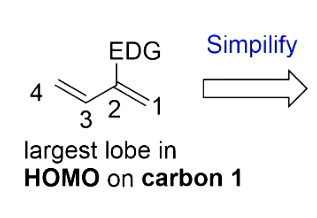

What is the following all-carbon distribution of the following electron rich diene (consider HOMO)

Answer 24

Question 25

What is the following all-carbon distribution of the following electron poor diene (consider LUMO)

Answer 25

Question 26

What is the following all-carbon distribution of the following electron poor dienophile (consider LUMO)

Answer 26

Question 27

What is the following all-carbon distribuion of the following electron rich dienophile (consider HOMO)

Answer 27
