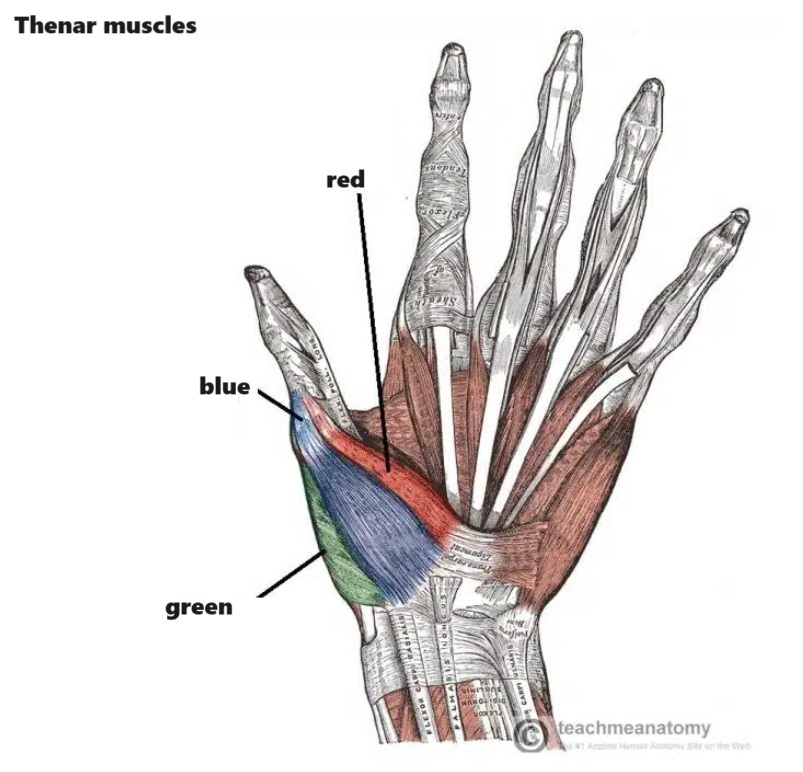

Green
opponens pollicis
blue
abductor pollicis brevis
red
flexor pollicis brevis

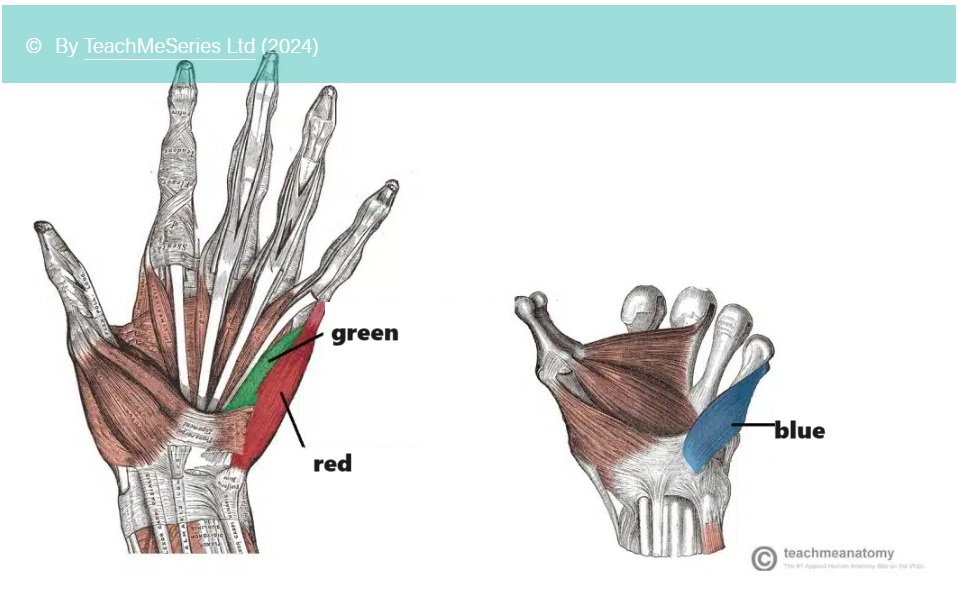

green
flexor digit minimi brevis
red
abductor digiti minimi
blue
opponens digit minimi
Action and innervation of muscles?
Lumbricals
Lateral 2 (index and middle) - median nerve
Medial 2 (ring and little) - ulnar nerve

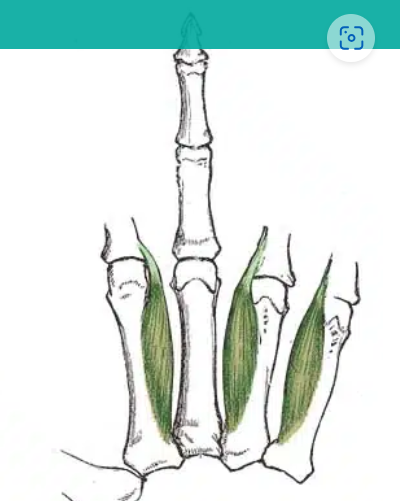

Action of green muscles
Palmar interossei (3)
Adduction of digits
Ulnar nerve

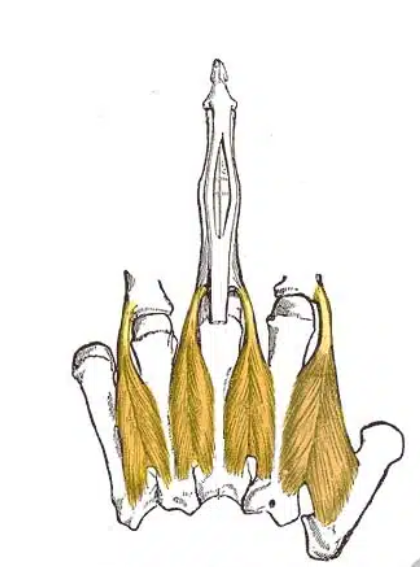

Action of yellow muscles
dorsal interossei
abduction of digits
ulnar nerve
Dark purple muscle
Adductor pollicis
deep level of palm
adduction of thumb
ulnar nerve

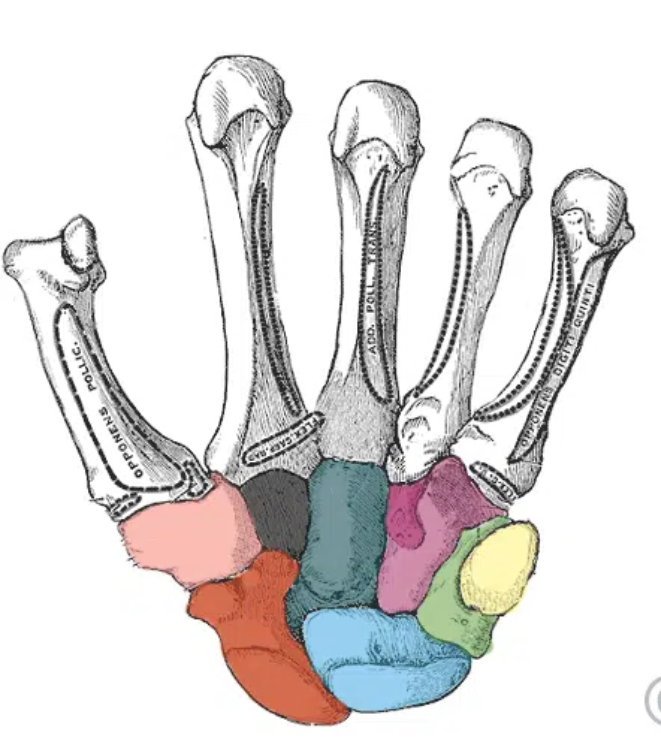

red
scaphoid
light blue
lunate
light green
triquetrum
yellow
pisiform
pink
trapezium
black
trapezoid
dark green
capitate
dark pink
hamate

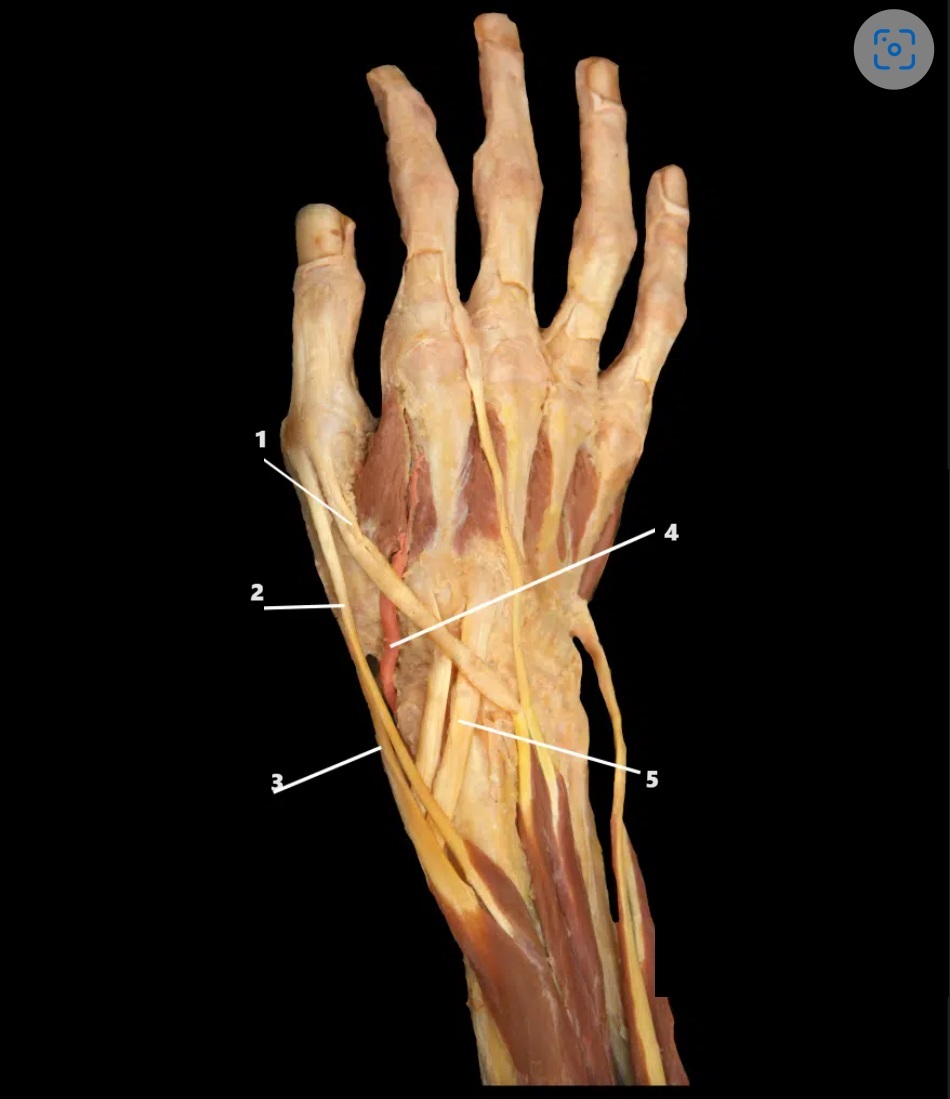

1
extensor pollicis longus
2
extensor pollicis brevis
3
abductor pollicis longus
4
radial artery
5
Extensor carpi radialis long and brevis
