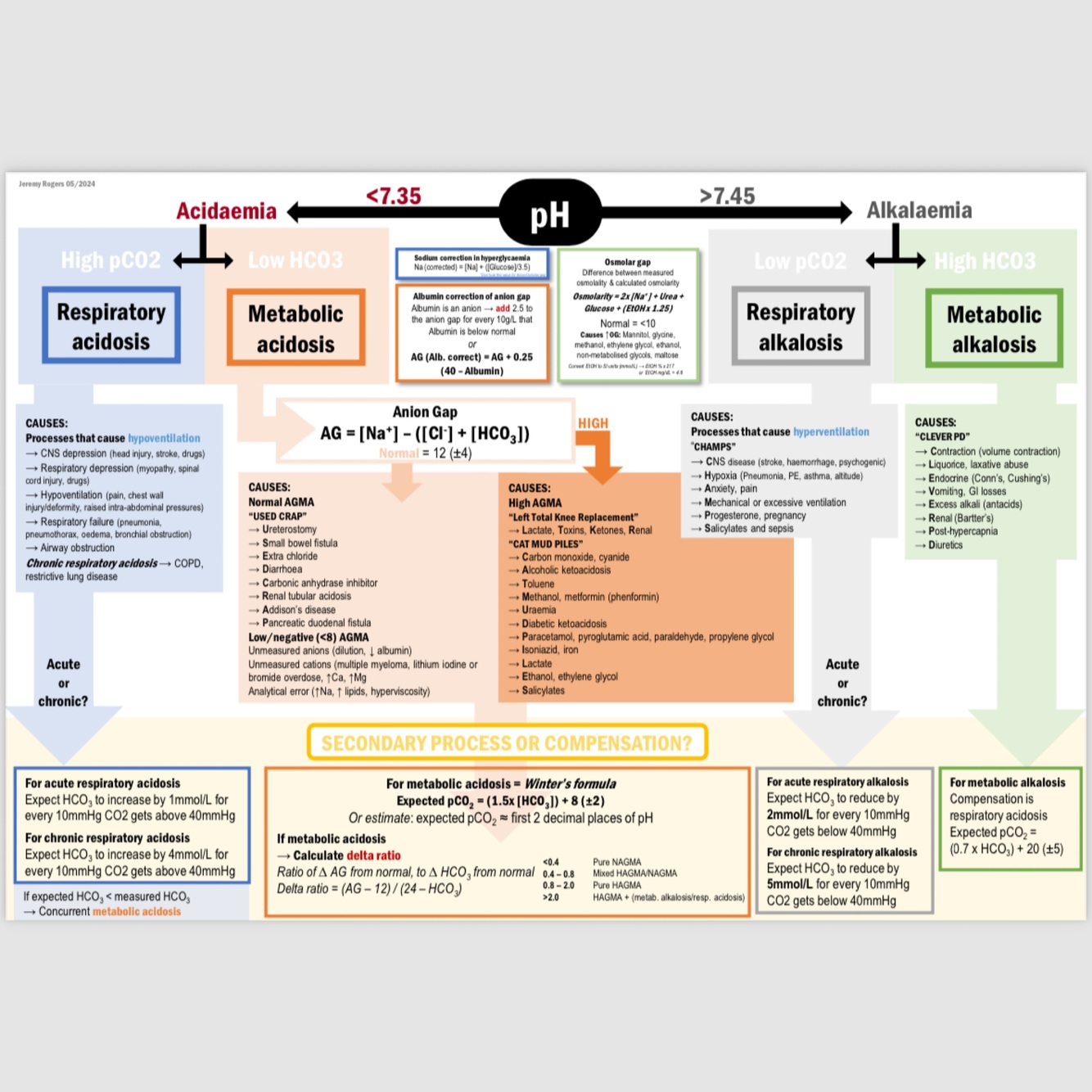

VBG flow chart
How do you work out the anion gap?
Interpret
Anion Gap = Na – (Cl + HCO3)
4-12 normal
What are the cause of a HAGMA
Causes (CATMUDPILES)
What are the causes of a NAGMA
Causes (CAGE)
What are the main causes of acute respiratory acidosis
things that cause hypoventilation:
* CNS depression - injury, stroke, drugs
* respiratory depression - myopathy, drugs, spinal injury
* mechanical hypoventilation - pain, chest wall injury, raised intra abdominal pressure
* Resp failure - pneumonia, pneumothorax, oedema, bronchial obstruction
what are the causes of chronic resp acidosis
COPD
restrictive lung disease
How do you work out if the resp acidosis is acute or chronic?
What does it mean if the expected value is not met?
Acute - bicarb to increase by 1mmol/l for every 10mmhg of co2 above 40
use 24 as baseline fot bicarb
Chronic- increases by 4
if expected is below measured then concurrent metabolic acidosis
What are the causes of respiratory alkalosis
CHAMPS
What are the causes of metbolic alkalosis?
CLEVER PD
How do you work out if the resp alkalosis is acute or chronic?
Acute -Bicarb should reduce by 2mmol/l for every 10mmhg under 40
Chronic - reduce by 5
When do you use Winters formula?
Has the metabolic acidosis been compensated for or is there also a respiratory acidosis?
Expected Pc02 = (1.5 x bicarb) + 8 (+/-2)
if expected is correct then its compensation
How do you calculate the delta gap?
When do you use the delta ratio?
(AG -12) / (24-bicarb)
to work out the metabolic acidosis component
<0.4 pure NAGMA
0.4-0.8 mixed
0.8 - 2 Pure Hagma
Over - Hagma plus metabolic alkalosis or resp acidosis

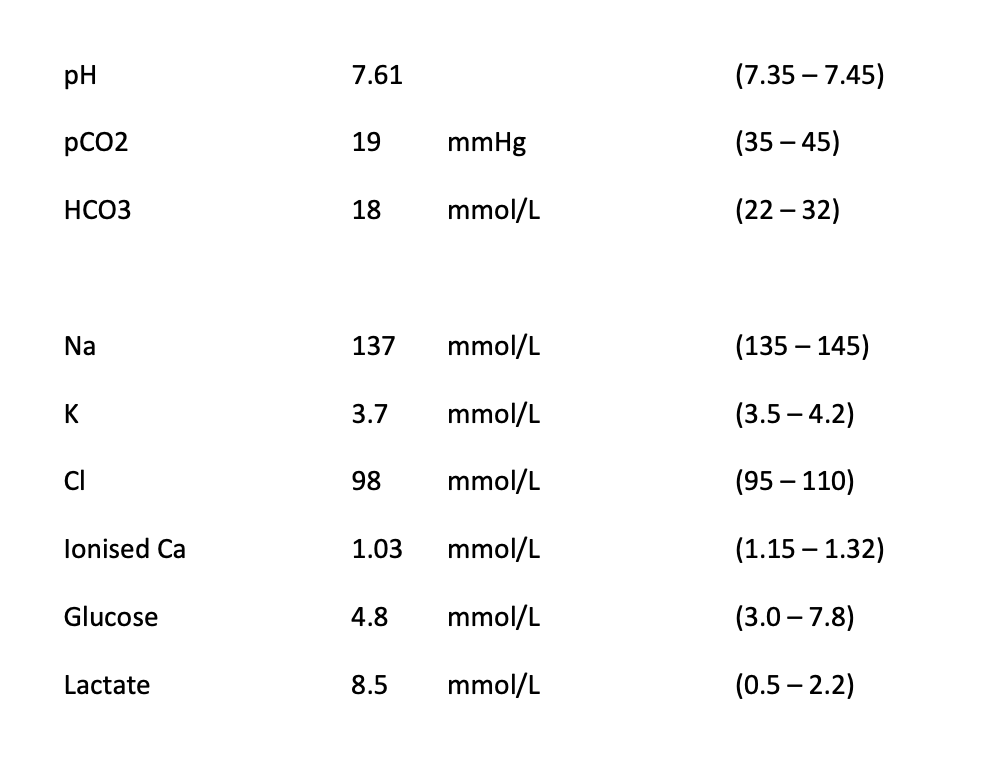

What is the metabolic acid base status. Show working and differentials
HAGMA - 137 – (98 + 18) = 21
Delta ratio (AG -12) / (24-bicarb) =9/6 = 1.5 therefore pure HAGMA
Causes (CATMUDPILES)

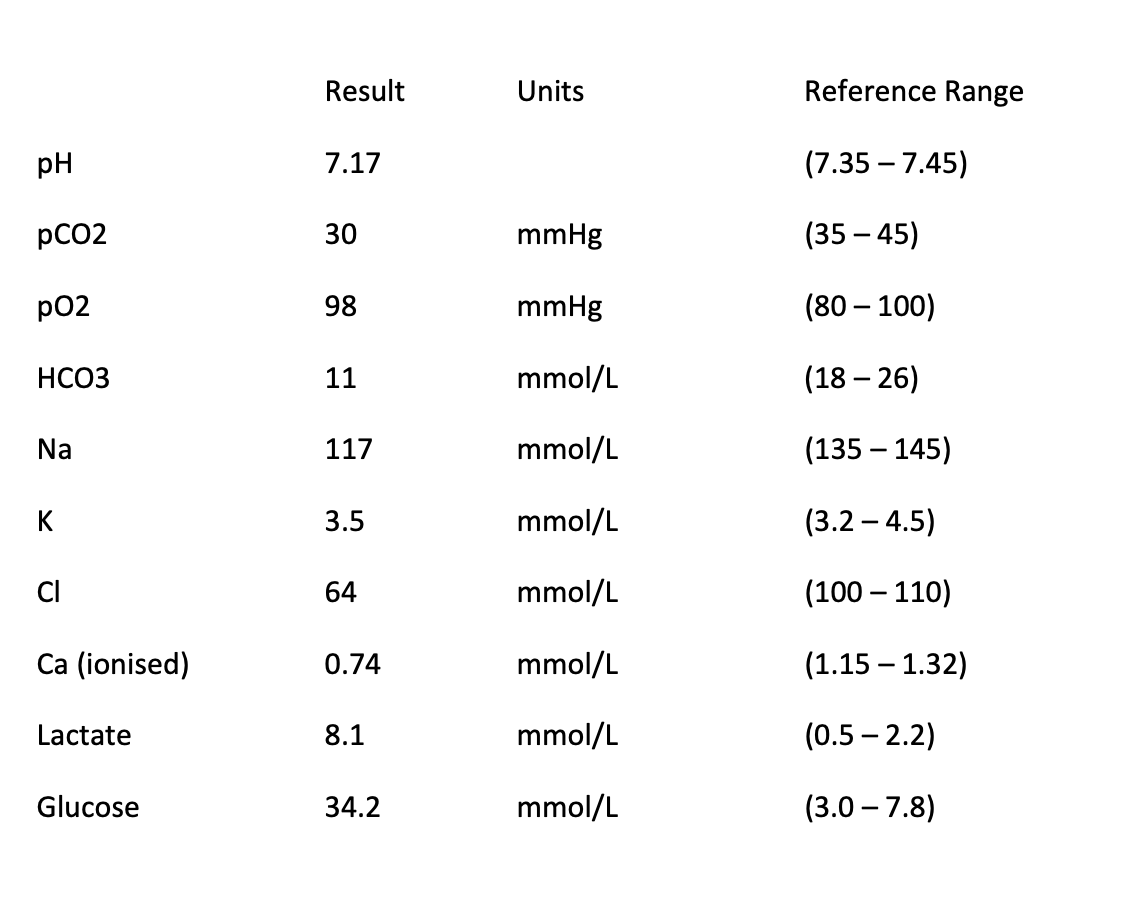

list major abnormalities and differentials
High anion gap metabolic acidosis
‐ Ketones – DKA, alcoholic
‐ Lactate (type A or B with liver failure)
Inadequate respiratory compensation (expect CO2 to be lower)
‐ Decreased consciousness eg alcohol, head injury, other drugs
Delta ratio (42‐12)/(22‐11) = v. high almost (1 mark)
No differential acceptable
Lactate high
‐ Type A hypoperfusion
‐ Type B – liver failure
Hyperglycaemia
‐ DKA
What is the difference between Type A and B lactic acidosis?
Causes?
product of anaerobic glycolysis which reflects:
type A oxygen delivery
type B altered metabolism with no evidence of inadequate tissue delivery
Type A causes:
anaerobic muscular activity
hypoperfusion eg shock or cardiac arrest
hypoxaemia eg anaemia
Type B causes:
pancreatitis
diabetes
leukemia
drugs - panadol, salicylates, methanol
What are the clinical features of severe hypocalcaemia and how do you manage?
Features:
* Tetany
* carpopedal spasm
* decreased cardiac output
* seizures
* Prolonged QT
Chovestek sign
Management
* make sure to treat low mg with IV mg
* IV 10% calcium gluconate and then calcium infusion
What are the signs of hyperkalaemia on ECG?

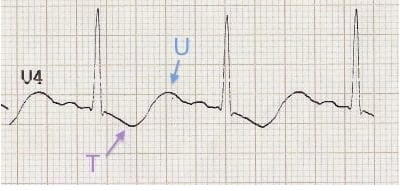

What are the signs of hypokalaemia ECG
ST depression
T wave flattening
prominent U waves
prolonged PR
given ECG findings of hyperkalaemia how do you treat?
How do you manage life threatening hypokalemia/
risk of VF/VT so keep cardiac monitored
Check MG as need to replace this
replace 10mm/hr peripherally or quicker centrally
discuss with family in case of deterioration
check Cl
Disposition - HDU v ICU

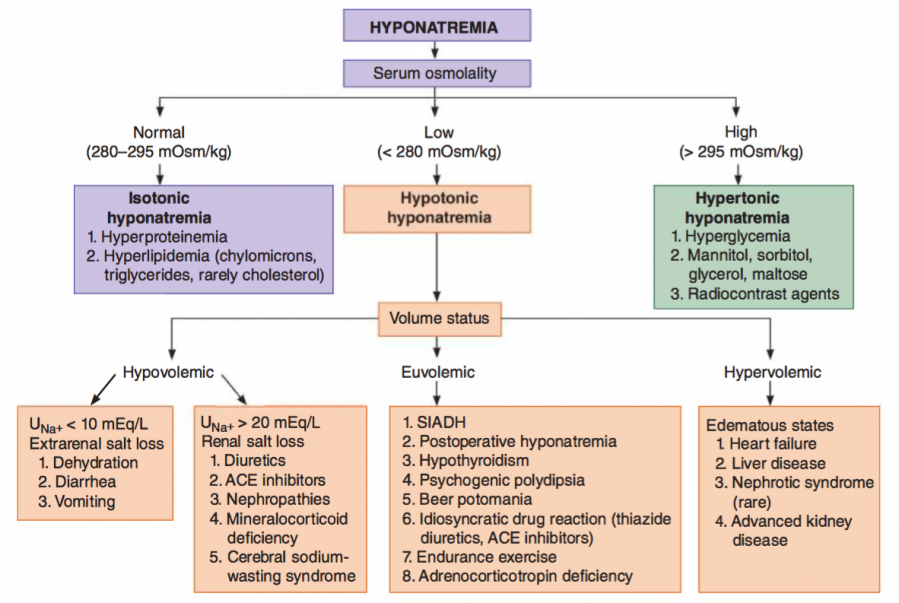

What are the causes of hyponaetremia
what are important features of a history when investigating low sodium
What are the risk factors for osmotic demyelination syndrome?
How do you use hypertonic saline in TBI?What are the targets and end points?
3% 3ml/kg bolus IV repeating every 2-4 hours
Target:
ICP <20mmhg
osmolality 300-320mosm/l
Sodium 145-150
