3 main areas of skull
-cranium
-maxilla
-mandible
7 functions of skull
-protect and house brain
-house sensory organs
-provide attachment for the mandible
-provide attachment for hyoid apparatus
-attach face muscles
-host teeth
-attach larynx

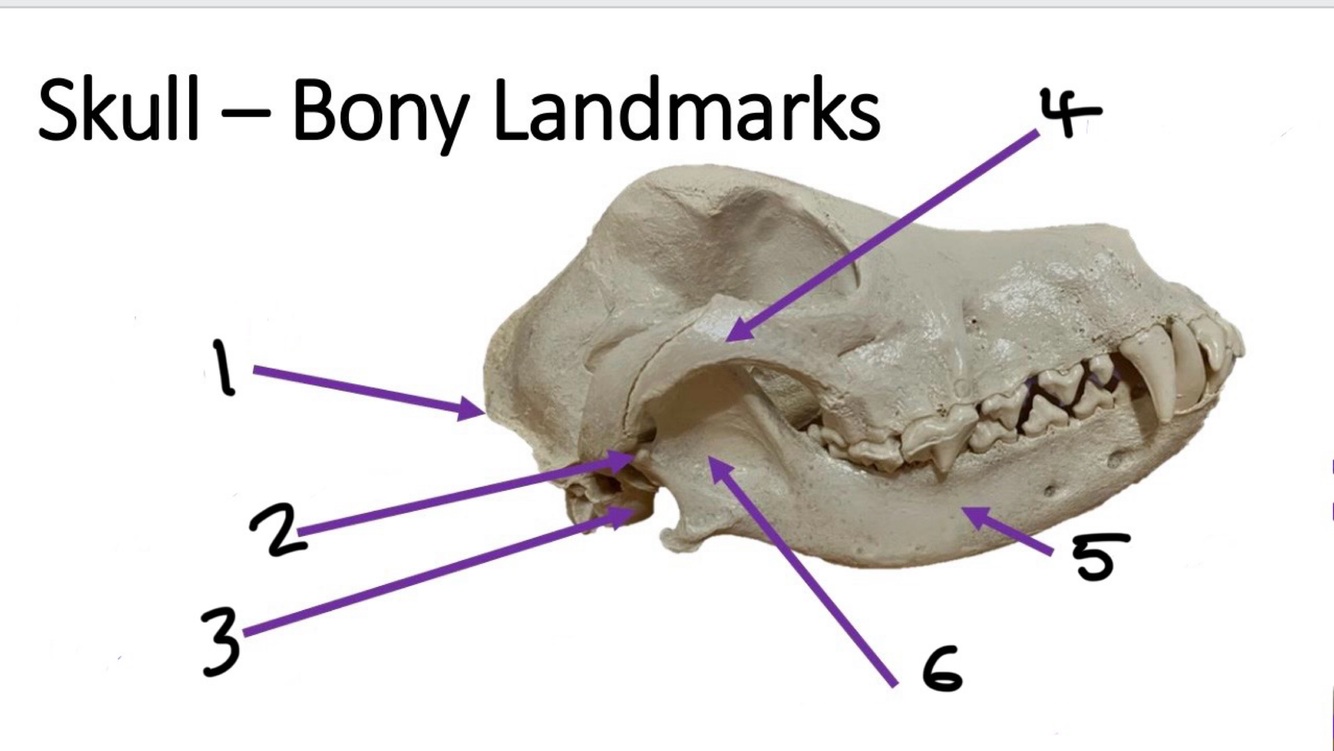

Name 1-6
1-external occipital protuberance
2-temporomandibular joint
3-tympanic bulla
4-zygomatic arch
5-mandible
6-masseteric fossa
Name 1 and 2
1- nasal aperture
2-infraorbital foramen

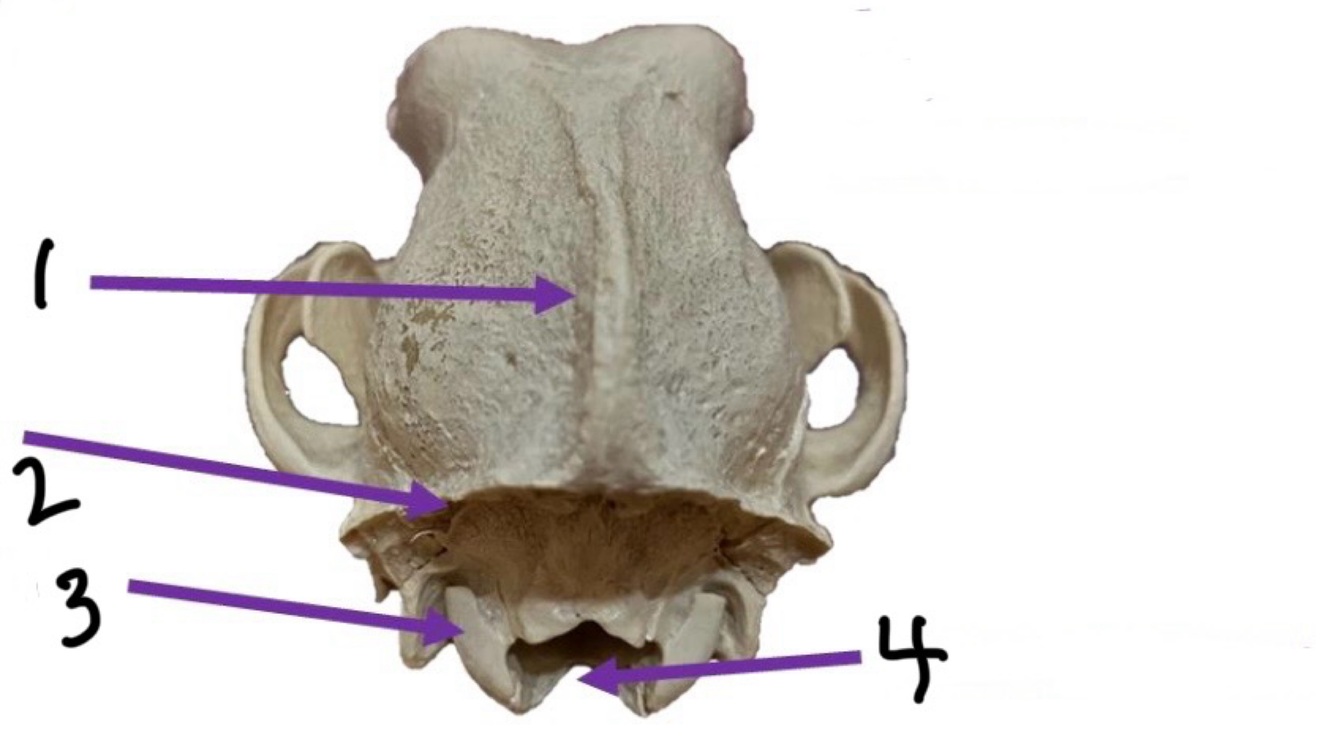

Name 1-4
1- occipital crest
2-nuchal crest
3-occipital condyle
4-foramen magnum

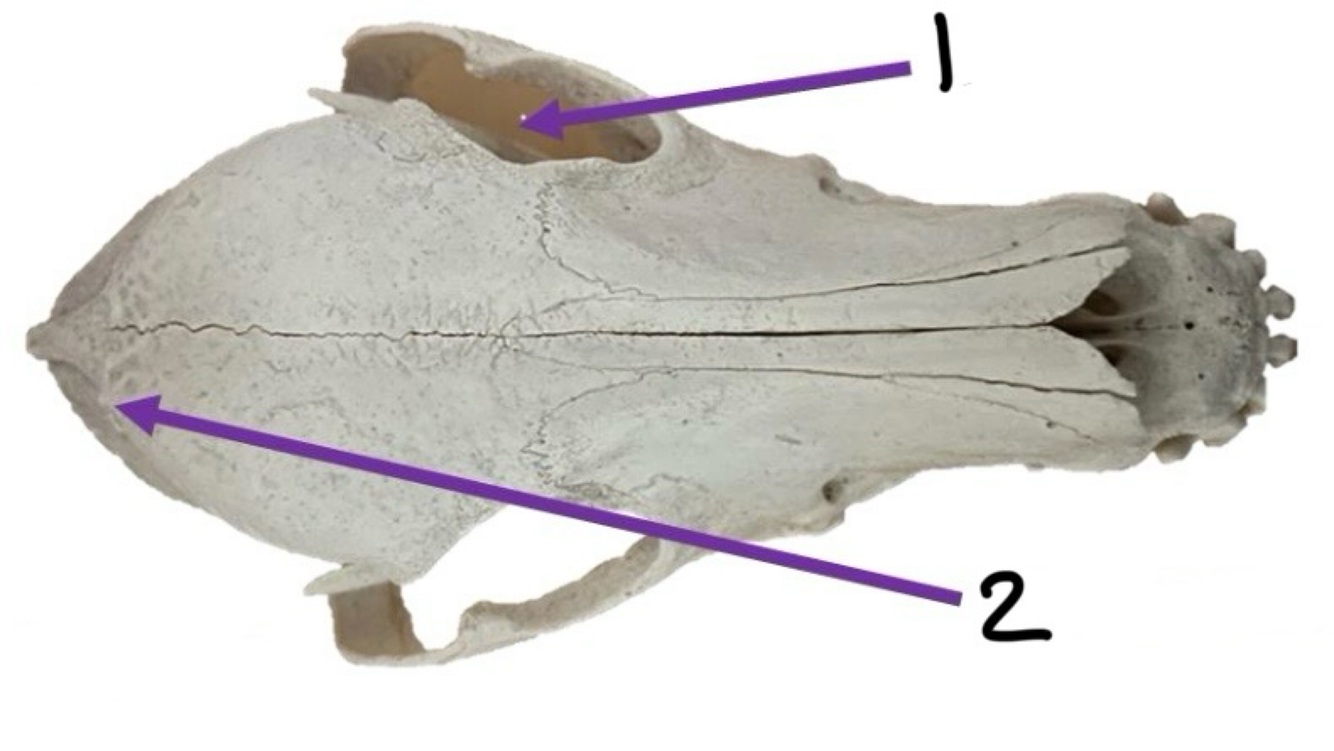

Name 1 and 2
1- orbit
2- temporal fossa

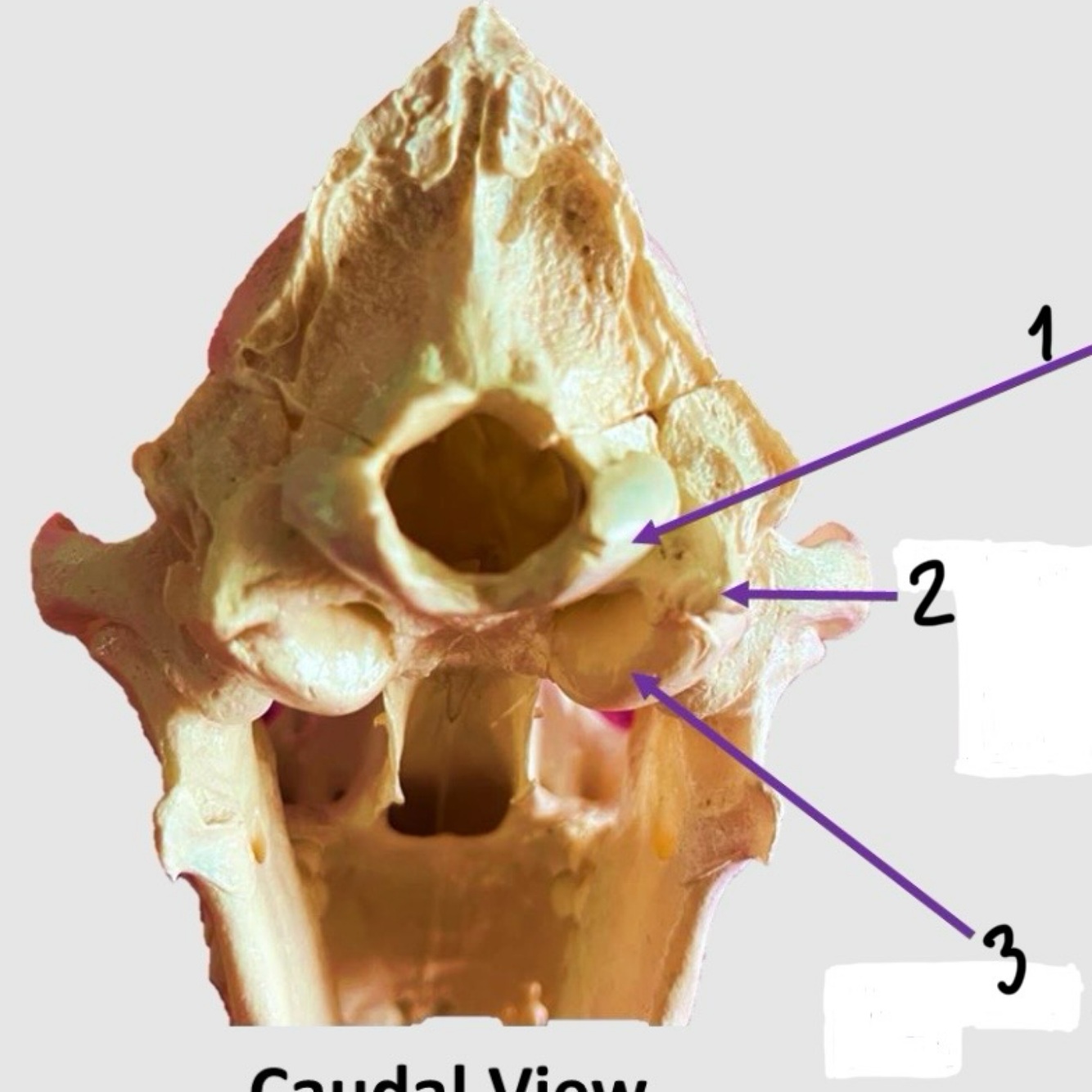

Name 1,2,3 (caudal view)
1 - occipital condyles
2-paracondylar process (jugular process)
3-tympanic bulla

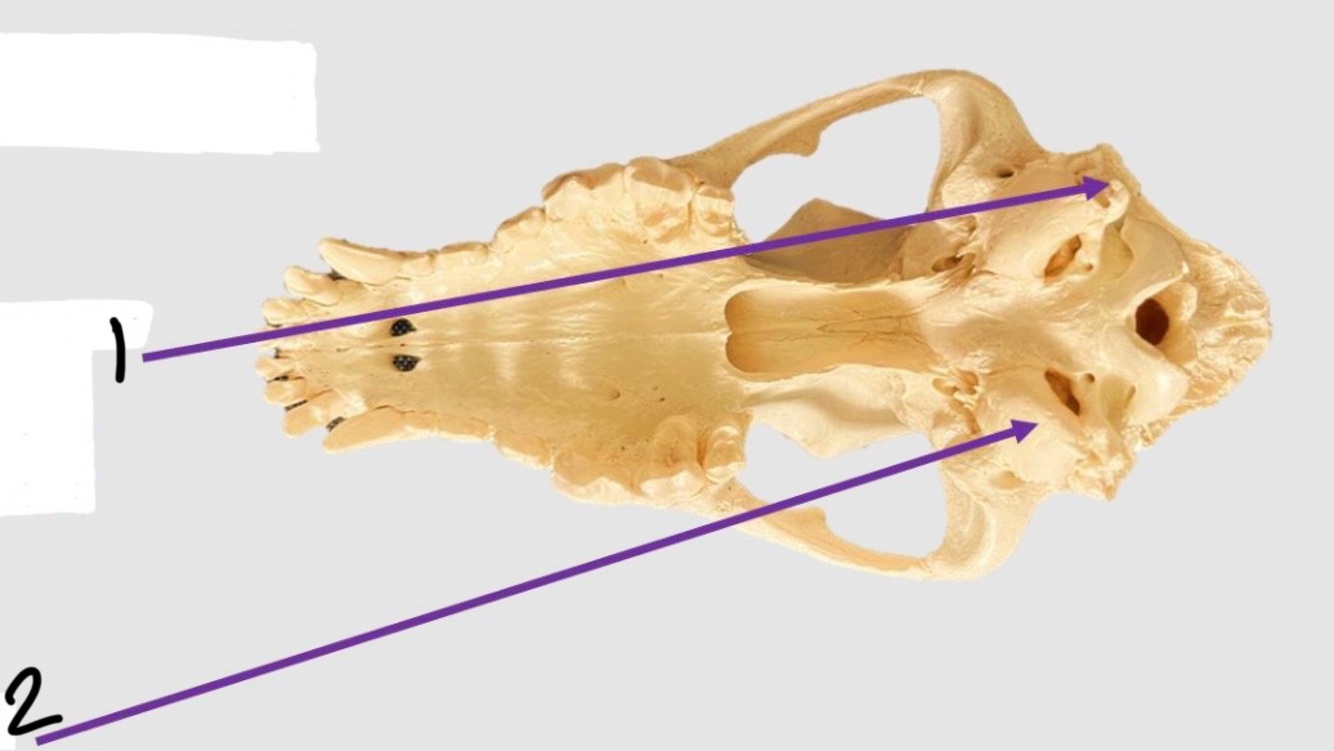

Name 1 and 2 (ventral view without mandible)
1-paracondylar process (jugular process)
2-tympanic bulla

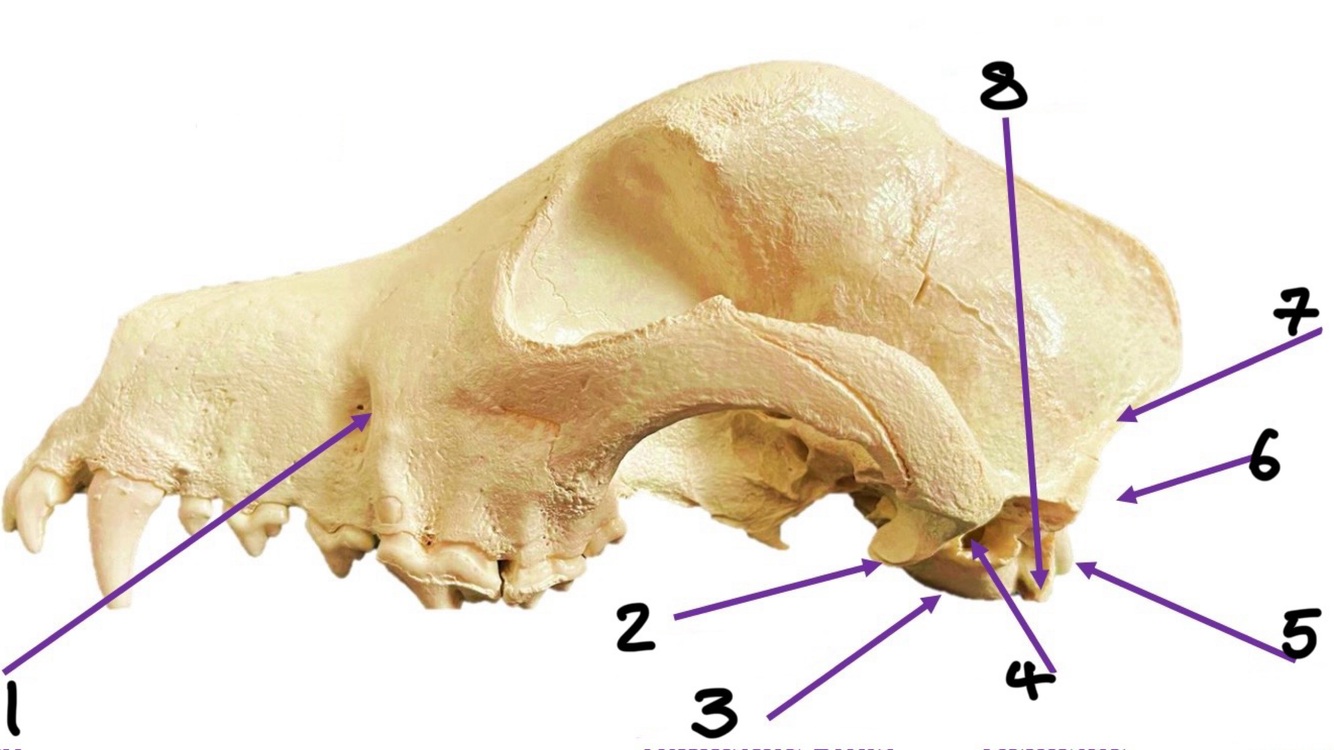

Name 1-8
1-infraorbital foramen
2-retroarticular process
3-tympanic bulla
4-external acoustic meatus
5-occipital condyles
6-foramen magnum
7-nuchal crest
8-paracondylar process

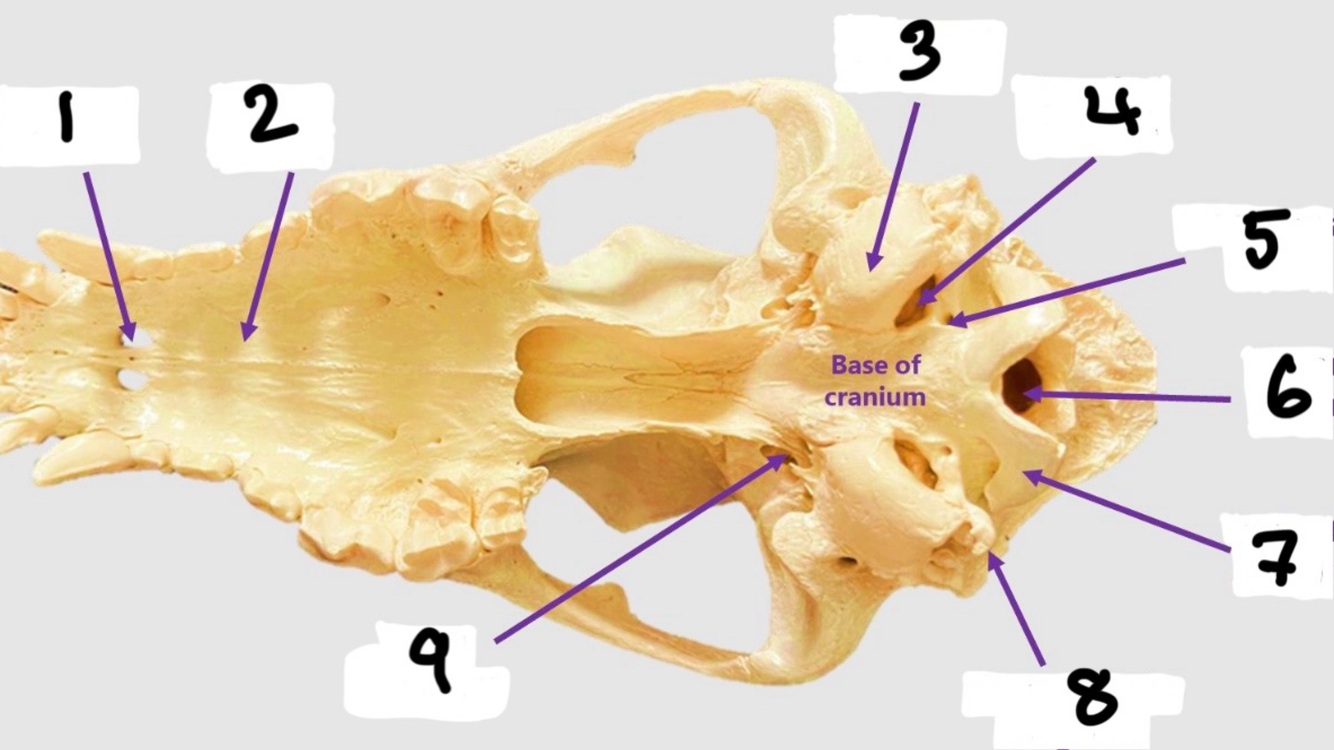

Name 1-9
1-palatine fissure
2-hard palate
3-tympanic bulla
4-jugular foramen
5-hypoglossal canal
6-foramen magnum
7-occipital condyle
8-paracondylar process
9-oval foramen
Orbit on canine skull
-incomplete - bigger zygomatic arch than horses
-complete by orbital ligament

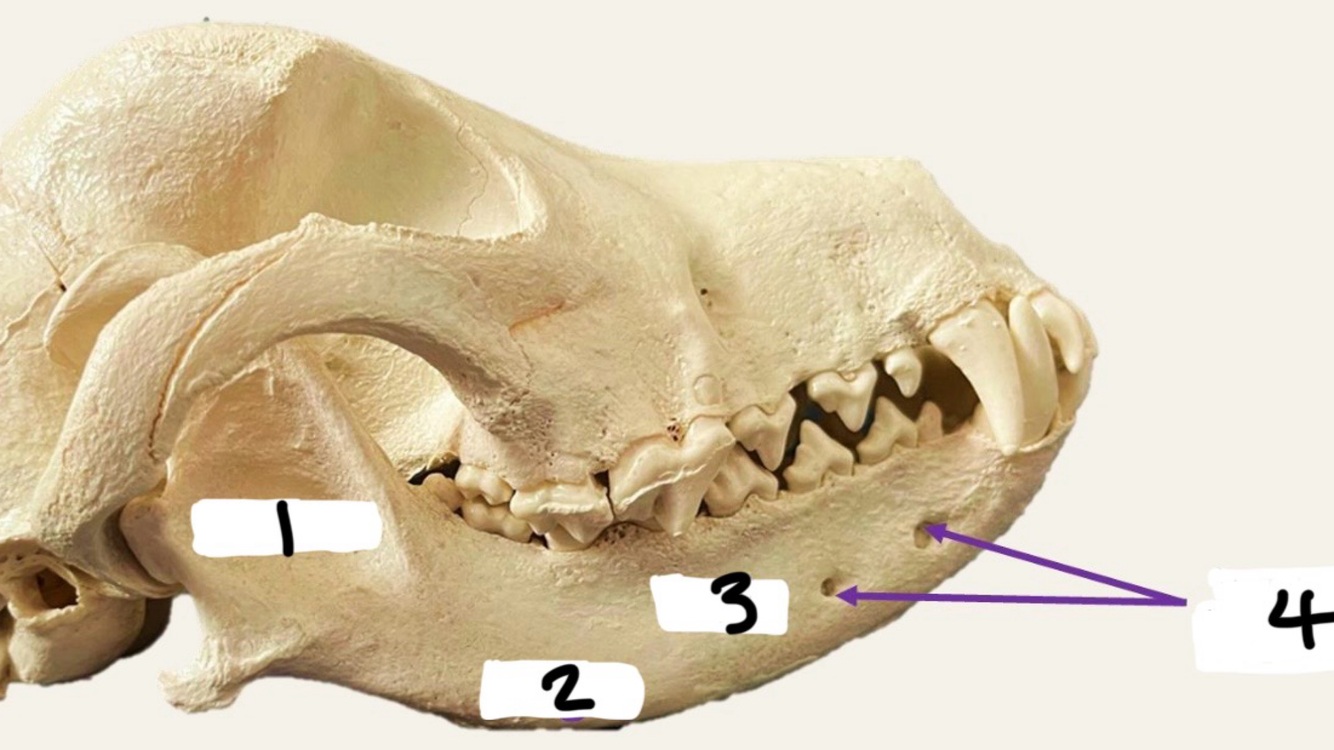

Name parts of mandible
1-ramus
2-angle
3-body
4-mental foramina
3 different head shapes of dogs
-brachycephalic (short)
-mesocephalic (normal)
-dolichocephalic (long)
What are the sinuses and their function?
-air filled cavities within bone, lie within facial bones of skull
-lined with ciliates epithelium and communicate with nasal cavity
-make skull less heavy, allowing for heavy muscle attachment
-act as areas for heat exchange and sites of mucus secretion
2 types of sinuses
-maxillary
-frontal
Maxillary sinuses
Not true sinus but a recess at the caudal end of the nasal cavity
Location of frontal sinuses
Lies within the frontal bone - varies in size depending on skull shape and age

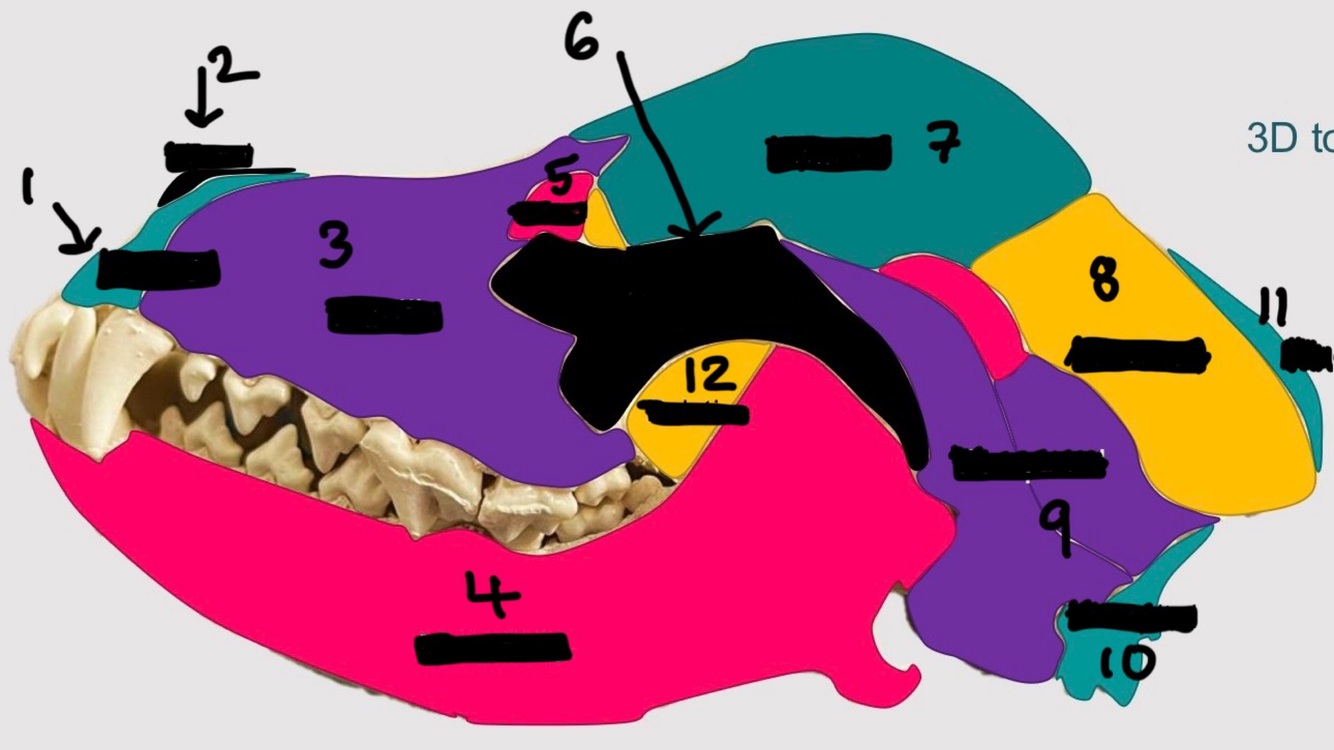

Name 1-12
Describe location of parietal bone in skull
Dorso-lateral walls
Describe location of frontal bone on skull
Dorso-rostral surface
Describe location of occipital bone in skull
Caudo-ventral surface
Describe location of temporal bone on skull
Caudo-lateral wall
Describe location of lacrimal on skull compared to zygomatic arch
Rostro-medial to the zygomatic arch
