Label the image.
What are medullary rays?
What do they consist of?
stripes that radiate from the renal cortex into the medulla
consist of longitudinally arranged tubules and collecting ducts
What is shown on the images?
medullary rays
What is special about the endothelial cells of the glomerulus?
What is the name of the specialised epithelial cells that wrap around the glomerular capillaries?
podocytes

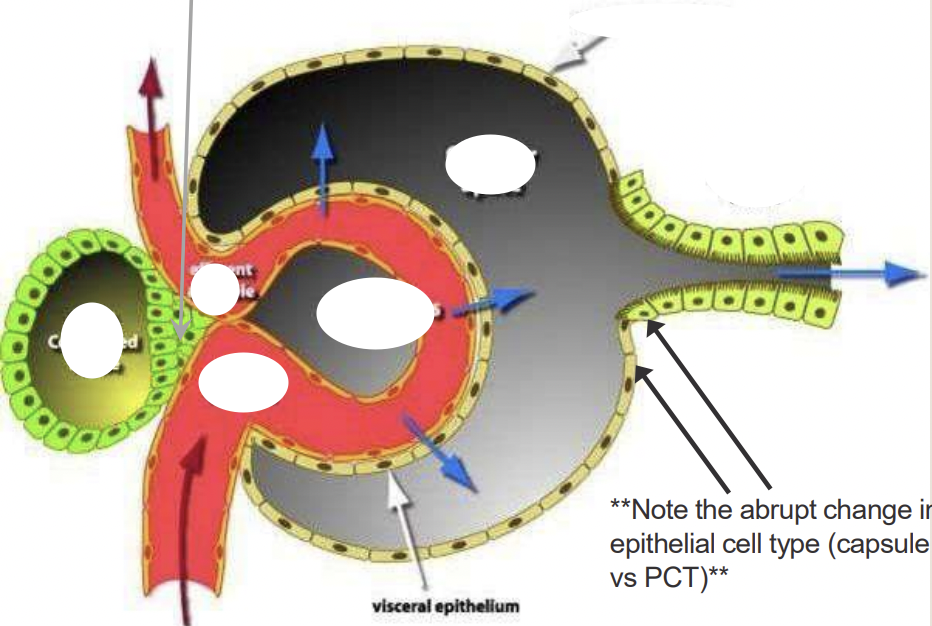

Label the image.
What is the Associated Juxtaglomerular Apparatus (JGA) formed of?
What does the JGA do?
macula dense, juxtaglomerular cells and mesangial cells
regulates glomerular blood flow

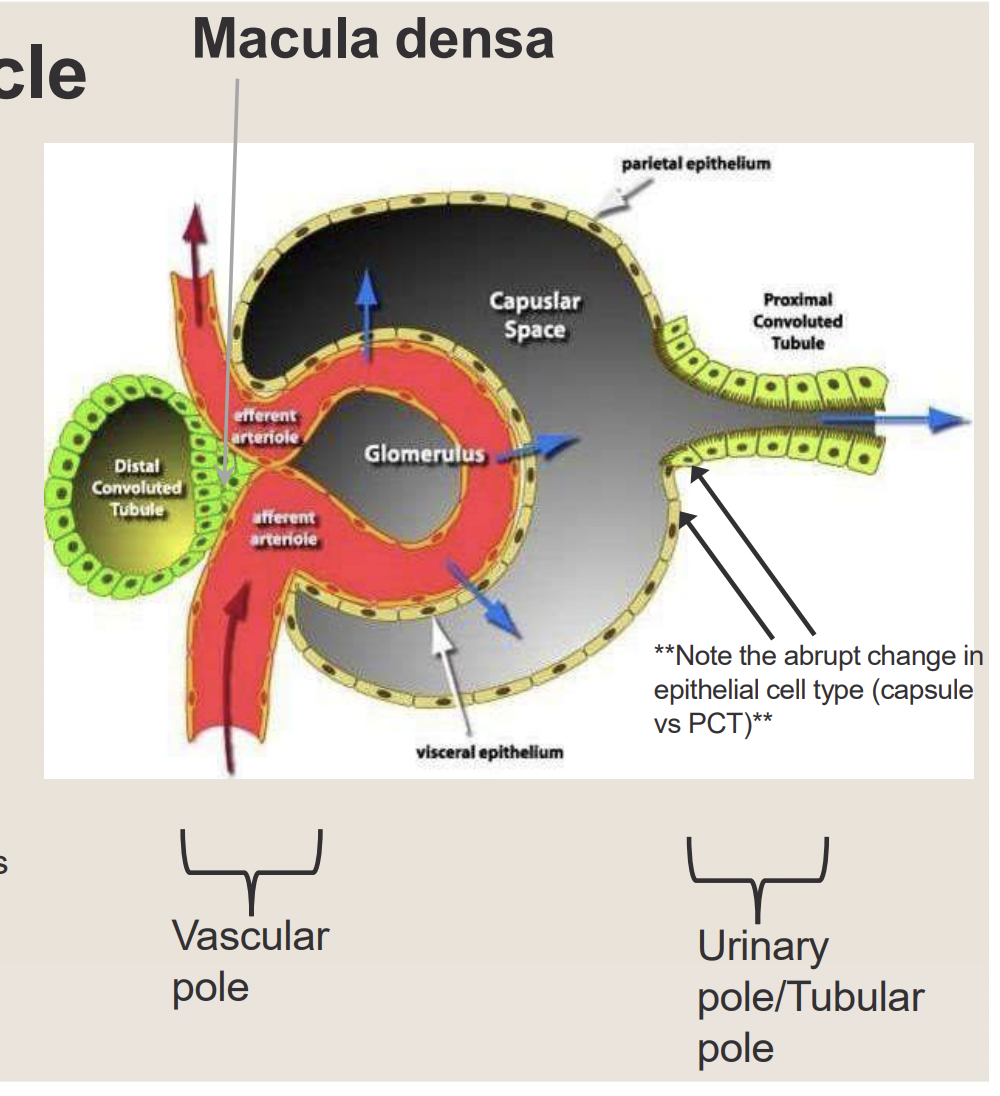

Where does the filtrate leave the corpuscle and enter the PCT?
at the tubular pole
Label the image.

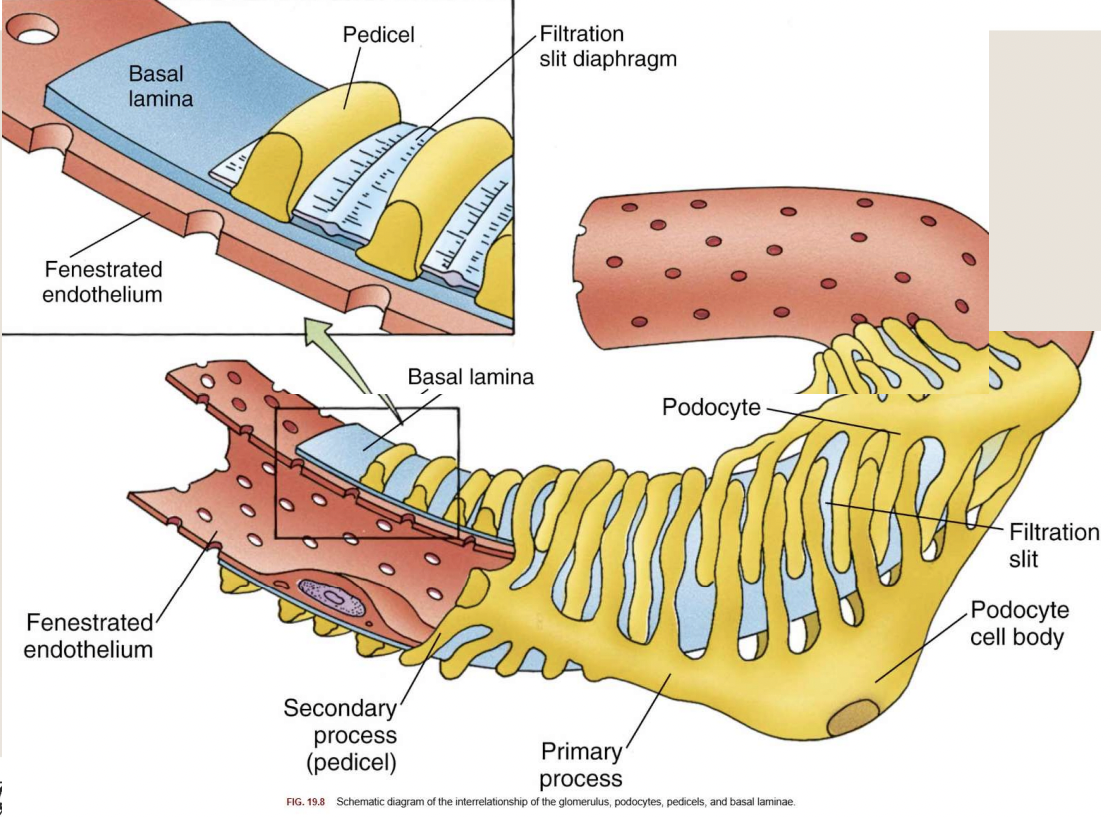

What is the visceral layer of the Bowman’s capsule comprised of?
specialised epithelial cells called podocytes

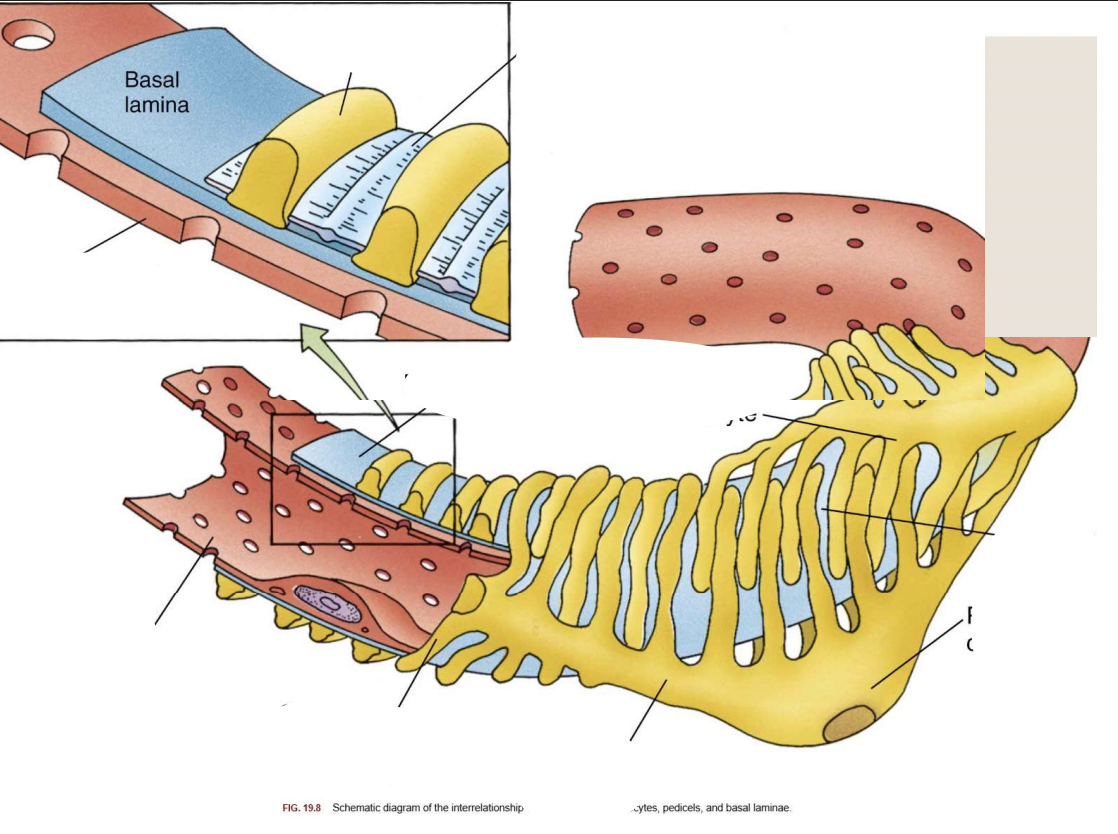

Fill in the gaps.
In the __1__ layer of Bowman’s capsule, foot processes known as __2__ extend from the __3__ to completely envelope the __4__ of the capillaries. This forms __5__.
What are the three levels of filtration in the glomerulus?
Label the image.
What are the two types of renal epithelia?
squamous: thin and flat, allows filtration and diffusion
cuboidal: more cytoplasm, supports active transport of substances
How does the epithelium in the DCT differ from the epithelium in the PCT?
the epithelium in the DCT has smaller simple cuboidal cells with fewer mitochondria, it also has no microvilli
What are the arrows pointing to?
Label the image.
(water and solutes are reabsorbed together, PCT has leaky tight junctions and transporters that let sodium, glucose etc out of the tubule and into the blood, water follows by osmosis so both removed in proportion - water and solutes leave together to concentration stays the same)
The PCT is comprised of what type of epithelium? What feature does it have and why is this?
simple cuboidal epithelium
long microvilli - maximise surface area for reabsorption and secretion
