SSPS and Eagle Flashcards by Jason De La Vega

What are all the inputs to SSPS?

Eagle 21
Ni’s
Seismic
Field contacts

How well did you know this?

Not at all

Perfectly

What are the field contacts that input to SSPS?

RCP Breaker
RCP UV
RCP UF
AST oil pressure
SV position

How well did you know this?

Not at all

Perfectly

What is the major function of:

eagle 21

SSPS

eagle 21 - determine if parameter exceeds setpoint

SSPS - determine if coincidence is met for an actuation

How well did you know this?

Not at all

Perfectly

How many ways are there to actuate a slave relay?

What are the different ways?

two

Master relay - provides 48 volts (control power) to close contact allowing 120 volts to loads from safeguards driver
Test - provides 48 volts (control power) to close contact allowing 120 volts to loads from test panel

How well did you know this?

Not at all

Perfectly

Do the Ni racks input into eagle 21?

Yes, but only for OPAT and OTAT calculations, delta I is sent from Ni’s -> eagle 21 (LCP does calc)
Ni’s determine own setpoints and send to SSPS directly

How well did you know this?

Not at all

Perfectly

Why do the majority of channels in RPS de-energize to actuate?

Which channels energize to actuate?

ensures channels are fail-safe except those that would cause major plant upset if actuated erroniously
energize to actuate
- CNMT Spray actuation chnls
- Seismic trip chnls
- RCP bus UF chnls
- SLI

How well did you know this?

Not at all

Perfectly

What does it mean if a channel bistable (postage stamp) is blinking?

The bistable is tripped but only by one train (A or B)

in MUX we set one train to monitor A+B => the trains are alternated when sending light to postage stamp. If blinking, we know one train actuated but other did not

How well did you know this?

Not at all

Perfectly

What parameter affect OT delta T?

How do they affect it?

T_ave
- T_ave up -> setpoint down
- T_ave down -> setpoint up
P_pzr
- P_pzr up -> setpoint up
- P_pzr down -> setpoint down
delta I
- delta I up -> setpoint down
- delta I down -> setpoint down

How well did you know this?

Not at all

Perfectly

What parameters affect OP delta T?

How do they affect the setpoint?

T_ave
- T_ave up -> setpoint down
- T_ave down -> no effect

OP delta T only has penaties, no bonus points

How well did you know this?

Not at all

Perfectly

Which trip breakers give you P-4a?

P-4b?

What breakers does SSPS train A actuate?

SSPS train B?

P-4a = RTB A + BYP A
P-4b = RTB B + BYP B
train A actuates: RTB A + BYP B
train B actuates: RTB B + BYP A

How well did you know this?

Not at all

Perfectly

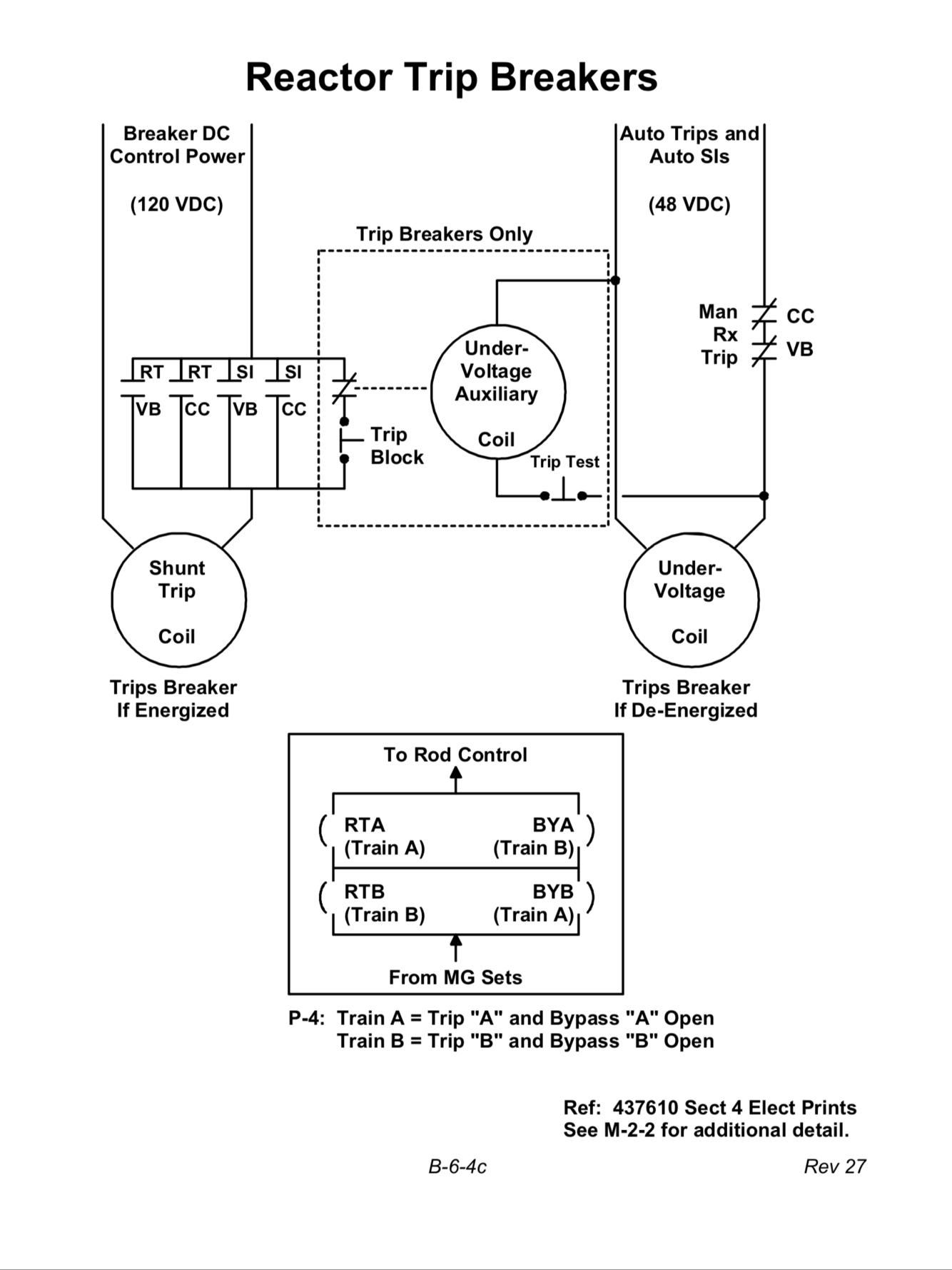

How are the BYP rx trip breakers different from the RTB?

Which of the following trips does not directly actuate both the UV trip coil and Shunt trip coil?

Manual SI

Auto SI

Manual Rx trip

Auto Rx trip

BYP do not have the UV aux coil => auto trips will not energize the shunt coil
Manual SI does not de-energize the UV coil
- however all SI give you auto Rx trip signal

How well did you know this?

Not at all

Perfectly

What are the “monitor Light boxes” indicating?

Briefly describe what is being monitored by Monitor Light Box:

If valves or components are out of their required positions (based on plant conditions), (out of position = illuminated)
A - ESF valves (pre actuation)
B - Phase A and CVI valves
C - SI, FWI, SG equipment
D - Phase B and SLI

How well did you know this?

Not at all

Perfectly

What are the “Bistable Status lights” (postage stamps) monitoring?

What are the P.S. to the lights?

provides indication to control room of all input signals to ESFAS (trip or non-trip)(P-signals, C-signals, Rx trips, ESFAS actuations)
Ch 1 - PY-14
Ch 2 - PY-11A
Ch 3 - PY- 12
Ch 4 - PY-13A

How well did you know this?

Not at all

Perfectly

What are the Power supplies to:

Monitor Box A

Monitor Box B

Monitor Box C

Monitor Box D

A
- PY-12
B
- Trn A PY-13A
- Trn B PY-12
C
- PY-12
D
- Trn A PY-13A
- Trn B PY-12

How well did you know this?

Not at all

Perfectly

When do the “Monitor Light Boxes” provide indication of valves and components out of position?

When do the “Bistable Status Lights” provide indication of inputs to ESFAS?

B, C, and D are armed 20 seconds after an actuation signal, then provide indication
A is always armed and providing indication
BSL are always providing indication of inputs

How well did you know this?

Not at all

Perfectly

Briefly describe the following:

Eagle RTD Input (ERI)

Eagle Analog Input (EAI)

Digital Filter Processor (DFP)

Loop Calculation Processor (LCP)

Study These Flashcards

ERI - supplies pwr to RTD, converts return resistance to analog voltage

EAI - supplies pwr to xmtr, converts return current to analog voltage

DFP - recieves sig from ERI/ EAI, converts to dig, self diagnostics

LCP - recieves sig from DFP, determines if setpoint exceeded, performs calcs, if all good sends 1 to DDC

Briefly describe the following:

Digital to Digital Converter (DDC)

Digital to Analog Converter (DAC)

Eagle Partial Trip (EPT)

Eagle Analog Output (EAO)

Eagle Contact Output (ECO)

Study These Flashcards

DDC - recieves sig from LCP, if 1 transmits 5 vdc pulse to EPT, also acts as isolator

DAC - converts sig from LCP to analog value for EAO

EPT - if no 5 vdc pulse from DDC, stops allowing 120v to coil that is keeping contact open from ground

EAO - takes analog output from DAC and uses it for control and indication

ECO - takes digital output from DDC in tester subsystem and alarms if eagle not working properly

List all actions that happen on SI

motors

valves

electric

misc

Study These Flashcards

Motors:

CCP (ECCS)
SI
RHR
ASW
AFW (motor driven)
CFCU (low speed)
CCW

valves:

Charging inj valves open
Charging suct. valves swap VCT -> RWST
ACC outlet valves open (already open)
Normal Charging lines isolate

elec re-alignment:

DG’s start

Misc:

turbine trips
FW pump turbines trip
Phase A
CVI
FWI
ABVS -> Building and Safeguards mode
Input to CNMT Spray

What will give you a CVI?

What does CVI do?

Study These Flashcards

CVI inputs

manual Phase A
manual Phase B
Hi rad on RM-44A/B
SI

CVI outputs

FCV-660/661, RCV-11/12 (CNMT purge supply & exh)
FCV-662,663,664 (CNMT press & vacc relief)
FCV-678,679,681 (RM-11/12 supply & return)

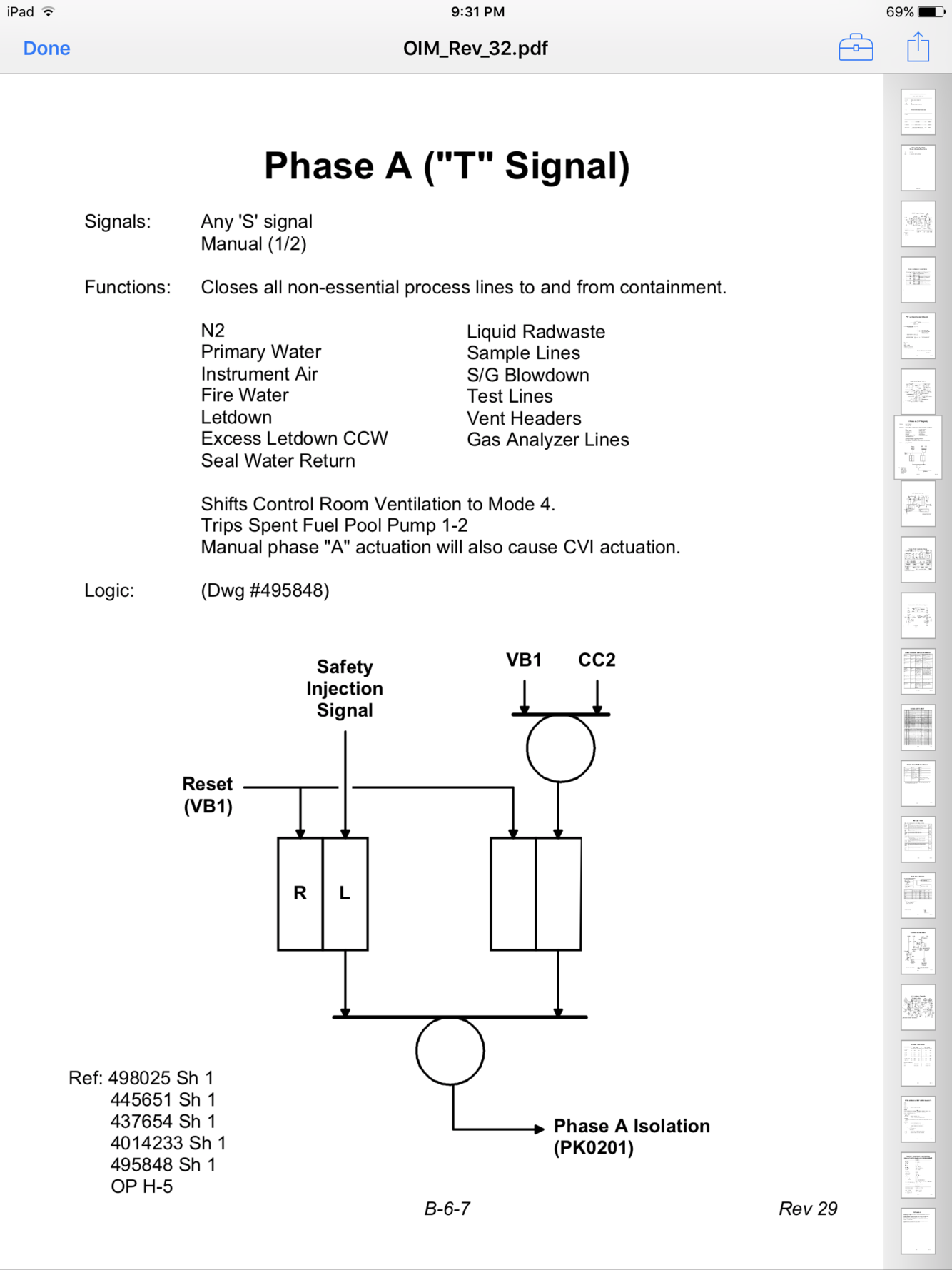

What will give you a Phase A isolation?

What are all the actions Phase A will cause?

Study These Flashcards

Phase A inputs:

any SI
manual Phase A

Phase A outputs:

CRV -> mode 4
stops SFP -2
**manual Phase A will cause CVI
isolates all non-esential CNMT penitrations

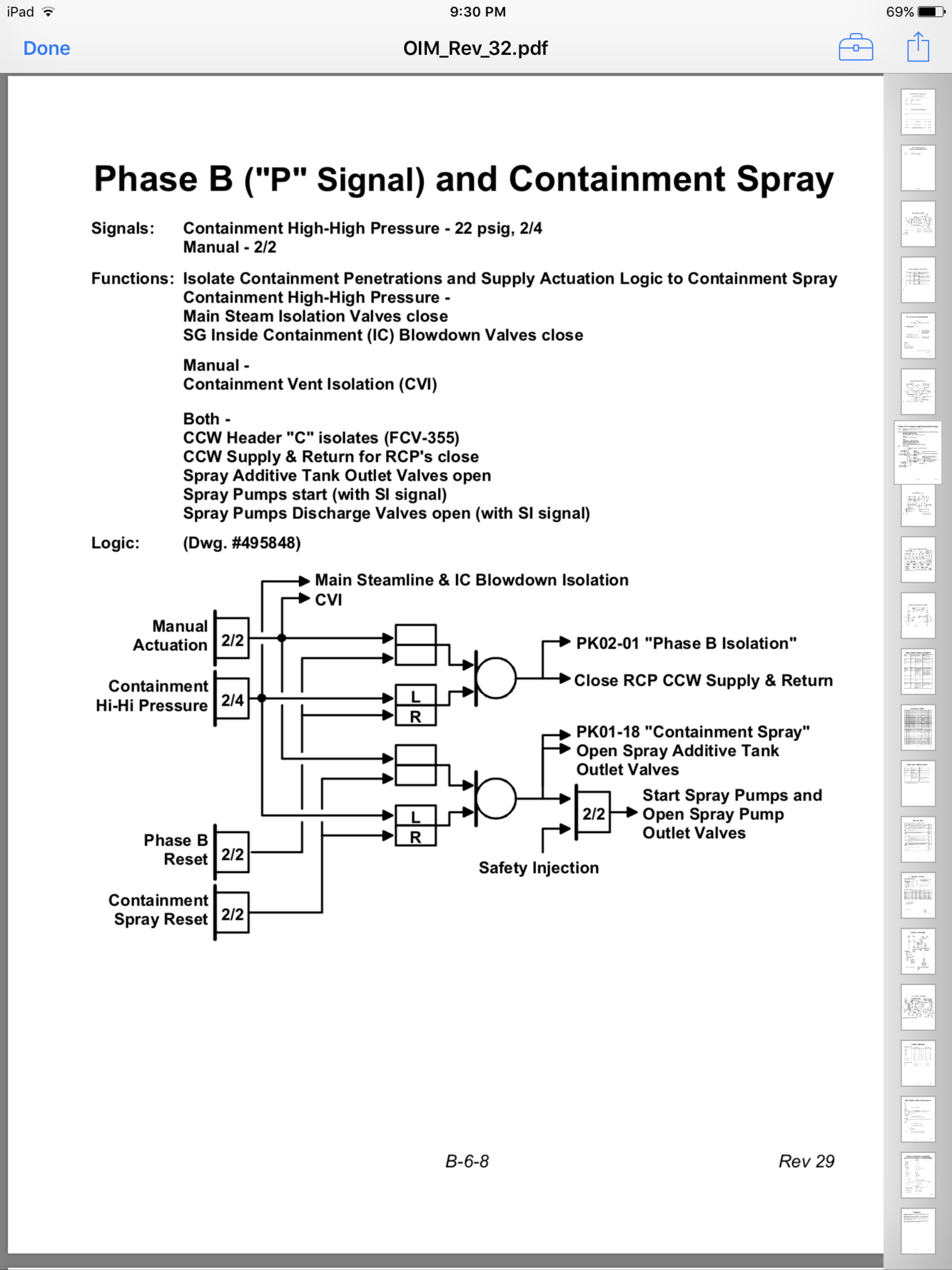

What will give you Phase B isolation?

What does Phase B actuate?

Study These Flashcards

Phase B inputs:

Manual Phase B
CNMT Hi Hi (22 psig aka “P” signal)

Phase B outputs

Manual
- CVI
Auto
- SLI
Both
- CNMT spray input
- isolates CCW hdr ‘C’
- isolates CCW cooling to RCP’s

What will give you a feedwater isolation (FWI)?

What happens on each variation of FWI?

Study These Flashcards

P-14 (>90% NR L_s/g)
SI
- trip turbine
- trip MFP (train B only)
- close FWI valves (train A only)
- close FRV’s
- close FRV bypass valves
P-4 + Low T_ave (<554 deg)
- close FRV’s
- close FRV bypass valves

What are the actuation signals to AFW?

Turbine Driven

Motor Driven

Study These Flashcards

TDAFW

L - low L_s/g (15% 2/3, 1/4 loops after time delay)
U - under power 12 KV bus
A - AMSAC

MDAFW

S - SI
L - low L_s/g (15% 2/3, 1/4 loops after time delay)
A - AMSAC
M - MFP trip (both)
D - bus xfr to DG

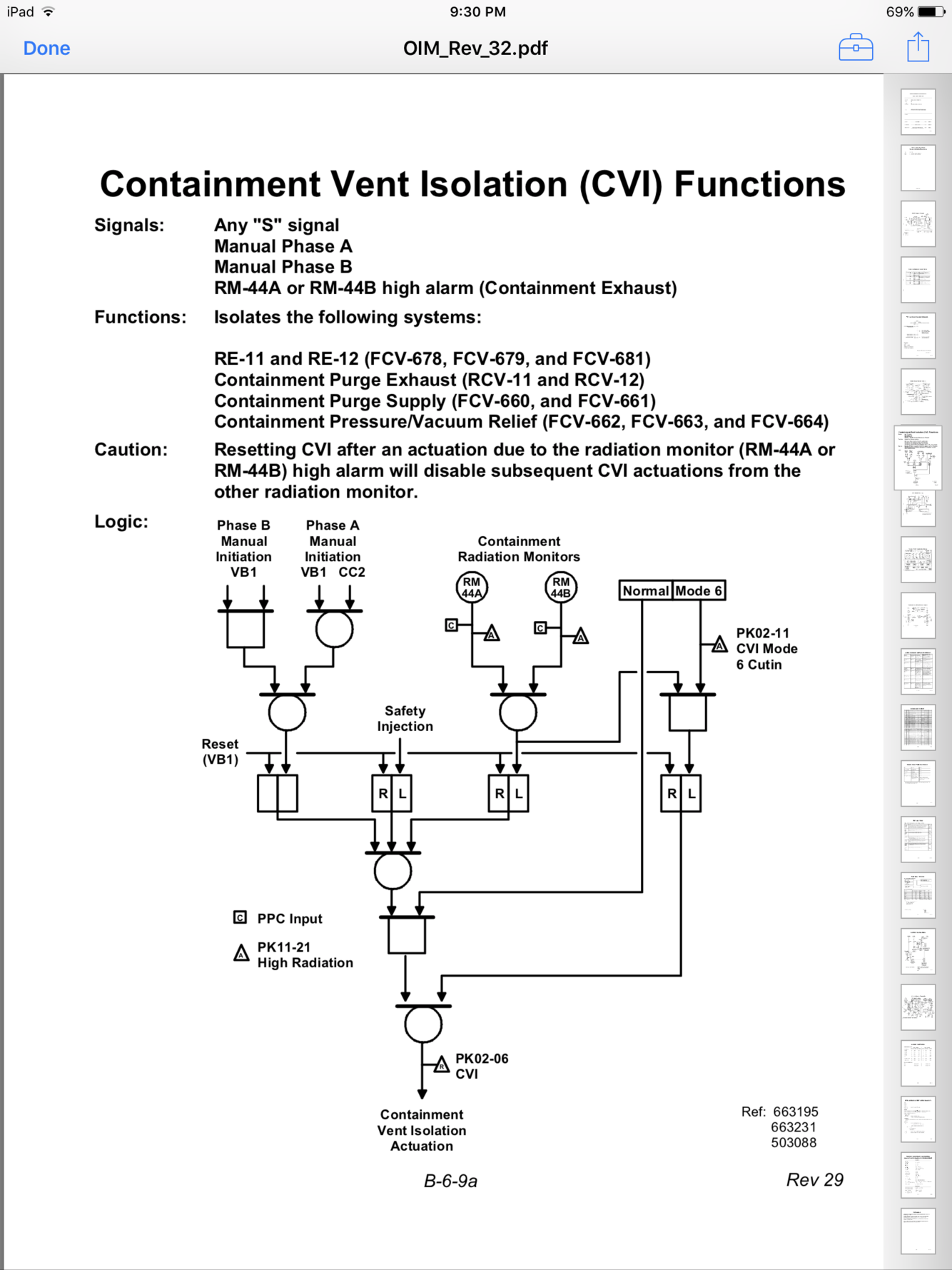

If you get a CVI on Hi Rad (RM-44A and B), then depress CVI reset pushbutton, and reposition valves, will CVI still be available for the other automatic actuations?

Study These Flashcards

Yes, any SI will still give you a CVI

see picture

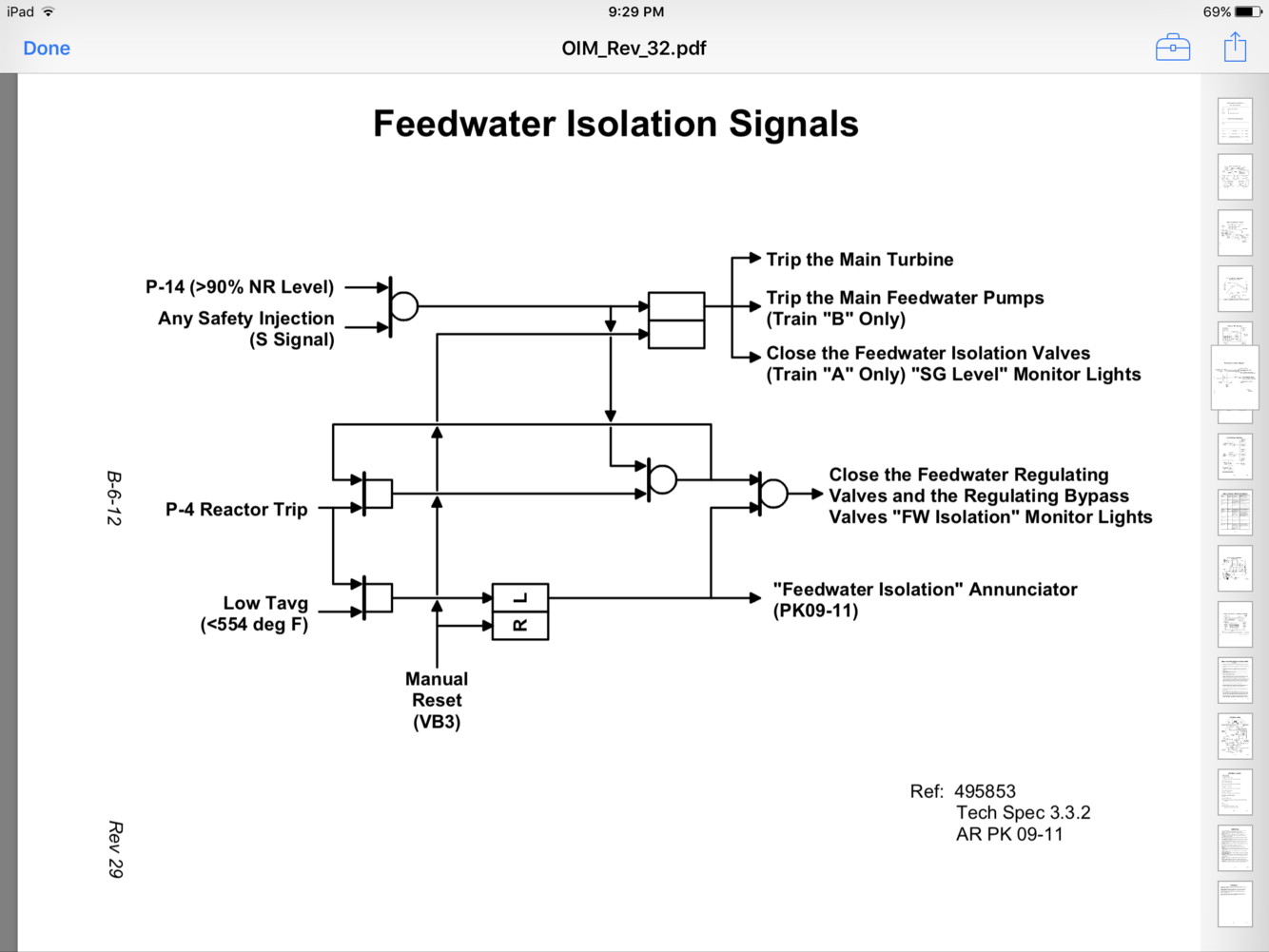

If you get a FWI due to P-4 and Low T_ave (\<554 deg), what must you do to re-open the FRV's? 1. cycle trip bkrs, reset FWI 2. raise Tave \> 554 deg, cycle trip bkrs, reset FWI 3. reset FWI

Reset FWI see picture

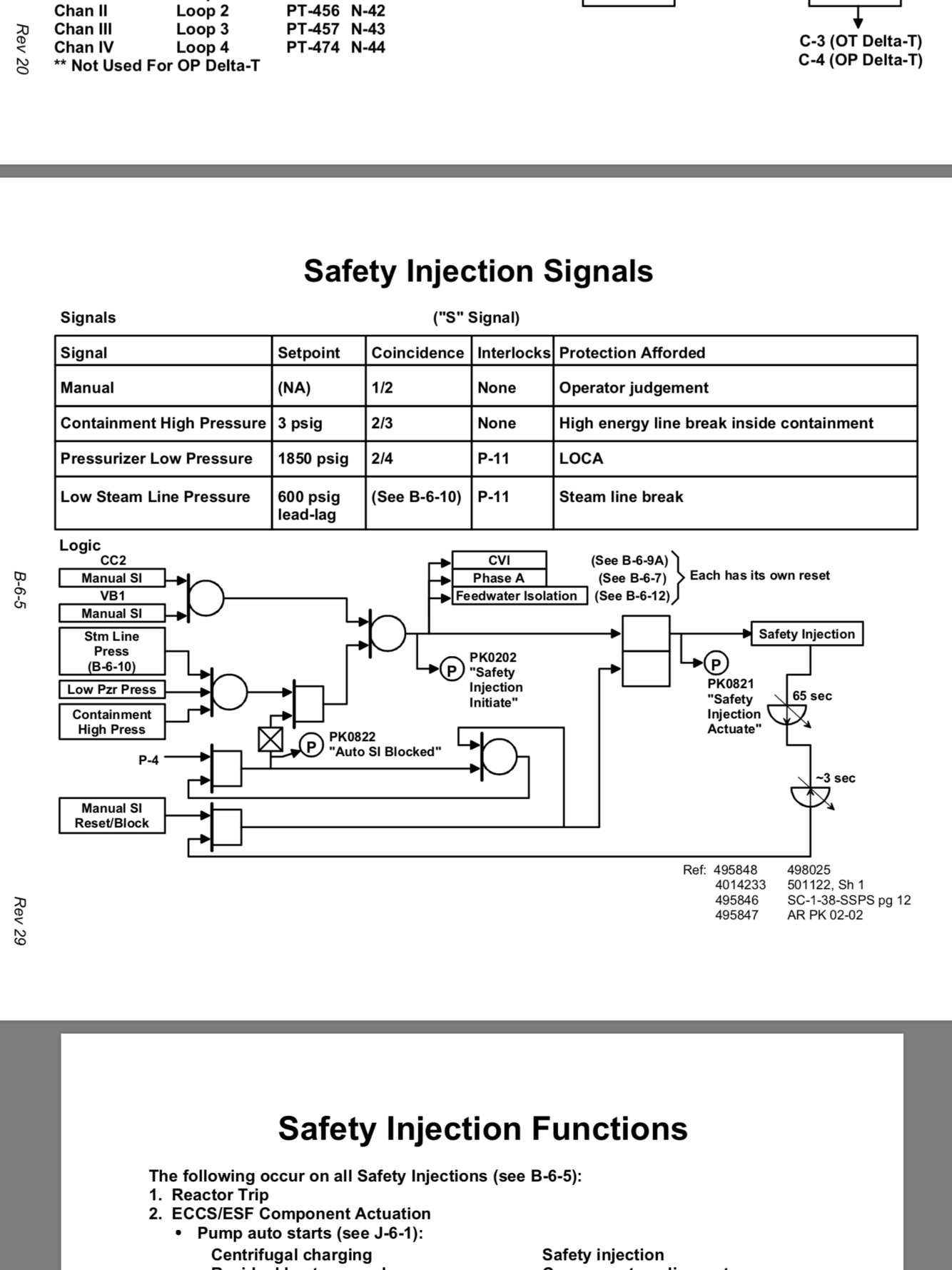

If you get an SI from low Ppzr, then Manual reset/block SI, will you get another SI from Low Pstm ln? How would you re-enable the auto SI after being blocked?

No Cycle RTB's see picture

What component has the "dead man timer"? How is timer used?

Eagle Partial Trip * the LCP generates a "1" or a "0", "1" is not tripped * 1 will tell DDC to generate a pulse (5 vdc) every 100 msec to the EPT * if EPT doesnt recieve a pulse every 120 msec, the dead man timer will time out and cause EPT to stop conducting 120 volts to coil that keeps contact open that will subsequently ground 15 volts and cause a logic of 1 out of whatever going forward

What will give you a GW alarm?

1. any power supply low 2. any circuit card in row 1-5 removed 3. **MUX test switch** in **inhibit** 4. **ground return fuse blown** 5. **Input error inhibit switch** in **inhibit** 6. **loss of 120 vac to slave relays** 7. fully **rack in BYP bkr** and **close** it (for RTB train that is being bypassed)
