CARDIAC IMAGING 1 Flashcards

(100 cards)

Study These Flashcards
1
Q

What determines Thoracic Situs

A
  • Tracheobronchial Tree
    • Left PA above Left Bronchus (hyarterial bronchus)
    • Right PA below Right Bronchys (eparterial bronchus)
    • Left main bronchus longer than right main bronchus
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
2
Q

Norwood procedure

  • when is it done?
  • what does the procedure entail?
A
  • within days of birth (HLHS)
  • tiny aorta is anastomosed to pulmonary trunk and arch is augmented with a graft
  • ASD is enlarged
  • PDA is ligated (to prevent overshunting)
  • BT shunt between Right subclavian artery and right pulmonary artery
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
3
Q

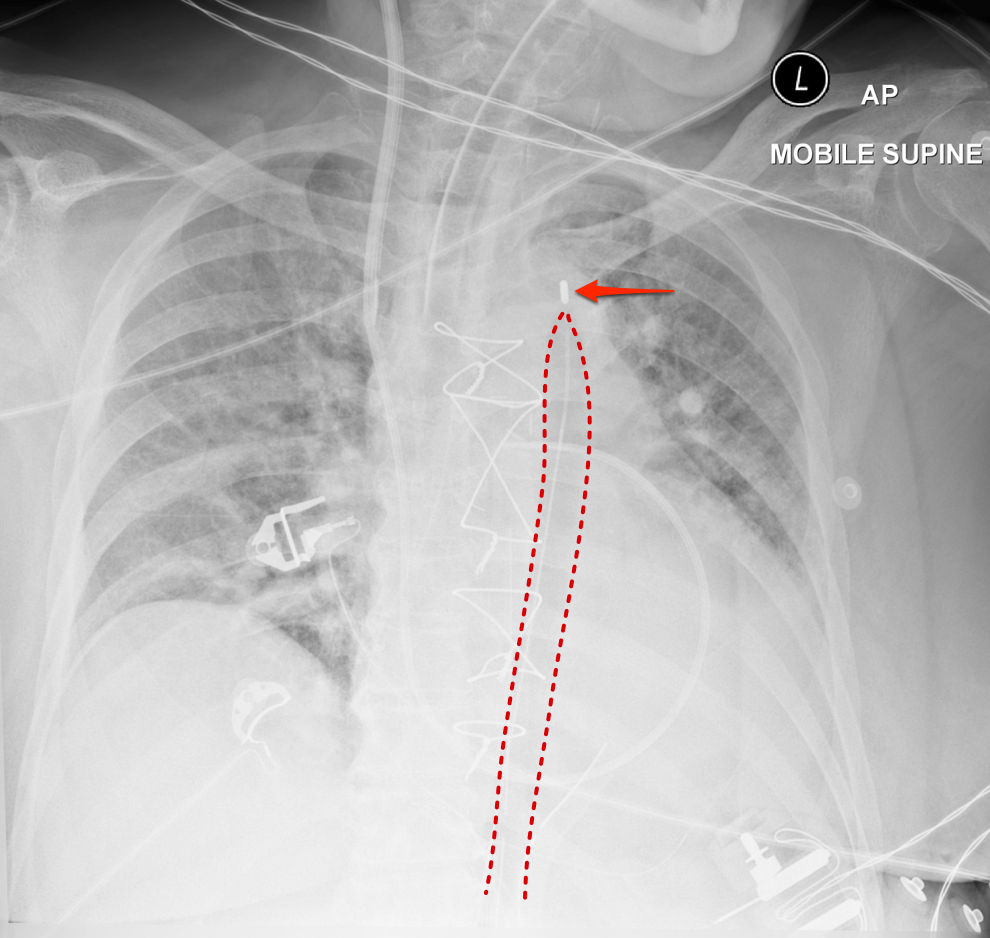

Where should the tip of an Intraaortic Balloon Pump (IABP) be?

A

Intraaortic Balloon Pump (IABP)

Tip should be located just distal to the takeoff of the left subclavian artery (LSA) and be 2–4 cm below aortic knob. Inflation may be seen during diastole.

The balloon should be located in the proximal descending aorta, just below the origin of the left subclavian artery. On a chest radiograph, it should be at the level of the AP window. This ideally results in the balloon terminating just above the splanchnic vessels 3.

Case courtesy of Assoc Prof Craig Hacking, Radiopaedia.org, rID: 66474

Case courtesy of Assoc Prof Frank Gaillard, Radiopaedia.org, rID: 19299

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
4
Q

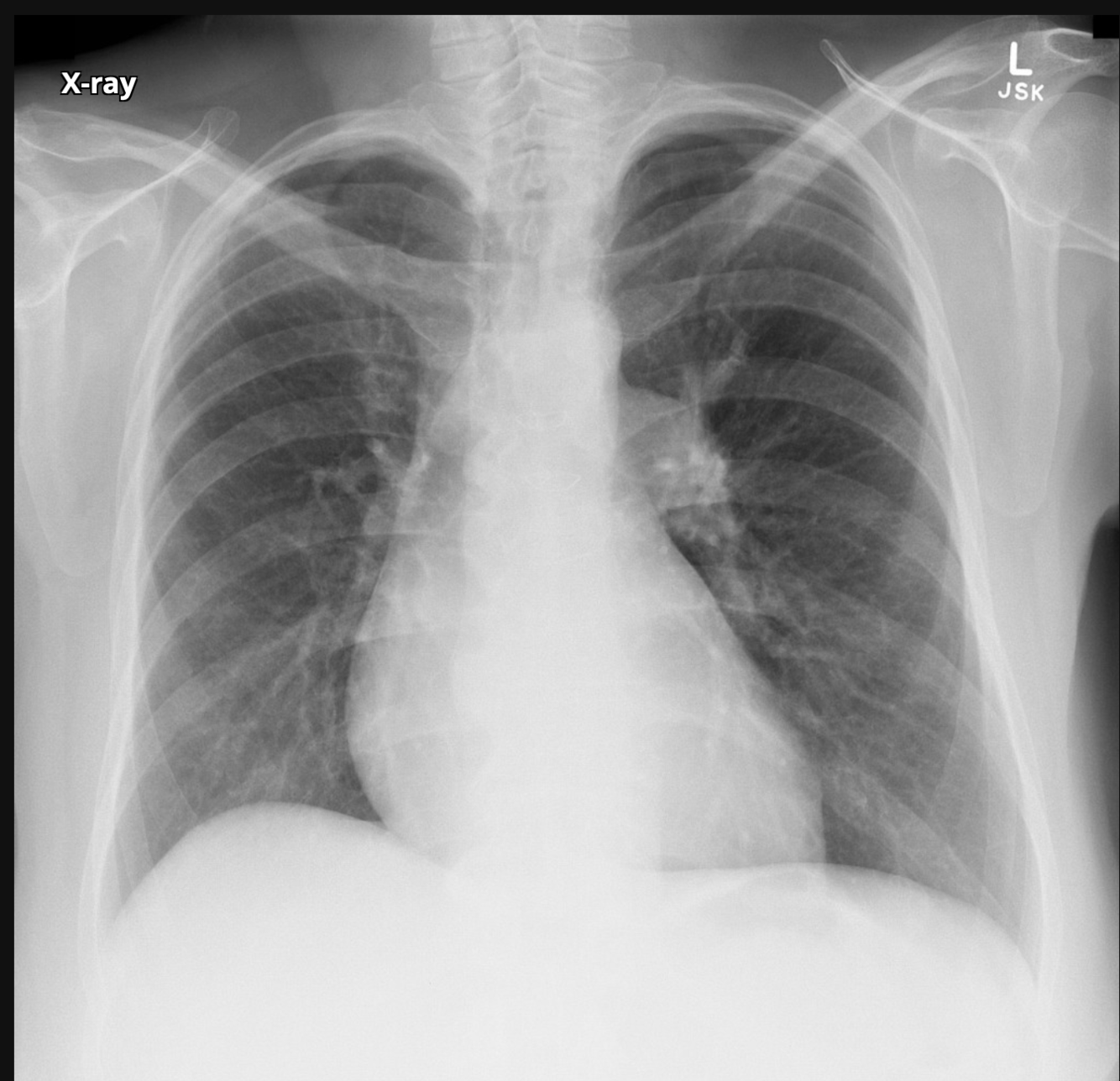

Pre cardiology workup for systolic murmur.

Patient Data

Age:60 years

Gender:Female

what is the dx?

what sign is demonstrated

A
  • Pulmonary valvular stenosis - Chen sign and post stenotic dilatation of the left pulmonary artery
  • The patient is rotated to the right.
  • The left pulmonary artery is grossly enlarged.
  • The right pulmonary artery and hilum appear normal.
  • The peripheral pulmonary arteries are more prevalent in the left base compared to the right (Chen sign).
  • Heart size is normal.
  • The lungs and pleural surfaces are clear.
  • No signs of pulmonary edema.
  • Cardiology workup diagnosed pulmonary valve stenosis due to congenital bicuspid valvular anatomy.

Chen sign is described as the prominence of left basal pulmonary vasculature compared to the right base due to the asymmetric increase in pulmonary blood flow to the left lung. It is secondary to preferential blood flow into the left pulmonary artery after passing through the stenosed pulmonary valve during systole.

Enlargement of the left pulmonary artery is secondary to the same effect, causing post stenotic dilatation.

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
5
Q

DDx of Boot shaped heart

A
  • Paediatrics
    • Tetralogy of Fallot
  • Adult
    • loculated pleural effusion
    • cardiac anerysm
    • Pericardial cyst
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
6
Q

3 ddx of mesocardial Delayed Myocardial Enhancement (MRI)

A

Mesocardial Delayed Myocardial Enhancement (MRI)

  • Hypertrophic cardiomyopathy (CM)
  • Dilated CM
  • Chagas disease
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
7
Q

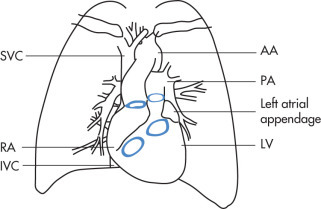

What are the three segments of the right cardiac margin?

A
  • SVC
  • RA
  • IVC
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
8
Q

5 Ddx T1 Bright Cardiac Lesions

A

T1 Bright Cardiac Lesions

  • Benign
    • Thrombus (no enhancement)
    • Lipoma (T1 bright, use fat saturation)
    • Myxoma (T2 bright, variable enhancement)
    • Lipomatous hypertrophy of the interatrial septum
  • Malignant (enhances)
    • Angiosarcoma
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
9
Q

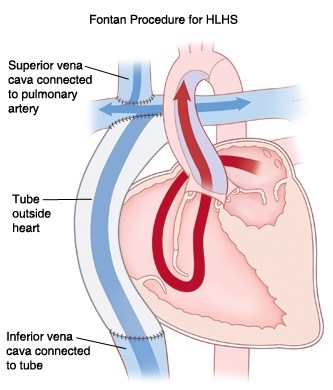

Fontan

A

Glenn + closure of ASD + shunt between right atrium to left PA

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
10
Q

What are the causes of post capilary hypertension?

3

3

A
  • Postcapillary HTN
    • Cardiac
      • LV failure
      • Mitral stenosis
      • LA myxoma
    • Pulmonary venous
      • Idiopathic venoocclusive disease
      • Thrombosis
      • tumour
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
11
Q

Congestive Heart Failure by age

  • Premature:
  • First week:
  • Second week:
  • Infant:
  • Child:
A

Congestive Heart Failure by age

  • Premature: PDA
  • First week: hypoplastic left heart syndrome (HLHS)
  • Second week: coarctation
  • Infant: VSD
  • Child: ASD
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
12
Q

aortic regurg has which of the following on Xray

  • Calcification
  • CHF
  • Left atrial enlargement
  • Left ventricular Enlargement
A

aortic regurg has which of the following on Xray

  • Calcification
  • CHF
  • Left atrial enlargement
  • Left ventricular Enlargement ++
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
13
Q

What are the causes of Abnormal Left Heart Contour?

Re:

  • Pressure overload
  • Volume overload
  • Wall Abnormalities
A
  • Abnormal Left Heart Contour
    • Pressure overload (normal heart size)
      • Aortic or mitral stenosis
      • Systemic HTN
      • Coarctation
    • Volume overload (large heart disease)
      • Mitral or aortic regurgitation
      • Shunts: ASD, VSD
      • High-output states
      • End-stage heart failure of any given cause
    • Wall abnormalities
      • Aneurysm, infarct
      • Cardiomyopathy
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
14
Q

ET tube placement

A

Endotracheal Tube (ET)

Inflated cuff should not bulge tracheal wall.

Tip of ET should be above the carina and below thoracic inlet:

Neutral neck: 4–6 cm above carina

Flexed neck: moves tip inferiorly by 2 cm

Extended neck: moves tip superiorly by 2 cm

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
15
Q

DDx for Atoll (Reverse halo)

A
  • Organizing pneumonia
  • fungal pneumonia
  • TB
  • Wegener’s
  • pulmonary infarct
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
16
Q

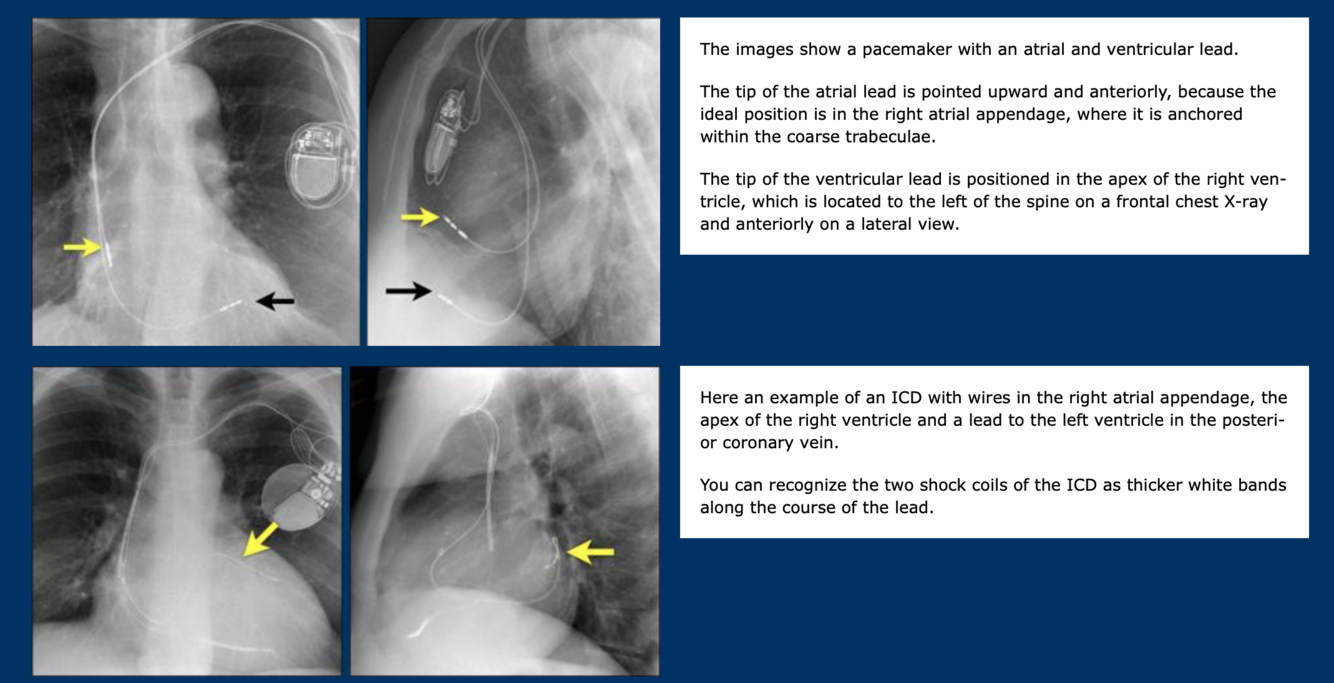

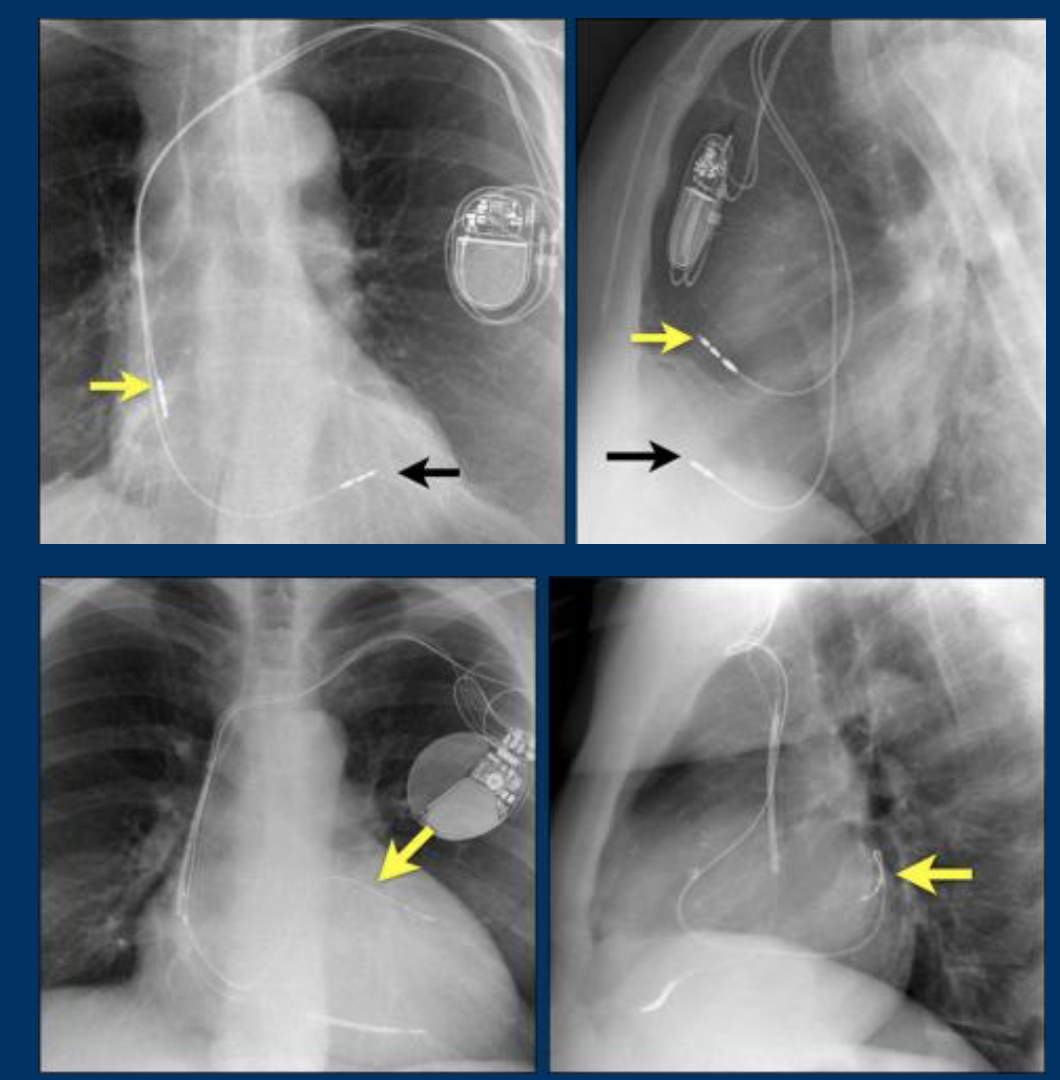

What devices are imaged?

Where are the leads placed?

A

1 PPM

2: Implantable cardioverter-defibrillator (ICD)

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
17
Q

How often is a right sided Aortic arch a/w Congenital heart disease?

What are the top 5 associatied Congenital Heart diseases?

A
  • Right AA and CHD
    • Associations
      • Right AAs are associated with CHD in 5%
        • TA, 35%
        • Tetralogy of Fallot, 30%
        • Pulmonary atresia with VSD, 20%
        • TGA, 5%
        • Tricuspid atresia, 5%
        • DORV
        • Pseudotruncus
        • Asplenia
        • Pink tetralogy
  • Right Aortic Arch. The aortic knob is not visible in its normal position on the left (redarrow). The knob (white arrow) and descending thoracic aorta (black arrows) are seen on the right. This patient did not have congenital heart disease.
  • http://learningradiology.com/notes/cardiacnotes/rightarchespage.htm
    http: //learningradiology.com/notes/cardiacnotes/rightarchespage.htm
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
18
Q

DDx of Pulmonary Edema in NewBorns

A
  • Cardiac
  • Edema + large heart:
    • hypoplastic RV or
  • LV edema + normal heart:
    • TAPVC below diaphragm
  • TTN
  • Pulmonary lymphangiectasia
  • Other rare CHD causing obstruction to pulmonary venous return:
    • Pulmonary vein atresia
    • Cor triatriatum
    • Supravalvular mitral ring
    • Parachute MV
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
19
Q

what does coronary dominance mean?

A

Dominance

  • This refers to the artery that ultimately supplies the diaphragmatic aspect of the interventricular septum (IVS) and the LV.
    • 85% of patients have right-sided dominance: RCA is larger than LCA and gives rise to the AV nodal artery.
    • 10% of patients have left-sided dominance: LCA is larger than RCA and gives rise to the AV nodal artery.
    • 5% of patients have a balanced coronary artery tree (codominant): two posterior descending arteries are present, one from the left circumflex and one from the rca
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
20
Q

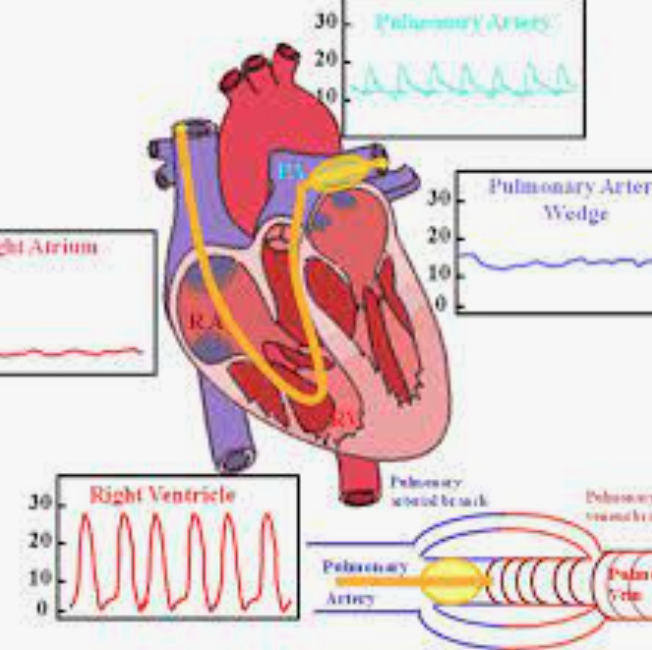

4 Complications of Swan Ganz Catheter placement

A

Complications

  • Pulmonary infarct
  • Pulmonary hemorrhage
  • PA pseudoaneurysm
  • Infection
  • aka
    • Swan-Ganz catheter (or ‘the yellow snake’)
  • USES
    • continuous cardiac output monitoring
    • central temperature monitoring
    • measurement of pulmonary artery pressure (can also measure RA and RV pressures during insertion)
    • measurement of mixed venous saturations
    • estimation of diastolic filling of left heart (normal PCWP 2-12mmHg)
  • Settings it is commonly used are:
    • right ventricular failure
    • pulmonary hypertension
    • weaning failure of cardiac origin
    • post-cardiac surgery

https://litfl.com/pulmonary-artery-catheter/

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
21
Q

most common location for bronchial atresia

A

apico-posterior segment of left upper lobe

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
22
Q

Aortic Stenosis has which of the following on Xray

  • Calcification
  • CHF
  • Left atrial enlargement
  • Left ventricular Enlargement
A

Aortic Stenosis has which of the following on Xray

  • Calcification +++
  • CHF
  • Left atrial enlargement
  • Left ventricular Enlargement
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
23
Q

ddx for small heart

A
  • Addison’s disease
  • cachectic state
  • constrictive pericarditis
How well did you know this?
1
Not at all
2
3
4
5
Perfectly
24
Q

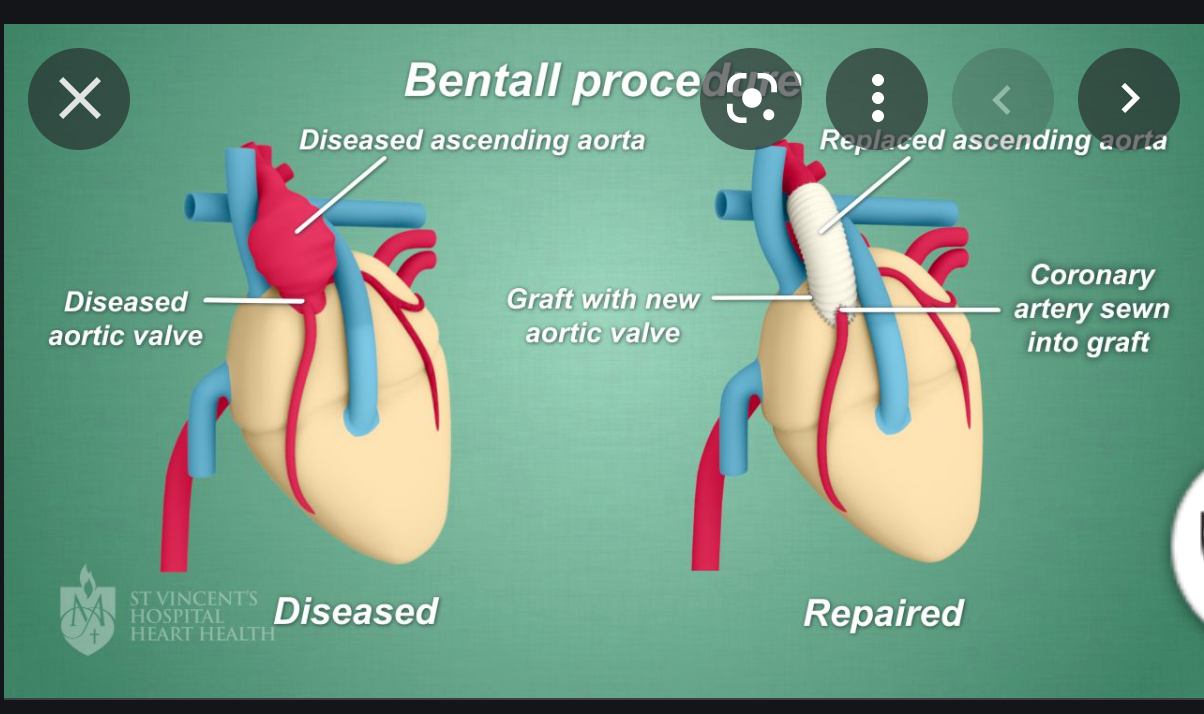

Bentall procedure

A

composite graft replacement of aortic valve, aortic root, and ascending aorta with re-implantation of coronary arteries into graft
- used to treat combined aortic valve and ascending aorta disease, including Marfans

How well did you know this?
1
Not at all
2
3
4
5
Perfectly
25
Vanishing lung syndrome
idiopathic cause of giant bullous emphysema, results from avascular necrosis of the lung parenchyma and hyper inflation - favors bilateral upper lobes - defined as bullous disease occupying at least 1/3 of a hemithorax - most common in young men
26
Hughes Stovin syndrome
- recurrent thrombophlebitis and pulmonary artery aneurysm formation and rupture
27

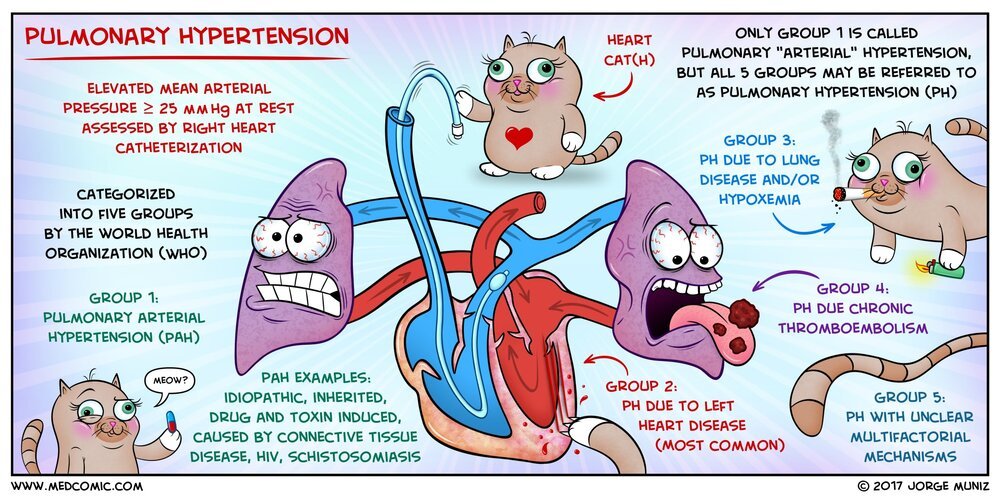

What are the causes of Precapilary Hypertenion?
Classification Precapillary HTN Vascular * Increased flow: L-R shunts * Chronic PE * Vasculitis * Drugs * Idiopathic Pulmonary * Emphysema * Interstitial fibrosis * Fibrothorax, chest wall deformities * Alveolar hypoventilation
28
What are the complications of ETT placement to look out for?
* Misplacement: atelectasis secondary to bronchial obstruction * Tracheomalacia occurs above cuff pressures of 25 cm H 2 O * Tracheal rupture; radiographic findings include: * Pneumothorax * Pneumomediastinum * Subcutaneous emphysema * Tracheal stenosis * Dislodged teeth * Laceration of nasooropharynx
29
What sign is this? 7 x ddx for this condition
7 x DDx Pericardial Effusion **WATER BOTTLE SIGN** * Transudate * CHF * AMI * Post Op * Autoimmune * Renal Failure * Infectious * Viral * Tumour * Pericardial Mets Case courtesy of Assoc Prof Frank Gaillard, Radiopaedia.org, rID: 7142
30
4 x ddx Pneumopericardium
Pneumopericardium * Iatrogenic (aspiration, puncture) * Cardiac surgery * Barotrauma * Fistula from bronchogenic or esophageal carcinoma
31
what is the problem here?
The correct and dislodged locations of the atrial lead tip are highlighted (blue circles). Case Discussion **A right atrial lead should show a J-shaped curve on the frontal radiograph (anterior and superior).** It is easy to diagnose a dislodged or misplaced catheter if you have an old study to compare. The cardiologist should be informed that the lead is dislodged. If no old study is available, then suggest this finding and recommend cardiology evaluation. Case courtesy of Dr Jayanth Keshavamurthy, Radiopaedia.org, rID: 37396
32
5 DDx of Subendocardial Delayed Myocardial Enhancement (MRI)
* Delayed Myocardial Enhancement (MRI) * **Subendocardial** * **Ischemic (coronary territory)** * **Amyloid (diffuse)** * **Cardiac transplant (diffuse)** * **Systemic sclerosis (diffuse)** * **Hypereosinophilic syndrome** * Mesocardial * Hypertrophic cardiomyopathy (CM) * Dilated CM * Chagas * Transmural * Ischemia * Myocarditis * Sarcoid * Subepicardial * Myocarditis * Sarcoid * Chagas * Nodular/patchy enhancement * Amyloid * Myocarditis * Sarcoid
33
what condition is pictured?
Twiddler's Syndrome Twiddler's syndrome is a malfunction of a pacemaker due to the patient's manipulation of the device and the subsequent dislodging of the leads. This results in malfunctioning of the pacemaker or sometimes stimulation of other structures like phrenic nerve or brachial plexus. Here a patient with a normally placed ICD on the left image. Months later there was malfunction due to ICD box and lead rotation (yellow arrow) and retraction (white arrow). https://radiologyassistant.nl/cardiovascular/devices/cardiovascular-devices#pacemakers
34
MNEMONIC How to assess cardiac disease on Chest Xray
* She sells Cheese around Paris, Come lets buy some * SSCeAPvCLBSt * Situs * Size * Chamber enlargement * Aorta * Pulmonary vasculature * Cacification * Lungs * Bones * Soft tissues
35
8 ddx Coronary Aneurysm
Coronary Aneurysm 1. Atherosclerotic 2. Congenital 3. Periarteritis nodosa 4. Kawasaki disease 5. Mycotic 6. Syphilis 7. Trauma 8. CABG (saphenous vein \> IMA)
36
What is the definition of Pulmonary venous Hypertension?
Pulmonary wedge \>12mmHg
37
7 causes of Superior rib notching
* Superior Rib Notching * Abnormal osteoclastic activity * Hyperparathyroidism (most common) * Idiopathic * Abnormal osteoblastic activity * Poliomyelitis * Collagen vascular diseases * rheumatoid arthritis, * systemic lupus erythematosus * Local pressure * Osteogenesis imperfecta
38
DDx of Cyanotic Heart Disease
* DDx of Cyanotic Heart Disease * Ask yourself the questions * *Normal or increased pulmonary vascularity?* * *Cardiomegaly?* * Increased vascularity * 5 T's * TGA (Most common) EGG ON A STRING * TA * Tricuspid Artresia * TAPVR (FIGURE 8/SNOW MAN) * Tingle Ventricle * Normal vascularity * Cardiomegaly * Epsteins (BOX SHAPED HEART) * No cardiomegaly * Fallot (BOOT SHAPED HEART) * Hypoplastic Right Heart
39
what makes up the Posterior cardiac margin on a lateral chest xray?
Posterior cardiac margin has two segments: * LV * Left atrium (LA)
40
What does volume overload cause in the heart? what are the main causes? What size is the heart?
* Volume overload causes DILATATION * Examples * regurgitation * shunts * heart size in increased
41
where should the NGT be placed? what are 2 complications?
* Nasogastric (NG) Tube placement * Tip with end holes should be located in stomach. * Complications * Placement in airway * Gastric and/or duodenal erosion
42
Radiographic Approach to Intensive Care Unit (ICU) Radiographs
Radiographic Approach to Intensive Care Unit (ICU) Radiographs 1. Patient data present? 2. Date and time of examination are essential to report 3. Postsurgical? If so, what type of surgery? 4. Appliances: intravascular, catheters, endotracheal tube, tubes, drains, etc. New appliances? Any catheters removed or repositioned? 5. Cardiac, mediastinal size and shape? 6. Pneumothorax present? 7. Lung disease: progression/regression? 8. Most important: any change from previous radiographs?
43
Ross procedure
- used for disease aortic valves in children - native pulmonary valve is used to replace the aortic valve - cyroperserved pulmonary valve homograft is used to replace pulmonary valve
44
What is an Agatson score?
Coronary Calcium Scoring CT examinations are performed without contrast agent administration and therefore display only calcified components of plaque at a fixed Kv of 120. Only appropriate in **asymptomatic patient for risk stratification** Agatston score is a semi-automated tool to calculate a score based on the extent of coronary artery calcification detected by an unenhanced low-dose CT scan, which is routinely performed in patients undergoing cardiac CT. Due to an extensive body of research, it allows for early risk stratification as patients with a **high Agatston score (\>160)** have an increased risk for a major adverse cardiac event (MACE) 2. Although it d**oes not allow for the assessment of soft non-calcified plaques, i**t has shown a good correlation with contrast-enhanced CT coronary angiography 1. **Method of calculation** The calculation is based on the weighted density score given to the highest attenuation value (HU) multiplied by the area of the calcification speck. **Density factor** 130-199 HU: 1 200-299 HU: 2 300-399 HU: 3 400+ HU: 4 **For example, if a calcified speck has a maximum attenuation value of 400 HU and occupies 8 sq mm area, then its calcium score will be 32.** **The score of every calcified speck is summed up to give the total calcium score.** **Grading of coronary artery disease (based on total calcium score)** no evidence of CAD: 0 calcium score minimal: 1-10 mild: 11-100 moderate: 101-400 severe: \>400
45
12 DDx of Cardiac Masses
Cardiac Masses 1. Malignancy * **Rhabdomyoma in infants (Tuberous sclerosis)** * **Rhabdomyosarcoma (kids)** * **Fibroma (Kids)** * Atrial Myxoma (L\>R) * Angiosarcoma * Papillary fibroelastoma * Lymphoma * Lipoma * Mets 2. Infection * VegetationThrombus 3. Cyst * Pericardial Cyst 4. Clot * Thrombus
46
6 Causes of Pulmonary Venous Hypertension
* Pulmonary Venous Hypertension * P wedge \>12 mm Hg * LV dysfunction * Ischemic heart disease: CAD * Valvular heart disease * CHD * Cardiomyopathy * LA * Cor triatriatum: stenosis of pulmonary veins at entrance to LA * LA myxoma
47
5 DDx of Left artial enlargement
* Mitral regurgitation: * LA and LV enlarged * Mitral stenosis: * LA enlarged, LV normal * Rheumatic heart disease * Atrial fibrillation * Papillary muscle rupture (MI)
48
What can mimic alpha 1 antitrypsin/ pan lobular emphysema
IV ritalin use
49
what is Eisenmenger Physiology what are 4 causes
* Eisenmenger Physiology * Chronic L-R shunt causes high pulmonary vascular resistance, which ultimately reverses the shunt (R-L shunt with cyanosis). * Causes * VSD * ASD * PDA * ECD
50
Rastelli procedure
- used to correct TGA, pulmonary outflow obstruction, or VSD - VSD used as the LVOT - baffle is placed in RV to divert flow as VSD to aorta - pulmonary valve is oversewn and conduit is inserted between RV and PA
51
Mitral Stenosis has which of the following on Xray * Calcification * CHF * Left atrial enlargement * Left ventricular Enlargement
* **Calcification +** * **CHF +** * **Left atrial enlargement +** * Left ventricular Enlargement
52
Ddx for perilymphatic nodules
- silicosis - sarcoidosis - lymphangitic spread of cancer
53
associations with PDA
- prematurity - Maternal rubella - cyanotic heart disease
54
Complications of Fontan?
- right atriomegaly and arrhythmia - plastic bronchitis https://www.frontiersin.org/files/Articles/627660/fped-08-627660-HTML/image\_m/fped-08-627660-g001.jpg
55
Which 2 types of congenital heart disease can occur with Normal Heart Size and Normal Lungs
CHD With Normal Heart Size and Normal Lungs * Coarctation * Tetralogy of Fallot
56
Where should the tip of a Swan Ganz Catheter be placed?
* Swan-Ganz Catheter * Tip should be located in left or right PA, within 1 cm of hilum. * There should be no loops in RA, RV (may cause arrhythmias). * Image 1 * Swan-Ganz catheter now lies in the left pulmonary artery. * Moderate bilateral effusions have developed, slightly larger on the right * Volume loss in the left lower lobe persists. * Image 2 * Suboptimal portable AP radiograph with cut-off of both apices (ICU patient). * Pulmonary artery catheter inserted via right IJV route, passing into the descending right pulmonary artery. The tip is positioned too far distally and ideally to be withdrawn a few centimetres. * ETT in good position. NGT tip projected over the mid thoracic spine and needs to be repositioned. * Left basal consolidation. * https://radiopaedia.org/cases/62236/studies/70400?lang=gb&referrer=%2Farticles%2Fpulmonary-artery-catheter%3Flang%3Dgb%23image\_list\_item\_41492130#findings
57
segments in the left lung
8 total upper lobe: apico-posterior, anterior lingula: superior, inferior lower lobe: superior, anteromedial basal, lateral, posterior
58
Blalock Taussig shunt
- classically done for TOF - shunt between sublcavian artery and pulmonary artery - done on opposite side of ortic arch - modified B-T shunt uses a Gortex shunt
59
What are the 4 segments of the left cardiac margin?
Left cardiac margin has four segments: 1. Aortic arch (AA) (more prominent with age) 2. Main pulmonary artery (PA) at level of left main stem bronchus 3. Left atrial appendage (may not be visible in normal hearts) 4. Left ventricle (LV) RV is usually not seen in frontal projection
60
3 Ddx of Subepicardial Delayed myocardial enhancemnt
3 Ddx of Subepicardial Delayed myocardial enhancemnt * Myocarditis * Sarcoid * Chagas
61
What does pressure overload cause in the heart? what are the main causes? What size is the heart?
* pressure overload causes HYPERTROPHY * Examples * Stenosis * Hypertension * Normal heart size
62
what is the appropriate position of Epicardial Pacing Wires?
Epicardial Pacing Wire ( Fig. 2.4 ) Wires are typically anchored in the anterior myocardium; some slack may be left in pericardium. Multiple wires may be present. Wires exit through anterior chest wall. https://radiopaedia.org/cases/retained-pacing-wire?lang=gb The retained pacing wire lies inside the red circle. Case Discussion Very difficult to identify retained piece of pacing wire from the time of the CABG. This is important to identify given the risks of entering the MRI magnet. Inverting films if often very helpful in identifying subtle metallic densities on plain radiograph
63
what is associated with horseshoe lung?
scimitar syndrome
64
What are the different types of Abdominal Situs?
* Abdominal situs * solitus * normal * Right - liver * left stomach * Inversus * Abnormal * Right - Stomach * Left - Liver * Ambiguous * Midline liver * midline stomach
65
Ddx for centrilobular nodules
- RB- ILD - infection - hypersensitivity pneumonitis
66
There are two types of cardiac conduction devices. What are they? What are the locations of common pacemaker wire positioning?
There are two types of cardiac conduction devices (CCD's): 1. Pacemakers that pace the heart during periods of bradycardia. 2. Inplantable cardioverter-defibrillators (ICD's) that are capable of defibrillating the heart to prevent cardiac arrest. Pacemakers can have leads, that pace: * **Right atrium** = **atrial appendage.** * **Right ventrical** = tip in **apex**. * **Left ventricle** = lead through the **coronary sinus** ends in **posterior cardiac vein,** * used for cardiac synchronization therapy in patients with bundle branch blocks. * **Epicardial** - placed **on ventricle** mainly used in cardiac surgery.
67
Mitral Regurgitation has which of the following on Xray * Calcification * CHF * Left atrial enlargement * Left ventricular Enlargement
Mitral Regurgitation has which of the following on Xray * Calcification * CHF * **Left atrial enlargement ++** * **Left ventricular Enlargement +** **Case courtesy of Dr Vincent Tatco, Radiopaedia.org, rID: 43190**
68
what are the 3 wall motion abnormalities?
* Hypokinesis * Akinesis * Dyskinesis
69
Williams Campbell syndrome
congenital cystic bronchiectasis from deficeincy of cartilage in 4th-6th order bronchi
70
* DDx of CHD by Age of Presentation * 0–2 days: 7 * 7–14 days: 4 * Infants: 2 * Adults: 1
* DDx of CHD by Age of Presentation * 0–2 days: * hypoplastic left heart * aortic atresia * 5 Ts * 7–14 days: * coarctation, * AS, * AVM, * endocardial fibroelastosis * Infants: * VSD * PDA * Adults: * ASD
71
differential for feeding vessel sign?
septic emboli hematogenous mets
72
what are 7 complications of Pacemaker placement?
Complications 1. Displacement of electrodes 2. Broken wires (rare with modern pacemakers) 3. Twiddler syndrome: rotation of pulse generator because of manipulation in a large pacemaker pocket 4. Perforation 5. Infection 6. Venous thrombosis, 7. vascular obstruction
73
DDx of MASSIVE Cardiomegally in a new born
* Box shaped heart (RIGHT ATRIAL ENLARGEMENT) * Ebstein anomaly * Uhl disease * focal or totoal absence of RV myocardium * Tricuspid atresia * Herniation of liver into pericardial sac * massive pericardial effusion Case courtesy of Dr Vincent Tatco, Radiopaedia.org, rID: 43277
74
6 Complications of intra-aortic balloon pump placement
Complications * CVA (position too high) * Renal or mesenteric ischemia (position too low) * Aortic dissection * Limb ischemia * Infection * Note initial positions of electrodes as they may migrate https://www.ahajournals.org/doi/10.1161/CIRCULATIONAHA.109.929810
75
What are the causes of Abnormal Right Heart Contour? Re: * Pressure overload * Volume overload * Wall Abnormalities
What are the causes of Abnormal Right Heart Contour? Re: * Pressure overload (normal heart size) * PS * Pulmonary Hypertension * Volume overload (large heart size) * PR * TR * ASD * VSD * high out put states * Wall Abnormalities * aneyrysm * infarct * cardiomyopathy * Uhl anomaly
76
What is the correct placement of a CVL? what should you always look for/rule out? what are 3 signs of impending catheter perforation?
* Central Venous Lines * Tip should end in the SVC below the anterior first rib. * Always rule out pneumothorax. * Left-sided course of the line is indicative of left-sided SVC draining into coronary sinus. * Signs of impending catheter perforation (hemothorax, pneumothorax) include: * Position of the tip against the vessel wall * Sharply curved catheter tip * Infection, thrombosis
77
most common pulmonary vein anatomy variant
separate vein draining the right middle lobe (30%)
78
ddx for CHF in newborn
- TAPVR (infracardiac) - congenital aortic or mitral stenosis - hypoplastic left heart - cor triatriatum - Infantile (pre-ductal) coarctation
79
* PAH * Primary PAH (young females, rare) * Secondary PAH * PA stenosis * Williams syndrome (infantile hypercalcemia) * Rubella syndrome * Takayasu disease * Associated with CHD (especially tetralogy of Fallot) * PA dilatation * Poststenotic jet * AVM: Osler-Weber-Rendu disease * Aneurysm cystic medial necrosis * Behçet syndrome * Takayasu disease
80
Holt Oram
hand/thumb defects +ASD
81
3 Ddx of **Transmural** Delayed myocardial enhancemnt
3 Ddx of **Transmural** Delayed myocardial enhancemnt * Ischemia * Myocarditis * Sarcoid
82
What population gets lung cancer screening CT?
asymptomatic age 55-80 30 pack year history currently smoke or quit within past 15 years
83
what spares the costophrenic angles?
- pleural plaques - LCH - hypersensitivity pneumonitis
84
What makes up the anterior cardiac margin on the lateral view?
Lateral View ( Fig. 2.2 ) Anterior cardiac margin has three segments: 1. Right ventricle (RV) is in apparent contact with sternum 2. Main PA 3. Ascending aorta
85
3 Ddx of Nodular/Patchy Delayed myocardial enhancemnt
3 Ddx of Nodular/Patchy Delayed myocardial enhancemnt * Amyolyoid * Sarcoid * Myocarditis
86
when is a superior sulcus tumor unresectable?
- involvement of brachial plexus above T1 - diaphragm paralysis (C3,4,5) - greater than 50% of vertebral body - distal nodes or mets
87
11 causes of Inferior Rib Notching
* Inferior Rib Notching * Aortic obstruction * Coarctation * IAA * SA obstruction * Blalock-Taussig shunt (upper two ribs) * Takayasu disease (unilateral) * Severely reduced pulmonary blood flow (very rare) * Tetralogy of Fallot * Pulmonary atresia * Ebstein anomaly * SVC obstruction * Vascular shunts * Arteriovenous malformation (AVM) of intercostals * Intercostal neuroma * Osseous abnormality (hyperparathyroidism) Case courtesy of Dr Abdallah Al Khateeb, Radiopaedia.org, rID: 43490
88
Glenn - Classic - Bi directional
Classic: SVC to Right pulmonary artery (end to end) bidirectional: shunt between SVC and right pulmonary artery (end to side); RPA is left open, letting blood flow to both lungs
89
Sano procedure
- same as norwood, but using conduit to connect right ventricle to pulmonary artery instead of a B-T shunt
90
Jatene procedure
- aorta and pulmonary trunk are transected at level of sinuses and switched so that LV becomes systemic ventricle - coronaries are removed and re-implanted to new aorta (PA) - no conduit used
91
What are the 5 causes of a small heart?
1. Normal variant (deep inspiration) 2. Addison disease 3. Anorexia nervosa/bulimia (case) 4. Dehydration 5. Severe chronic obstructive pulmonary disease Case courtesy of Dr Jayanth Keshavamurthy, Radiopaedia.org, rID: 47176
92
What is the ideal placement of a chest tube What are two complications?
Chest Tubes Side port (interruption of radiodense band) must be within thoracic cavity, otherwise there may be a leak. The tip of the tube should not abut the mediastinum. Complications * Residual pneumothorax * Side port outside the thoracic wall
93
5 indications for Cardiac CT
Currently, cardiac CT is used in the clinical setting for the following purposes: 1. To rule out CAD in patients with acute chest pain 2. Preoperative assessment of coronary arteries before cardiac surgery 3. Assessment of congenital malformation 4. Assessment of infective endocarditis 5. Pretranscatheter aortic and pulmonic valve replacement for device sizing and procedure planning
94
Segments in the right lung
10 total upper lobe: apical, posterior, anterior middle lobe: medial, lateral lower lobe: superior, anterior basal, lateral basal, medial basal, posterior basal
95
6 Skeletal Abnormalities and Heart Disease
* Skeletal Abnormalities and Heart Disease * Rib notching: * coarctation * Hypersegmented manubrium, 11 pairs of ribs: (CASE) * Down syndrome * Pectus excavatum: prolapsed MV * Marfan syndrome * Multiple sternal ossification centers: * cyanotic CHD * Bulging sternum: * large L-R shunt * Scoliosis: * Marfan syndrome * tetralogy of Fallot * Case courtesy of Dr Raj Sohawon, Radiopaedia.org, rID: 37385
96
Ddx of Acyannotic Heart Disease
* Increased Pulmonary vascularity * L to R shunt * LA enlargement (indicates shunt is not in the LA) * VSD (normal AA) * PDA (Prominent AA) * Normal LA * ASD * Endocardial Cusion defect * PAPVC and sinus venosus ASD
97
what is the definition of pulmomary arterial hypertension?
P Sys \> 30mmHg
98
What are 5 high output cardiac states?
1. Severe anemia 2. Peripheral AVM 3. Liver hemangioma 4. Thyrotoxicosis 5. Pregnancy
99
Ddx for random nodules
- miliary TB - mets - fungal infection
100
what is this?
Automatic implantable cardioverter defibrillators AICDs are common cardiac devices designed for both patient monitoring and therapy in case of ventricular tachycardia or fibrillation. AICDs consist of various combinations of sensing and shocking electrodes. They are frequently combined with a pacemaker as a bundled system for the patient, treating both the patient’s established arrhythmia and also acting as a fail-safe system should ventricular fibrillation or ventricular tachycardia occur. Some types of AICD have leads that are implanted in the subcutaneous soft tissues (i.e. outside the thoracic cavity) 5. **Pre-exchange CXR: There is fracture involving the insulation of the pacemaker lead** Case courtesy of Dr Jayanth Keshavamurthy, Radiopaedia.org, rID: 27694
RANZCR Part 2 Exam
flashcards
Decks in class (64)
# Cards
Brainscape helps you reach your goals faster, through stronger study habits.
© 2026 Bold Learning Solutions. Terms and Conditions
